Foton Ruiwo ADX Tech Edition 160hp 4X2(6 wheels) 5.7m Flatbed Cargo Truck

Export reference
From $24,306
MSRP ¥17.5M CNY
Horsepower: 160
Emission: China IV
Fuel: Diesel
Engine: Yuchai 4-cylinder
Transmission: Fast Gear
Curb Weight:: 5.72ton
seating capacity: 3Personnel
Rated payload: 6.09ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Foton Ruiwo ADX Tech Edition 160hp 4X2(6 wheels) 5.7m Flatbed Cargo Truck is a Medium-duty truck featuring 5.7m cargo length, stake body cargo body, 3Personnel volume and 6.09t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Yuchai 4-cylinder engine, 160 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ1122VFPHK-G1
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 4500mm
Box length class: 5.7m
engine: YuchaiYC4E160-42
transmission: Fast Gear10JSD120B
Rear Axle Ratio: 5.286
Cab length: 8.18m
Cab width: 2.4m
Cab height: 2.6m
Front track width: 1765mm
rear track: 1665mm
Curb Weight: 5.72ton
Rated payload: 6.09ton
GVWR: 12.005ton
Max. speed: 80km/h
Origin: Shandong Zhucheng
tonnage class: Medium-duty truck
market segment: Building materials, agricultural products
Remarks: Optional new front fascia trim and bumper and front lamps; optional flat roof and flat roof with deflector. Protection material is Q235A, connected by bolts. Rear underrun protection cross-section dimensions: 100×50mm.
Version: Tech Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4E160-42
Engine info: Yuchai 4-cylinder
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.26L
Emission standard: China IV
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 550N·m
Max torque speed: 1300-1600rpm
Rated speed: 2600rpm
Engine Type: Vertical, inline 4-cylinder, water-cooled, 4-stroke, electronic direct injection
Transmission Parameters
Transmission Model: Fast Gear10JSD120B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: stake body
Cargo box length: 5.7m
Cargo box width: 2.3m
Cargo box height: 0.6m
*Cargo box interior width: 2.2999999523163
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle description: 3.6T
Front axle allowable load: 4550kg
rear axle description: 8T
rear axle allowable load: 7450kg
Axle ratio: 5.286
Leaf spring count: 9/9+7,9/11+10,8/10+8
Tire
Tire Size: 8.25-20 16PR,8.25R20 16PR,9.00-20 14PR,9.00R20 14PR
Number of tires: 6pcs

Photos

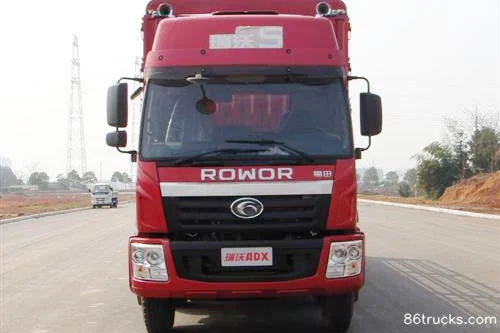

Exterior1

1 photos

FAQ

What is the export price of Foton Ruiwo ADX Tech Edition 160hp 4X2(6 wheels) 5.7m Flatbed Cargo Truck, and what does it include?

Foton Ruiwo ADX Tech Edition 160hp 4X2(6 wheels) 5.7m Flatbed Cargo Truck export reference is about From $24,306; MSRP is ¥17.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Ruiwo ADX Tech Edition 160hp 4X2(6 wheels) 5.7m Flatbed Cargo Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Ruiwo ADX Tech Edition 160hp 4X2(6 wheels) 5.7m Flatbed Cargo Truck?

Key specs of Foton Ruiwo ADX Tech Edition 160hp 4X2(6 wheels) 5.7m Flatbed Cargo Truck: Drive: 4x2; Horsepower: 160 hp; Emission: China IV; Fuel: Diesel; Engine: Yuchai 4-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Ruiwo ADX Tech Edition 160hp 4X2(6 wheels) 5.7m Flatbed Cargo Truck suited for?

Foton Ruiwo ADX Tech Edition 160hp 4X2(6 wheels) 5.7m Flatbed Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Ruiwo ADX Tech Edition 160hp 4X2(6 wheels) 5.7m Flatbed Cargo Truck differ from other variants in the same series?

Foton Ruiwo ADX Tech Edition 160hp 4X2(6 wheels) 5.7m Flatbed Cargo Truck belongs to FotonQ5 (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Ruiwo ADX Tech Edition 160hp 4X2(6 wheels) 5.7m Flatbed Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Ruiwo ADX Tech Edition 160hp 4X2(6 wheels) 5.7m Flatbed Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
