FAW Jiefang J6M Heavy Truck 2013 Model 240 hp 6X2(8 wheels) 9.5m Flat Side Cargo Truck

Export reference
MSRP N/A
Horsepower: 240
Emission: China IV
Fuel: Diesel
Engine: Dachai7.2L
Transmission: FAW Jiefang
Curb Weight:: 9.5ton
seating capacity: 2Personnel
Rated payload: 15.37ton
Drive 6X2 (8 wheels)
Cargo box type: stake body

Overview

The FAW Jiefang J6M Heavy Truck 2013 Model 240 hp 6X2(8 wheels) 9.5m Flat Side Cargo Truck is a Heavy-duty cargo trucks featuring 9.5m cargo length, stake body cargo body, 2Personnel volume and 15.37t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Dachai7.2L engine, 240 hp, 6X2 (8 wheels) drive and China IV emissions.

China IV 240 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA1250P63K1L6T3E4
Type: Cargo Trucks
Drive type: 6X2
Wheelbase: 1950+5600mm
Box length class: 9.5m
engine: DachaiBF6M1013-24E4
transmission: FAW JiefangCA10TA130M
Rear Axle Ratio: 4.111
Cab length: 11.995m
Cab width: 2.5m
Cab height: 2.97m
Front track width: 1950/1950mm
rear track: 1847mm
Curb Weight: 9.5ton
Rated payload: 15.37ton
GVWR: 25ton
Max. speed: 99km/h
Origin: Changchun, Jilin
tonnage class: Heavy-duty cargo trucks
Approach angle: 21°
departure angle:
market segment: Building materials, agricultural products
Remarks: Optional ratio 4.444; 2013 J6M semi-floating flat-top small half-row cab, LCD instrument cluster, power windows, manual mirrors, driver air-suspension seat. Auto A/C, 600L aluminum fuel tank, iron bumper, high-efficiency single air filter, aluminum radiator, rear two-point coil spring cab mount, manual hydraulic lift, front less/rear more suspension, optional 300L fuel tank, CA10TAX130M overdrive transmission, rear axle ratio 4.444,
Front/rear suspension: 1.4/3.045m
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: DachaiBF6M1013-24E4
Engine info: Dachai7.2L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 7.146L
Emission standard: China IV
Max output power: 180kW
Max hp: 240Horsepower
Max torque: 770N·m
Max torque speed: 1400rpm
Rated speed: 2300rpm
Engine Type: Electronically controlled
Technology route: Electronically controlled
Transmission Parameters
Transmission Model: FAW JiefangCA10TA130M
Transmission Brand: FAW Jiefang
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: stake body
Cargo box length: 9.5m
Cargo box width: 2.4m
Cargo box height: 0.6m
*Cargo box interior width: 2.4000000953674
Cab parameters
Cab: Flat roof
seating capacity: 2Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 600L
Chassis Specs
Front axle description: Axle 1950 front axle
Front axle allowable load: 6650/6850kg
rear axle description: Axle Ф457 bridge (manual adjust arm)
rear axle allowable load: 11500kg
Axle ratio: 4.111
Leaf spring count: 3/3/10+9
Tire
Tire Size: 10.00R20
Number of tires: 8pcs
Control configuration
ABS:

Photos

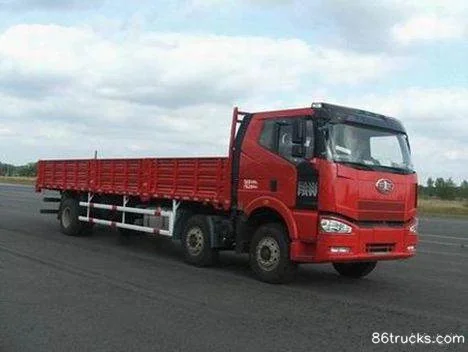

Exterior1

1 photos

FAQ

What emission standard does FAW Jiefang J6M Heavy Truck 2013 Model 240 hp 6X2(8 wheels) 9.5m Flat Side Cargo Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang J6M Heavy Truck 2013 Model 240 hp 6X2(8 wheels) 9.5m Flat Side Cargo Truck?

Key specs of FAW Jiefang J6M Heavy Truck 2013 Model 240 hp 6X2(8 wheels) 9.5m Flat Side Cargo Truck: Drive: 6x2; Horsepower: 240 hp; Emission: China IV; Fuel: Diesel; Engine: Dachai7.2L; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J6M Heavy Truck 2013 Model 240 hp 6X2(8 wheels) 9.5m Flat Side Cargo Truck suited for?

FAW Jiefang J6M Heavy Truck 2013 Model 240 hp 6X2(8 wheels) 9.5m Flat Side Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang J6M Heavy Truck 2013 Model 240 hp 6X2(8 wheels) 9.5m Flat Side Cargo Truck differ from other variants in the same series?

FAW Jiefang J6M Heavy Truck 2013 Model 240 hp 6X2(8 wheels) 9.5m Flat Side Cargo Truck belongs to FAW Jiefang J6M Near-Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J6M Heavy Truck 2013 Model 240 hp 6X2(8 wheels) 9.5m Flat Side Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J6M Heavy Truck 2013 Model 240 hp 6X2(8 wheels) 9.5m Flat Side Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
