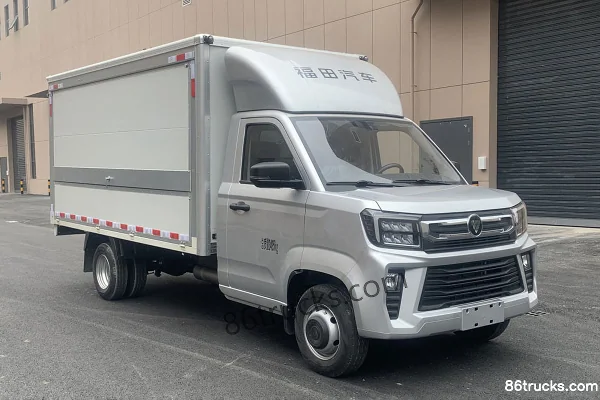

FotonV5 1.6L Gasoline 120hp 4X2(6 wheels) Dongan 5-speed 3.4m Single Row Wing Opening Van Micro Truck

Export reference
From $8,722
MSRP ¥6.28M CNY
Horsepower: 120
Emission: China VI
Fuel: gasoline
Engine: Dongan1.6L
Transmission: Dongan
Curb Weight:: 1.97ton
seating capacity: 2Personnel
Rated payload: 1.395ton
Drive 4X2 (6 wheels)
Cargo box type: Wing Van

Overview

The FotonV5 1.6L Gasoline 120hp 4X2(6 wheels) Dongan 5-speed 3.4m Single Row Wing Opening Van Micro Truck is a mini truck featuring 3.4m cargo length, Wing Van cargo body, 2Personnel volume and 1.395t payload. On the powertrain side, it comes with a Dongan1.6L engine, 120 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 120 gasoline 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5030XYK4JV7-80
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3400mm
Box length class: 3.4m
engine: DonganDAM16NVA
transmission: DonganDAT18R
Rear Axle Ratio: 5.375
Cab length: 5.64m
Cab width: 1.93m
Cab height: 2.67m
Front track width: 1580mm
rear track: 1430mm
Curb Weight: 1.97ton
Rated payload: 1.395ton
GVWR: 3.495ton
Max. speed: 110km/h
Origin: Shandong Zhucheng
tonnage class: mini truck
Approach angle: 30°
departure angle: 17°
Front/rear suspension: 0.685/1.555m
Energy Type: gasoline
Engine parameters
Engine Brand: Dongan
Engine Model: DAM16NVA
Engine info: Dongan1.6L
Number of cylinders: 4cylinder
fuel type: gasoline
Cylinder arrangement: Inline
Displacement: 1.599L
Emission standard: China VI
Max output power: 88kW
Max hp: 120Horsepower
Transmission Parameters
Transmission Model: DAT18R
Transmission Brand: Dongan
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Wing Van
Cargo box length: 3.4m
Cargo box width: 1.82m
Cargo box height: 1.75m
Cab parameters
Cab width: 1810mm
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1095kg
rear axle description: BJ102
rear axle allowable load: 2400kg
Axle ratio: 5.375
Leaf spring count: -/5+2
Tire
Tire Size: 185R14LT 6PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Multimedia features
External audio input (AUX/USB/iPod etc.):
lighting configuration
daytime running lights:
Service brake
Brake Type: Hydraulic brake
Parking brake: parking brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):
Tire Pressure Monitoring System (TPMS):

Photos

0 photos

FAQ

What is the export price of FotonV5 1.6L Gasoline 120hp 4X2(6 wheels) Dongan 5-speed 3.4m Single Row Wing Opening Van Micro Truck, and what does it include?

FotonV5 1.6L Gasoline 120hp 4X2(6 wheels) Dongan 5-speed 3.4m Single Row Wing Opening Van Micro Truck export reference is about From $8,722; MSRP is ¥6.28M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FotonV5 1.6L Gasoline 120hp 4X2(6 wheels) Dongan 5-speed 3.4m Single Row Wing Opening Van Micro Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FotonV5 1.6L Gasoline 120hp 4X2(6 wheels) Dongan 5-speed 3.4m Single Row Wing Opening Van Micro Truck?

Key specs of FotonV5 1.6L Gasoline 120hp 4X2(6 wheels) Dongan 5-speed 3.4m Single Row Wing Opening Van Micro Truck: Drive: 4x2; Horsepower: 120 hp; Emission: China VI; Fuel: gasoline; Engine: Dongan1.6L; Transmission: Dongan. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FotonV5 1.6L Gasoline 120hp 4X2(6 wheels) Dongan 5-speed 3.4m Single Row Wing Opening Van Micro Truck suited for?

FotonV5 1.6L Gasoline 120hp 4X2(6 wheels) Dongan 5-speed 3.4m Single Row Wing Opening Van Micro Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FotonV5 1.6L Gasoline 120hp 4X2(6 wheels) Dongan 5-speed 3.4m Single Row Wing Opening Van Micro Truck differ from other variants in the same series?

FotonV5 1.6L Gasoline 120hp 4X2(6 wheels) Dongan 5-speed 3.4m Single Row Wing Opening Van Micro Truck belongs to Foton Xiangling V5 Mini Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FotonV5 1.6L Gasoline 120hp 4X2(6 wheels) Dongan 5-speed 3.4m Single Row Wing Opening Van Micro Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FotonV5 1.6L Gasoline 120hp 4X2(6 wheels) Dongan 5-speed 3.4m Single Row Wing Opening Van Micro Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
