SHACMAN Delong X5000 Lightweight Edition 490hp 6X4(10 wheels) Tractor Truck (12-Speed)

Export reference
MSRP N/A
Fuel: Diesel
Gross Trailer Weight:: 40ton
Wheelbase:: 3175+1400mm
Tire Size:: 12R22.5 18PR
Front axle allowable load:: 7000kg
Displacement:: 11.596L
Drive 6X4 (10 wheels)
Horsepower 490
Emission China V
Transmission Fast Gear

Overview

The SHACMAN Delong X5000 Lightweight Edition 490hp 6X4(10 wheels) Tractor Truck (12-Speed) is a Heavy truck featuring 6X4 (10 wheels) drive, 490 hp, 25t GVW and China V emissions. Its segment focus covers Coal transport, matching those duty cycles. On the powertrain side, it comes with a WeichaiWP12.490E501 engine, Fast Gear transmission and Diesel fuel.

China V 490 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX4250XC4Q4
Drive type: 6X4
Wheelbase: 3175+1400mm
engine: WeichaiWP12.490E501
transmission: Fast GearS12MO
Rear Axle Ratio: 3.7
Cab length: 7.05m
Cab width: 2.55m
Cab height: 3.98m
Front track width: 2070mm
Gross Trailer Weight: 40ton
rear track: 1860/1860mm
Curb Weight: 8.87ton
GVWR: 25ton
Max. speed: 120km/h
Origin: Xi'an, Shaanxi
tonnage class: Heavy truck
market segment: Coal transport
Remarks: Extended high-roof cab with top side deflectors, side tool box, fiberglass bumper, three-piece integrated mudguards, Tianxingjian Zhixing Edition, 180Ah maintenance-free battery, steering axle tire blowout emergency device
Version: Lightweight version
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP12.490E501
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 11.596L
Emission standard: China V
Max output power: 360kW
Max hp: 490Horsepower
Rated speed: 1900rpm
Technology route: Common Rail SCR
Transmission Parameters
Transmission Model: Fast GearS12MO
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
fuel tank
Fuel tank/air tank material: aluminum alloy
Fuel tank capacity: 730L
Cab parameters
Cab: High roof
Cab suspension: Four-point air suspension
Cab tilting: Manual
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Fifth wheel: 50#
Front axle allowable load: 7000kg
Frame Dimensions: (940-850)×270(single 8)mm
rear axle description: 11.5T MAN single reduction axle
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 3.7
Leaf spring count: 2/3
Aluminum wheels:
Suspension (front/rear): Front and rear leaf springs (few)
Tire
Tire Size: 12R22.5 18PR
Number of tires: 10pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Electric Heated Rearview Mirror:
smart configuration
Tire Pressure Monitoring System (TPMS):

Photos

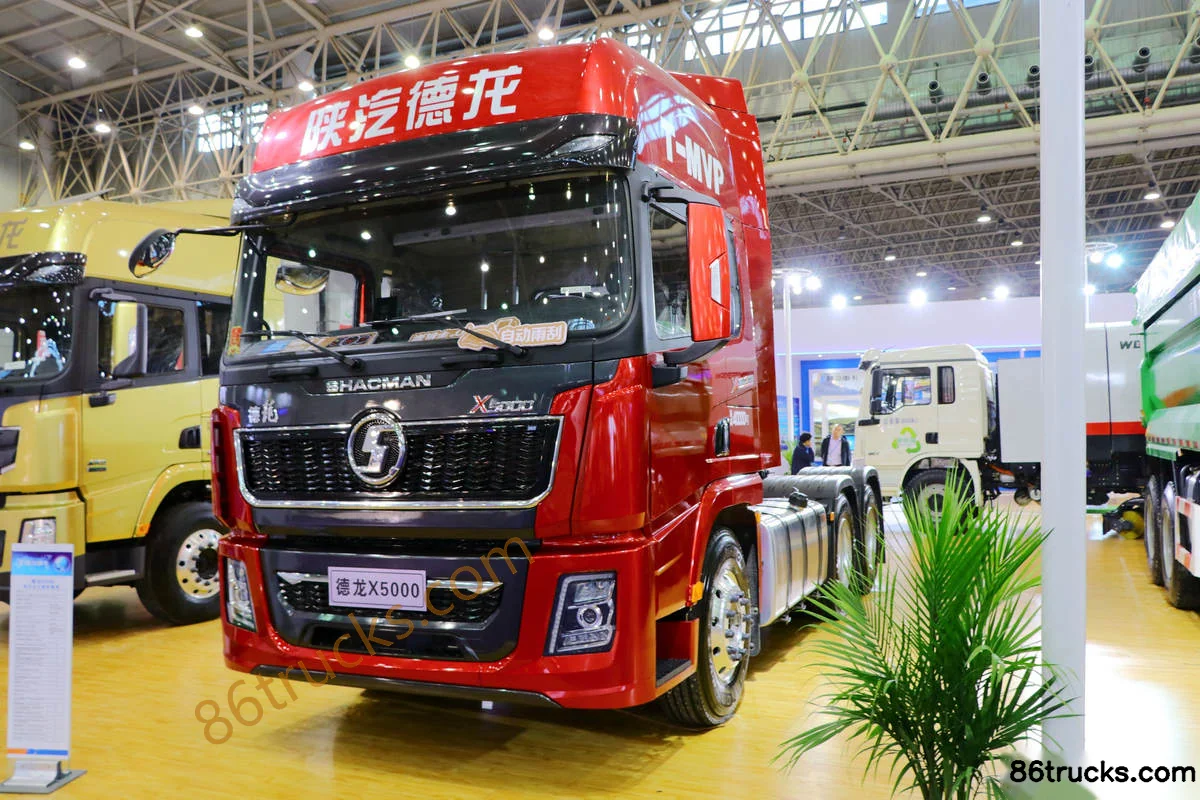

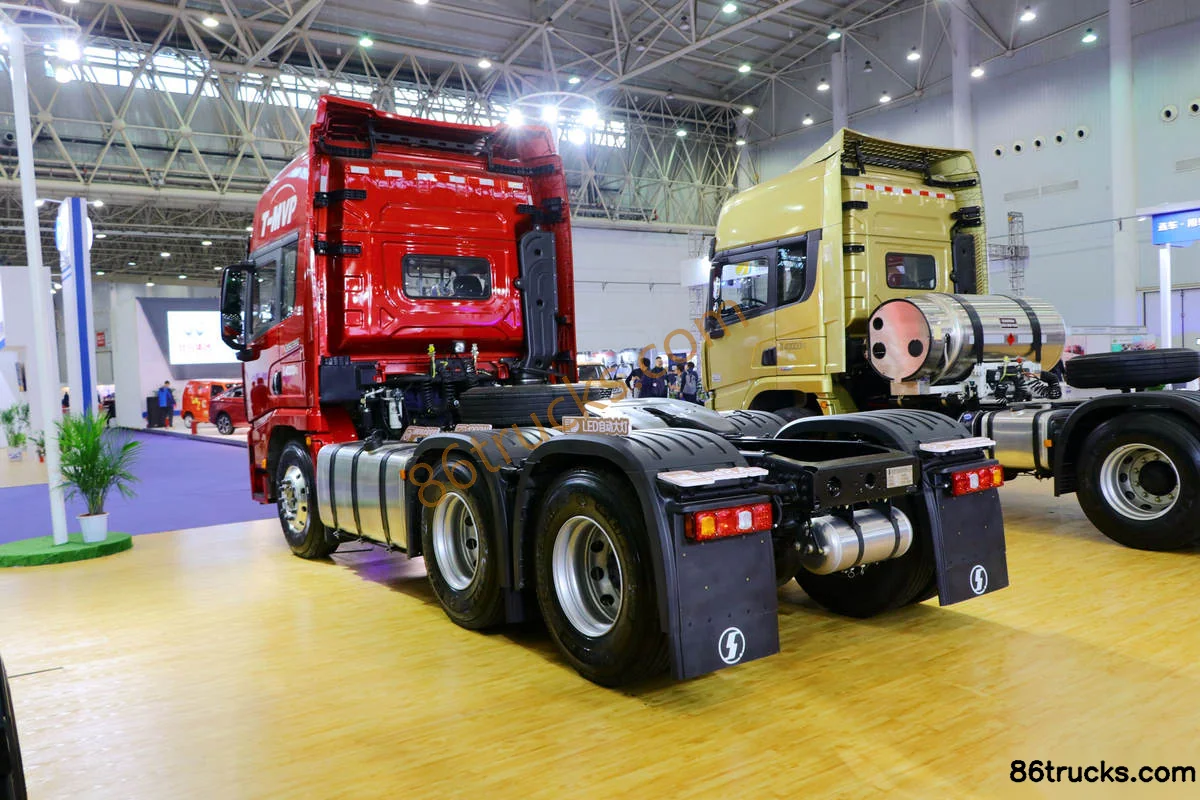

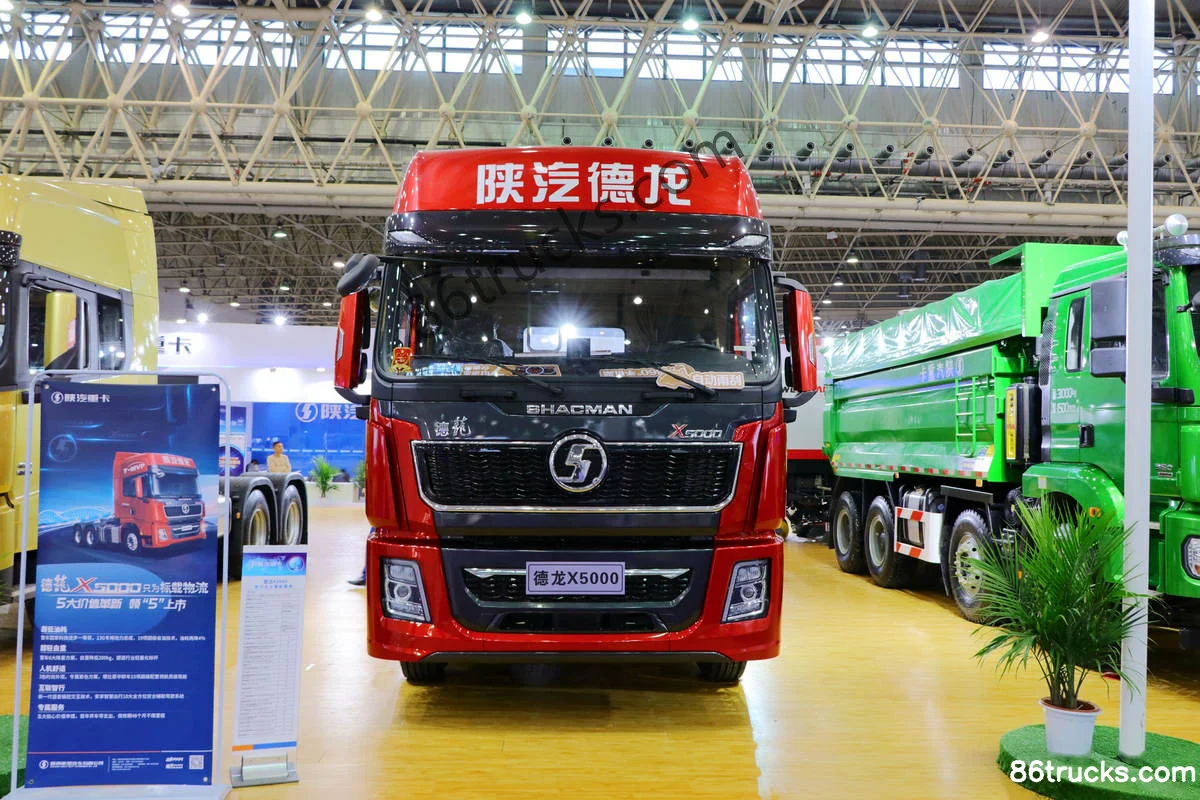

Exterior3

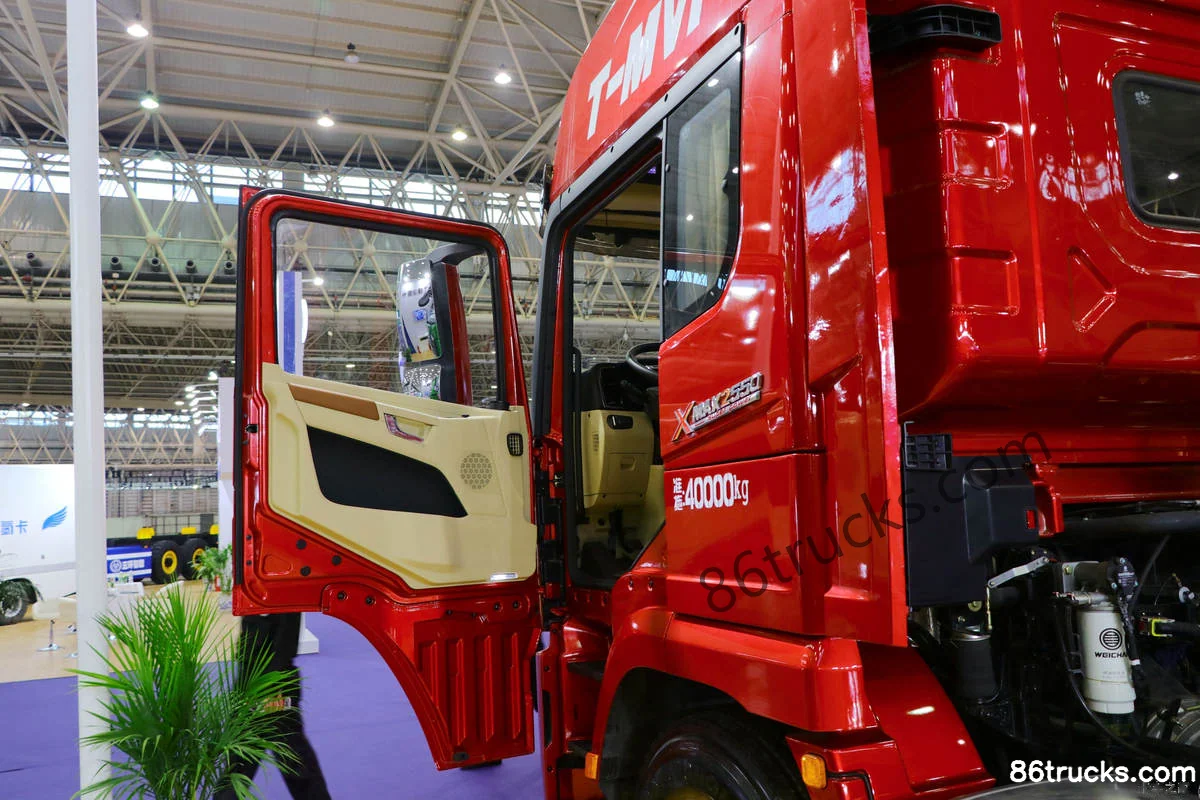

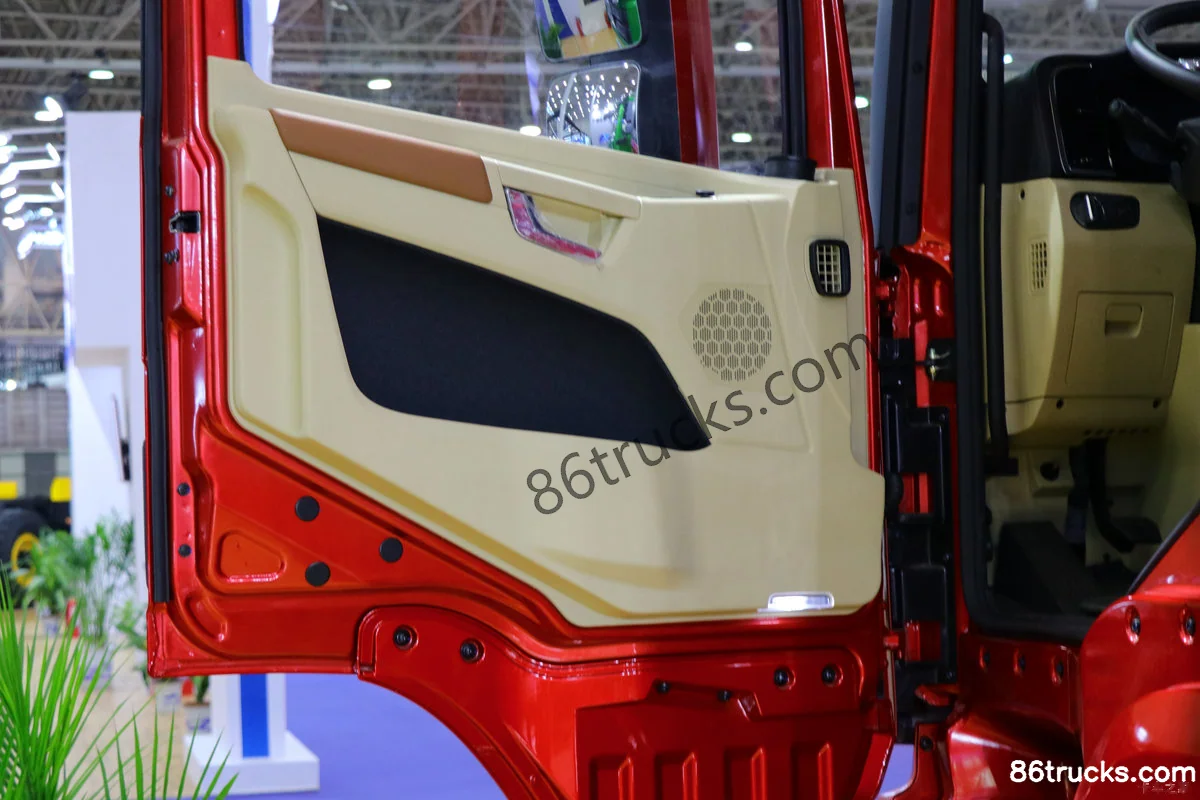

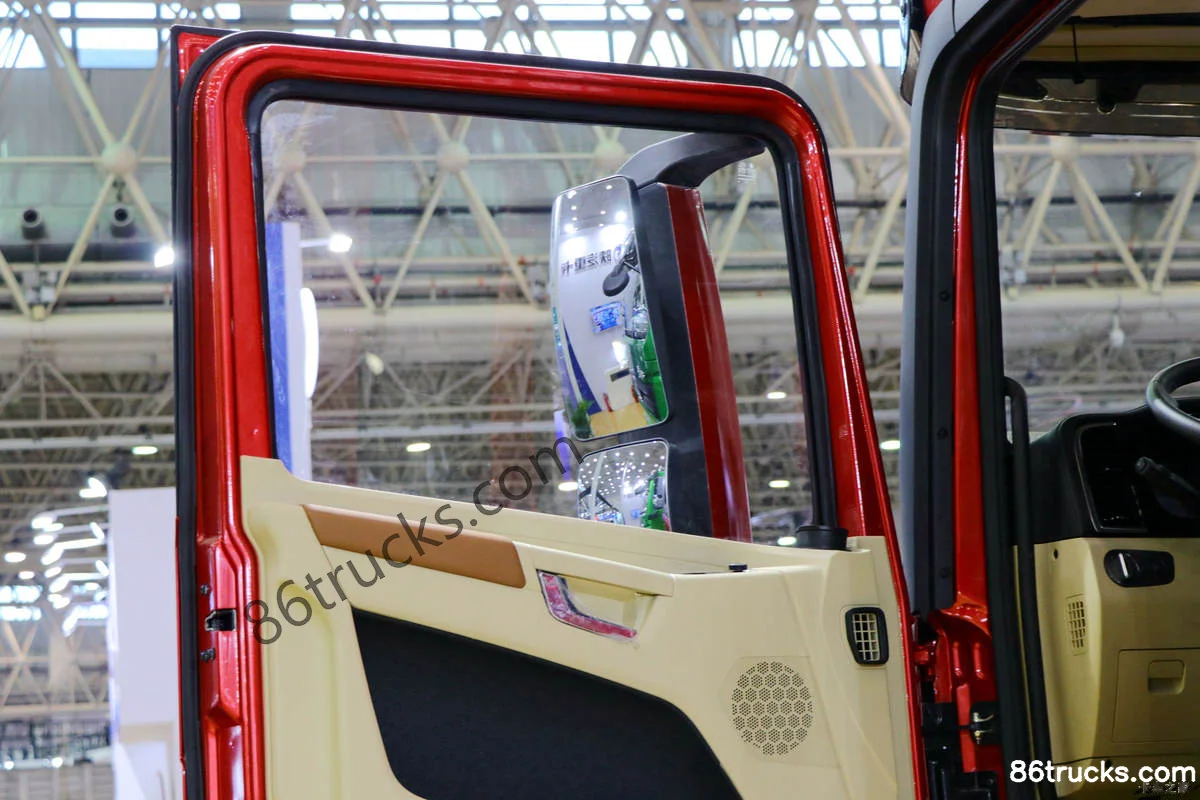

Cab3

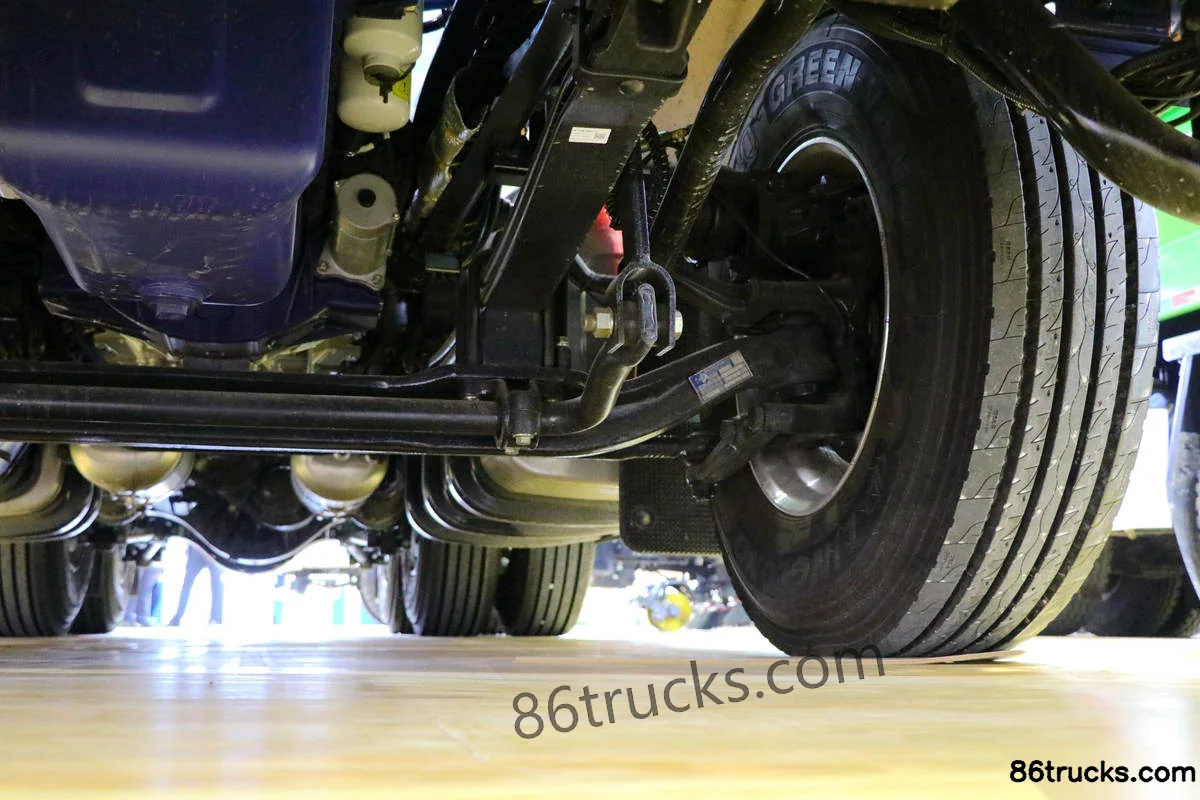

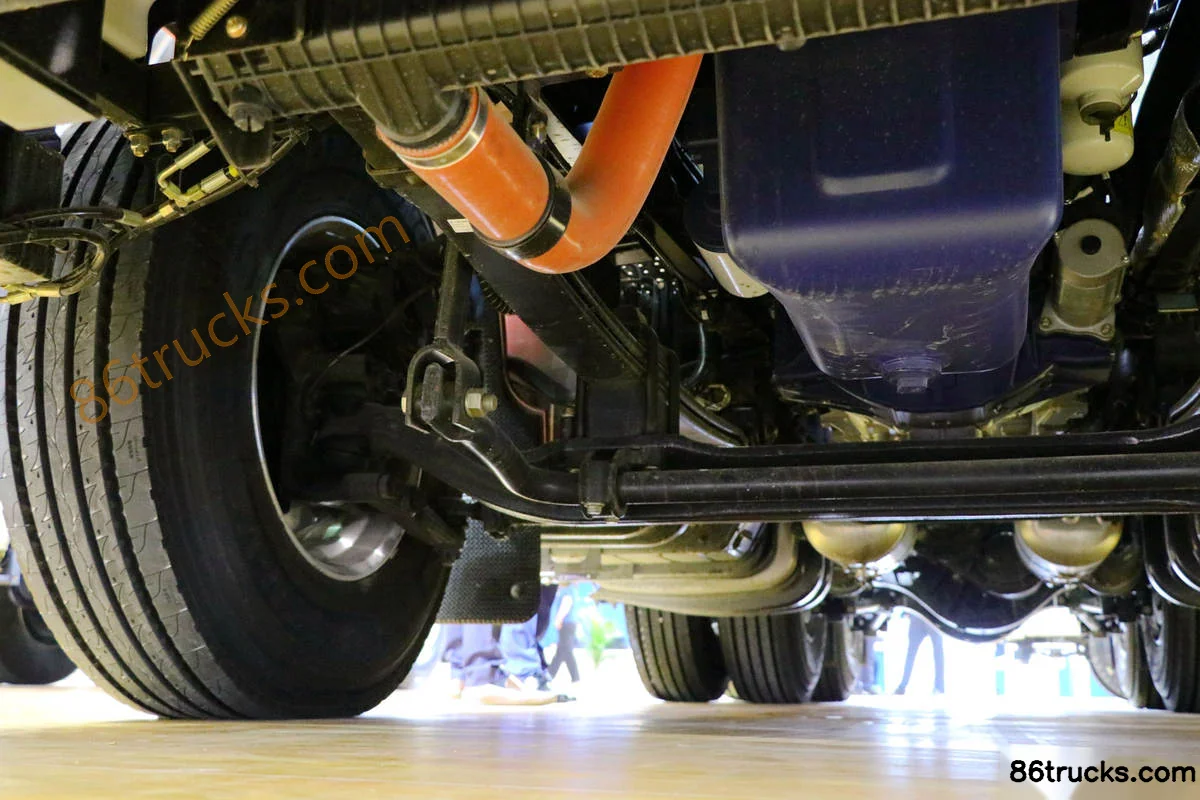

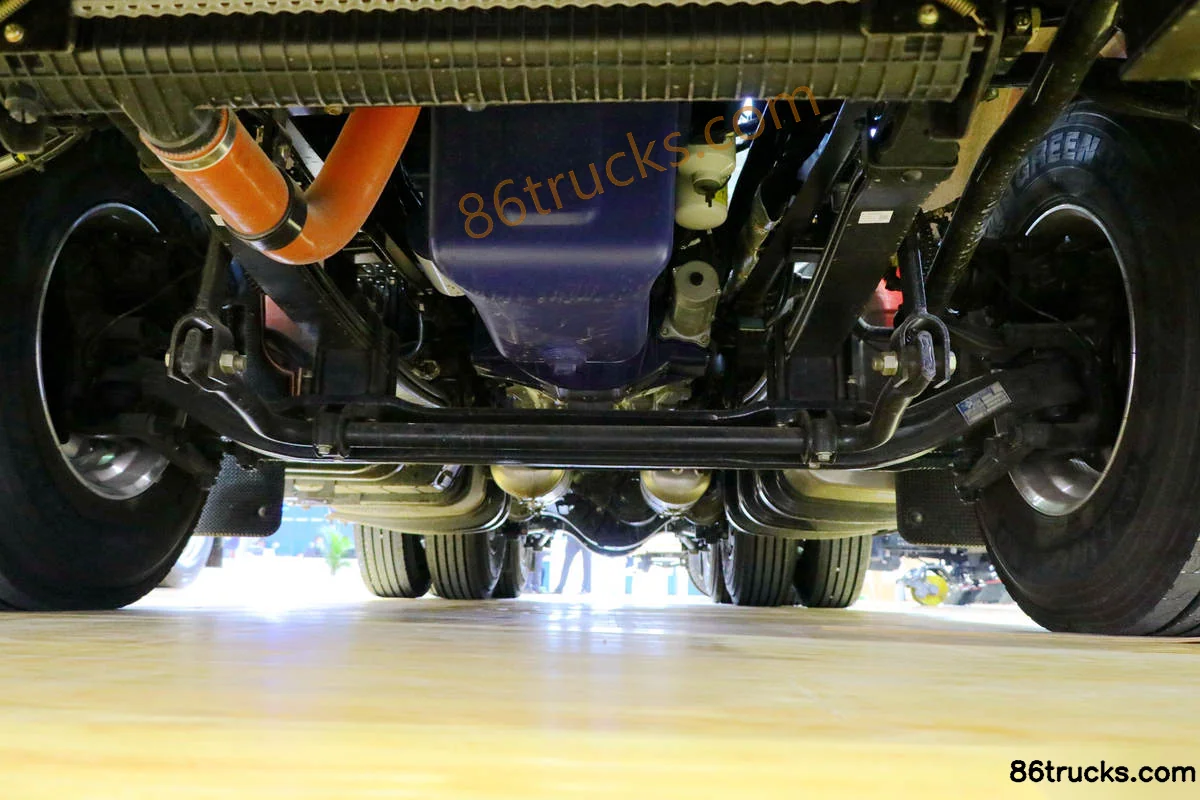

Chassis3

9 photos

FAQ

What emission standard does SHACMAN Delong X5000 Lightweight Edition 490hp 6X4(10 wheels) Tractor Truck (12-Speed) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Delong X5000 Lightweight Edition 490hp 6X4(10 wheels) Tractor Truck (12-Speed)?

Key specs of SHACMAN Delong X5000 Lightweight Edition 490hp 6X4(10 wheels) Tractor Truck (12-Speed): Drive: 6x4; Horsepower: 490 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong X5000 Lightweight Edition 490hp 6X4(10 wheels) Tractor Truck (12-Speed) suited for?

SHACMAN Delong X5000 Lightweight Edition 490hp 6X4(10 wheels) Tractor Truck (12-Speed) is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does SHACMAN Delong X5000 Lightweight Edition 490hp 6X4(10 wheels) Tractor Truck (12-Speed) differ from other variants in the same series?

SHACMAN Delong X5000 Lightweight Edition 490hp 6X4(10 wheels) Tractor Truck (12-Speed) belongs to SHACMAN Delong X5000 (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong X5000 Lightweight Edition 490hp 6X4(10 wheels) Tractor Truck (12-Speed)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong X5000 Lightweight Edition 490hp 6X4(10 wheels) Tractor Truck (12-Speed)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
