JAC Kangling K5 120 hp 4X2(6 wheels) single-row flatbed light truck (China V)

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Engine: JAC2.8L
Transmission: Xingrui
Curb Weight:: 2.51ton
Wheelbase:: 3308mm
seating capacity: 2Personnel
Drive 4X2 (6 wheels)
Cargo box type: stake body
Horsepower 120

Overview

The JAC Kangling K5 120 hp 4X2(6 wheels) single-row flatbed light truck (China V) is a Light Truck featuring stake body cargo body, 2Personnel volume and 3308mm wheelbase. On the powertrain side, it comes with a JAC2.8L engine, 120 hp, 4X2 (6 wheels) drive and China V emissions.

China V 120 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3308mm
engine: JACHFC4DA1-2D
transmission: Xingrui LC5T28
Cab length: 5.995m
Cab width: 1.84m
Cab height: 2.24m
Front track width: 1440mm
rear track: 1395mm
Curb Weight: 2.51ton
Max. speed: 110km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Energy Type: Diesel
Engine parameters
Engine Brand: JAC
Engine Model: JACHFC4DA1-2D
Engine info: JAC2.8L
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.771L
Emission standard: China V
Max output power: 88kW
Max hp: 120Horsepower
Max torque: 285N·m
Max torque speed: 1800-2200rpm
Rated speed: 3200rpm
Engine Type: Electronically controlled strong-cooling EGR
Transmission Parameters
Transmission Model: Xingrui LC5T28
Transmission Brand: Xingrui
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
rear axle description: 2430
Leaf spring count: 3/9+7
Tire
Tire Size: 6.50R16
Number of tires: 6pcs

Photos

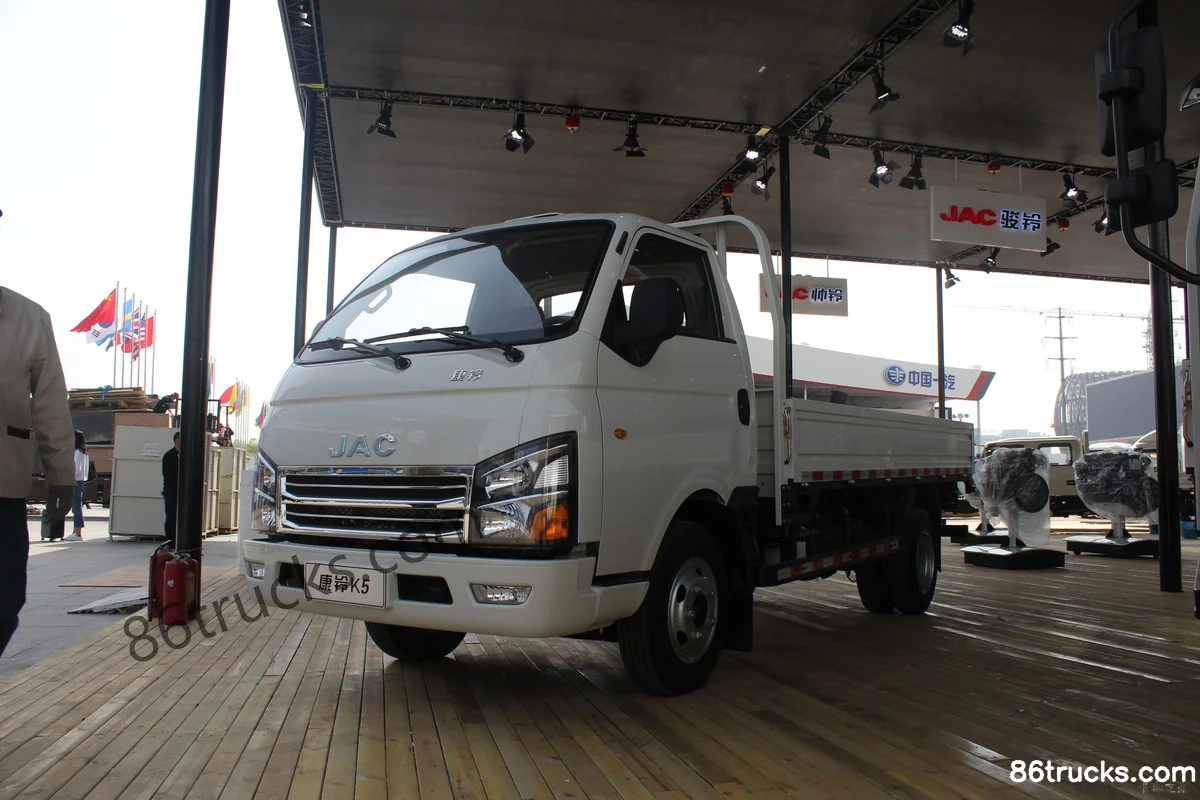

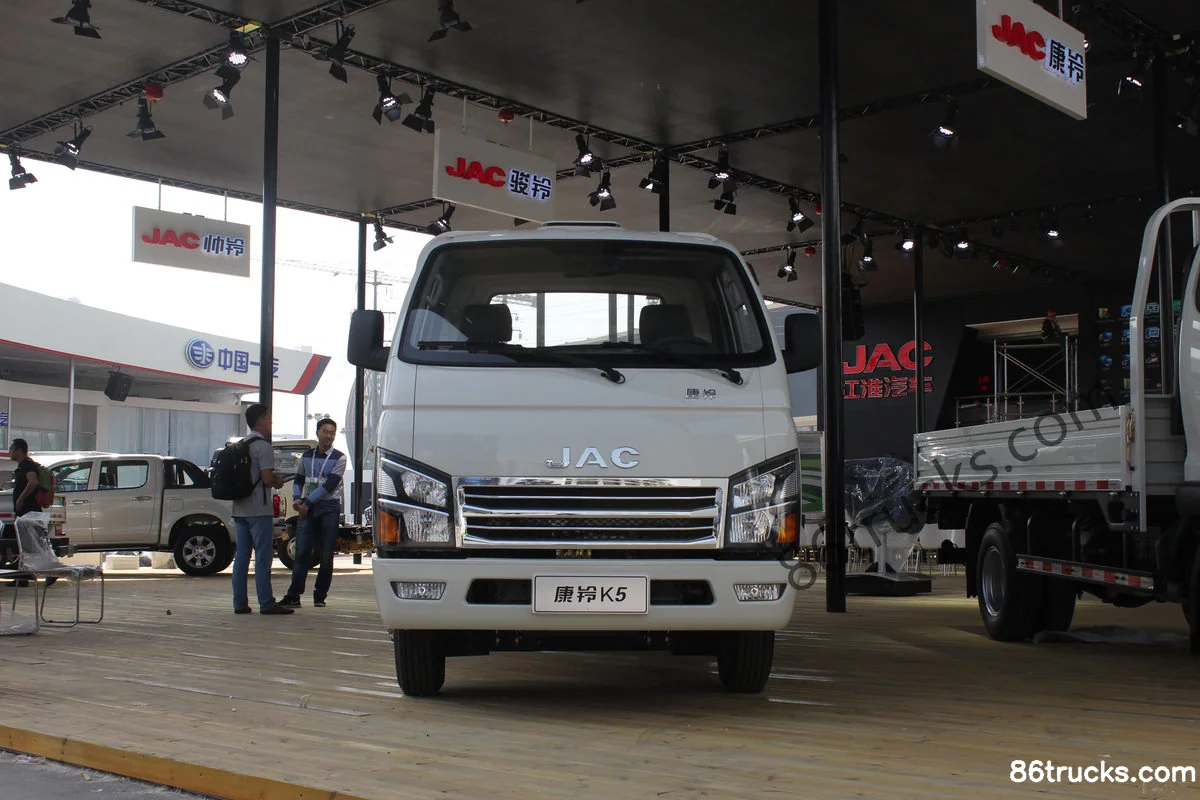

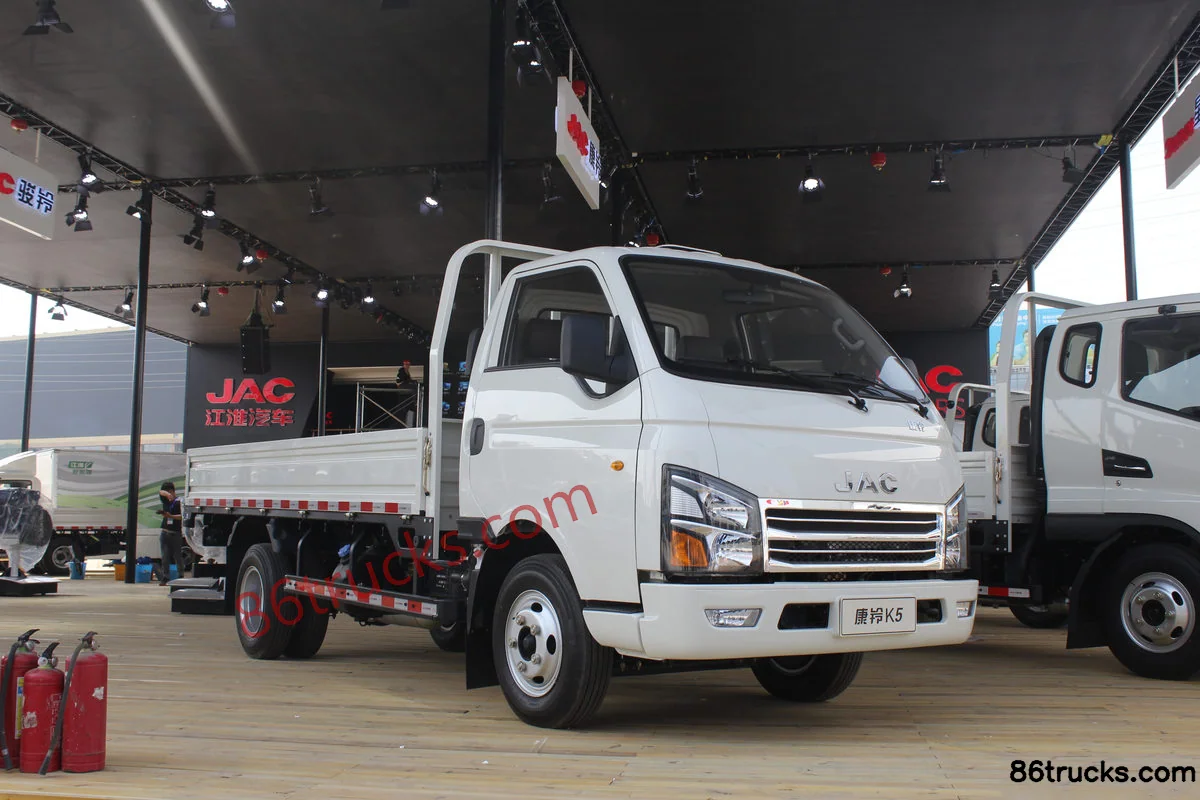

Exterior3

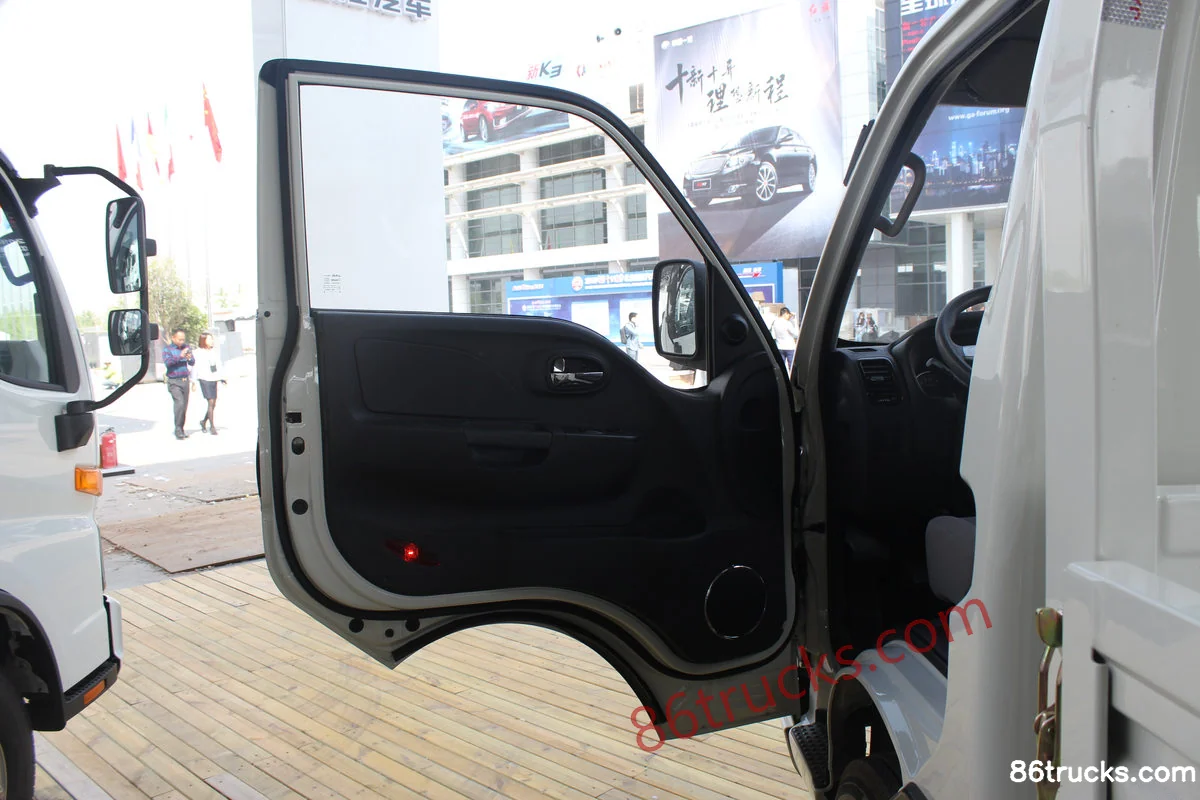

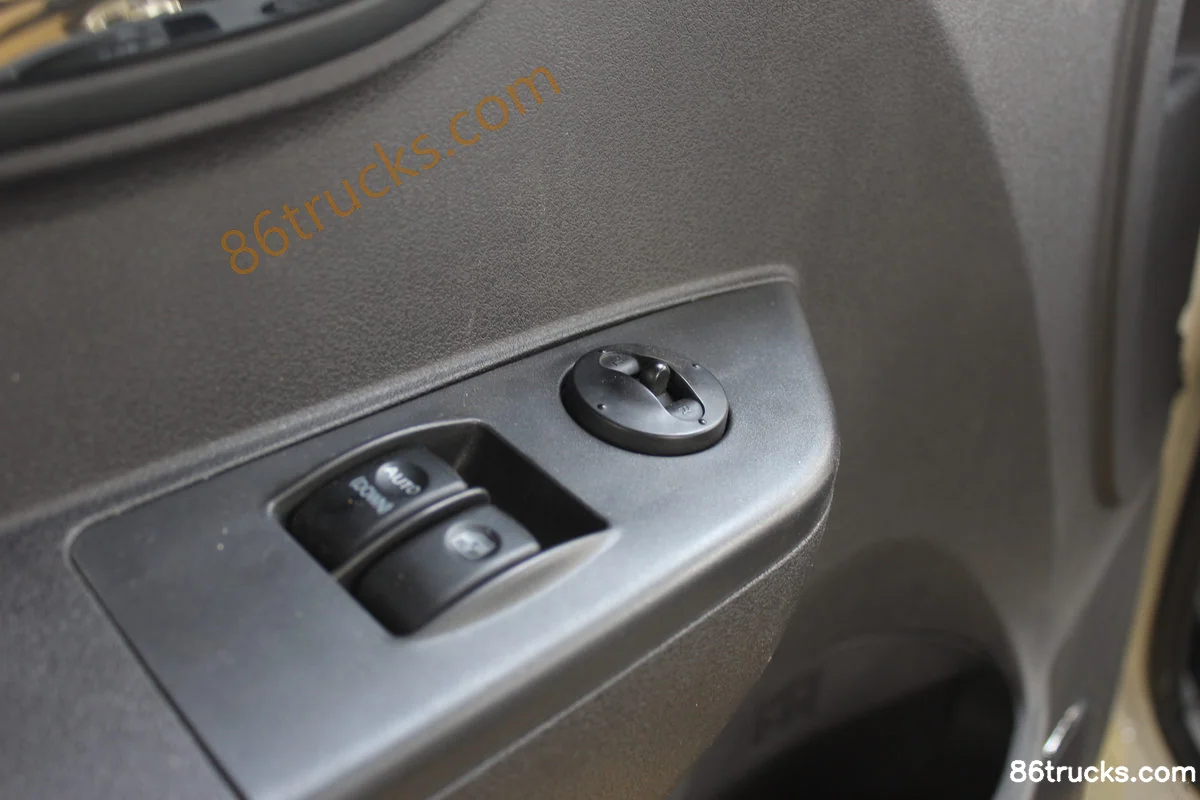

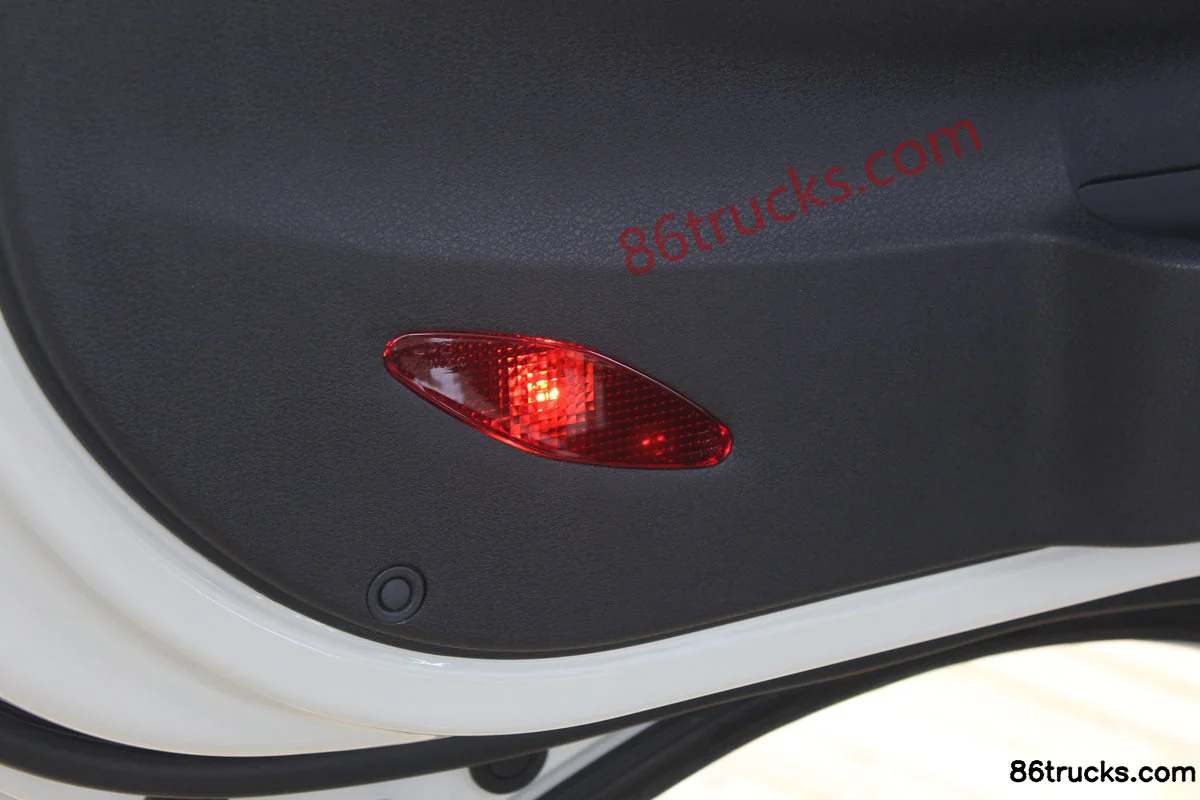

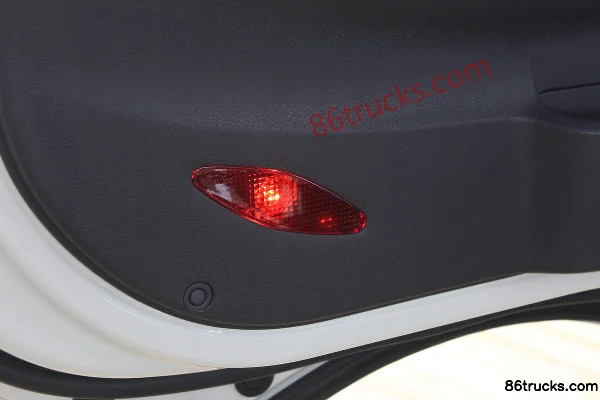

Cab3

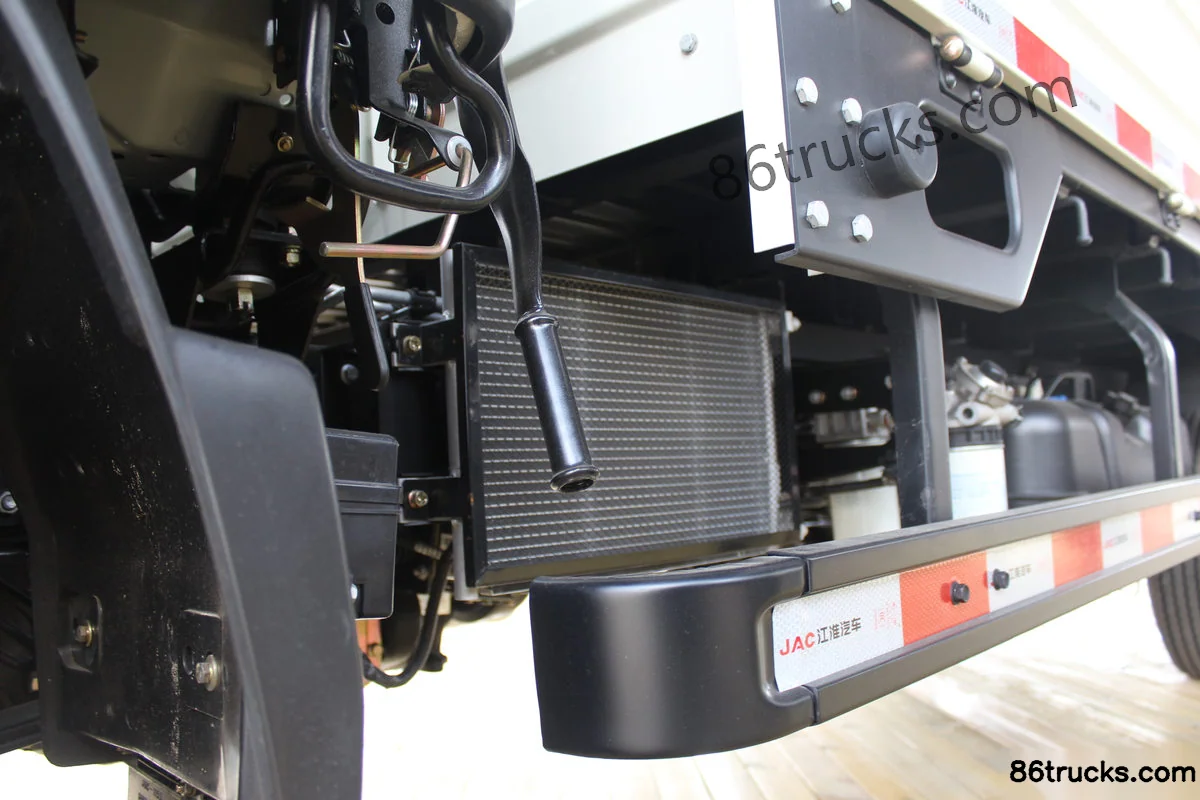

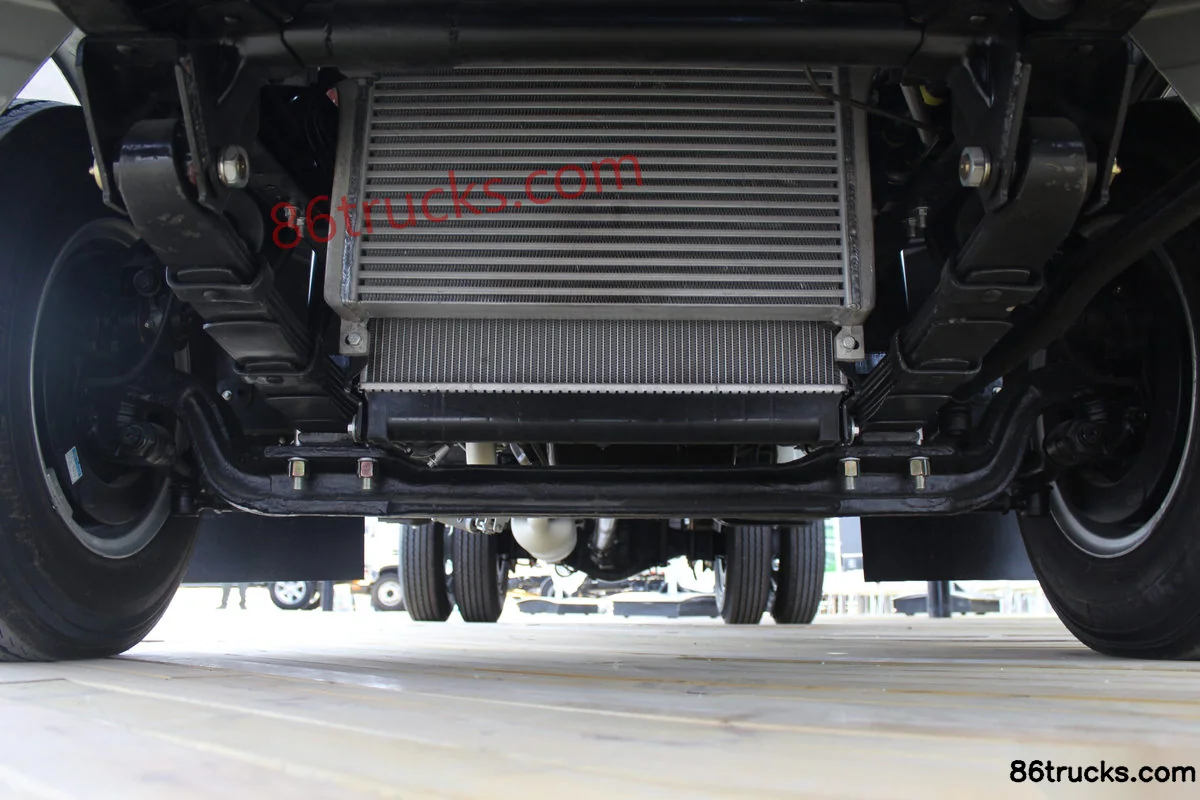

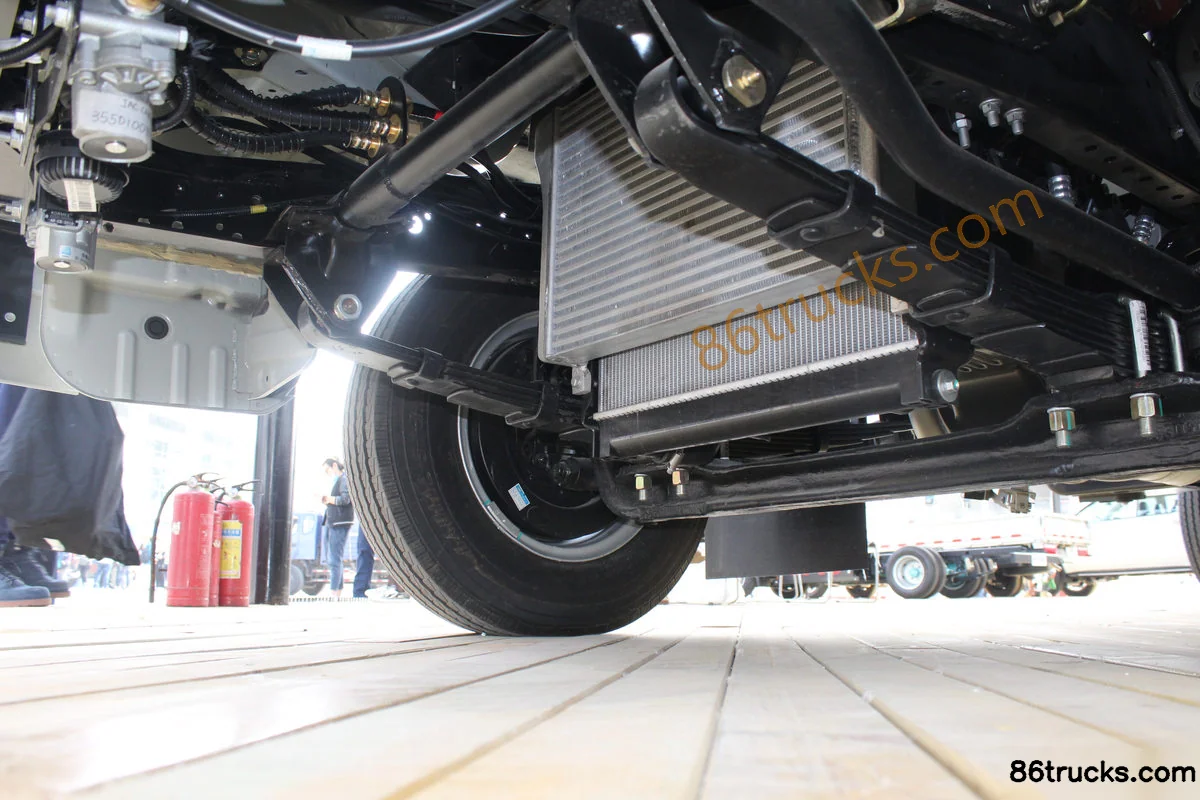

Chassis3

9 photos

FAQ

What emission standard does JAC Kangling K5 120 hp 4X2(6 wheels) single-row flatbed light truck (China V) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Kangling K5 120 hp 4X2(6 wheels) single-row flatbed light truck (China V)?

Key specs of JAC Kangling K5 120 hp 4X2(6 wheels) single-row flatbed light truck (China V): Drive: 4x2; Horsepower: 120 hp; Emission: China V; Fuel: Diesel; Engine: JAC2.8L; Transmission: Xingrui. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Kangling K5 120 hp 4X2(6 wheels) single-row flatbed light truck (China V) suited for?

JAC Kangling K5 120 hp 4X2(6 wheels) single-row flatbed light truck (China V) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Kangling K5 120 hp 4X2(6 wheels) single-row flatbed light truck (China V) differ from other variants in the same series?

JAC Kangling K5 120 hp 4X2(6 wheels) single-row flatbed light truck (China V) belongs to JACX7 Mini Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Kangling K5 120 hp 4X2(6 wheels) single-row flatbed light truck (China V)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Kangling K5 120 hp 4X2(6 wheels) single-row flatbed light truck (China V)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
