JAC Kangling K5 116 hp 4X2(6 wheels) 3308 mm wheelbase light truck chassis

Export reference
MSRP N/A
Horsepower: 116
Emission: China V
Fuel: Diesel
Engine: Yunnei Dewei D25
Transmission: Lu'an
Curb Weight:: 2.565ton
seating capacity: 2Personnel
Rated payload: 1.8ton
Drive 4X2 (6 wheels)
Cargo box type: Chassis

Overview

The JAC Kangling K5 116 hp 4X2(6 wheels) 3308 mm wheelbase light truck chassis is a Light Truck featuring 3.96m cargo length, Chassis cargo body, 2Personnel volume and 1.8t payload. On the powertrain side, it comes with a Yunnei Dewei D25 engine, 116 hp, 4X2 (6 wheels) drive and China V emissions.

China V 116 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC1041PV3K2C2V
Type: Chassis
Drive type: 4X2
Wheelbase: 3308mm
engine: Yunnei PowerD25TCIE4
transmission: Lu'an LC5T35
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 1.84m
Cab height: 2.24m
Front track width: 1440mm
rear track: 1395mm
Curb Weight: 2.565ton
Rated payload: 1.8ton
GVWR: 4.495ton
Max. speed: 105km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 20.6°
departure angle: 16.1°
Front/rear suspension: 1.185/1.502m
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD25TCIE4
Engine info: Yunnei Dewei D25
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.499L
Emission standard: China V
Max output power: 85kW
Max hp: 116Horsepower
Max torque: 290N·m
Max torque speed: 1300-2700rpm
Rated speed: 3200rpm
Engine Type: DOC SCR
Transmission Parameters
Transmission Model: Lu'an LC5T35
Transmission Brand: Lu'an
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Chassis
Cargo box length: 3.96m
Cargo box width: 1.73m
Cargo box height: 0.4m
*Cargo box interior width: 1.7300000190735
Cab parameters
Cab: Flat roof
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1615kg
rear axle allowable load: 2880kg
Axle ratio: 4.875
Leaf spring count: 7/5+6
Suspension (front/rear): Leaf spring
Tire
Tire Size: 6.50R16LT 10PR,6.50R16LT 8PR
Number of tires: 6pcs

Photos

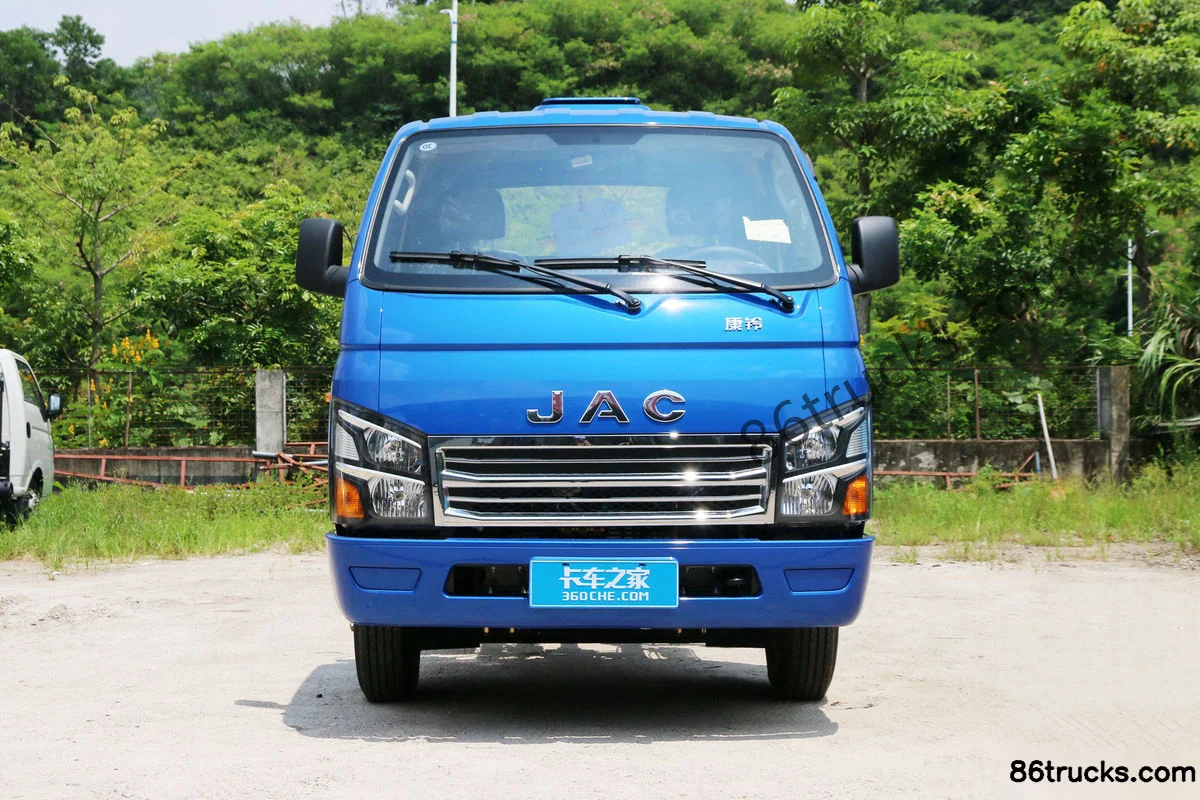

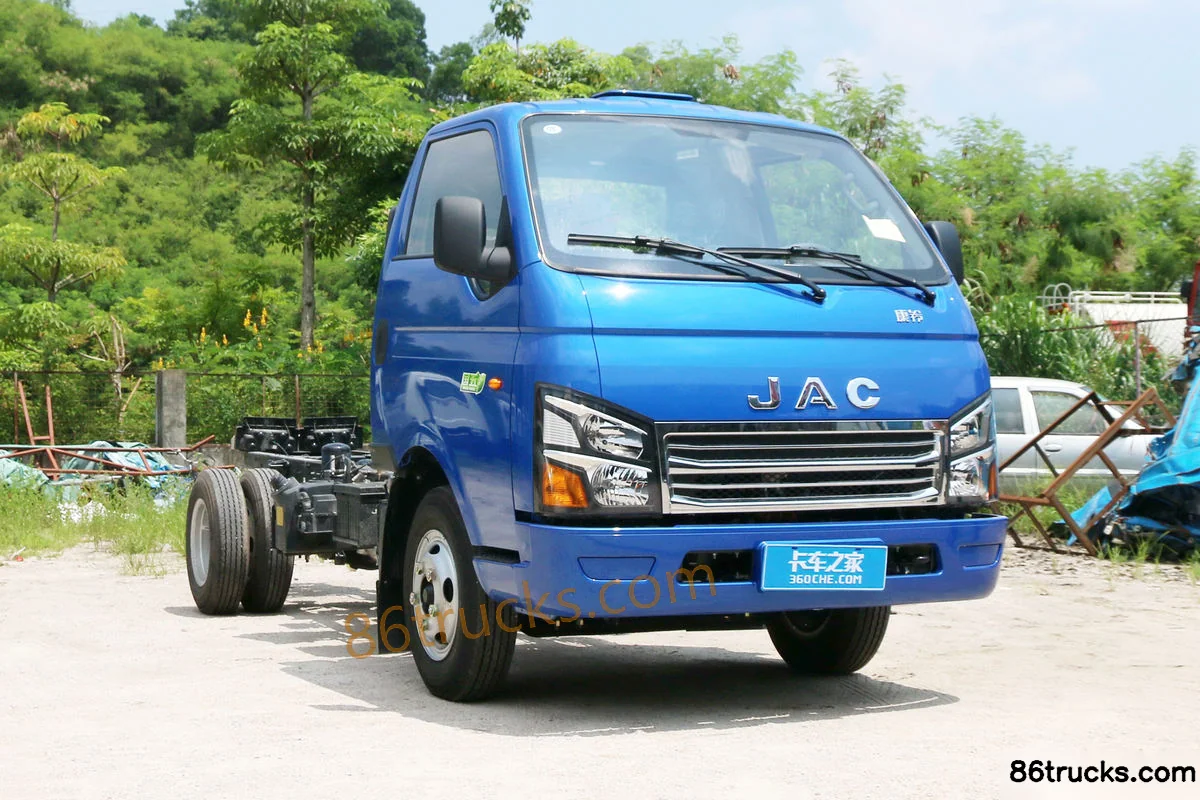

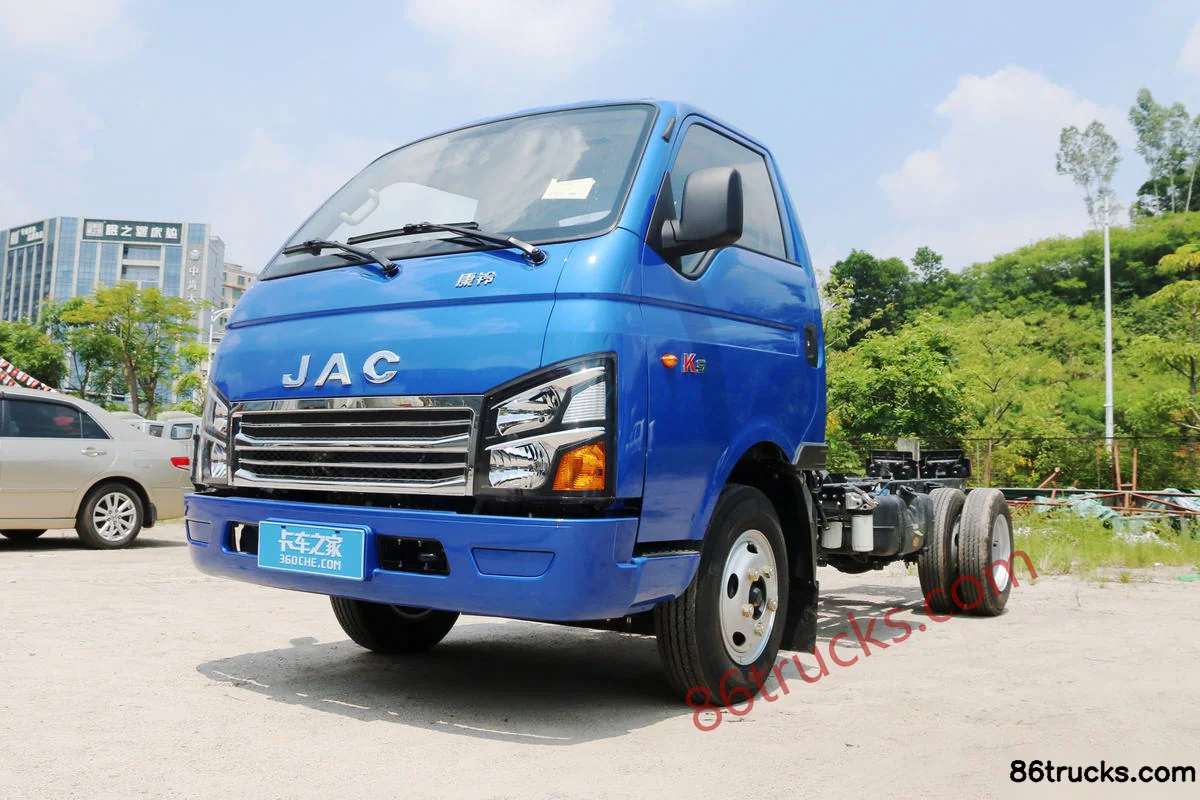

Exterior3

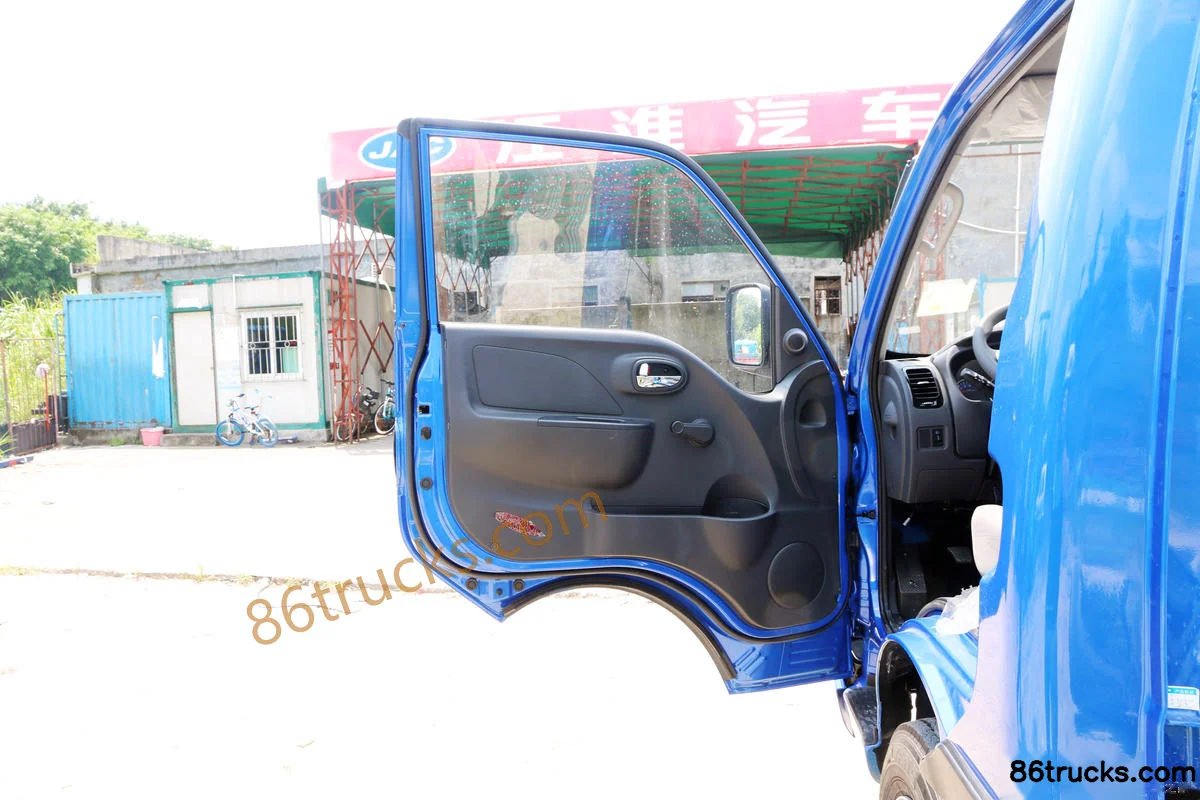

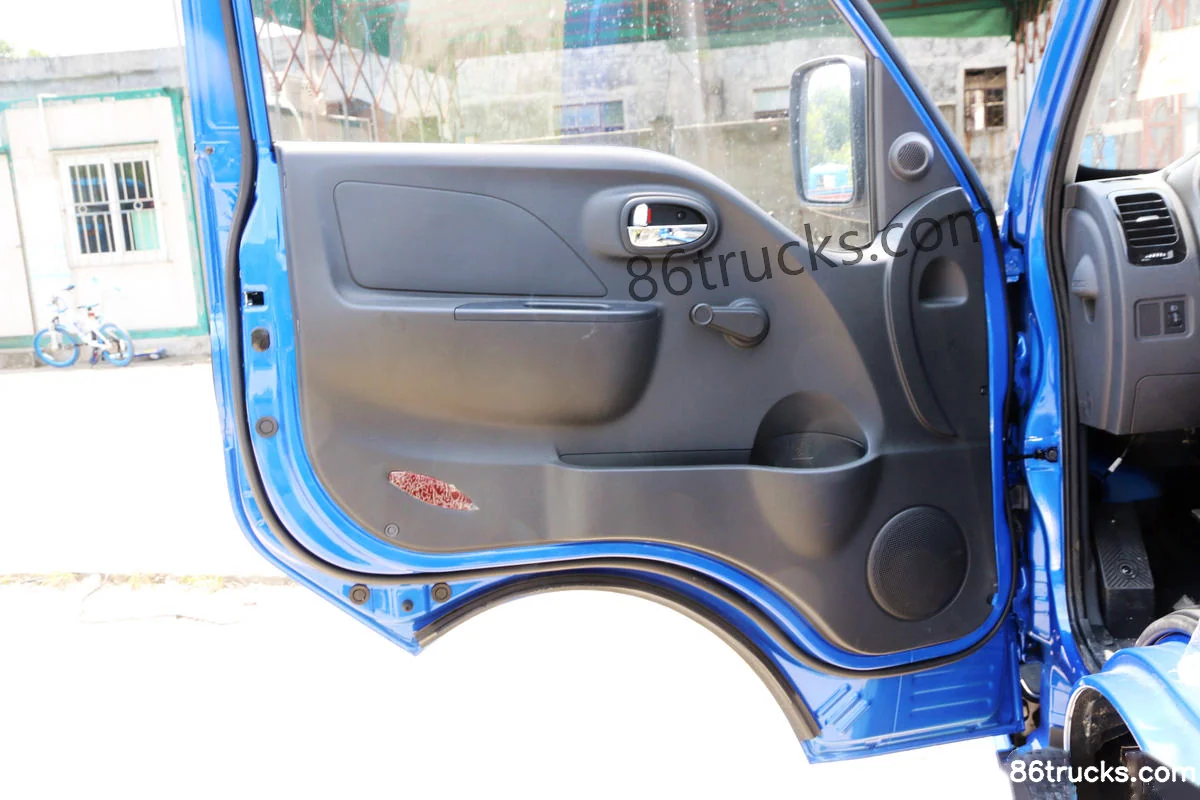

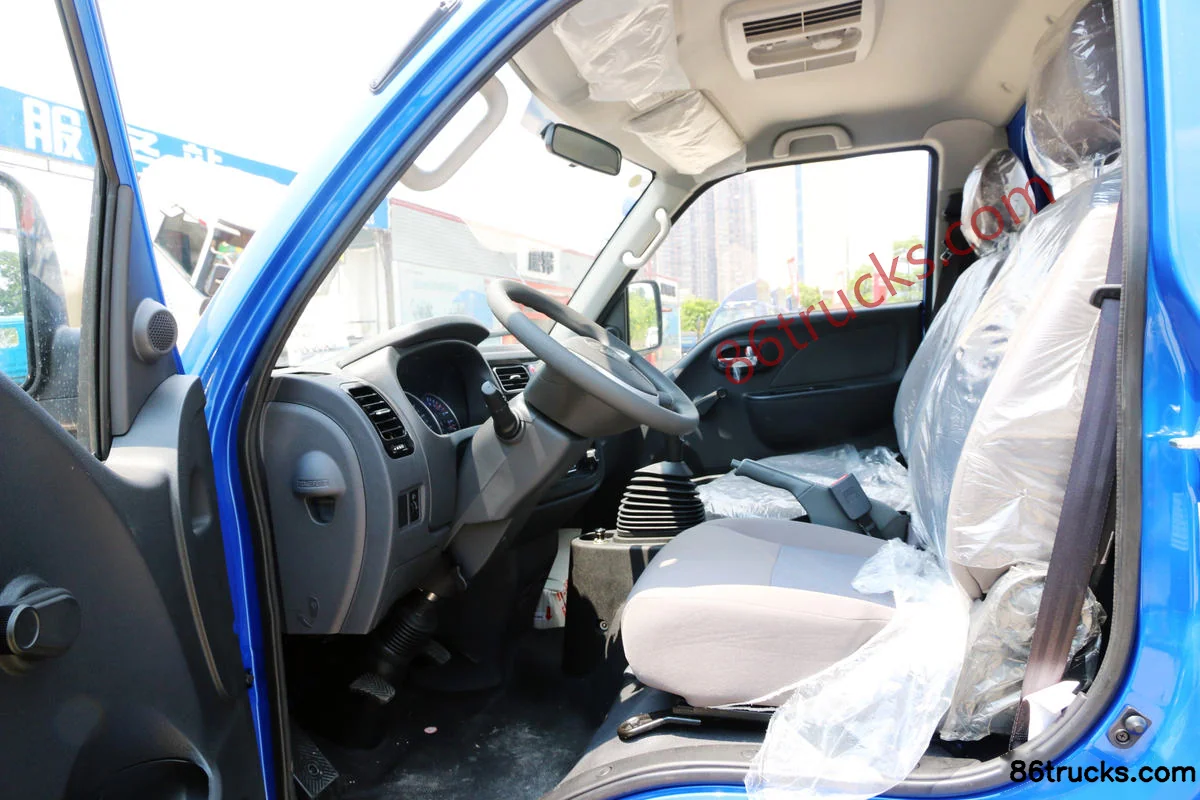

Cab3

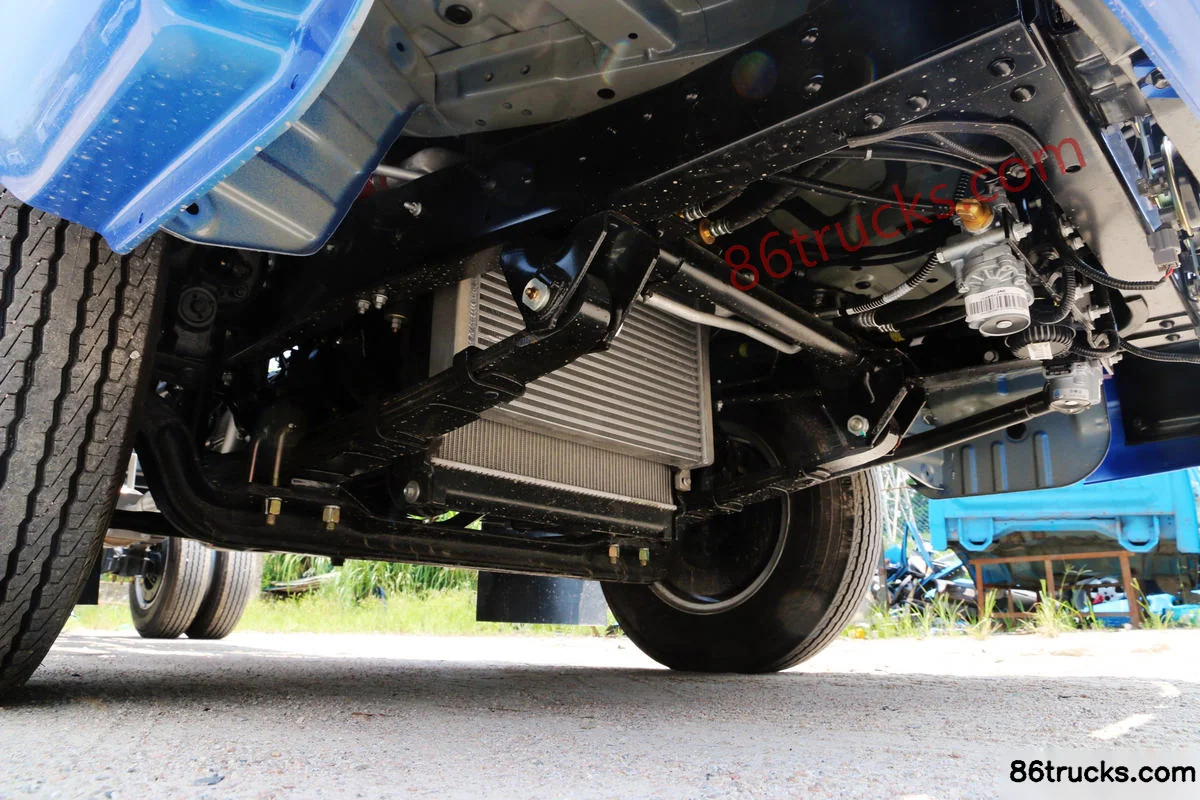

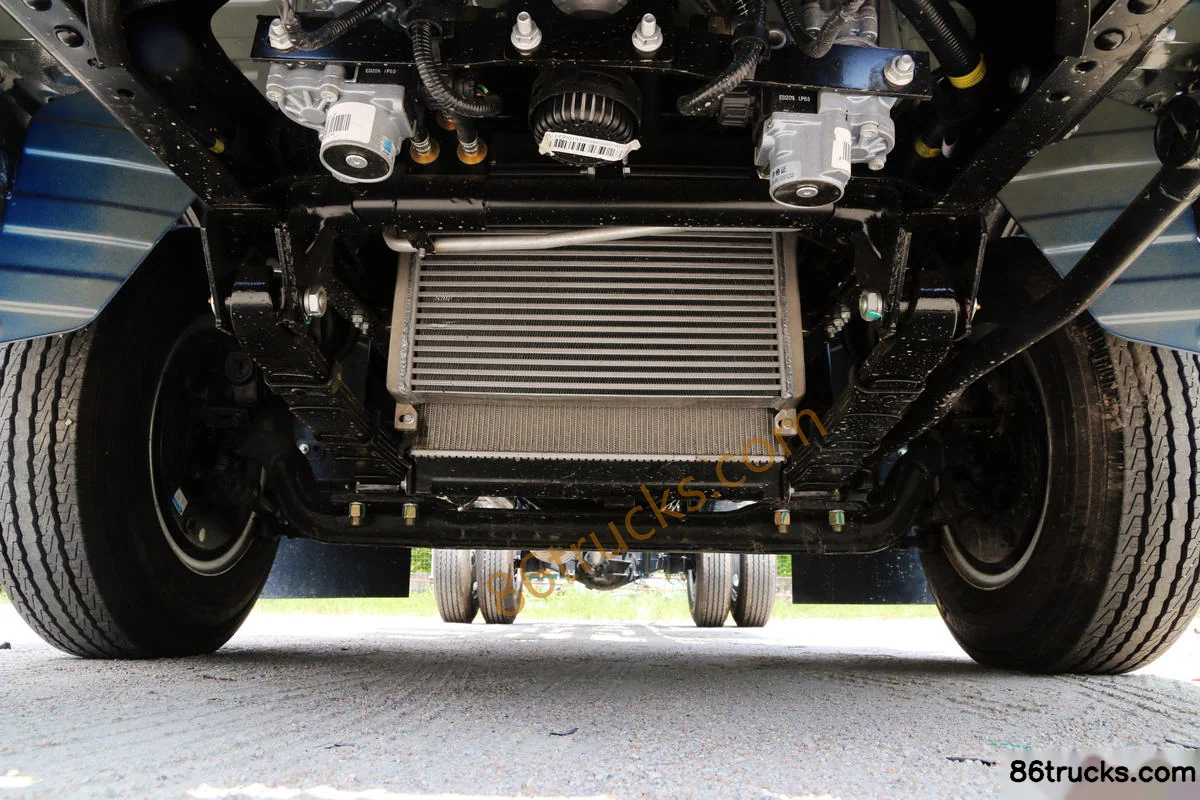

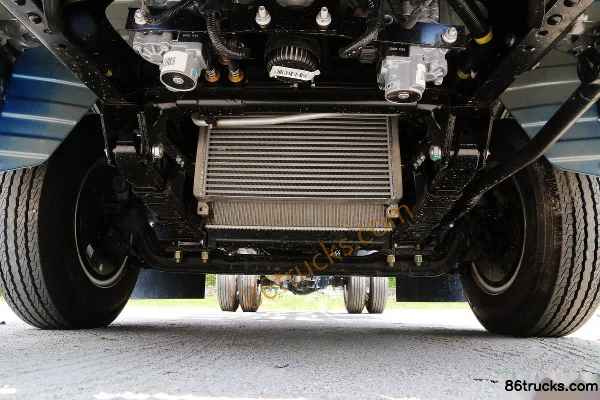

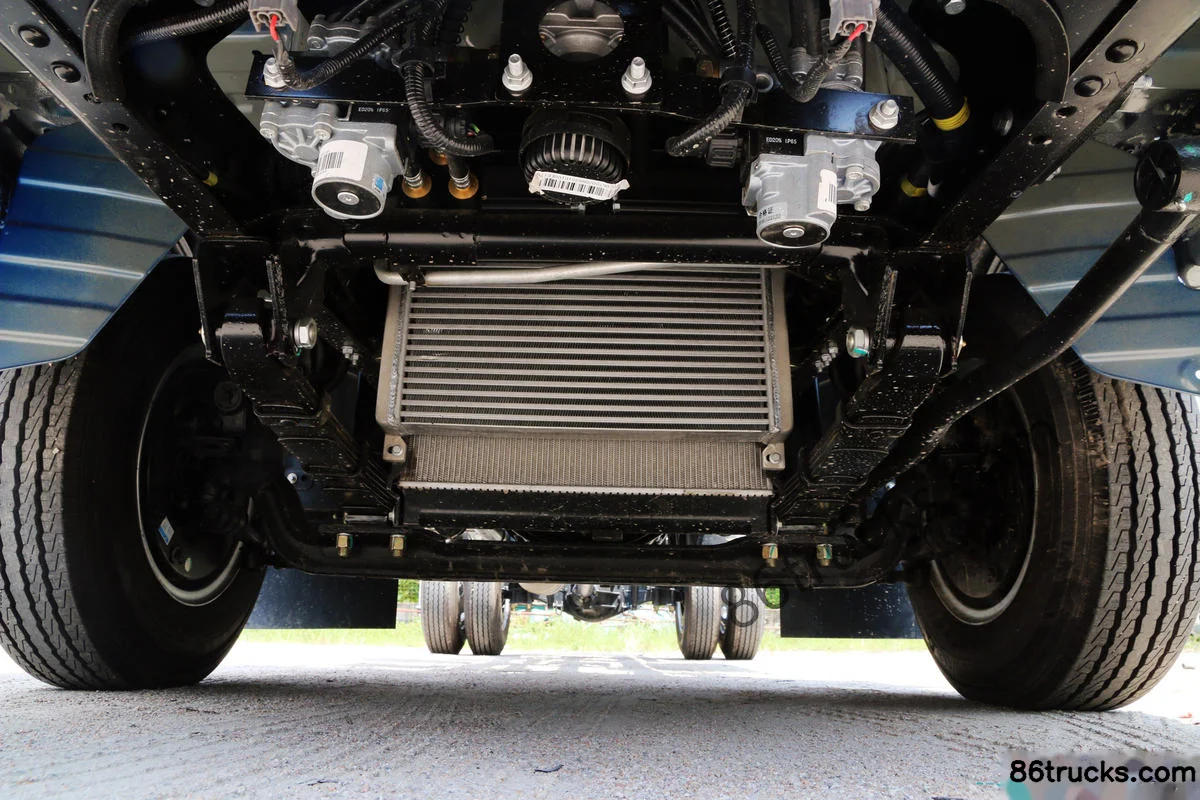

Chassis3
