SHACMAN Delong F3000 336 hp 6X4(10 wheels) Tractor Truck (Highway Edition)

Export reference
From $47,222
MSRP ¥34M CNY
Fuel: Diesel
Gross Trailer Weight:: 39.5ton
Wheelbase:: 3175+1400mm
Tire Size:: 12.00-20 11.00-20 11.00R20 12.00R20
rear axle allowable load:: 18000kg
Displacement:: 11.596L
SHACMAN Delong F3000 336 hp 6X4(10 wheels) Tractor Truck (Highway Edition) exterior
View more photos (3)
Drive 6X4 (10 wheels)
Horsepower 336
Emission China III / Euro III
Transmission Fast Gear

Overview

The SHACMAN Delong F3000 336 hp 6X4(10 wheels) Tractor Truck (Highway Edition) is a Heavy truck featuring 6X4 (10 wheels) drive, 336 hp, 25t GVW and China III / Euro III emissions. On the powertrain side, it comes with Fast Gear transmission and Diesel fuel.

China III / Euro III 336 Diesel 6X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): SX4255NT324
Drive type: 6X4
Wheelbase: 3175+1400mm
Cab length: 6.825m
Cab width: 2.49m
Cab height: 3.624m
Front track width: 2036mm
Gross Trailer Weight: 39.5ton
rear track: 1800/1800mm
Curb Weight: 8.87ton
GVWR: 25ton
Max. speed: 99km/h
Origin: Xi'an, Shaanxi
tonnage class: Heavy truck
Remarks: Optional same-series low roof cab; with low roof cab and deflector, overall height 3851mm; low roof cab without deflector, overall height 3204mm; with high roof cab and deflector, overall height 4000mm; with high roof cab without deflector, overall height 3624mm; with WP12.336N, WP10.336, WP10.336N, WP10.336NE31, WP10.340E32 and ISME345 30 engines, max net power respectively 245kW, 245kW, 245kW, 243kW, 246kW and 248.84kW, VIN LZGJLNR4×××××××××; with WP12.375N, WP10.380E32, WP12.380E32 and ISME385 30 engines, max net power respectively 274kW, 276kW, 276kW and 277.84kW, VIN LZGJLNT4×××××××××; when leaf spring count is 4/-, rear suspension is air spring. Optional front mask. Cab passenger capacity 2 or 3 persons; max allowable fifth wheel load (kg) 16000, 15935 and 16470, 16405. Curb weight corresponds to max trailer GVW one-to-one. Fifth wheel also available (kg): 16470, 16405; optional J cab
Version: Highway version
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP12.336N
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 11.596L
Emission standard: China III / Euro III
Max output power: 247kW
Max hp: 336Horsepower
Max torque: 1600N·m
Max torque speed: 1000-1400rpm
Rated speed: 1900rpm
Transmission Parameters
Transmission Model: Fast Gear12JS160TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
fuel tank
Fuel tank/air tank material: aluminum alloy
Fuel tank capacity: 400L
Cab parameters
Cab: High roof
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Suspension type: Leaf spring or front leaf + rear air suspension
rear axle description: Tandem axle
rear axle allowable load: 18000kg
Axle ratio: 4.266
Leaf spring count: 4/5,10/12,4/12,4/-
Tire
Tire Size: 12.00-20 11.00-20 11.00R20 12.00R20
Number of tires: 10pcs

Photos

Exterior3

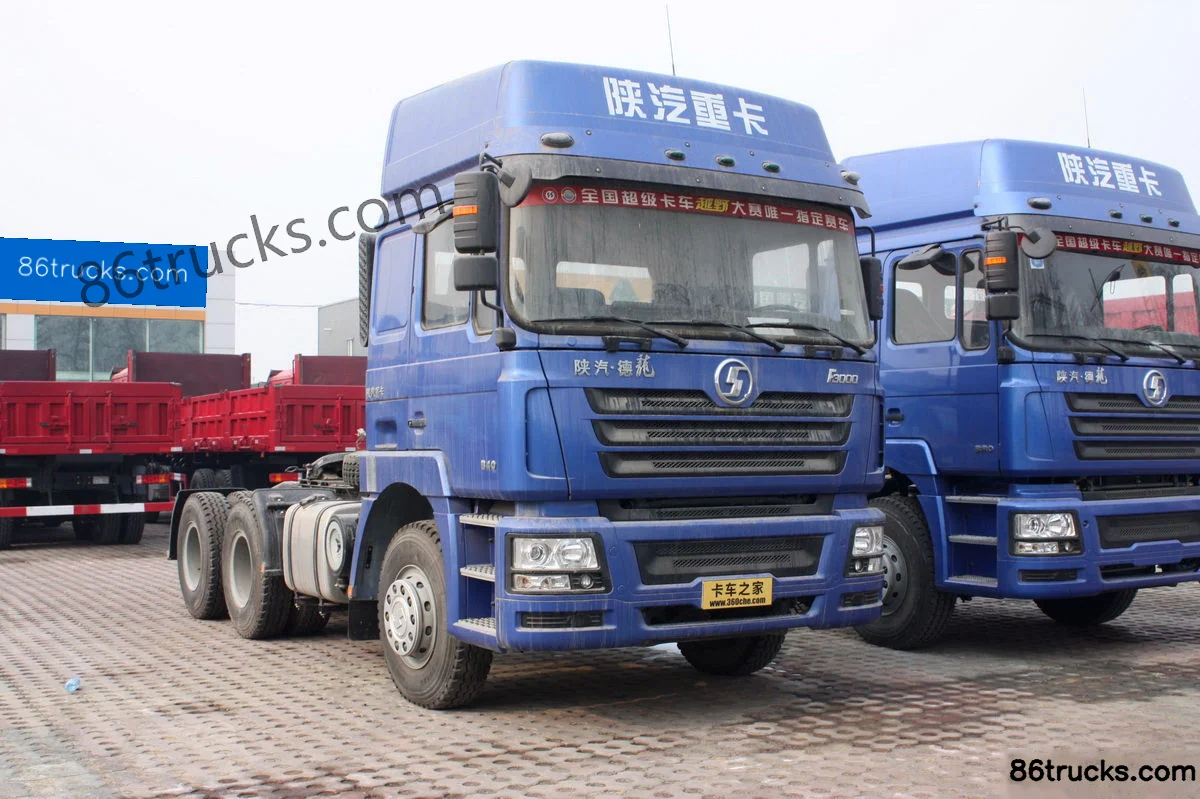

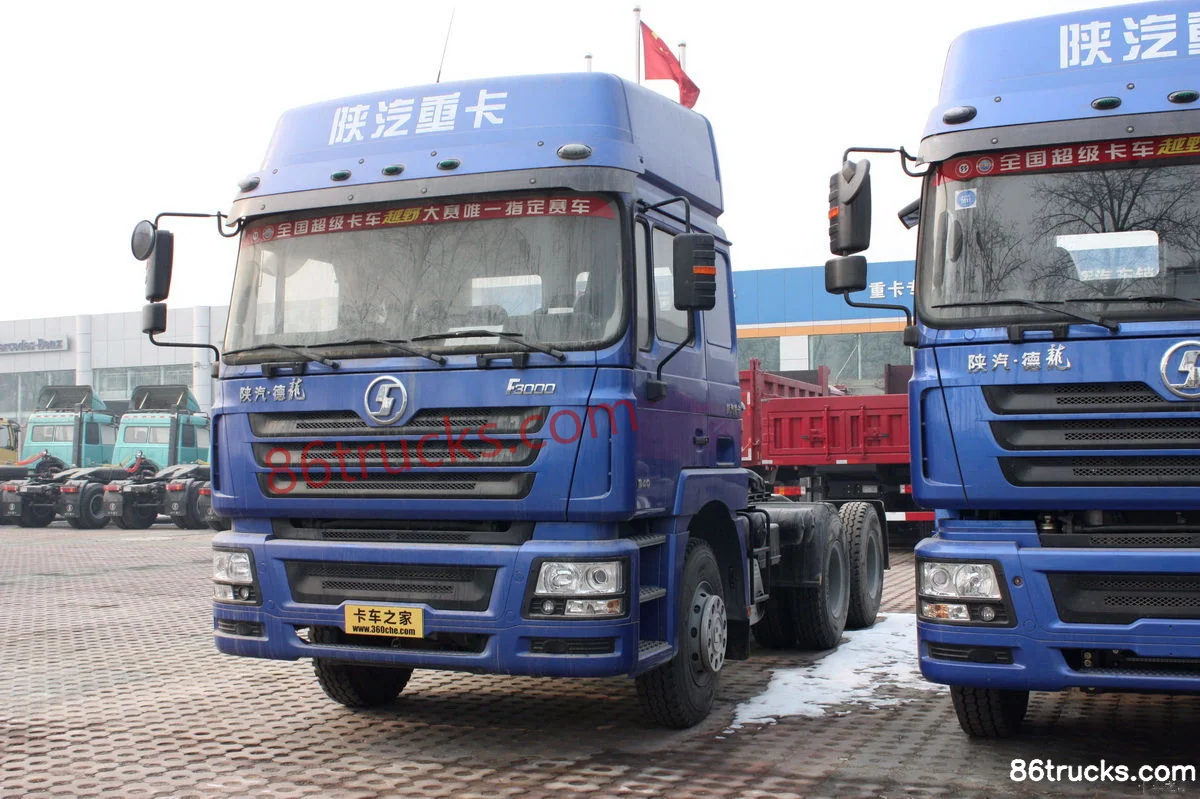

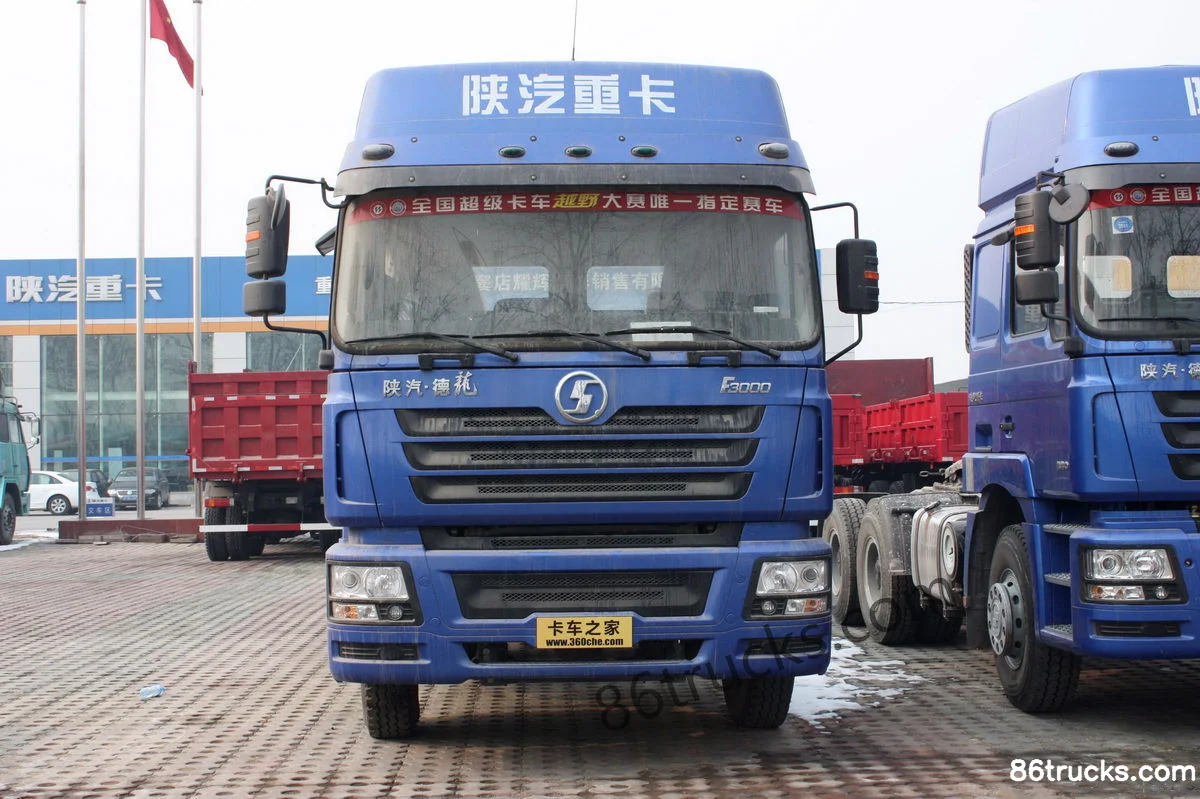

SHACMAN Delong F3000 336 hp 6X4(10 wheels) Tractor Truck (Highway Edition) Exterior (1) | 86Trucks SHACMAN Delong F3000 336 hp 6X4(10 wheels) Tractor Truck (Highway Edition) Exterior (2) | 86Trucks SHACMAN Delong F3000 336 hp 6X4(10 wheels) Tractor Truck (Highway Edition) Exterior (3) | 86Trucks

3 photos

FAQ

What is the export price of SHACMAN Delong F3000 336 hp 6X4(10 wheels) Tractor Truck (Highway Edition), and what does it include?

SHACMAN Delong F3000 336 hp 6X4(10 wheels) Tractor Truck (Highway Edition) export reference is about From $47,222; MSRP is ¥34M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does SHACMAN Delong F3000 336 hp 6X4(10 wheels) Tractor Truck (Highway Edition) use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Delong F3000 336 hp 6X4(10 wheels) Tractor Truck (Highway Edition)?

Key specs of SHACMAN Delong F3000 336 hp 6X4(10 wheels) Tractor Truck (Highway Edition): Drive: 6x4; Horsepower: 336 hp; Emission: China III / Euro III; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong F3000 336 hp 6X4(10 wheels) Tractor Truck (Highway Edition) suited for?

SHACMAN Delong F3000 336 hp 6X4(10 wheels) Tractor Truck (Highway Edition) is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does SHACMAN Delong F3000 336 hp 6X4(10 wheels) Tractor Truck (Highway Edition) differ from other variants in the same series?

SHACMAN Delong F3000 336 hp 6X4(10 wheels) Tractor Truck (Highway Edition) belongs to SHACMAN Delong F3000 Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong F3000 336 hp 6X4(10 wheels) Tractor Truck (Highway Edition)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong F3000 336 hp 6X4(10 wheels) Tractor Truck (Highway Edition)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
