JAC Junling E3 120hp 4X2(6 wheels) 3.2m Double Row Van Light Truck

Export reference
From $18,028
MSRP ¥12.98M CNY
Horsepower: 120
Emission: China V
Fuel: Diesel
Engine: JAC493
Transmission: Xingrui
Curb Weight:: 2.675ton
seating capacity: 5Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The JAC Junling E3 120hp 4X2(6 wheels) 3.2m Double Row Van Light Truck is a Light Truck featuring 3.2m cargo length, Van body cargo body, 5Personnel volume and 1.495t payload. Its segment focus covers Logistics Freight, matching those duty cycles. On the powertrain side, it comes with a JAC493 engine, 120 hp, 4X2 (6 wheels) drive and China V emissions.

China V 120 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5041XXYR93K1C2V
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3308mm
Box length class: 3.2m
engine: JACHFC4DA1-2D
transmission: Xingrui LC5T28B
Cab length: 5.995m
Cab width: 2m
Cab height: 2.9m
Front track width: 1440mm
rear track: 1395mm
Curb Weight: 2.675ton
Rated payload: 1.495ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 23°
departure angle: 14°
market segment: Logistics Freight
Front/rear suspension: 1.09/1.597m
Energy Type: Diesel
Engine parameters
Engine Brand: JAC
Engine Model: JACHFC4DA1-2D
Engine info: JAC493
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.771L
Emission standard: China V
Max output power: 88kW
Max hp: 120Horsepower
Max torque: 285N·m
Max torque speed: 1800-2200rpm
Rated speed: 3200rpm
Engine Type: Electronically controlled strong-cooling EGR
Transmission Parameters
Transmission Model: Xingrui LC5T28B
Transmission Brand: Xingrui
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 3.2m
Cargo box width: 1.9m
Cargo box height: 1.85m
*Cargo box interior width: 1.8999999761581
Cab parameters
Cab: Double cab
seating capacity: 5Personnel
Seat rows: Double cab
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 80L
Chassis Specs
Front axle allowable load: 1620kg
rear axle allowable load: 2875kg
Axle ratio: 6.142
Leaf spring count: 3/9+7,11/9+7,8/4+6
Tire
Tire Size: 6.50R16/7.00R16
Number of tires: 6pcs
Control configuration
ABS:

Photos

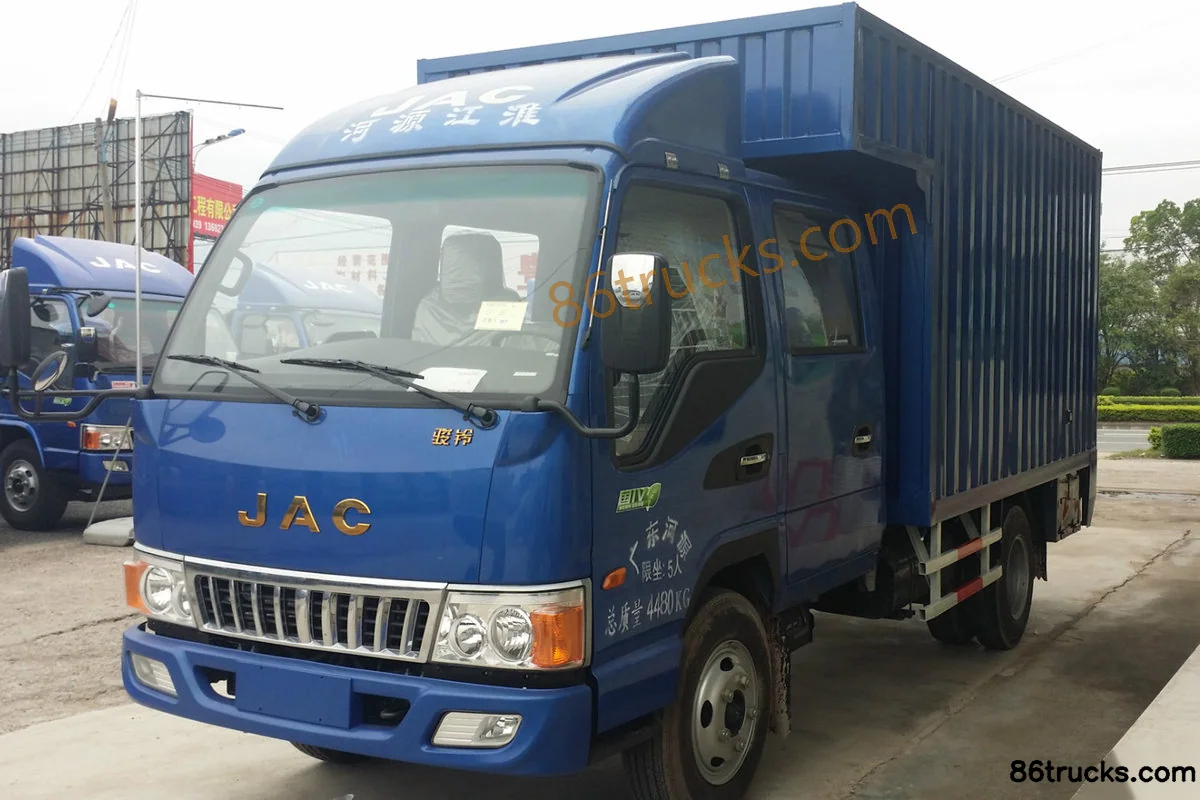

Exterior1

1 photos

FAQ

What is the export price of JAC Junling E3 120hp 4X2(6 wheels) 3.2m Double Row Van Light Truck, and what does it include?

JAC Junling E3 120hp 4X2(6 wheels) 3.2m Double Row Van Light Truck export reference is about From $18,028; MSRP is ¥12.98M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Junling E3 120hp 4X2(6 wheels) 3.2m Double Row Van Light Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Junling E3 120hp 4X2(6 wheels) 3.2m Double Row Van Light Truck?

Key specs of JAC Junling E3 120hp 4X2(6 wheels) 3.2m Double Row Van Light Truck: Drive: 4x2; Horsepower: 120 hp; Emission: China V; Fuel: Diesel; Engine: JAC493; Transmission: Xingrui. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Junling E3 120hp 4X2(6 wheels) 3.2m Double Row Van Light Truck suited for?

JAC Junling E3 120hp 4X2(6 wheels) 3.2m Double Row Van Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Junling E3 120hp 4X2(6 wheels) 3.2m Double Row Van Light Truck differ from other variants in the same series?

JAC Junling E3 120hp 4X2(6 wheels) 3.2m Double Row Van Light Truck belongs to JAC E3 Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Junling E3 120hp 4X2(6 wheels) 3.2m Double Row Van Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Junling E3 120hp 4X2(6 wheels) 3.2m Double Row Van Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
