SHACMAN Delong X5000S Jingying Edition 560hp 6X4(10 wheels) CNG tractor truck

Export reference
From $81,875
MSRP ¥58.95M CNY
Fuel: Compressed Natural Gas (CNG)
Gross Trailer Weight:: 38.57ton
Wheelbase:: 4200+1350mm
Tire Size:: 12R22.5 18PR
Front axle allowable load:: 7000kg
Displacement:: 14.6L

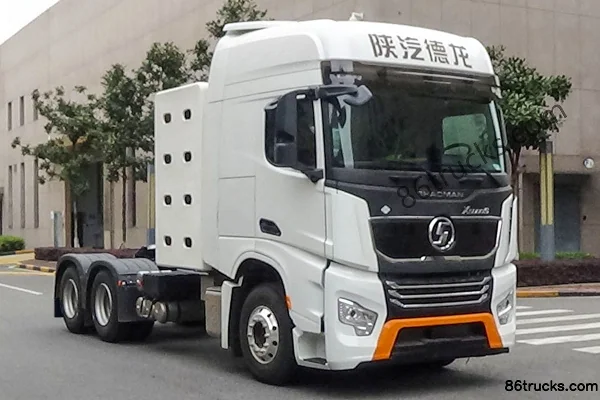

SHACMAN Delong X5000S Jingying Edition 560hp 6X4(10 wheels) CNG tractor truck exterior
Drive 6X4 (10 wheels)
Horsepower 560
Emission China VI
Transmission Fast Gear

Overview

The SHACMAN Delong X5000S Jingying Edition 560hp 6X4(10 wheels) CNG tractor truck is a Heavy truck featuring 6X4 (10 wheels) drive, 560 hp, 25t GVW and China VI emissions. On the powertrain side, it comes with a WeichaiWP15NG560E61 engine, Fast Gear transmission and Compressed Natural Gas (CNG) fuel.

China VI 560 Compressed Natural Gas (CNG) 6X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): SX4259XE4TQ1-S
Drive type: 6X4
Wheelbase: 4200+1350mm
engine: WeichaiWP15NG560E61
transmission: Fast GearS12MO
Rear Axle Ratio: 3.7
Cab length: 7.74m
Cab width: 2.55m
Cab height: 3.98m
Front track width: 2036mm
rear track: 1860/1860mm
Gross Trailer Weight: 38.57ton
Curb Weight: 10.3ton
GVWR: 25ton
Max. speed: 89km/h
Origin: Xi'an, Shaanxi
tonnage class: Heavy truck
Remarks: Standard: sunroof, 1.2kW inverter, front axle aluminum rims, electromagnetic master switch (imported), curtains; Optional: fifth wheel, rear 260L×8 cylinders – fiberglass – single-side filling – latch type, rear 260L×8 cylinders – carbon fiber – single-side filling – latch type, cylinder fiberglass protective cover, Tianxingjian Smart Edition, QH70 PTO, 360° surround view + Tianxingjian Smart Edition, four-way camera + Tianxingjian Smart Edition, illuminated logo, dual filling ports, roof AC + 220Ah maintenance-free battery, ventilated/heated air driver seat, 220Ah low-temp maintenance-free battery, 220Ah maintenance-free battery, 135Ah lithium battery, forced cooling + retarder (transmission iron housing); Northern Package (air heater independent warm air, independent warm air fuel tank, 180Ah low-temp maintenance-free battery, heated air driver seat); Expansion Tool Kit (jack, crowbar, tool kit).
Version: Elite Edition
Energy Type: Compressed Natural Gas (CNG)
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP15NG560E61
Number of cylinders: 6cylinder
fuel type: Compressed Natural Gas (CNG)
Cylinder arrangement: Inline
Displacement: 14.6L
Emission standard: China VI
Max output power: 412kW
Max hp: 560Horsepower
Max torque: 2600N·m
Max torque speed: 950-1350rpm
Rated speed: 1700rpm
Transmission Parameters
Transmission Model: Fast GearS12MO
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Housing Material: aluminum alloy
fuel tank
Air tank capacity: rear 212L×8 gas cylinders
Cab parameters
Cab: High roof
Cab suspension: Four-point air suspension
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle description: Maintenance-free drum front axle
Fifth wheel: 50#
Front axle allowable load: 7000kg
Frame Dimensions: (970-850)×270(8+5)mm
rear axle description: Maintenance-free drum drive axle
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 3.7
Leaf spring count: 2/2
Tire
Tire Size: 12R22.5 18PR
Number of tires: 10pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Remote key:
Electronic Central Lock:
lighting configuration
LED headlight:
Exterior features
Air deflector:
Service brake
hydraulic retarder:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):
Forward Collision Warning (FCW):
Lane Departure Warning System (LDWS):

Photos

0 photos

FAQ

What is the export price of SHACMAN Delong X5000S Jingying Edition 560hp 6X4(10 wheels) CNG tractor truck, and what does it include?

SHACMAN Delong X5000S Jingying Edition 560hp 6X4(10 wheels) CNG tractor truck export reference is about From $81,875; MSRP is ¥58.95M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does SHACMAN Delong X5000S Jingying Edition 560hp 6X4(10 wheels) CNG tractor truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Delong X5000S Jingying Edition 560hp 6X4(10 wheels) CNG tractor truck?

Key specs of SHACMAN Delong X5000S Jingying Edition 560hp 6X4(10 wheels) CNG tractor truck: Drive: 6x4; Horsepower: 560 hp; Emission: China VI; Fuel: Compressed Natural Gas (CNG); Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong X5000S Jingying Edition 560hp 6X4(10 wheels) CNG tractor truck suited for?

SHACMAN Delong X5000S Jingying Edition 560hp 6X4(10 wheels) CNG tractor truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does SHACMAN Delong X5000S Jingying Edition 560hp 6X4(10 wheels) CNG tractor truck differ from other variants in the same series?

SHACMAN Delong X5000S Jingying Edition 560hp 6X4(10 wheels) CNG tractor truck belongs to SHACMAN Delong X5000S Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong X5000S Jingying Edition 560hp 6X4(10 wheels) CNG tractor truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong X5000S Jingying Edition 560hp 6X4(10 wheels) CNG tractor truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
