Sinotruk V1-X Xiaojinshi 12T 4X2(6 wheels) 3.8m Pure Electric Dump Truck 140kWh

Export reference
From $45,833
MSRP ¥33M CNY
Rated payload:: 7.115ton
Wheelbase:: 3250mm
Cargo box type:: stake body
Model code (announced):: CDW3124K321CZHBEV
Cab length:: 5.88m
GVWR:: 11.995ton
Drive 4X2 (6 wheels)
CLTC range: 205km
Motor 1 Brand: Sinotruk
Curb Weight: 4.75ton

Overview

The Sinotruk V1-X Xiaojinshi 12T 4X2(6 wheels) 3.8m Pure Electric Dump Truck 140kWh is a Medium-duty truck featuring 205km battery/range, Sinotruk motor, 4X2 (6 wheels) drive and 7.115t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CDW3124K321CZHBEV
Drive type: 4X2
Wheelbase: 3250mm
Cab length: 5.88m
Cab width: 2.26m
Cab height: 2.17m
CLTC range: 205km
Curb Weight: 4.75ton
Rated payload: 7.115ton
GVWR: 11.995ton
Max. speed: 80km/h
Origin: Chengdu, Sichuan
tonnage class: Medium-duty truck
Energy Type: Electric
electric motor
Motor 1 Brand: Sinotruk
Motor 1 Model: TZ365XSCDW07
Motor Type: Permanent magnet synchronous motor
total rated power: 115kW
Peak power: 170kW
total peak torque: 1100N·m
total rated torque: 500N·m
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
fast charge time:
Battery capacity: 140kWh
Transmission Parameters
Transmission Model: J2S130
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.8m
Cargo box width: 2.1m
Cargo box height: 0.8m
Cab parameters
Cab: 1760
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 4240kg
rear axle allowable load: 7755kg
Tire
Tire Size: 245/70R17.5 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual

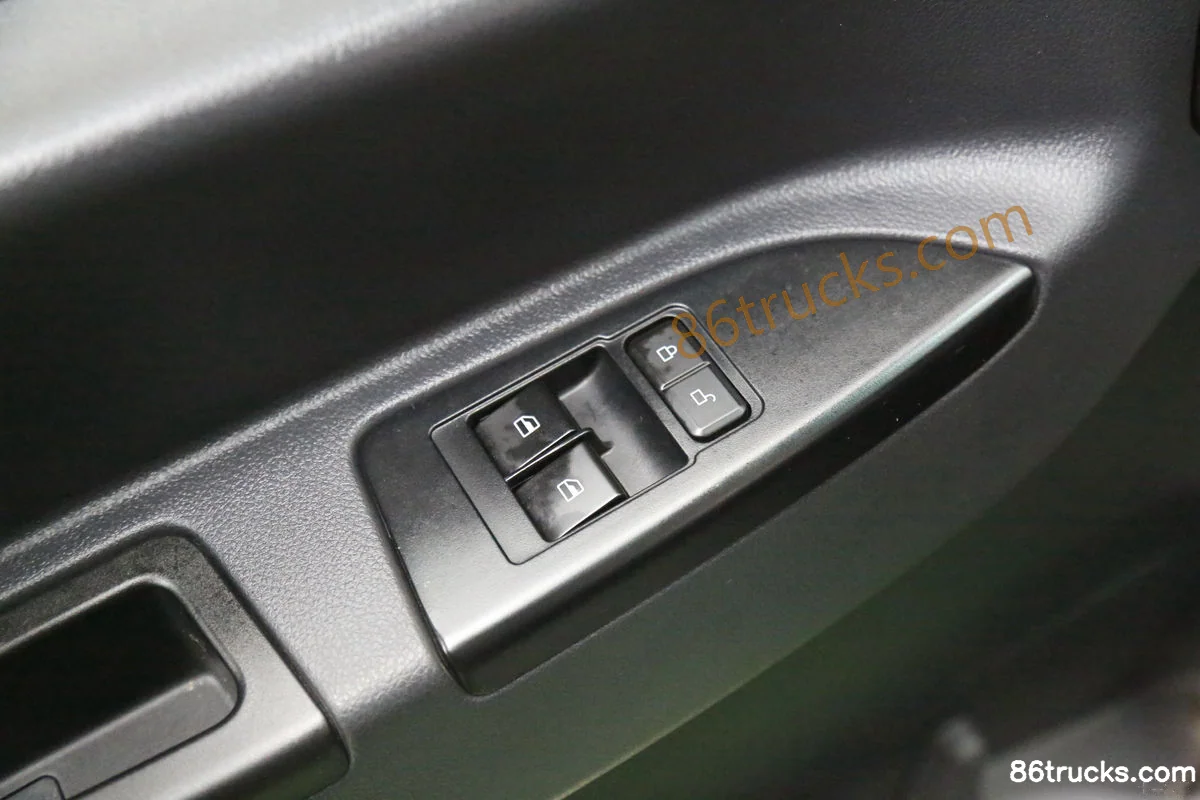

Power Windows:
Remote key:
Electronic Central Lock:
Multimedia features
Bluetooth / hands-free calling:
lighting configuration
Front fog lamp:
Service brake
Brake Type: Air brake
Parking brake: Spring brake

Photos

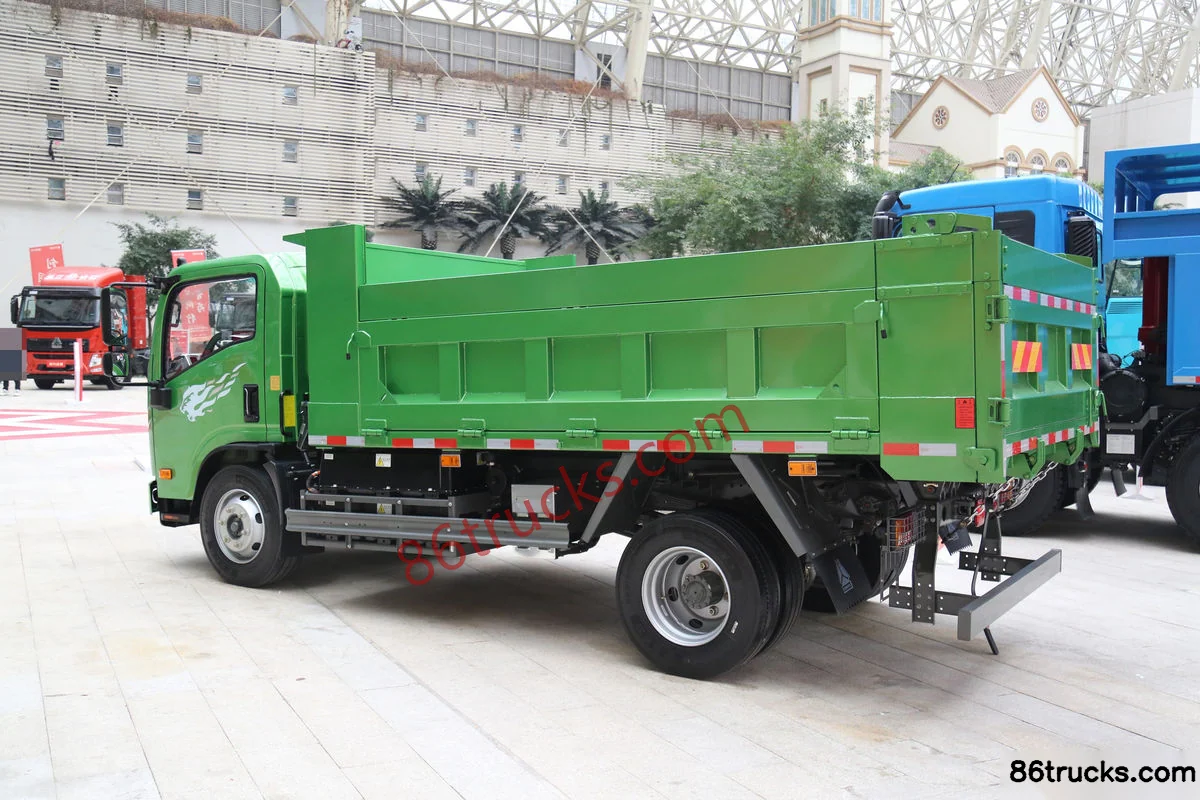

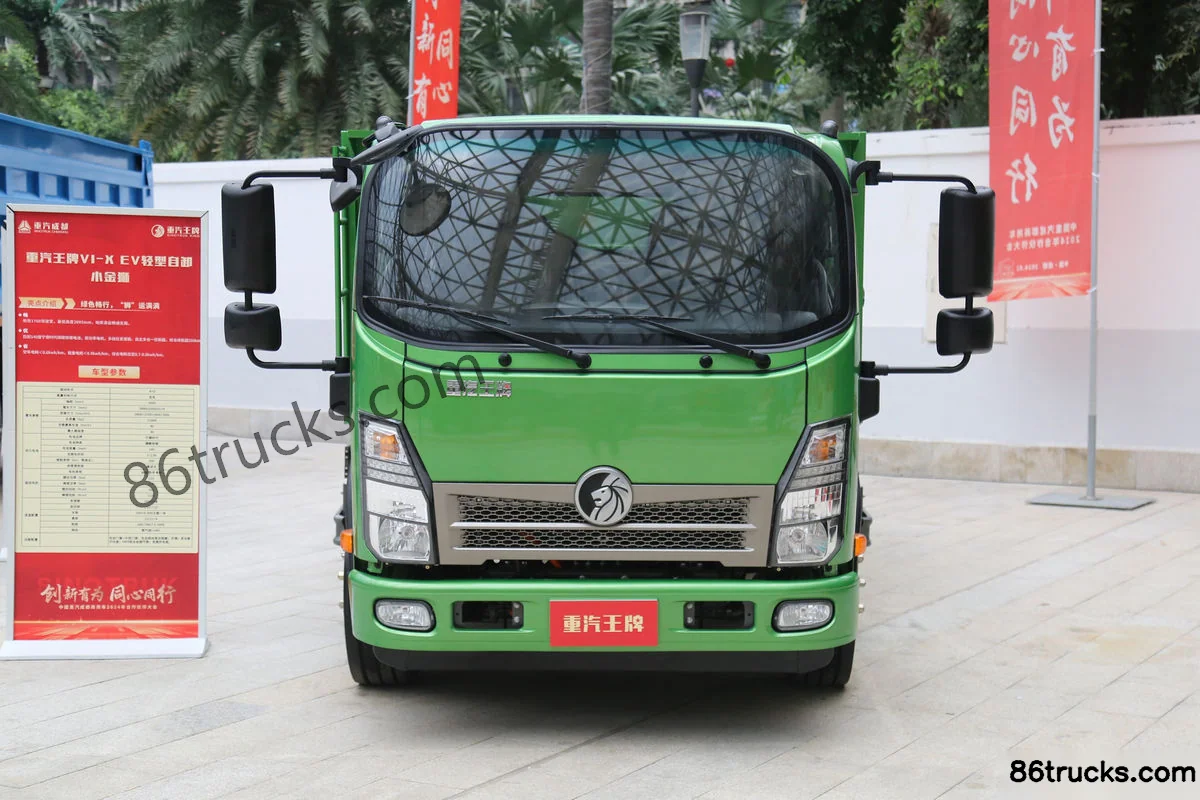

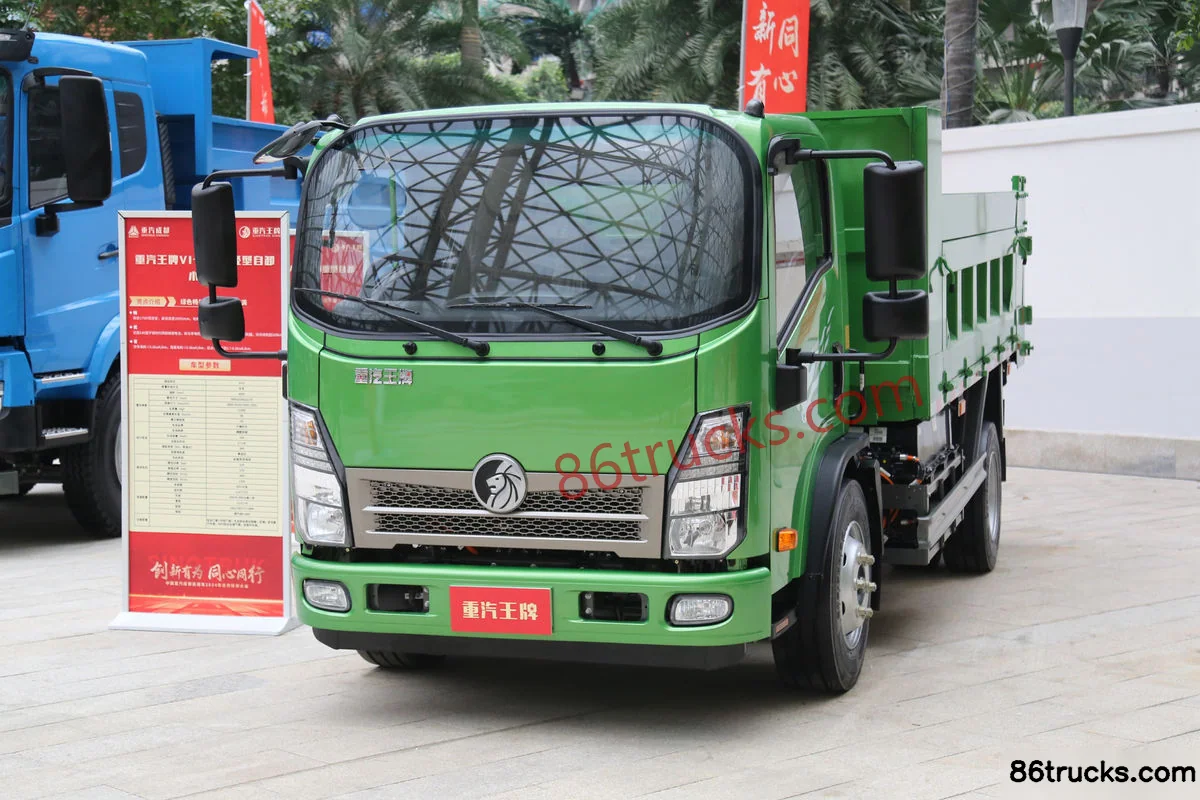

Exterior3

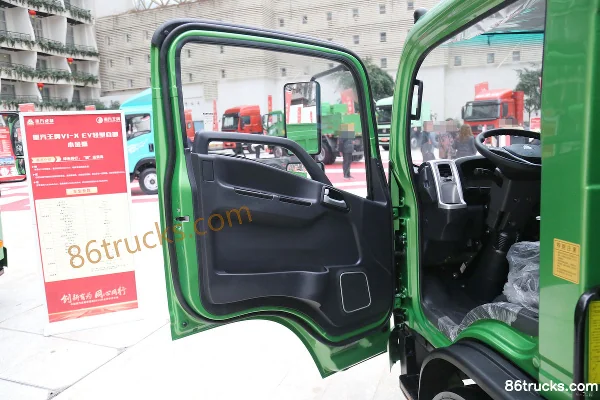

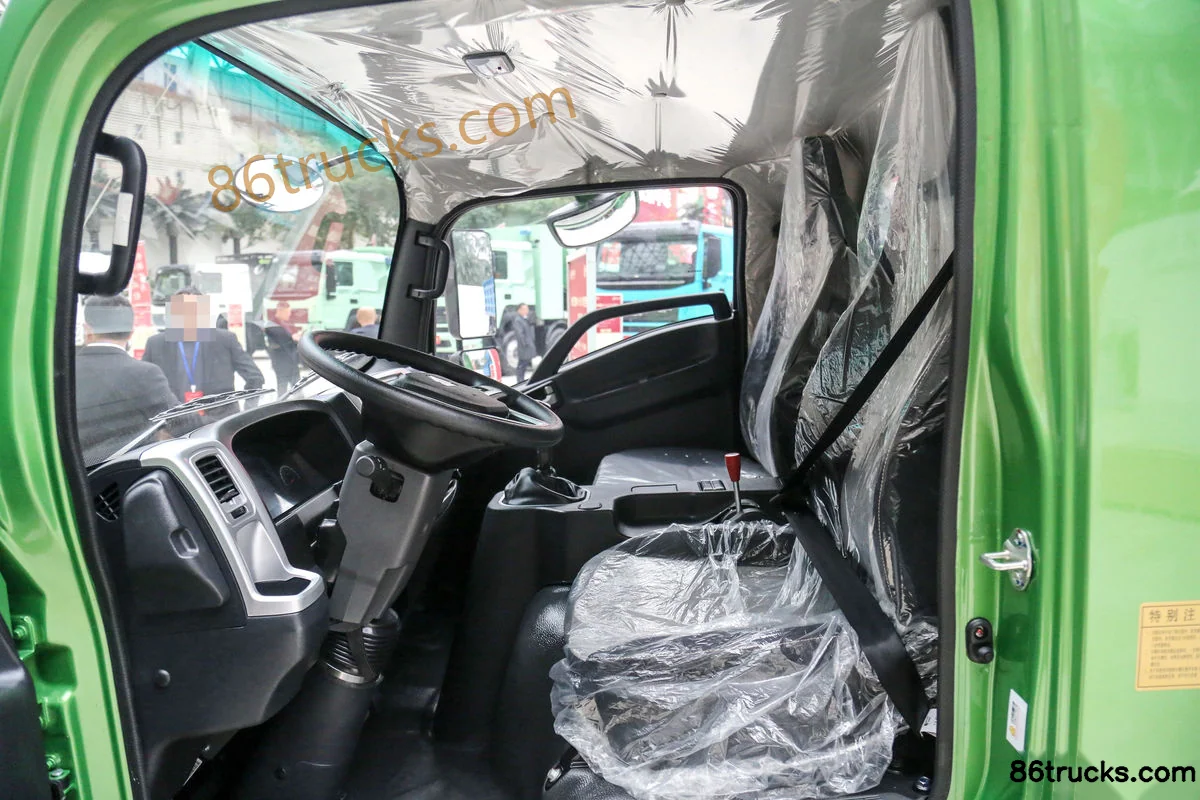

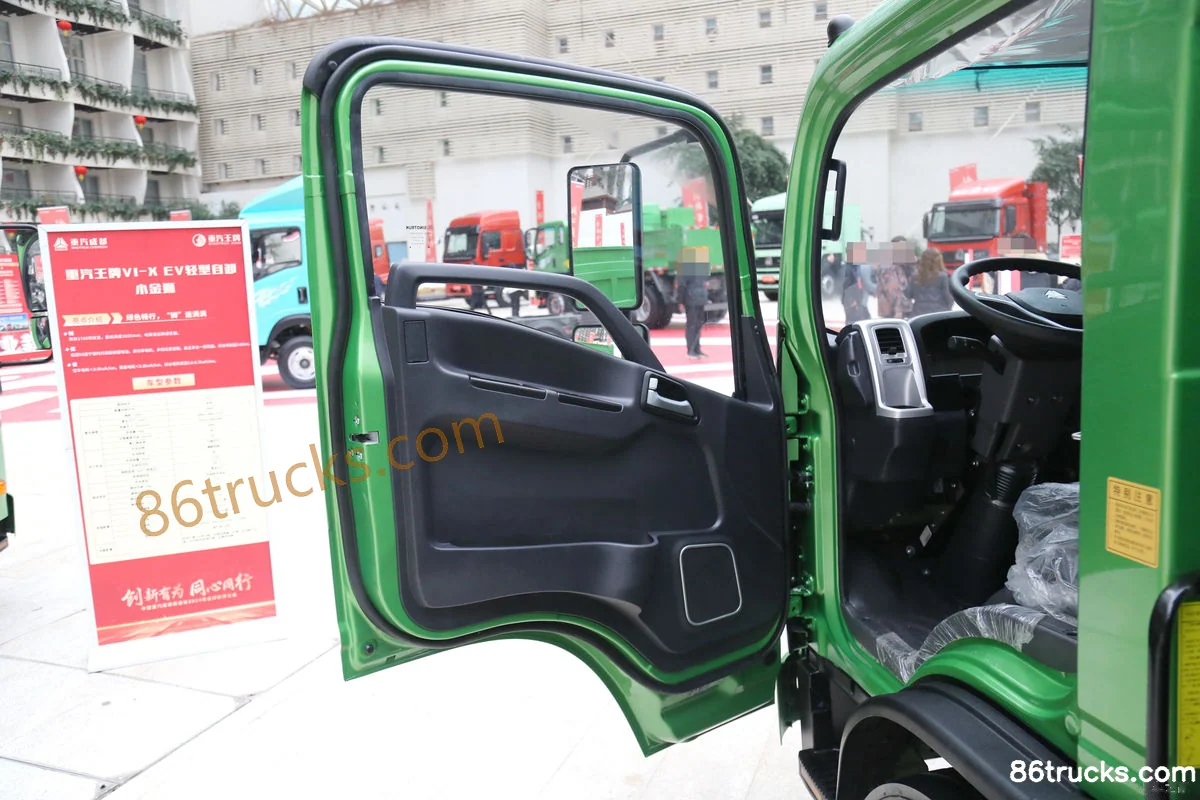

Cab3

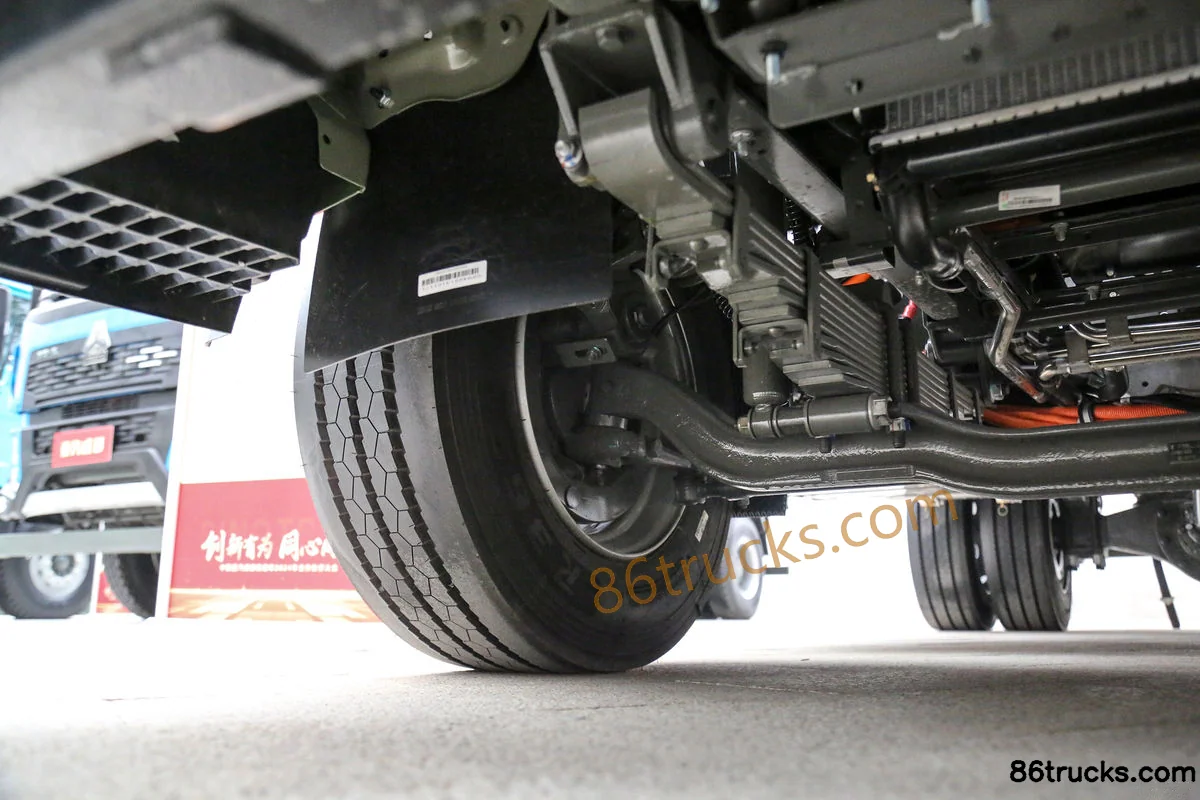

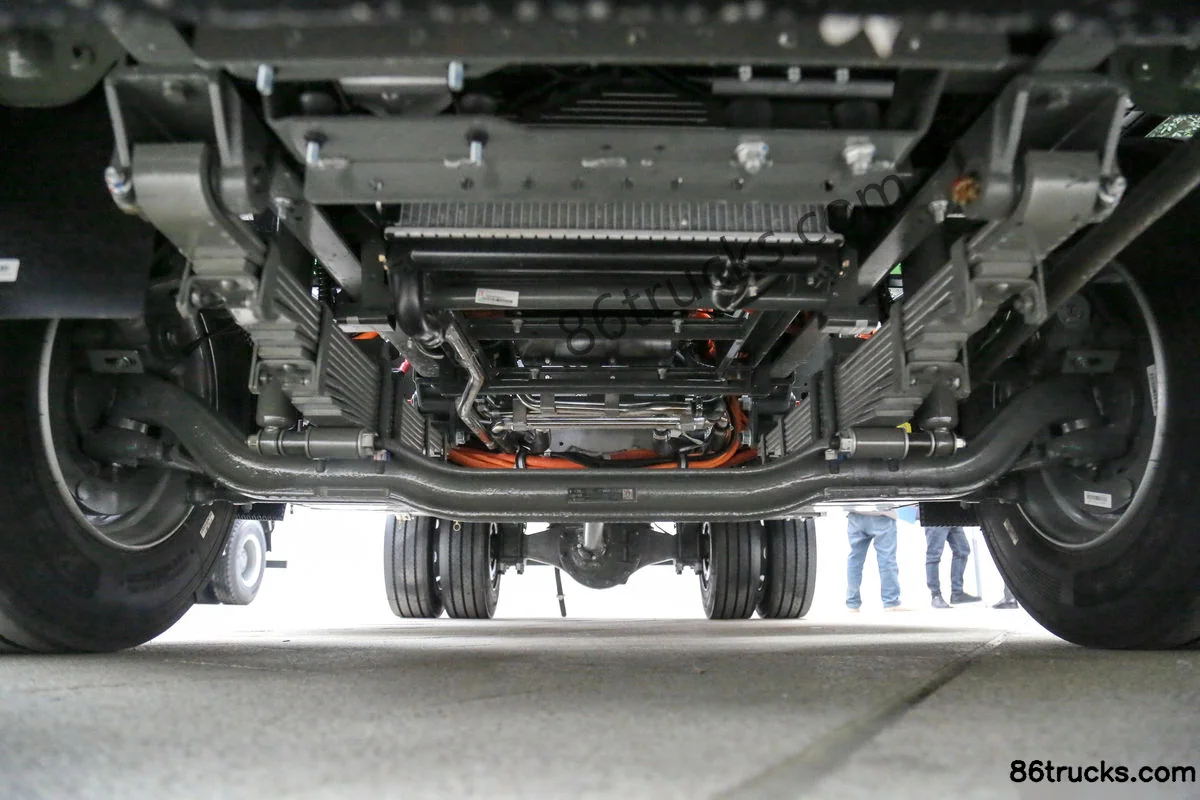

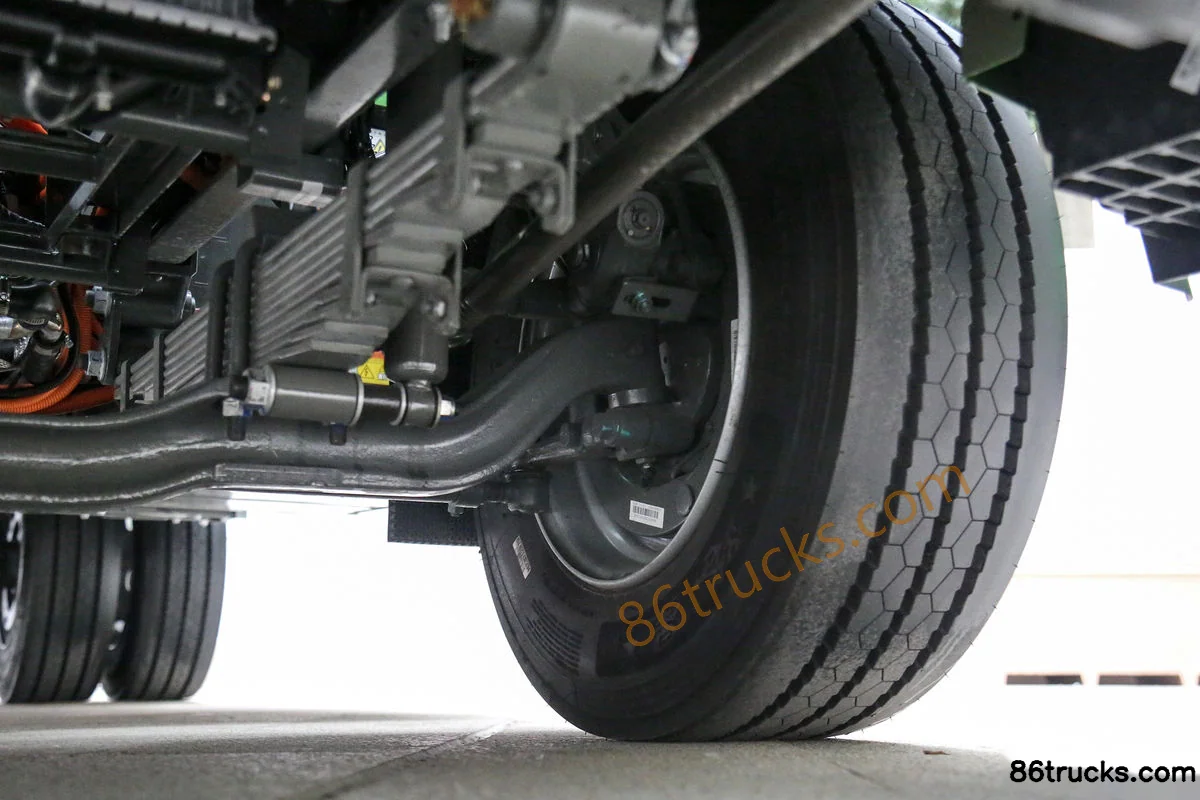

Chassis3

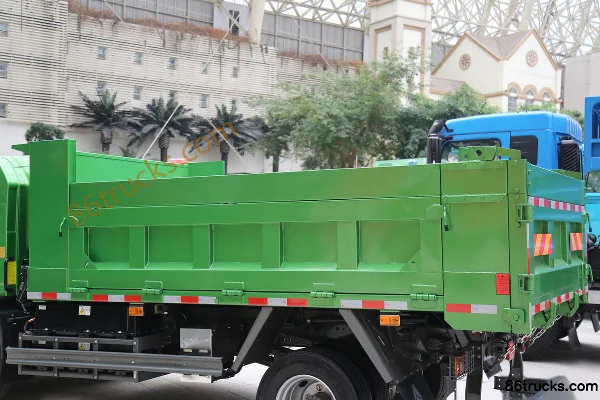

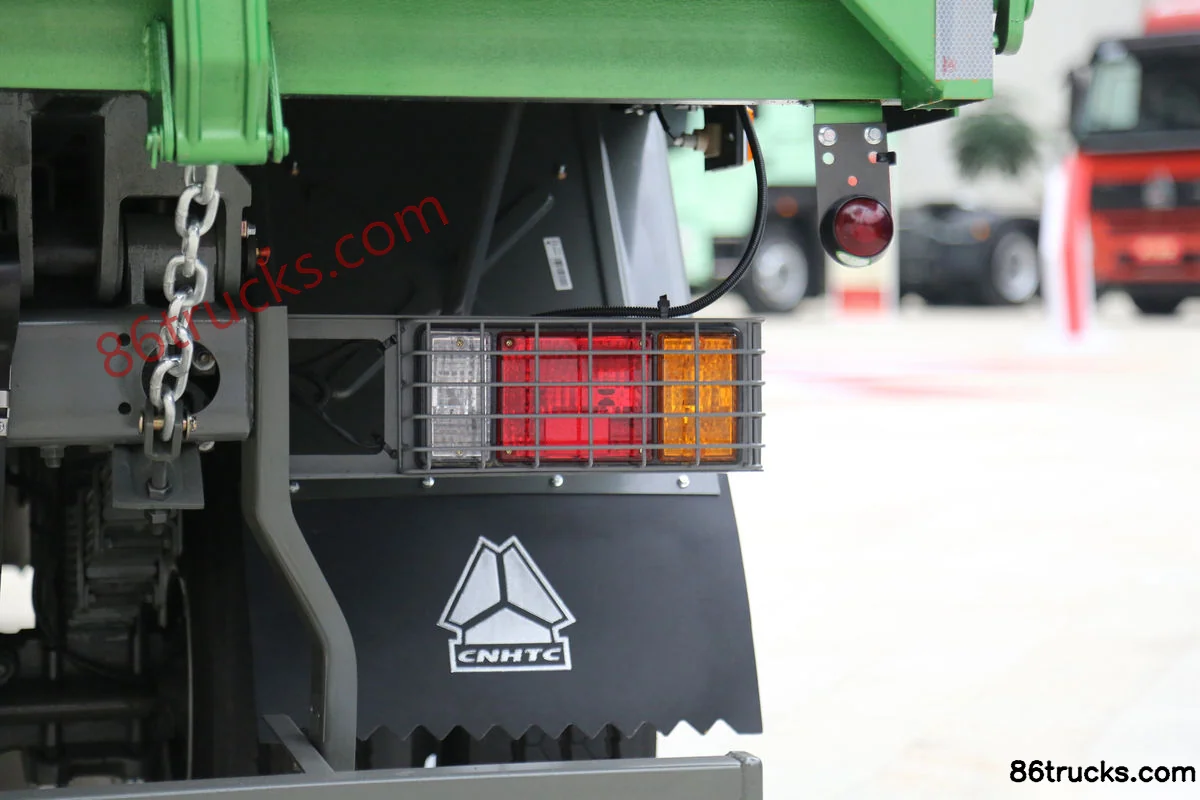

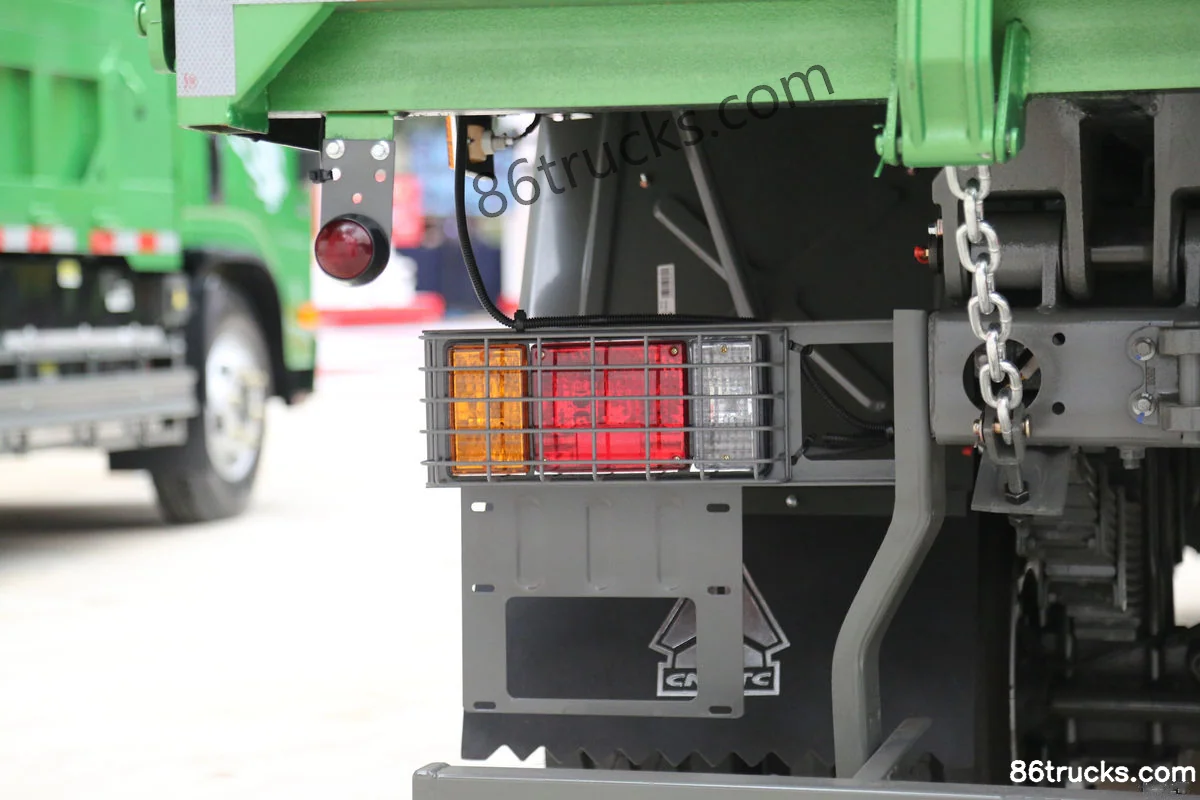

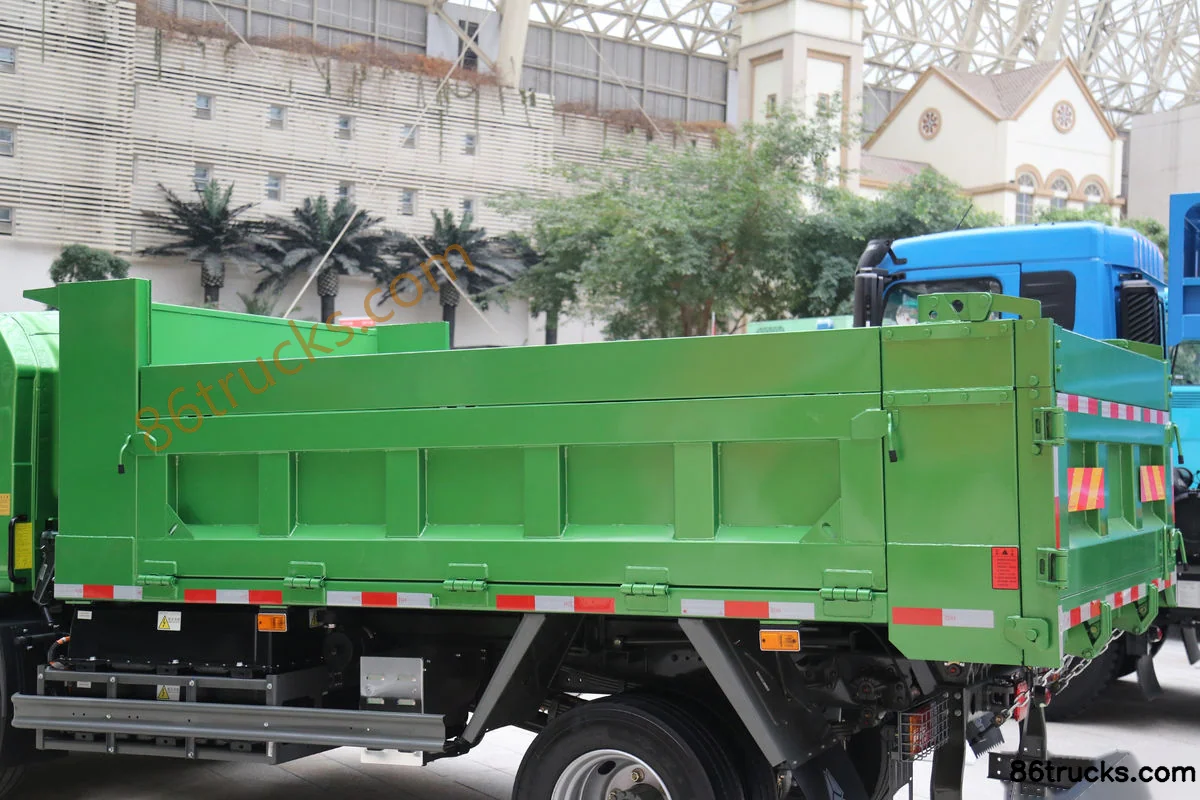

Body3

12 photos

FAQ

What is the export price of Sinotruk V1-X Xiaojinshi 12T 4X2(6 wheels) 3.8m Pure Electric Dump Truck 140kWh, and what does it include?

Sinotruk V1-X Xiaojinshi 12T 4X2(6 wheels) 3.8m Pure Electric Dump Truck 140kWh export reference is about From $45,833; MSRP is ¥33M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Sinotruk V1-X Xiaojinshi 12T 4X2(6 wheels) 3.8m Pure Electric Dump Truck 140kWh?

Key specs of Sinotruk V1-X Xiaojinshi 12T 4X2(6 wheels) 3.8m Pure Electric Dump Truck 140kWh: Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk V1-X Xiaojinshi 12T 4X2(6 wheels) 3.8m Pure Electric Dump Truck 140kWh suited for?

Sinotruk V1-X Xiaojinshi 12T 4X2(6 wheels) 3.8m Pure Electric Dump Truck 140kWh is a electric dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk V1-X Xiaojinshi 12T 4X2(6 wheels) 3.8m Pure Electric Dump Truck 140kWh differ from other variants in the same series?

Sinotruk V1-X Xiaojinshi 12T 4X2(6 wheels) 3.8m Pure Electric Dump Truck 140kWh belongs to Sinotruk V Series (electric dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk V1-X Xiaojinshi 12T 4X2(6 wheels) 3.8m Pure Electric Dump Truck 140kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk V1-X Xiaojinshi 12T 4X2(6 wheels) 3.8m Pure Electric Dump Truck 140kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
