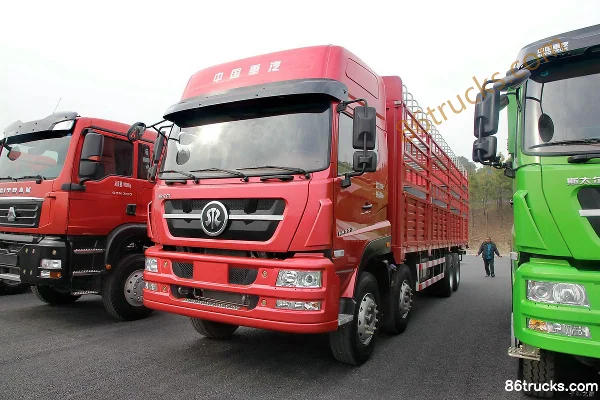

Sinotruk Steyr DM5G heavy truck 340 hp 8X4(12 wheels) 9.6m cage cargo truck (4.875 ratio)

Export reference
From $40,389
MSRP ¥29.08M CNY
Horsepower: 340
Emission: China V
Fuel: Diesel
Curb Weight:: 12.88ton
Wheelbase:: 1800+4600+1350mm
Tire Size:: 12.00R20 16PR
seating capacity: 2Personnel
Rated payload: 17.99ton
Drive 8X4 (12 wheels)
Cargo box type: Stake type

Overview

The Sinotruk Steyr DM5G heavy truck 340 hp 8X4(12 wheels) 9.6m cage cargo truck (4.875 ratio) is a Heavy-duty cargo trucks featuring 9.6m cargo length, Stake type cargo body, 2Personnel volume and 17.99t payload. Its segment focus covers Daily industrial goods transport, agricultural and sideline products transport and LTL transport, matching those duty cycles. On the powertrain side, it comes with 340 hp, 8X4 (12 wheels) drive, China V emissions and Diesel fuel.

China V 340 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ5313CCYN466GE1
Type: stake truck
Drive type: 8X4
Wheelbase: 1800+4600+1350mm
Box length class: 9.6m
engine: SinotrukMC07.34-50
transmission: SinotrukHW13710C
Rear Axle Ratio: 4.875
Cab length: 11.99m
Cab width: 2.496m
Cab height: 3.98m
Front track width: 2035/2035mm
rear track: 1860/1860mm
Curb Weight: 12.88ton
Rated payload: 17.99ton
GVWR: 31ton
Max. speed: 101km/h
Origin: Jinan, Shandong
tonnage class: Heavy-duty cargo trucks
Approach angle: 14°
departure angle: 17°
market segment: Daily industrial goods transport, agricultural and sideline products transport, LTL transport, green channel
Remarks: Optional: SmartConnect, air suspension seat, selectable ratio, electric package, cab front spring rear air bag suspension, fire extinguisher, lower guard
Front/rear suspension: 1.5/2.715m
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC07.34-50
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.87L
Emission standard: China V
Max output power: 248kW
Max hp: 340Horsepower
Max torque: 1250N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Transmission Parameters
Transmission Model: SinotrukHW13710C
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Housing Material: Steel shell
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 9.6m
Cargo box width: 2.4m
*Cargo box interior width: 2.4000000953674
Cab parameters
Cab: High roof
seating capacity: 2Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 600L
Chassis Specs
Front axle description: H153
Front axle allowable load: 6500/7000kg
rear axle description: H457
rear axle allowable load: 17500 (two-axle group)kg
Axle ratio: 4.875
Leaf spring count: 3/3/4
Aluminum wheels:
Suspension (front/rear): front leaf spring, rear leaf spring
Tire
Tire Size: 12.00R20 16PR
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Exterior features
Aluminum air tank:

Photos

0 photos

FAQ

What is the export price of Sinotruk Steyr DM5G heavy truck 340 hp 8X4(12 wheels) 9.6m cage cargo truck (4.875 ratio), and what does it include?

Sinotruk Steyr DM5G heavy truck 340 hp 8X4(12 wheels) 9.6m cage cargo truck (4.875 ratio) export reference is about From $40,389; MSRP is ¥29.08M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Steyr DM5G heavy truck 340 hp 8X4(12 wheels) 9.6m cage cargo truck (4.875 ratio) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Steyr DM5G heavy truck 340 hp 8X4(12 wheels) 9.6m cage cargo truck (4.875 ratio)?

Key specs of Sinotruk Steyr DM5G heavy truck 340 hp 8X4(12 wheels) 9.6m cage cargo truck (4.875 ratio): Drive: 8x4; Horsepower: 340 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Steyr DM5G heavy truck 340 hp 8X4(12 wheels) 9.6m cage cargo truck (4.875 ratio) suited for?

Sinotruk Steyr DM5G heavy truck 340 hp 8X4(12 wheels) 9.6m cage cargo truck (4.875 ratio) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk Steyr DM5G heavy truck 340 hp 8X4(12 wheels) 9.6m cage cargo truck (4.875 ratio) differ from other variants in the same series?

Sinotruk Steyr DM5G heavy truck 340 hp 8X4(12 wheels) 9.6m cage cargo truck (4.875 ratio) belongs to Sinotruk M5G Quasi-heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Steyr DM5G heavy truck 340 hp 8X4(12 wheels) 9.6m cage cargo truck (4.875 ratio)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Steyr DM5G heavy truck 340 hp 8X4(12 wheels) 9.6m cage cargo truck (4.875 ratio)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
