Karry Youjin 2019 Standard 1.5L 116hp 4X2(6 wheels) Gasoline 3m Single Row Flatbed Mini Truck

Export reference
From $5,542
MSRP ¥3.99M CNY
Horsepower: 117
Emission: China V
Fuel: gasoline
Engine: Dongan1.5L
Curb Weight:: 1.165ton
Wheelbase:: 3050mm
Karry Youjin 2019 Standard 1.5L 116hp 4X2(6 wheels) Gasoline 3m Single Row Flatbed Mini Truck exterior
View more photos (12)
seating capacity: 2Personnel
Rated payload: 0.745ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Chery Commercial Vehicle Karry Youjin 2019 Standard 1.5L 116hp 4X2(6 wheels) Gasoline 3m Single Row Flatbed Mini Truck is a mini truck featuring 3m cargo length, stake body cargo body, 2Personnel volume and 0.745t payload. On the powertrain side, it comes with a Dongan1.5L engine, 117 hp, 4X2 (6 wheels) drive and China V emissions.

China V 117 gasoline 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): SQR1022H08
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3050mm
Min. turning diameter: 6m
Box length class: 3m
engine: DonganDAM15DR
transmission: 5-speed manual transmission
Cab length: 4.873m
Cab width: 1.603m
Cab height: 1.89m
Front track width: 1360mm
rear track: 1380mm
Curb Weight: 1.165ton
Rated payload: 0.745ton
GVWR: 2.04ton
Max. speed: 130km/h
Origin: Wuhu, Anhui
tonnage class: mini truck
Approach angle: 28°
departure angle: 20°
Remarks: Sun visors for driver and passenger, passenger safety handle, multi-function pointer instrument cluster, interior dome light, front dual airbags, rear fog lamp, auxiliary power outlet, manual steering, spare tire spec 165R13LT 8PR
Front/rear suspension: 0.635/1.188m
Version:
Energy Type: gasoline
Engine parameters
Engine Brand: Dongan
Engine Model: DonganDAM15DR
Engine info: Dongan1.5L
Number of cylinders: 4cylinder
fuel type: gasoline
Cylinder arrangement: Inline
Displacement: 1.498L
Emission standard: China V
Max output power: 86kW
Max hp: 117Horsepower
Max torque: 148N·m
Engine Type: DOHC, 4 valves per cylinder, intake & exhaust VVT
Transmission Parameters
Transmission Model: 5-speed manual transmission
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3m
Cargo box width: 1.5m
Cargo box height: 0.327m
*Cargo box interior width: 1.5
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
fuel tank
Fuel tank capacity: 40L
Chassis Specs
Front axle allowable load: 780kg
rear axle allowable load: 1260kg
Leaf spring count: -/4+2
Aluminum wheels:
Suspension (front/rear): MacPherson strut independent suspension / 6-leaf spring non-independent suspension
Tire
Tire Size: 175/70R14C
Number of tires: 4pcs
Control configuration
Power steering:
Multimedia features
External audio input (AUX/USB/iPod etc.):
Radio:
lighting configuration
Front fog lamp:
Headlight height adjustment:
Service brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type

Photos

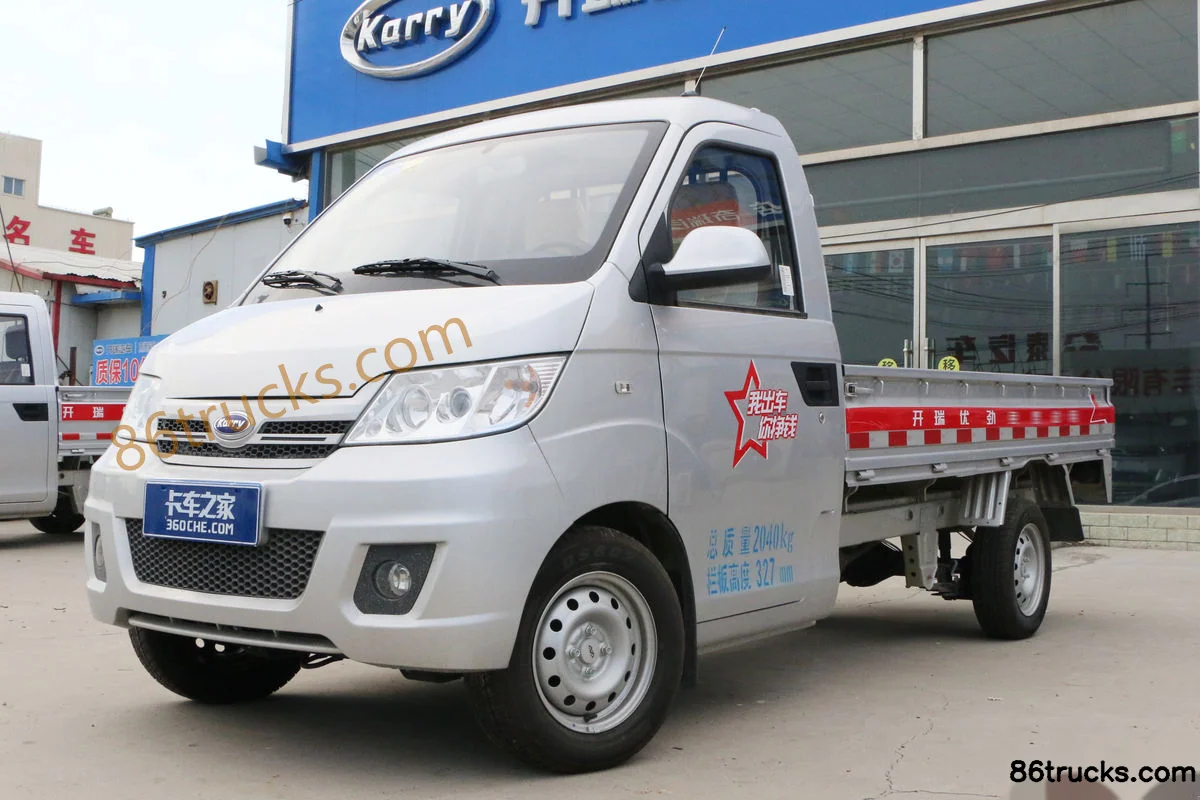

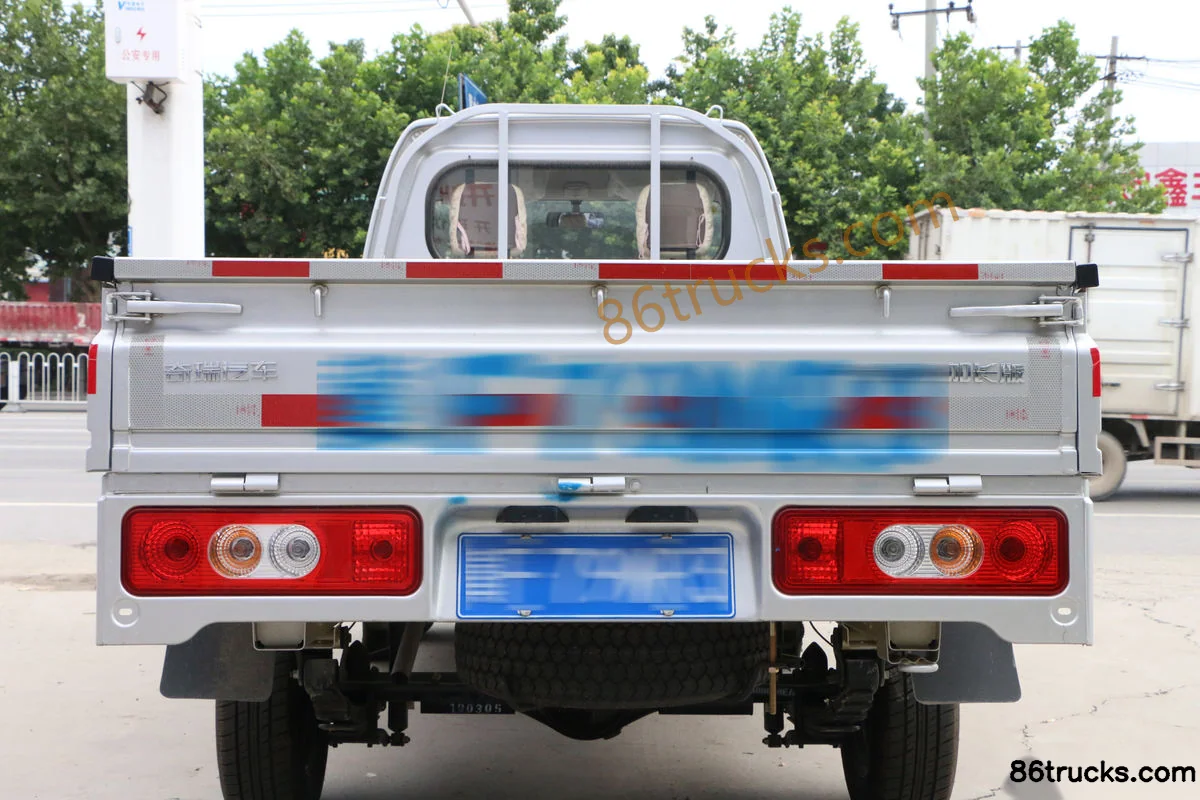

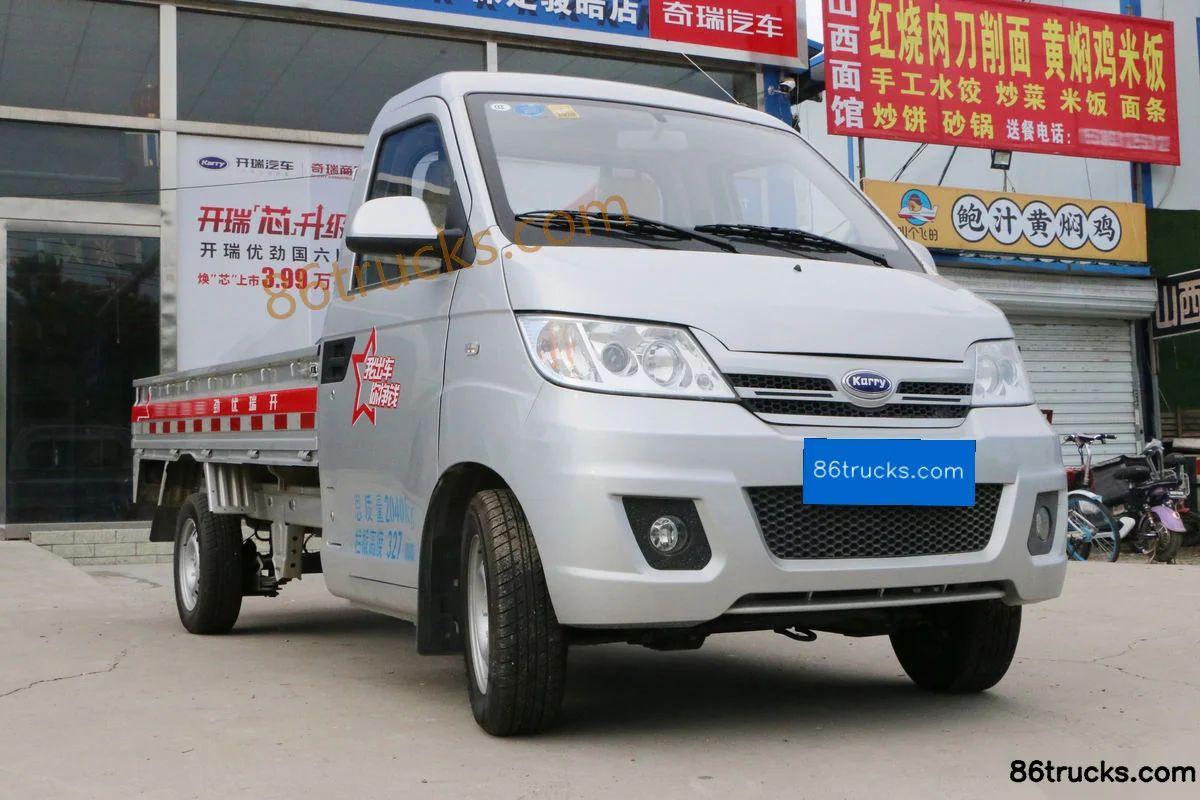

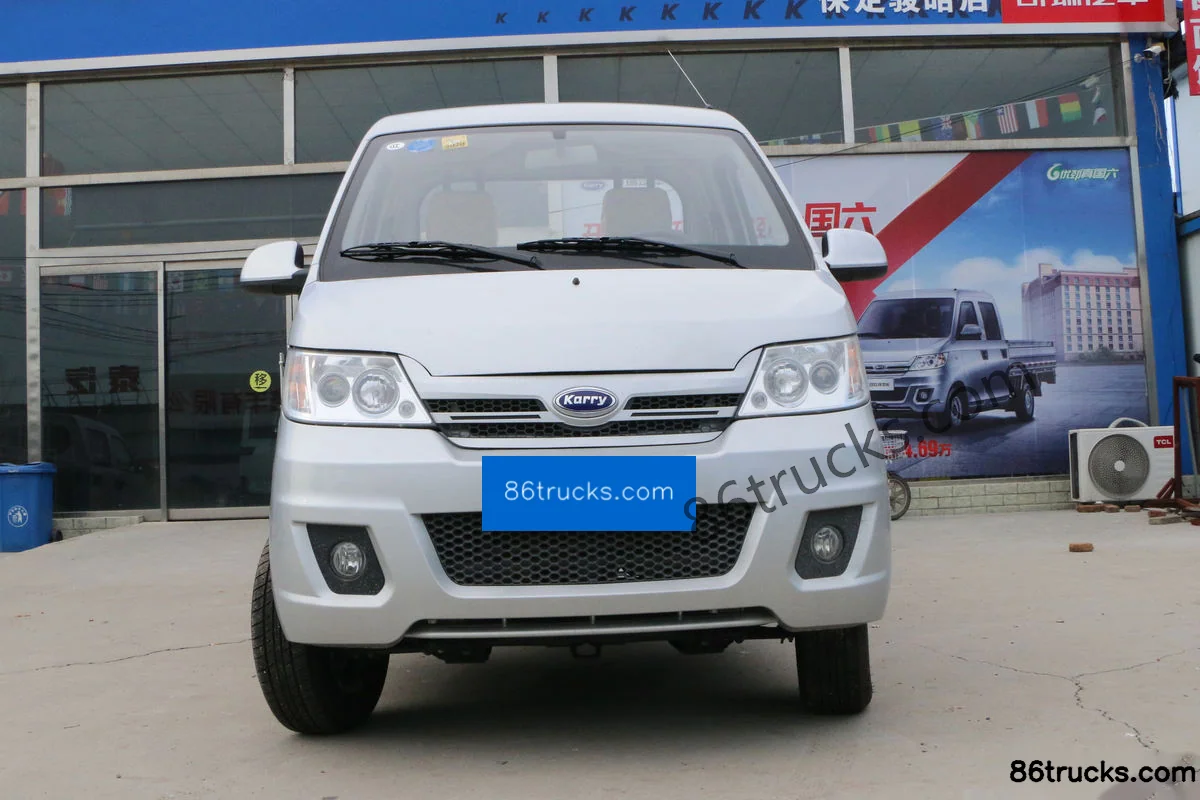

Exterior3

Karry Youjin 2019 Standard 1.5L 116hp 4X2(6 wheels) Gasoline 3m Single Row Flatbed Mini Truck Exterior (1) | 86Trucks Karry Youjin 2019 Standard 1.5L 116hp 4X2(6 wheels) Gasoline 3m Single Row Flatbed Mini Truck Exterior (2) | 86Trucks Karry Youjin 2019 Standard 1.5L 116hp 4X2(6 wheels) Gasoline 3m Single Row Flatbed Mini Truck Exterior (3) | 86Trucks

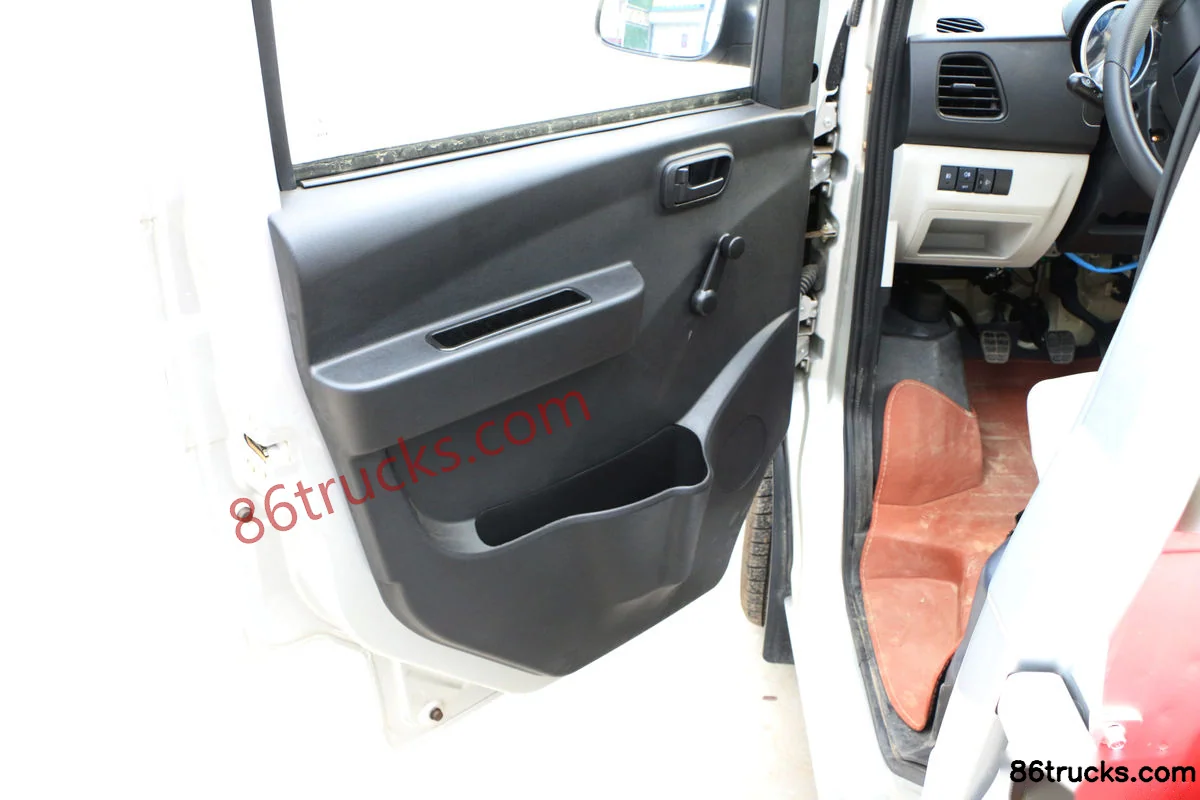

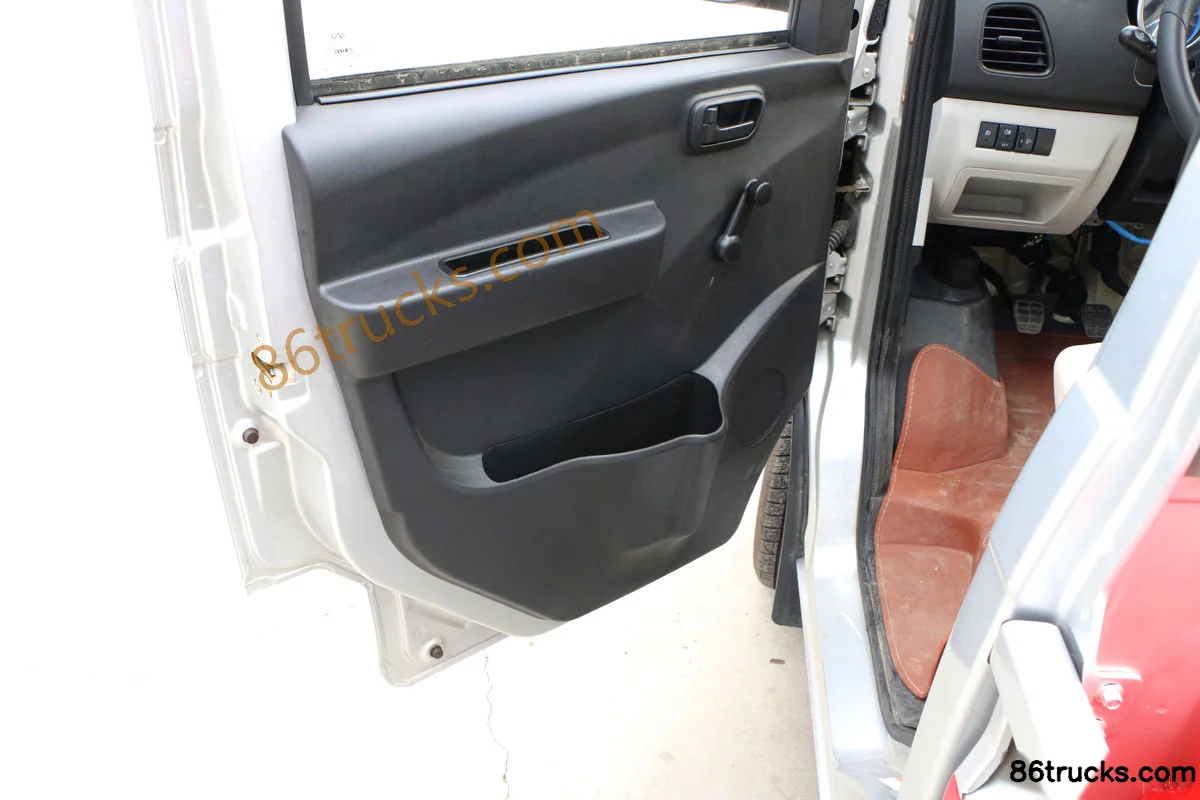

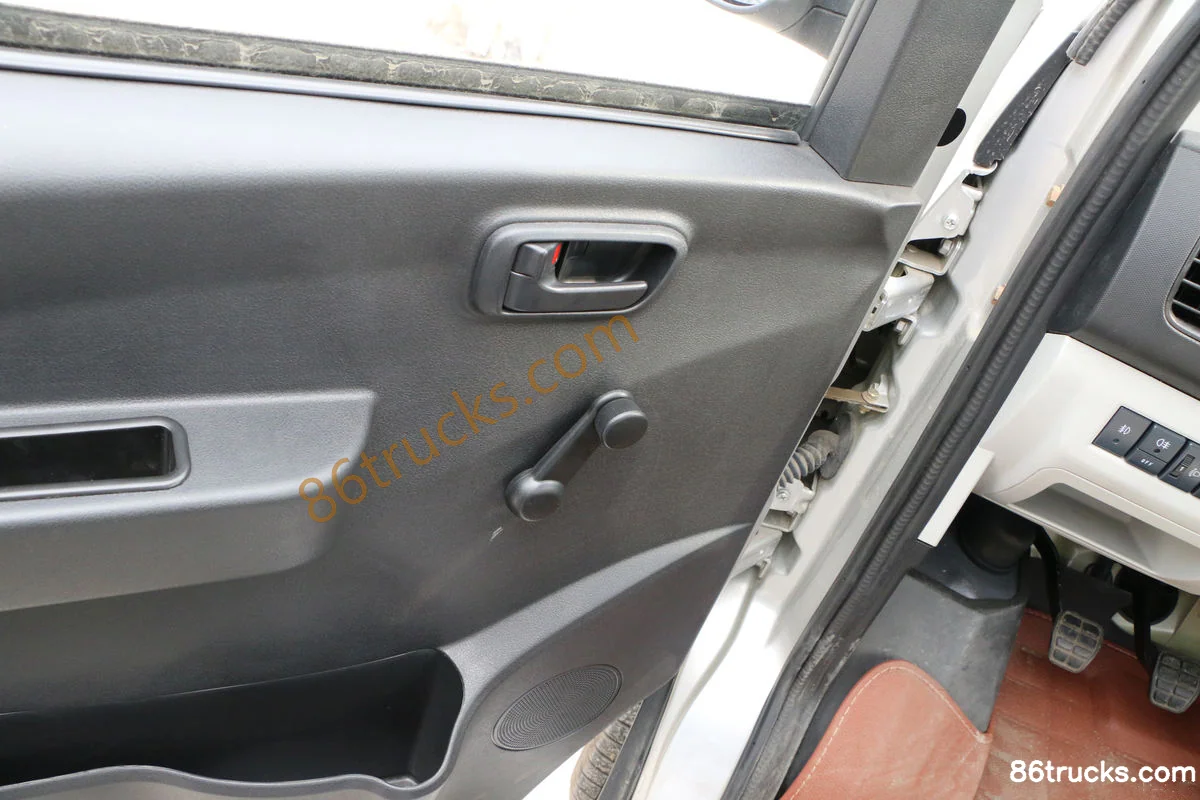

Cab3

Karry Youjin 2019 Standard 1.5L 116hp 4X2(6 wheels) Gasoline 3m Single Row Flatbed Mini Truck Cab (1) | 86Trucks Karry Youjin 2019 Standard 1.5L 116hp 4X2(6 wheels) Gasoline 3m Single Row Flatbed Mini Truck Cab (2) | 86Trucks Karry Youjin 2019 Standard 1.5L 116hp 4X2(6 wheels) Gasoline 3m Single Row Flatbed Mini Truck Cab (3) | 86Trucks

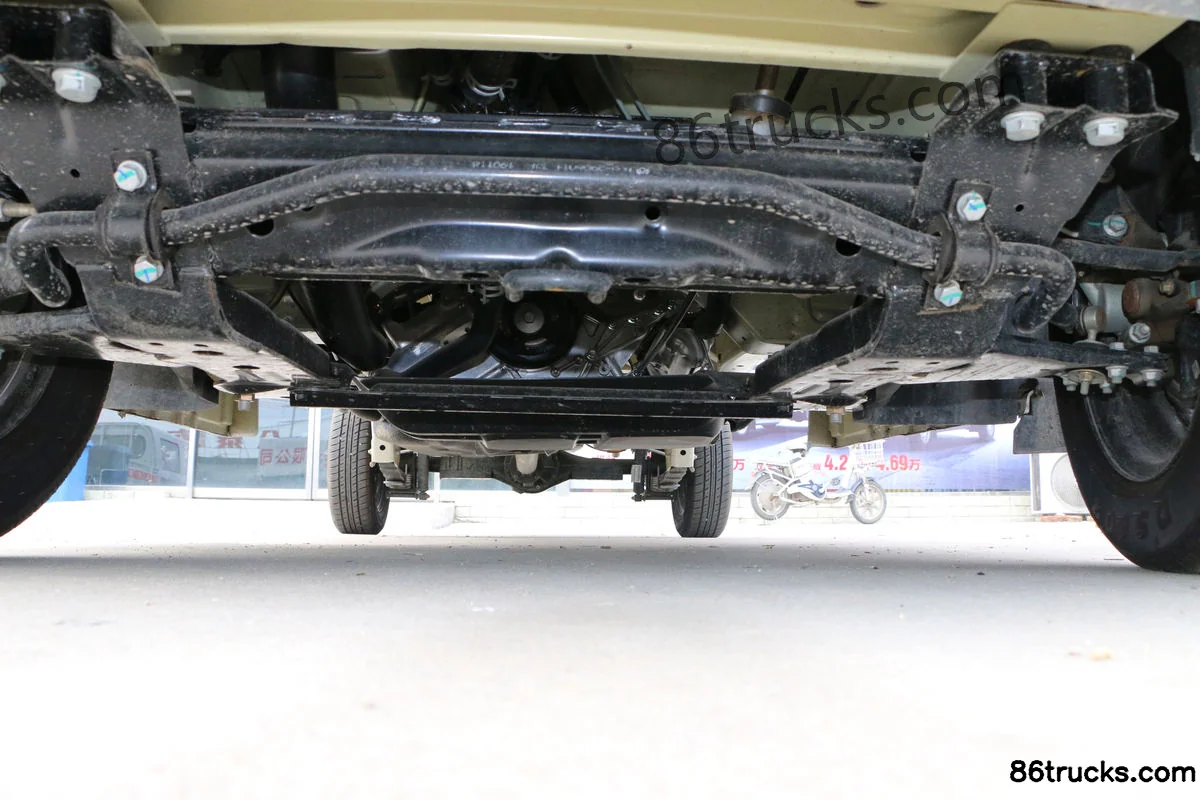

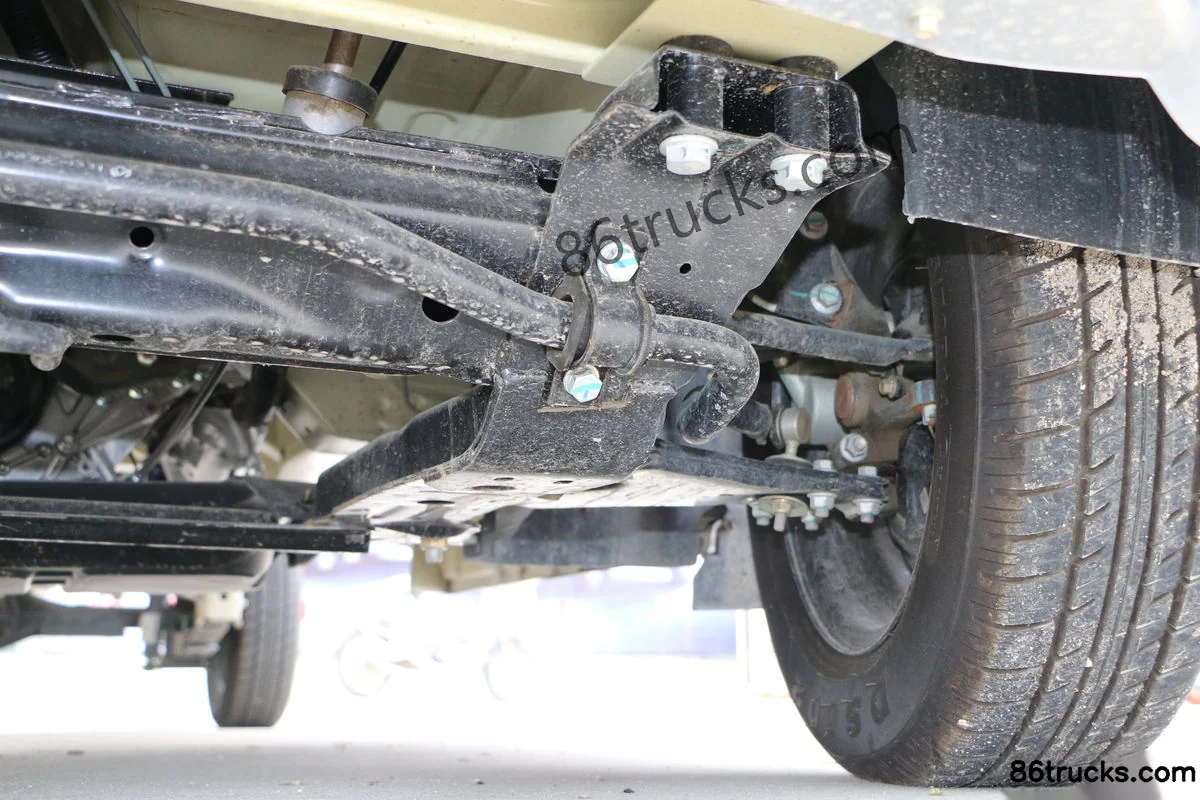

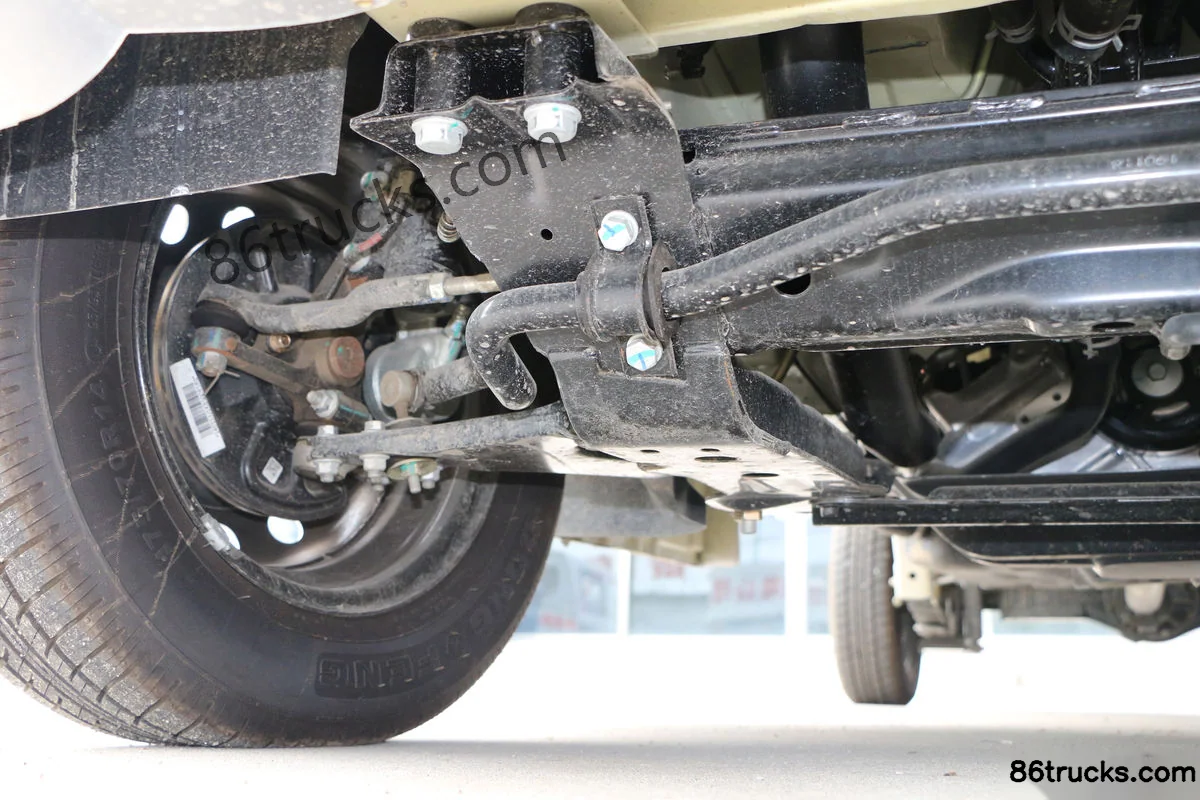

Chassis3

Karry Youjin 2019 Standard 1.5L 116hp 4X2(6 wheels) Gasoline 3m Single Row Flatbed Mini Truck Chassis (1) | 86Trucks Karry Youjin 2019 Standard 1.5L 116hp 4X2(6 wheels) Gasoline 3m Single Row Flatbed Mini Truck Chassis (2) | 86Trucks Karry Youjin 2019 Standard 1.5L 116hp 4X2(6 wheels) Gasoline 3m Single Row Flatbed Mini Truck Chassis (3) | 86Trucks

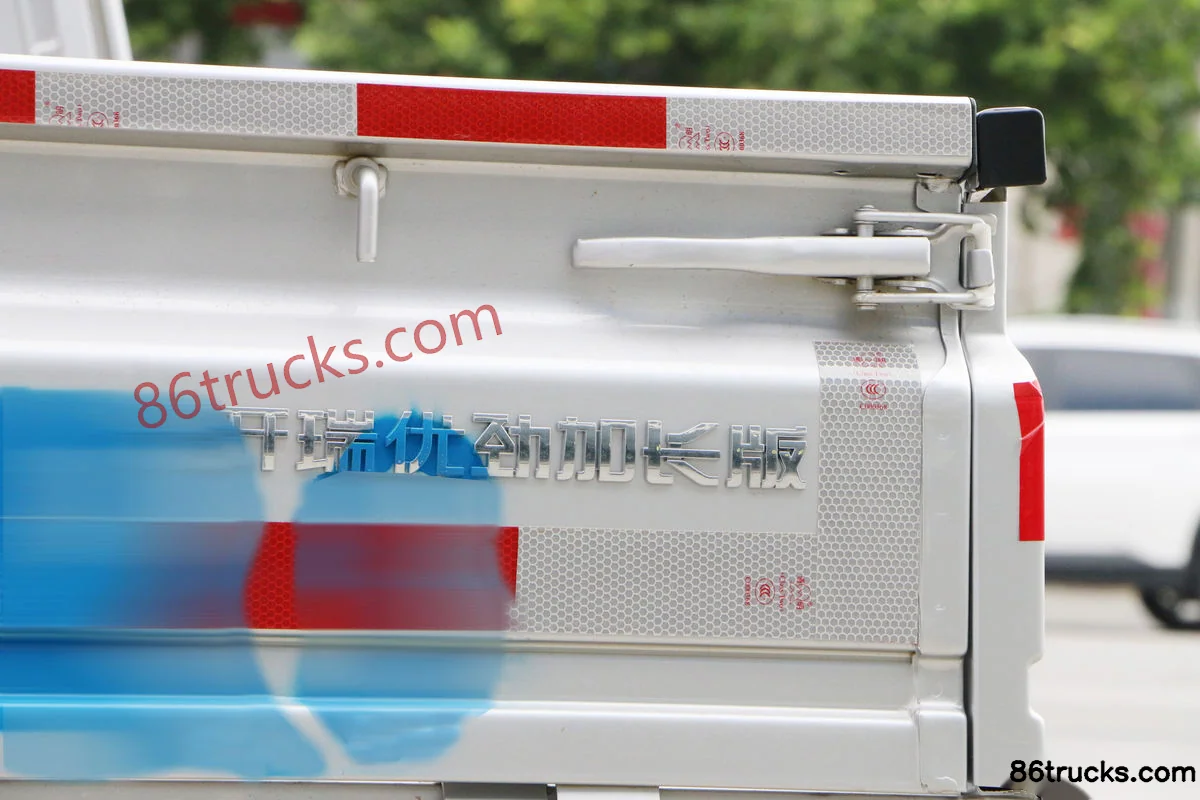

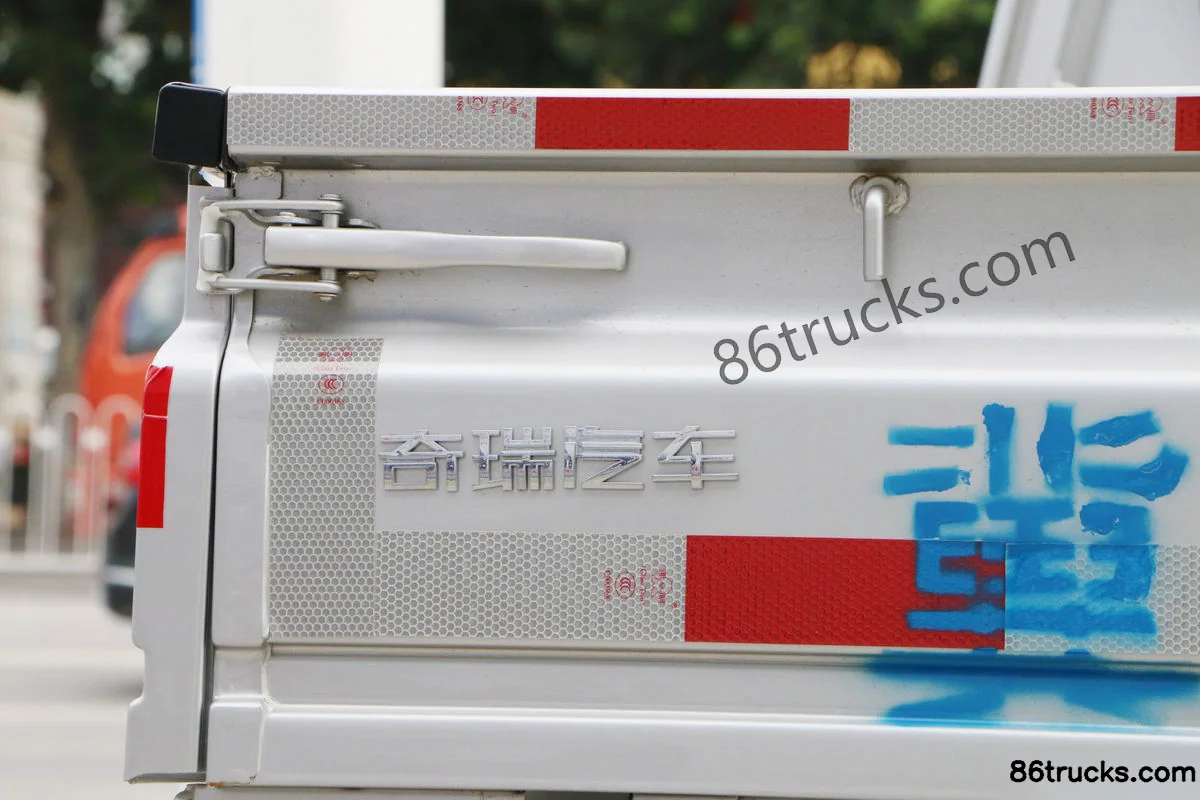

Body3

Karry Youjin 2019 Standard 1.5L 116hp 4X2(6 wheels) Gasoline 3m Single Row Flatbed Mini Truck Body (1) | 86Trucks Karry Youjin 2019 Standard 1.5L 116hp 4X2(6 wheels) Gasoline 3m Single Row Flatbed Mini Truck Body (2) | 86Trucks Karry Youjin 2019 Standard 1.5L 116hp 4X2(6 wheels) Gasoline 3m Single Row Flatbed Mini Truck Body (3) | 86Trucks

12 photos

FAQ

What is the export price of Karry Youjin 2019 Standard 1.5L 116hp 4X2(6 wheels) Gasoline 3m Single Row Flatbed Mini Truck, and what does it include?

Karry Youjin 2019 Standard 1.5L 116hp 4X2(6 wheels) Gasoline 3m Single Row Flatbed Mini Truck export reference is about From $5,542; MSRP is ¥3.99M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Karry Youjin 2019 Standard 1.5L 116hp 4X2(6 wheels) Gasoline 3m Single Row Flatbed Mini Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Karry Youjin 2019 Standard 1.5L 116hp 4X2(6 wheels) Gasoline 3m Single Row Flatbed Mini Truck?

Key specs of Karry Youjin 2019 Standard 1.5L 116hp 4X2(6 wheels) Gasoline 3m Single Row Flatbed Mini Truck: Drive: 4x2; Horsepower: 117 hp; Emission: China V; Fuel: gasoline; Engine: Dongan1.5L. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Karry Youjin 2019 Standard 1.5L 116hp 4X2(6 wheels) Gasoline 3m Single Row Flatbed Mini Truck suited for?

Karry Youjin 2019 Standard 1.5L 116hp 4X2(6 wheels) Gasoline 3m Single Row Flatbed Mini Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Karry Youjin 2019 Standard 1.5L 116hp 4X2(6 wheels) Gasoline 3m Single Row Flatbed Mini Truck differ from other variants in the same series?

Karry Youjin 2019 Standard 1.5L 116hp 4X2(6 wheels) Gasoline 3m Single Row Flatbed Mini Truck belongs to Karry Youjin Micro Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Karry Youjin 2019 Standard 1.5L 116hp 4X2(6 wheels) Gasoline 3m Single Row Flatbed Mini Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Karry Youjin 2019 Standard 1.5L 116hp 4X2(6 wheels) Gasoline 3m Single Row Flatbed Mini Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
