Sinotruk HOWO T5G 280hp 6X2(8 wheels) 7.8m stake truck

Export reference
From $38,889
MSRP ¥28M CNY
Horsepower: 280
Emission: China V
Fuel: Diesel
Engine: SinotrukMAN7L
Transmission: Sinotruk
Curb Weight:: 10.4ton
seating capacity: 3Personnel
Rated payload: 14.47ton
Drive 6X2 (8 wheels)
Cargo box type: Stake type

Overview

The Sinotruk HOWO T5G 280hp 6X2(8 wheels) 7.8m stake truck is a Heavy-duty cargo trucks featuring 7.8m cargo length, Stake type cargo body, 3Personnel volume and 14.47t payload. Its segment focus covers Green Pass, matching those duty cycles. On the powertrain side, it comes with a SinotrukMAN7L engine, 280 hp, 6X2 (8 wheels) drive and China V emissions.

China V 280 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ5257CCYM56CGE1
Type: stake truck
Drive type: 6X2
Wheelbase: 1800+4600mm
Box length class: 7.8m
engine: SinotrukMC07.28-50
transmission: SinotrukHW13709XSTC
Rear Axle Ratio: 4.111
Cab length: 10.33m
Cab width: 2.55m
Cab height: 3.98m
Front track width: 2035/2035mm
rear track: 1860mm
Curb Weight: 10.4ton
Rated payload: 14.47ton
GVWR: 25ton
Max. speed: 89km/h
Origin: Jinan, Shandong
tonnage class: Heavy-duty cargo trucks
Approach angle: 19°
departure angle: 10°
market segment: Green Pass
Front/rear suspension: 1.43/3.17m
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC07.28-50
Engine info: SinotrukMAN7L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.87L
Emission standard: China V
Max output power: 206kW
Max hp: 280Horsepower
Max torque: 1100N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Transmission Parameters
Transmission Model: SinotrukHW13709XSTC
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 7.8m
Cargo box width: 2.45m
*Cargo box interior width: 2.4500000476837
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab

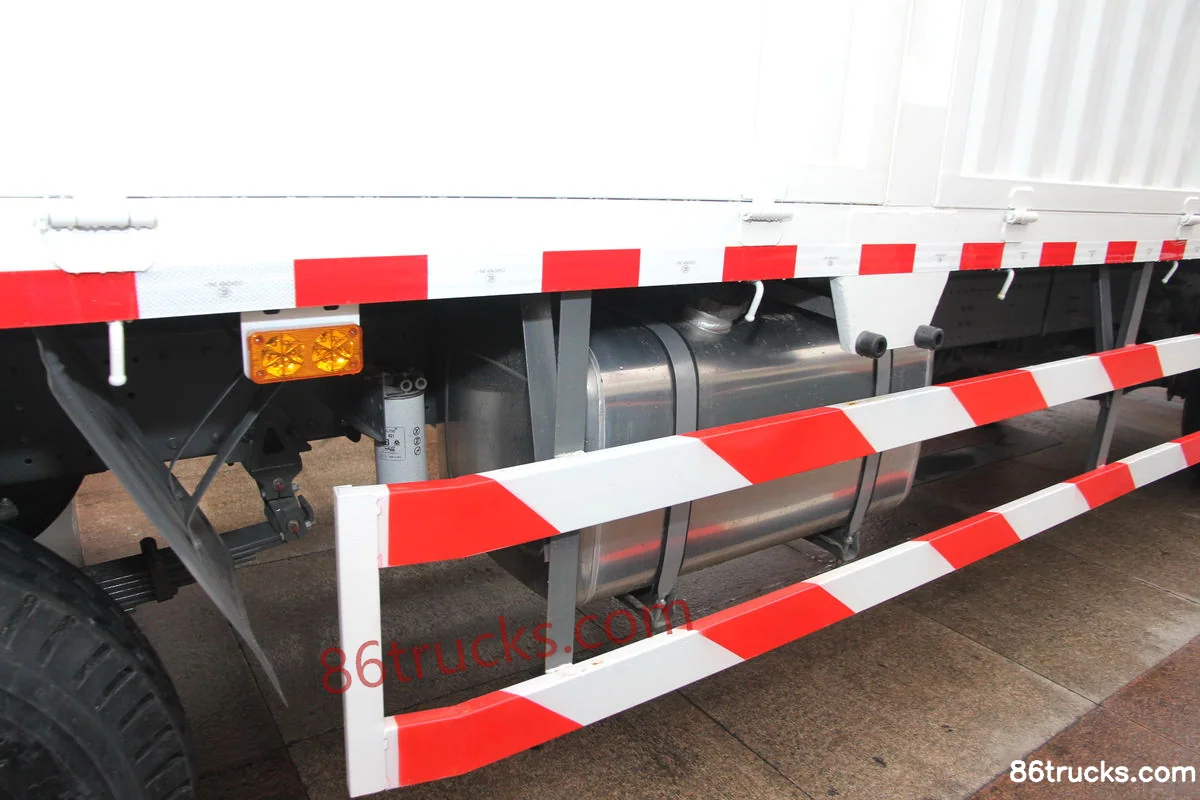

fuel tank
Fuel tank material: aluminum alloy
Chassis Specs
Front axle allowable load: 6500/7000kg
rear axle allowable load: 11500kg
Axle ratio: 4.111
Leaf spring count: 3/3/3+2
Suspension (front/rear): front leaf spring, rear leaf spring
Tire
Tire Size: 295/80R22.5 18PR
Number of tires: 8pcs
Control configuration
ABS:

Photos

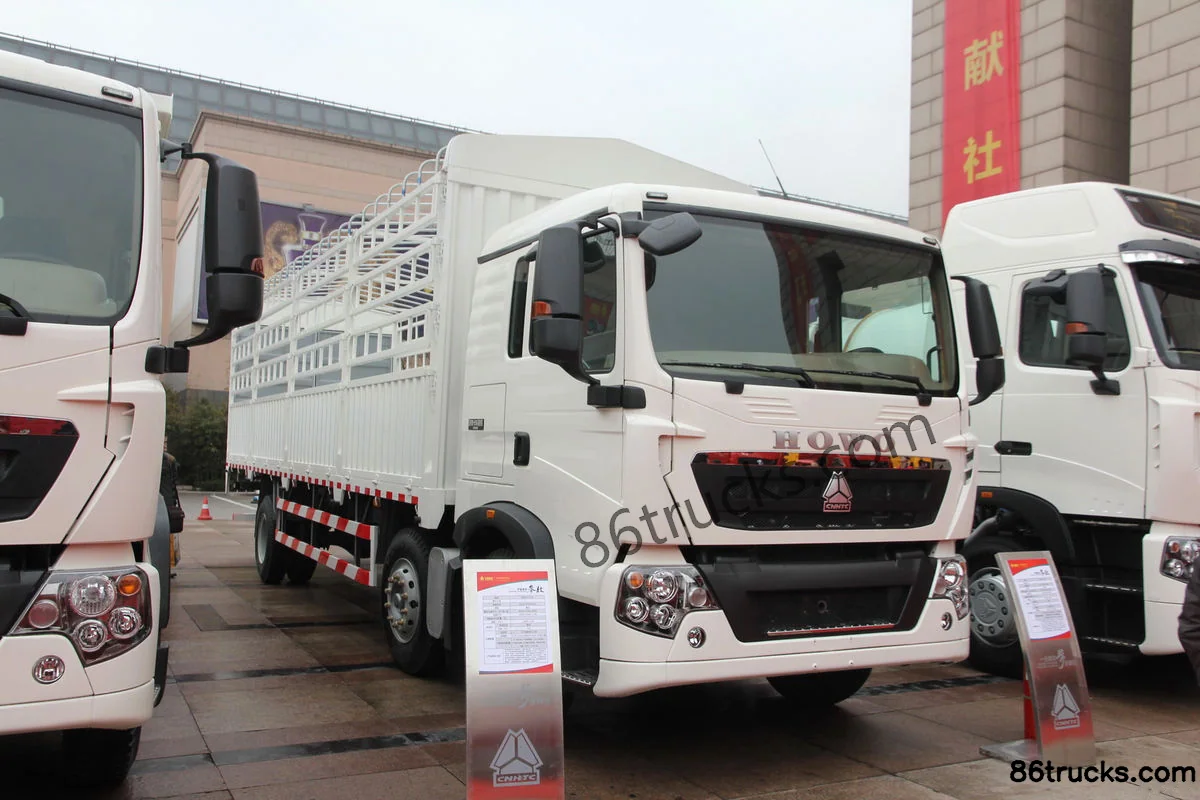

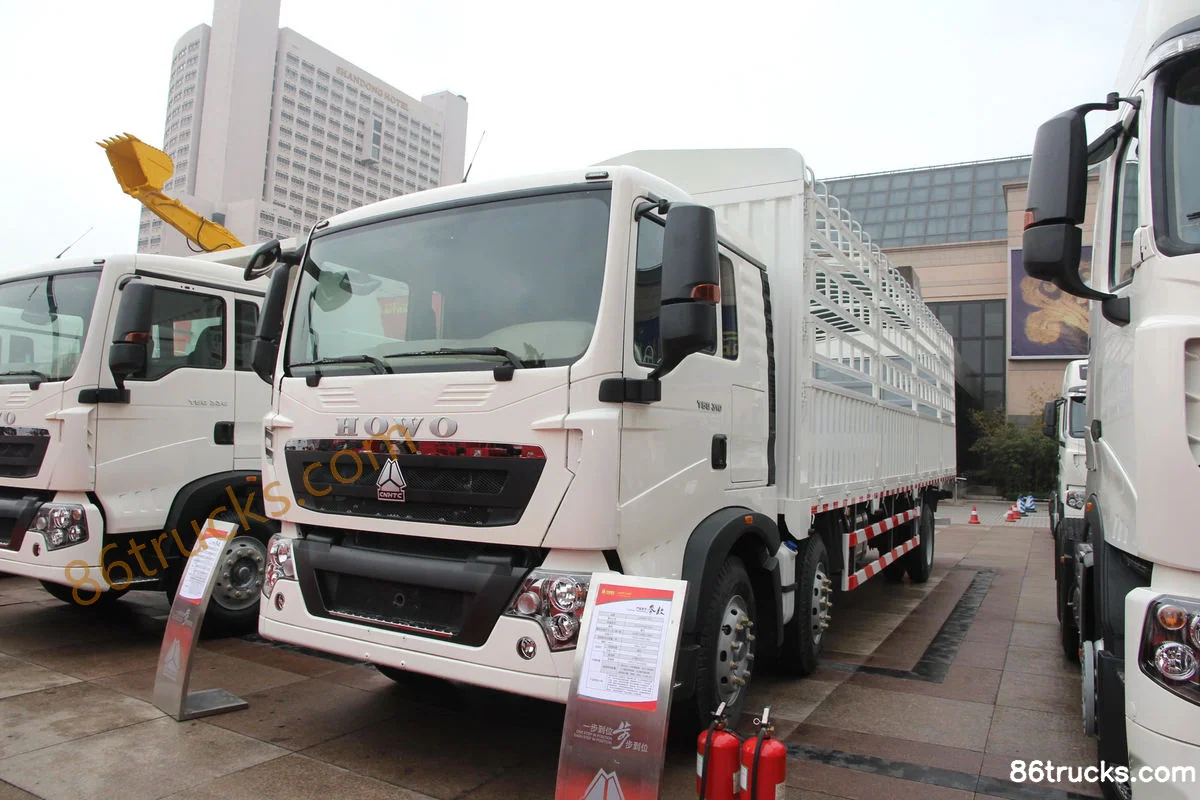

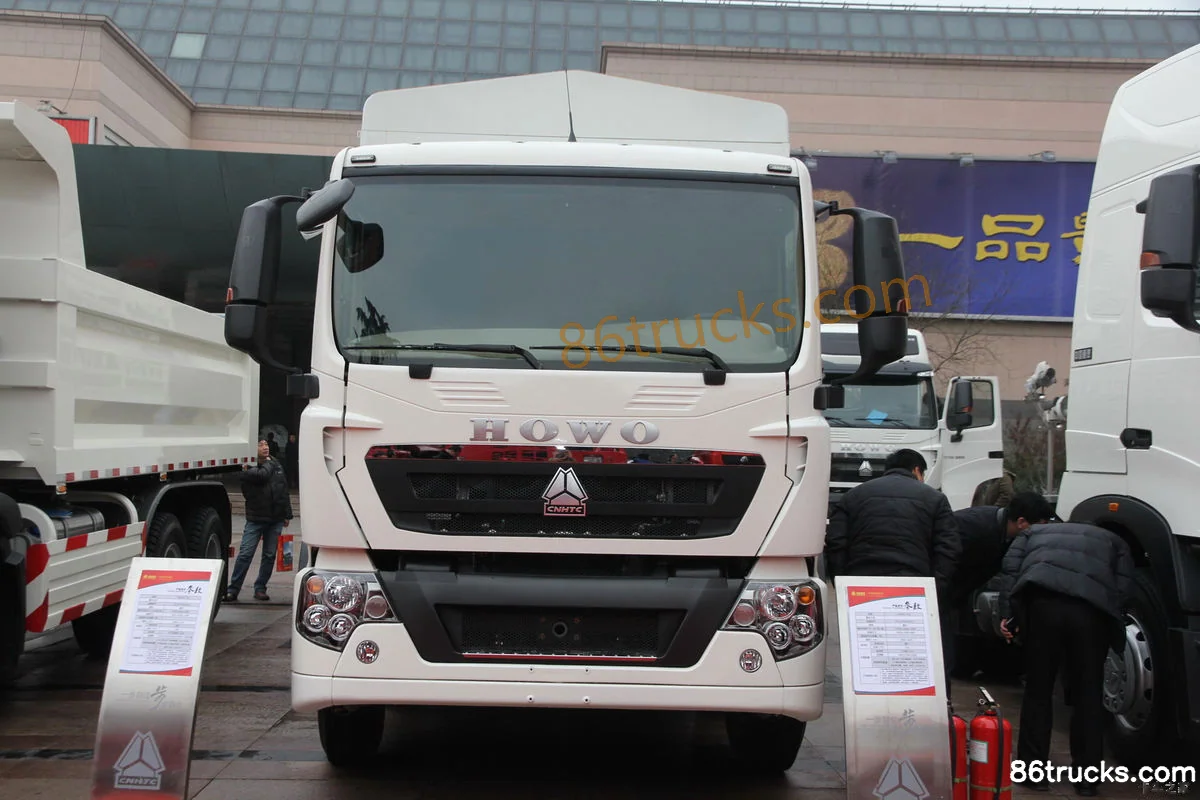

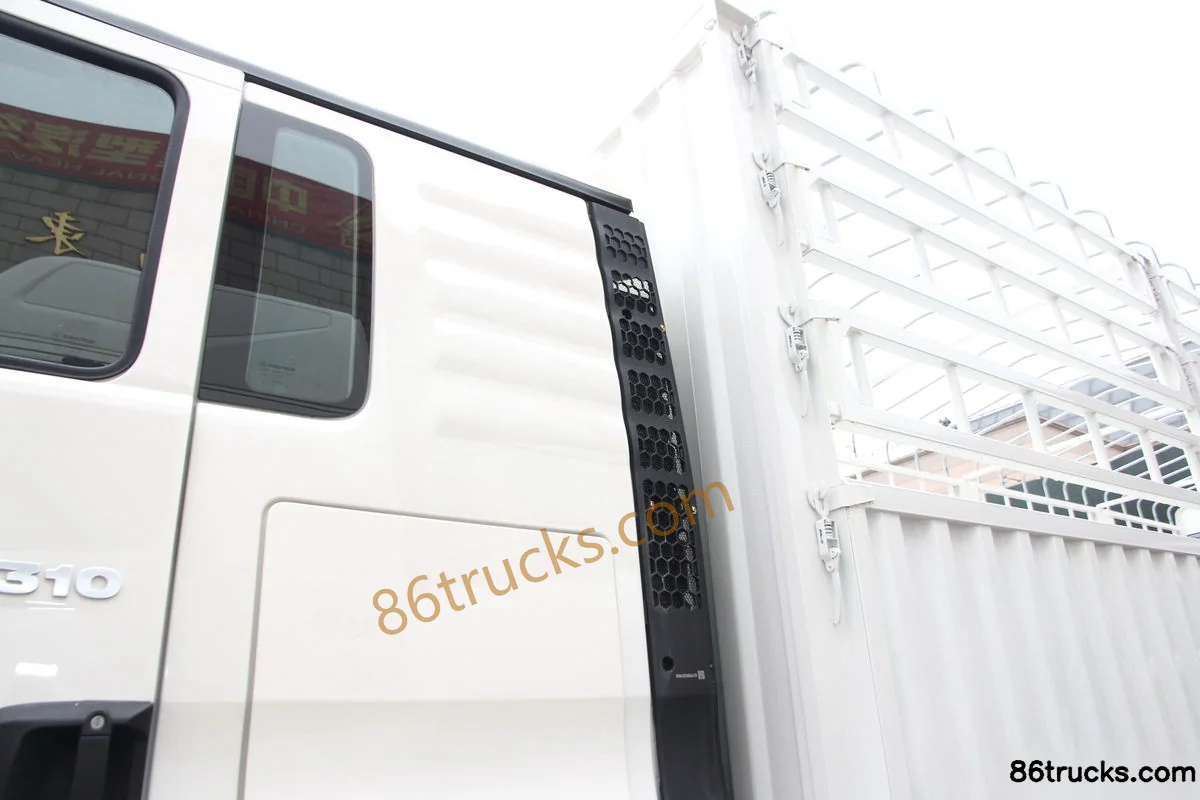

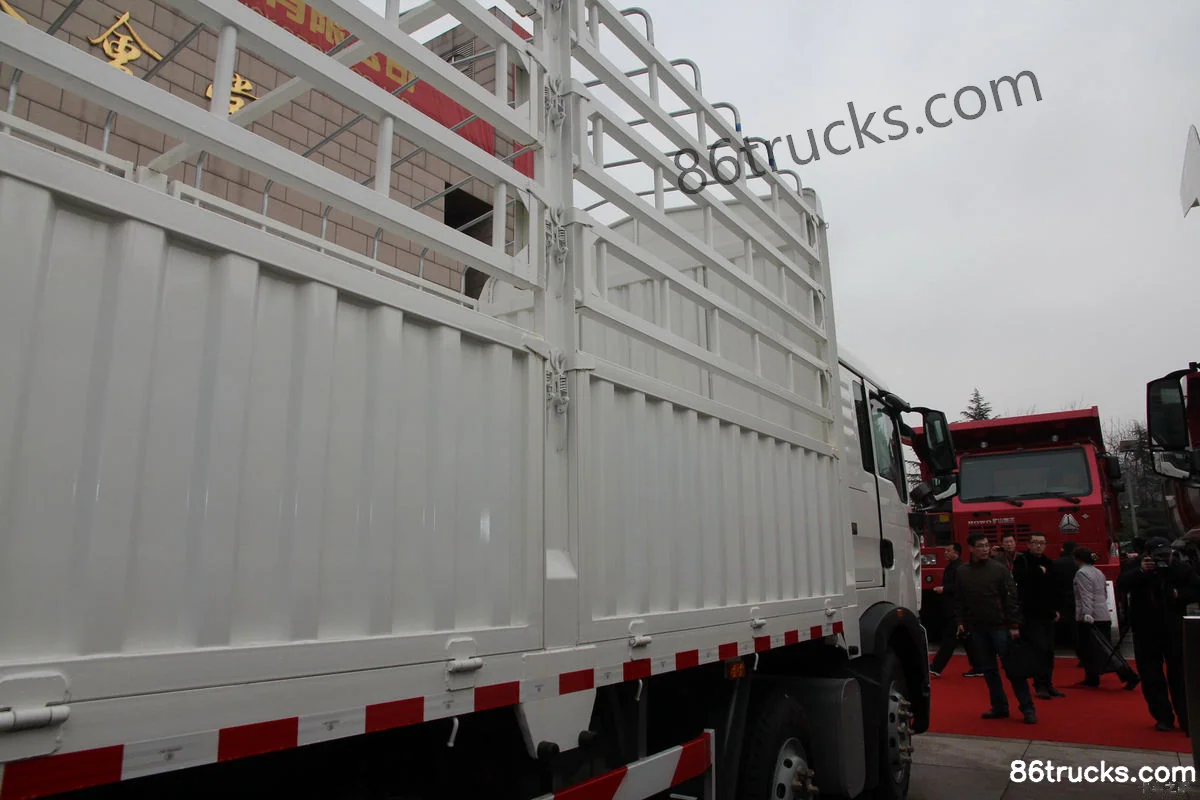

Exterior3

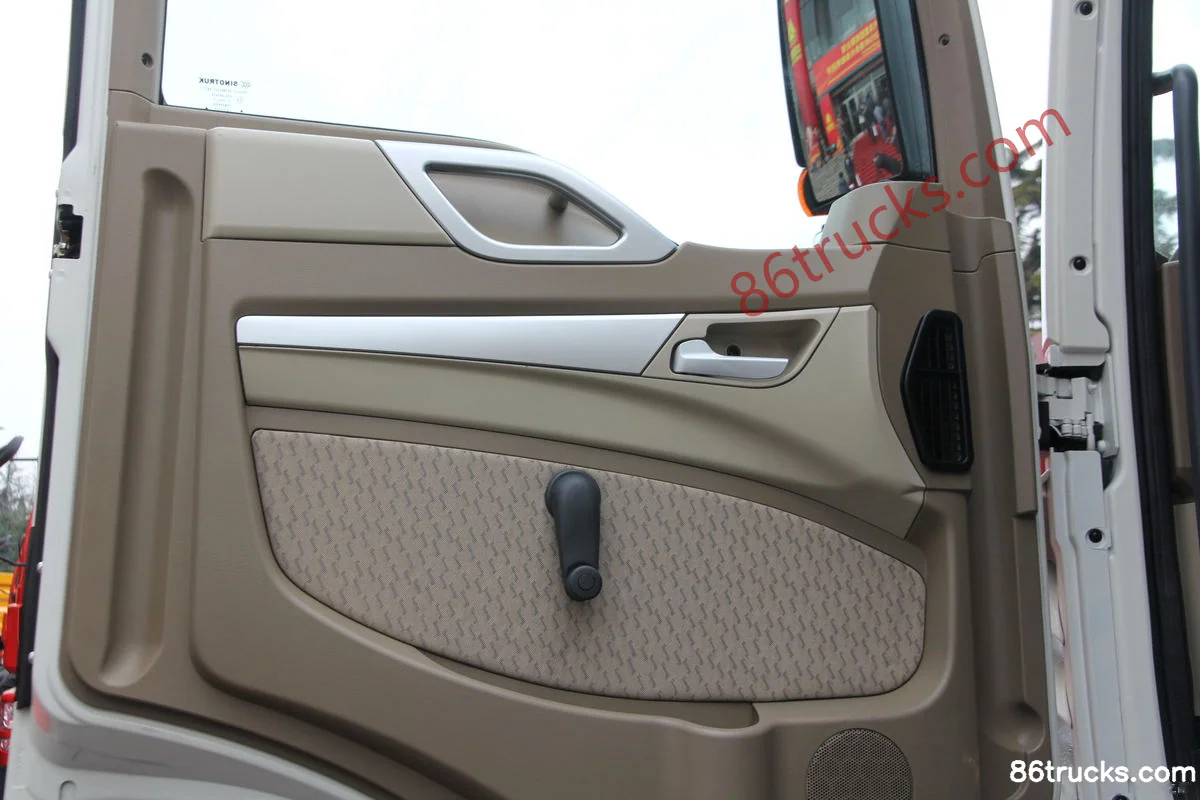

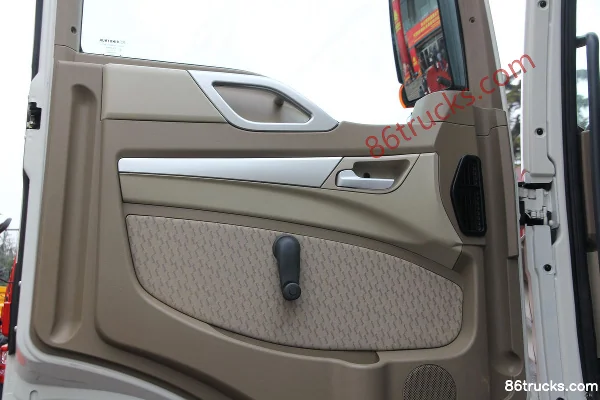

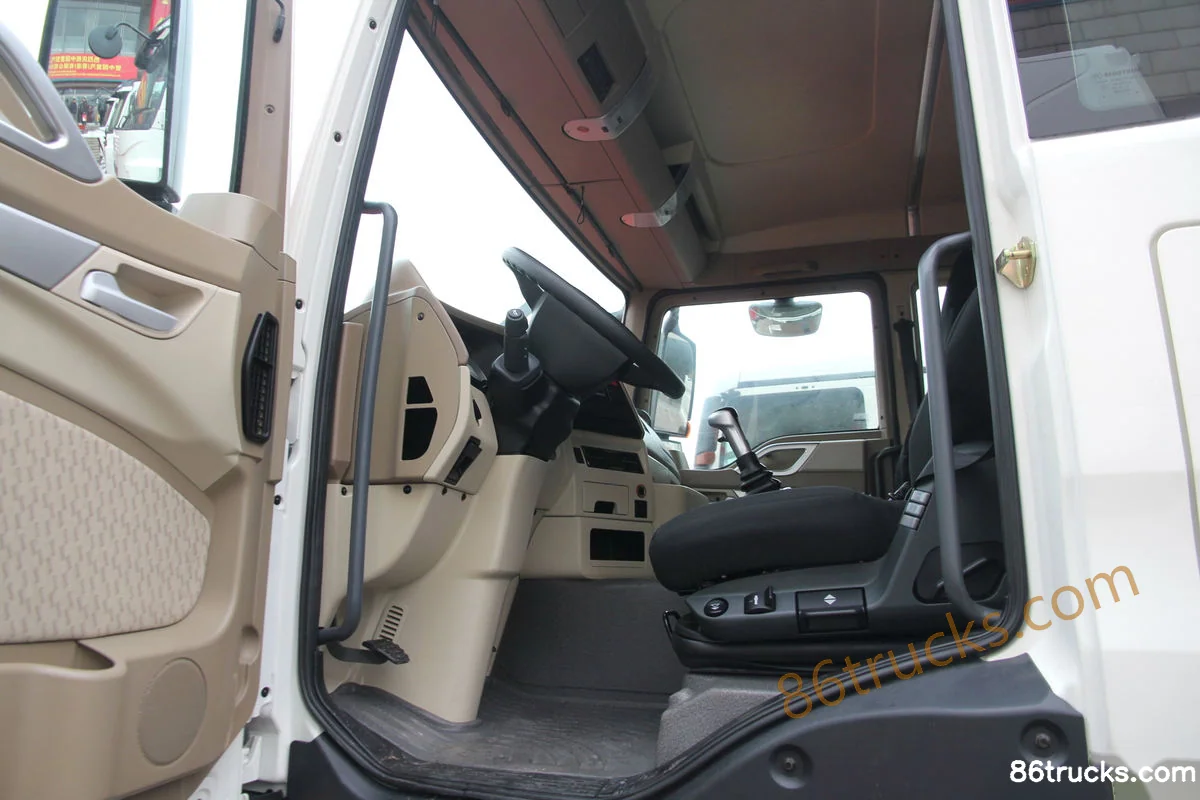

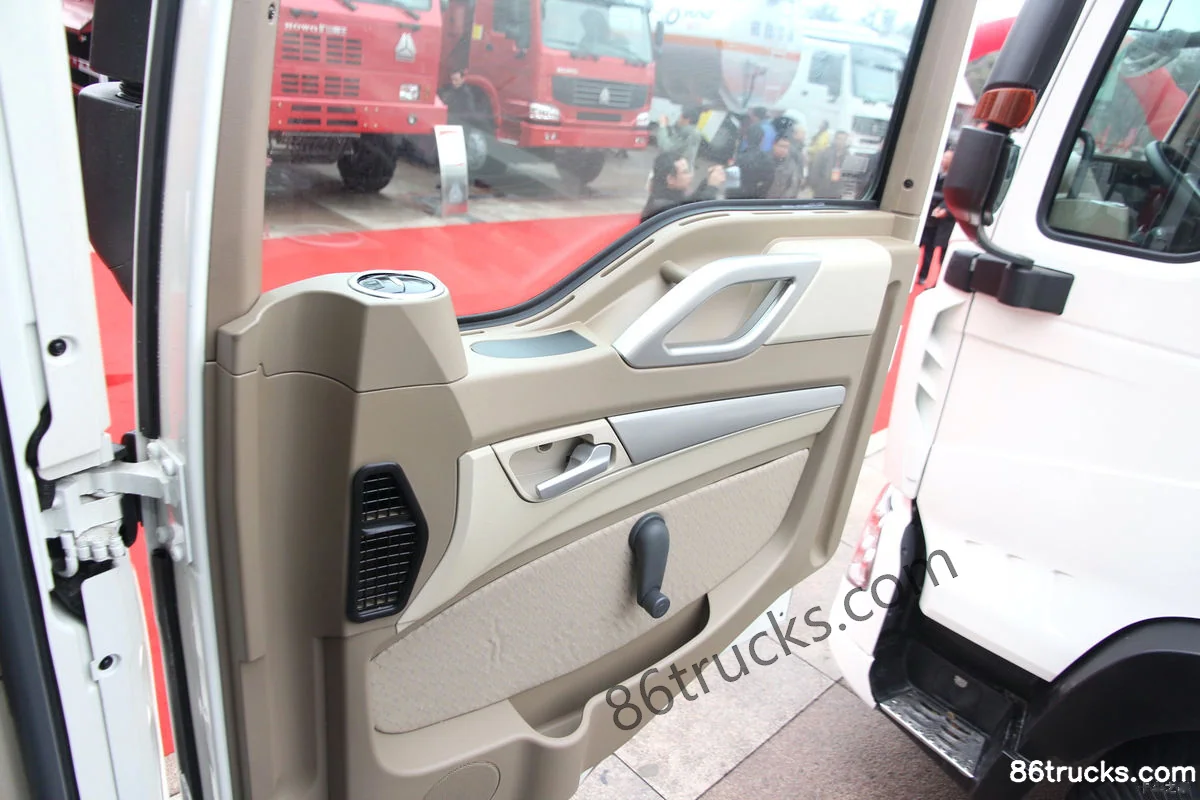

Cab3

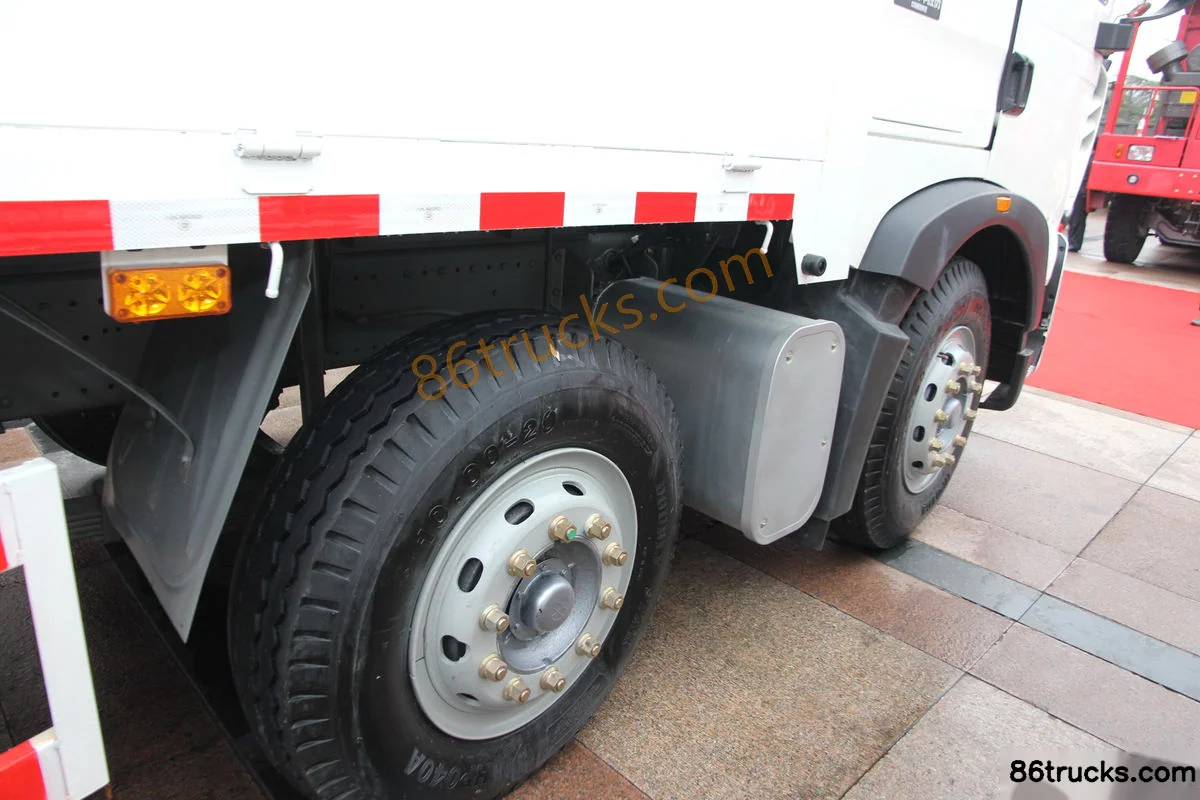

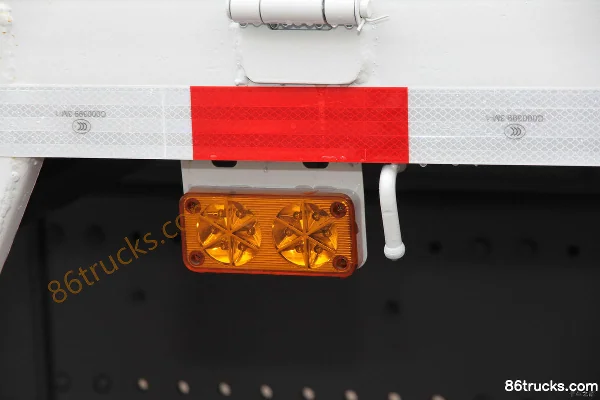

Chassis3

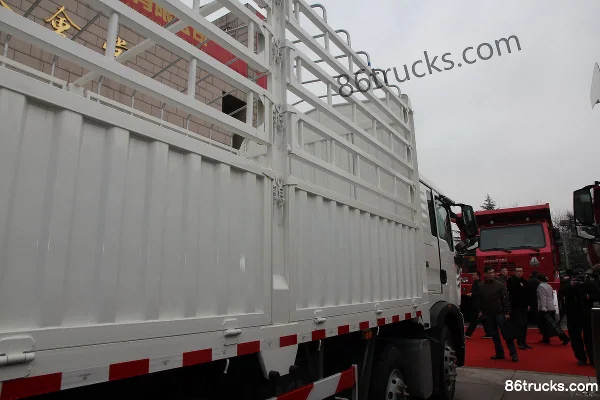

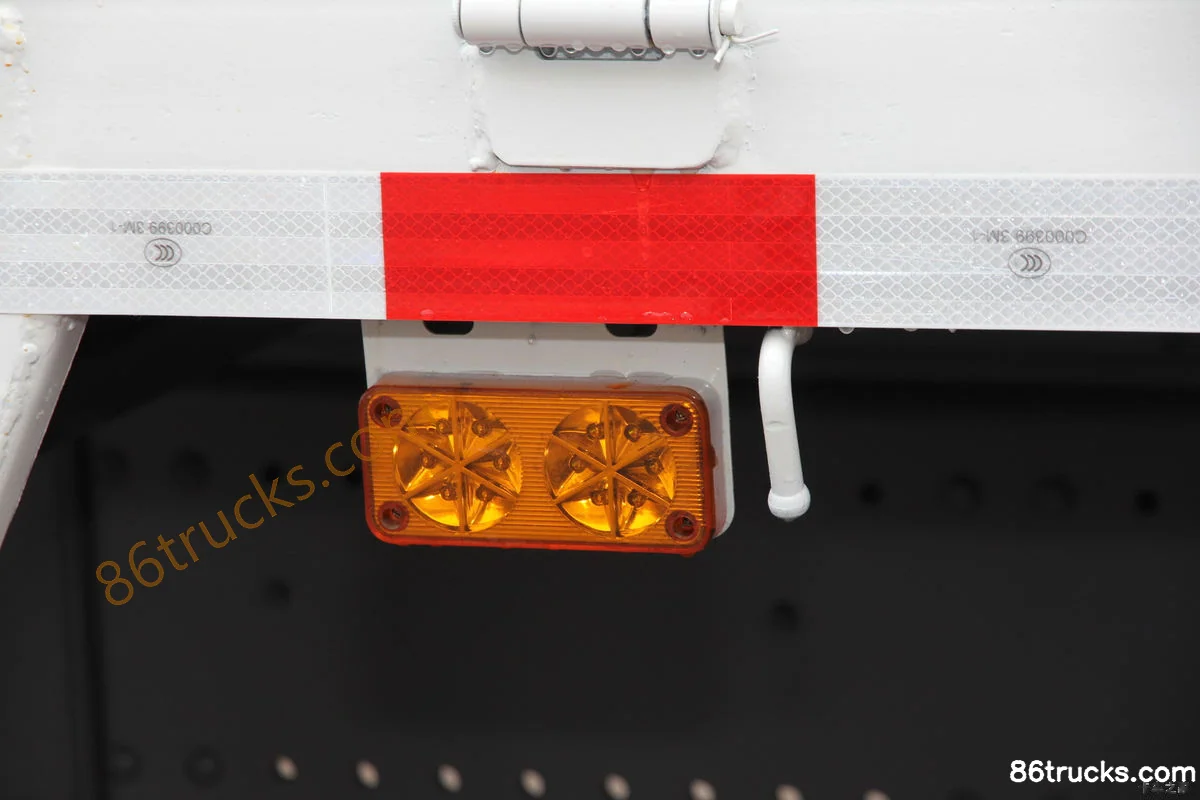

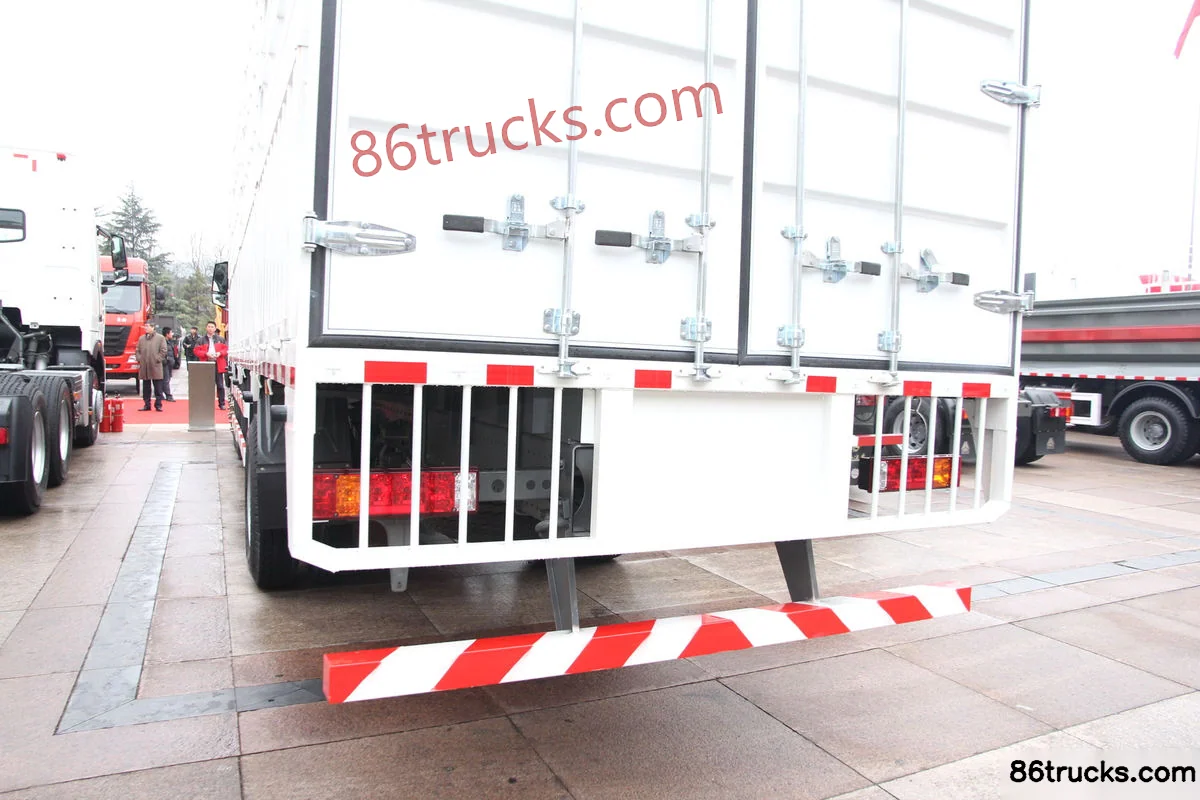

Body3

12 photos

FAQ

What is the export price of Sinotruk HOWO T5G 280hp 6X2(8 wheels) 7.8m stake truck, and what does it include?

Sinotruk HOWO T5G 280hp 6X2(8 wheels) 7.8m stake truck export reference is about From $38,889; MSRP is ¥28M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk HOWO T5G 280hp 6X2(8 wheels) 7.8m stake truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO T5G 280hp 6X2(8 wheels) 7.8m stake truck?

Key specs of Sinotruk HOWO T5G 280hp 6X2(8 wheels) 7.8m stake truck: Drive: 6x2; Horsepower: 280 hp; Emission: China V; Fuel: Diesel; Engine: SinotrukMAN7L; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO T5G 280hp 6X2(8 wheels) 7.8m stake truck suited for?

Sinotruk HOWO T5G 280hp 6X2(8 wheels) 7.8m stake truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk HOWO T5G 280hp 6X2(8 wheels) 7.8m stake truck differ from other variants in the same series?

Sinotruk HOWO T5G 280hp 6X2(8 wheels) 7.8m stake truck belongs to Sinotruk HOWO T5G medium-duty truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO T5G 280hp 6X2(8 wheels) 7.8m stake truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO T5G 280hp 6X2(8 wheels) 7.8m stake truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
