Sinotruk HOWO Hanjiang 130 hp 4X2(6 wheels) 4.165m single-row flatbed light truck (medium body)

Export reference
MSRP N/A
Horsepower: 130
Emission: China V
Fuel: Diesel
Engine: WeichaiWP2.3
Transmission: WLY
Curb Weight:: 2.565ton
Sinotruk HOWO Hanjiang 130 hp 4X2(6 wheels) 4.165m single-row flatbed light truck (medium body) exterior
View more photos (9)
seating capacity: 3Personnel
Rated payload: 1.8ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Sinotruk HOWO Hanjiang 130 hp 4X2(6 wheels) 4.165m single-row flatbed light truck (medium body) is a Light Truck featuring 4.165m cargo length, stake body cargo body, 3Personnel volume and 1.8t payload. Its segment focus covers express parcel, building materials transport and agricultural by-products transport, matching those duty cycles. On the powertrain side, it comes with a WeichaiWP2.3 engine, 130 hp, 4X2 (6 wheels) drive and China V emissions.

China V 130 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): ZZ1047C3314E145-2
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3280mm
Box length class: 4.2m
engine: WeichaiWP2.3NQ130E50
transmission: WLYWLY6G40
Cab length: 5.98m
Cab width: 2.15m
Cab height: 2.5m
Front track width: 1620mm
rear track: 1530mm
Curb Weight: 2.565ton
Rated payload: 1.8ton
GVWR: 4.495ton
Max. speed: 95km/h
Origin: Shandong Zhangqiu
tonnage class: Light Truck
Approach angle: 19°
departure angle: 17°
market segment: express parcel, building materials transport, agricultural by-products transport, cold chain transport, daily bulk cargo, urban distribution, green channel
Remarks: Optional chassis wax spray, high-end anti-corrosion, MP5
Front/rear suspension: 1.165/1.515m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP2.3NQ130E50
Engine info: WeichaiWP2.3
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.29L
Emission standard: China V
Max output power: 96kW
Max hp: 130Horsepower
Max torque: 380N·m
Max torque speed: 1600-2400rpm
Rated speed: 3200rpm
Engine Type: Common Rail+SCR
Transmission Parameters
Transmission Model: WLYWLY6G40
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.165m
Cargo box width: 2.05m
Cargo box height: 0.4m
*Cargo box interior width: 2.0499999523163
Cab parameters
Cab width: 1880mm
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1790kg
rear axle allowable load: 2705kg
Leaf spring count: 3/3+2,3/5+3
Tire
Tire Size: 7.00R16LT 8PR
Tire Type: tubeless tire
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Optional manual.
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
lighting configuration
Headlight height adjustment:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
smart configuration
Cruise control (CCS):

Photos

Exterior3

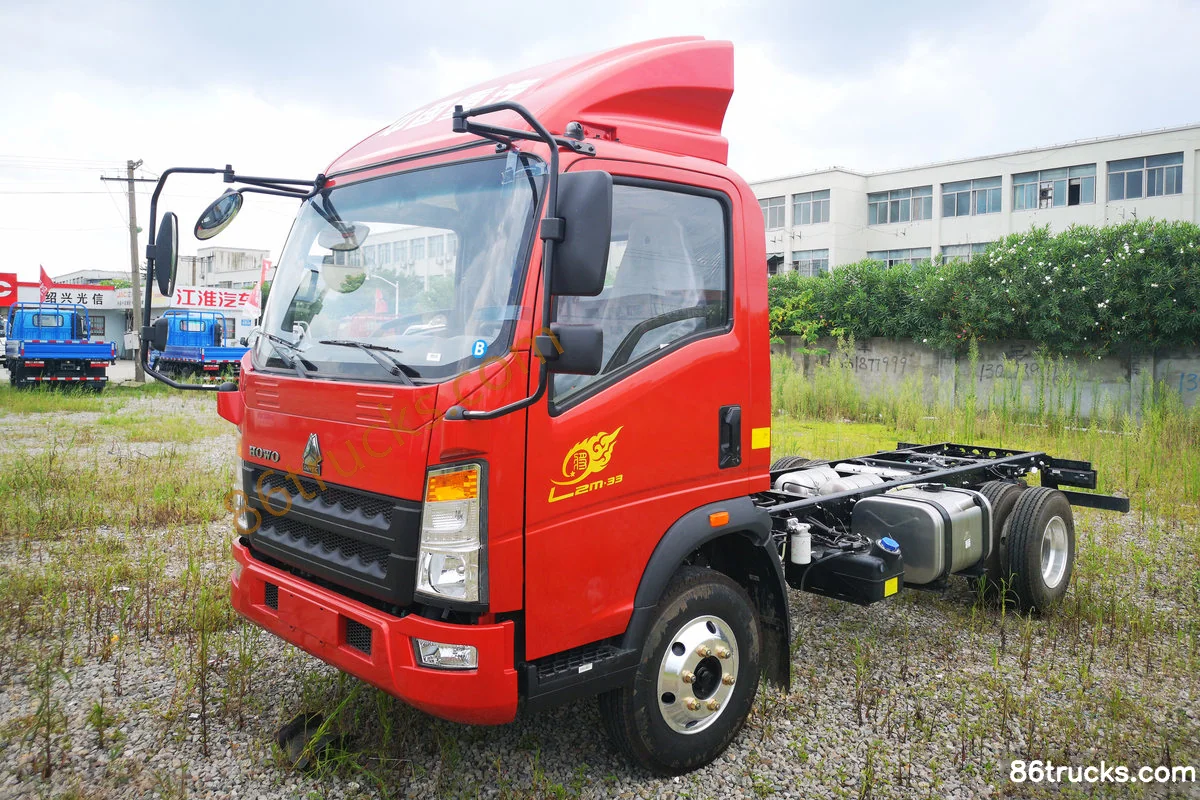

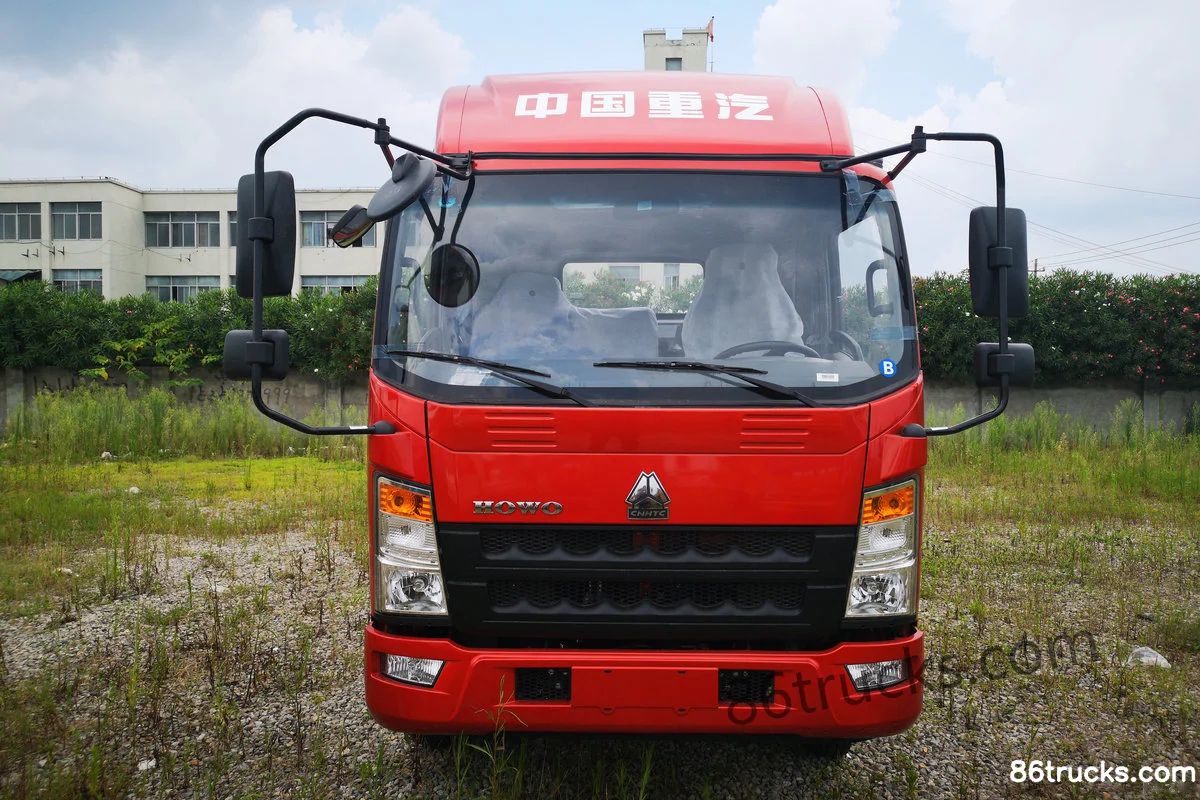

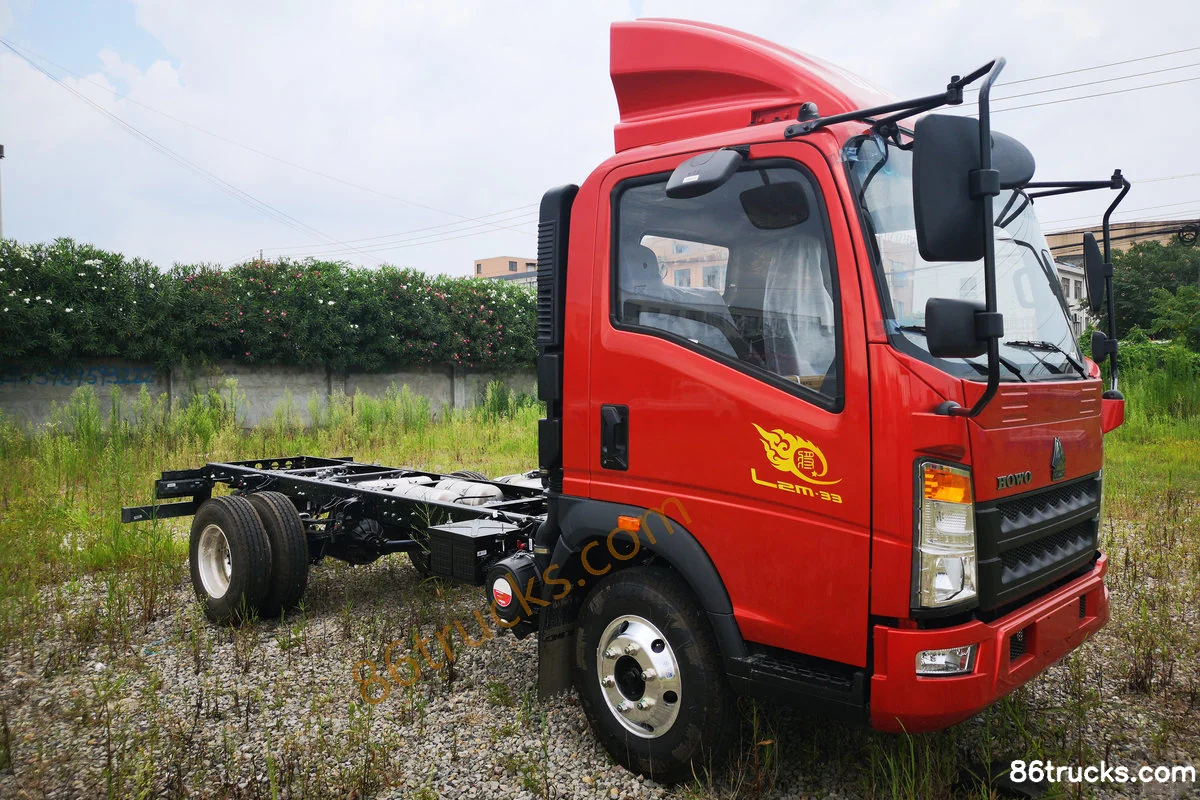

Sinotruk HOWO Hanjiang 130 hp 4X2(6 wheels) 4.165m single-row flatbed light truck (medium body) Exterior (1) | 86Trucks Sinotruk HOWO Hanjiang 130 hp 4X2(6 wheels) 4.165m single-row flatbed light truck (medium body) Exterior (2) | 86Trucks Sinotruk HOWO Hanjiang 130 hp 4X2(6 wheels) 4.165m single-row flatbed light truck (medium body) Exterior (3) | 86Trucks

Cab3

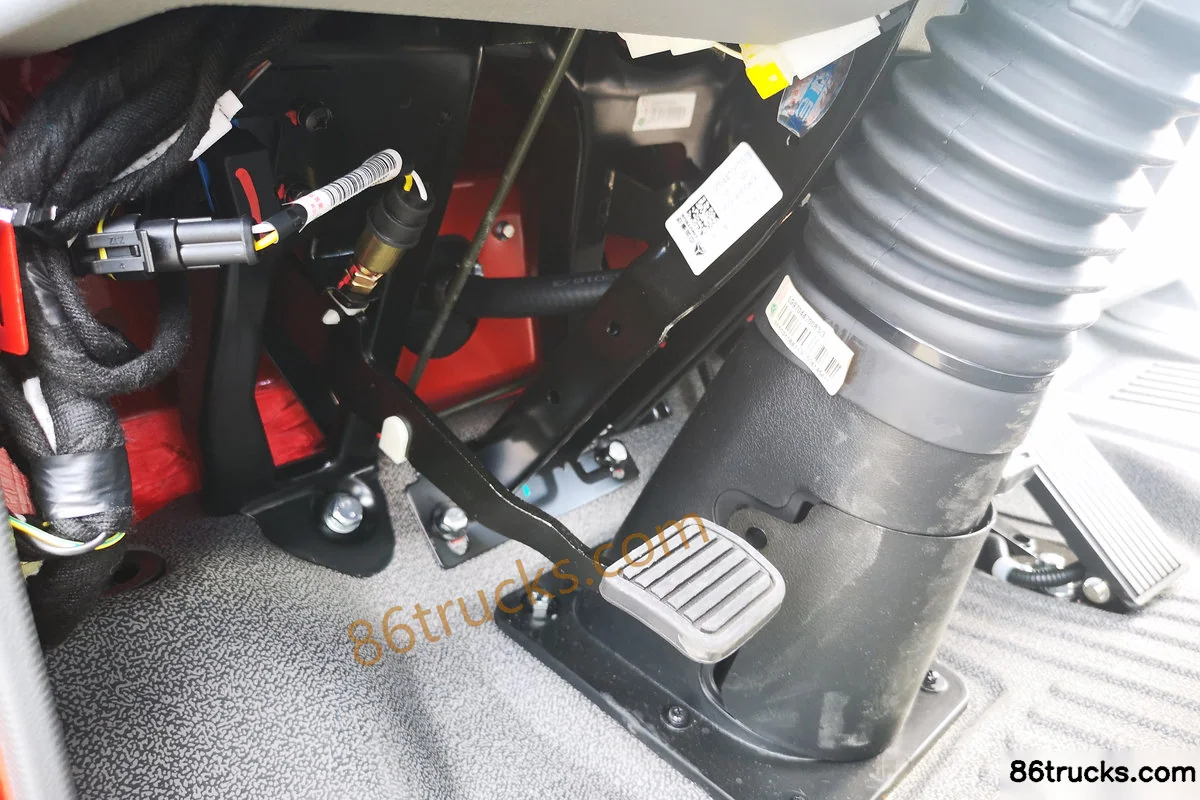

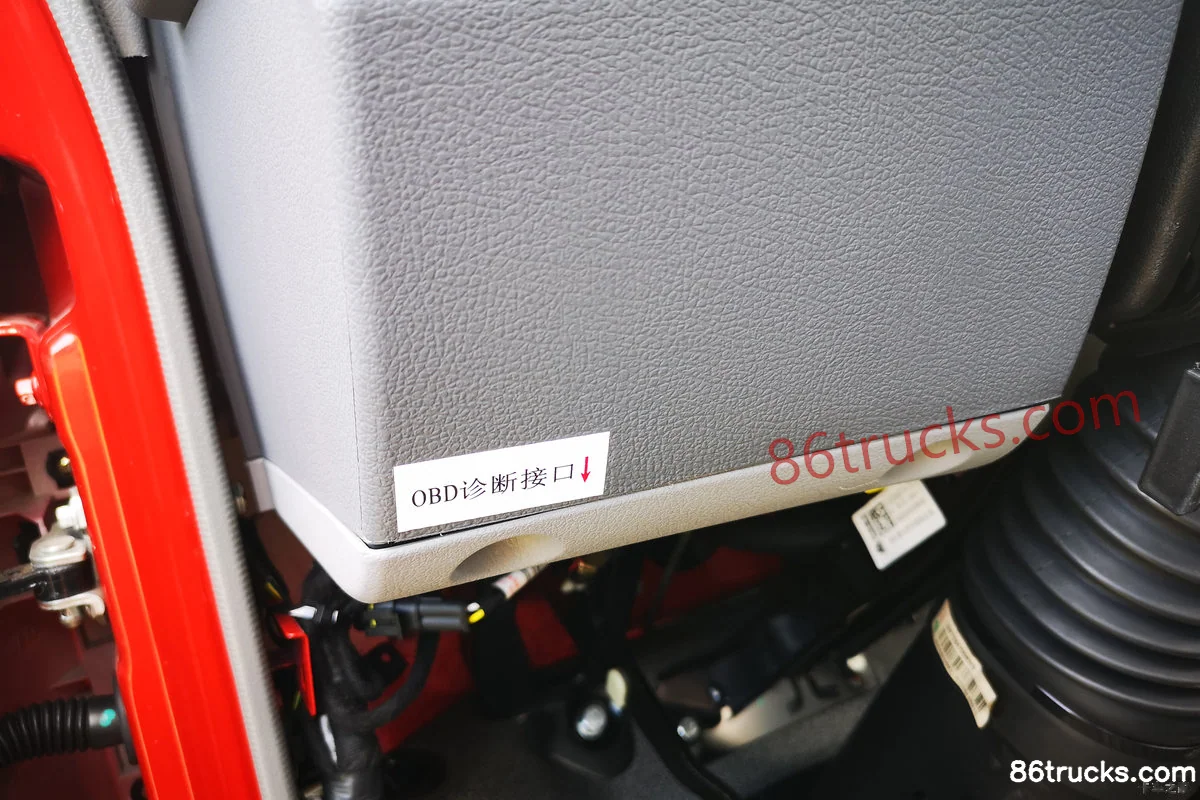

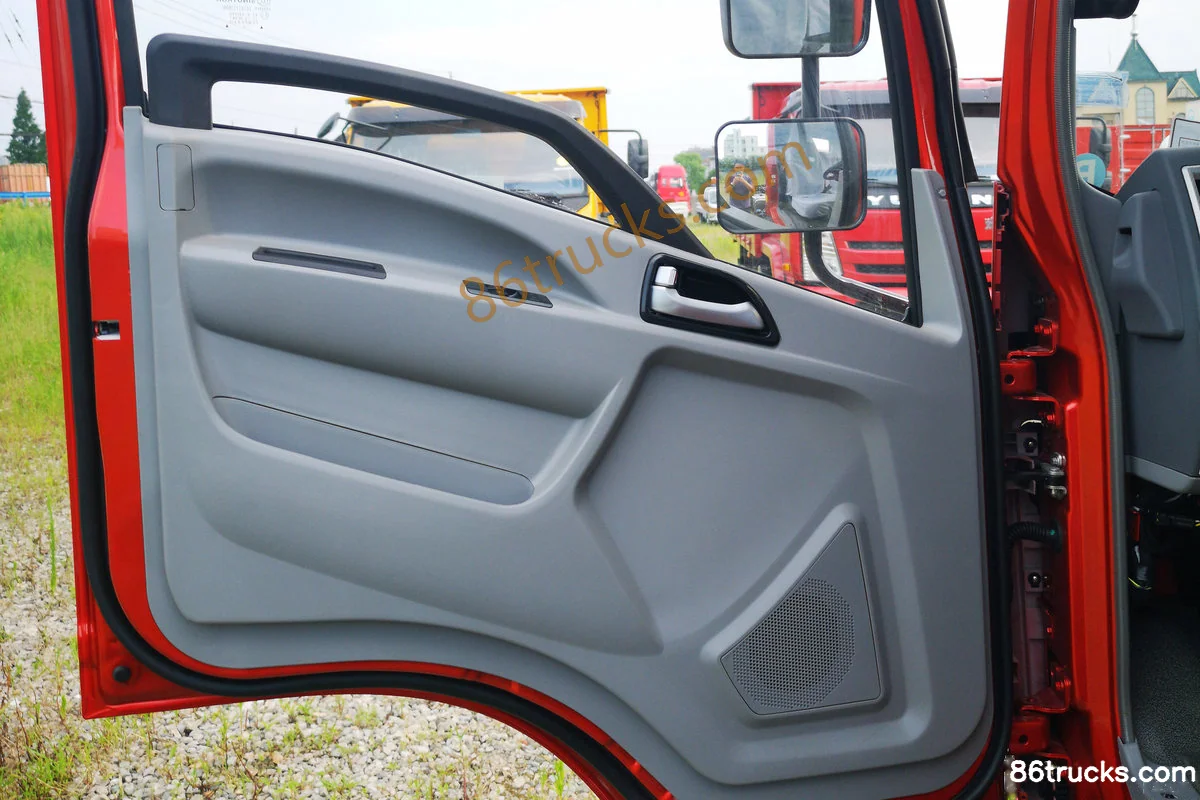

Sinotruk HOWO Hanjiang 130 hp 4X2(6 wheels) 4.165m single-row flatbed light truck (medium body) Cab (1) | 86Trucks Sinotruk HOWO Hanjiang 130 hp 4X2(6 wheels) 4.165m single-row flatbed light truck (medium body) Cab (2) | 86Trucks Sinotruk HOWO Hanjiang 130 hp 4X2(6 wheels) 4.165m single-row flatbed light truck (medium body) Cab (3) | 86Trucks

Chassis3

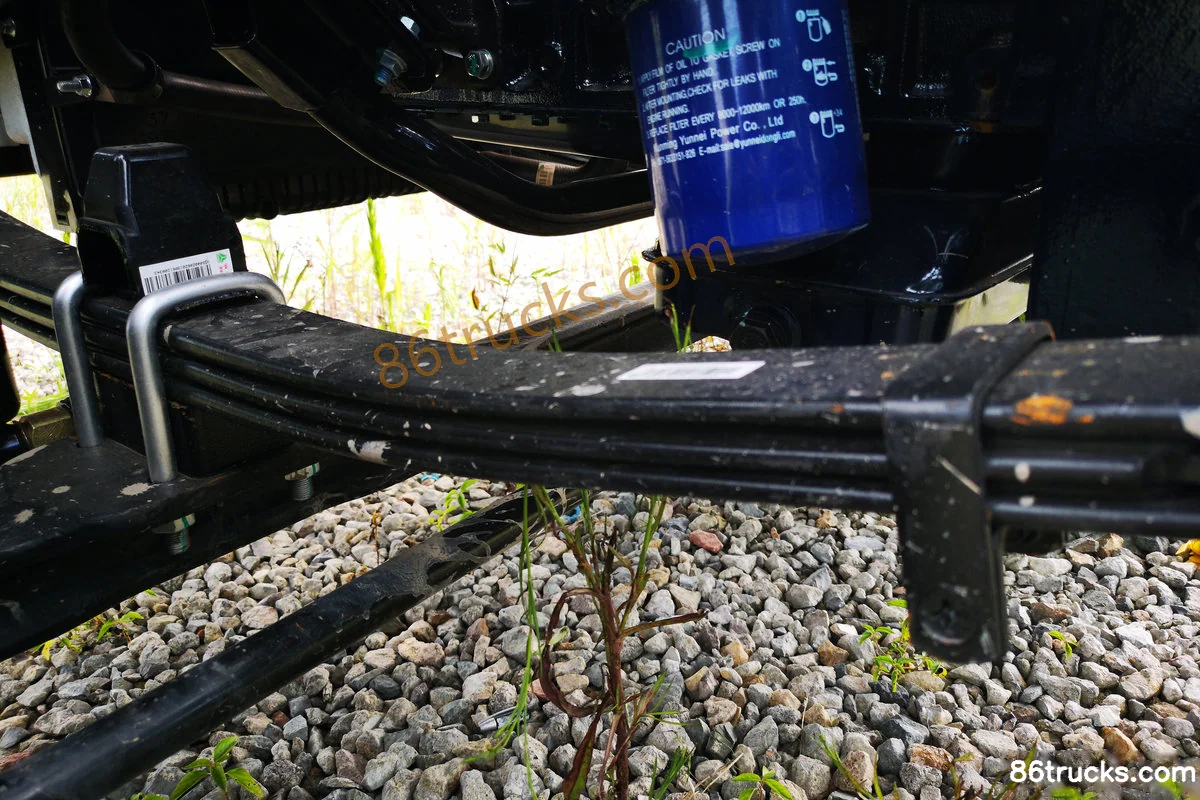

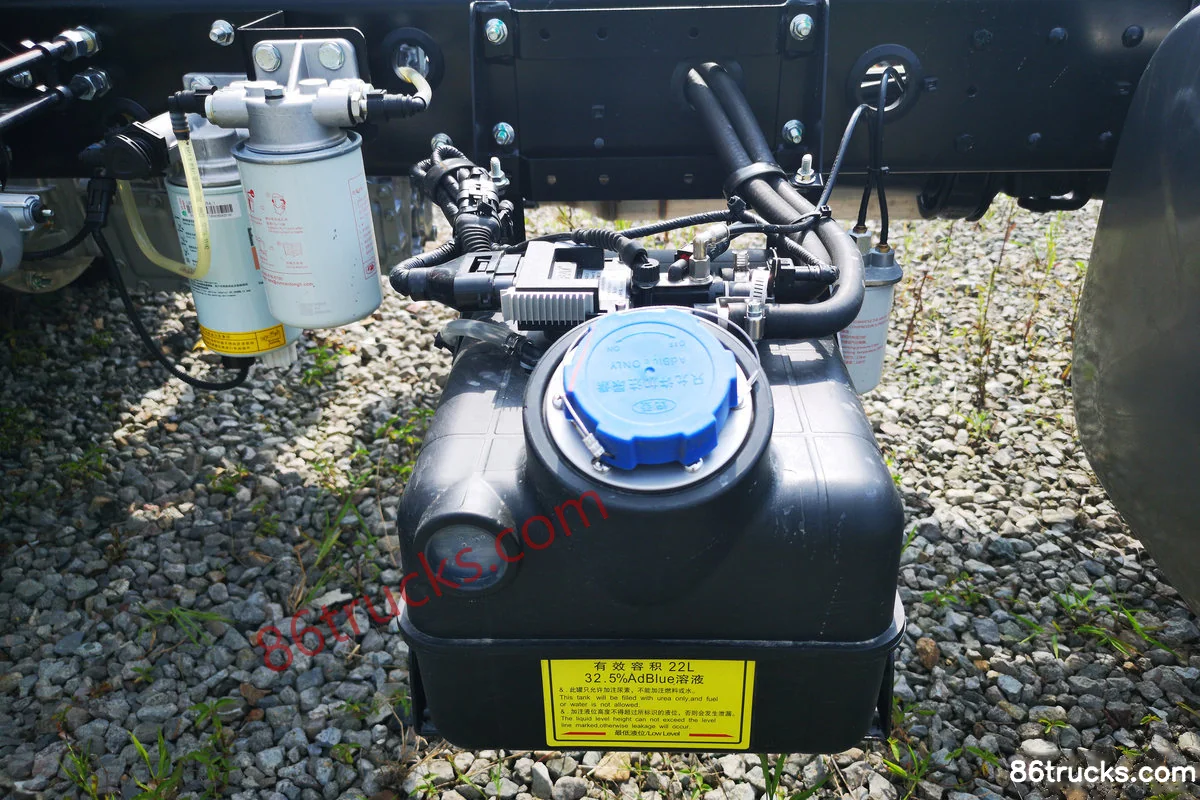

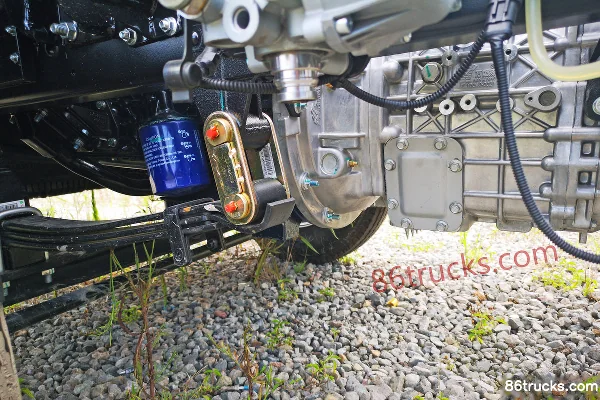

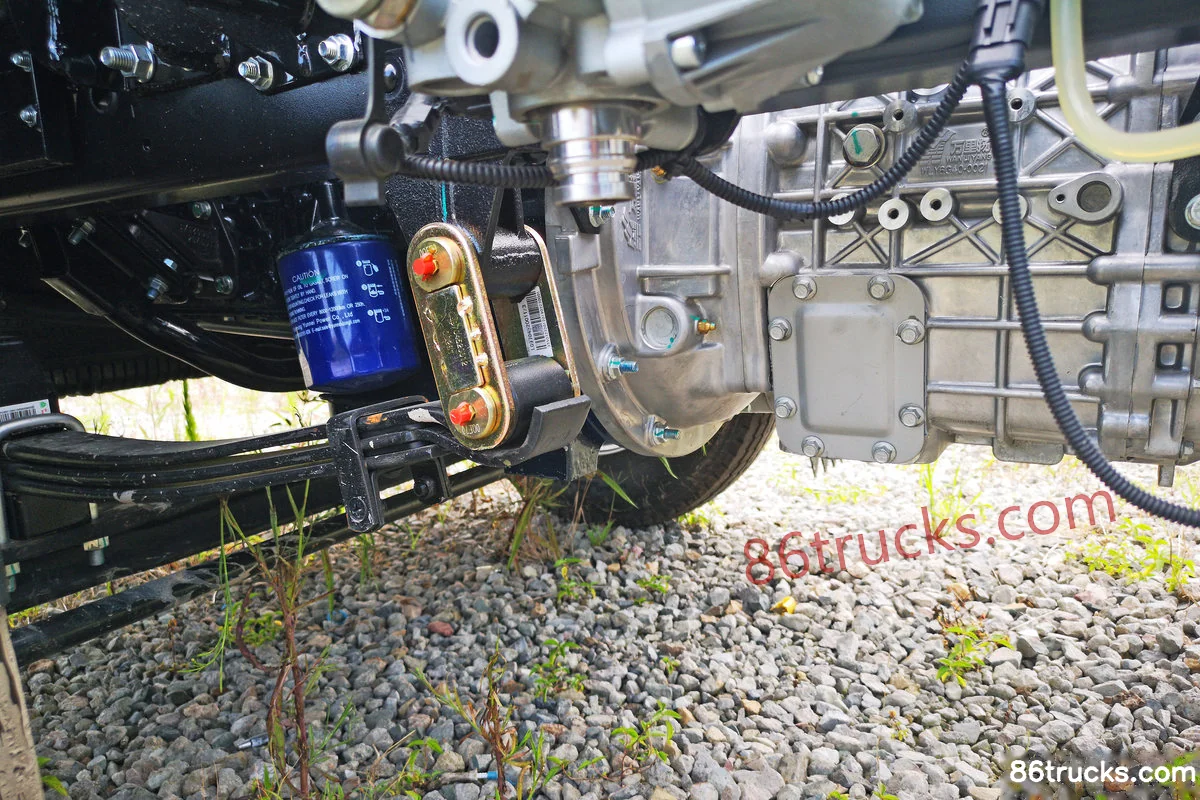

Sinotruk HOWO Hanjiang 130 hp 4X2(6 wheels) 4.165m single-row flatbed light truck (medium body) Chassis (1) | 86Trucks Sinotruk HOWO Hanjiang 130 hp 4X2(6 wheels) 4.165m single-row flatbed light truck (medium body) Chassis (2) | 86Trucks Sinotruk HOWO Hanjiang 130 hp 4X2(6 wheels) 4.165m single-row flatbed light truck (medium body) Chassis (3) | 86Trucks

9 photos

FAQ

What emission standard does Sinotruk HOWO Hanjiang 130 hp 4X2(6 wheels) 4.165m single-row flatbed light truck (medium body) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO Hanjiang 130 hp 4X2(6 wheels) 4.165m single-row flatbed light truck (medium body)?

Key specs of Sinotruk HOWO Hanjiang 130 hp 4X2(6 wheels) 4.165m single-row flatbed light truck (medium body): Drive: 4x2; Horsepower: 130 hp; Emission: China V; Fuel: Diesel; Engine: WeichaiWP2.3; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO Hanjiang 130 hp 4X2(6 wheels) 4.165m single-row flatbed light truck (medium body) suited for?

Sinotruk HOWO Hanjiang 130 hp 4X2(6 wheels) 4.165m single-row flatbed light truck (medium body) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk HOWO Hanjiang 130 hp 4X2(6 wheels) 4.165m single-row flatbed light truck (medium body) differ from other variants in the same series?

Sinotruk HOWO Hanjiang 130 hp 4X2(6 wheels) 4.165m single-row flatbed light truck (medium body) belongs to Sinotruk Hanjiang Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO Hanjiang 130 hp 4X2(6 wheels) 4.165m single-row flatbed light truck (medium body)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO Hanjiang 130 hp 4X2(6 wheels) 4.165m single-row flatbed light truck (medium body)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
