Foton Auman ETX 3 Series Medium Truck Plain Heavy-Duty Type 160 hp 4X2(6 wheels) 6.5m Wing Van Cargo Truck

Export reference
MSRP N/A
Horsepower: 160
Emission: China IV
Fuel: Diesel
Engine: Foton 4-cylinder
Transmission: Fast Gear
Curb Weight:: 7.48ton
seating capacity: 3Personnel
Rated payload: 7.99ton
Drive 4X2 (6 wheels)
Cargo box type: Wing Van

Overview

The Foton Auman ETX 3 Series Medium Truck Plain Heavy-Duty Type 160 hp 4X2(6 wheels) 6.5m Wing Van Cargo Truck is a Medium-duty truck featuring 6.5m cargo length, Wing Van cargo body, 3Personnel volume and 7.99t payload. Its segment focus covers Plain heavy load, matching those duty cycles. On the powertrain side, it comes with a Foton 4-cylinder engine, 160 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5163XYK-XA
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 5000mm
Box length class: 6.5m
engine: Lovol PowerIE4D160-e4EP
transmission: Fast Gear8JS85E
Cab length: 9m
Cab width: 2.54m
Cab height: 3.85m
Front track width: 1900mm
rear track: 1800mm
Curb Weight: 7.48ton
Rated payload: 7.99ton
GVWR: 15.6ton
Max. speed: 90km/h
Origin: Beijing
tonnage class: Medium-duty truck
Approach angle: 18°
departure angle: 10°
market segment: Plain heavy load
Remarks: Recommended use: bulk cargo logistics, urban distribution; GVWR: 22T
Front/rear suspension: 1.365/2.835m
Series: 3-series
Version: Plain Heavy-Duty Type
Energy Type: Diesel
Engine parameters
Engine Brand: Lovol Power
Engine Model: Lovol PowerIE4D160-E4EP
Engine info: Foton 4-cylinder
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.99L
Emission standard: China IV
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 600N·m
Max torque speed: 1300-1700rpm
Rated speed: 2500rpm
Transmission Parameters
Transmission Model: Fast Gear8JS85E
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Wing Van
Cargo box length: 6.5m
Cargo box width: 2.42m
Cargo box height: 2.5m
*Cargo box interior width: 2.4200000762939
Cab parameters
Cab: ETX-2200 flat roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 5600kg
Frame Dimensions: 250mm
rear axle description: 9T rear axle
Steering gear: Domestic
rear axle allowable load: 10000kg
Leaf spring count: 10/10+8
clutch: Φ380
Tire
Tire Size: 9.00R20
Number of tires: 6pcs
Control configuration
ABS:

Photos

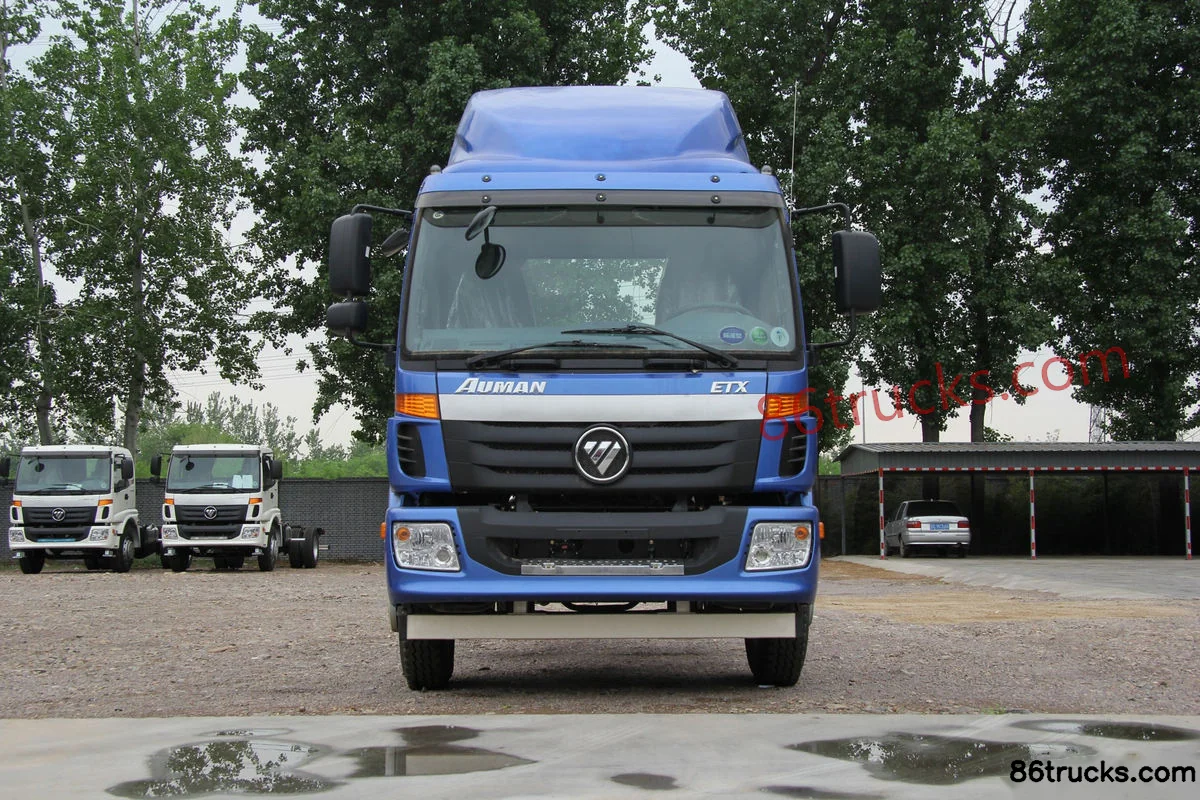

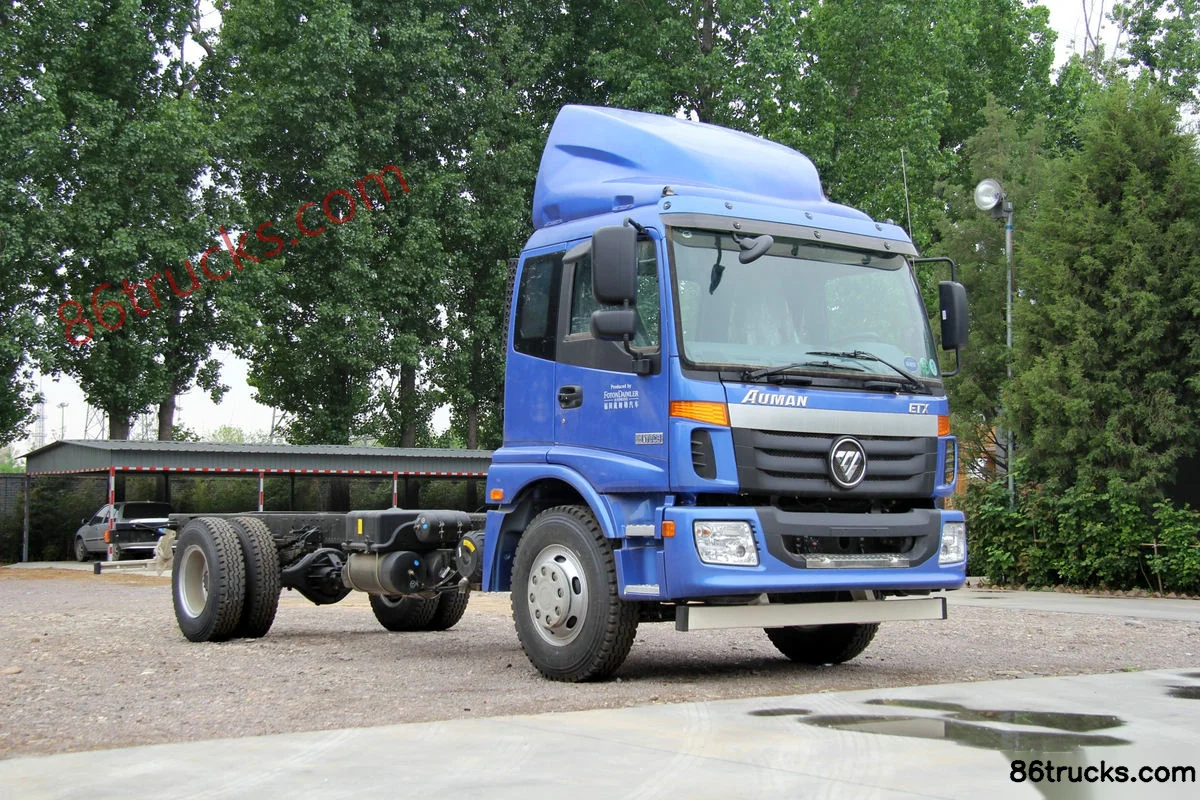

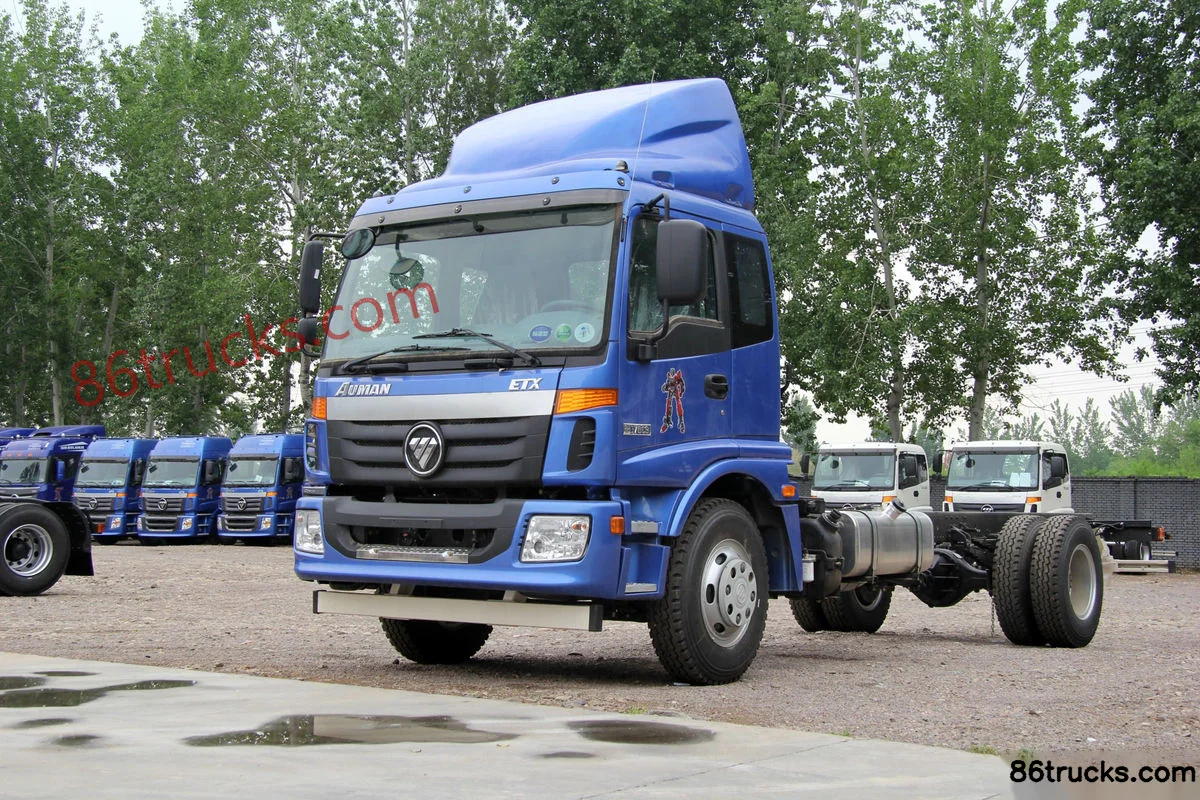

Exterior3

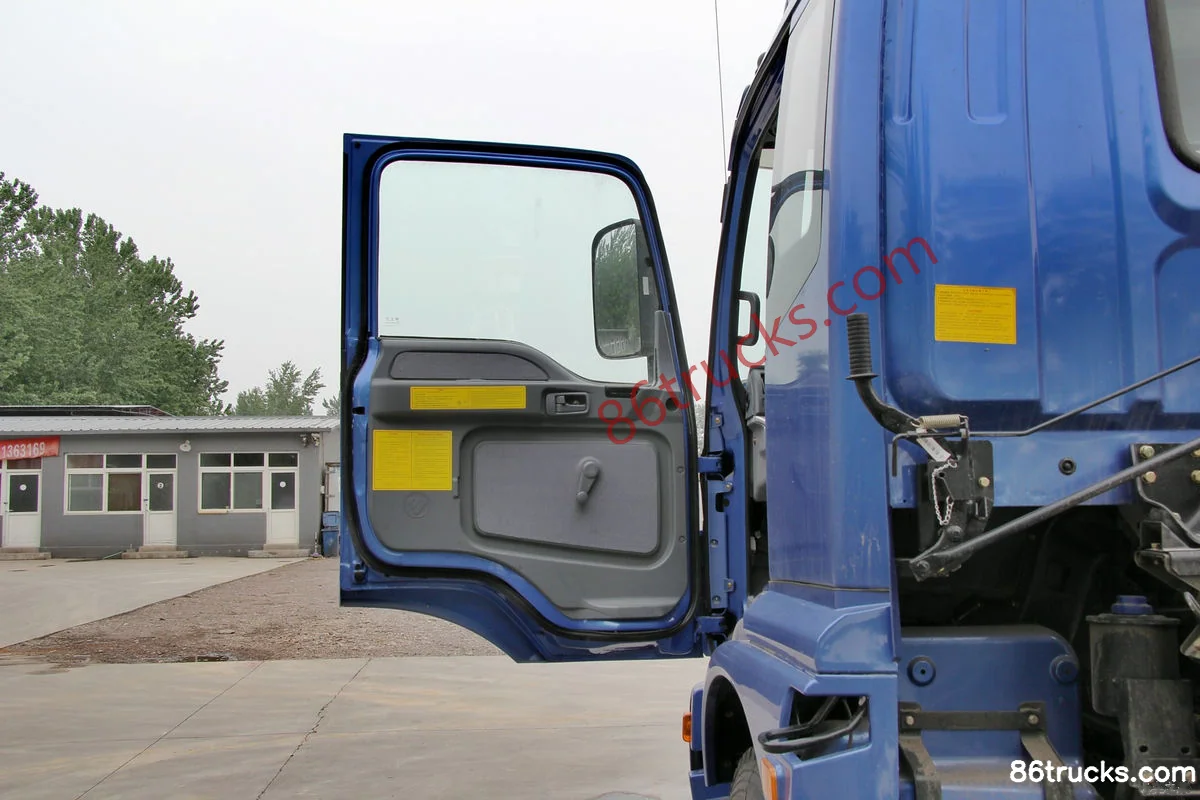

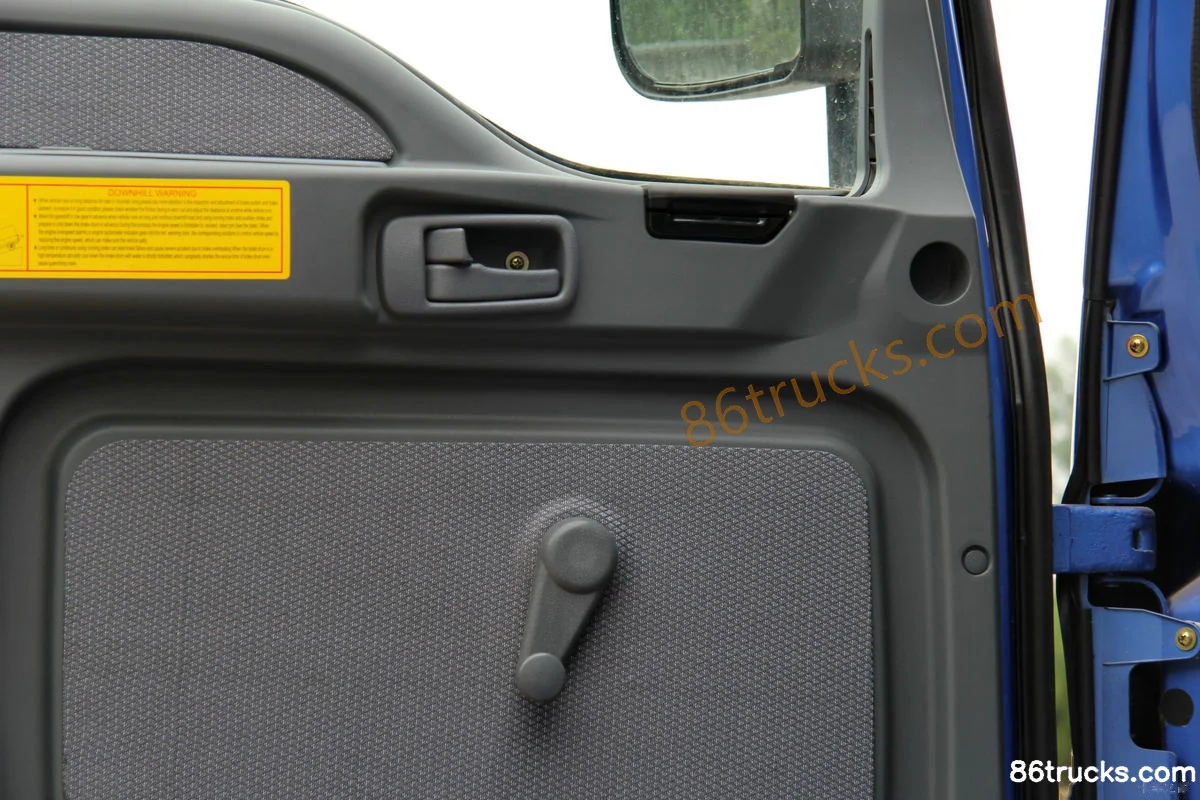

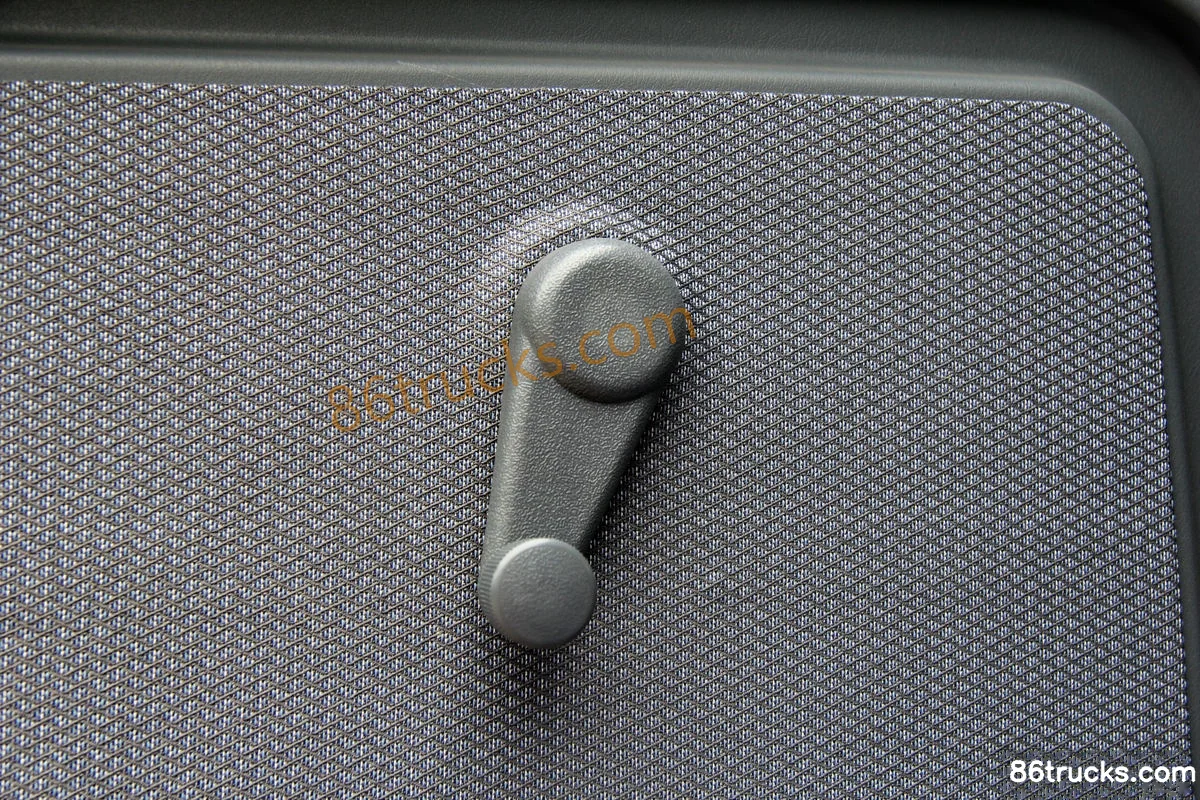

Cab3

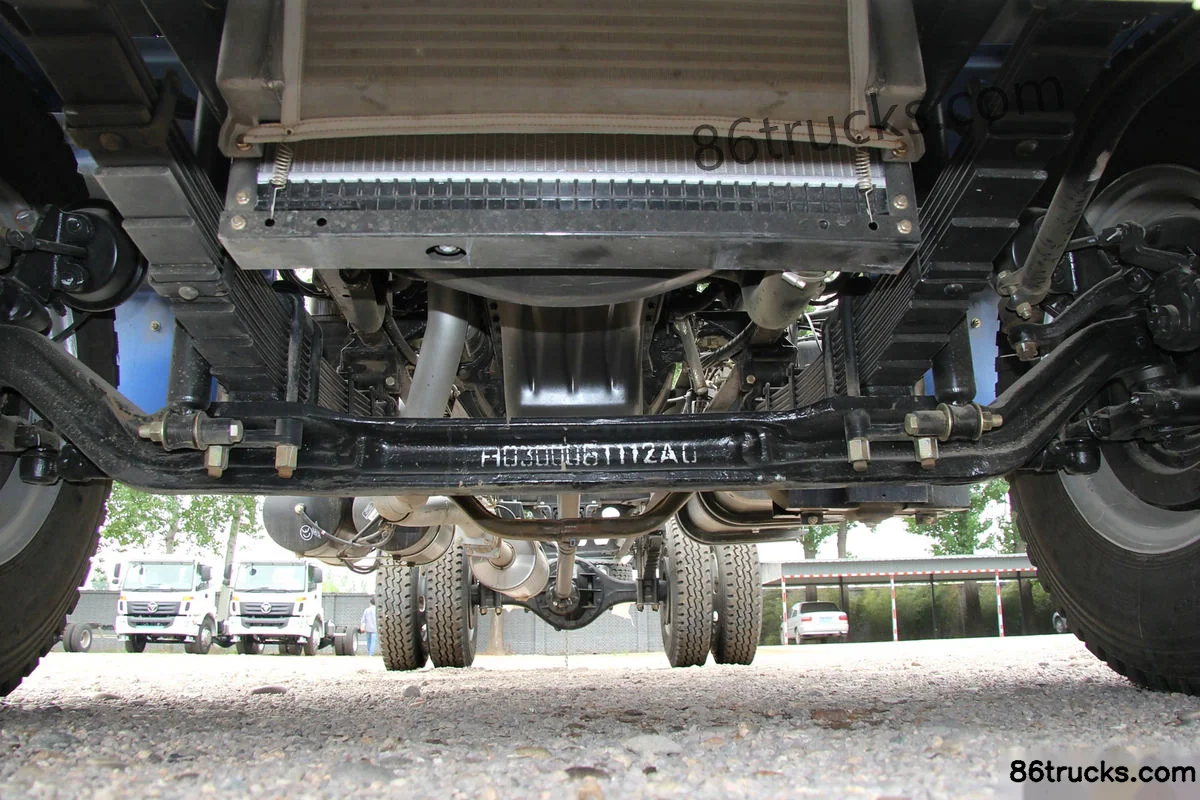

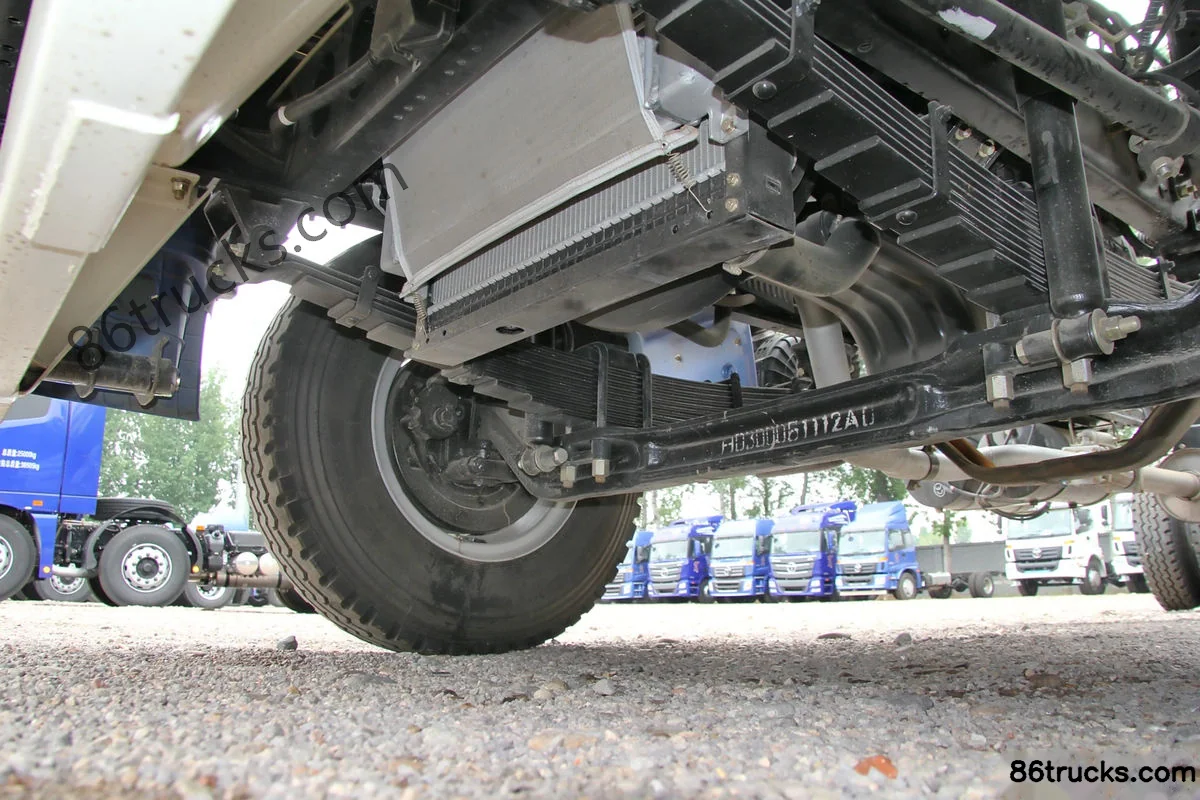

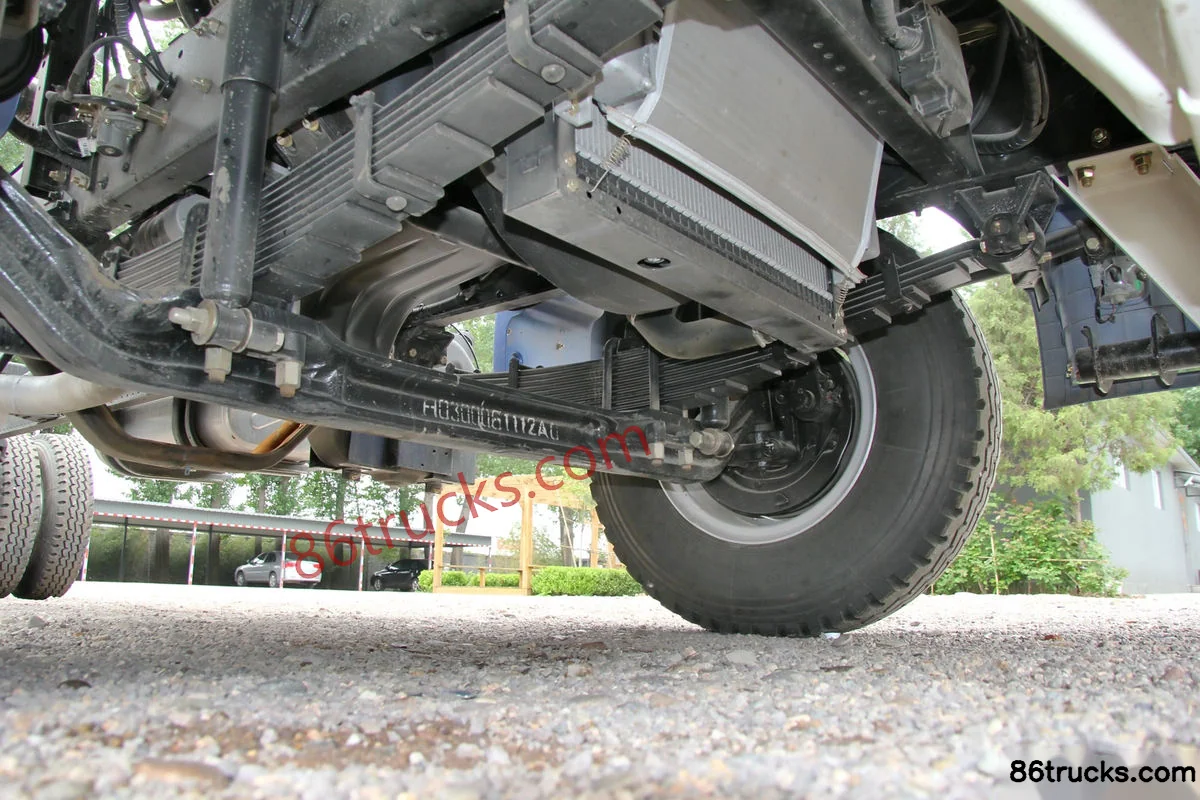

Chassis3

9 photos

FAQ

What emission standard does Foton Auman ETX 3 Series Medium Truck Plain Heavy-Duty Type 160 hp 4X2(6 wheels) 6.5m Wing Van Cargo Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Auman ETX 3 Series Medium Truck Plain Heavy-Duty Type 160 hp 4X2(6 wheels) 6.5m Wing Van Cargo Truck?

Key specs of Foton Auman ETX 3 Series Medium Truck Plain Heavy-Duty Type 160 hp 4X2(6 wheels) 6.5m Wing Van Cargo Truck: Drive: 4x2; Horsepower: 160 hp; Emission: China IV; Fuel: Diesel; Engine: Foton 4-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Auman ETX 3 Series Medium Truck Plain Heavy-Duty Type 160 hp 4X2(6 wheels) 6.5m Wing Van Cargo Truck suited for?

Foton Auman ETX 3 Series Medium Truck Plain Heavy-Duty Type 160 hp 4X2(6 wheels) 6.5m Wing Van Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Auman ETX 3 Series Medium Truck Plain Heavy-Duty Type 160 hp 4X2(6 wheels) 6.5m Wing Van Cargo Truck differ from other variants in the same series?

Foton Auman ETX 3 Series Medium Truck Plain Heavy-Duty Type 160 hp 4X2(6 wheels) 6.5m Wing Van Cargo Truck belongs to Foton Auman ETX Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Auman ETX 3 Series Medium Truck Plain Heavy-Duty Type 160 hp 4X2(6 wheels) 6.5m Wing Van Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Auman ETX 3 Series Medium Truck Plain Heavy-Duty Type 160 hp 4X2(6 wheels) 6.5m Wing Van Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
