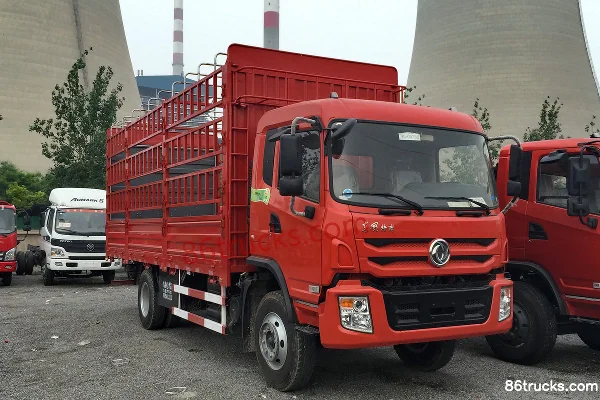

Dongfeng Teshang Medium Truck 170 hp 4X2(6 wheels) 6.8m Cage Cargo Truck (EQ5160CCYF1)

Export reference
MSRP N/A
Horsepower: 170
Emission: China IV
Fuel: Diesel
Engine: Dongkang 6-cyl
Transmission: Fast Gear
Curb Weight:: 5.8ton
seating capacity: 3Personnel
Rated payload: 9.905ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The Dongfeng Teshang Medium Truck 170 hp 4X2(6 wheels) 6.8m Cage Cargo Truck (EQ5160CCYF1) is a Medium-duty truck featuring 6.8m cargo length, Stake type cargo body, 3Personnel volume and 9.905t payload. Its segment focus covers Agricultural product transport, green channel and industrial product transport, matching those duty cycles. On the powertrain side, it comes with a Dongkang 6-cyl engine, 170 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 170 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): EQ5160CCYF1
Type: stake truck
Drive type: 4X2
Wheelbase: 5100mm
Box length class: 6.8m
engine: DongfengISB170 40
transmission: Fast Gear8JS85F
Rear Axle Ratio: 4.875
Cab length: 9m
Cab width: 2.5m
Cab height: 3.95m
Front track width: 1920mm
rear track: 1860mm
Curb Weight: 5.8ton
Rated payload: 9.905ton
GVWR: 15.9ton
Max. speed: 90km/h
Origin: Shiyan, Hubei
tonnage class: Medium-duty truck
Approach angle: 23°
departure angle: 12°
market segment: Agricultural product transport, green channel, industrial product transport
Front/rear suspension: 1.25/2.45m
Energy Type: Diesel
Engine parameters
Engine Brand: Dongfeng
Engine Model: DongfengISB170 40
Engine info: Dongkang 6-cyl
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 5.9L
Emission standard: China IV
Max output power: 125kW
Max hp: 170Horsepower
Max torque: 630N·m
Max torque speed: 1500rpm
Rated speed: 2500rpm
Engine Type: Inline 6-cylinder, turbocharged intercooled, electronically controlled common rail
Transmission Parameters
Transmission Model: Fast Gear8JS85F
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 6.8m
Cargo box width: 2.4m
Cargo box height: 0.6m
*Cargo box interior width: 2.4000000953674
Cab parameters
Cab: Flat roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 200L
Chassis Specs
Front axle allowable load: 5950kg
rear axle allowable load: 9950kg
Axle ratio: 4.875
Leaf spring count: 9/10+8
Tire
Tire Size: 9.00R20,10.00-20,10.00R20
Number of tires: 6pcs
Control configuration
ABS:

Photos

0 photos

FAQ

What emission standard does Dongfeng Teshang Medium Truck 170 hp 4X2(6 wheels) 6.8m Cage Cargo Truck (EQ5160CCYF1) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Teshang Medium Truck 170 hp 4X2(6 wheels) 6.8m Cage Cargo Truck (EQ5160CCYF1)?

Key specs of Dongfeng Teshang Medium Truck 170 hp 4X2(6 wheels) 6.8m Cage Cargo Truck (EQ5160CCYF1): Drive: 4x2; Horsepower: 170 hp; Emission: China IV; Fuel: Diesel; Engine: Dongkang 6-cyl; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Teshang Medium Truck 170 hp 4X2(6 wheels) 6.8m Cage Cargo Truck (EQ5160CCYF1) suited for?

Dongfeng Teshang Medium Truck 170 hp 4X2(6 wheels) 6.8m Cage Cargo Truck (EQ5160CCYF1) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Dongfeng Teshang Medium Truck 170 hp 4X2(6 wheels) 6.8m Cage Cargo Truck (EQ5160CCYF1) differ from other variants in the same series?

Dongfeng Teshang Medium Truck 170 hp 4X2(6 wheels) 6.8m Cage Cargo Truck (EQ5160CCYF1) belongs to Dongfeng Tesun Medium Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Teshang Medium Truck 170 hp 4X2(6 wheels) 6.8m Cage Cargo Truck (EQ5160CCYF1)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Teshang Medium Truck 170 hp 4X2(6 wheels) 6.8m Cage Cargo Truck (EQ5160CCYF1)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
