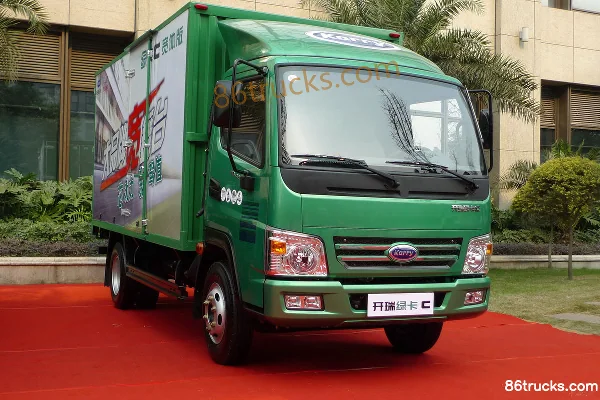

Kairui Lvka C wide body city distribution version 117 hp 4X2(6 wheels) 4.15 m single-row van light truck

Export reference
MSRP N/A
Horsepower: 117
Emission: China IV
Fuel: Diesel
Engine: Fukang 2.8
Transmission: JMC
Curb Weight:: 2.8ton
seating capacity: 3Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Karry Green Card Kairui Lvka C wide body city distribution version 117 hp 4X2(6 wheels) 4.15 m single-row van light truck is a Light Truck featuring 4.15m cargo length, Van body cargo body, 3Personnel volume and 1.495t payload. Its segment focus covers Urban Distribution, matching those duty cycles. On the powertrain side, it comes with a Fukang 2.8 engine, 117 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 117 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SQR5043XXYH29D
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
engine: FotonISF2.8s4117V
transmission: JMCJC5MTI280
Cab length: 5.995m
Cab width: 2.2m
Cab height: 3.1m
Front track width: 1680mm
rear track: 1525mm
Curb Weight: 2.8ton
Rated payload: 1.495ton
GVWR: 4.49ton
Max. speed: 100km/h
Origin: Kaifeng, Henan
tonnage class: Light Truck
Approach angle: 23°
departure angle: 18°
market segment: Urban Distribution
Front/rear suspension: 1.125/1.51m
Version: Wide-body city distribution version
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: ISF2.8s4117V
Engine info: Fukang 2.8
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.78L
Emission standard: China IV
Max output power: 87kW
Max hp: 117Horsepower
Max torque: 260N·m
Max torque speed: 1600-2700rpm
Rated speed: 3200rpm
Engine Type: Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection SCR
Transmission Parameters
Transmission Model: JMCJC5MTI280
Transmission Brand: JMC
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.15m
Cargo box width: 2.05m
Cargo box height: 2.1m
*Cargo box interior width: 2.0499999523163
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1905kg
rear axle description: 5T reinforced axle
rear axle allowable load: 2585kg
Leaf spring count: 8/6+4
Tire
Tire Size: 7.50-16/7.50R16
Number of tires: 6pcs
Control configuration
ABS:
