JAC Weisida W500 160 hp 4X2(6 wheels) 6.8m semi-crew cab van truck chassis

Export reference
From $22,611
MSRP ¥16.28M CNY
Horsepower: 160
Emission: China V
Fuel: Diesel
Engine: Dongkang 4-cylinder
Transmission: Fast Gear
Curb Weight:: 6.7ton
seating capacity: 3Personnel
Rated payload: 7.6ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The JAC Weisida W500 160 hp 4X2(6 wheels) 6.8m semi-crew cab van truck chassis is a Medium-duty truck featuring 6.8m cargo length, Van body cargo body, 3Personnel volume and 7.6t payload. Its segment focus covers Agricultural product transport, logistics distribution and LTL transport, matching those duty cycles. On the powertrain side, it comes with a Dongkang 4-cylinder engine, 160 hp, 4X2 (6 wheels) drive and China V emissions.

China V 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5142XXYP70K1E1V
Type: Chassis
Drive type: 4X2
Wheelbase: 5000mm
Box length class: 6.8m
engine: DongfengISD160 50
transmission: Fast Gear6DS60T
Rear Axle Ratio: 4.33
Cab length: 9.135m
Cab width: 2.55m
Cab height: 3.9m
Front track width: 1830mm
rear track: 1800mm
Curb Weight: 6.7ton
Rated payload: 7.6ton
GVWR: 14.495ton
Max. speed: 98km/h
Origin: Hefei, Anhui
tonnage class: Medium-duty truck
Approach angle: 21.4°
departure angle: 13.8°
market segment: Agricultural product transport, logistics distribution, LTL transport
Front/rear suspension: 1.29/2.545m
Energy Type: Diesel
Engine parameters
Engine Brand: Dongfeng
Engine Model: DongfengISD160 50
Engine info: Dongkang 4-cylinder
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.5L
Emission standard: China V
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 600N·m
Max torque speed: 1200-1600rpm
Rated speed: 2500rpm
Engine Type: Inline 4-cylinder, turbocharged intercooled, high-pressure common rail
Transmission Parameters
Transmission Model: Fast Gear6DS60T
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 6.8m
Cargo box width: 2.4m
Cargo box height: 2.6m
*Cargo box interior width: 2.4000000953674
Cab parameters
Cab: Flat roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank capacity: 210L
Chassis Specs
Front axle allowable load: 5220kg
rear axle allowable load: 9275kg
Axle ratio: 4.33
Leaf spring count: 10/9+7
Tire
Tire Size: 9.00R20 16PR,10R22.5 16PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

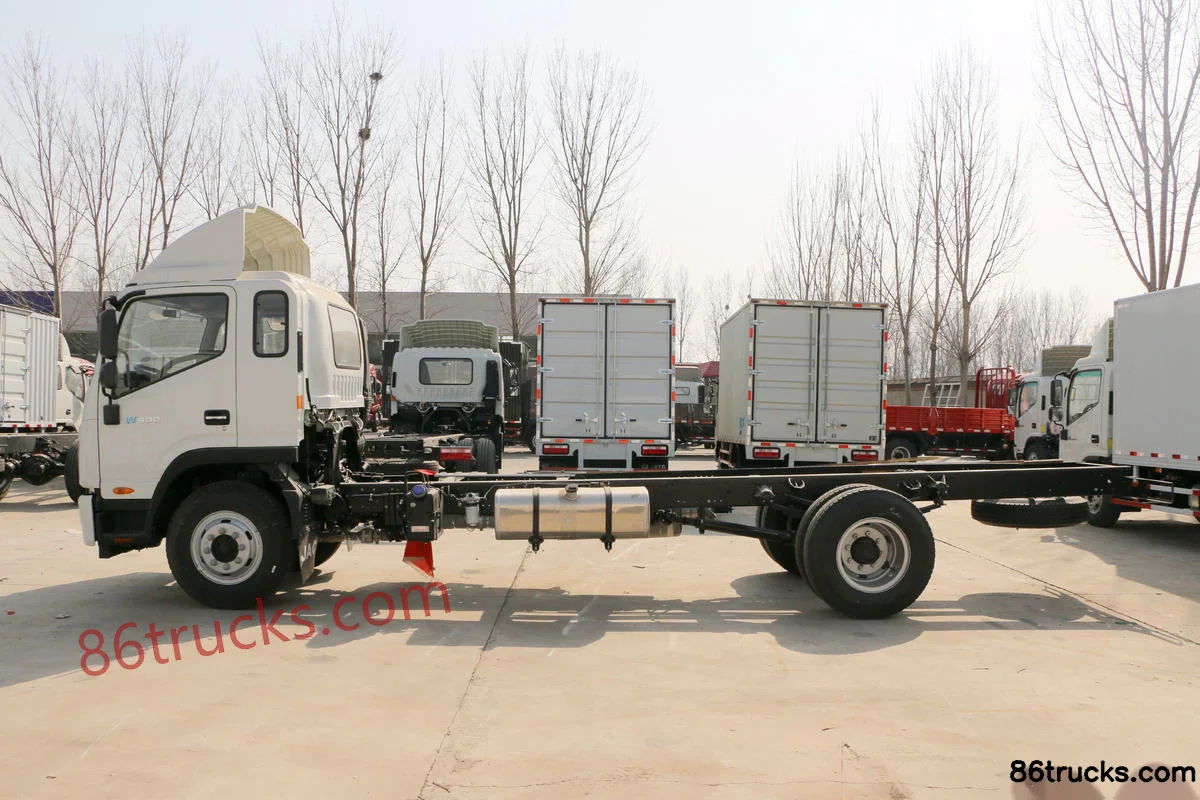

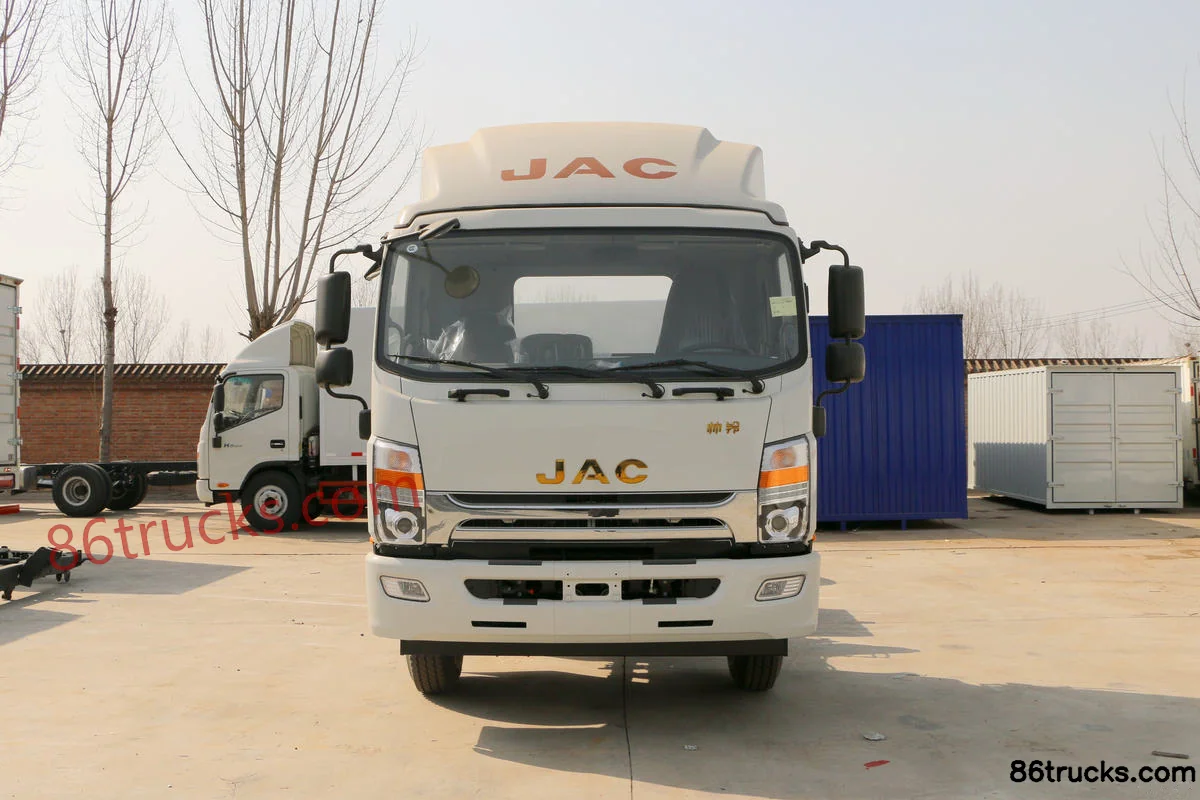

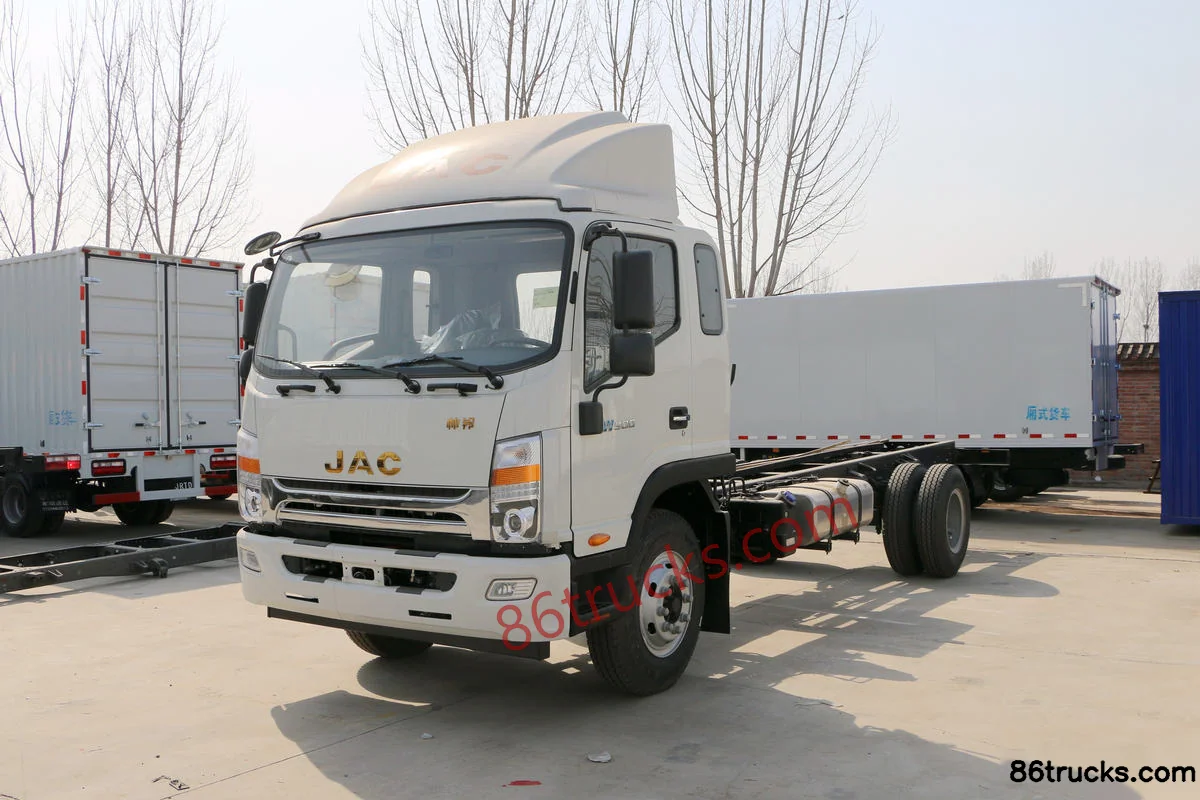

Exterior3

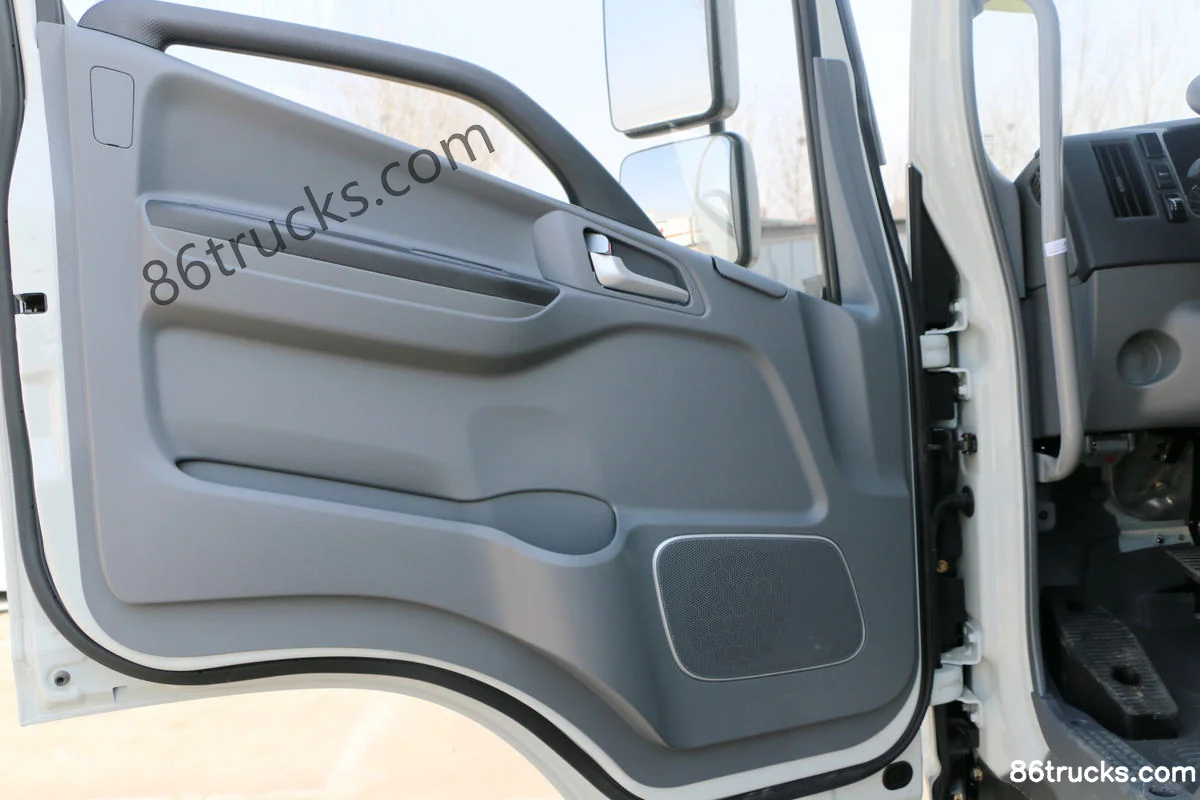

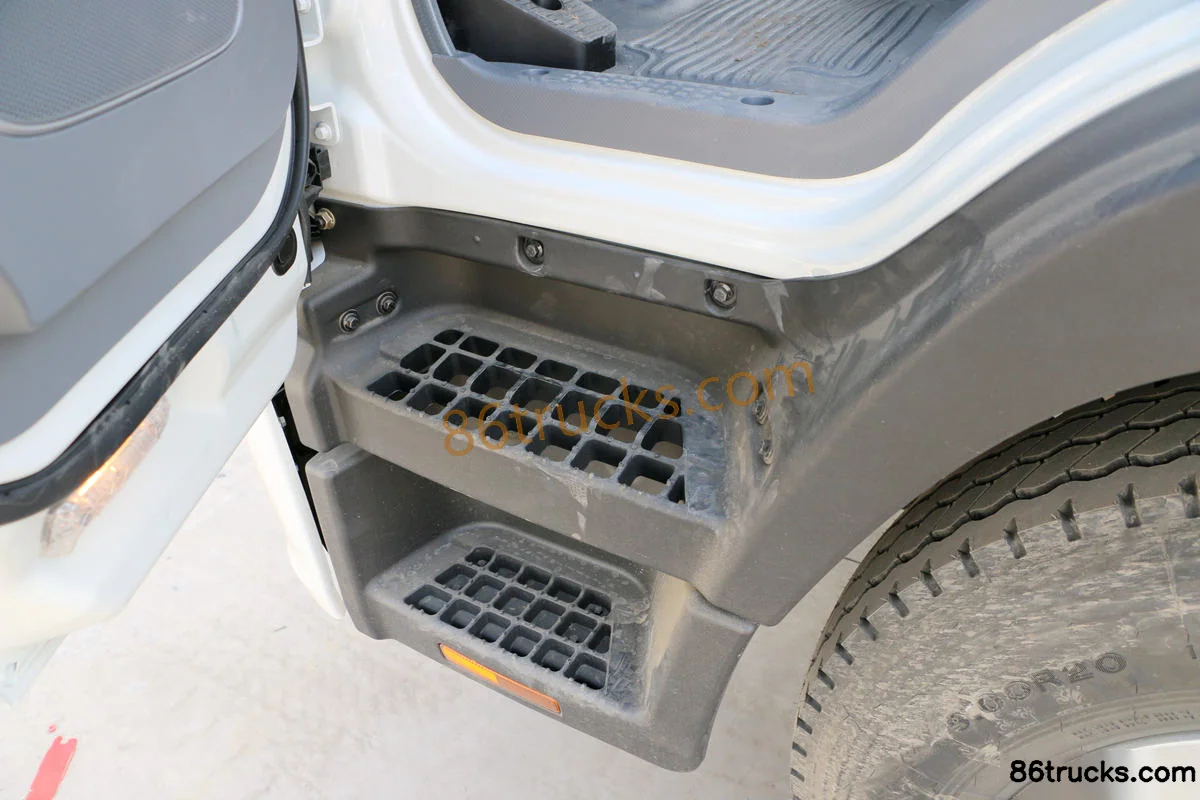

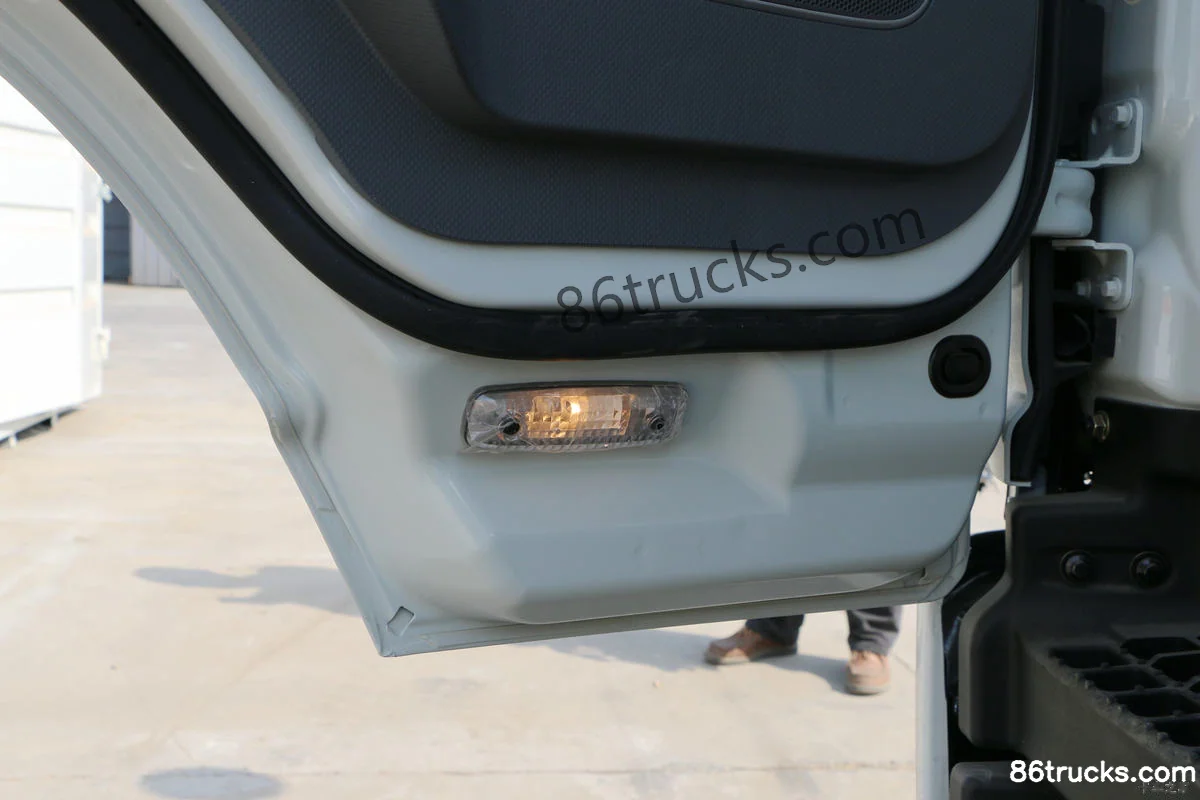

Cab3

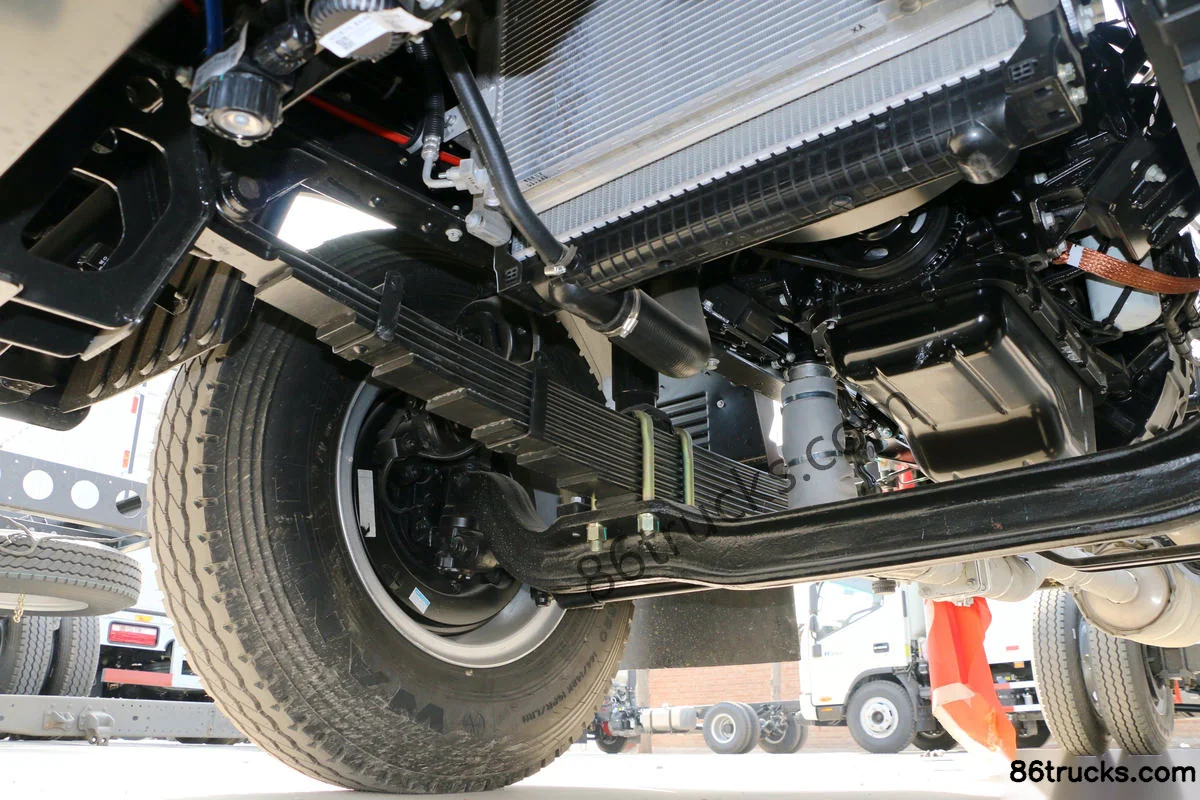

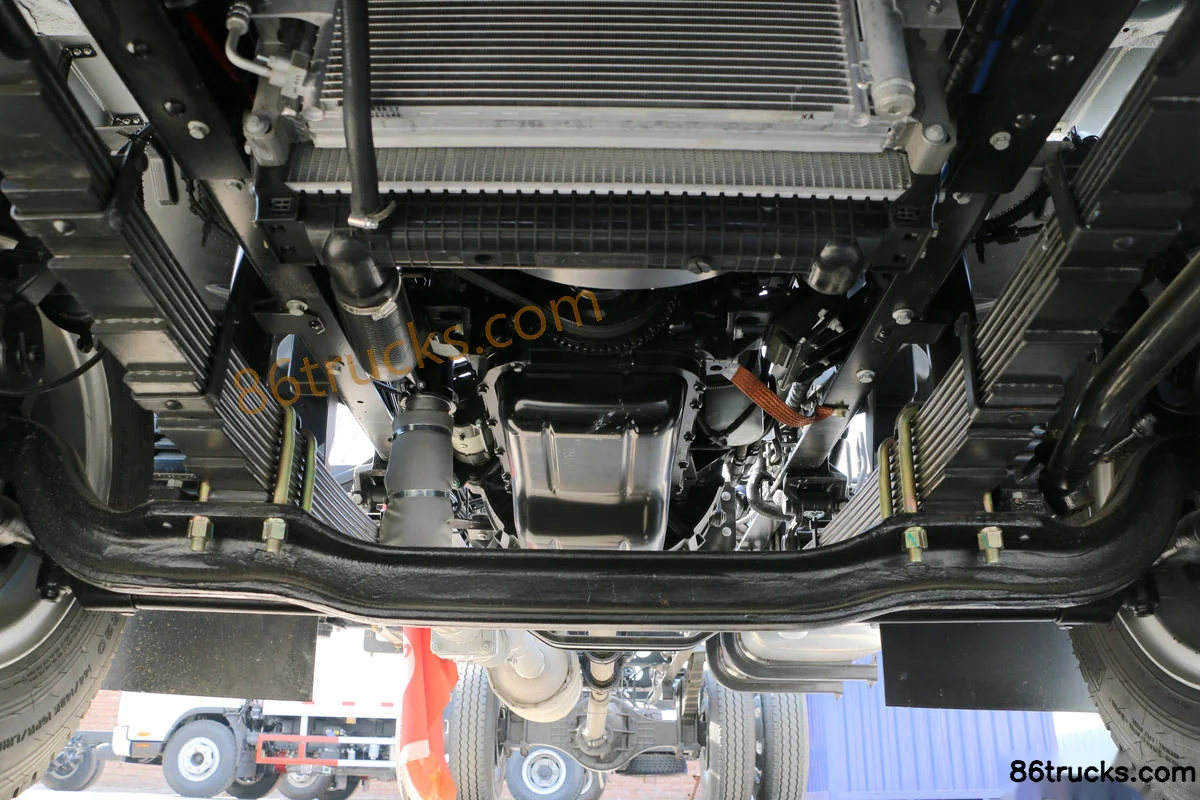

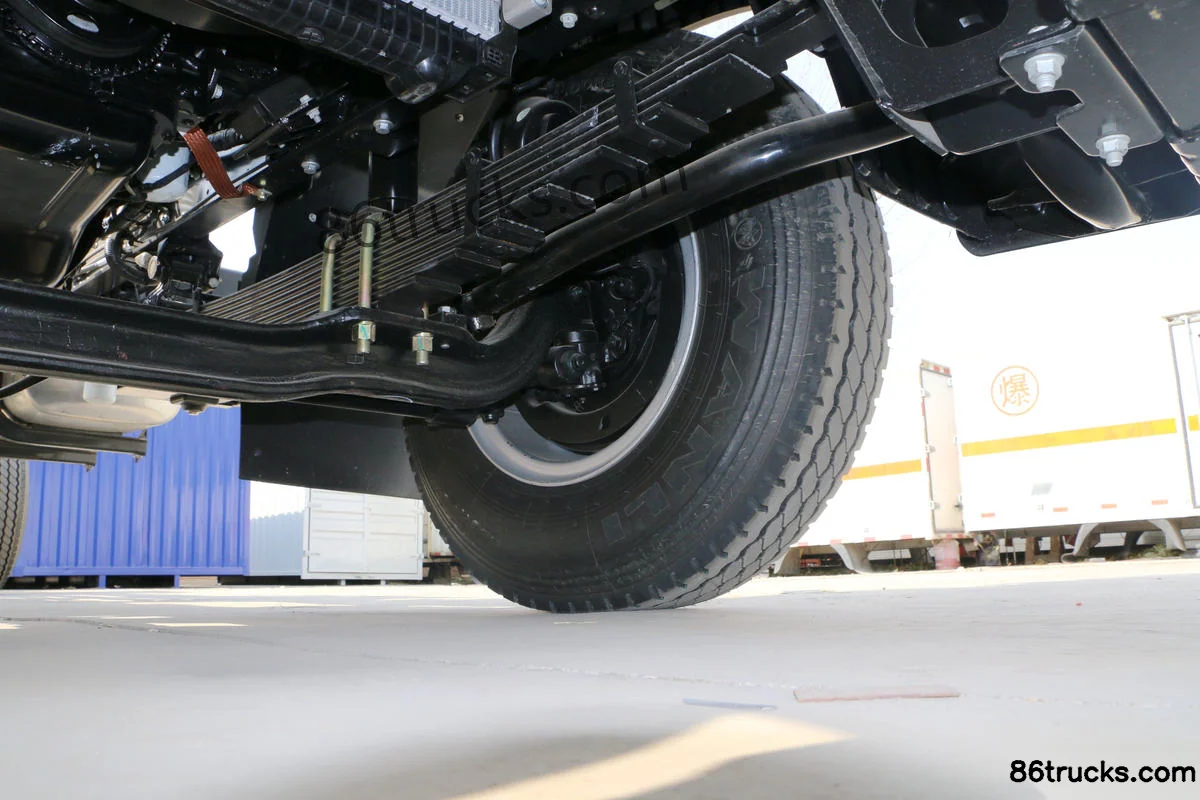

Chassis3

9 photos

FAQ

What is the export price of JAC Weisida W500 160 hp 4X2(6 wheels) 6.8m semi-crew cab van truck chassis, and what does it include?

JAC Weisida W500 160 hp 4X2(6 wheels) 6.8m semi-crew cab van truck chassis export reference is about From $22,611; MSRP is ¥16.28M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Weisida W500 160 hp 4X2(6 wheels) 6.8m semi-crew cab van truck chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Weisida W500 160 hp 4X2(6 wheels) 6.8m semi-crew cab van truck chassis?

Key specs of JAC Weisida W500 160 hp 4X2(6 wheels) 6.8m semi-crew cab van truck chassis: Drive: 4x2; Horsepower: 160 hp; Emission: China V; Fuel: Diesel; Engine: Dongkang 4-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Weisida W500 160 hp 4X2(6 wheels) 6.8m semi-crew cab van truck chassis suited for?

JAC Weisida W500 160 hp 4X2(6 wheels) 6.8m semi-crew cab van truck chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Weisida W500 160 hp 4X2(6 wheels) 6.8m semi-crew cab van truck chassis differ from other variants in the same series?

JAC Weisida W500 160 hp 4X2(6 wheels) 6.8m semi-crew cab van truck chassis belongs to JAC Q9 medium truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Weisida W500 160 hp 4X2(6 wheels) 6.8m semi-crew cab van truck chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Weisida W500 160 hp 4X2(6 wheels) 6.8m semi-crew cab van truck chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
