SHACMAN Delong M3000 Composite Edition 440 hp 6X4(10 wheels) Tractor Truck

Export reference
MSRP N/A
Fuel: Diesel
Gross Trailer Weight:: 40ton
Wheelbase:: 3175+1350mm
Tire Size:: 12R22.5 18PR
Front axle allowable load:: 7000kg
Displacement:: 10.8L
Drive 6X4 (10 wheels)
Horsepower 440
Emission China V
Transmission Fast Gear

Overview

The SHACMAN Delong M3000 Composite Edition 440 hp 6X4(10 wheels) Tractor Truck is a Heavy truck featuring 6X4 (10 wheels) drive, 440 hp, 25t GVW and China V emissions. Its segment focus covers Coal transport, matching those duty cycles. On the powertrain side, it comes with a Xi’an CumminsISM11E5 440 engine, Fast Gear transmission and Diesel fuel.

China V 440 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX4250MC4F1
Drive type: 6X4
Wheelbase: 3175+1350mm
engine: Xi’an CumminsISM11E5 440
transmission: Fast GearS12MO
Rear Axle Ratio: 3.7
Cab length: 7.33m
Cab width: 2.55m
Cab height: 3.845m
Front track width: 2036mm
Gross Trailer Weight: 40ton
rear track: 1860/1860mm
Curb Weight: 8.55ton
GVWR: 25ton
Max. speed: 105km/h
Origin: Xi'an, Shaanxi
tonnage class: Heavy truck
market segment: Coal transport
Remarks: Extended high-roof cab without deflector, extended semi-high-roof cab without deflector, 400/1000L fuel tank, JOST 50 fifth wheel, electric tilting, full fuel line heating, North/Cold Region version, metal bumper, Eaton clutch
Version: composite version
Energy Type: Diesel
Engine parameters
Engine Brand: Xi’an Cummins
Engine Model: Xi’an CumminsISM11E5 440
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 10.8L
Emission standard: China V
Max output power: 324kW
Max hp: 440Horsepower
Max torque: 2150N·m
Max torque speed: 1100-1300rpm
Rated speed: 1900rpm
Technology route: Common Rail SCR
Transmission Parameters
Transmission Model: Fast GearS12MO
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
fuel tank
Fuel tank/air tank material: aluminum alloy
Fuel tank capacity: 700L
Cab parameters
Cab: High roof
Cab suspension: Four-point air suspension
seating capacity: 3Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Chassis Specs
Front axle description: MAN 5.5T maintenance-free
Fifth wheel: 90#
Front axle allowable load: 7000kg
Frame Dimensions: 850×270 (8+4)mm
rear axle description: 13T MAN single reduction
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 3.7
Leaf spring count: 3/5
Suspension (front/rear): Front and rear multi-leaf springs (front 3, rear 5)
Tire
Tire Size: 12R22.5 18PR
Number of tires: 10pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Remote key:
Electronic Central Lock:

Photos

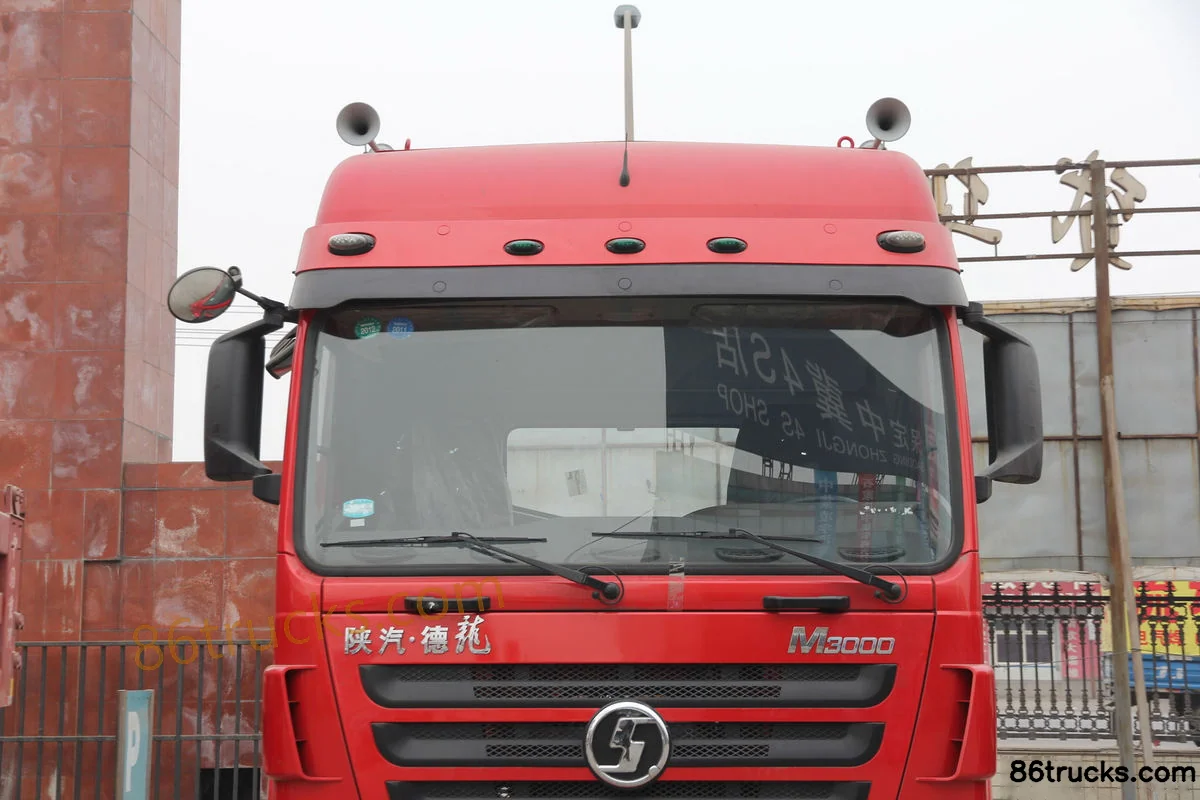

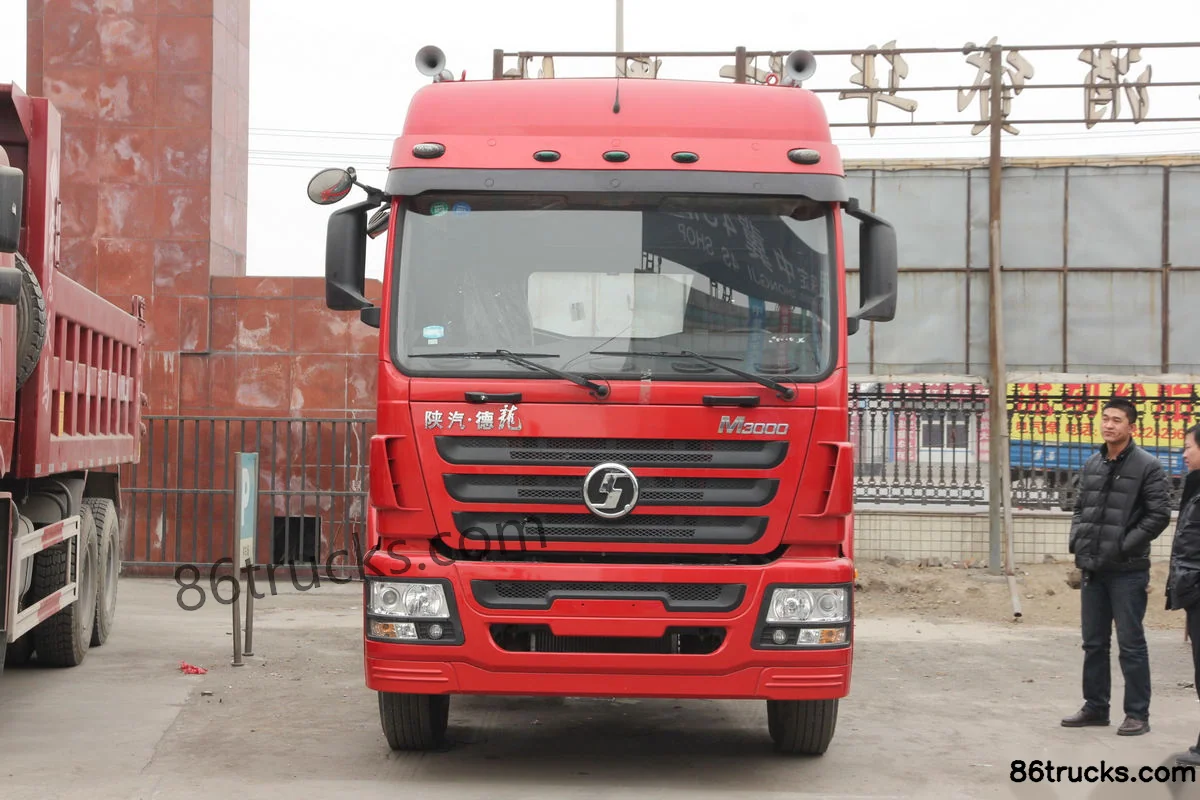

Exterior3

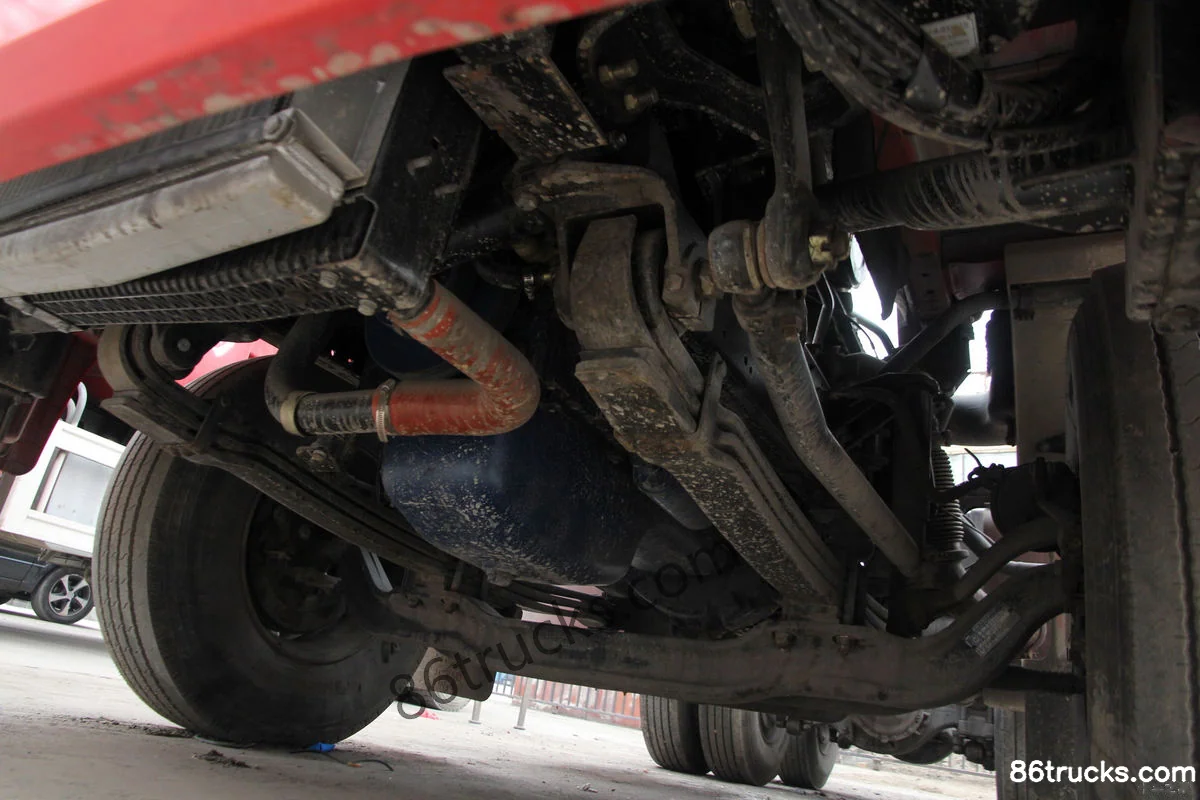

Chassis3

6 photos

FAQ

What emission standard does SHACMAN Delong M3000 Composite Edition 440 hp 6X4(10 wheels) Tractor Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Delong M3000 Composite Edition 440 hp 6X4(10 wheels) Tractor Truck?

Key specs of SHACMAN Delong M3000 Composite Edition 440 hp 6X4(10 wheels) Tractor Truck: Drive: 6x4; Horsepower: 440 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong M3000 Composite Edition 440 hp 6X4(10 wheels) Tractor Truck suited for?

SHACMAN Delong M3000 Composite Edition 440 hp 6X4(10 wheels) Tractor Truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does SHACMAN Delong M3000 Composite Edition 440 hp 6X4(10 wheels) Tractor Truck differ from other variants in the same series?

SHACMAN Delong M3000 Composite Edition 440 hp 6X4(10 wheels) Tractor Truck belongs to SHACMAN Delong M3000 Light Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong M3000 Composite Edition 440 hp 6X4(10 wheels) Tractor Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong M3000 Composite Edition 440 hp 6X4(10 wheels) Tractor Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
