JAC New Shuailing H384 154hp 4X2(6 wheels) 5.2m single-row refrigerated truck

Export reference
From $19,861
MSRP ¥14.3M CNY
Emission: China V
Fuel: Diesel
Curb Weight:: 4.455ton
Wheelbase:: 3845mm
Tire Size:: 8.25R16 14PR,8.25-16 14PR,7.50R16 14PR,7.50-16 14PR
Cab dimensions:: 7.18×2.46×3.46m
Rated payload: 3.63ton
Drive 4X2 (6 wheels)
Cargo box dimensions: 5.175×2.22×2.2m
Horsepower 154

Overview

The JAC New Shuailing H384 154hp 4X2(6 wheels) 5.2m single-row refrigerated truck is a Refrigerated Truck featuring 5.175×2.22×2.2m cargo body, 3.63t payload, Flat roof cab and 3845mm wheelbase. On the powertrain side, it comes with 154 hp, 4X2 (6 wheels) drive, China V emissions and Diesel fuel.

China V 154 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 7.18×2.46×3.46m
Truck Type: Refrigerated Truck
Drive type: 4X2
Vehicle origin: Hefei, Anhui
Wheelbase: 3845mm
Front track width: 1695mm
rear track: 1610mm
Curb Weight: 4.455ton
Rated payload: 3.63ton
Max. speed: 95km/h
Front/rear suspension: 1.11/2.225m
Energy Type: Diesel
Engine parameters
Injection System: Common Rail
Engine Model: FotonISF3.8s5154
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.76L
Emission standard: China V
Max output power: 115kW
Max hp: 154Horsepower
Max torque: 491N·m
Rated speed: 2600rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Cargo box parameters
Cargo box dimensions: 5.175×2.22×2.2m
Cargo box width: 2.22m
Cargo box height: 2.2m
Body Parameters
Vehicle certification code: HFC5081XLCP71K1C6V
Body Brand: JAC
Chassis Specs
Chassis Brand: JAC
Chassis Series: Shuailing H
Chassis Model: HFC1081P71K1C6V
Front axle description: JAC
Frame Dimensions: 180mm
rear axle description: JAC7T
Axle ratio: 4.33
Leaf spring count: 13/8+6
Aluminum wheels:
Transmission Parameters
Number of gears: 6Gear
Transmission Model: Lu'an LC6T540
Cab parameters
Cab: Flat roof
Tire
Tire Size: 8.25R16 14PR,8.25-16 14PR,7.50R16 14PR,7.50-16 14PR
Number of tires: 6pcs
Control configuration
ABS:
Brake assist (EBA/BAS/BA etc.): none
Power steering:
EBS electronic braking system: none
Rear Axle Lift: none
Inter-axle Differential Lock: none
clutch booster:
Load-sensing proportioning valve (SABS): none
automatic slack adjuster:
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual/electric
Independent Heater:
Power Windows:
Electric Heated Rearview Mirror:
Reverse Radar:
Seat material: Fabric/Leather
Reverse Camera:
Remote key:
Electronic Central Lock:
lighting configuration
LED headlight:
Front fog lamp:
daytime running lights:
Headlight height adjustment: none
Halogen Headlights:
Exterior features
Air deflector:
Aluminum air tank:
Diesel primary filter heating: none
Wiper type: Frameless
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
Roadside assistance call:
Service brake
Engine brake: none
Brake Type: air brake
Parking brake: Spring brake
Exhaust brake: none
Front wheel brake: Drum/Disc
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):
Forward Collision Warning (FCW): none
Emergency Brake Assist (EBA): none
Lane Keeping Assist System (B.LKA): none
adaptive cruise control (ACC): none
Tire Pressure Monitoring System (TPMS):
Lane change assist (ALC): none
Fatigue driving monitoring: none
maintenance service
Vehicle Warranty Period: 24 months unlimited mileage

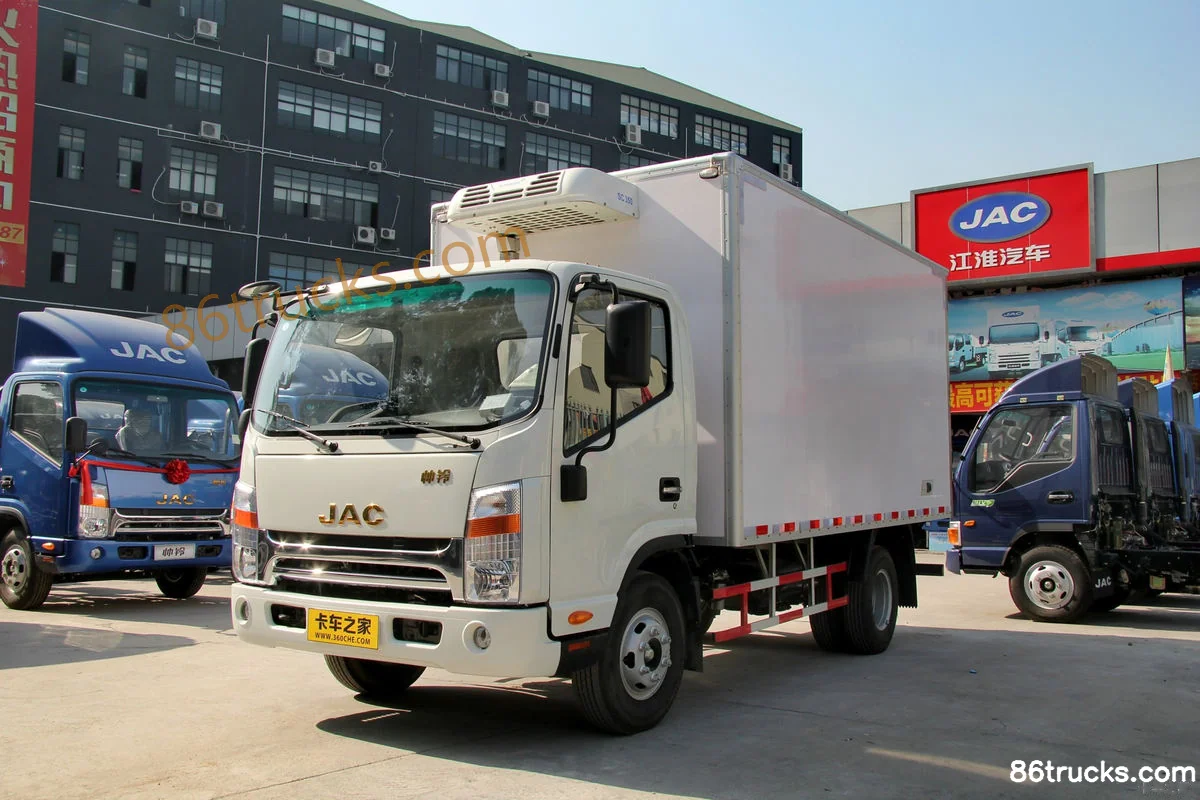

Photos

Exterior1

1 photos

FAQ

What is the export price of JAC New Shuailing H384 154hp 4X2(6 wheels) 5.2m single-row refrigerated truck, and what does it include?

JAC New Shuailing H384 154hp 4X2(6 wheels) 5.2m single-row refrigerated truck export reference is about From $19,861; MSRP is ¥14.3M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC New Shuailing H384 154hp 4X2(6 wheels) 5.2m single-row refrigerated truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC New Shuailing H384 154hp 4X2(6 wheels) 5.2m single-row refrigerated truck?

Key specs of JAC New Shuailing H384 154hp 4X2(6 wheels) 5.2m single-row refrigerated truck: Drive: 4x2; Horsepower: 154 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC New Shuailing H384 154hp 4X2(6 wheels) 5.2m single-row refrigerated truck suited for?

JAC New Shuailing H384 154hp 4X2(6 wheels) 5.2m single-row refrigerated truck is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC New Shuailing H384 154hp 4X2(6 wheels) 5.2m single-row refrigerated truck differ from other variants in the same series?

JAC New Shuailing H384 154hp 4X2(6 wheels) 5.2m single-row refrigerated truck belongs to JAC H light truck (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC New Shuailing H384 154hp 4X2(6 wheels) 5.2m single-row refrigerated truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC New Shuailing H384 154hp 4X2(6 wheels) 5.2m single-row refrigerated truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
