JAC Kangling J6 130 hp 4X2(6 wheels) 4.15 m Single Row Van Light Truck

Export reference
From $15,000
MSRP ¥10.8M CNY
Horsepower: 130
Emission: China V
Fuel: Diesel
Engine: WeichaiWP2.3
Transmission: Lu'an
Curb Weight:: 2.805ton
seating capacity: 3Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The JAC Kangling J6 130 hp 4X2(6 wheels) 4.15 m Single Row Van Light Truck is a Light Truck featuring 4.15m cargo length, Van body cargo body, 3Personnel volume and 1.495t payload. Its segment focus covers Urban Distribution, matching those duty cycles. On the powertrain side, it comes with a WeichaiWP2.3 engine, 130 hp, 4X2 (6 wheels) drive and China V emissions.

China V 130 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5045XXYP92K6C2V
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3365mm
Box length class: 4.2m
engine: WeichaiWP2.3NQ130E50
transmission: Lu'an 6-speed
Cab length: 5.995m
Cab width: 2.295m
Cab height: 3.3m
Front track width: 1595mm
rear track: 1560mm
Curb Weight: 2.805ton
Rated payload: 1.495ton
GVWR: 4.495ton
Max. speed: 95km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 20°
departure angle: 17°
market segment: Urban Distribution
Remarks: Standard: LED headlights; Optional: auto A/C (requires MP5).
Front/rear suspension: 1.1/1.587m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP2.3NQ130E50
Engine info: WeichaiWP2.3
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.29L
Emission standard: China V
Max output power: 96kW
Max hp: 130Horsepower
Max torque: 380N·m
Max torque speed: 1600-2400rpm
Rated speed: 3200rpm
Engine Type: Common Rail+SCR
Transmission Parameters
Transmission Model: Lu'an 6-speed
Transmission Brand: Lu'an
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.15m
Cargo box width: 2.18m
Cargo box height: 2.2m
*Cargo box interior width: 2.1800000667572
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1620kg
Frame Dimensions: 180×65×4.5mm
rear axle allowable load: 2875kg
Leaf spring count: 5/4+3
Frame Type: Dovetail beam
rear axle oil change interval: 60,000 km
Tire
Tire Size: 7.00R16LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Brake assist (EBA/BAS/BA etc.): none
Power steering:
clutch booster:
automatic slack adjuster:
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Seat material: fabric/leather
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Aluminum air tank:
Wiper type: flat wiper blades
Multimedia features
Center Console Color Screen:
External audio input (AUX/USB/iPod etc.):
Radio:
standard instrument cluster: none
LCD instrument cluster:
Roadside assistance call:
lighting configuration
Front fog lamp:
daytime running lights:
LED taillight:
Halogen Headlights: none
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):
adaptive cruise control (ACC):
Fatigue driving monitoring:
maintenance service
Vehicle Warranty Period: 18 months or 50,000 km
Rescue service: none

Photos

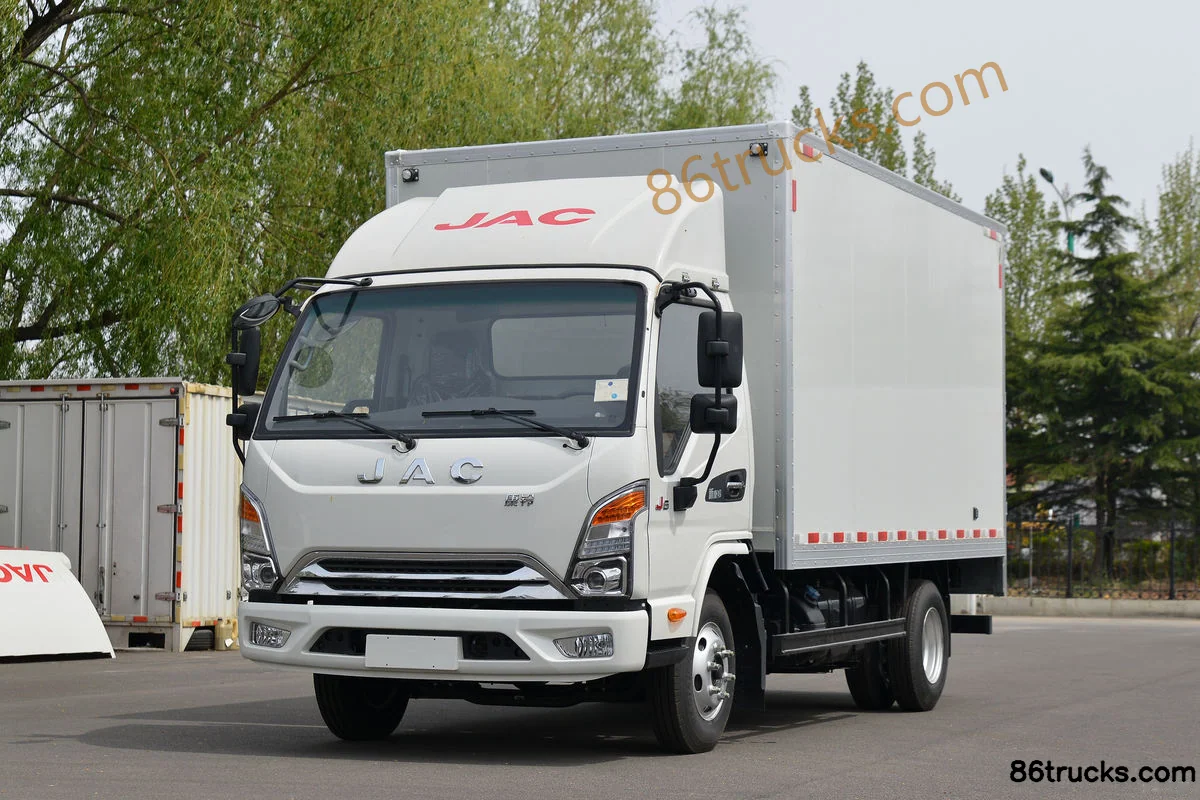

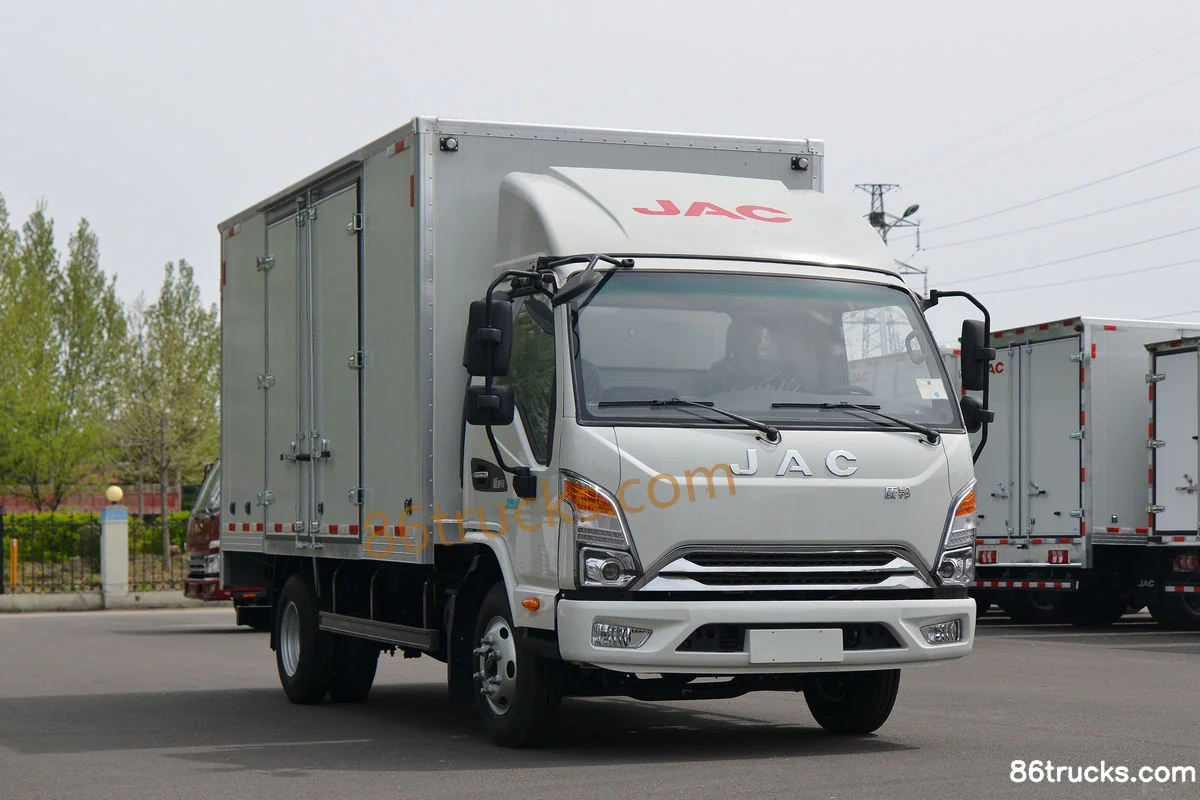

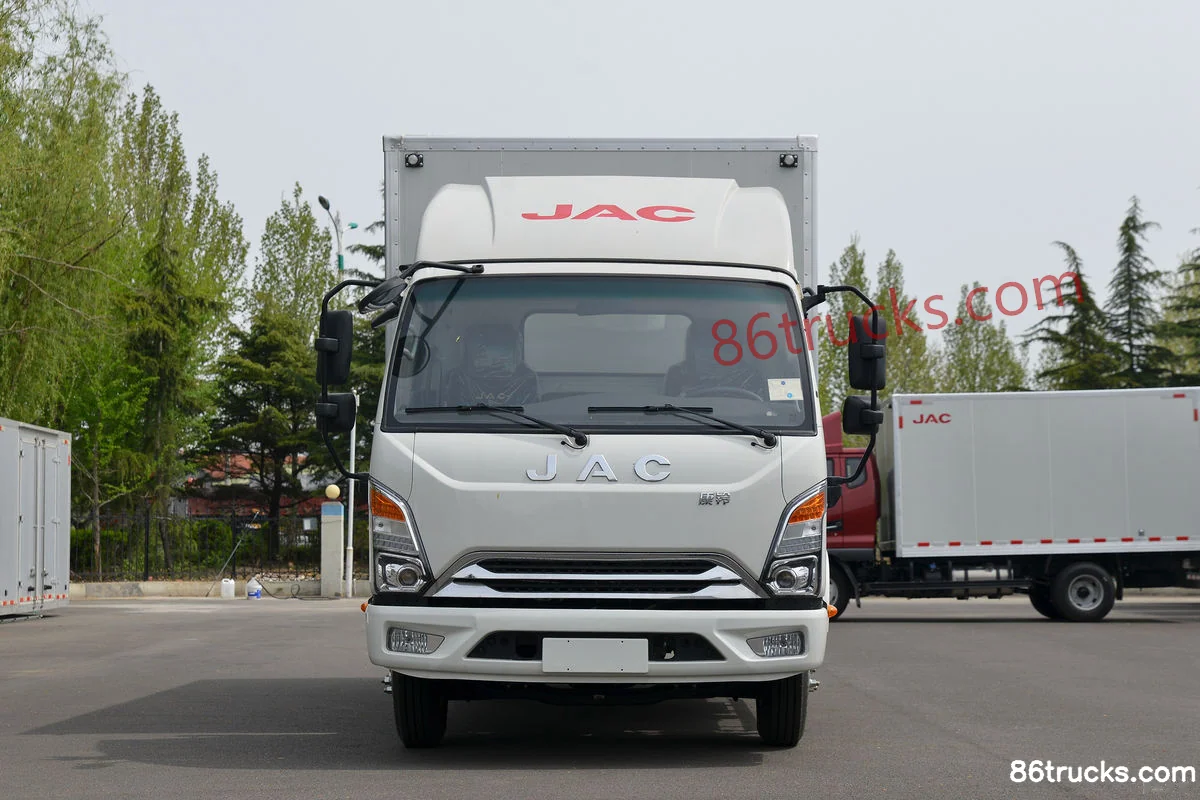

Exterior3

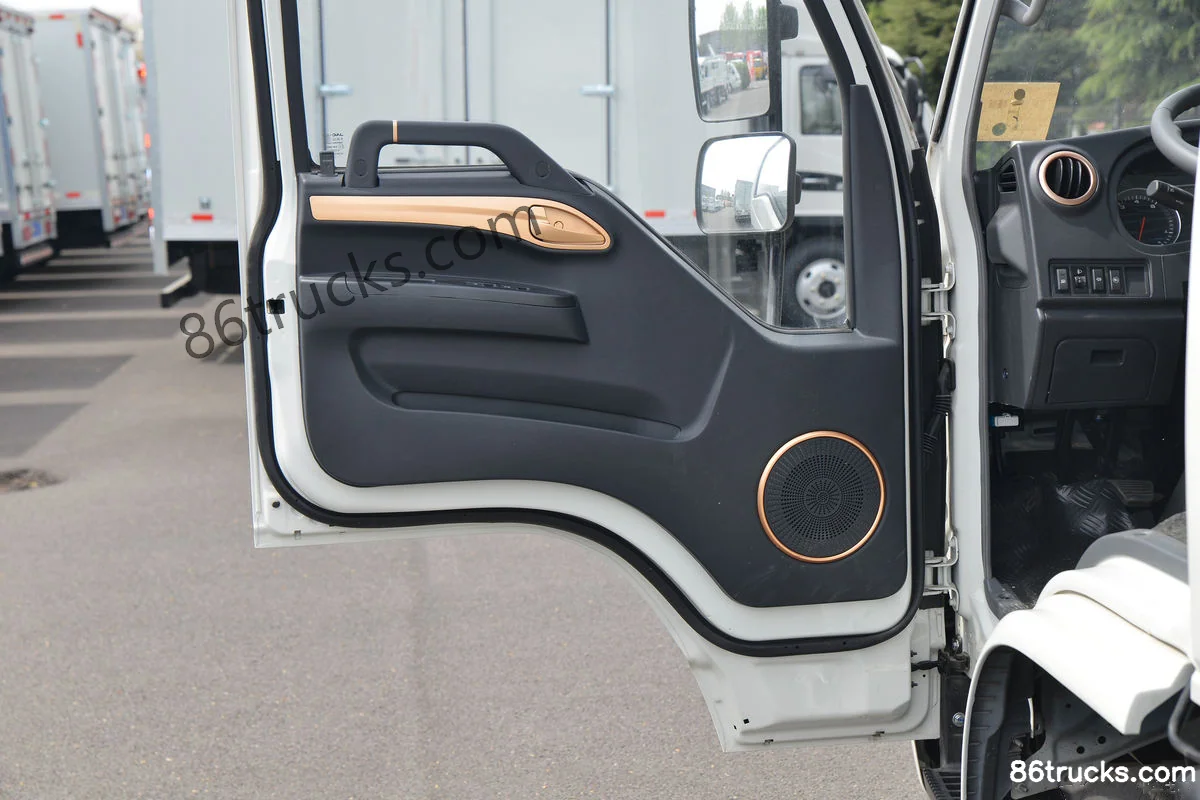

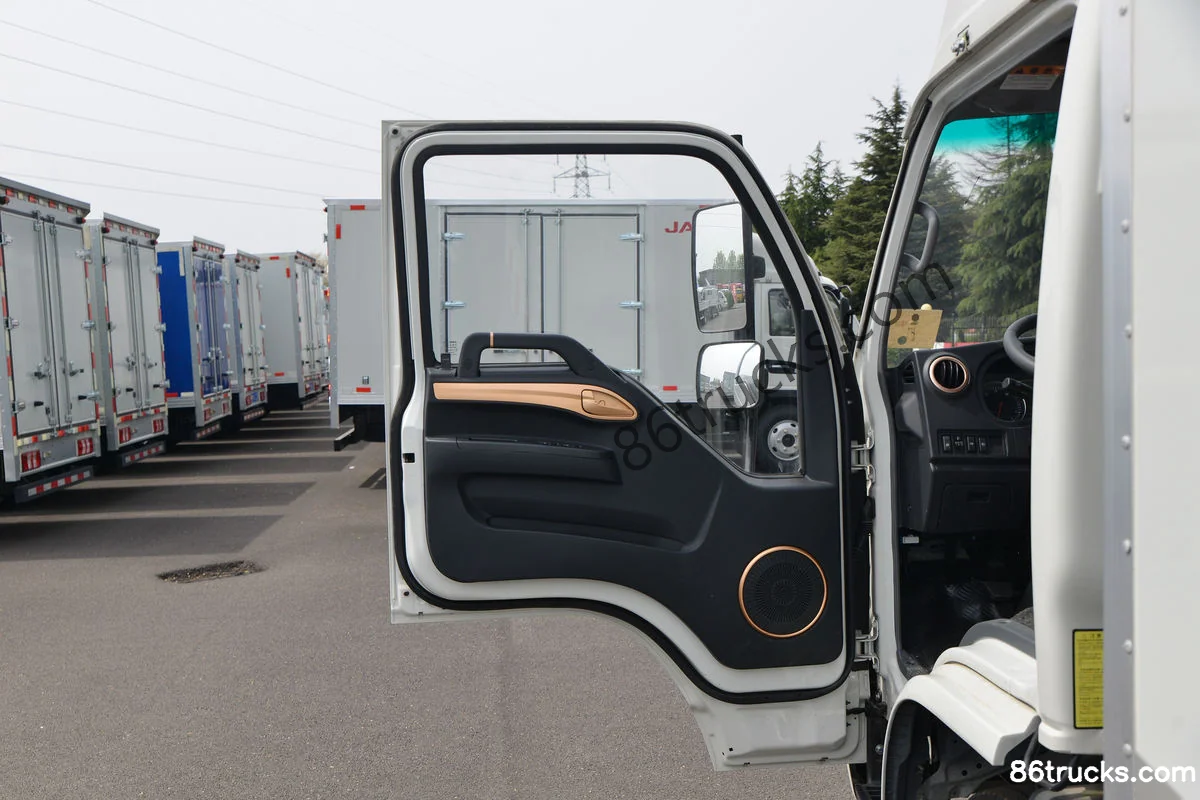

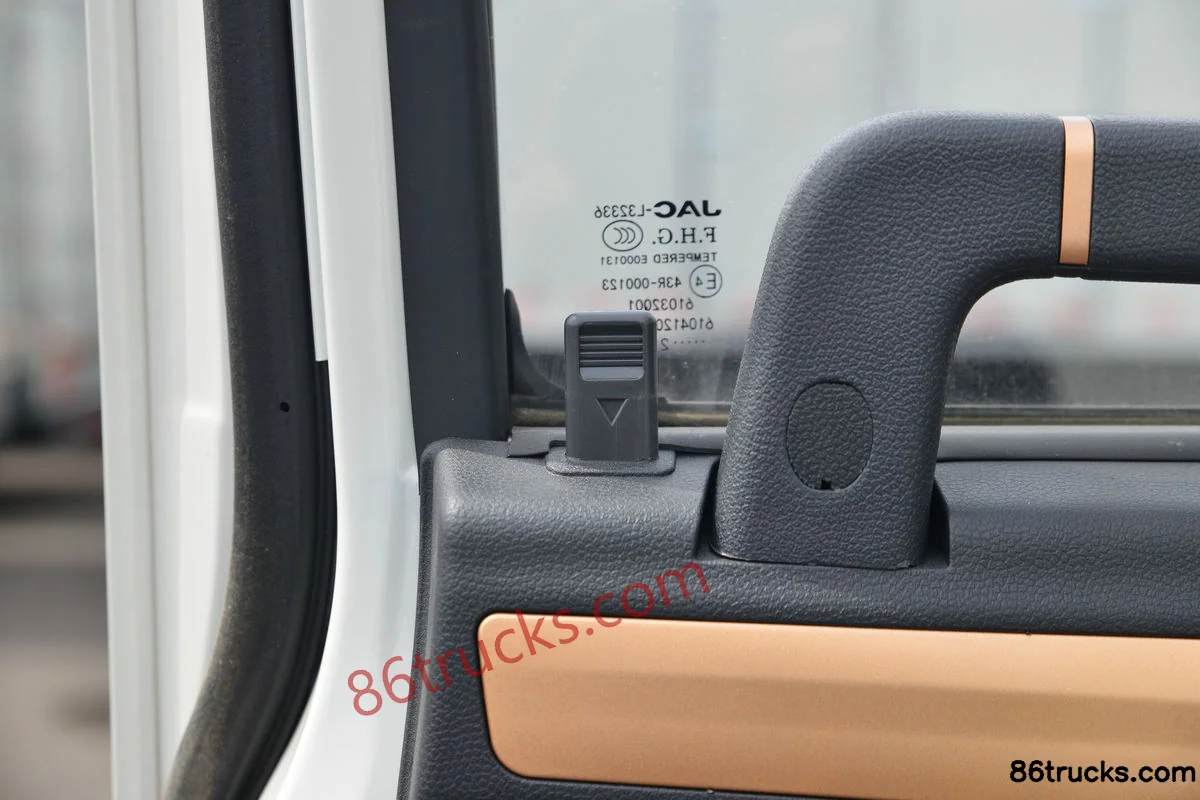

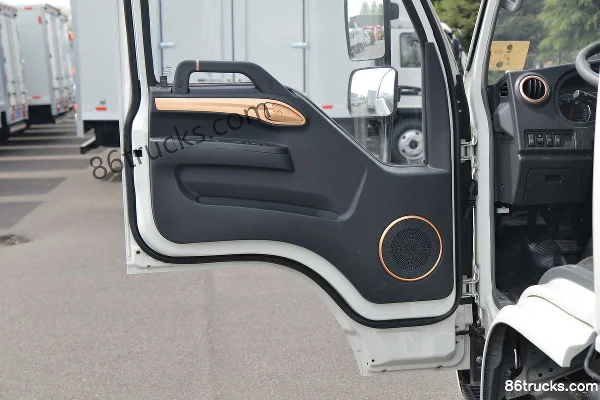

Cab3

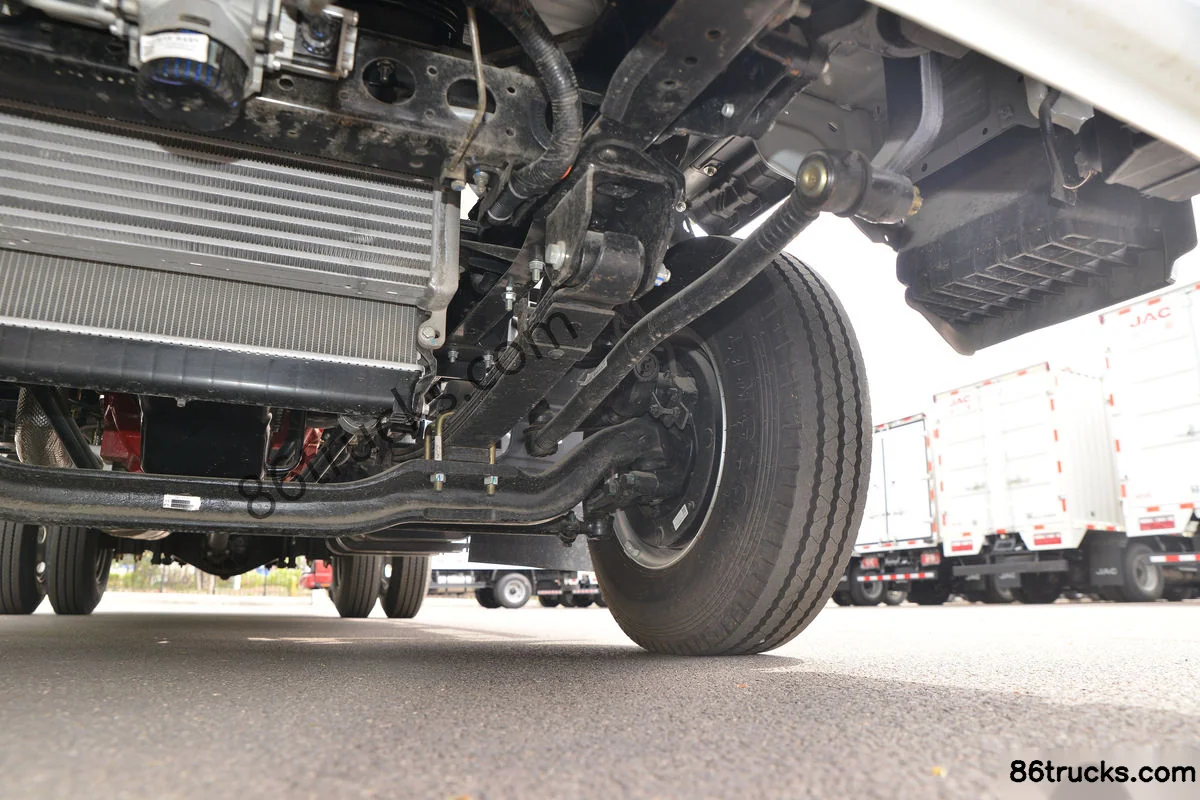

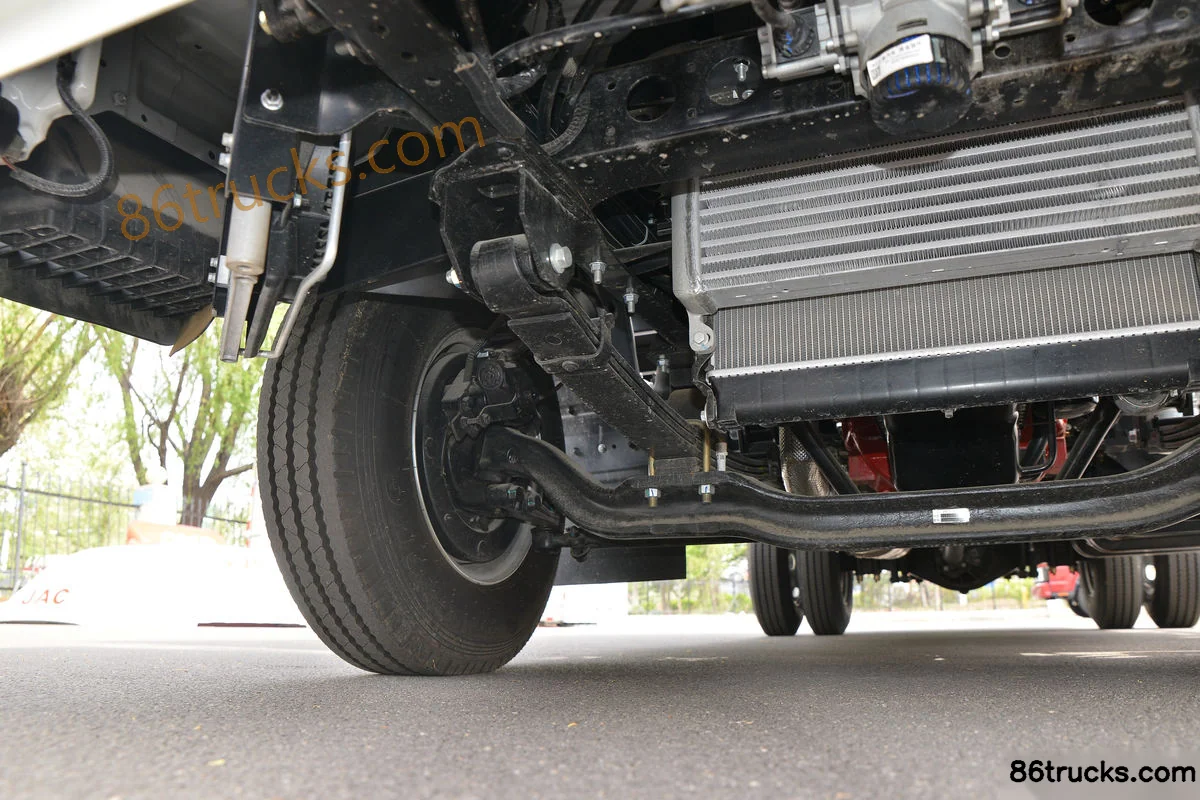

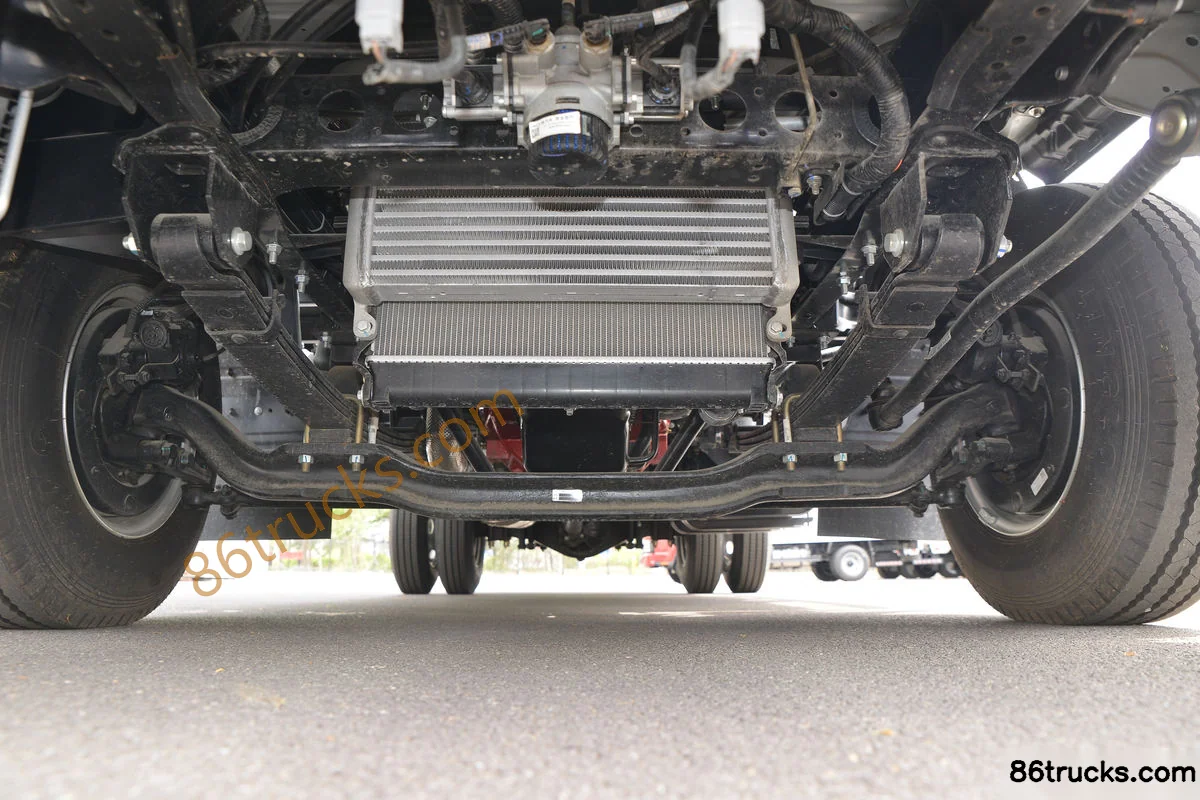

Chassis3

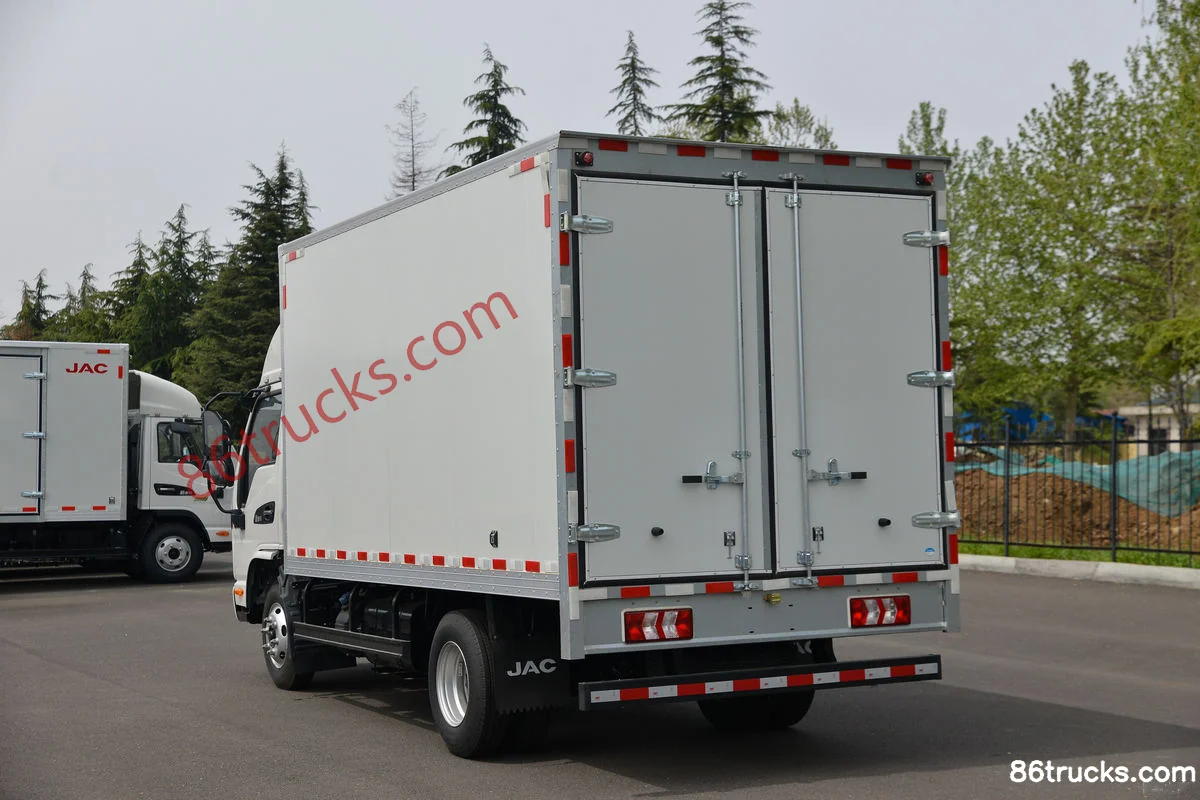

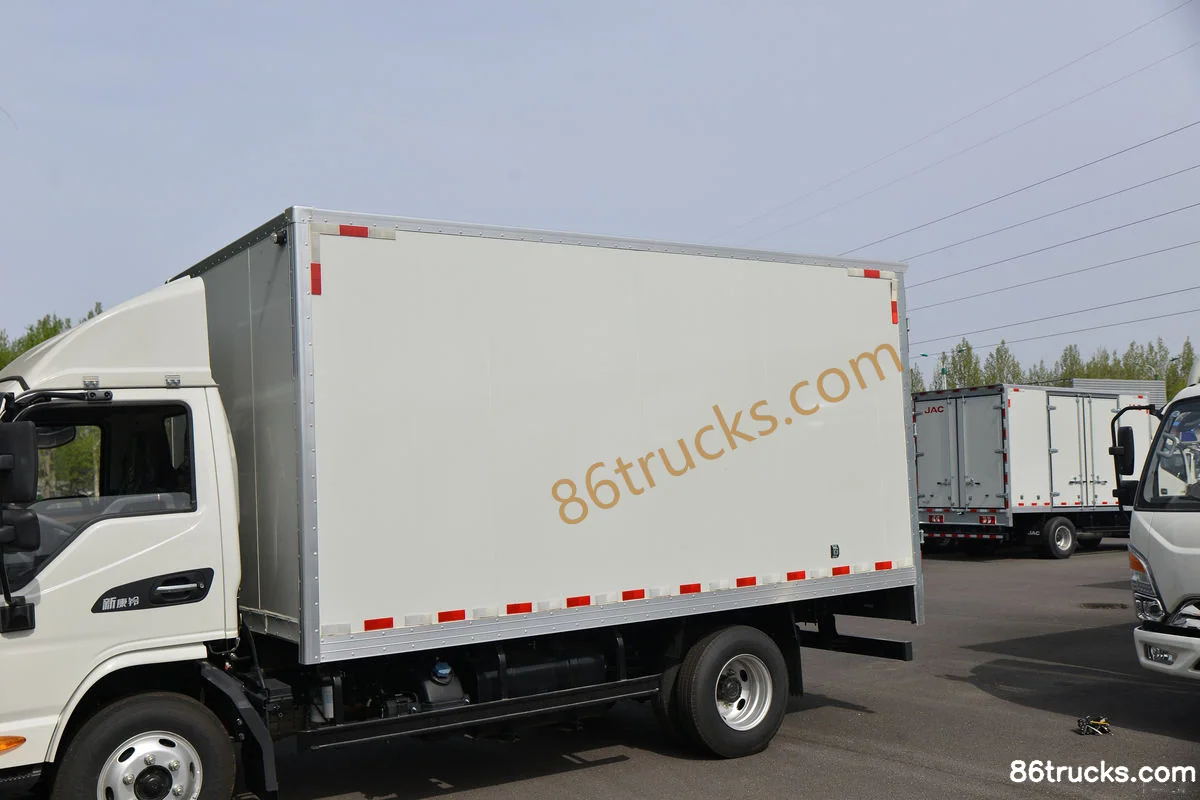

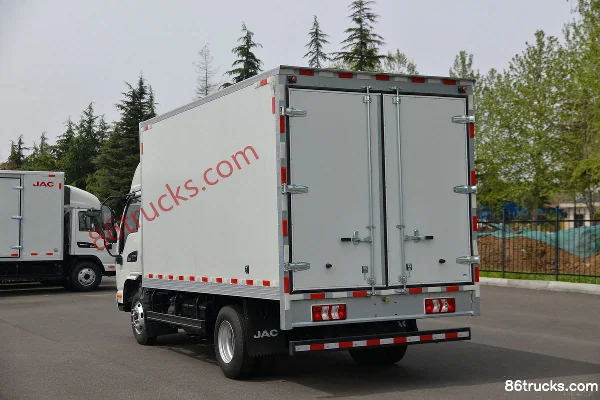

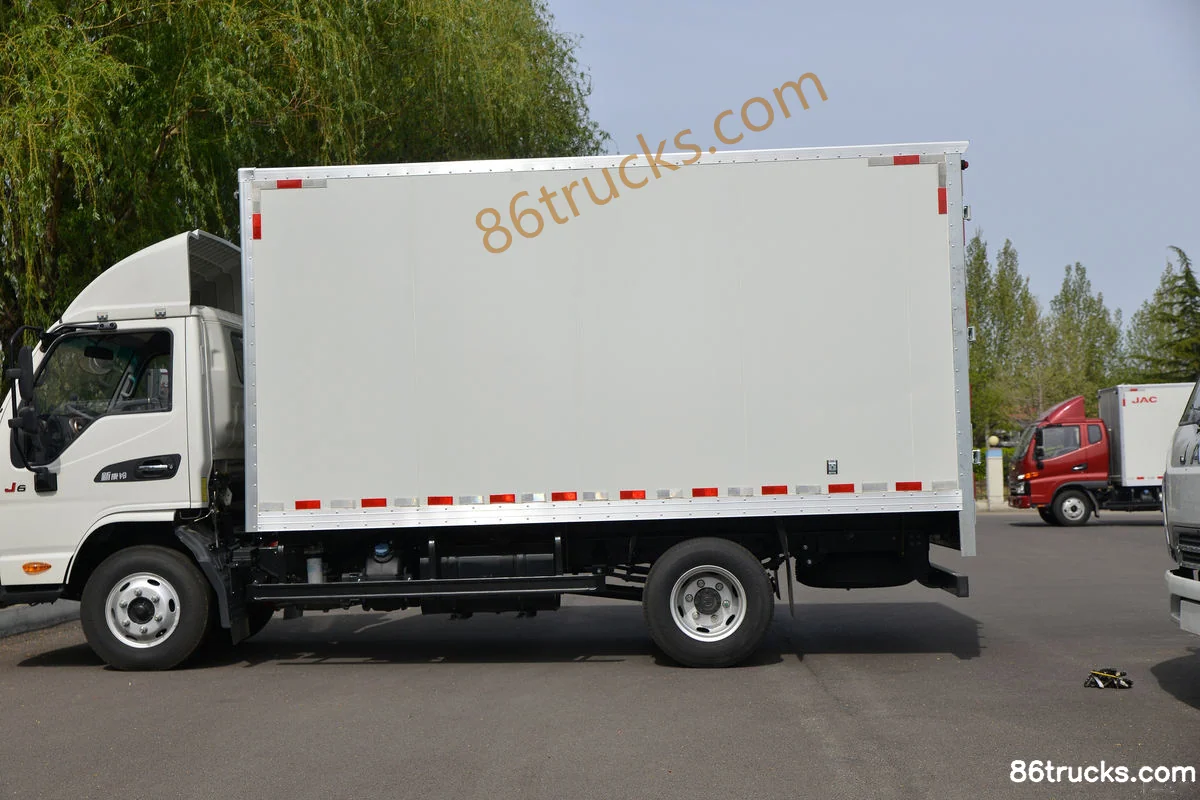

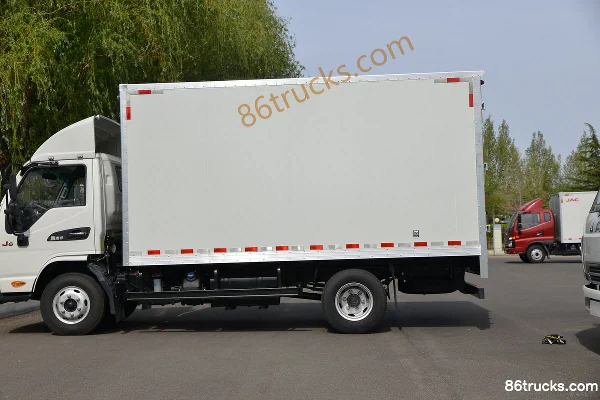

Body3

12 photos

FAQ

What is the export price of JAC Kangling J6 130 hp 4X2(6 wheels) 4.15 m Single Row Van Light Truck, and what does it include?

JAC Kangling J6 130 hp 4X2(6 wheels) 4.15 m Single Row Van Light Truck export reference is about From $15,000; MSRP is ¥10.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Kangling J6 130 hp 4X2(6 wheels) 4.15 m Single Row Van Light Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Kangling J6 130 hp 4X2(6 wheels) 4.15 m Single Row Van Light Truck?

Key specs of JAC Kangling J6 130 hp 4X2(6 wheels) 4.15 m Single Row Van Light Truck: Drive: 4x2; Horsepower: 130 hp; Emission: China V; Fuel: Diesel; Engine: WeichaiWP2.3; Transmission: Lu'an. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Kangling J6 130 hp 4X2(6 wheels) 4.15 m Single Row Van Light Truck suited for?

JAC Kangling J6 130 hp 4X2(6 wheels) 4.15 m Single Row Van Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Kangling J6 130 hp 4X2(6 wheels) 4.15 m Single Row Van Light Truck differ from other variants in the same series?

JAC Kangling J6 130 hp 4X2(6 wheels) 4.15 m Single Row Van Light Truck belongs to JAC J6 light-duty truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Kangling J6 130 hp 4X2(6 wheels) 4.15 m Single Row Van Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Kangling J6 130 hp 4X2(6 wheels) 4.15 m Single Row Van Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
