Sinotruk HOWO T5G 340 hp 8X4(12 wheels) Refrigerated Truck

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 11.37ton
Wheelbase:: 1800+4600+1350mm
Tire Size:: 295/80R22.5,12R22.5,11.00R20,10.00R20,11.00-20,10.00-20
Cab dimensions:: 12×2.496×3.405m
Truck Type:: Refrigerated Truck
Rated payload: 19.5ton
Drive 8X4 (12 wheels)
Horsepower 340
Emission China IV

Overview

The Sinotruk HOWO T5G 340 hp 8X4(12 wheels) Refrigerated Truck is a Refrigerated Truck featuring 19.5t payload, Flat roof cab and 1800+4600+1350mm wheelbase. On the powertrain side, it comes with 340 hp, 8X4 (12 wheels) drive, China IV emissions and Diesel fuel.

China IV 340 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 12×2.496×3.405m
Truck Type: Refrigerated Truck
Drive type: 8X4
Wheelbase: 1800+4600+1350mm
Front track width: 1830/1830mm
rear track: 2015/2015mm
Curb Weight: 11.37ton
Rated payload: 19.5ton
Max. speed: 110km/h
Front/rear suspension: 1.43/2.83m
Energy Type: Diesel
Engine parameters
Engine Model: SinotrukMC07.34-40
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.87L
Emission standard: China IV
Max output power: 250kW
Max hp: 340Horsepower
Max torque: 1250N·m
Rated speed: 2300rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Body Parameters
Vehicle certification code: ZZ1317N466GE1
Body Brand: Sinotruk HOWO
Chassis Specs
Chassis Brand: Sinotruk HOWO
Chassis Series: HOWO T5G
Chassis Model: ZZ1317N466GE1
rear axle description: 457 dual rear axle
Leaf spring count: 11/11/10,3/3/10,3/3/5,3/3/4,3/3/-
Transmission Parameters
Number of gears: 10Gear
Transmission Model: SinotrukHW19710
Cab parameters
Cab: Flat roof
Tire
Tire Size: 295/80R22.5,12R22.5,11.00R20,10.00R20,11.00-20,10.00-20
Number of tires: 12pcs

Photos

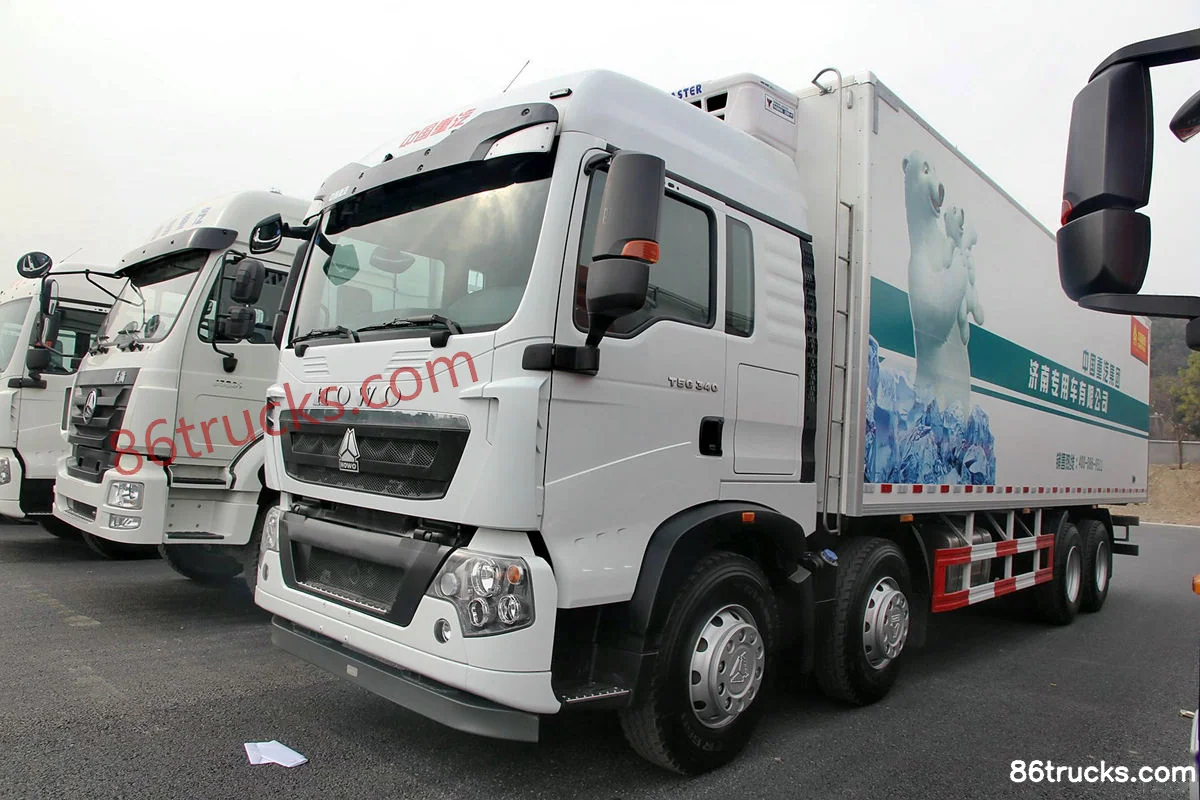

Exterior1

1 photos

FAQ

What emission standard does Sinotruk HOWO T5G 340 hp 8X4(12 wheels) Refrigerated Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO T5G 340 hp 8X4(12 wheels) Refrigerated Truck?

Key specs of Sinotruk HOWO T5G 340 hp 8X4(12 wheels) Refrigerated Truck: Drive: 8x4; Horsepower: 340 hp; Emission: China IV; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO T5G 340 hp 8X4(12 wheels) Refrigerated Truck suited for?

Sinotruk HOWO T5G 340 hp 8X4(12 wheels) Refrigerated Truck is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk HOWO T5G 340 hp 8X4(12 wheels) Refrigerated Truck differ from other variants in the same series?

Sinotruk HOWO T5G 340 hp 8X4(12 wheels) Refrigerated Truck belongs to Sinotruk HOWO T5G medium-duty truck (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO T5G 340 hp 8X4(12 wheels) Refrigerated Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO T5G 340 hp 8X4(12 wheels) Refrigerated Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
