Sinotruk HW20716C 16-Speed Manual Transmission

Export reference
MSRP N/A
Features:: Main box spur gear dual countershaft, auxiliary box planetary mechanism
Max input torque:: 2200N·m
1st gear ratio:: 13.13

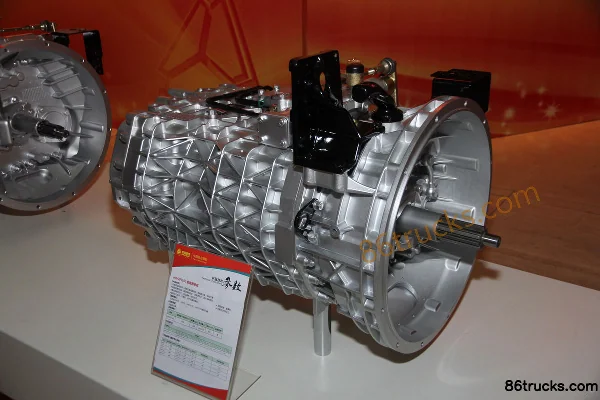

Sinotruk HW20716C 16-Speed Manual Transmission exterior
Transmission Model: HW20716C
Transmission Brand: Sinotruk
Matching Range: For on-road trucks and construction vehicles, optional HW50, HW70 PTOs, optional full-aluminum housing transmission

Overview

The Sinotruk HW20716C 16-Speed Manual Transmission is a parts product with spec HW20716C.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Transmission Parameters
Transmission Brand: Sinotruk
Transmission series: HW16 series (16-speed)
Matching Range: For on-road trucks and construction vehicles, optional HW50, HW70 PTOs, optional full-aluminum housing transmission
Features: Main box spur gear dual countershaft, auxiliary box planetary mechanism
Max input torque: 2200N·m
1st gear ratio: 13.13
synchronizer: No
Main box center distance: 155mm
2nd gear ratio: 11.05
3rd gear ratio: 9.17
4th gear ratio: 7.72
5th gear ratio: 6.3
6th gear ratio: 5.31
7th gear ratio: 4.38
8th gear ratio: 3.68
Reverse Gear 1 Ratio: 12.03
Transmission weight: 397kg
9th gear ratio: 3
Transmission oil capacity: 14L
10-speed gear ratio: 2.52
11-speed gear ratio: 2.1
12-speed gear ratio: 1.76
13-speed gear ratio: 1.44
14-speed gear ratio: 1.21
15-speed gear ratio:
16-speed gear ratio: 0.84
Reverse Gear 2 Ratio: 10.13
Number of gears: 16Gear
shift type: Manual
Transmission Model: HW20716C
shift method: Manual
Forward gears: 16Gear
Number of Reverse Gears: 2pcs

Photos

0 photos

FAQ

What transport jobs is Sinotruk HW20716C 16-Speed Manual Transmission suited for?

Match Sinotruk HW20716C 16-Speed Manual Transmission to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Sinotruk HW20716C 16-Speed Manual Transmission differ from other variants in the same series?

Sinotruk HW20716C 16-Speed Manual Transmission belongs to Sinotruk HW16 series (transmission). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HW20716C 16-Speed Manual Transmission?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HW20716C 16-Speed Manual Transmission?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
