King Long Skyworth D10 2024 Passenger Version 13-Seat 5.3m Pure Electric City Bus 53.58kWh

Export reference
From $31,667
MSRP ¥22.8M CNY
Model code (announced):: NJL6530EV1
Cab length:: 5.3m
GVWR:: 4ton
Max. speed:: 90km/h
Front/rear suspension:: 1.3/1.11m
Version:: 2024 Passenger Edition
CLTC range: 282km
Motor 1 Brand: King Long
Curb Weight: 2ton
Wheelbase: 2890mm

Overview

The King Long Skyworth D10 2024 Passenger Version 13-Seat 5.3m Pure Electric City Bus 53.58kWh is a Electric Panel Van featuring 282km battery/range, King Long motor and 4t GVW.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): NJL6530EV1
Wheelbase: 2890mm
Cab length: 5.3m
Cab width: 1.7m
Cab height: 2.26m
CLTC range: 282km
Curb Weight: 2ton
GVWR: 4ton
Max. speed: 90km/h
Front/rear suspension: 1.3/1.11m
Version: 2024 Passenger Edition
Energy Type: Electric
electric motor
Motor 1 Brand: King Long
Motor 1 Model: TZ180XSH23
Max torque: 230N·m
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 35kW
Peak power: 70kW
Battery/Charging
Charging method: DC fast charge / 3.3kW AC slow charge
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 53.58kWh
Chassis Specs
steering assist type: Electric power steering
Front suspension type: Independent suspension
rear suspension type: Leaf spring
Body Parameters
Cab structure: Load-bearing
Seat count: 13Seats
Door Parameters
Number of Doors: 4
side door type: Single-side manual center sliding door
Wheel brake
Front brake type: Disc brake
rear brake type: drum brake
Front tire specification: 195/70R15LT 12PR
Rear Wheel Specification: 195/70R15LT 12PR
Cab parameters
Seat rows: 5
Safety features
Seat belt reminder:
Remote key:
Central door lock:
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Reverse Radar:
Seat material: Leatherette
Reverse Camera:
Multimedia features
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Radio:
lighting configuration
Front fog lamp:
Headlight height adjustment:

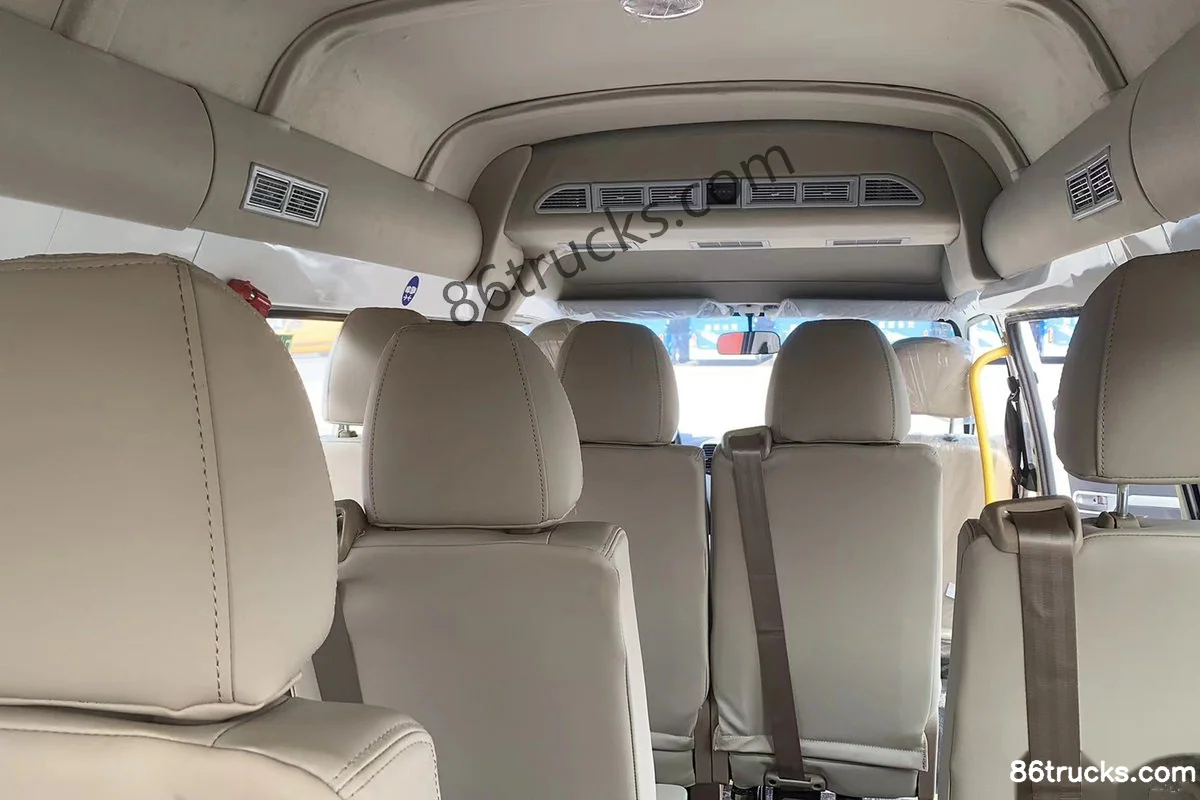

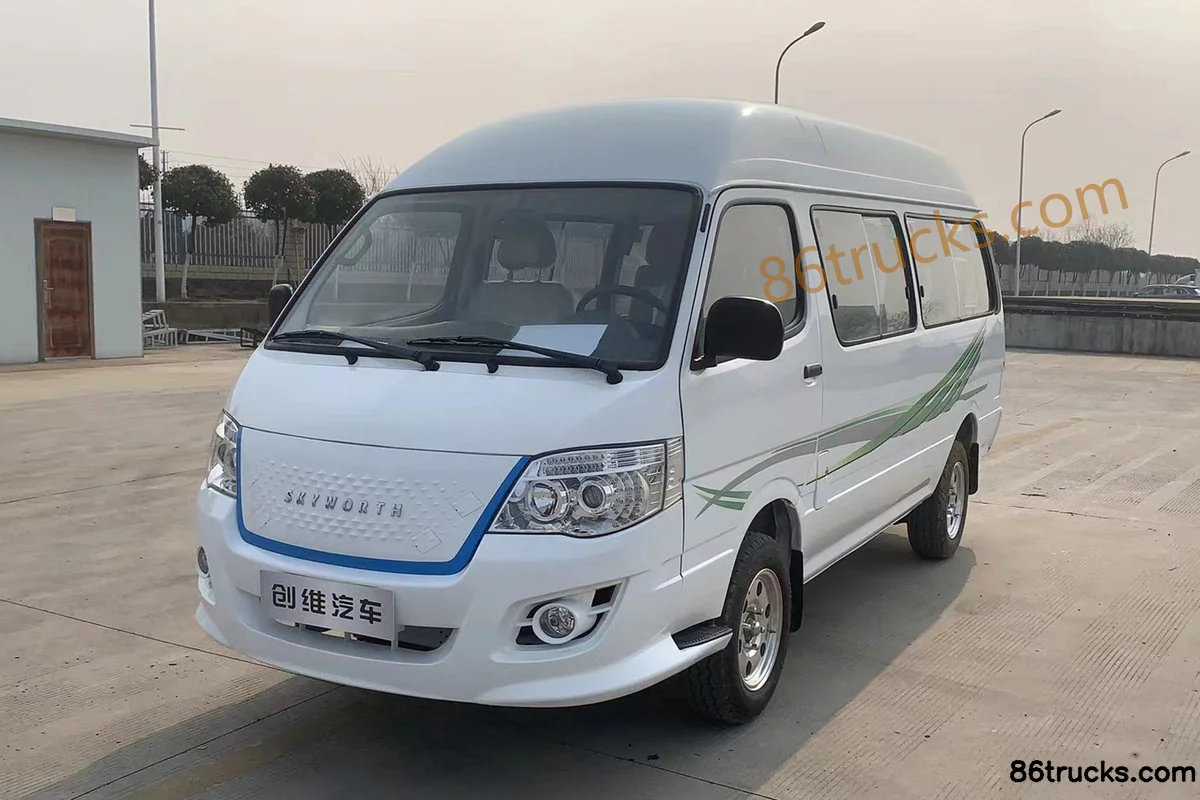

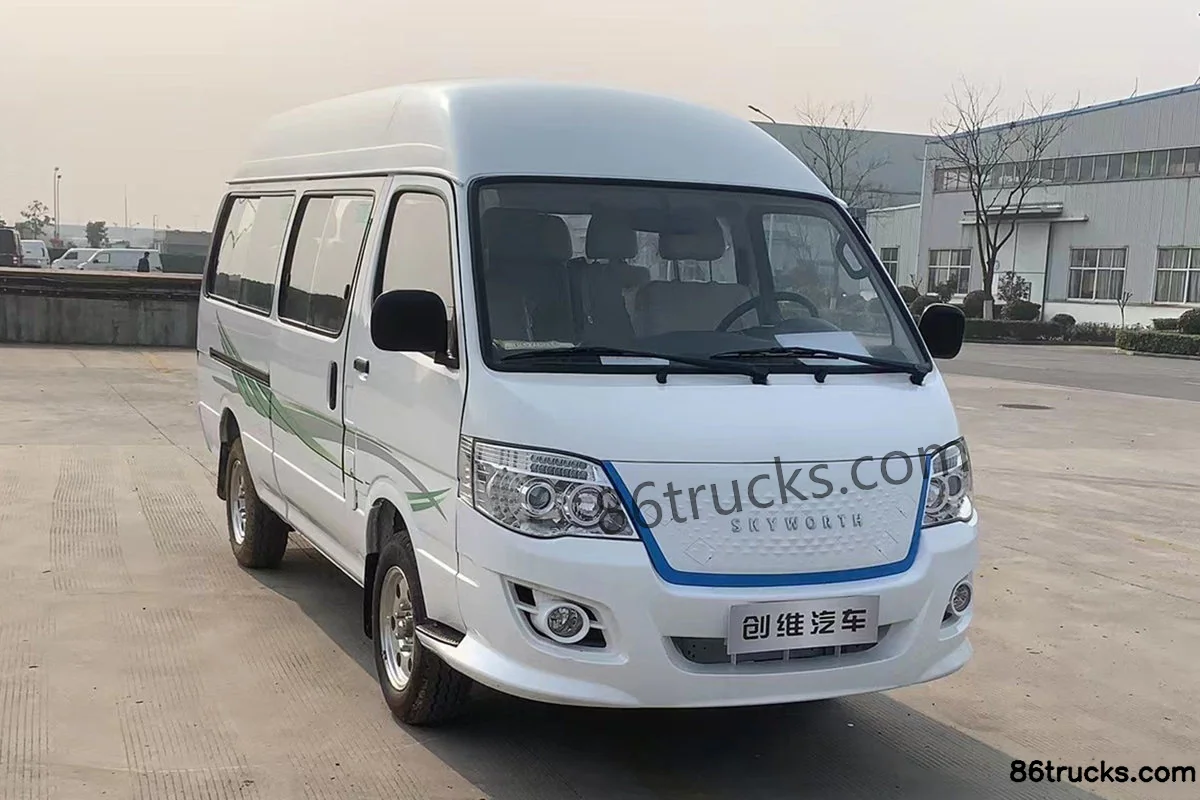

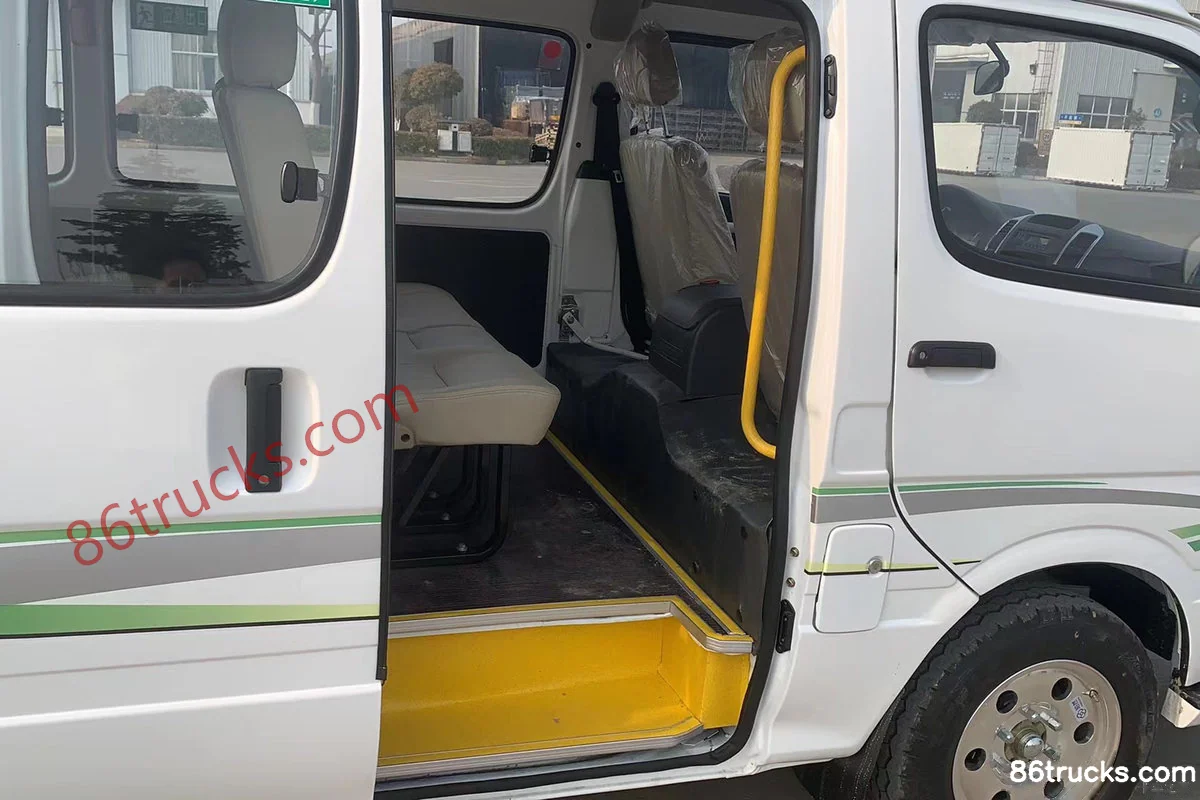

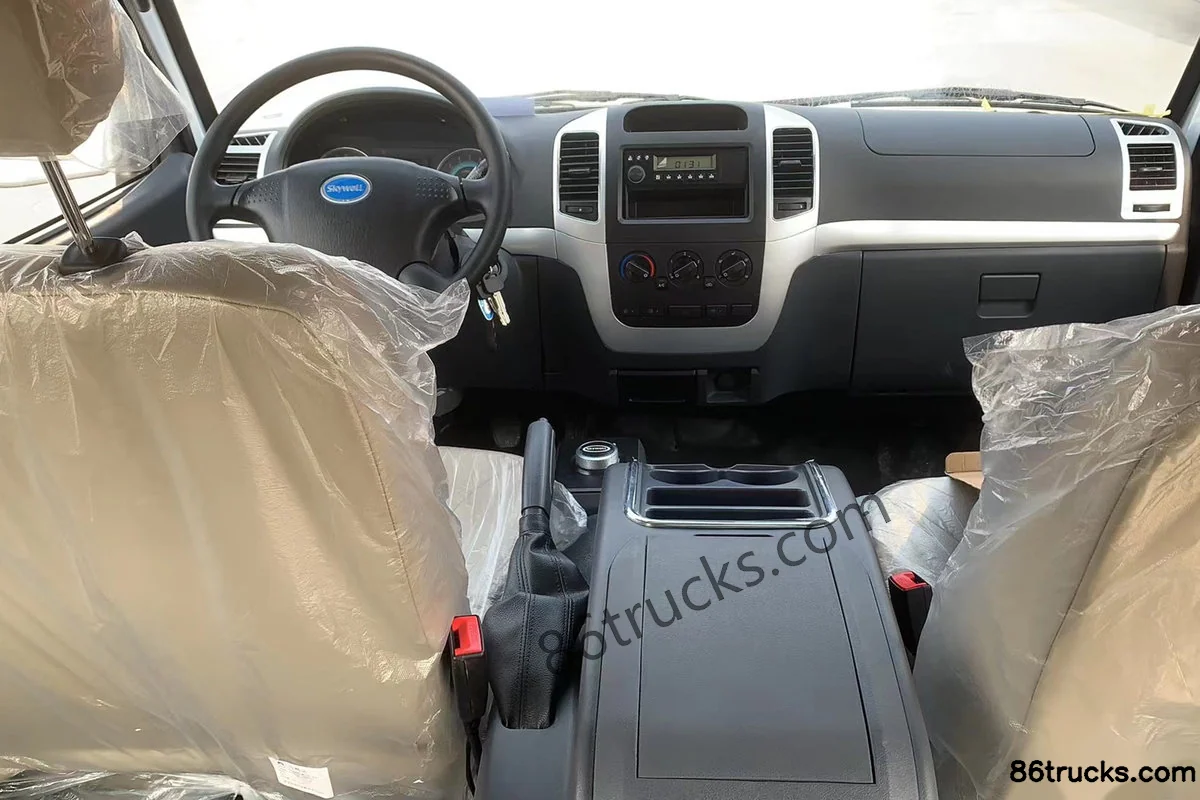

Photos

Exterior3

Cab3

6 photos

FAQ

What is the export price of King Long Skyworth D10 2024 Passenger Version 13-Seat 5.3m Pure Electric City Bus 53.58kWh, and what does it include?

King Long Skyworth D10 2024 Passenger Version 13-Seat 5.3m Pure Electric City Bus 53.58kWh export reference is about From $31,667; MSRP is ¥22.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is King Long Skyworth D10 2024 Passenger Version 13-Seat 5.3m Pure Electric City Bus 53.58kWh suited for?

King Long Skyworth D10 2024 Passenger Version 13-Seat 5.3m Pure Electric City Bus 53.58kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does King Long Skyworth D10 2024 Passenger Version 13-Seat 5.3m Pure Electric City Bus 53.58kWh differ from other variants in the same series?

King Long Skyworth D10 2024 Passenger Version 13-Seat 5.3m Pure Electric City Bus 53.58kWh belongs to King Long Skyworth D10 (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for King Long Skyworth D10 2024 Passenger Version 13-Seat 5.3m Pure Electric City Bus 53.58kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export King Long Skyworth D10 2024 Passenger Version 13-Seat 5.3m Pure Electric City Bus 53.58kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
