JAC Van Baolu V10 Ningde Explorer Edition 2 seats 5.78m electric van 53.58kWh

Export reference
From $27,750
MSRP ¥19.98M CNY
Wheelbase:: 3700mm
Cargo box volume:: 10
Model code (announced):: HFC5030XXYEV11W
Cab length:: 5.78m
GVWR:: 3.3ton
Max. speed:: 90km/h
JAC Van Baolu V10 Ningde Explorer Edition 2 seats 5.78m electric van 53.58kWh exterior
View more photos (12)
CLTC range: 286km
Motor 1 Brand: JAC Motors
Curb Weight: 1.78ton
Rated payload: 1.39ton

Overview

The JAC Van Baolu V10 Ningde Explorer Edition 2 seats 5.78m electric van 53.58kWh is a Electric Panel Van featuring 286km battery/range, JAC Motors motor, 1.39t payload and 10 cargo length.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): HFC5030XXYEV11W
Wheelbase: 3700mm
Cab length: 5.78m
Cab width: 1.86m
Cab height: 2.34m
CLTC range: 286km
Curb Weight: 1.78ton
Rated payload: 1.39ton
GVWR: 3.3ton
Max. speed: 90km/h
Remarks: Central color large screen
Front/rear suspension: 0.78/1.3m
Version: V10 Ningde Explorer Edition
Energy Type: Electric
electric motor
Motor 1 Brand: JAC Motors
Motor 1 Model: TZ180XSJ100
Max torque: 230N·m
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 35kW
Peak power: 77kW
Electronic Control
ECU Brand: Anhui JAC
Battery/Charging
Battery Brand: CATL
Charging method: DC fast charge / slow charge
Battery type: Lithium Iron Phosphate Battery
fast charge time: 0.5h
Battery capacity: 53.58kWh
Body parameters
Cargo box volume: 10
Max body depth: 3.44
Max body width: 1.745
Cargo Box Height: 1.68
Chassis Specs
steering assist type: Electric power steering
Front suspension type: Independent suspension
rear suspension type: Leaf spring
Body Parameters
Cab structure: Body-on-frame
Seat count: 2Seats
Door Parameters

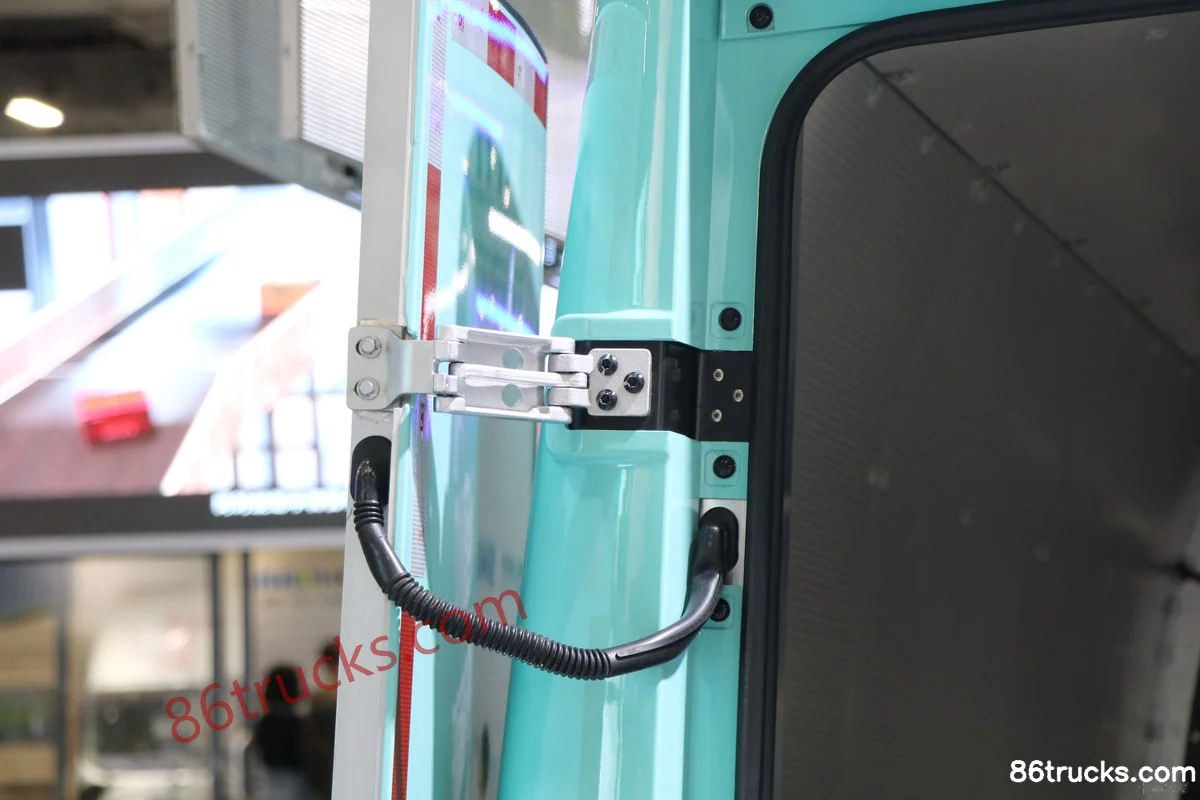

Tailgate type: double doors
Wheel brake
Front brake type: Disc brake
rear brake type: drum brake
Front tire specification: 195/75R16LT 12PR
Rear Wheel Specification: 195/75R16LT 12PR
Cab parameters
Seat rows:
Safety features
Tire Pressure Monitoring:
Remote key:
Central door lock:
Control configuration
ABS:
interior configuration
Power-Adjustable Rearview Mirror:
Heated Rearview Mirror:
Steering Wheel Material: Plastic
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Reverse Radar:
Seat material: leather
Reverse Camera:
Multimedia features
External audio input (AUX/USB/iPod etc.):
lighting configuration
daytime running lights:
Headlight height adjustment:

Photos

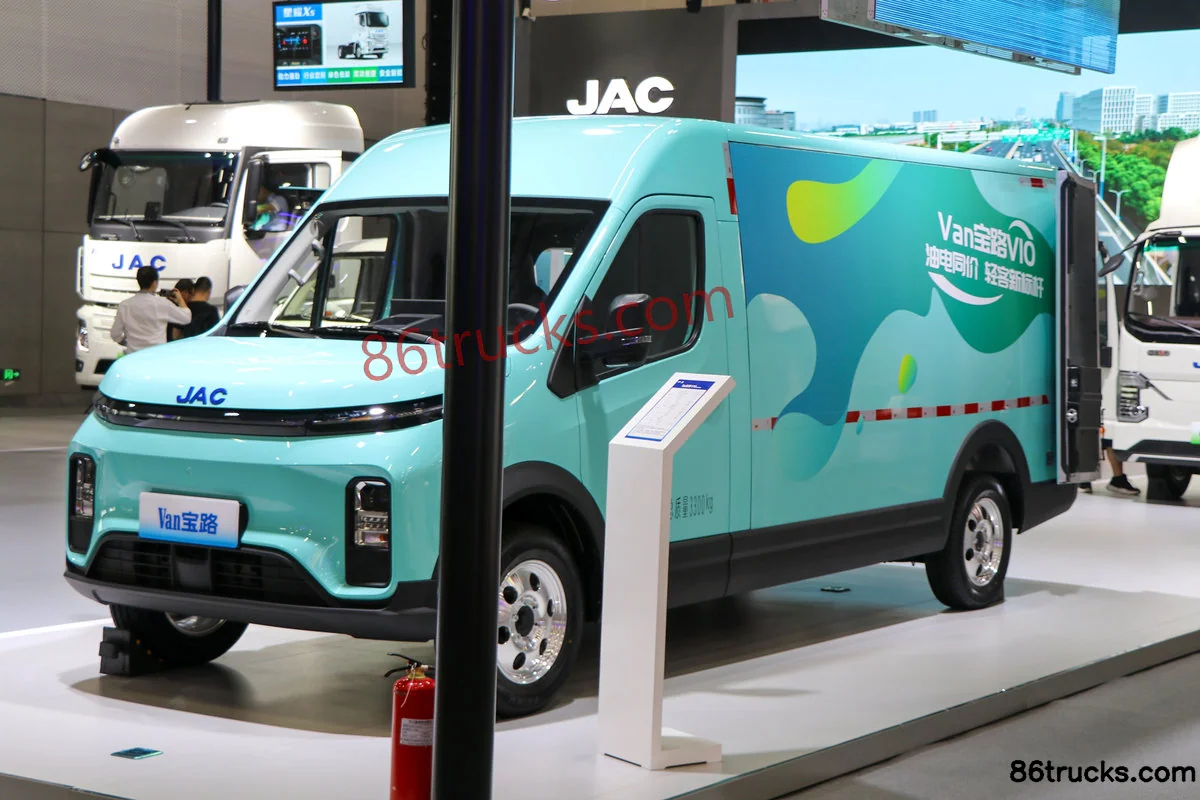

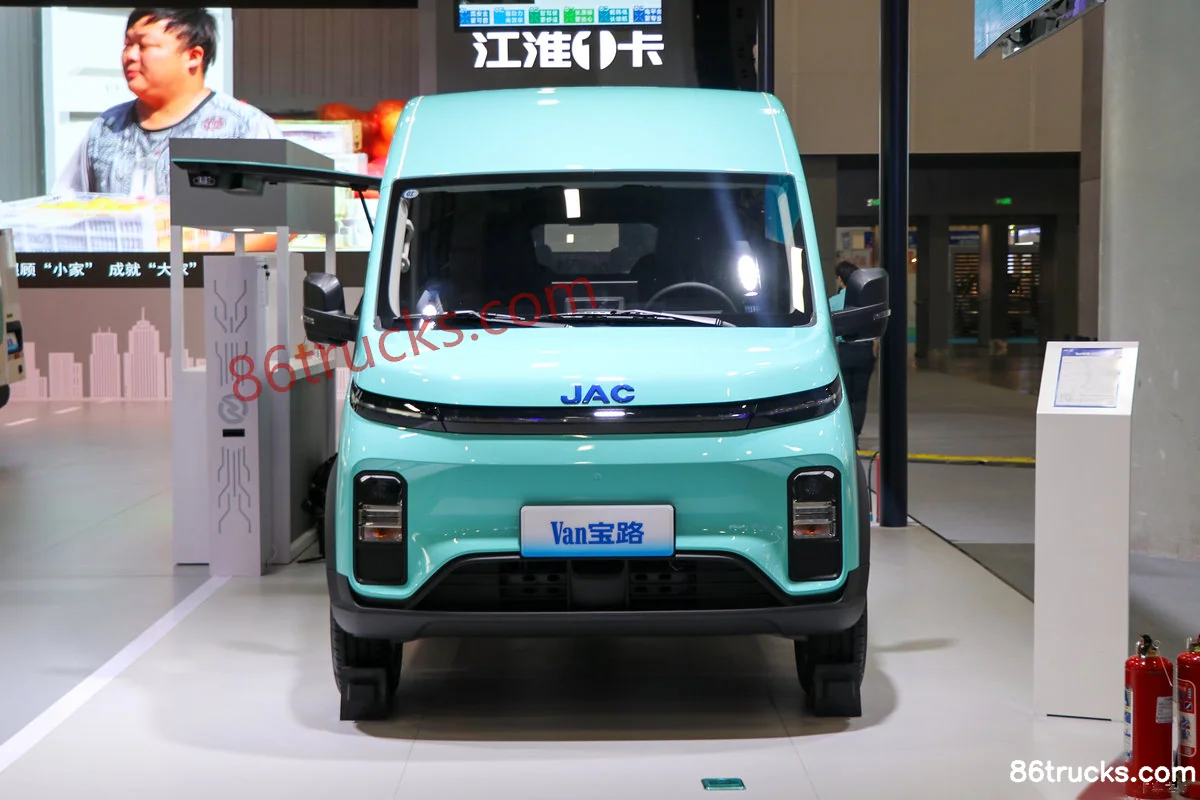

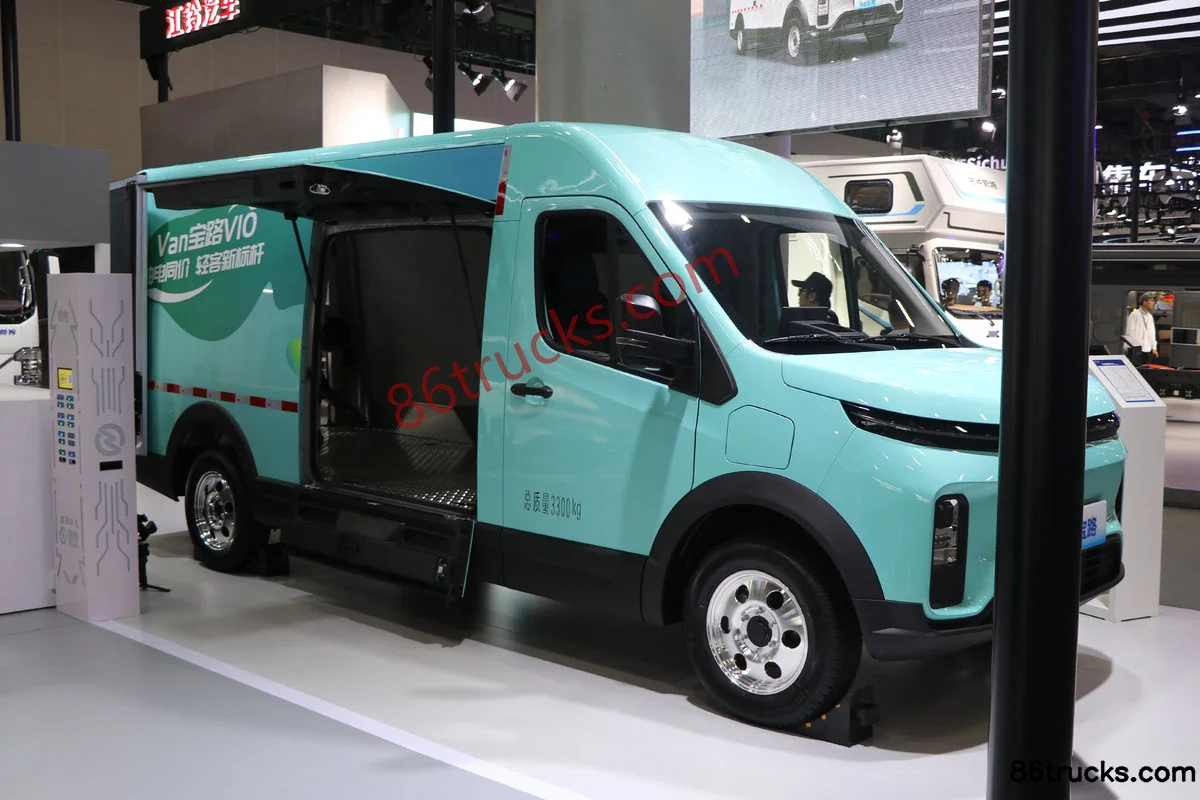

Exterior3

JAC Van Baolu V10 Ningde Explorer Edition 2 seats 5.78m electric van 53.58kWh Exterior (1) | 86Trucks JAC Van Baolu V10 Ningde Explorer Edition 2 seats 5.78m electric van 53.58kWh Exterior (2) | 86Trucks JAC Van Baolu V10 Ningde Explorer Edition 2 seats 5.78m electric van 53.58kWh Exterior (3) | 86Trucks

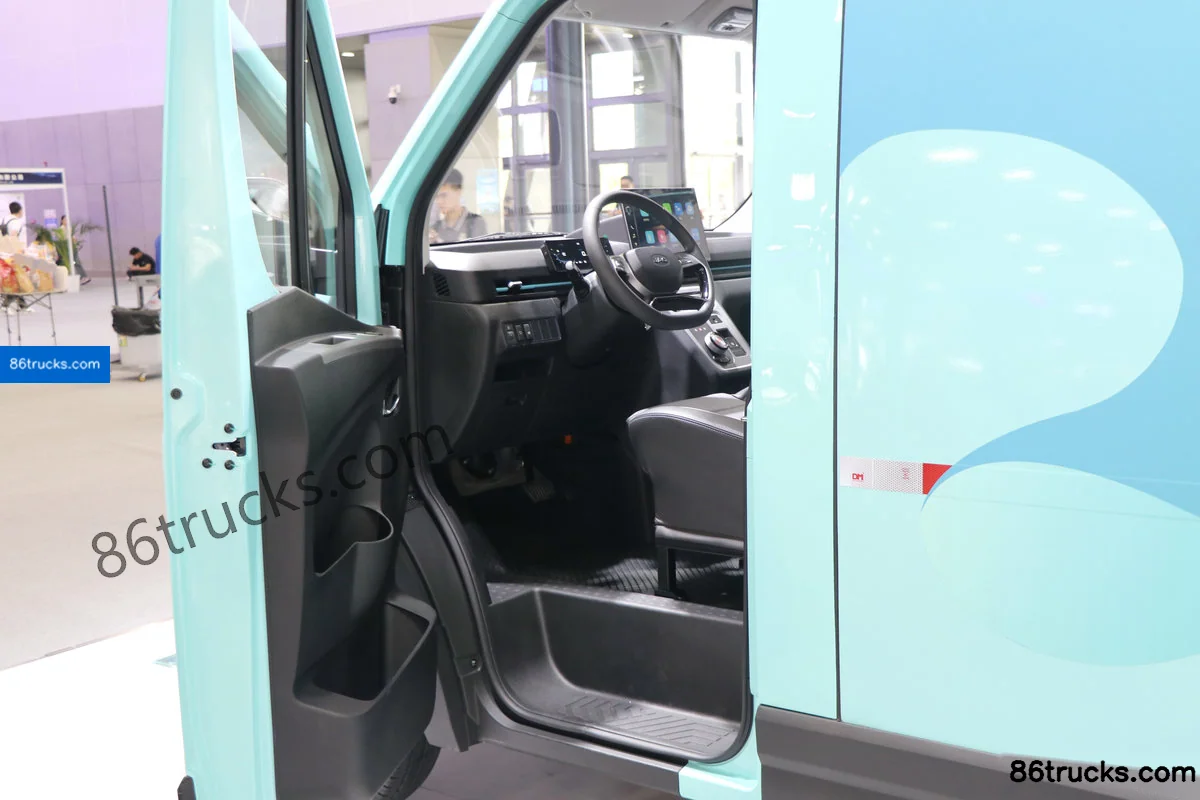

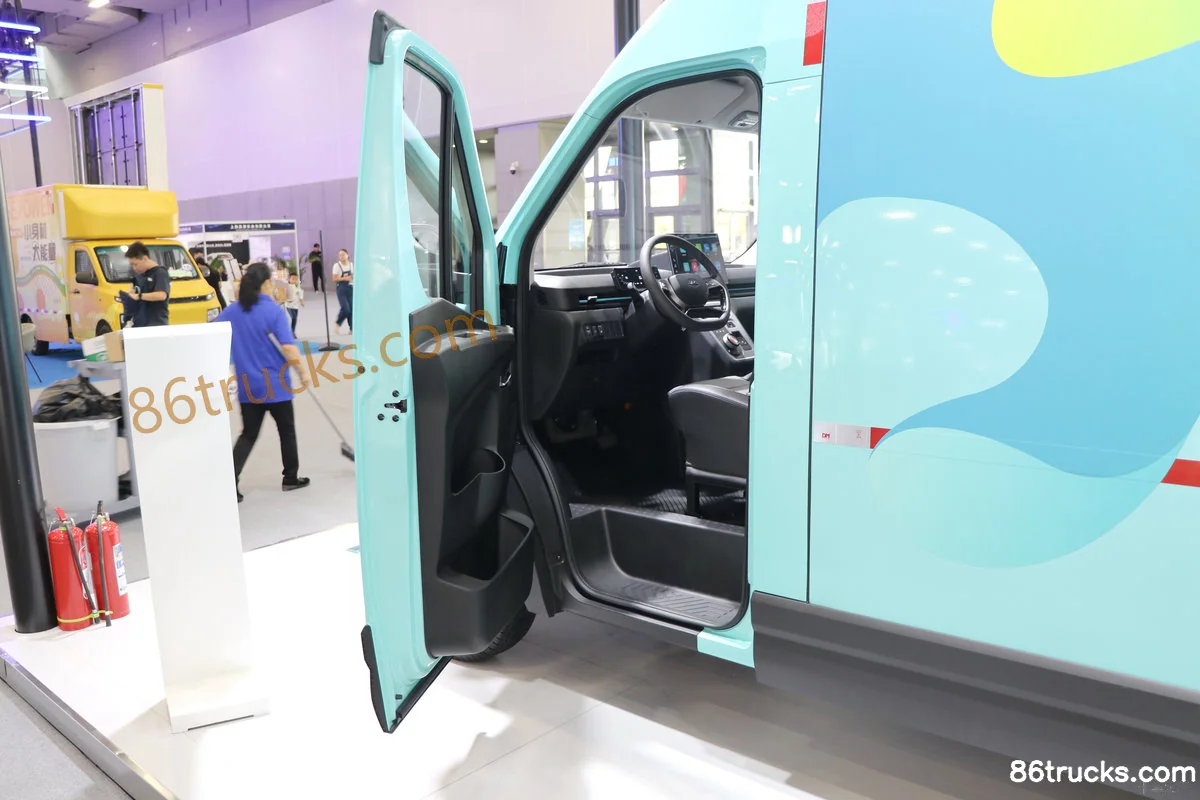

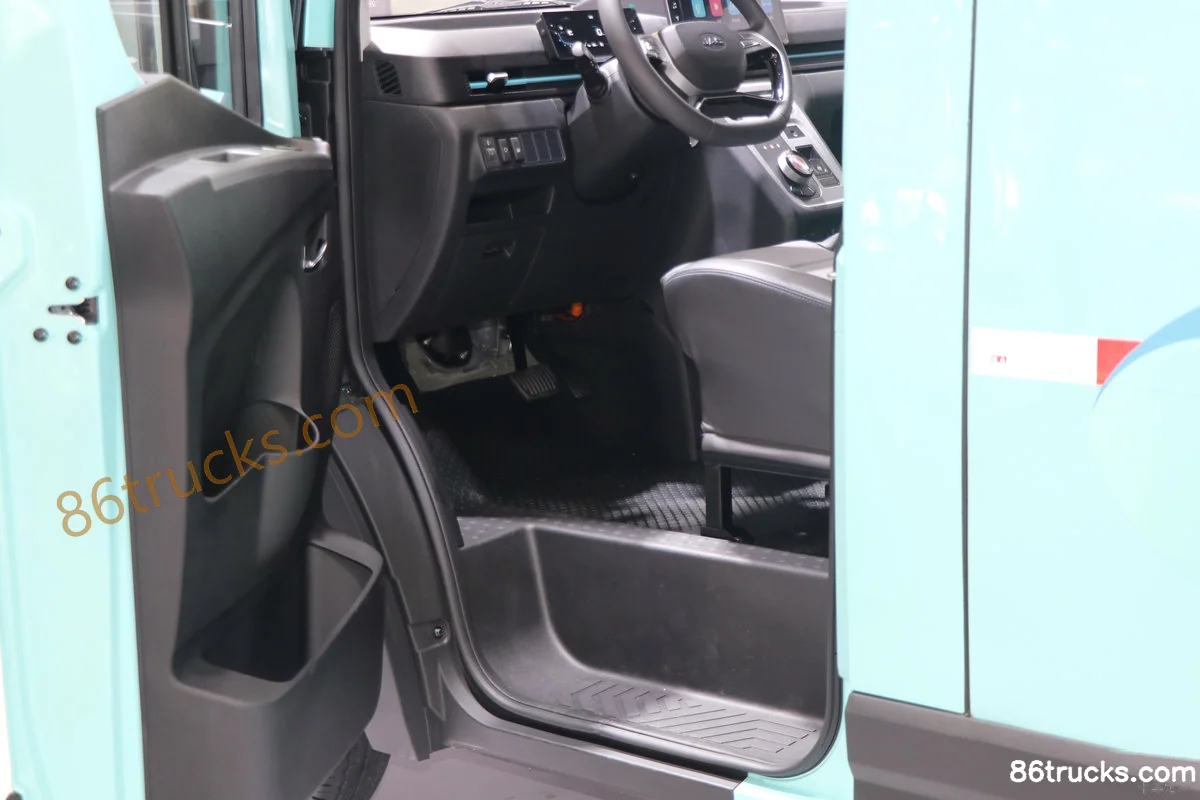

Cab3

JAC Van Baolu V10 Ningde Explorer Edition 2 seats 5.78m electric van 53.58kWh Cab (1) | 86Trucks JAC Van Baolu V10 Ningde Explorer Edition 2 seats 5.78m electric van 53.58kWh Cab (2) | 86Trucks JAC Van Baolu V10 Ningde Explorer Edition 2 seats 5.78m electric van 53.58kWh Cab (3) | 86Trucks

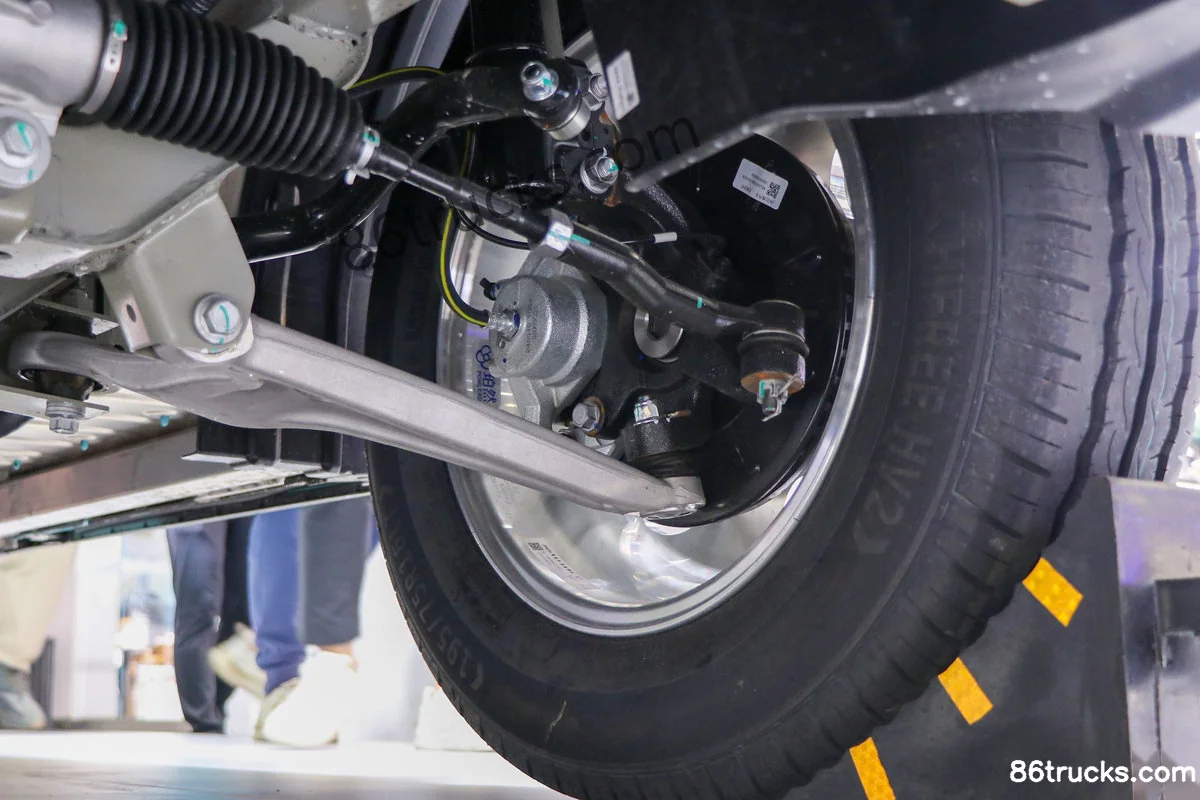

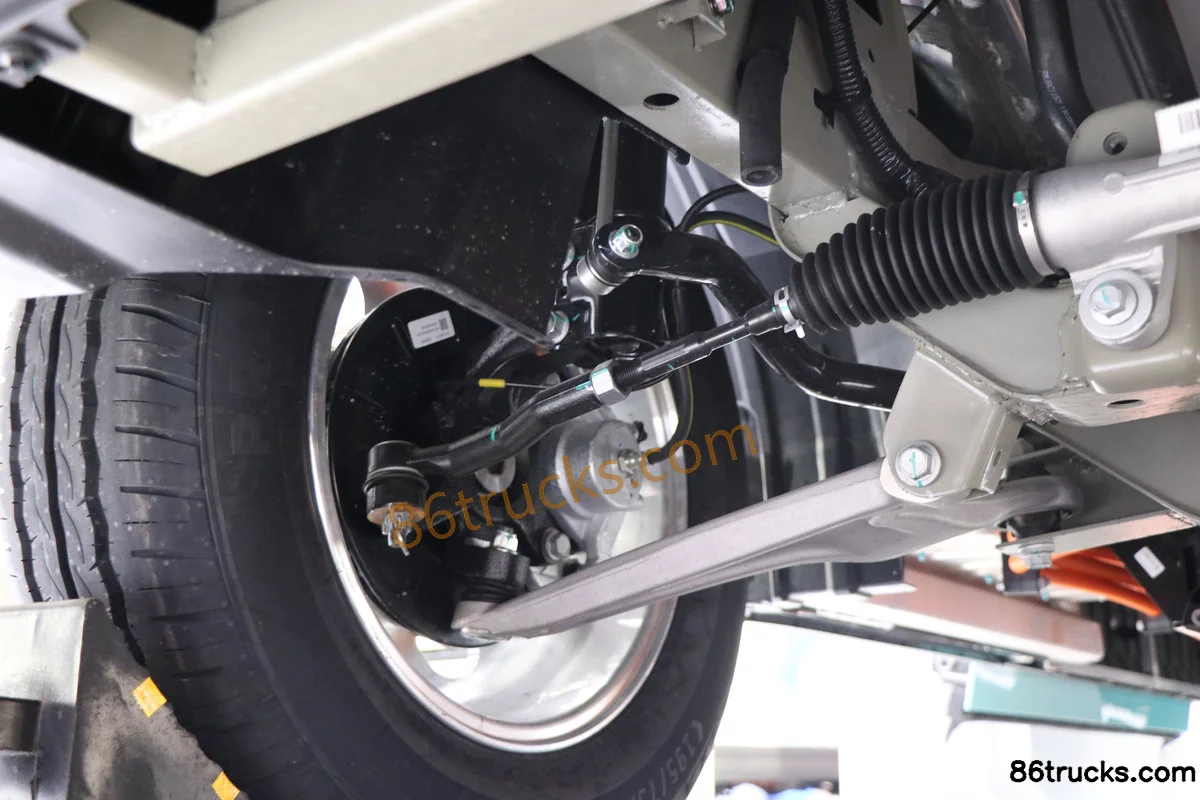

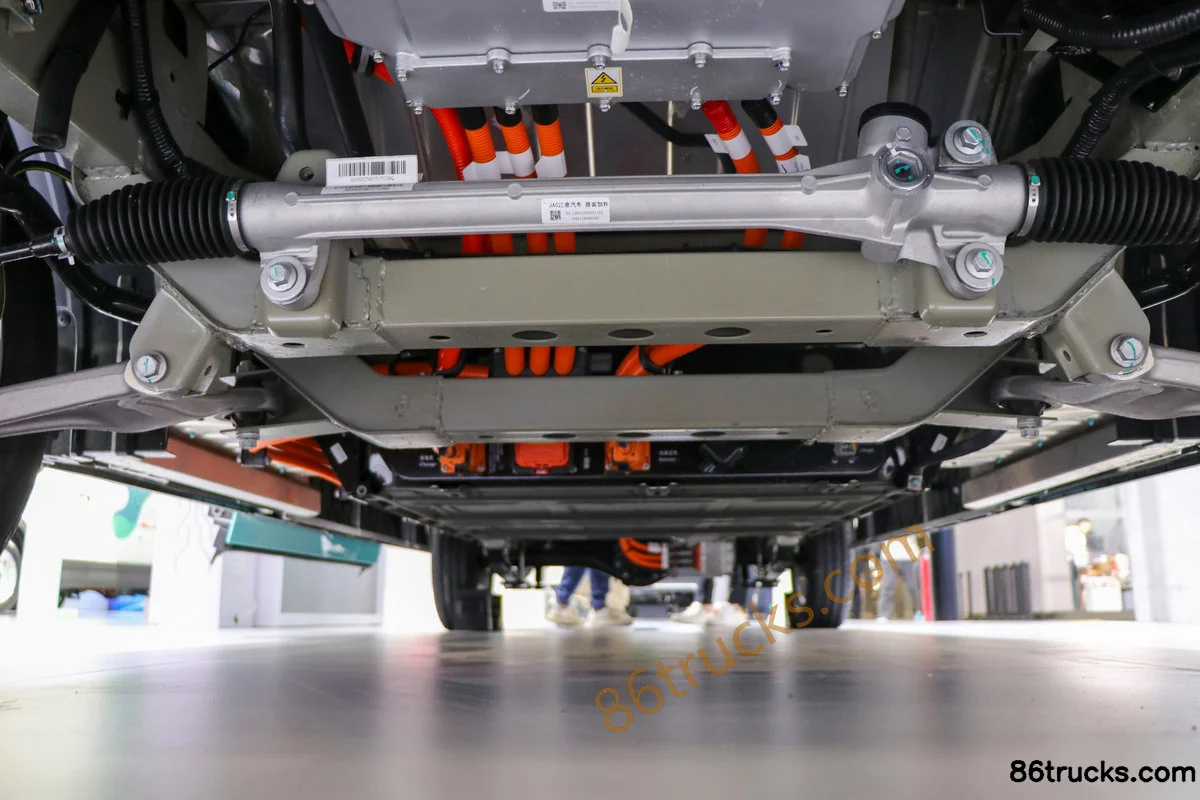

Chassis3

JAC Van Baolu V10 Ningde Explorer Edition 2 seats 5.78m electric van 53.58kWh Chassis (1) | 86Trucks JAC Van Baolu V10 Ningde Explorer Edition 2 seats 5.78m electric van 53.58kWh Chassis (2) | 86Trucks JAC Van Baolu V10 Ningde Explorer Edition 2 seats 5.78m electric van 53.58kWh Chassis (3) | 86Trucks

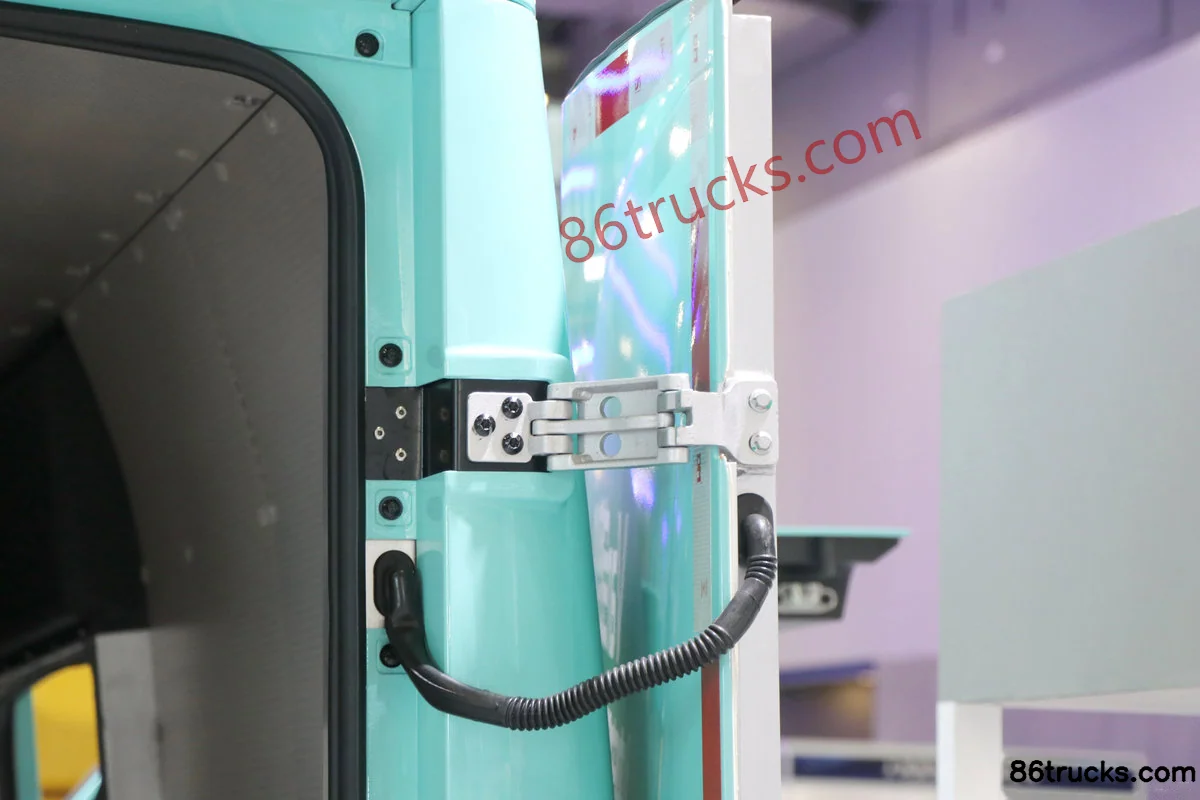

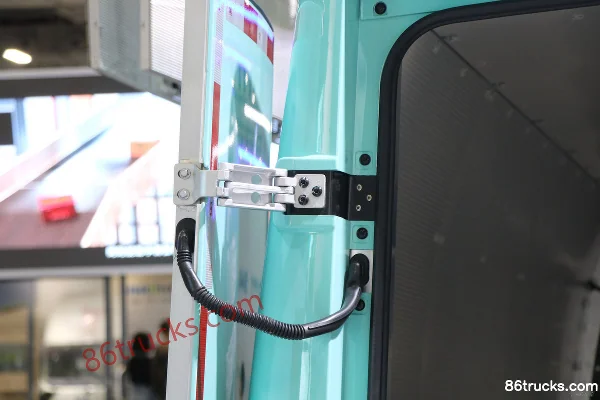

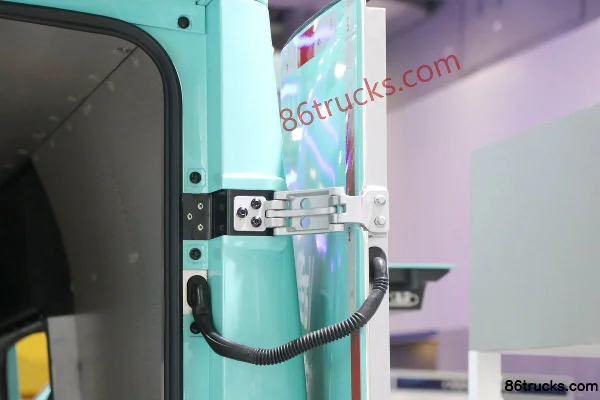

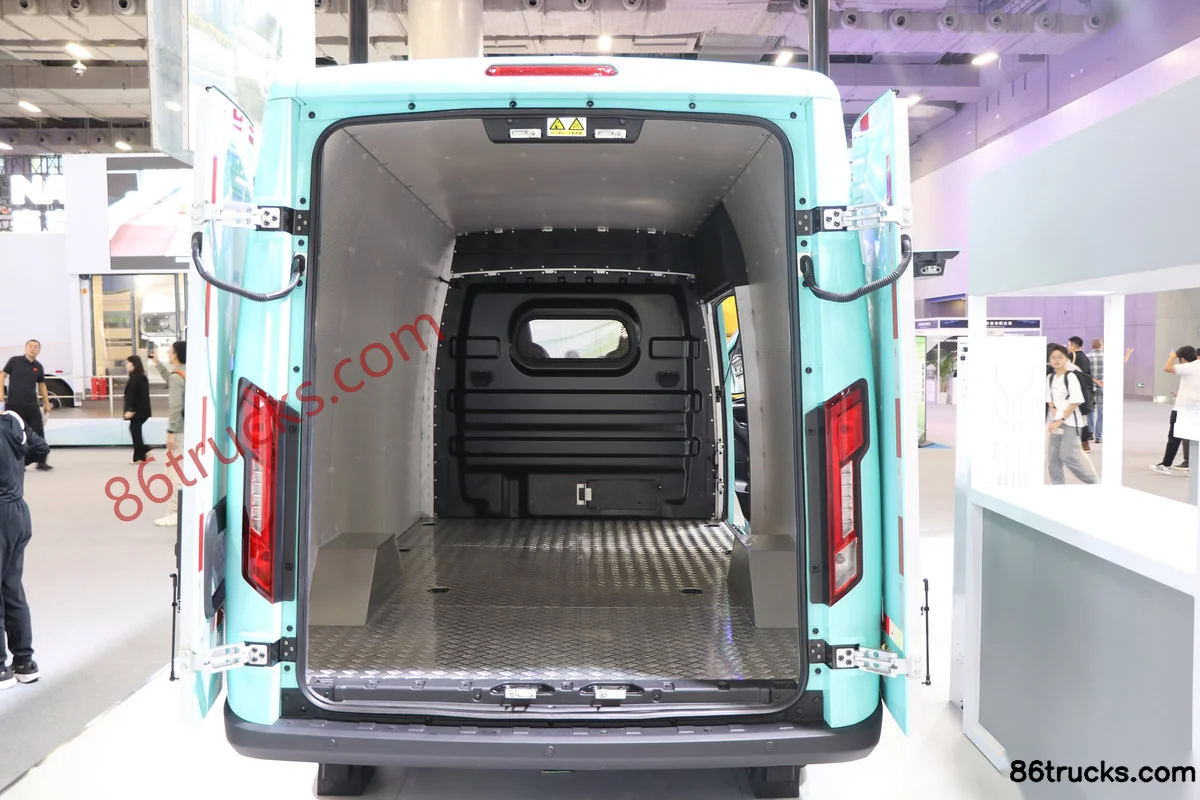

Cargo Box3

JAC Van Baolu V10 Ningde Explorer Edition 2 seats 5.78m electric van 53.58kWh Cargo Box (1) | 86Trucks JAC Van Baolu V10 Ningde Explorer Edition 2 seats 5.78m electric van 53.58kWh Cargo Box (2) | 86Trucks JAC Van Baolu V10 Ningde Explorer Edition 2 seats 5.78m electric van 53.58kWh Cargo Box (3) | 86Trucks

12 photos

FAQ

What is the export price of JAC Van Baolu V10 Ningde Explorer Edition 2 seats 5.78m electric van 53.58kWh, and what does it include?

JAC Van Baolu V10 Ningde Explorer Edition 2 seats 5.78m electric van 53.58kWh export reference is about From $27,750; MSRP is ¥19.98M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is JAC Van Baolu V10 Ningde Explorer Edition 2 seats 5.78m electric van 53.58kWh suited for?

JAC Van Baolu V10 Ningde Explorer Edition 2 seats 5.78m electric van 53.58kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does JAC Van Baolu V10 Ningde Explorer Edition 2 seats 5.78m electric van 53.58kWh differ from other variants in the same series?

JAC Van Baolu V10 Ningde Explorer Edition 2 seats 5.78m electric van 53.58kWh belongs to JAC Van Baolu (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Van Baolu V10 Ningde Explorer Edition 2 seats 5.78m electric van 53.58kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Van Baolu V10 Ningde Explorer Edition 2 seats 5.78m electric van 53.58kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
