JAC Gallop A5W Heavy Truck 350 hp 8X4(12 wheels) 9.5m Flatbed Cargo Truck (Ratio: 3.417)

Export reference
From $44,889
MSRP ¥32.32M CNY
Horsepower: 350
Emission: China V
Fuel: Diesel
Engine: WeichaiWP10
Transmission: Fast Gear
Curb Weight:: 12ton
seating capacity: 3Personnel
Rated payload: 18.805ton
Drive 8X4 (12 wheels)
Cargo box type: stake body

Overview

The JAC Gallop A5W Heavy Truck 350 hp 8X4(12 wheels) 9.5m Flatbed Cargo Truck (Ratio: 3.417) is a Heavy-duty cargo trucks featuring 9.5m cargo length, stake body cargo body, 3Personnel volume and 18.805t payload. Its segment focus covers Construction material transport, agricultural byproduct transport and energy minerals, matching those duty cycles. On the powertrain side, it comes with a WeichaiWP10 engine, 350 hp, 8X4 (12 wheels) drive and China V emissions.

China V 350 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC1311P1K2H45S3V
Type: Cargo Trucks
Drive type: 8X4
Wheelbase: 1900+4500+1350mm
Box length class: 9.5m
engine: WeichaiWP10.350E53
transmission: Fast Gear12JSD160
Rear Axle Ratio: 3.417
Cab length: 12m
Cab width: 2.5m
Cab height: 3.33m
Front track width: 2040/2040mm
rear track: 1840/1840mm
Curb Weight: 12ton
Rated payload: 18.805ton
GVWR: 31ton
Max. speed: 95km/h
Origin: Hefei, Anhui
tonnage class: Heavy-duty cargo trucks
Approach angle: 17°
departure angle: 11°
market segment: Construction material transport, agricultural byproduct transport, energy minerals
Front/rear suspension: 1.495/2.755m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10.350E53
Engine info: WeichaiWP10
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 9.726L
Emission standard: China V
Max output power: 257kW
Max hp: 350Horsepower
Max torque: 1600N·m
Max torque speed: 1200-1600rpm
Rated speed: 1900rpm
Engine Type: Electronic high-pressure common rail + SCR
Transmission Parameters
Transmission Model: Fast Gear12JSD160
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: stake body
Cargo box length: 9.5m
Cargo box width: 2.4m
Cargo box height: 0.8m
*Cargo box interior width: 2.4000000953674
Cab parameters
Cab: A5W High Roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 600L
Chassis Specs
Front axle description: 5T
Front axle allowable load: 6500/6500kg
Frame Dimensions: 302×80×8mm
rear axle description: 459
rear axle allowable load: 18000 (twin axle)kg
Axle ratio: 3.417
Leaf spring count: 3/3/12,9/9/12,3/3/4
Tire

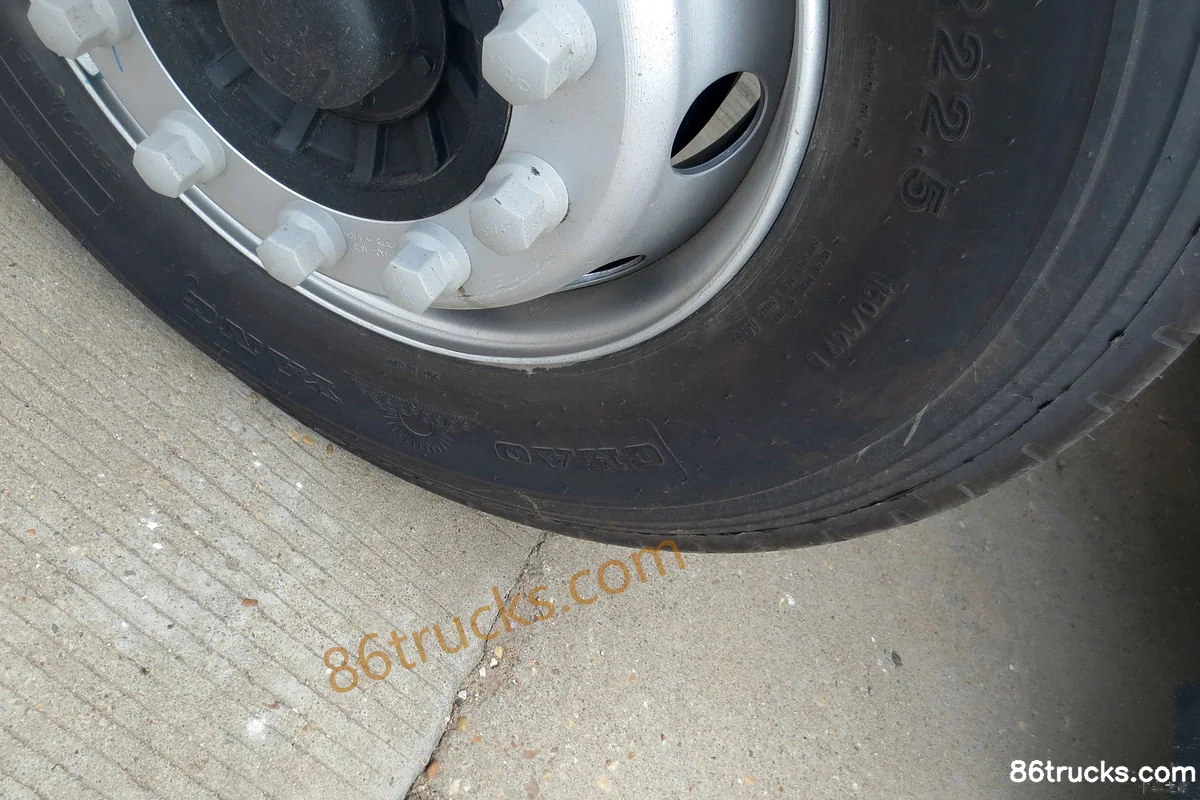

Tire Size: 11.00R20 16PR
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Electronic Central Lock:
Multimedia features
GPS/Beidou driving recorder:

Photos

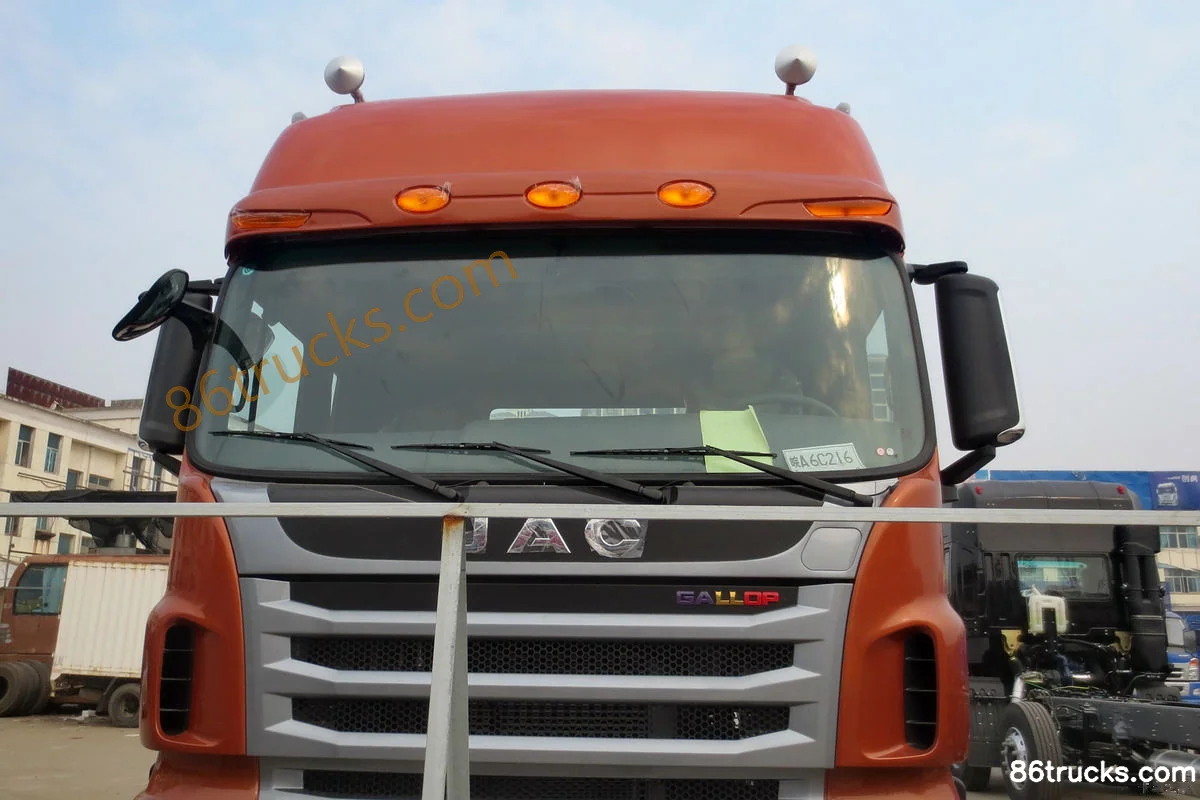

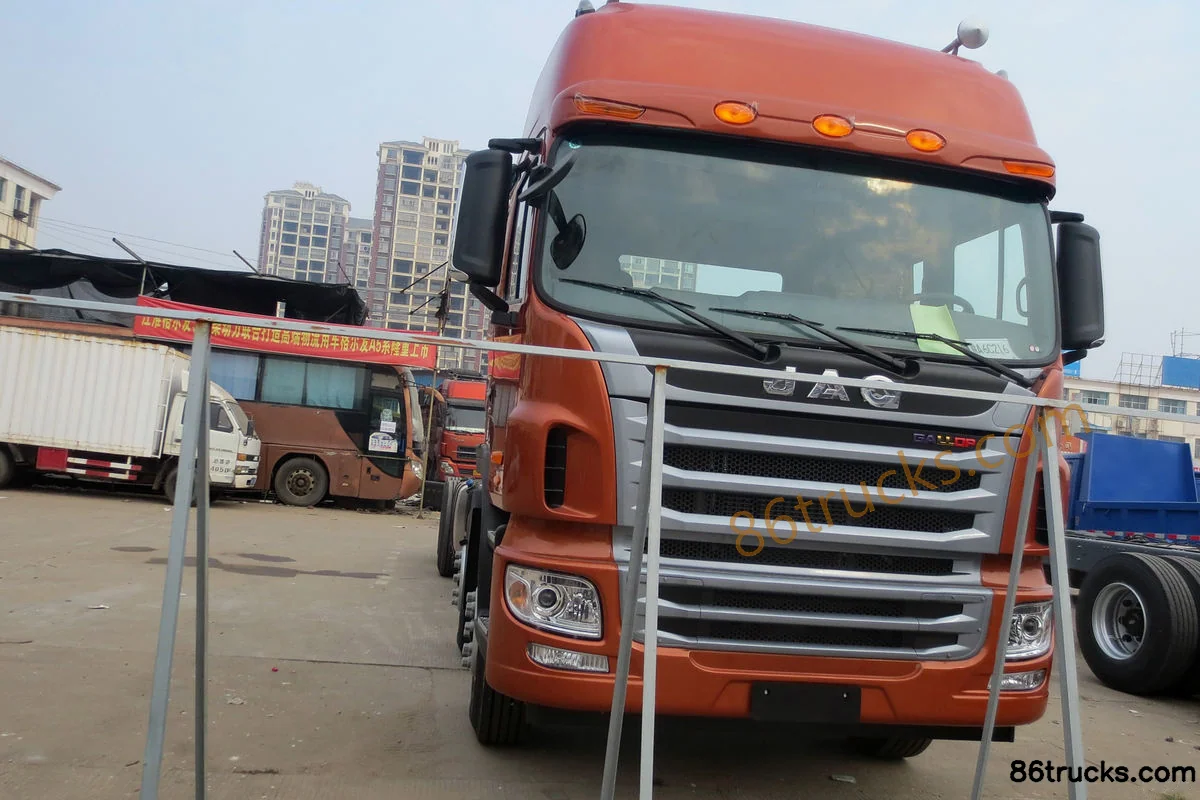

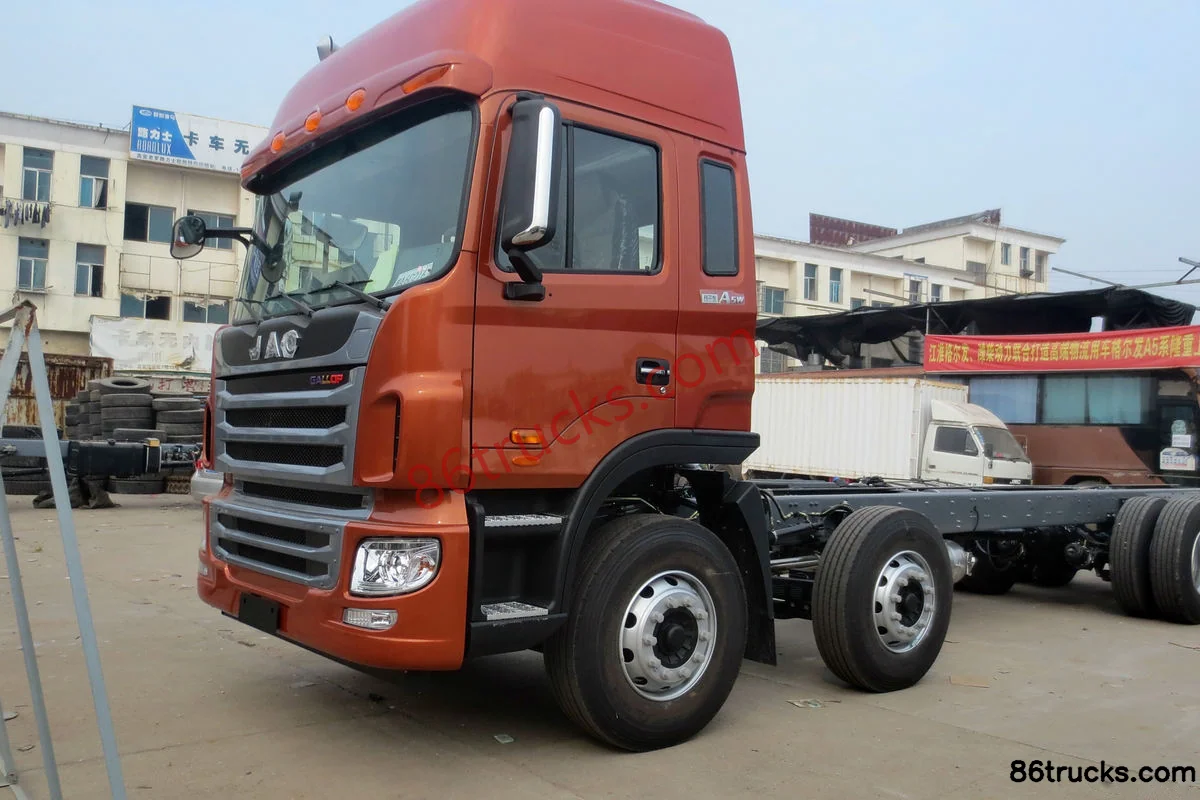

Exterior3

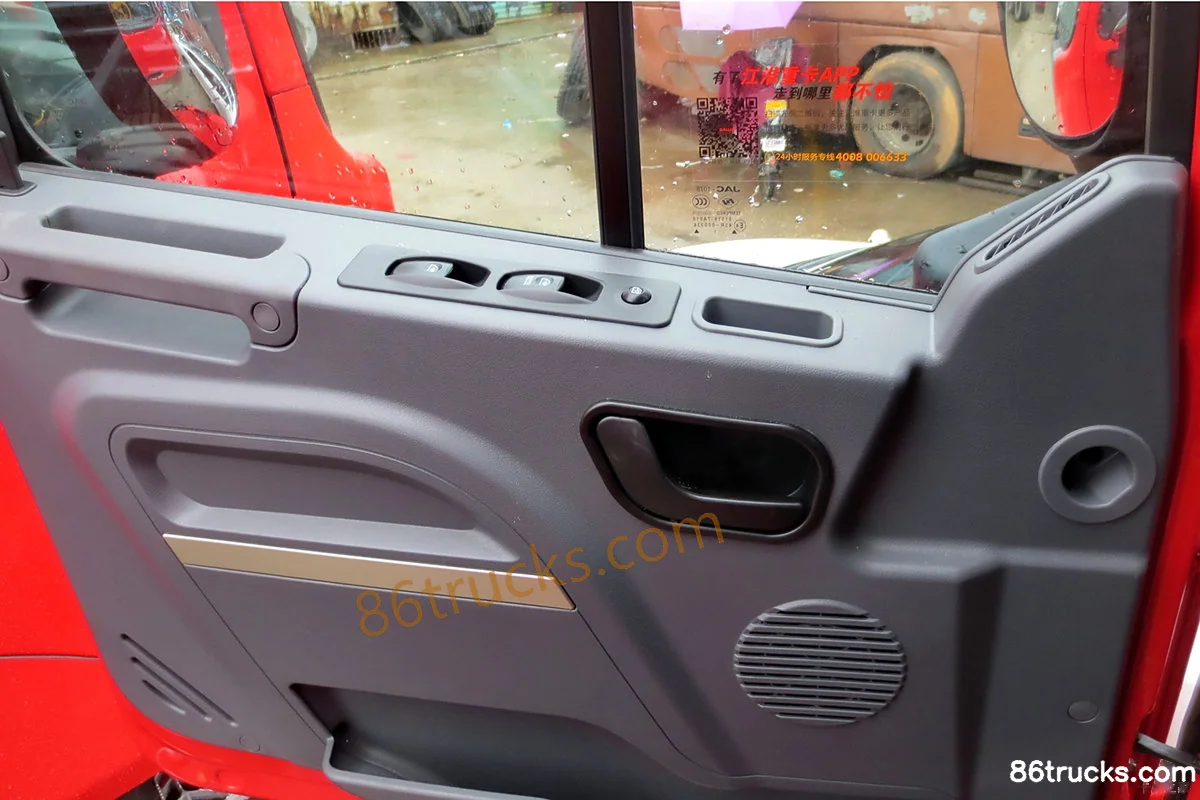

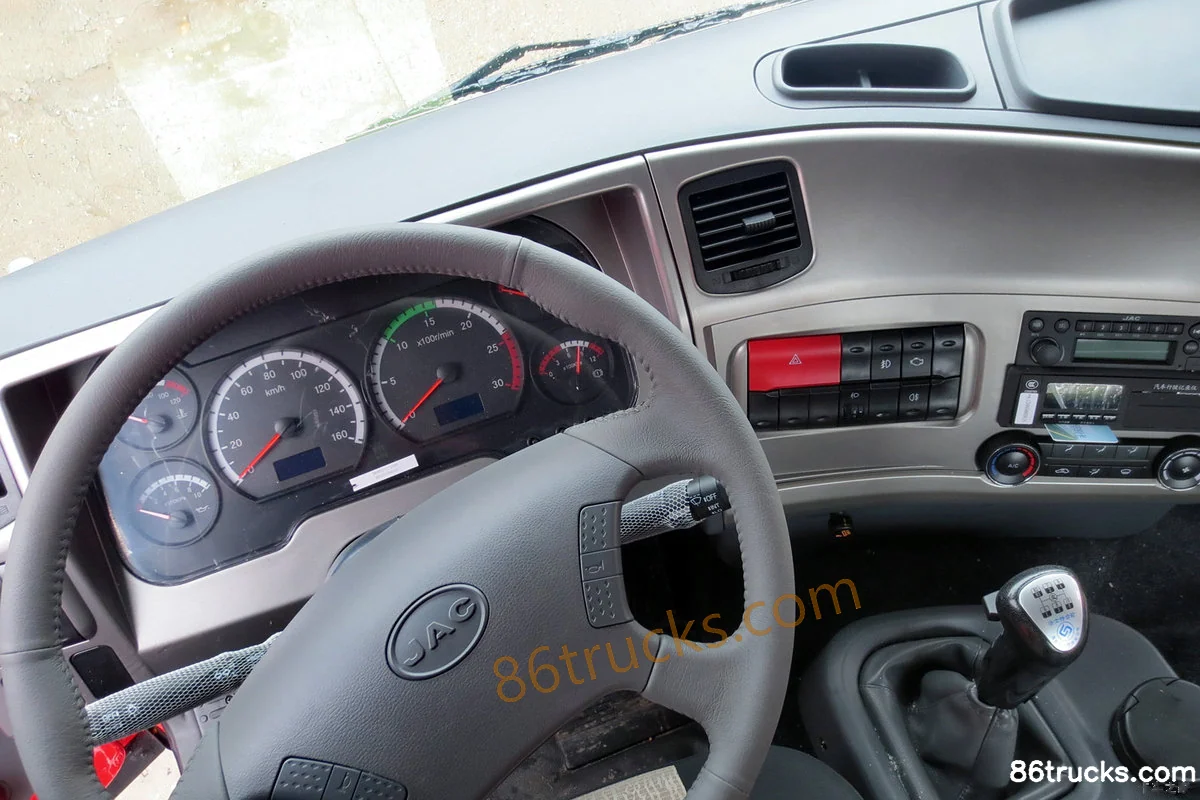

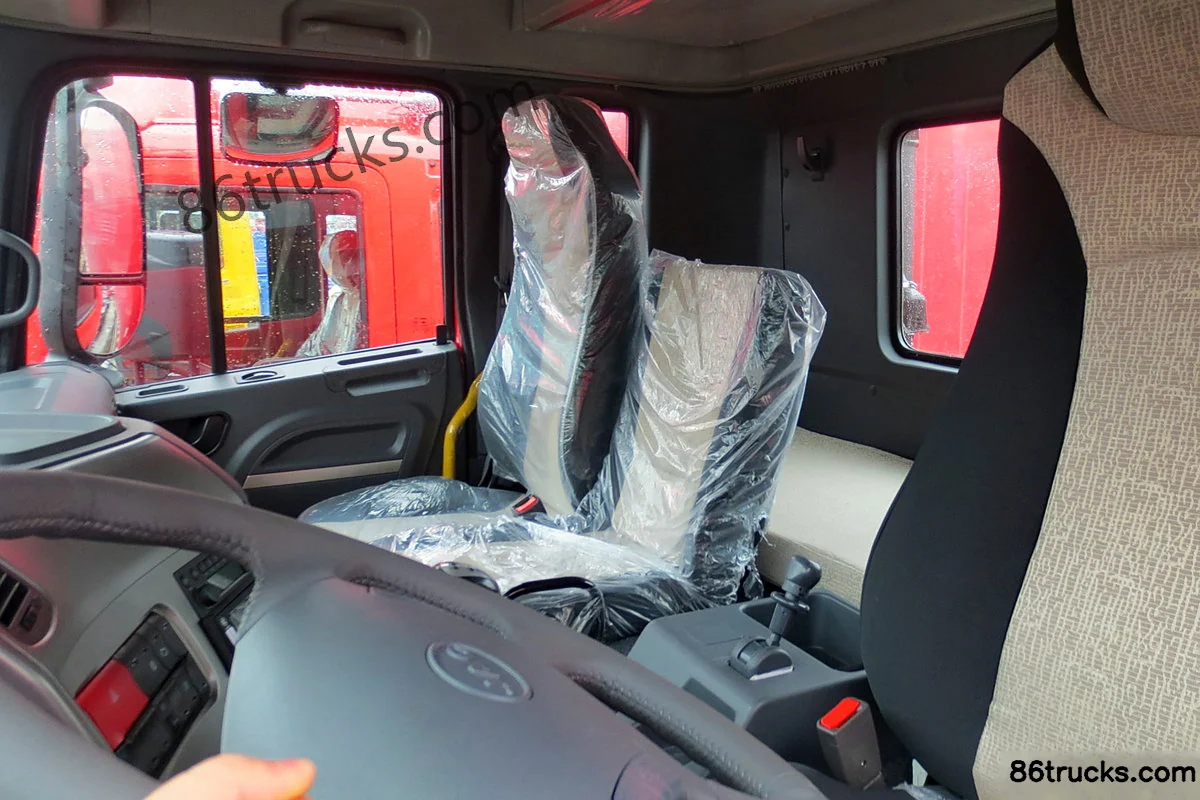

Cab3

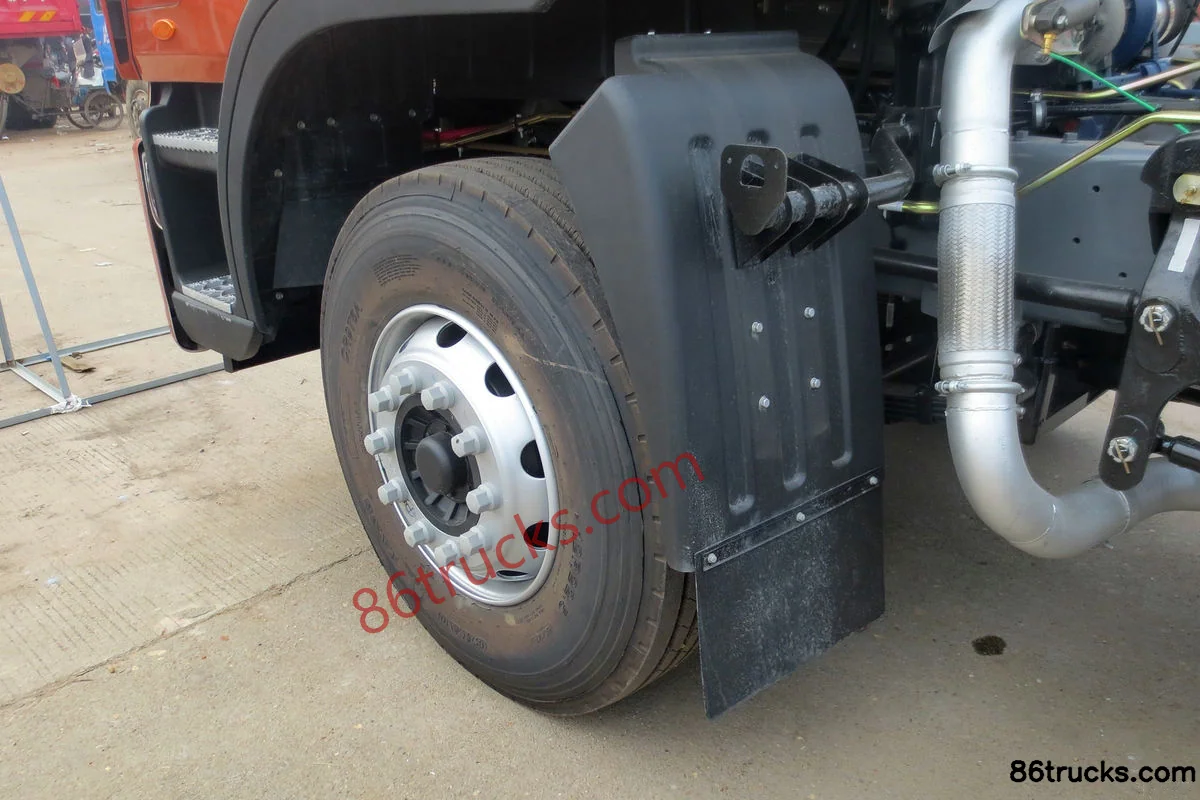

Chassis3

9 photos

FAQ

What is the export price of JAC Gallop A5W Heavy Truck 350 hp 8X4(12 wheels) 9.5m Flatbed Cargo Truck (Ratio: 3.417), and what does it include?

JAC Gallop A5W Heavy Truck 350 hp 8X4(12 wheels) 9.5m Flatbed Cargo Truck (Ratio: 3.417) export reference is about From $44,889; MSRP is ¥32.32M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Gallop A5W Heavy Truck 350 hp 8X4(12 wheels) 9.5m Flatbed Cargo Truck (Ratio: 3.417) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop A5W Heavy Truck 350 hp 8X4(12 wheels) 9.5m Flatbed Cargo Truck (Ratio: 3.417)?

Key specs of JAC Gallop A5W Heavy Truck 350 hp 8X4(12 wheels) 9.5m Flatbed Cargo Truck (Ratio: 3.417): Drive: 8x4; Horsepower: 350 hp; Emission: China V; Fuel: Diesel; Engine: WeichaiWP10; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop A5W Heavy Truck 350 hp 8X4(12 wheels) 9.5m Flatbed Cargo Truck (Ratio: 3.417) suited for?

JAC Gallop A5W Heavy Truck 350 hp 8X4(12 wheels) 9.5m Flatbed Cargo Truck (Ratio: 3.417) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Gallop A5W Heavy Truck 350 hp 8X4(12 wheels) 9.5m Flatbed Cargo Truck (Ratio: 3.417) differ from other variants in the same series?

JAC Gallop A5W Heavy Truck 350 hp 8X4(12 wheels) 9.5m Flatbed Cargo Truck (Ratio: 3.417) belongs to JAC Gallop A5 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop A5W Heavy Truck 350 hp 8X4(12 wheels) 9.5m Flatbed Cargo Truck (Ratio: 3.417)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop A5W Heavy Truck 350 hp 8X4(12 wheels) 9.5m Flatbed Cargo Truck (Ratio: 3.417)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
