Sinotruk HOWO T5G heavy truck 310 hp 8X4(12 wheels) 9.52 meters cage-type cargo truck

Export reference
From $45,833
MSRP ¥33M CNY
Horsepower: 310
Emission: China V
Fuel: Diesel
Engine: SinotrukMAN7L
Transmission: Sinotruk
Curb Weight:: 12.7ton
seating capacity: 3Personnel
Rated payload: 19.255ton
Drive 8X4 (12 wheels)
Cargo box type: Stake type

Overview

The Sinotruk HOWO T5G heavy truck 310 hp 8X4(12 wheels) 9.52 meters cage-type cargo truck is a Heavy-duty cargo trucks featuring 9.52m cargo length, Stake type cargo body, 3Personnel volume and 19.255t payload. Its segment focus covers Logistics Freight, matching those duty cycles. On the powertrain side, it comes with a SinotrukMAN7L engine, 310 hp, 8X4 (12 wheels) drive and China V emissions.

China V 310 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ5317CCYN466GE1
Type: stake truck
Drive type: 8X4
Wheelbase: 1800+4600+1350mm
Box length class: 9.5m
engine: SinotrukMC07.31-50
transmission: SinotrukHW13710C
Rear Axle Ratio: 4.444
Cab length: 12m
Cab width: 2.55m
Cab height: 3.98m
Front track width: 2035/2035mm
rear track: 1850/1850mm
Curb Weight: 12.7ton
Rated payload: 19.255ton
GVWR: 31ton
Max. speed: 110km/h
Origin: Jinan, Shandong
tonnage class: Heavy-duty cargo trucks
Approach angle: 19°
departure angle: 10°
market segment: Logistics Freight
Front/rear suspension: 1.43/2.82m
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC07.31-50
Engine info: SinotrukMAN7L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.87L
Emission standard: China V
Max output power: 228kW
Max hp: 310Horsepower
Max torque: 1230N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Transmission Parameters
Transmission Model: SinotrukHW13710C
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 9.52m
Cargo box width: 2.45m
*Cargo box interior width: 2.4500000476837
Cab parameters
Cab: High-roof double bunk
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 400L
Chassis Specs
Front axle description: H153
Front axle allowable load: 6500/7000kg
rear axle description: H457
rear axle allowable load: 17500 (tandem axle)kg
Axle ratio: 4.444
Leaf spring count: 11/11/10
Suspension (front/rear): Multi-leaf spring
Tire
Tire Size: 11.00R20
Number of tires: 12pcs
Control configuration
ABS:

Photos

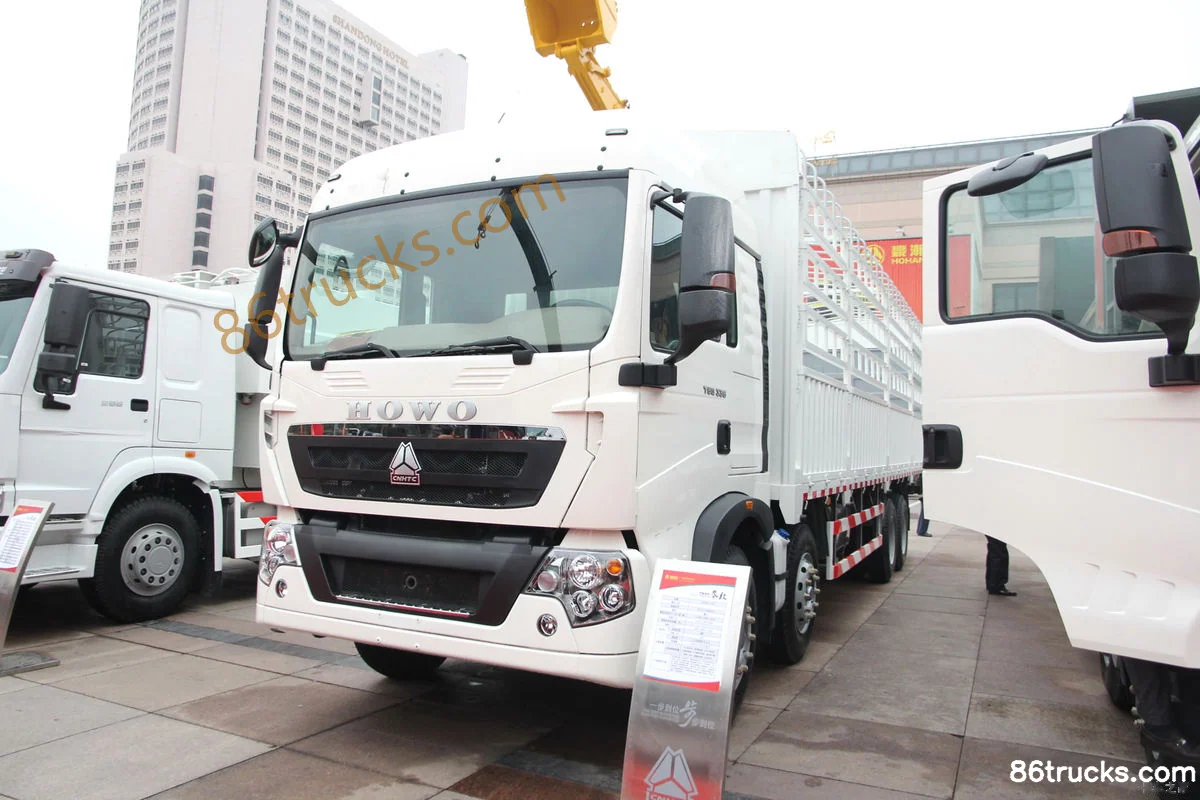

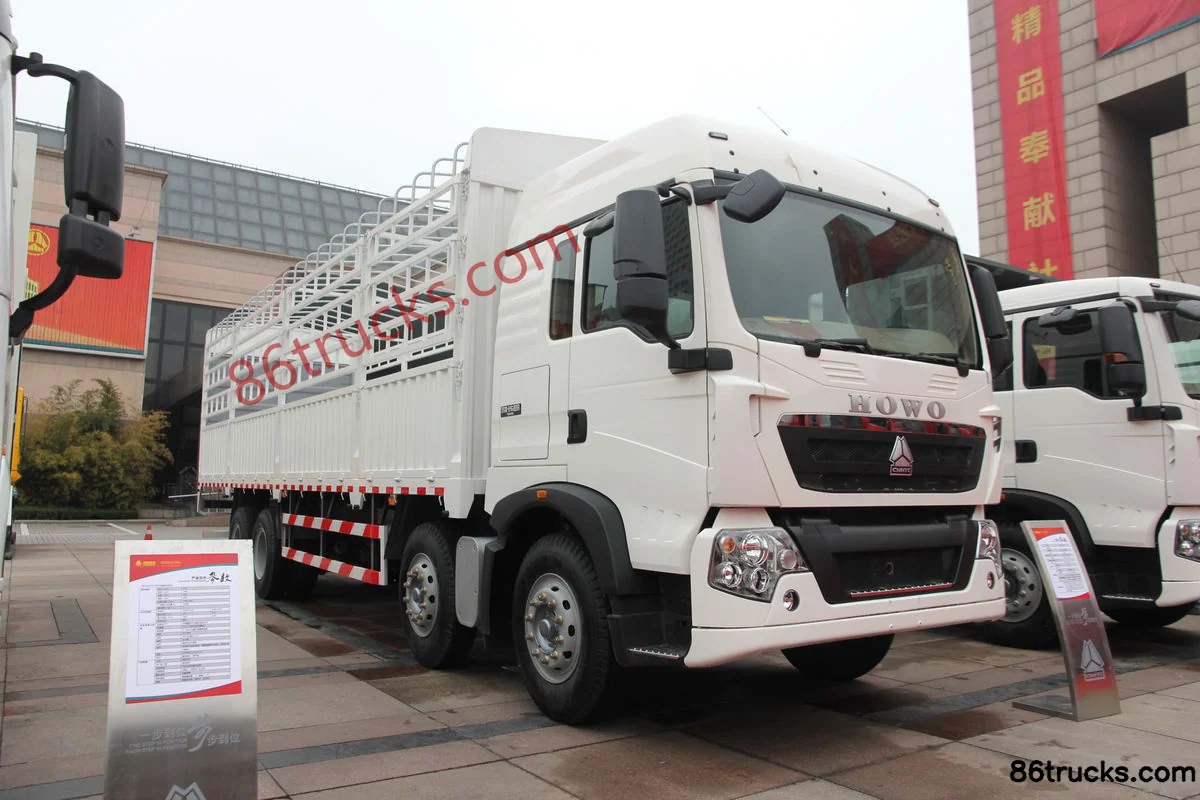

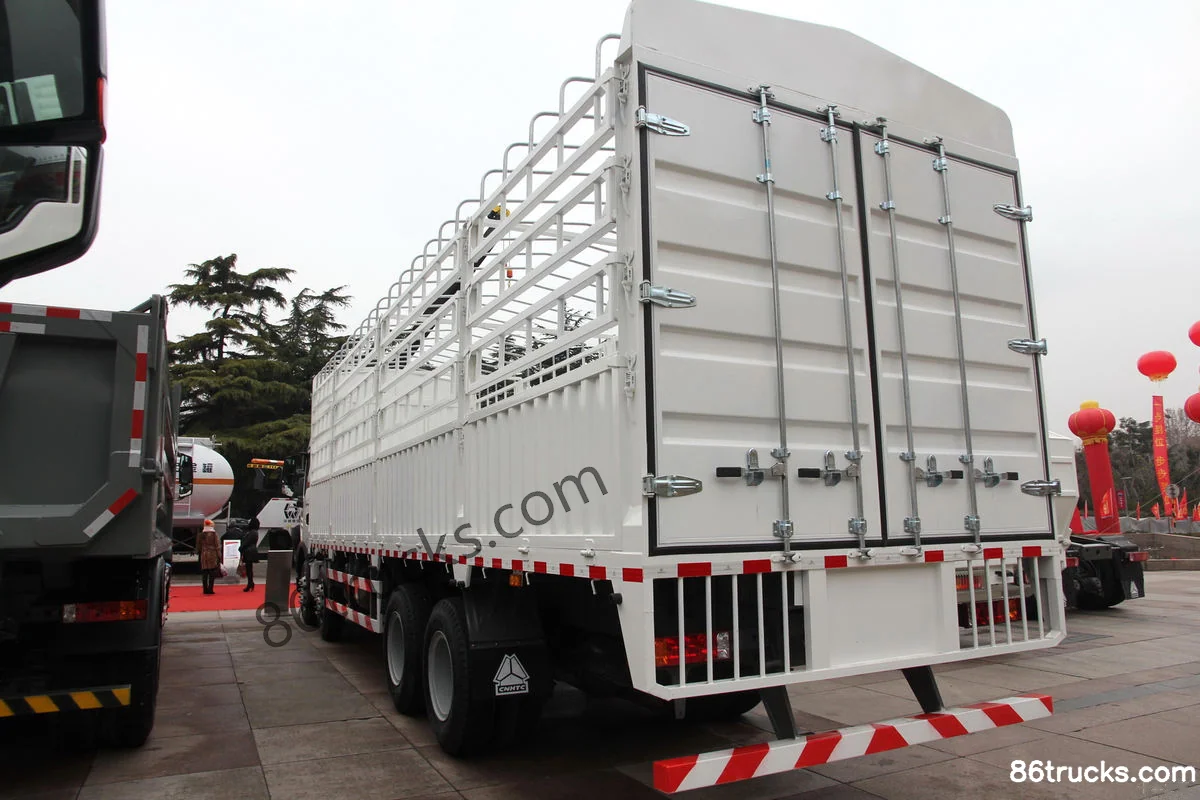

Exterior3

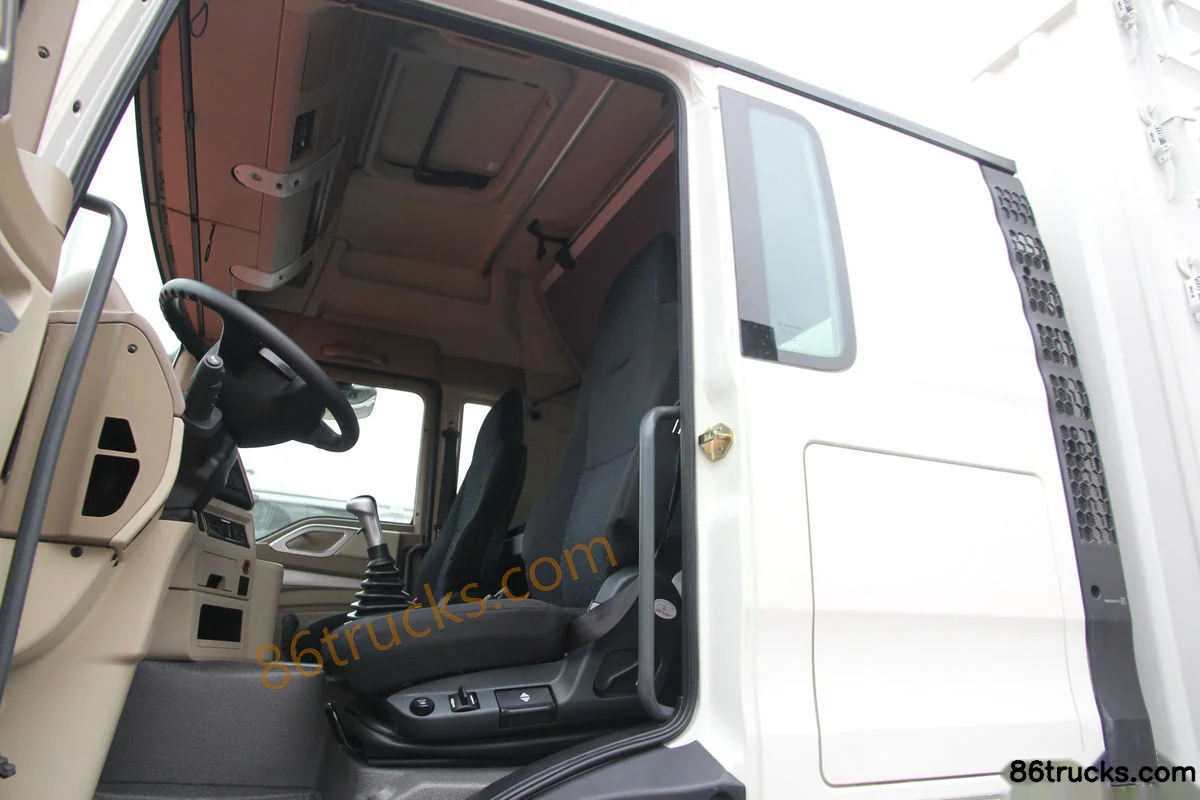

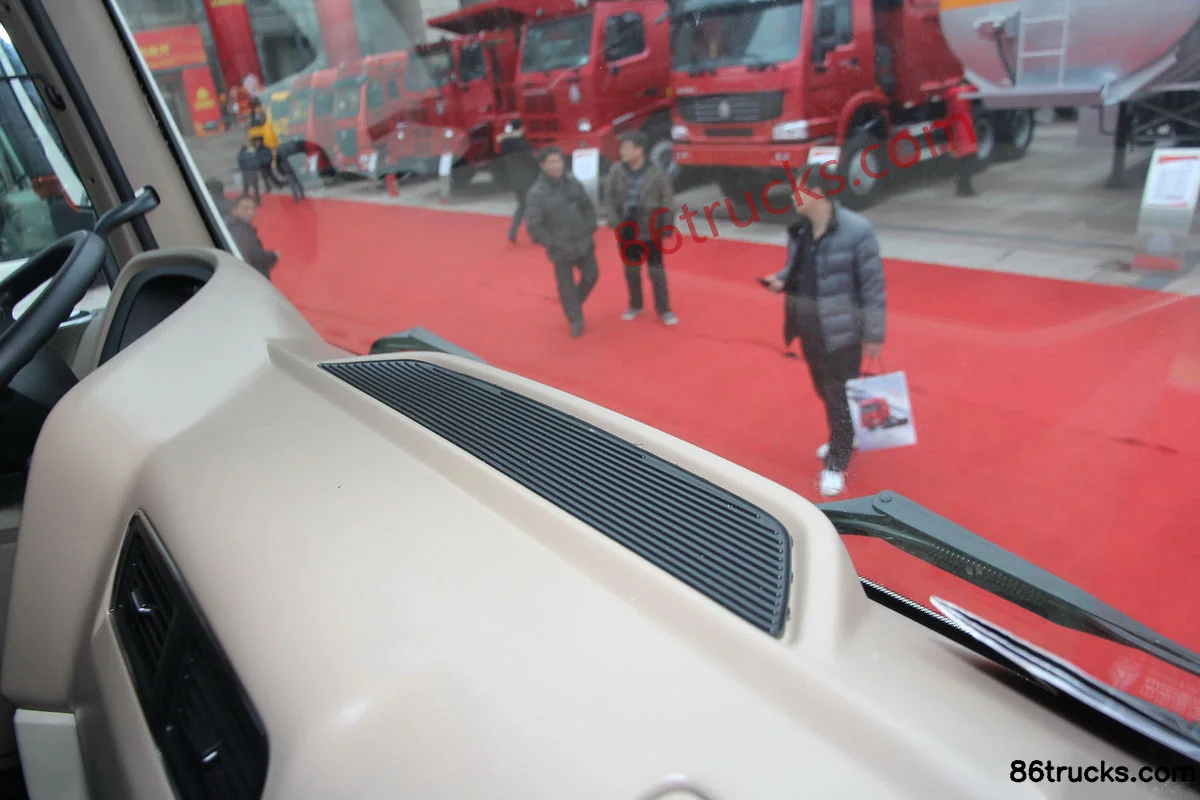

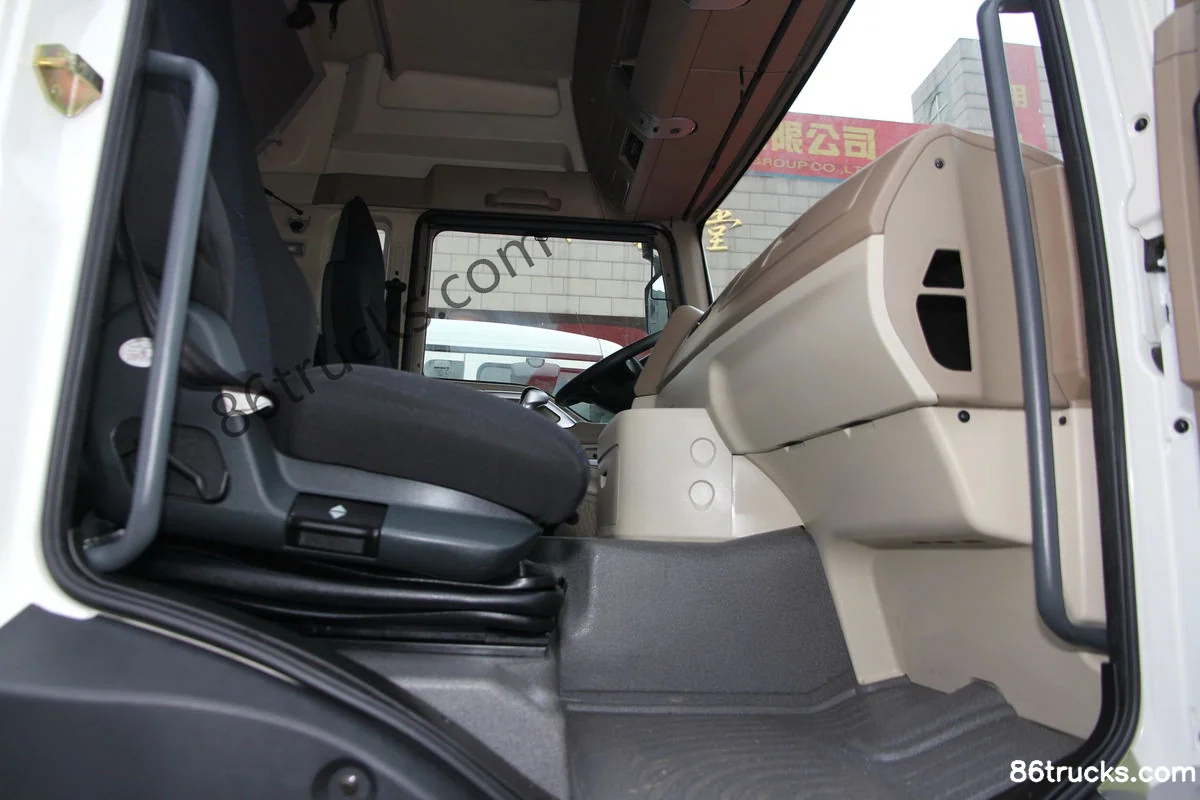

Cab3

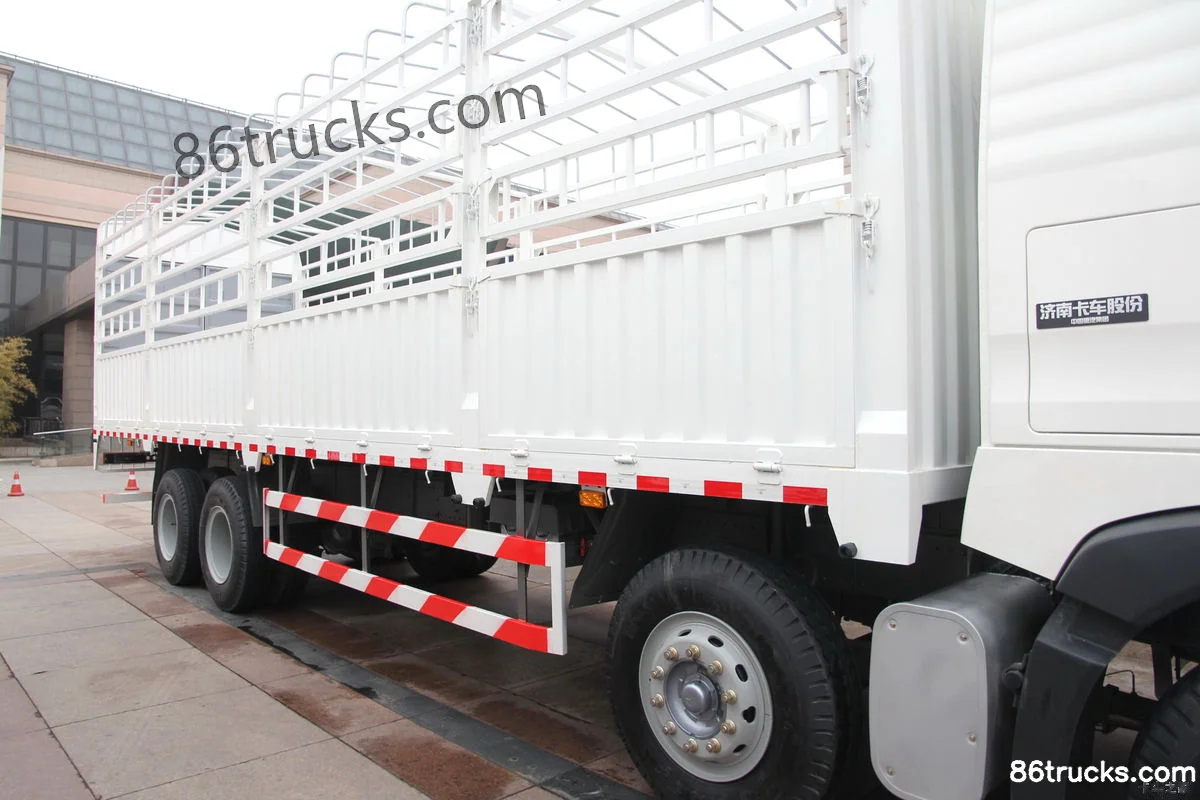

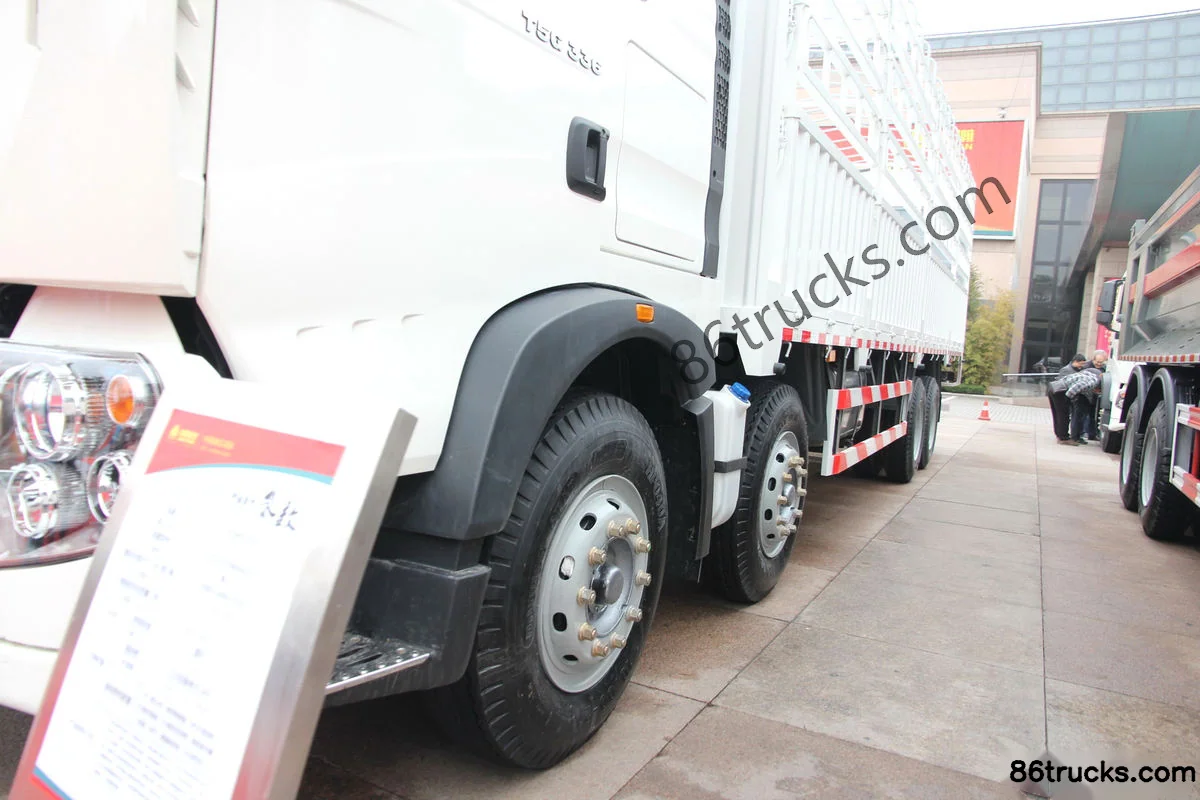

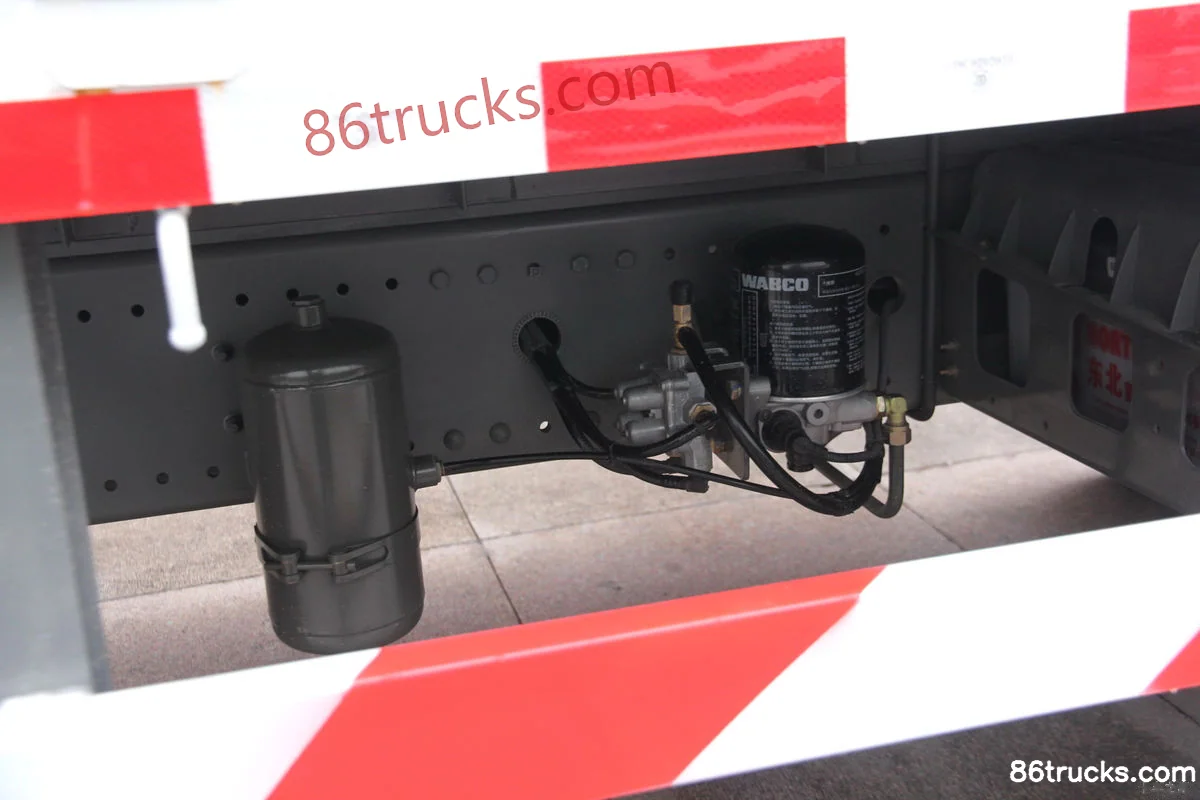

Chassis3

9 photos

FAQ

What is the export price of Sinotruk HOWO T5G heavy truck 310 hp 8X4(12 wheels) 9.52 meters cage-type cargo truck, and what does it include?

Sinotruk HOWO T5G heavy truck 310 hp 8X4(12 wheels) 9.52 meters cage-type cargo truck export reference is about From $45,833; MSRP is ¥33M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk HOWO T5G heavy truck 310 hp 8X4(12 wheels) 9.52 meters cage-type cargo truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO T5G heavy truck 310 hp 8X4(12 wheels) 9.52 meters cage-type cargo truck?

Key specs of Sinotruk HOWO T5G heavy truck 310 hp 8X4(12 wheels) 9.52 meters cage-type cargo truck: Drive: 8x4; Horsepower: 310 hp; Emission: China V; Fuel: Diesel; Engine: SinotrukMAN7L; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO T5G heavy truck 310 hp 8X4(12 wheels) 9.52 meters cage-type cargo truck suited for?

Sinotruk HOWO T5G heavy truck 310 hp 8X4(12 wheels) 9.52 meters cage-type cargo truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk HOWO T5G heavy truck 310 hp 8X4(12 wheels) 9.52 meters cage-type cargo truck differ from other variants in the same series?

Sinotruk HOWO T5G heavy truck 310 hp 8X4(12 wheels) 9.52 meters cage-type cargo truck belongs to Sinotruk HOWO T5G medium-duty truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO T5G heavy truck 310 hp 8X4(12 wheels) 9.52 meters cage-type cargo truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO T5G heavy truck 310 hp 8X4(12 wheels) 9.52 meters cage-type cargo truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
