Dongfeng F6 3L Diesel 170hp 4X2(6 wheels) 8-Speed 4.1m Single Row Dump Truck

Export reference
From $22,222
MSRP ¥16M CNY
Emission: China VI
Fuel: Diesel
Curb Weight:: 5.2ton
Wheelbase:: 3308mm
Tire Size:: 8.25R16
Model code (announced):: EQ3112S8EDF
Rated payload: 5.805ton
Drive 4X2 (6 wheels)
Horsepower 170
Cargo box type: Rear dump

Overview

The Dongfeng F6 3L Diesel 170hp 4X2(6 wheels) 8-Speed 4.1m Single Row Dump Truck is a Light Truck featuring 5.805t payload, 11.2t GVW, Rear dump cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerD30TCIF1 engine, 170 hp, China VI emissions and 8-speed gearbox transmission.

China VI 170 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): EQ3112S8EDF
Drive type: 4X2
Wheelbase: 3308mm
engine: Yunnei PowerD30TCIF1
transmission: 8-speed gearbox
Rear Axle Ratio: 5.286
Cab length: 5.998m
Cab width: 2.48m
Cab height: 2.75m
Front track width: 1769mm
rear track: 1654mm
Curb Weight: 5.2ton
Rated payload: 5.805ton
GVWR: 11.2ton
Origin: Xiangyang, Hubei
tonnage class: Light Truck
Approach angle: 20°
departure angle: 15°
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: D30TCIF1
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.977L
Emission standard: China VI
Max output power: 125kW
Max hp: 170Horsepower
Max torque: 500N·m
Max torque speed: 1200-2200rpm
Rated speed: 2800rpm
Engine Type: Electronic control common rail system HEGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: 8-speed gearbox
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear dump
Cargo box type: Rear dump
Cargo box length: 4.1m
Cargo box width: 2.3m
Cargo box height: 0.55m
Cab parameters
Cab width: 2030mm
seating capacity: 3Personnel
Chassis Specs
Front axle allowable load: 4000kg
rear axle allowable load: 7200kg
Axle ratio: 5.286
Leaf spring count: 8/10+7
Tire
Tire Size: 8.25R16
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Electronic Central Lock:
Multimedia features
GPS/Beidou driving recorder:
Bluetooth / hands-free calling:
Service brake
Parking brake: Spring brake
smart configuration
Cruise control (CCS):

Photos

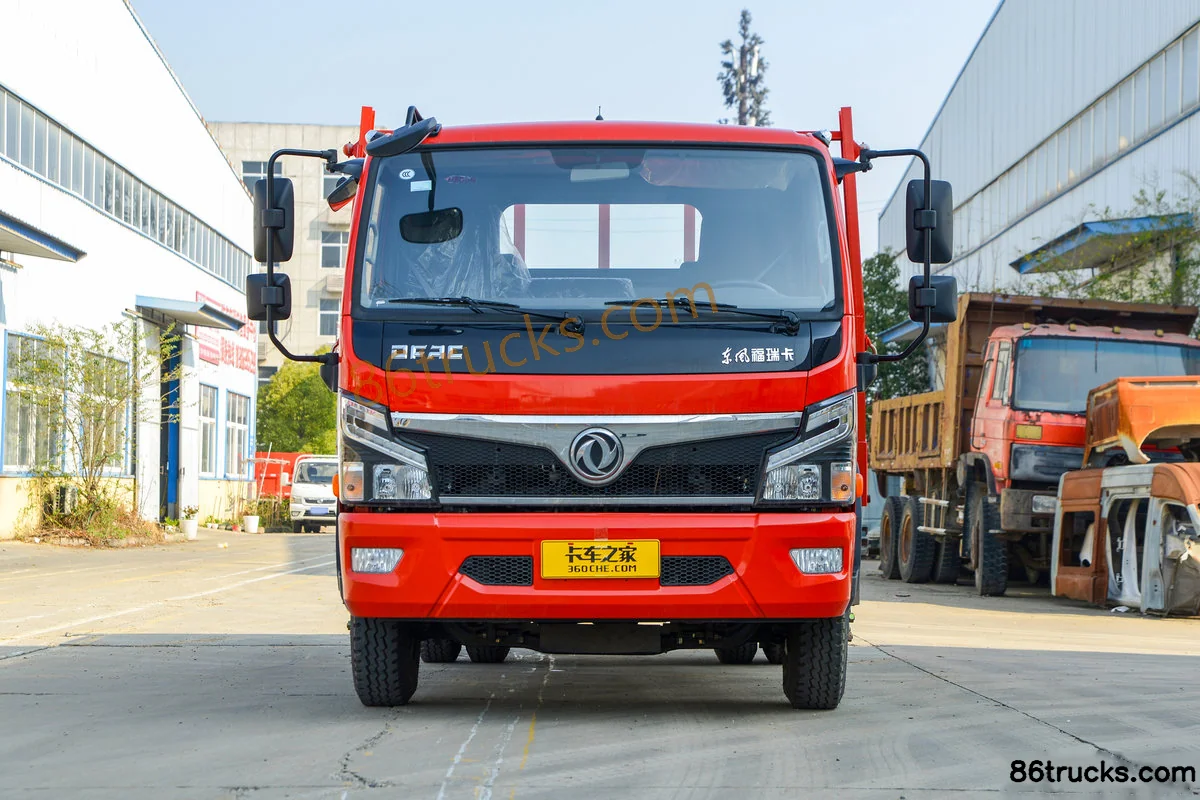

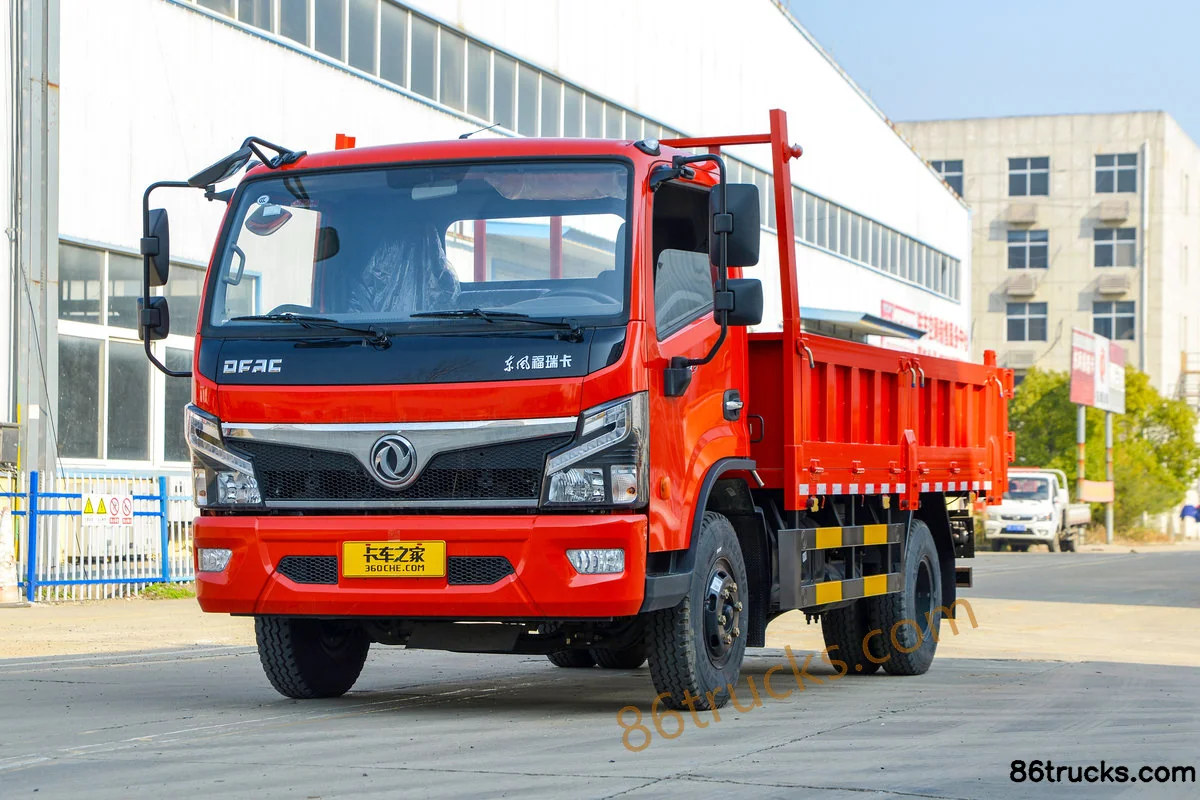

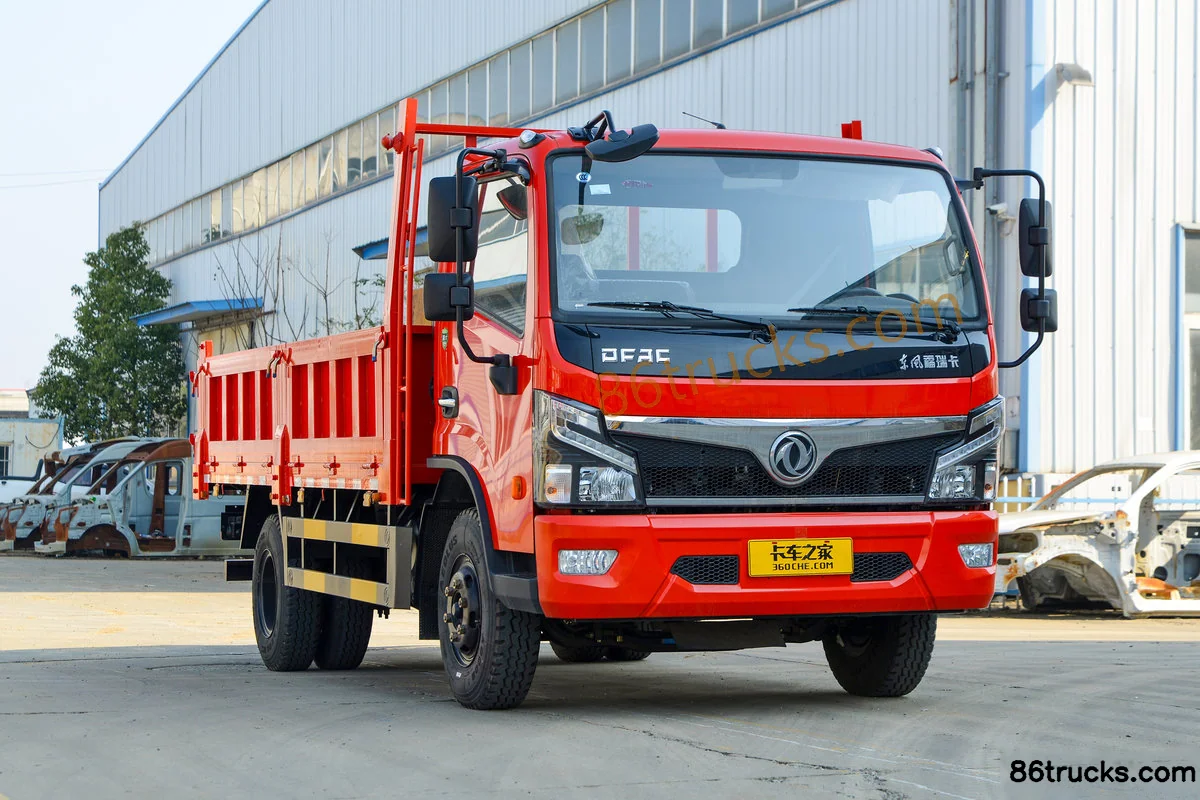

Exterior3

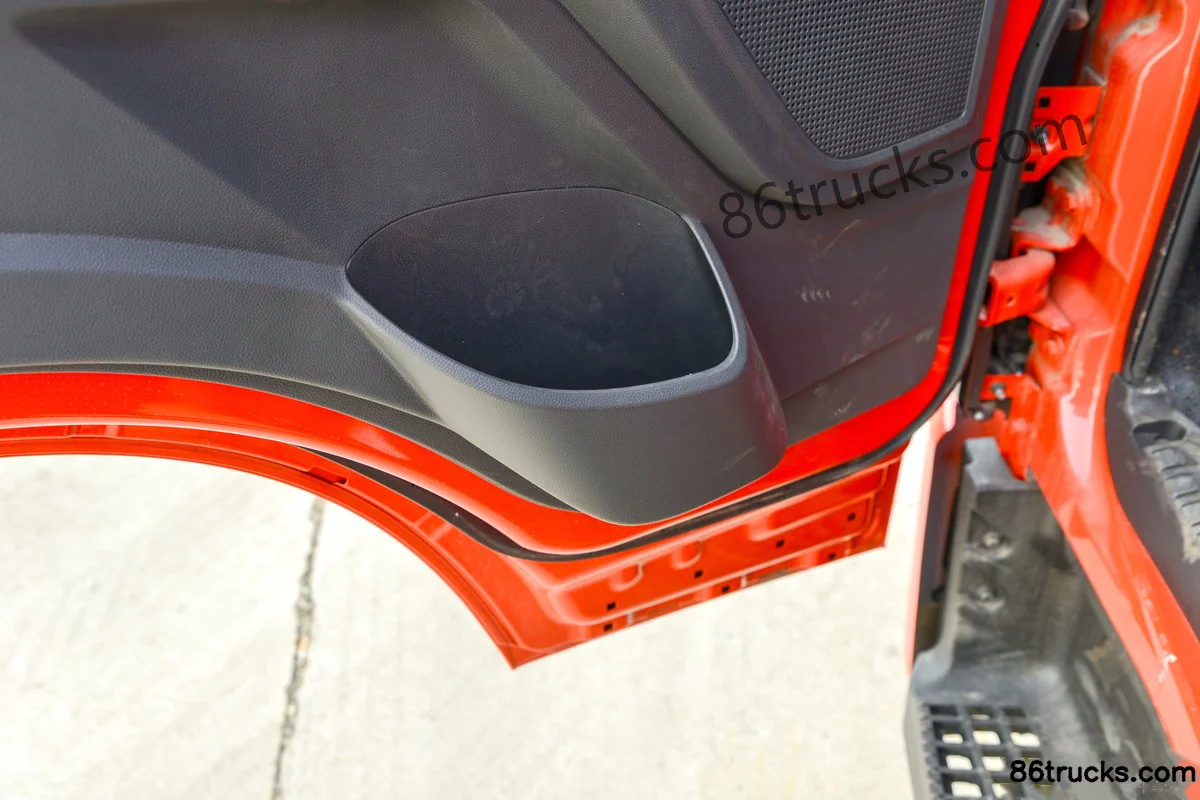

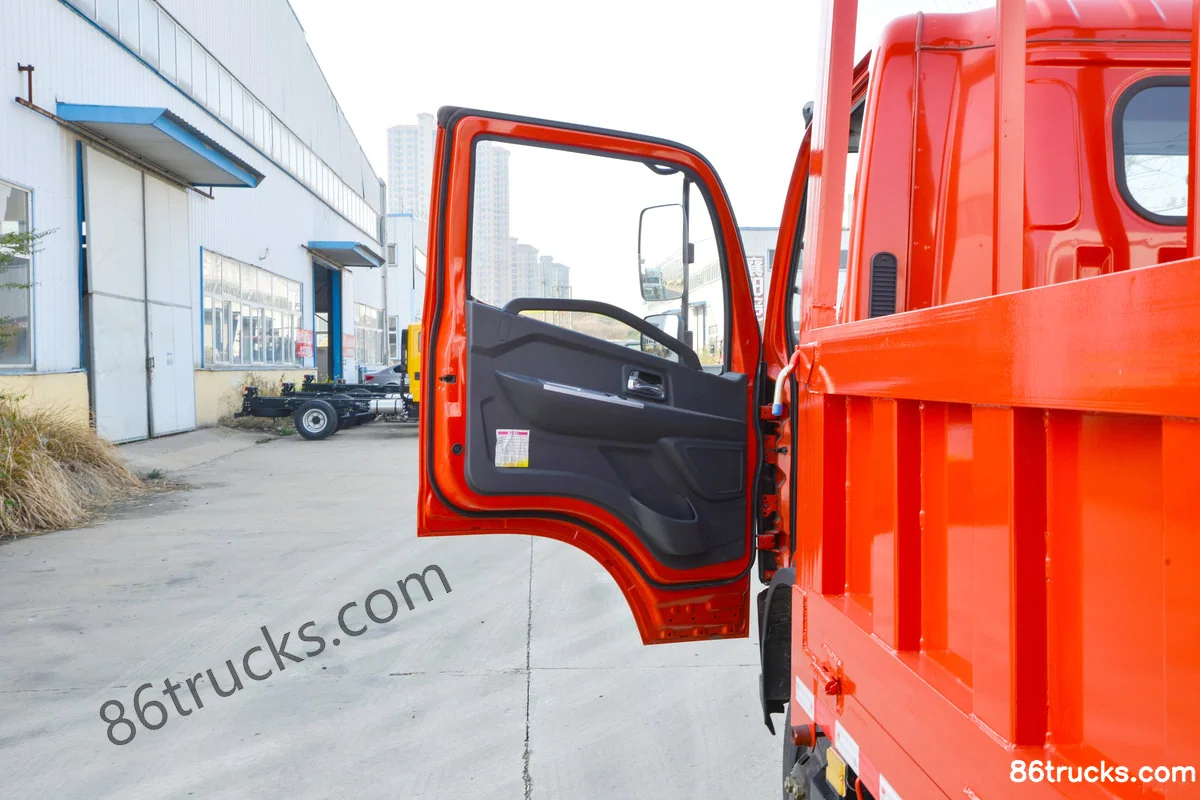

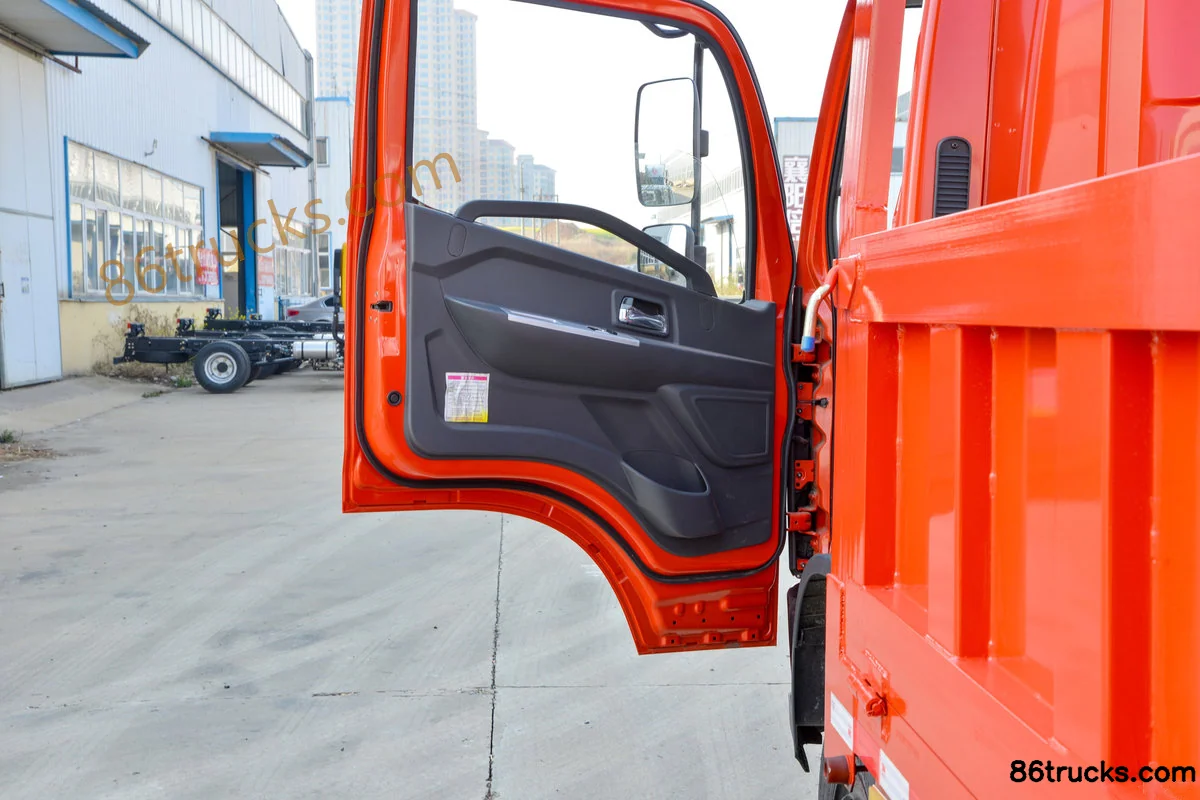

Cab3

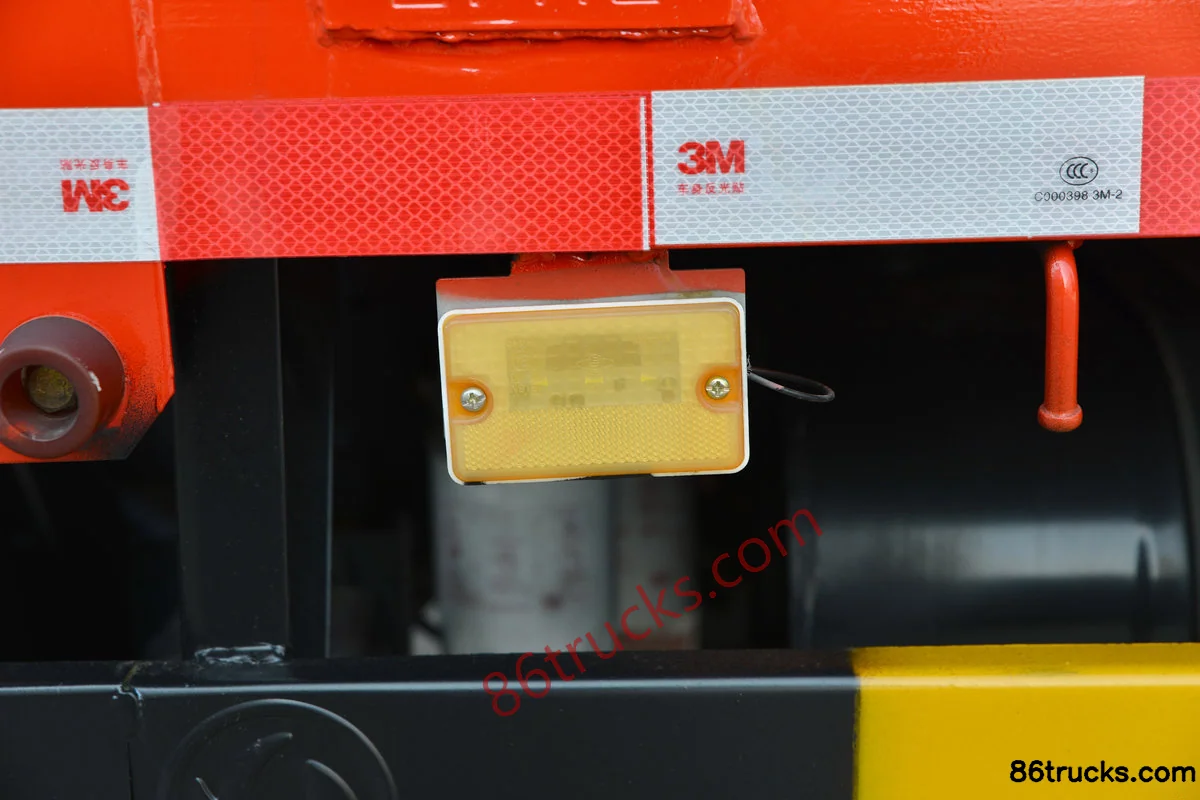

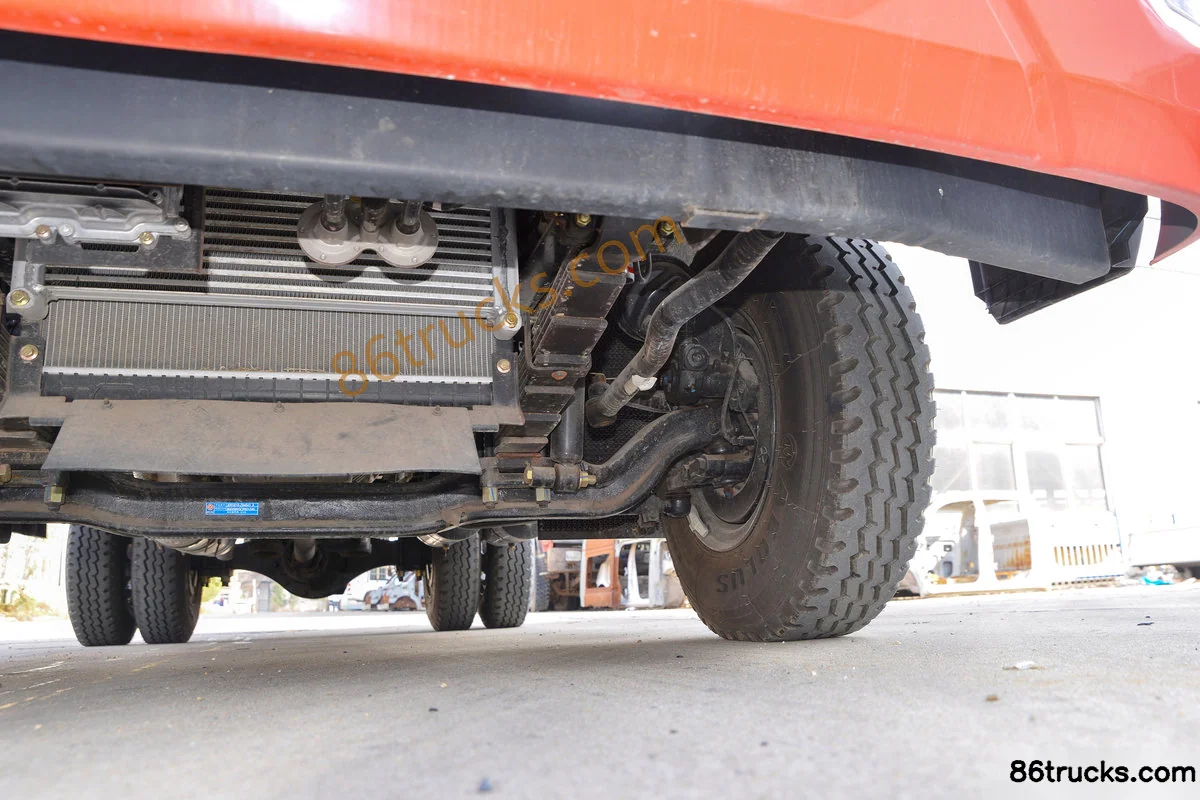

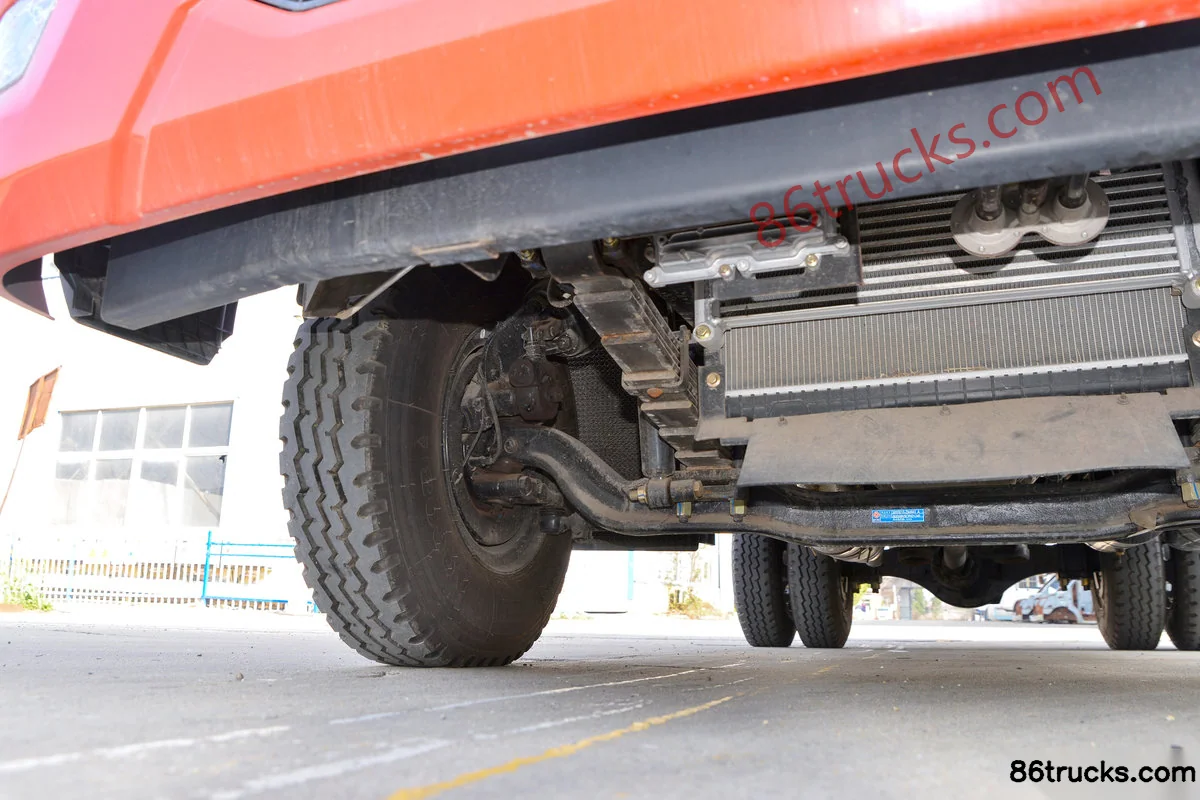

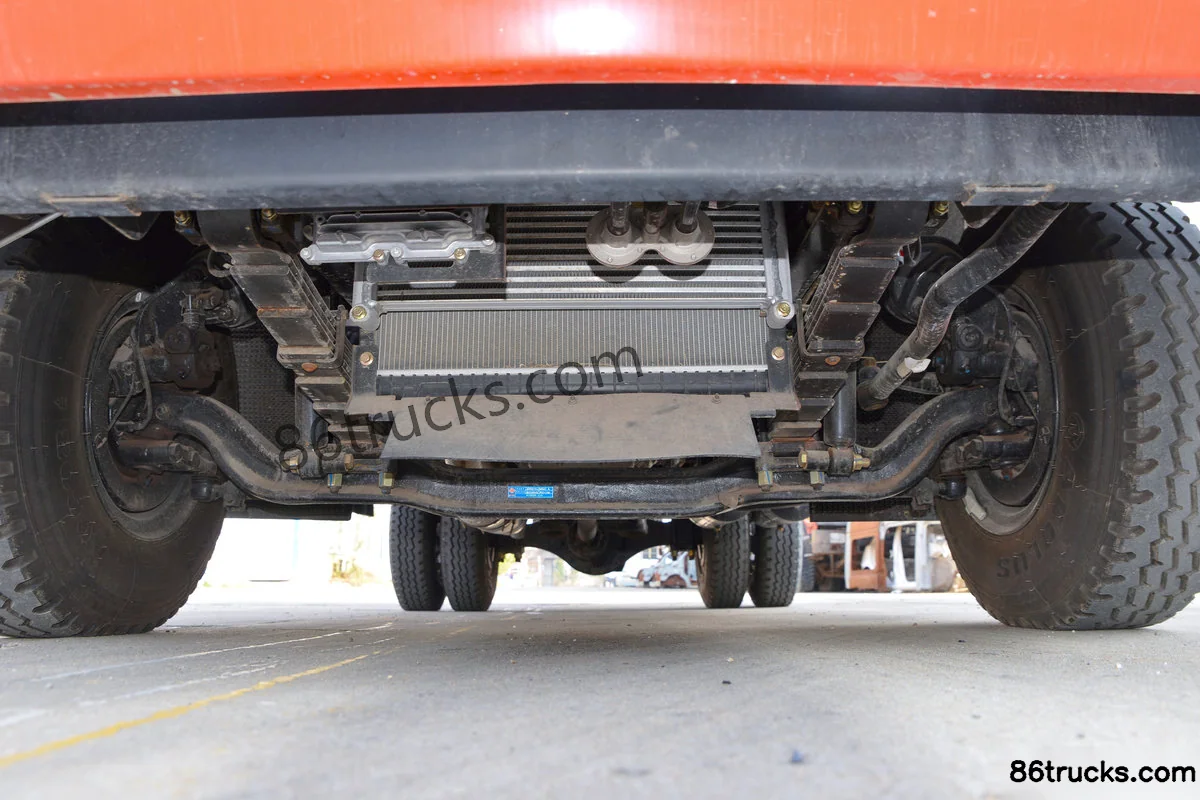

Chassis3

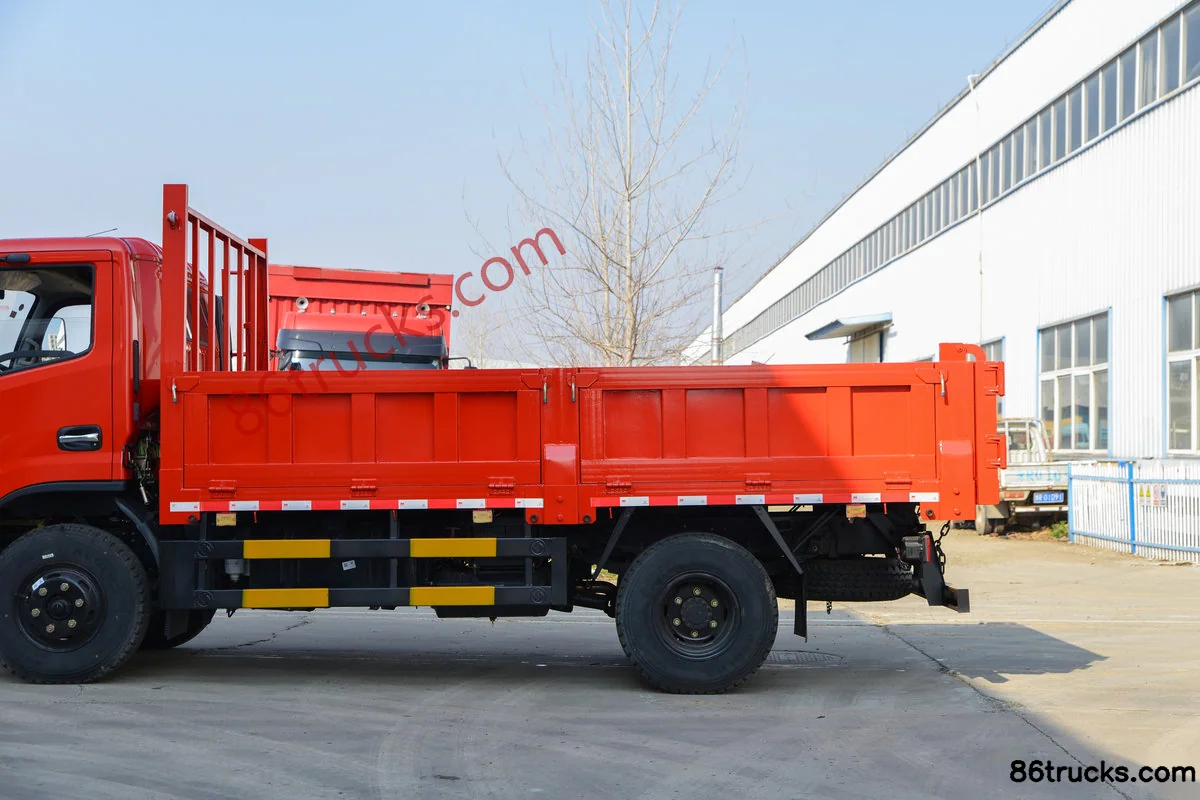

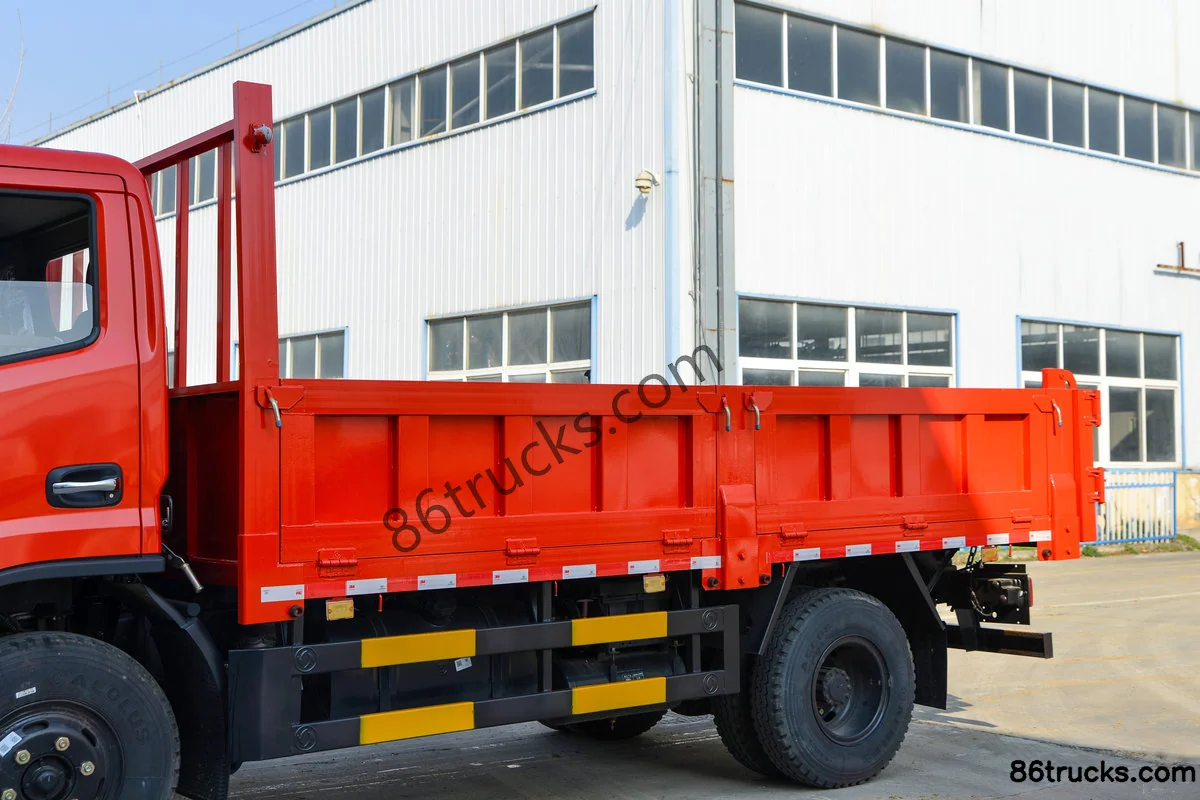

Body3

12 photos

FAQ

What is the export price of Dongfeng F6 3L Diesel 170hp 4X2(6 wheels) 8-Speed 4.1m Single Row Dump Truck, and what does it include?

Dongfeng F6 3L Diesel 170hp 4X2(6 wheels) 8-Speed 4.1m Single Row Dump Truck export reference is about From $22,222; MSRP is ¥16M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng F6 3L Diesel 170hp 4X2(6 wheels) 8-Speed 4.1m Single Row Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng F6 3L Diesel 170hp 4X2(6 wheels) 8-Speed 4.1m Single Row Dump Truck?

Key specs of Dongfeng F6 3L Diesel 170hp 4X2(6 wheels) 8-Speed 4.1m Single Row Dump Truck: Drive: 4x2; Horsepower: 170 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng F6 3L Diesel 170hp 4X2(6 wheels) 8-Speed 4.1m Single Row Dump Truck suited for?

Dongfeng F6 3L Diesel 170hp 4X2(6 wheels) 8-Speed 4.1m Single Row Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng F6 3L Diesel 170hp 4X2(6 wheels) 8-Speed 4.1m Single Row Dump Truck differ from other variants in the same series?

Dongfeng F6 3L Diesel 170hp 4X2(6 wheels) 8-Speed 4.1m Single Row Dump Truck belongs to DongfengF6 (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng F6 3L Diesel 170hp 4X2(6 wheels) 8-Speed 4.1m Single Row Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng F6 3L Diesel 170hp 4X2(6 wheels) 8-Speed 4.1m Single Row Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
