Kama Fangding 230hp 6X2(8 wheels) 7.2m semi-sleeper stake truck (China VI)

Export reference
From $27,778
MSRP ¥20M CNY
Horsepower: 230
Emission: China VI
Fuel: Diesel
Engine: Dewei D47
Transmission: Fast Gear
Curb Weight:: 7.7ton
seating capacity: 3Personnel
Rated payload: 16.67ton
Drive 6X2 (8 wheels)
Cargo box length: 7.2m

Overview

The Kama Fangding 230hp 6X2(8 wheels) 7.2m semi-sleeper stake truck (China VI) is a Medium-duty truck featuring 7.2m cargo length, 7.2m cargo body, 3Personnel volume and 16.67t payload. Its segment focus covers Daily industrial goods transport, matching those duty cycles. On the powertrain side, it comes with a Dewei D47 engine, 230 hp, 6X2 (8 wheels) drive and China VI emissions.

China VI 230 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): KMC5240CCYA540P6
Type: Cargo Trucks
Drive type: 6X2
Wheelbase: 1800+3600mm
Box length class: 7.2m
engine: Yunnei PowerD47TCIF1
transmission: Fast Gear10JS90A-B
Rear Axle Ratio: 4.875
Cab length: 9.18m
Cab width: 2.4m
Cab height: 3.9m
Front track width: 1836/1836mm
rear track: 1740mm
Curb Weight: 7.7ton
Rated payload: 16.67ton
GVWR: 24.5ton
tonnage class: Medium-duty truck
market segment: Daily industrial goods transport
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD47TCIF1
Engine info: Dewei D47
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.7L
Emission standard: China VI
Max output power: 169kW
Max hp: 230Horsepower
Max torque: 850N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Transmission Parameters
Transmission Model: Fast Gear10JS90A-B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Housing Material: aluminum alloy
Cargo box parameters
Cargo box length: 7.2m
Cargo box width: 2.45m
Cargo box height: 0.6m
*Cargo box interior width: 2.4500000476837
Cab parameters
Cab tilting: Manual
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 300L
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle allowable load: 11500kg
Axle ratio: 4.875
Tire
Tire Size: 10.00R20 18PR
Number of tires: 8pcs
Control configuration
ABS:

Photos

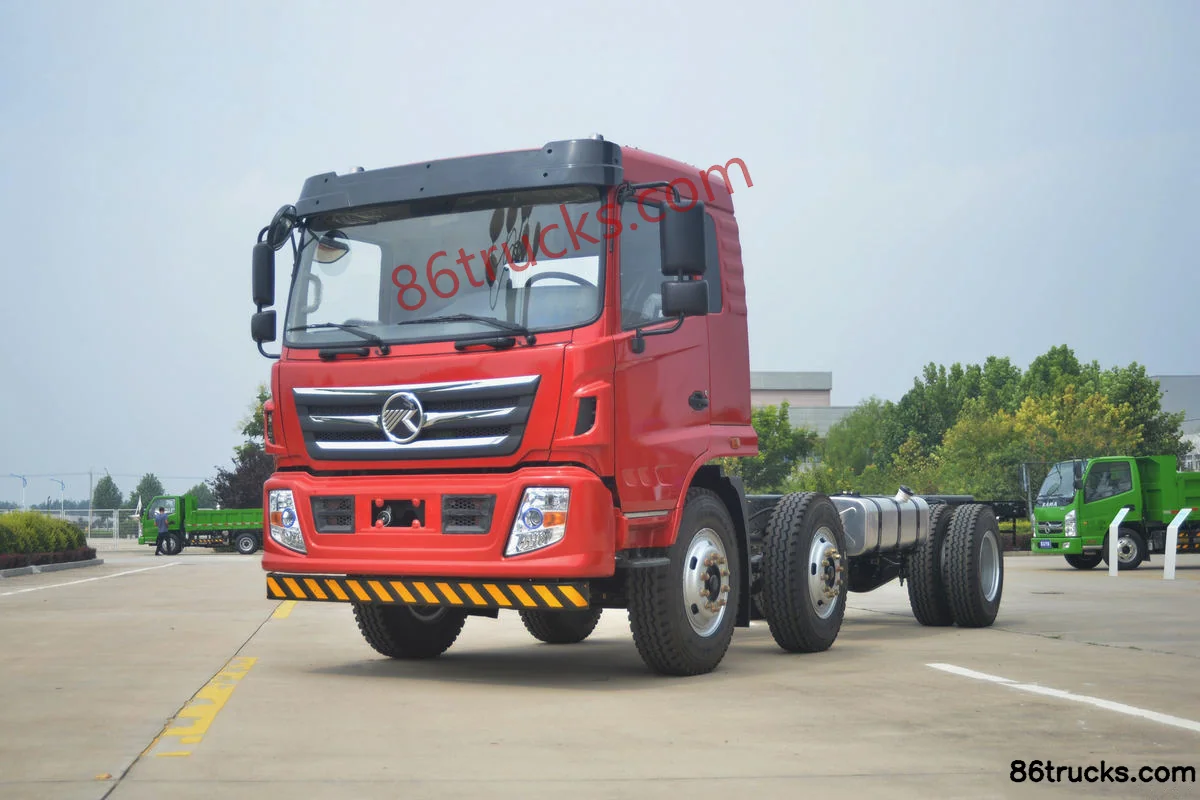

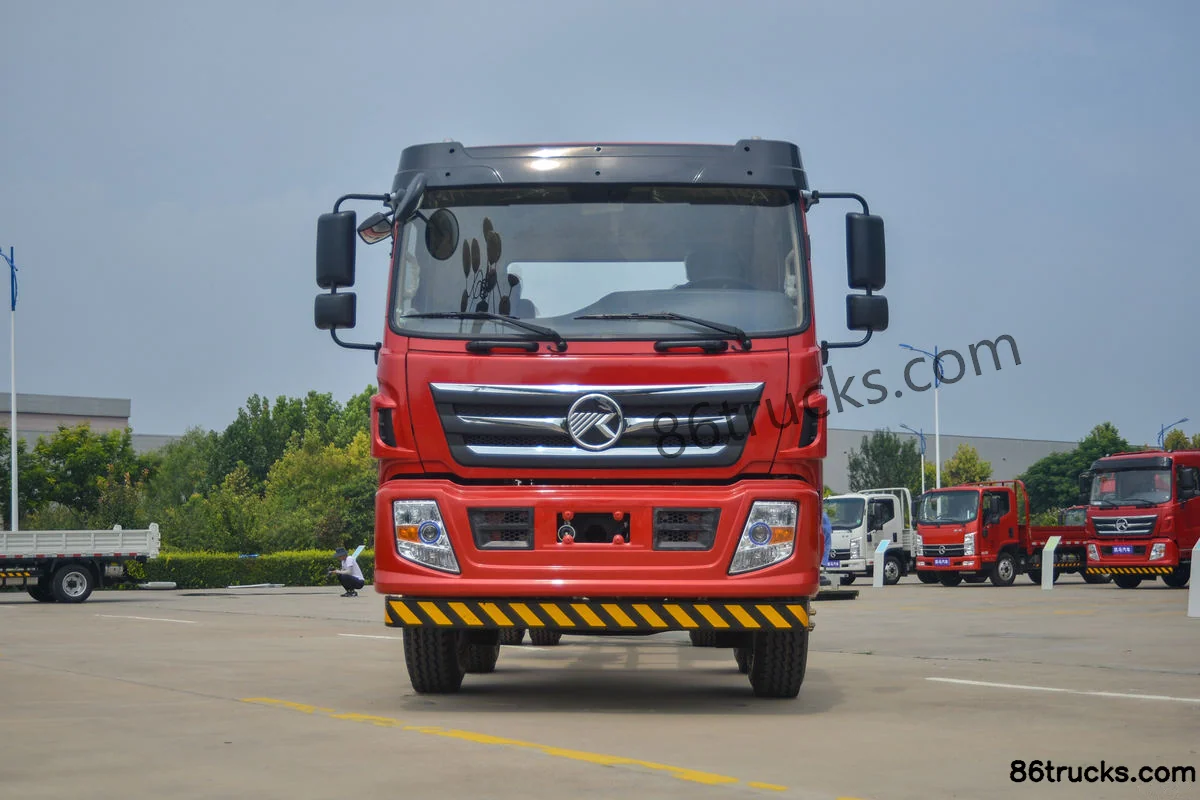

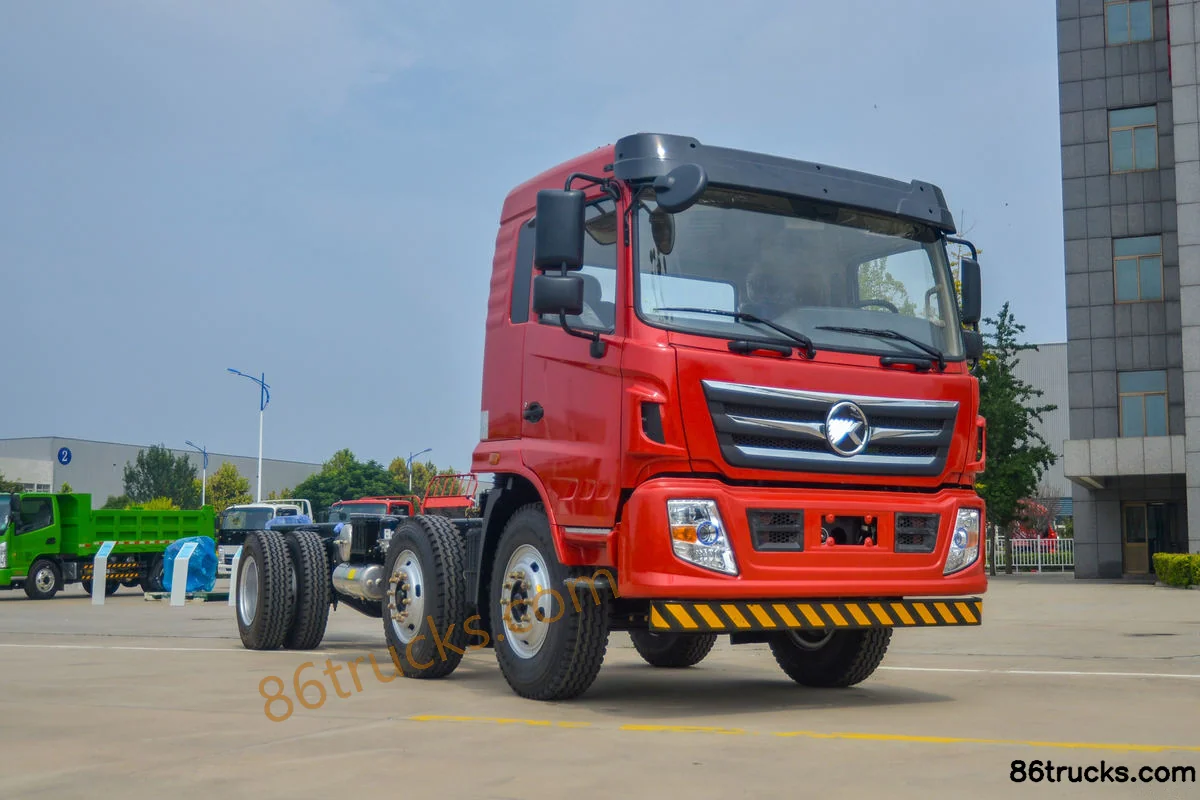

Exterior3

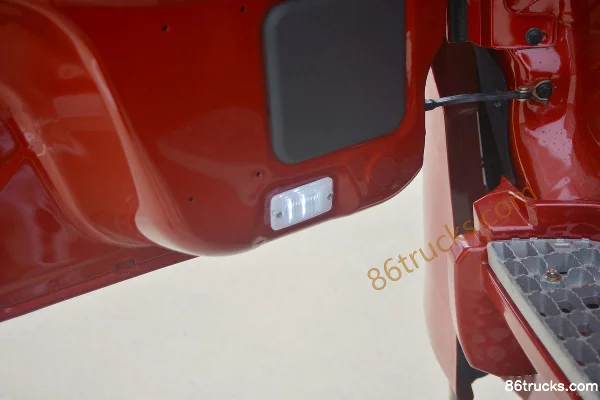

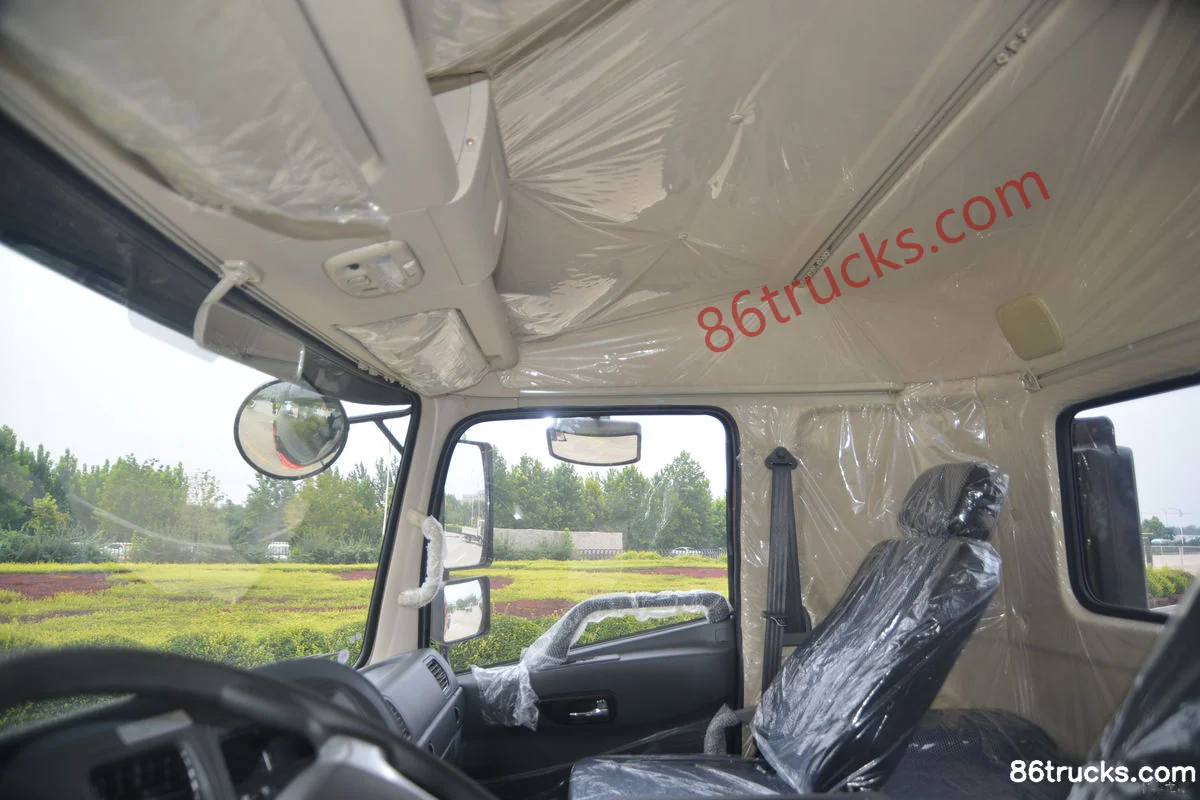

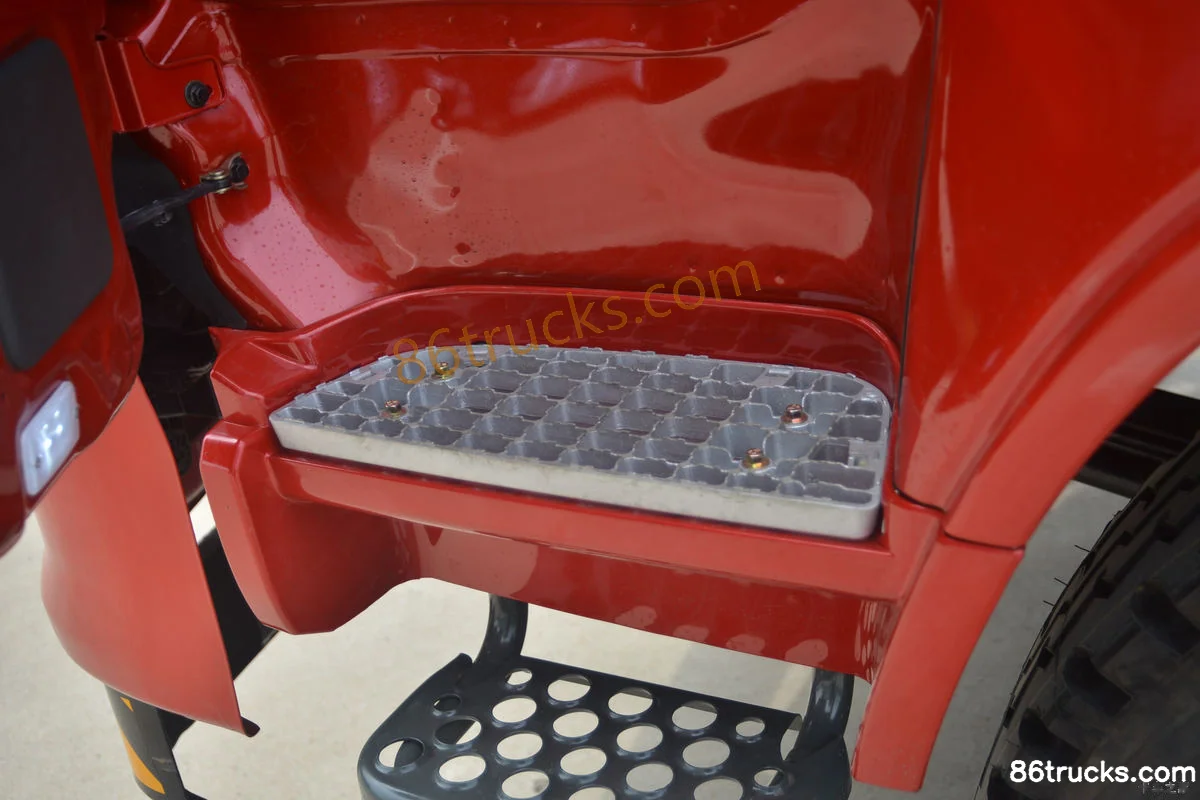

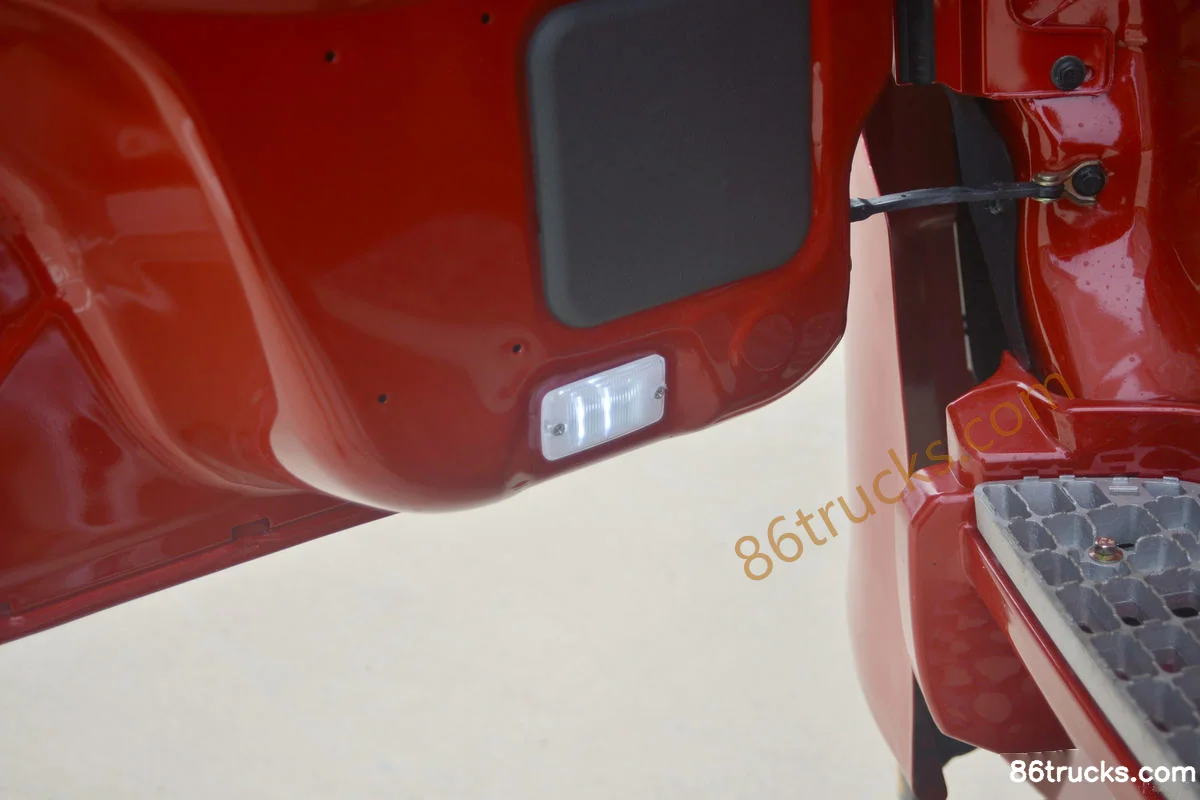

Cab3

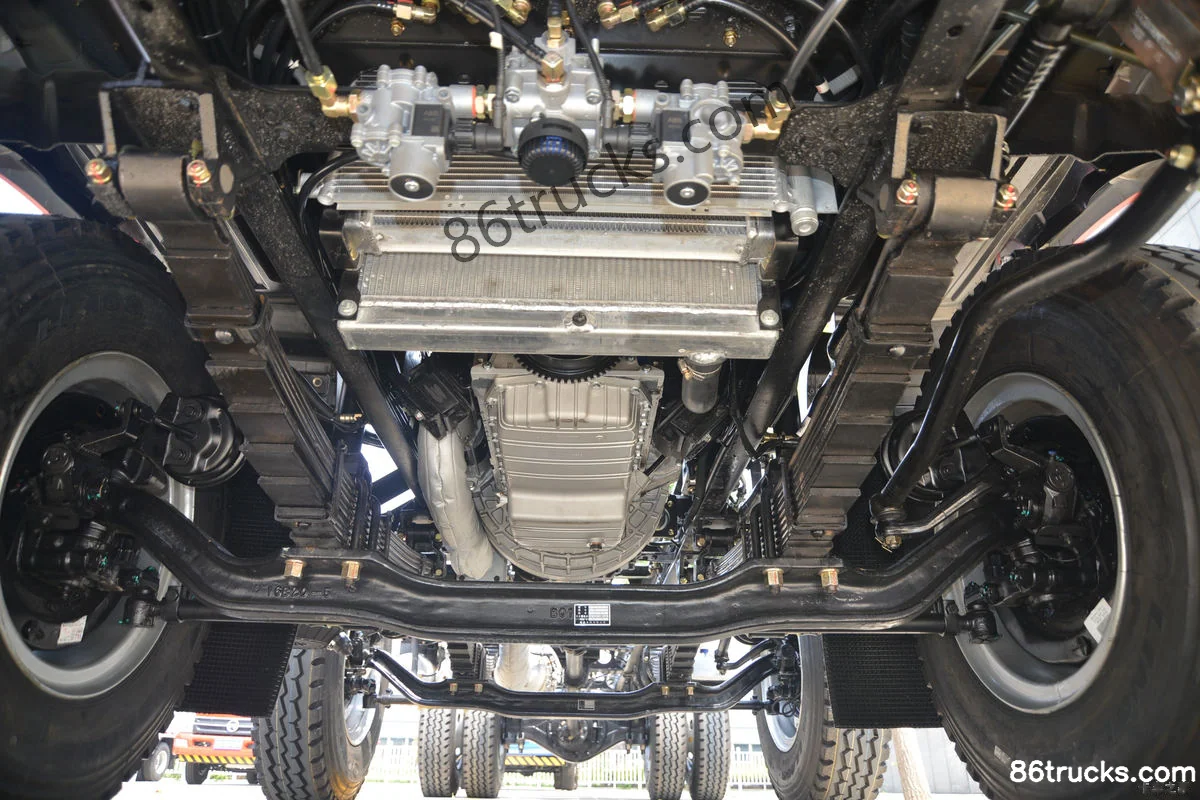

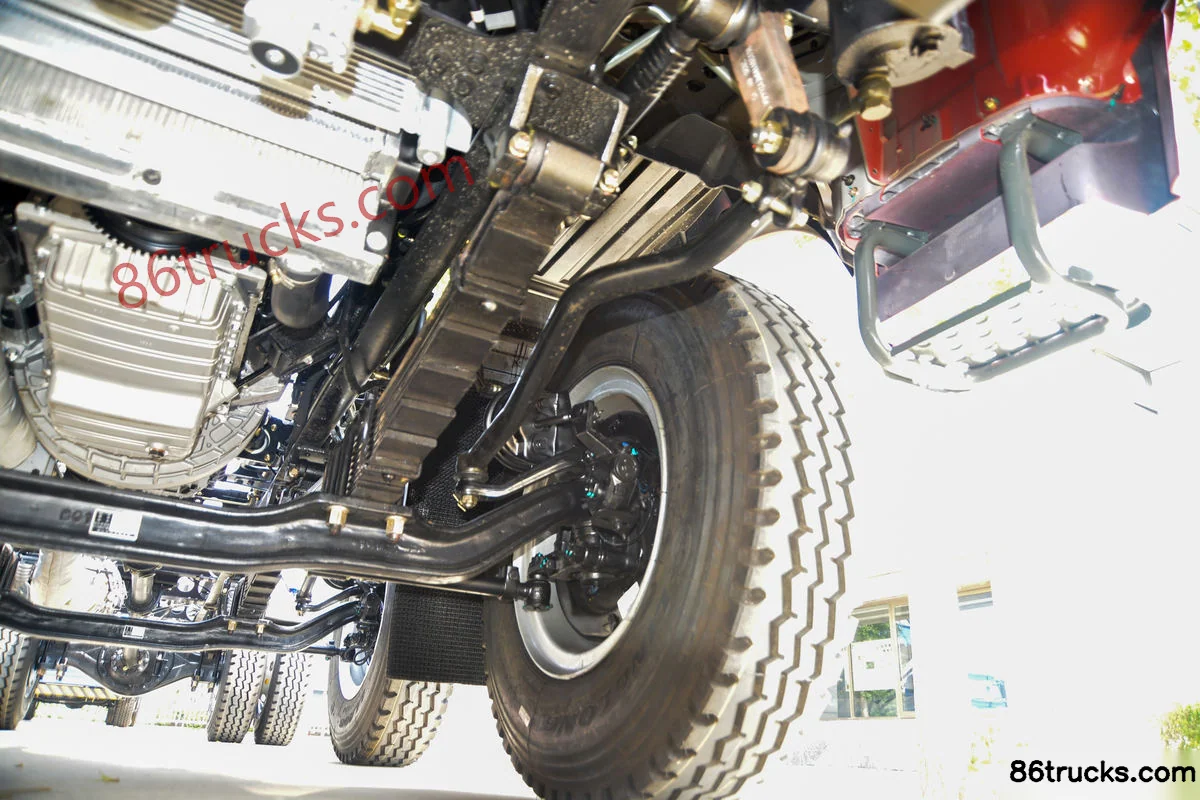

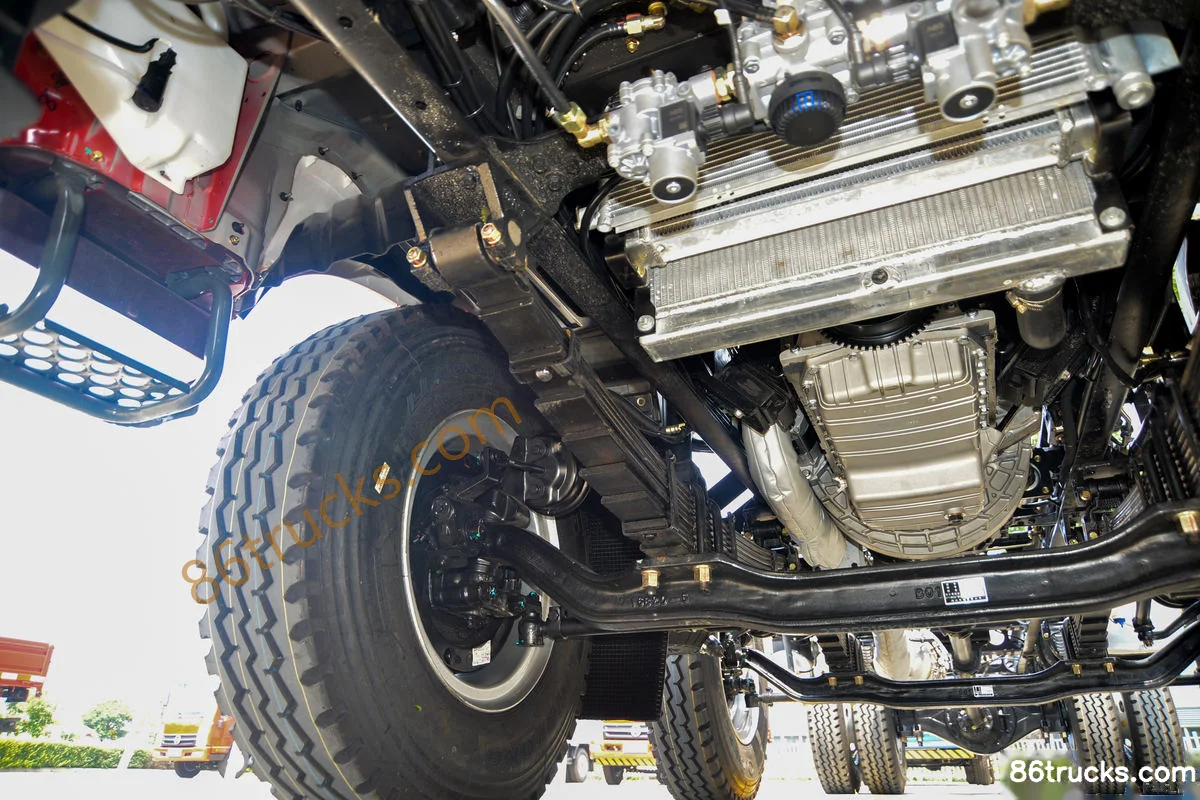

Chassis3

9 photos

FAQ

What is the export price of Kama Fangding 230hp 6X2(8 wheels) 7.2m semi-sleeper stake truck (China VI), and what does it include?

Kama Fangding 230hp 6X2(8 wheels) 7.2m semi-sleeper stake truck (China VI) export reference is about From $27,778; MSRP is ¥20M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Kama Fangding 230hp 6X2(8 wheels) 7.2m semi-sleeper stake truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Kama Fangding 230hp 6X2(8 wheels) 7.2m semi-sleeper stake truck (China VI)?

Key specs of Kama Fangding 230hp 6X2(8 wheels) 7.2m semi-sleeper stake truck (China VI): Drive: 6x2; Horsepower: 230 hp; Emission: China VI; Fuel: Diesel; Engine: Dewei D47; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Kama Fangding 230hp 6X2(8 wheels) 7.2m semi-sleeper stake truck (China VI) suited for?

Kama Fangding 230hp 6X2(8 wheels) 7.2m semi-sleeper stake truck (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Kama Fangding 230hp 6X2(8 wheels) 7.2m semi-sleeper stake truck (China VI) differ from other variants in the same series?

Kama Fangding 230hp 6X2(8 wheels) 7.2m semi-sleeper stake truck (China VI) belongs to Kama Fangding Medium Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Kama Fangding 230hp 6X2(8 wheels) 7.2m semi-sleeper stake truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Kama Fangding 230hp 6X2(8 wheels) 7.2m semi-sleeper stake truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
