JAC Shuailing K340 120 hp 4X2(6 wheels) 4.23m single-row flatbed light truck (air brake)

Export reference
MSRP N/A
Horsepower: 120
Emission: China IV
Fuel: Diesel
Engine: JAC493
Curb Weight:: 2.5ton
Wheelbase:: 3360mm
seating capacity: 2Personnel
Rated payload: 1.79ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The JAC Shuailing K340 120 hp 4X2(6 wheels) 4.23m single-row flatbed light truck (air brake) is a Light Truck featuring 4.23m cargo length, stake body cargo body, 2Personnel volume and 1.79t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a JAC493 engine, 120 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 120 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC1041P73K2C3
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
engine: JACHFC4DA1-2C
transmission: 5-speed transmission
Cab length: 5.995m
Cab width: 1.91m
Cab height: 2.33m
Front track width: 1440mm
rear track: 1425mm
Curb Weight: 2.5ton
Rated payload: 1.79ton
GVWR: 4.485ton
Max. speed: 90km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 21°
departure angle: 15°
market segment: Building materials, agricultural products
Front/rear suspension: 1.11/1.525m
Energy Type: Diesel

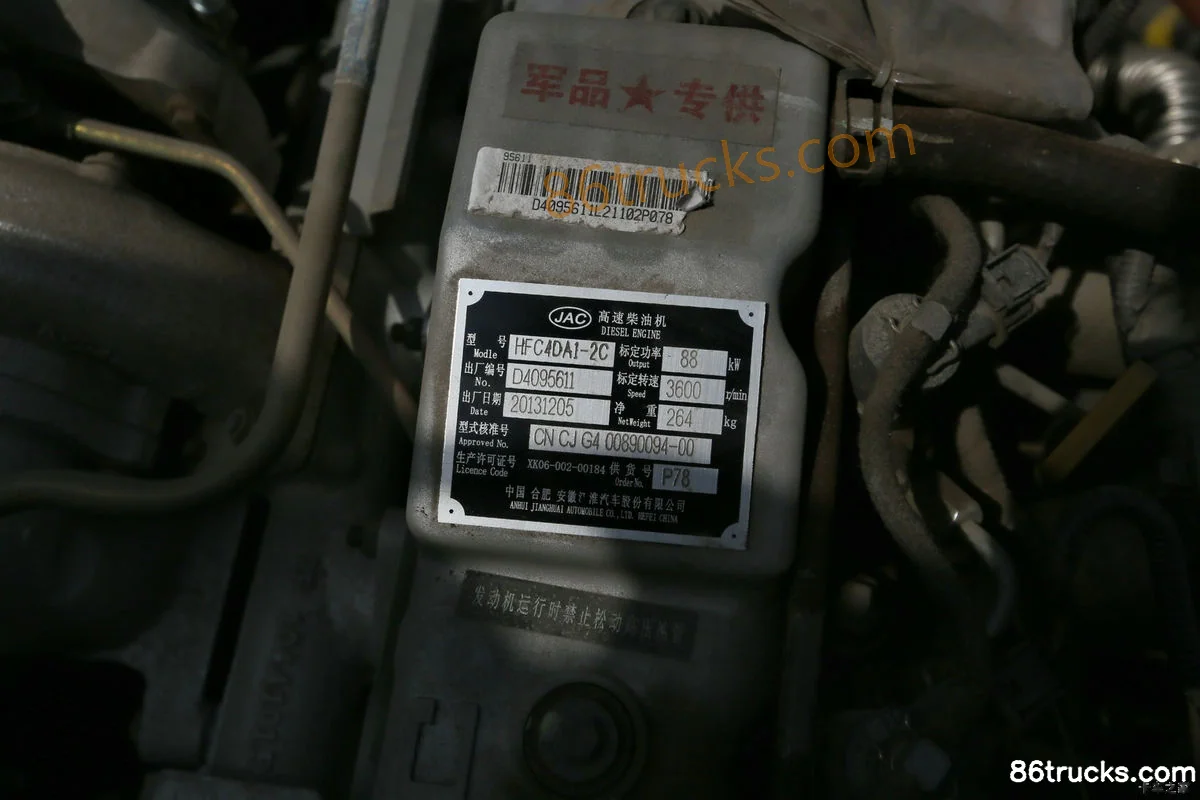

Engine parameters
Engine Brand: JAC
Engine Model: JACHFC4DA1-2C
Engine info: JAC493
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.771L
Emission standard: China IV
Max output power: 88kW
Max hp: 120Horsepower
Max torque: 250N·m
Max torque speed: 1800-2800rpm
Rated speed: 3600rpm
Engine Type: Turbocharged intercooled, inline 4-cylinder
Transmission Parameters
Transmission Model: 5-speed transmission
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.23m
Cargo box width: 1.81m
Cargo box height: 0.4m
*Cargo box interior width: 1.8099999427795
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1620kg
rear axle description: 2690
rear axle allowable load: 2875kg
Leaf spring count: 7/4+6
Tire
Tire Size: 7.00R16/6.5R16
Number of tires: 6pcs
Control configuration
ABS:

Photos

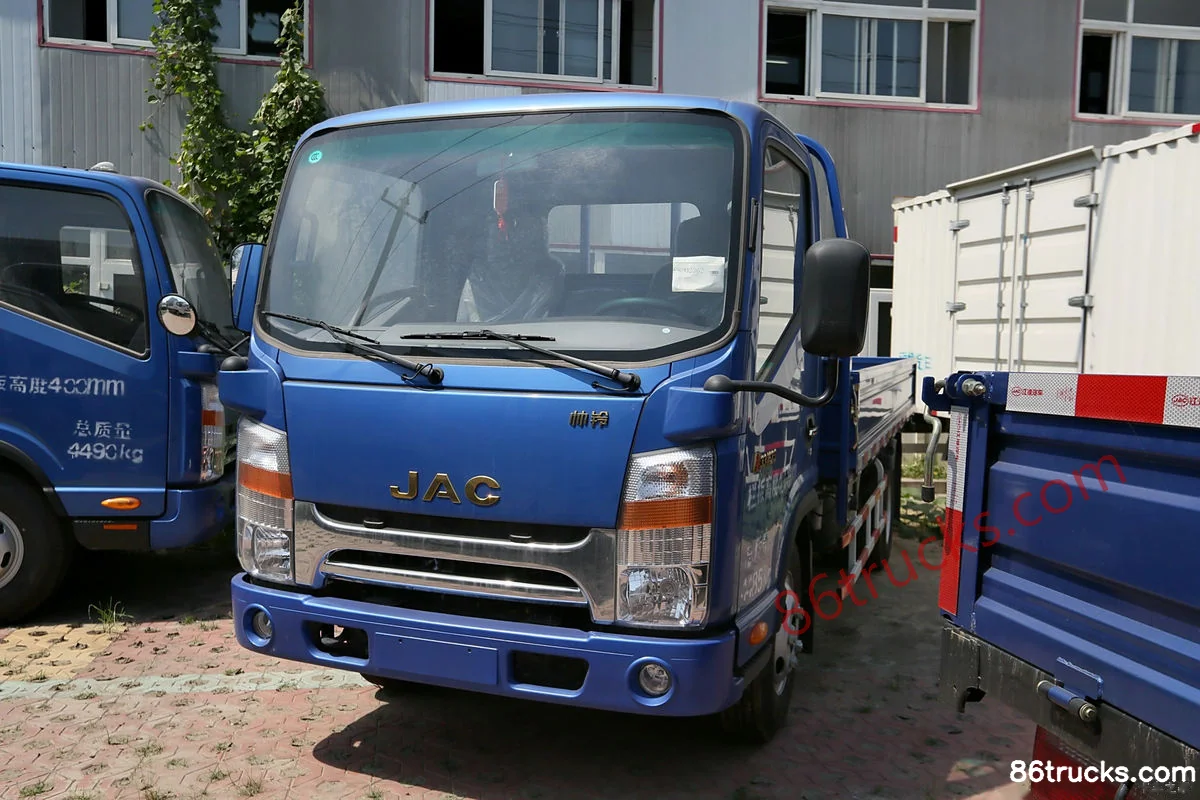

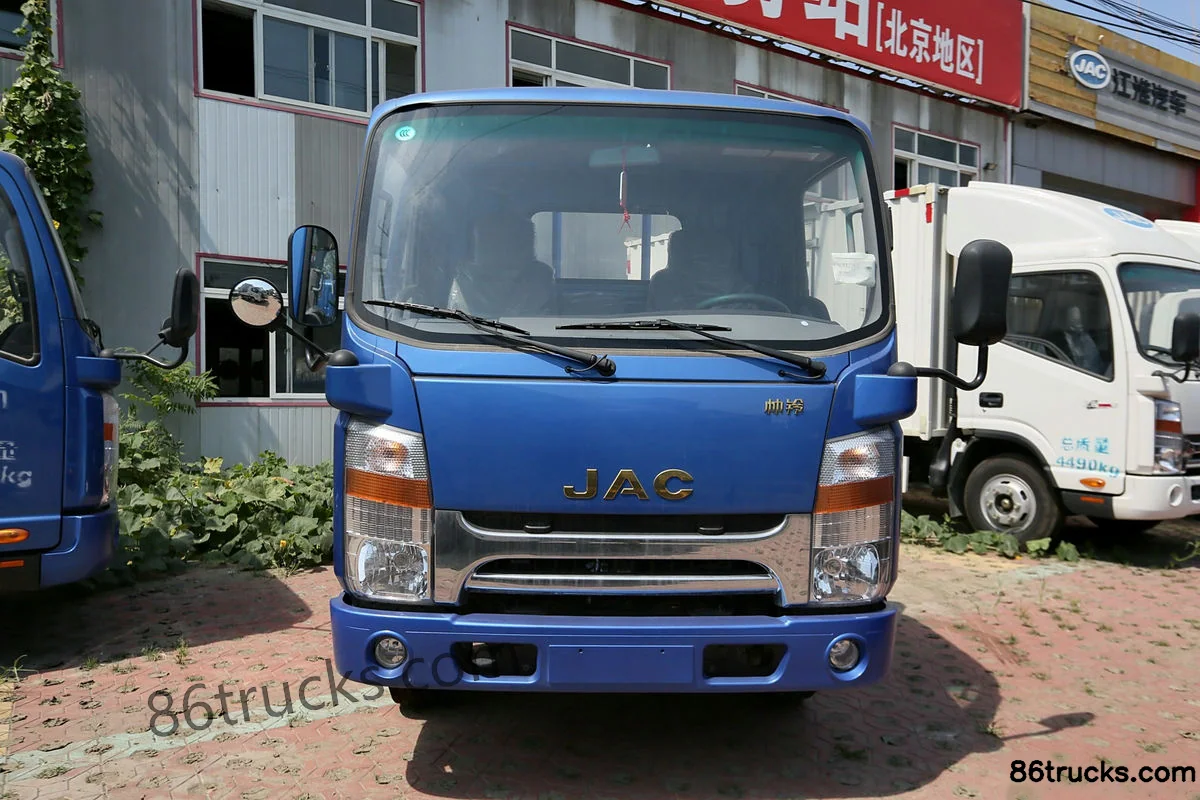

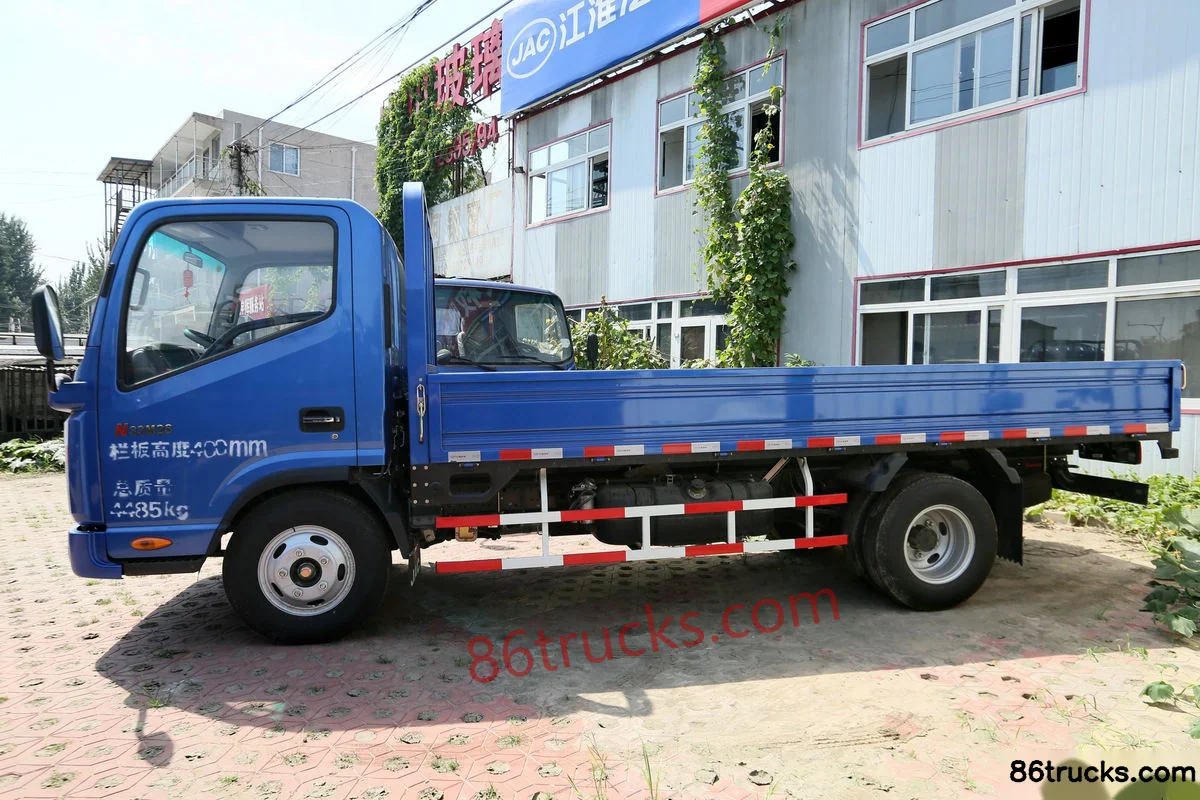

Exterior3

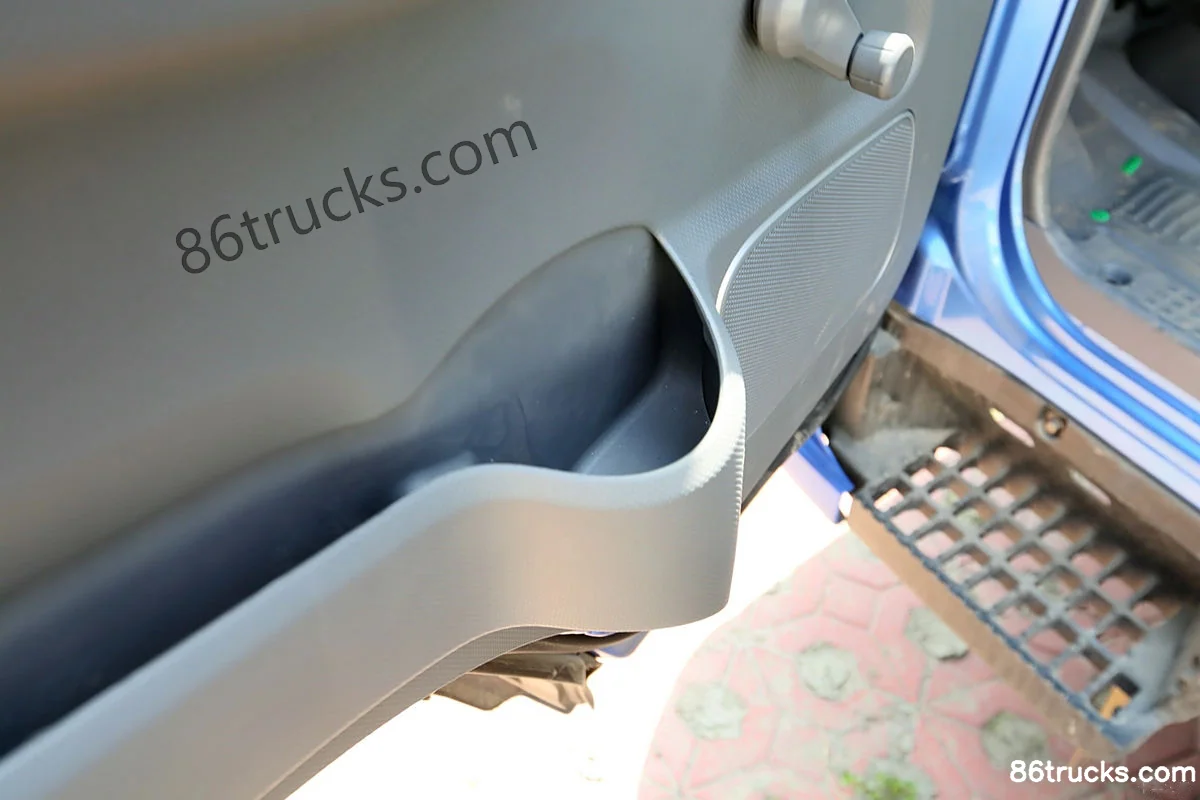

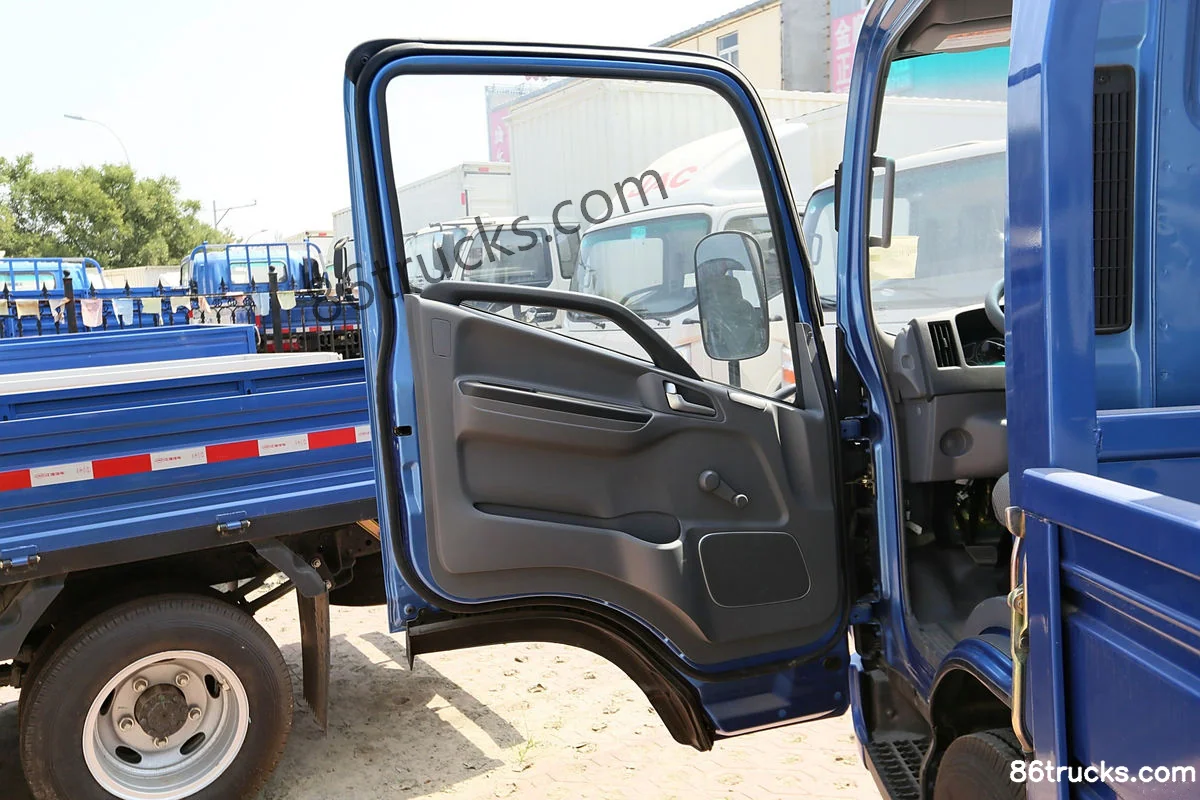

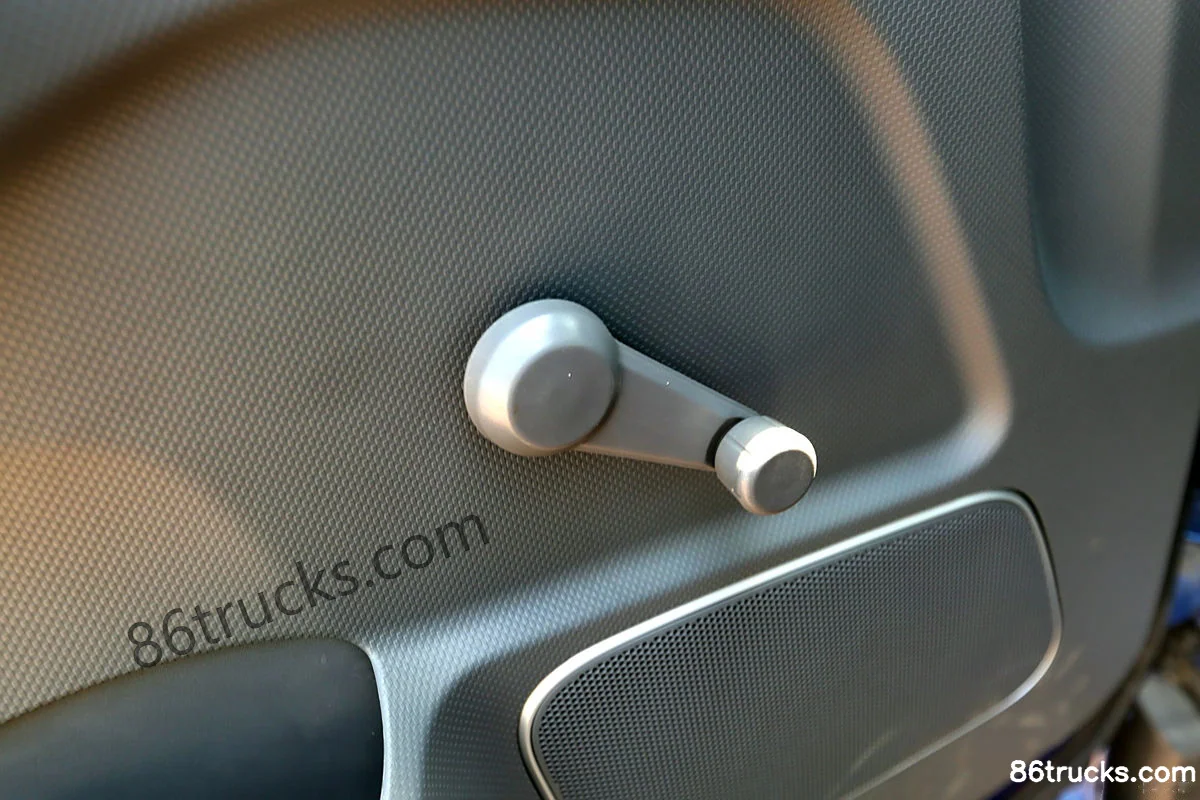

Cab3

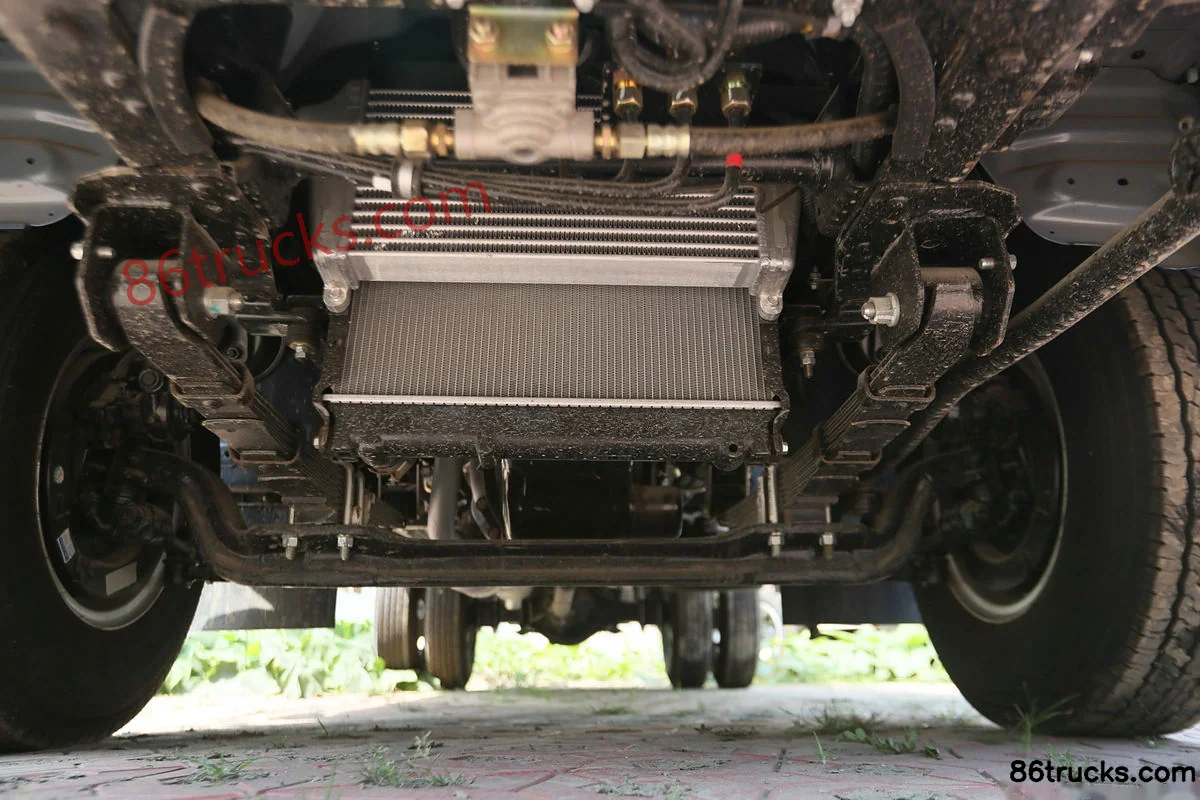

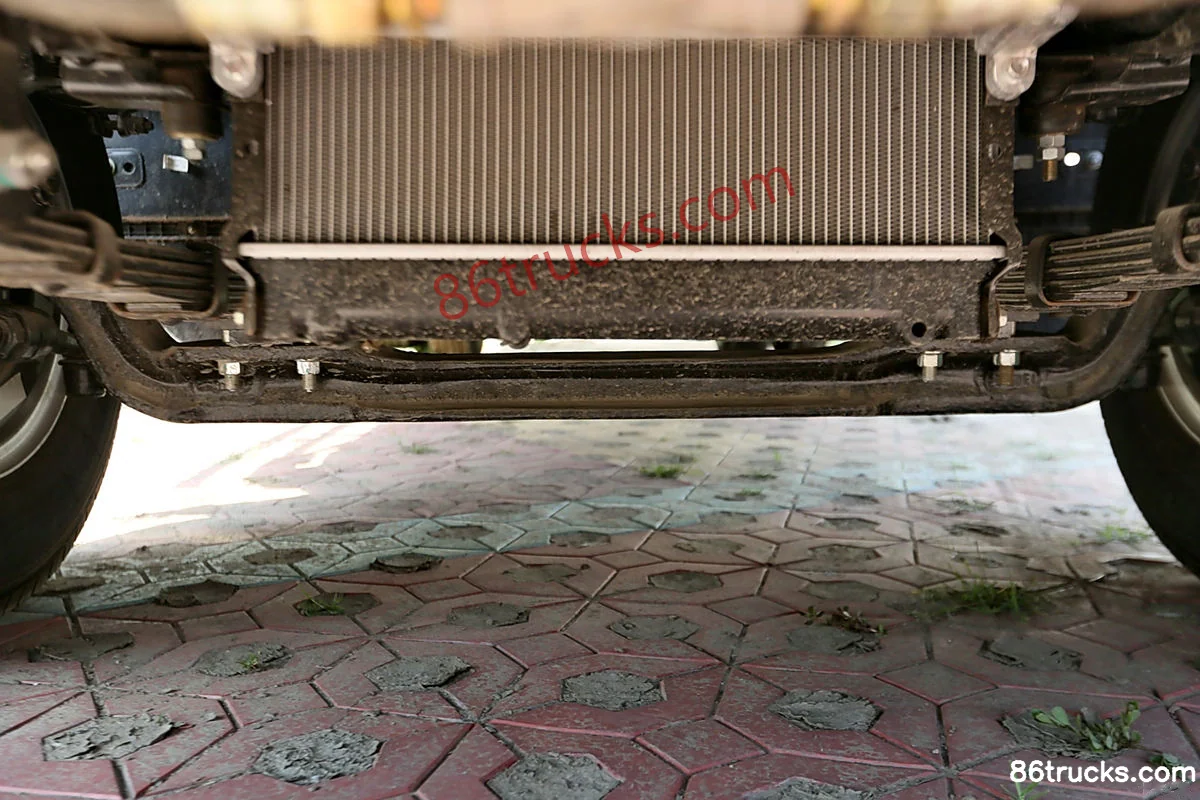

Chassis3

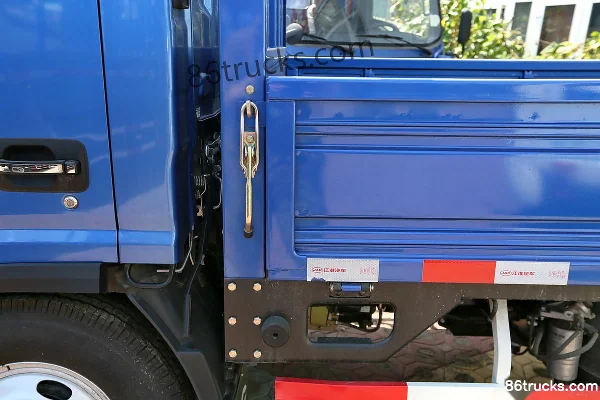

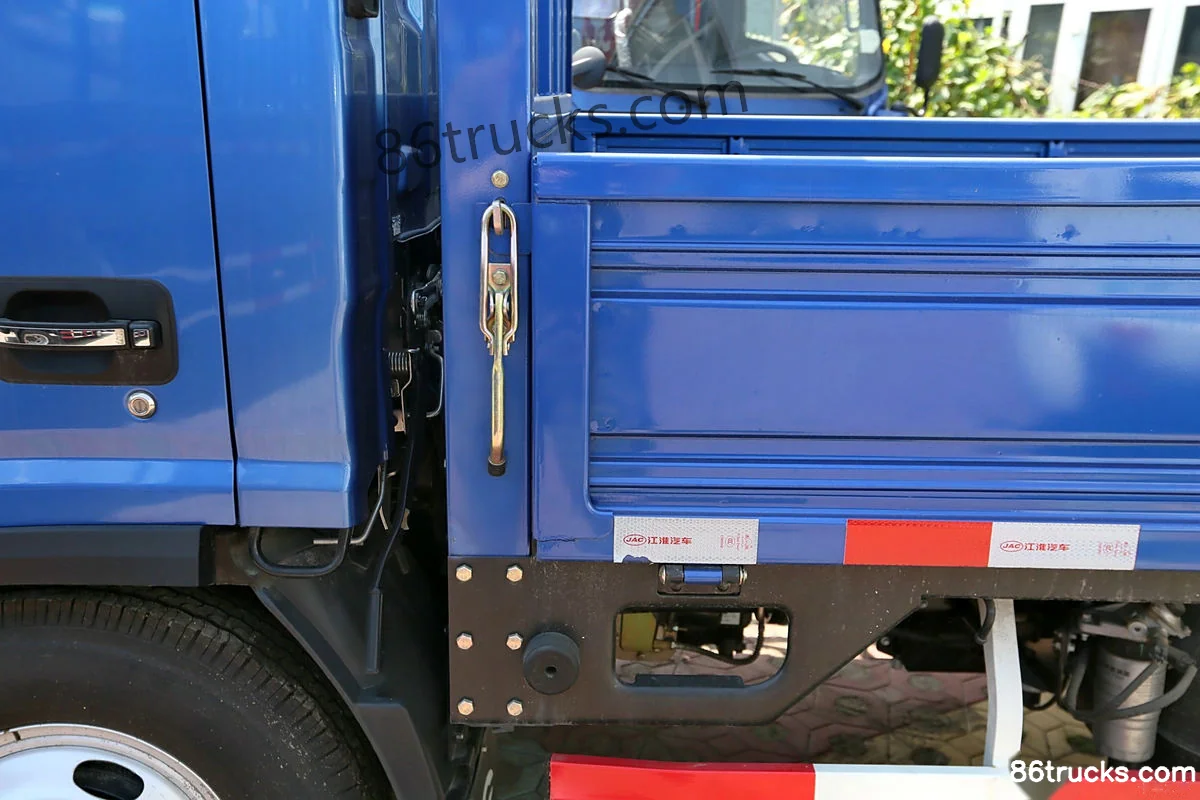

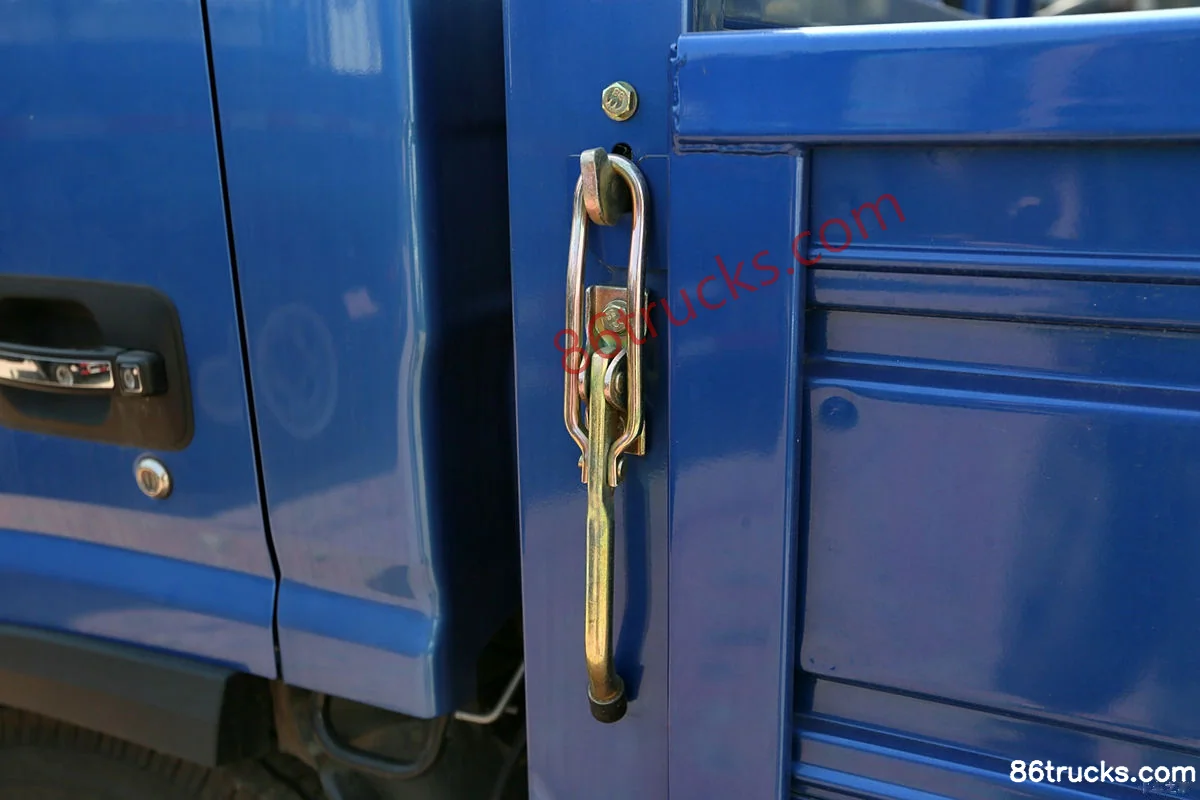

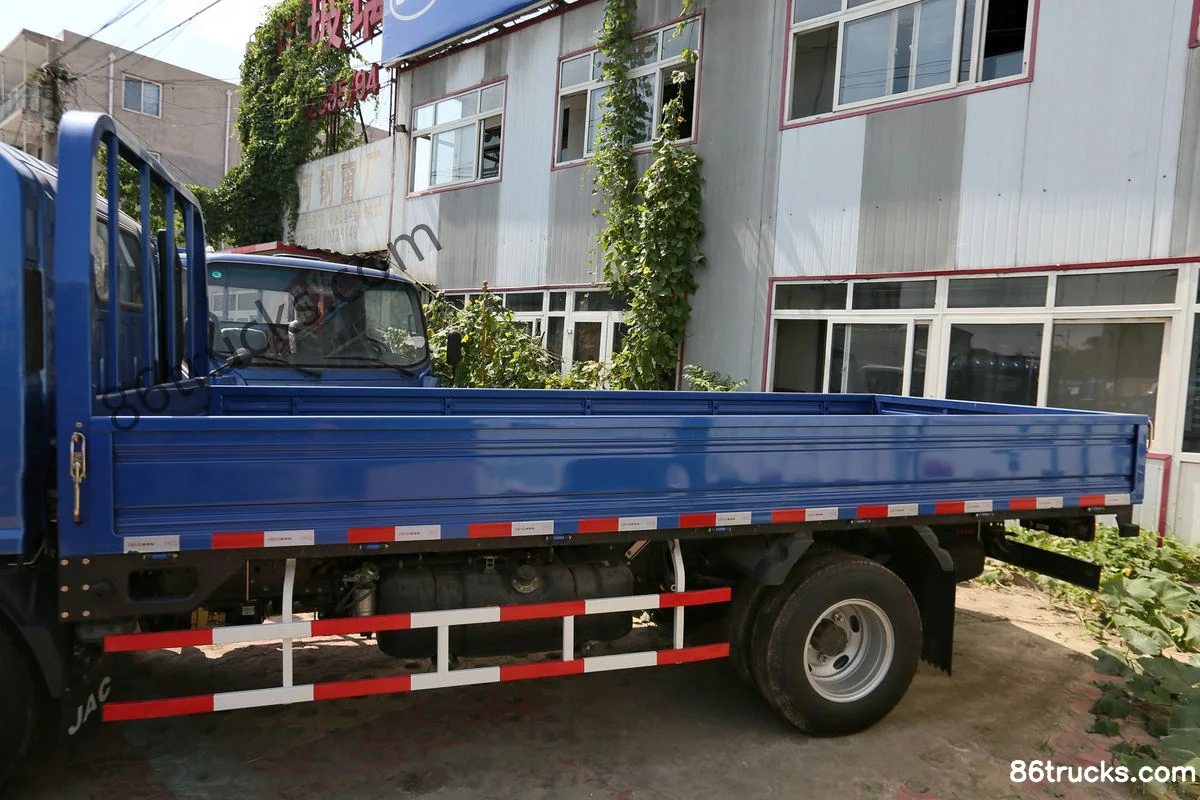

Body3

12 photos

FAQ

What emission standard does JAC Shuailing K340 120 hp 4X2(6 wheels) 4.23m single-row flatbed light truck (air brake) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Shuailing K340 120 hp 4X2(6 wheels) 4.23m single-row flatbed light truck (air brake)?

Key specs of JAC Shuailing K340 120 hp 4X2(6 wheels) 4.23m single-row flatbed light truck (air brake): Drive: 4x2; Horsepower: 120 hp; Emission: China IV; Fuel: Diesel; Engine: JAC493. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Shuailing K340 120 hp 4X2(6 wheels) 4.23m single-row flatbed light truck (air brake) suited for?

JAC Shuailing K340 120 hp 4X2(6 wheels) 4.23m single-row flatbed light truck (air brake) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Shuailing K340 120 hp 4X2(6 wheels) 4.23m single-row flatbed light truck (air brake) differ from other variants in the same series?

JAC Shuailing K340 120 hp 4X2(6 wheels) 4.23m single-row flatbed light truck (air brake) belongs to JAC Q3 light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Shuailing K340 120 hp 4X2(6 wheels) 4.23m single-row flatbed light truck (air brake)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Shuailing K340 120 hp 4X2(6 wheels) 4.23m single-row flatbed light truck (air brake)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
