SAIC Hongyan Genlyon Standard Load Version 14.6L LNG 560 hp 6X4(10 wheels) Fast Gear 16-Speed AMT Automatic High Roof Tractor Truck

Export reference
MSRP N/A
Fuel: LNG (liquefied natural gas)
Gross Trailer Weight:: 40ton
Wheelbase:: 3850+1400mm
Tire Size:: 12R22.5 18PR
Front axle allowable load:: 7000kg
Displacement:: 14.6L
Drive 6X4 (10 wheels)
Horsepower 560
Emission China VI
Transmission Fast Gear

Overview

The SAIC Hongyan Genlyon Standard Load Version 14.6L LNG 560 hp 6X4(10 wheels) Fast Gear 16-Speed AMT Automatic High Roof Tractor Truck is a Heavy truck featuring 6X4 (10 wheels) drive, 560 hp, 25t GVW and China VI emissions. Its segment focus covers Gravel aggregate and coal transport, matching those duty cycles. On the powertrain side, it comes with a WeichaiWP15NG560E61 engine, Fast Gear transmission and LNG (liquefied natural gas) fuel.

China VI 560 LNG (liquefied natural gas) 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CQ4257HZ384S
Drive type: 6X4
Wheelbase: 3850+1400mm
engine: WeichaiWP15NG560E61
transmission: Fast GearF16JZ26A
Rear Axle Ratio: 2.846
Cab length: 7.435m
Cab width: 2.55m
Cab height: 3.96m
Front track width: 2020mm
Gross Trailer Weight: 40ton
rear track: 1858/1858mm
Curb Weight: 8.87ton
GVWR: 25ton
Max. speed: 89km/h
Origin: Chongqing
tonnage class: Heavy truck
market segment: Gravel aggregate/coal transport
Version: Standard Load Edition
Energy Type: LNG (liquefied natural gas)
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP15NG560E61
Number of cylinders: 6cylinder
fuel type: LNG (liquefied natural gas)
Cylinder arrangement: Inline
Displacement: 14.6L
Emission standard: China VI
Max output power: 412kW
Max hp: 560Horsepower
Max torque: 2600N·m
Max torque speed: 950-1350rpm
Rated speed: 1700rpm
Transmission Parameters
Transmission Model: F16JZ26A
Transmission Brand: Fast Gear
shift method: AMT manual/auto
Forward gears: 16Gear
Number of Reverse Gears: 2pcs
fuel tank
Air tank capacity: 1500L
Cab parameters
Cab: High roof
Cab width: 2500mm
seating capacity: 2Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Chassis Specs
Front axle description: 5.5T
Front axle allowable load: 7000kg
rear axle description: HY420
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 2.846
Leaf spring count: 2/2
Tire

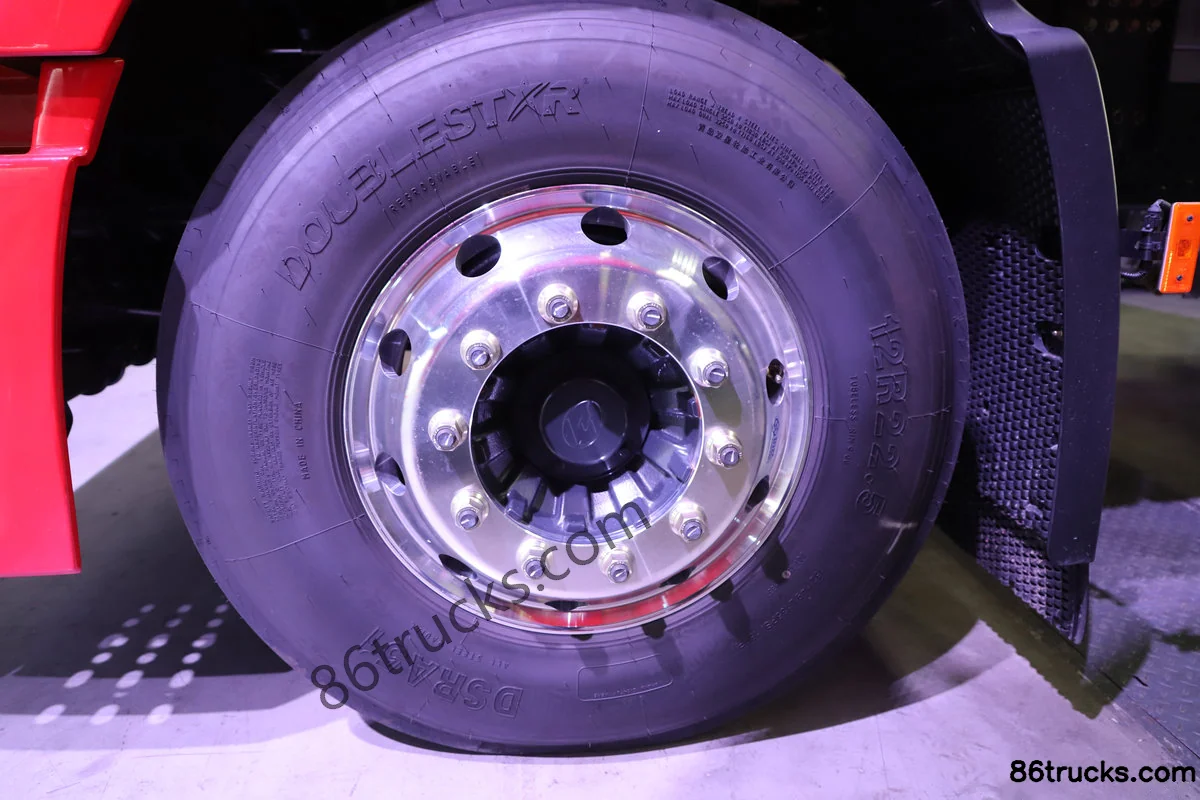

Tire Size: 12R22.5 18PR
Number of tires: 10pcs
Control configuration
ABS:
Stability control system:
ASR traction control:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Electric Heated Rearview Mirror:
Remote key:
Electronic Central Lock:
Multimedia features
Bluetooth / hands-free calling:
lighting configuration
daytime running lights:
Service brake
hydraulic retarder:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):
Forward Collision Warning (FCW):
Lane Departure Warning System (LDWS):
AEB automatic emergency braking system:

Photos

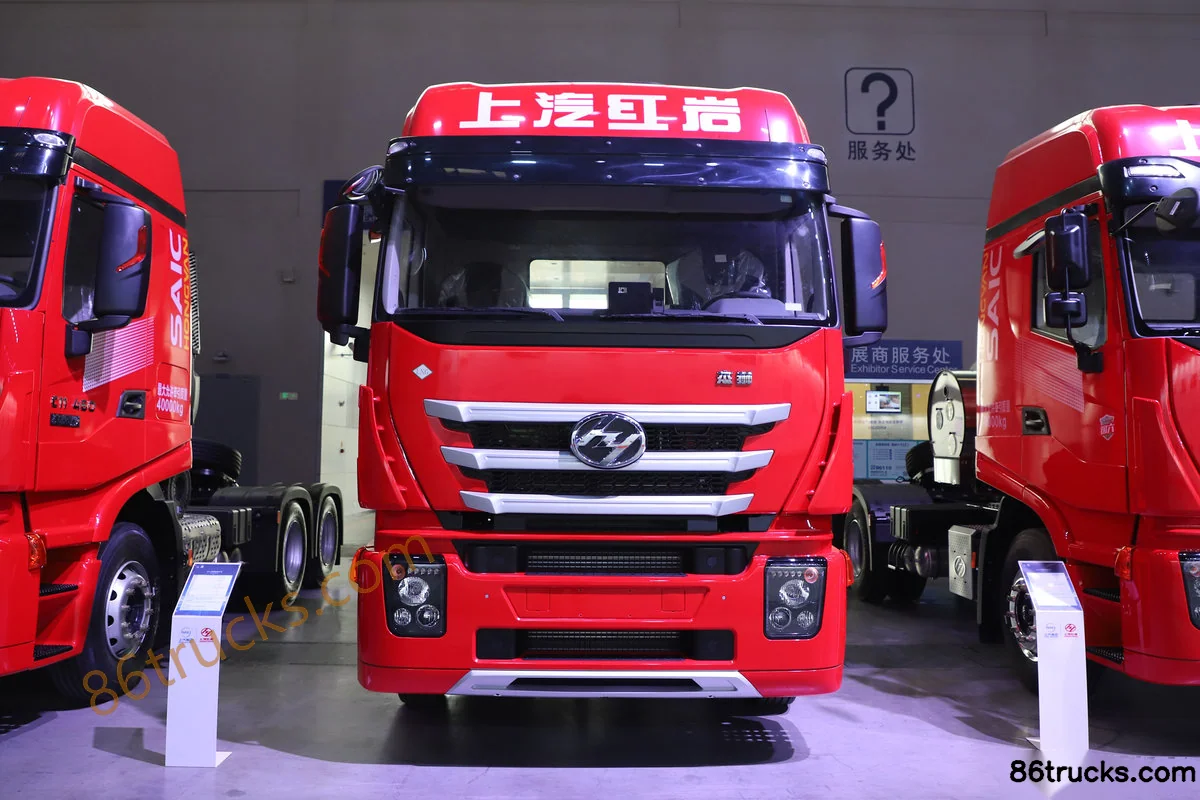

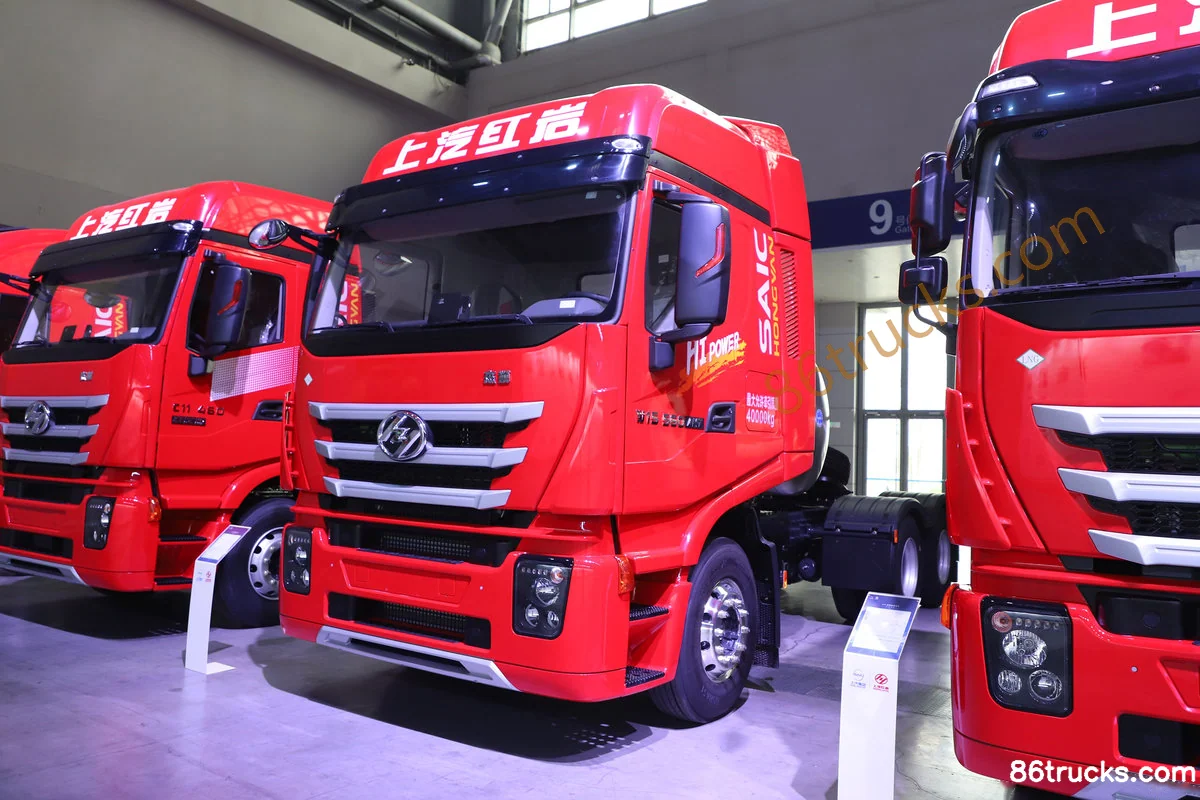

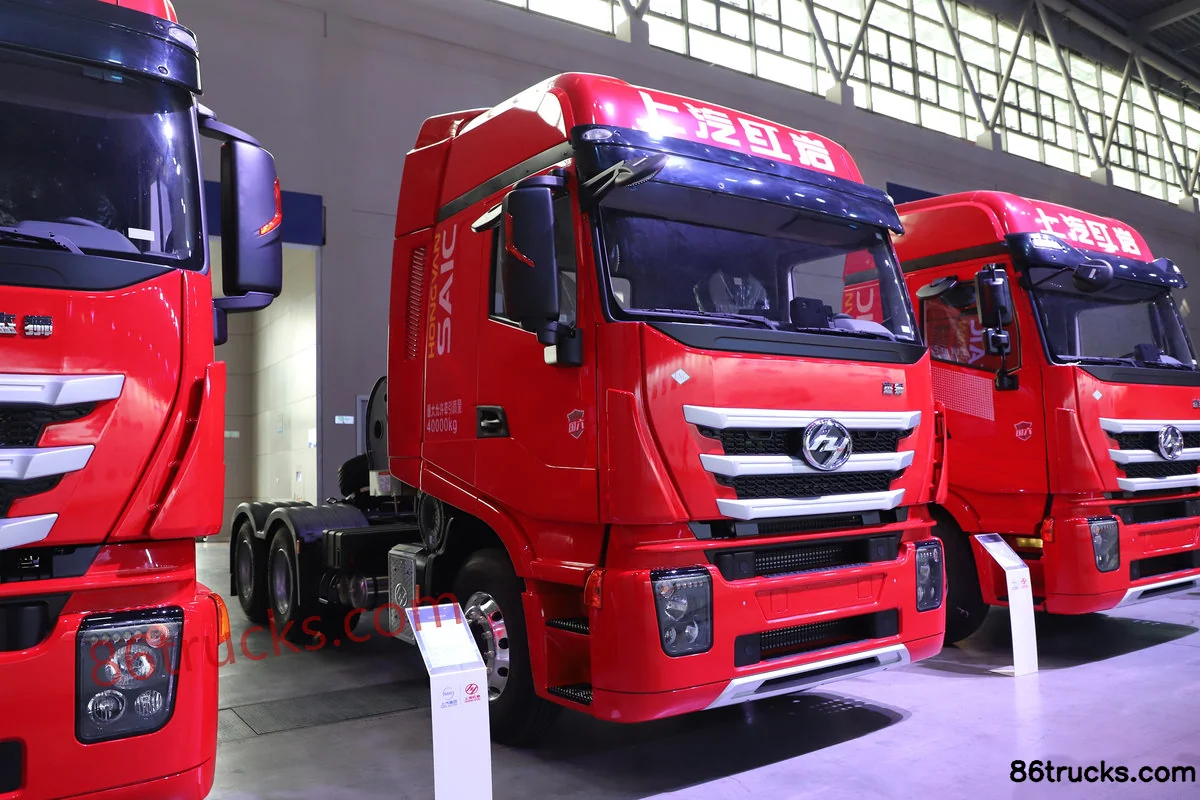

Exterior3

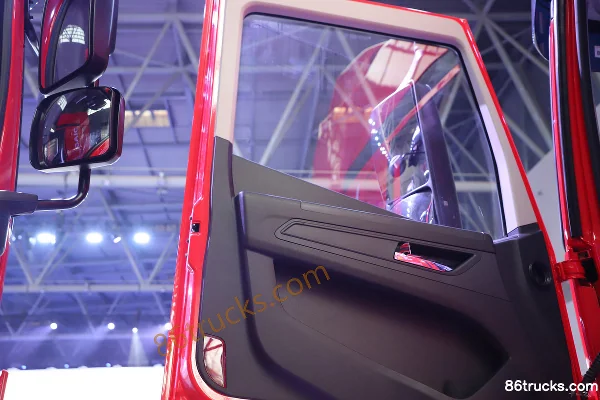

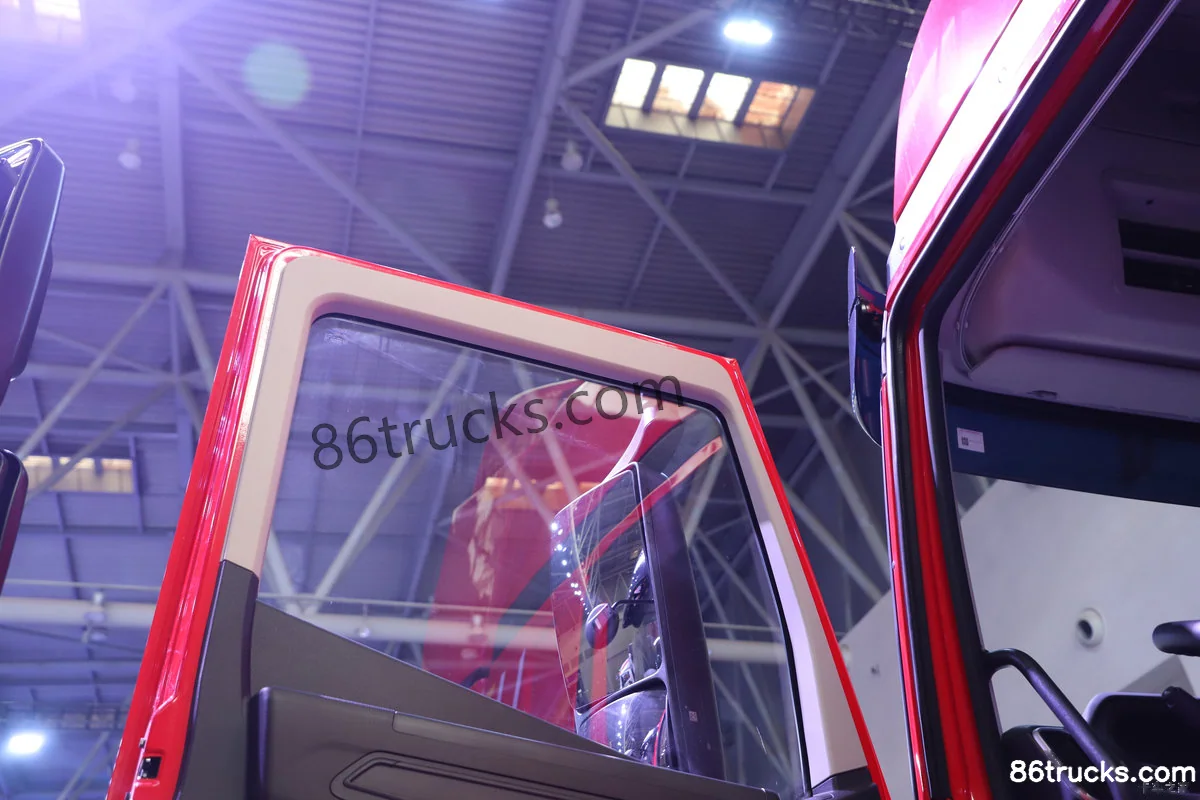

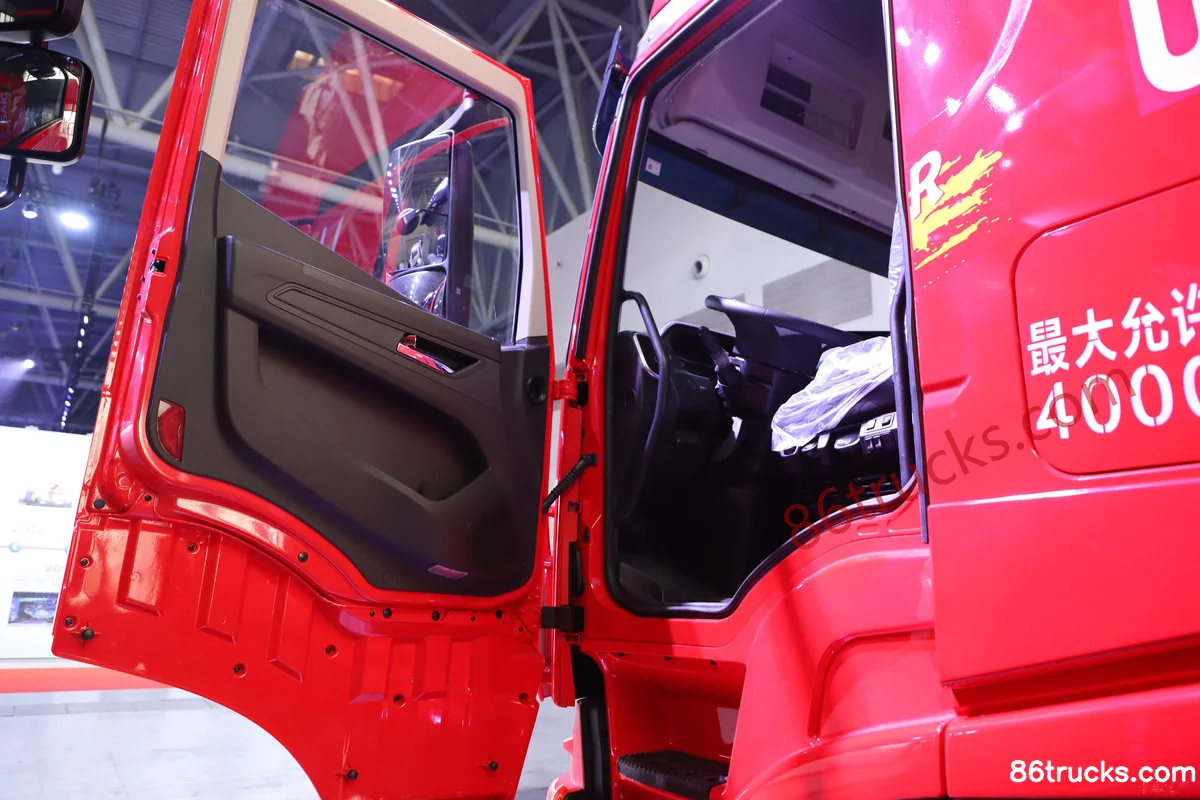

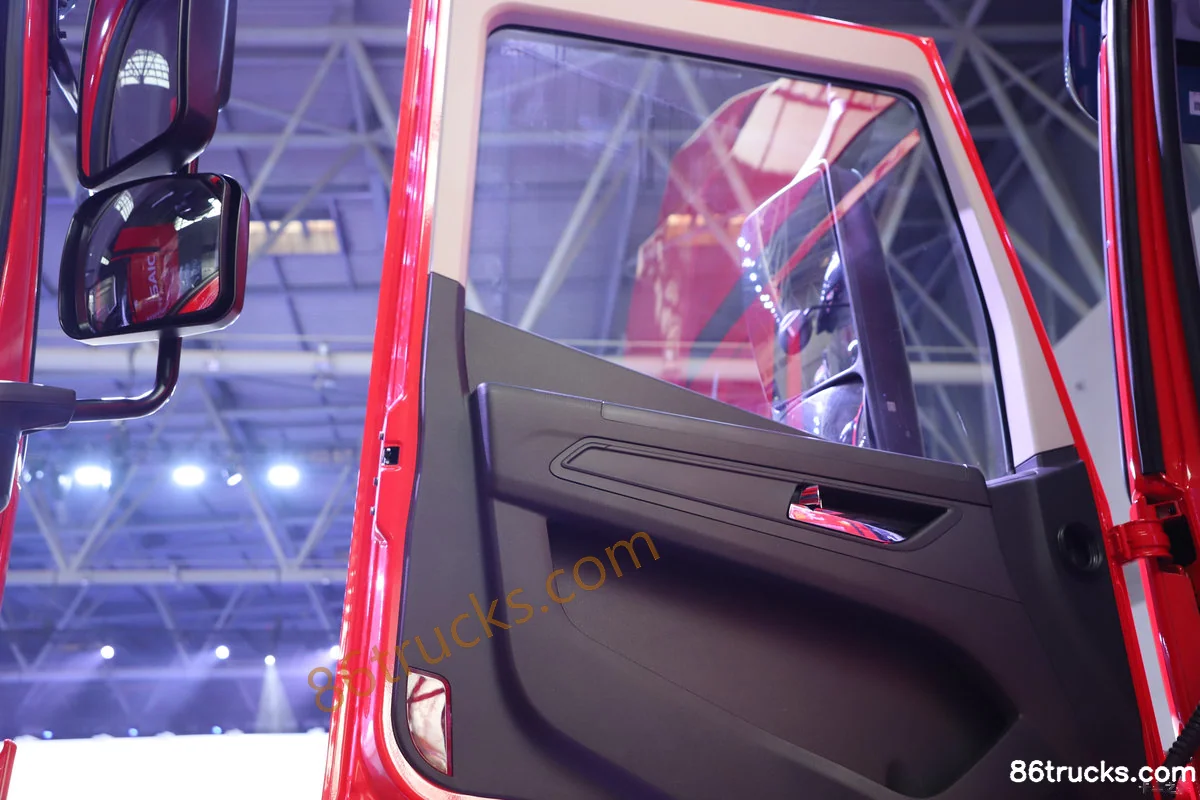

Cab3

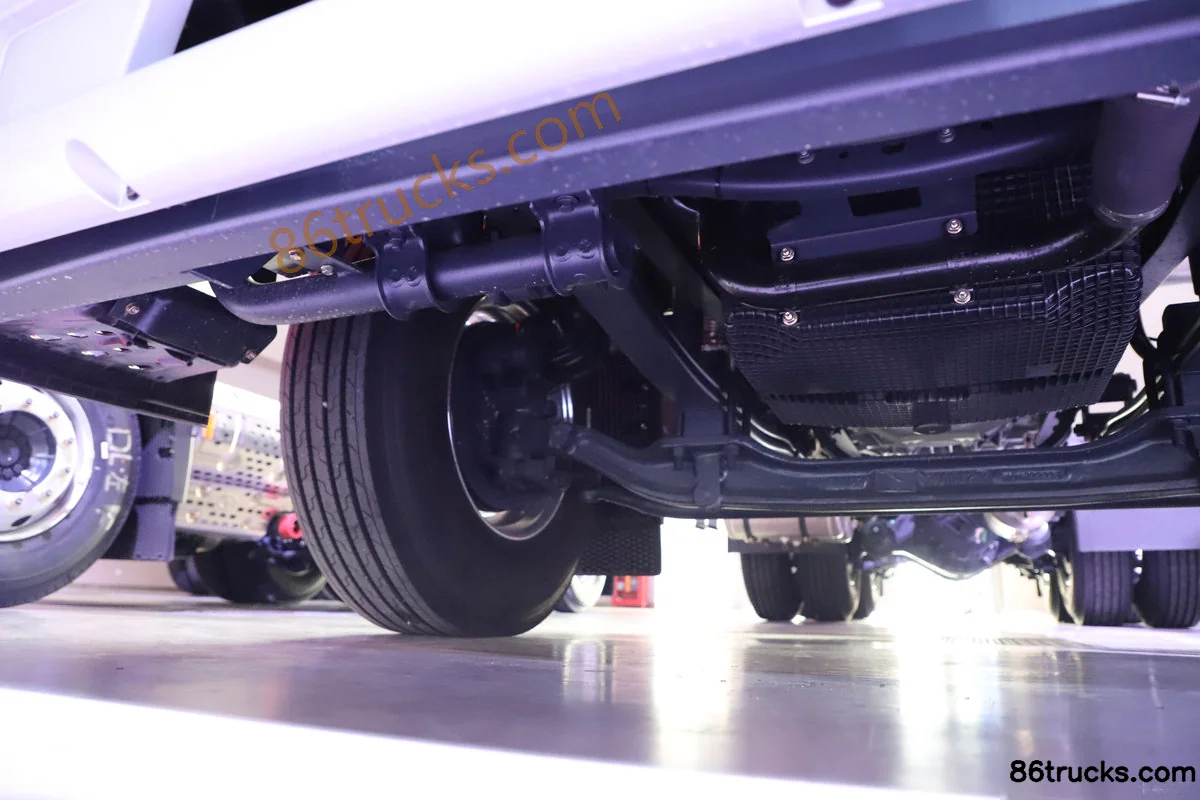

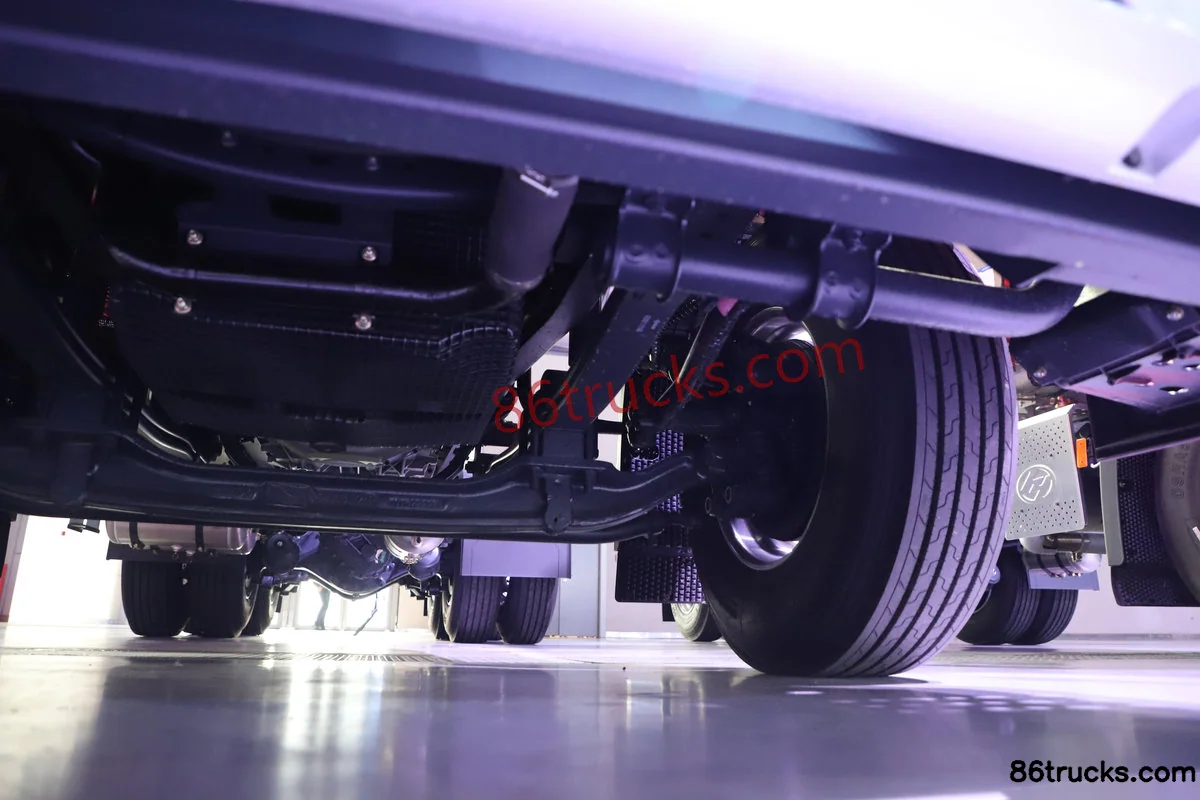

Chassis3

9 photos

FAQ

What emission standard does SAIC Hongyan Genlyon Standard Load Version 14.6L LNG 560 hp 6X4(10 wheels) Fast Gear 16-Speed AMT Automatic High Roof Tractor Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SAIC Hongyan Genlyon Standard Load Version 14.6L LNG 560 hp 6X4(10 wheels) Fast Gear 16-Speed AMT Automatic High Roof Tractor Truck?

Key specs of SAIC Hongyan Genlyon Standard Load Version 14.6L LNG 560 hp 6X4(10 wheels) Fast Gear 16-Speed AMT Automatic High Roof Tractor Truck: Drive: 6x4; Horsepower: 560 hp; Emission: China VI; Fuel: LNG (liquefied natural gas); Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SAIC Hongyan Genlyon Standard Load Version 14.6L LNG 560 hp 6X4(10 wheels) Fast Gear 16-Speed AMT Automatic High Roof Tractor Truck suited for?

SAIC Hongyan Genlyon Standard Load Version 14.6L LNG 560 hp 6X4(10 wheels) Fast Gear 16-Speed AMT Automatic High Roof Tractor Truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does SAIC Hongyan Genlyon Standard Load Version 14.6L LNG 560 hp 6X4(10 wheels) Fast Gear 16-Speed AMT Automatic High Roof Tractor Truck differ from other variants in the same series?

SAIC Hongyan Genlyon Standard Load Version 14.6L LNG 560 hp 6X4(10 wheels) Fast Gear 16-Speed AMT Automatic High Roof Tractor Truck belongs to SAIC Hongyan Genlyon Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SAIC Hongyan Genlyon Standard Load Version 14.6L LNG 560 hp 6X4(10 wheels) Fast Gear 16-Speed AMT Automatic High Roof Tractor Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SAIC Hongyan Genlyon Standard Load Version 14.6L LNG 560 hp 6X4(10 wheels) Fast Gear 16-Speed AMT Automatic High Roof Tractor Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
