FAW Jiefang Qingdao JK6 Medium Truck 190 hp 4X2(6 wheels) 7.7m Refrigerated Truck

Export reference
From $34,722
MSRP ¥25M CNY
Horsepower: 190
Emission: China VI
Fuel: Diesel
Curb Weight:: 9.875ton
Wheelbase:: 5600mm
Tire Size:: 275/80R22.5 18PR
Fuel tank capacity: 300L
Rated payload: 7.93ton
Drive 4X2 (6 wheels)
Cargo box dimensions: 7.7×2.44×2.5m

Overview

The FAW Jiefang Qingdao JK6 Medium Truck 190 hp 4X2(6 wheels) 7.7m Refrigerated Truck is a Refrigerated Truck featuring 7.7×2.44×2.5m cargo body, 300L volume, 7.93t payload and JK6 Mid-Roof Full-Float Cab cab. On the powertrain side, it comes with 190 hp, 4X2 (6 wheels) drive, China VI emissions and Diesel fuel.

China VI 190 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10.05×2.6×3.795m
Drive type: 4X2
Truck Type: Refrigerated Truck
Wheelbase: 5600mm
Vehicle origin: Qingdao, Shandong
Front track width: 1938mm
rear track: 1860mm
Curb Weight: 9.875ton
Rated payload: 7.93ton
GVWR: 18ton
Max. speed: 89km/h
Remarks: Standard: ETV valve, cylindrical aftertreatment, 100Ah battery
Front/rear suspension: 1.41/3.04m
Energy Type: Diesel
Engine parameters
Engine Model: XichaiCA4DLD-19E6
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 4.4L
Emission standard: China VI
Max output power: 140kW
Max hp: 190Horsepower
Max torque: 720N·m
Rated speed: 2500rpm
Cargo box parameters
Cargo box dimensions: 7.7×2.44×2.5m
Cargo box width: 2.44m
Cargo box height: 2.5m
Body Parameters
Vehicle certification code: CA5181XLCP28K1L5E6A80
Body Brand: FAW Jiefang Qingdao
Chassis Specs
Chassis Brand: FAW Jiefang Qingdao
Chassis Series: JK6
Chassis Model: CA5180XXYP28K1L5BE6A80
Front axle description: F4N front axle
Frame Dimensions: 237*75*6.5mm
rear axle description: 378 cast axle
Axle ratio: 4.875
Leaf spring count: 7/7+3
clutch: Φ395
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear8JS75TC
Cab parameters
Cab: JK6 Mid-Roof Full-Float Cab
fuel tank
Fuel tank capacity: 300L
Tire
Tire Size: 275/80R22.5 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Electronic Central Lock:
Exterior features
Aluminum air tank:
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

Photos

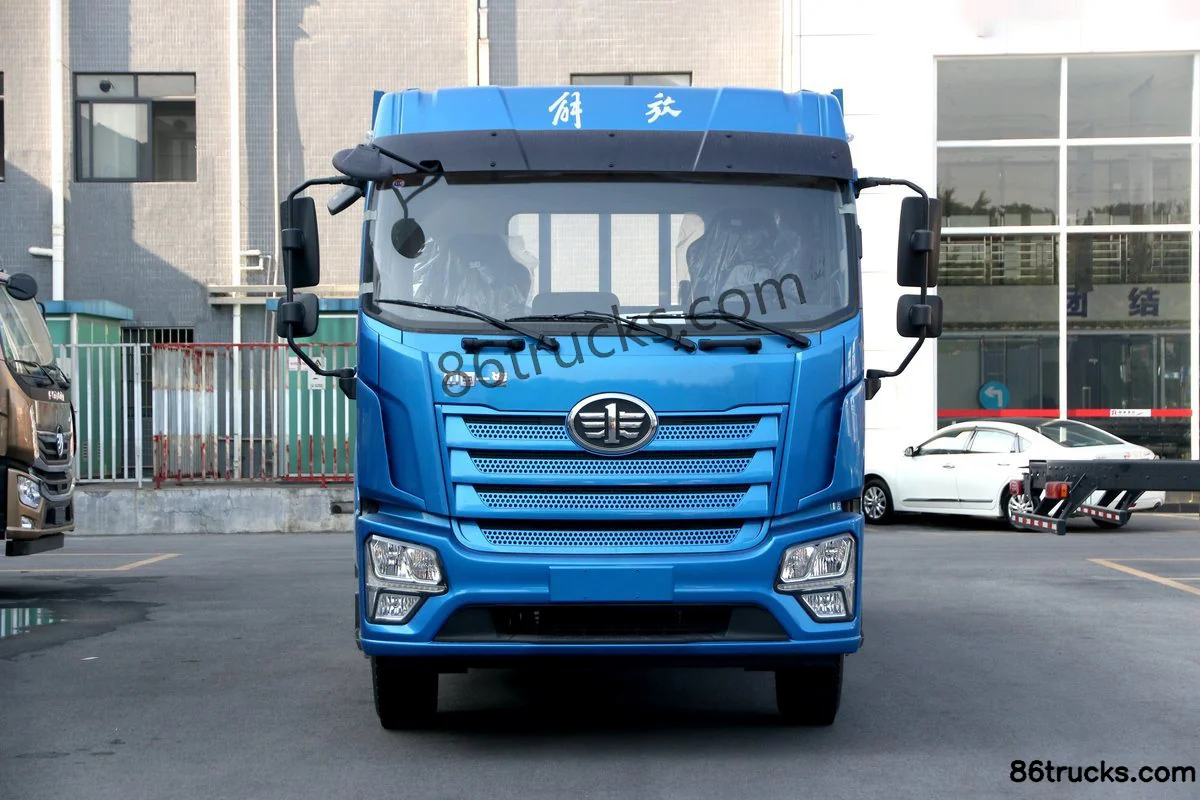

Exterior1

1 photos

FAQ

What is the export price of FAW Jiefang Qingdao JK6 Medium Truck 190 hp 4X2(6 wheels) 7.7m Refrigerated Truck, and what does it include?

FAW Jiefang Qingdao JK6 Medium Truck 190 hp 4X2(6 wheels) 7.7m Refrigerated Truck export reference is about From $34,722; MSRP is ¥25M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Qingdao JK6 Medium Truck 190 hp 4X2(6 wheels) 7.7m Refrigerated Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao JK6 Medium Truck 190 hp 4X2(6 wheels) 7.7m Refrigerated Truck?

Key specs of FAW Jiefang Qingdao JK6 Medium Truck 190 hp 4X2(6 wheels) 7.7m Refrigerated Truck: Drive: 4x2; Horsepower: 190 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao JK6 Medium Truck 190 hp 4X2(6 wheels) 7.7m Refrigerated Truck suited for?

FAW Jiefang Qingdao JK6 Medium Truck 190 hp 4X2(6 wheels) 7.7m Refrigerated Truck is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Qingdao JK6 Medium Truck 190 hp 4X2(6 wheels) 7.7m Refrigerated Truck differ from other variants in the same series?

FAW Jiefang Qingdao JK6 Medium Truck 190 hp 4X2(6 wheels) 7.7m Refrigerated Truck belongs to FAW Jiefang QingdaoJK6 (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao JK6 Medium Truck 190 hp 4X2(6 wheels) 7.7m Refrigerated Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao JK6 Medium Truck 190 hp 4X2(6 wheels) 7.7m Refrigerated Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
