JAC Gallop A5W III Heavy Truck Classic Edition 400 hp 8X4(12 wheels) 9.45 m Refrigerated Truck

Export reference

MSRP N/A

Emission: China VI

Fuel: Diesel

Curb Weight:: 13.5ton

Wheelbase:: 2100+4300+1350mm

Tire Size:: 12R22.5 16PR

Cab dimensions:: 12×2.6×3.99m

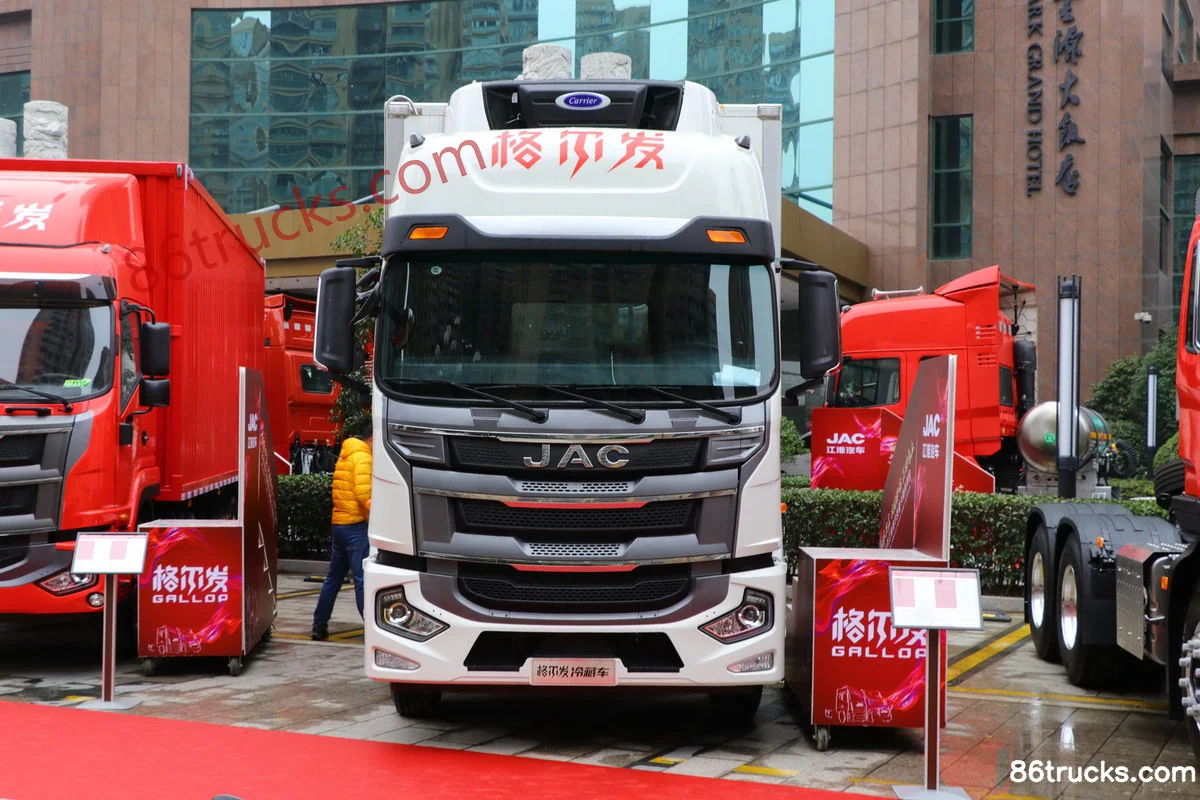

JAC Gallop A5W III Heavy Truck Classic Edition 400 hp 8X4(12 wheels) 9.45 m Refrigerated Truck exterior

View more photos (1)

Rated payload: 16.37ton

Drive 8X4 (12 wheels)

Cargo box dimensions: 9.45×2.42×2.46m

Horsepower 400

Overview

The JAC Gallop A5W III Heavy Truck Classic Edition 400 hp 8X4(12 wheels) 9.45 m Refrigerated Truck is a Refrigerated Truck featuring 9.45×2.42×2.46m cargo body, 16.37t payload, A5WIII Long-Haul Home cab and 2100+4300+1350mm wheelbase. On the powertrain side, it comes with 400 hp, 8X4 (12 wheels) drive, China VI emissions and Diesel fuel.

China VI 400 Diesel 8X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info

Cab dimensions: 12×2.6×3.99m

Truck Type: Refrigerated Truck

Drive type: 8X4

Vehicle origin: Hefei, Anhui

Wheelbase: 2100+4300+1350mm

Front track width: 2030/2030mm

rear track: 1840/1840mm

Curb Weight: 13.5ton

Rated payload: 16.37ton

Max. speed: 100km/h

Remarks: Optional ratio 4.111

Front/rear suspension: 1.495/2.755m

Energy Type: Diesel

Engine parameters

Engine Model: WeichaiWP10H400E62

Number of cylinders: 6cylinder

fuel type: Diesel

Displacement: 9.5L

Emission standard: China VI

Max output power: 294kW

Max hp: 400Horsepower

Max torque: 1900N·m

Rated speed: 1900rpm

Engine Type: Inline, direct injection, water-cooled, 4-stroke, turbocharged, intercooled, electronically controlled high-pressure common rail, Hi+SCR

Cargo box parameters

Cargo box dimensions: 9.45×2.42×2.46m

Cargo box width: 2.42m

Cargo box height: 2.46m

Body Parameters

Vehicle certification code: HFC5311XLCP1K5H45S

Body Brand: JAC Gallop

Chassis Specs

Chassis Brand: JAC Gallop

Chassis Series: A5

Chassis Model: HFC1311P1K5H45CS

Frame Dimensions: 280×80×8mm

rear axle description: 440

Axle ratio: 3.7

Leaf spring count: 3/3/12,9/9/12,3/3/4

Maintenance-free wheel end:

Transmission Parameters

Number of gears: 12Gear

Transmission Model: Fast Gear12JSD180TA

Cab parameters

Cab: A5WIII Long-Haul Home

Tire

Tire Size: 12R22.5 16PR

Number of tires: 4pcs

Control configuration

ABS:

Stability control system:

EBS electronic braking system:

Inter-axle Differential Lock:

interior configuration

Steering Wheel Material: leather

Multifunction steering wheel:

AC control type: Automatic

Independent Heater:

Power Windows:

Power Mirrors:

Electric Heated Rearview Mirror:

Power interface:

Reverse Radar:

Seat material: leather

Reverse Camera:

Remote key:

Electronic Central Lock:

Exterior features

Air deflector:

Aluminum air tank:

Diesel primary filter heating:

Multimedia features

Center Console Color Screen:

GPS/Beidou driving recorder:

External audio input (AUX/USB/iPod etc.):

lighting configuration

Front fog lamp:

daytime running lights:

Headlight height adjustment:

LED taillight:

Service brake

Brake Type: Air brake

hydraulic retarder:

Front wheel brake: Drum Type

Rear Wheel Brake: Drum Type

smart configuration

Telematics System:

Cruise control (CCS):

Forward Collision Warning (FCW):

Emergency Brake Assist (EBA):

adaptive cruise control (ACC):

Tire Pressure Monitoring System (TPMS):

Lane change assist (ALC):

Fatigue driving monitoring:

Photos

Exterior1

1 photos

FAQ

What emission standard does JAC Gallop A5W III Heavy Truck Classic Edition 400 hp 8X4(12 wheels) 9.45 m Refrigerated Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop A5W III Heavy Truck Classic Edition 400 hp 8X4(12 wheels) 9.45 m Refrigerated Truck?

Key specs of JAC Gallop A5W III Heavy Truck Classic Edition 400 hp 8X4(12 wheels) 9.45 m Refrigerated Truck: Drive: 8x4; Horsepower: 400 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop A5W III Heavy Truck Classic Edition 400 hp 8X4(12 wheels) 9.45 m Refrigerated Truck suited for?

JAC Gallop A5W III Heavy Truck Classic Edition 400 hp 8X4(12 wheels) 9.45 m Refrigerated Truck is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Gallop A5W III Heavy Truck Classic Edition 400 hp 8X4(12 wheels) 9.45 m Refrigerated Truck differ from other variants in the same series?

JAC Gallop A5W III Heavy Truck Classic Edition 400 hp 8X4(12 wheels) 9.45 m Refrigerated Truck belongs to JAC Gallop A5 Heavy Truck (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop A5W III Heavy Truck Classic Edition 400 hp 8X4(12 wheels) 9.45 m Refrigerated Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop A5W III Heavy Truck Classic Edition 400 hp 8X4(12 wheels) 9.45 m Refrigerated Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
