Beiben V3 Heavy Truck Standard Load Edition 25T 6X4(10 wheels) Electric Tractor Truck

Export reference
MSRP N/A
Front axle allowable load:: 7000kg
Wheelbase:: 3800+1350mm
Model code (announced):: ND4250BBXJ7Z02BEV
Front/rear track width:: Front track: 2045mm; Rear track: 1850/1850mm
Cab length:: 7.42m
GVWR:: 25ton
Beiben V3 Heavy Truck Standard Load Edition 25T 6X4(10 wheels) Electric Tractor Truck exterior
View more photos (9)
Drive 6X4 (10 wheels)
CLTC range: 210km
Motor 1 Brand: Tebest
Gross Trailer Weight: 37.87ton

Overview

The Beiben V3 Heavy Truck Standard Load Edition 25T 6X4(10 wheels) Electric Tractor Truck is a Heavy truck featuring 210km battery/range, Tebest motor, 6X4 (10 wheels) drive and 7000kg payload.

6X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): ND4250BBXJ7Z02BEV
Drive type: 6X4
Front/rear track width: Front track: 2045mm; Rear track: 1850/1850mm
Wheelbase: 3800+1350mm
Cab length: 7.42m
Cab width: 2.55m
Cab height: 3.35m
CLTC range: 210km
Gross Trailer Weight: 37.87ton
Curb Weight: 11ton
GVWR: 25ton
Max. speed: 80km/h
Origin: Baotou, Inner Mongolia
tonnage class: Heavy truck
Version: Standard Load Edition
Energy Type: Electric
electric motor
Motor 1 Brand: Tebest
Motor 1 Model: TZ400XSTPG06
Max torque: 2100N·m
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 220kW
Peak power: 360kW
Battery/Charging
Battery Brand: CATL
Battery capacity: 282kWh
Cab parameters
Cab: V3 long cab flat roof
seating capacity: 2Personnel
Chassis Specs
Front axle description: 7.5T
Front axle allowable load: 7000kg
rear axle description: 13t single reduction
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.286
Tire
Tire Size: 12R22.5 18PR
Number of tires: 10pcs
Control configuration
ABS:
ASR traction control:
interior configuration
AC control type: Manual
Power Windows:
Power Mirrors:
lighting configuration
Headlight height adjustment:

Photos

Exterior3

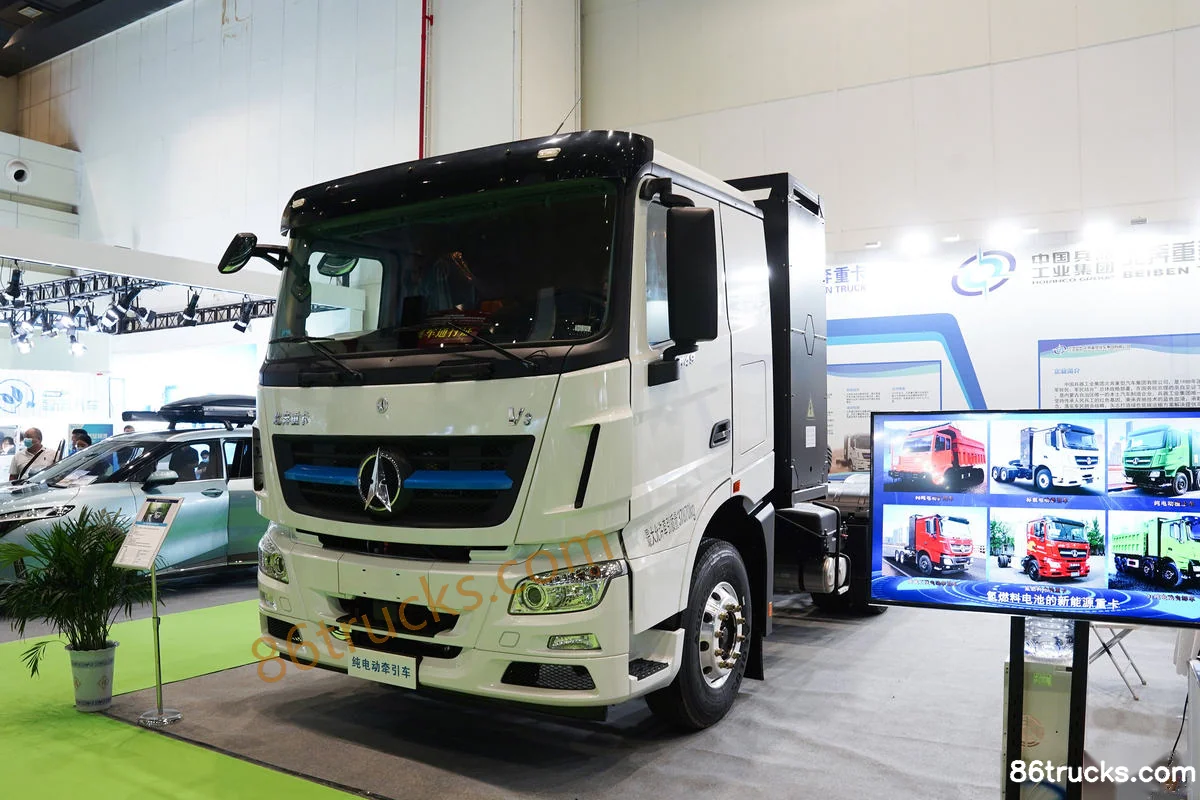

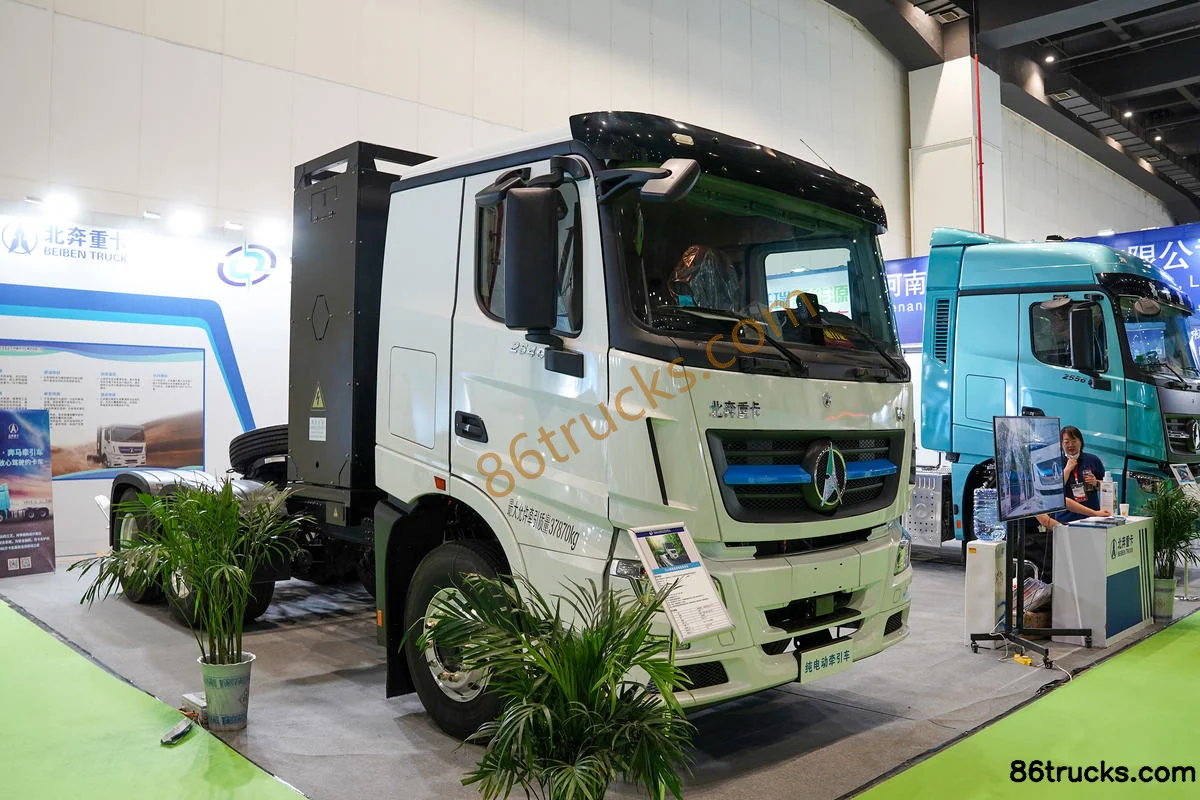

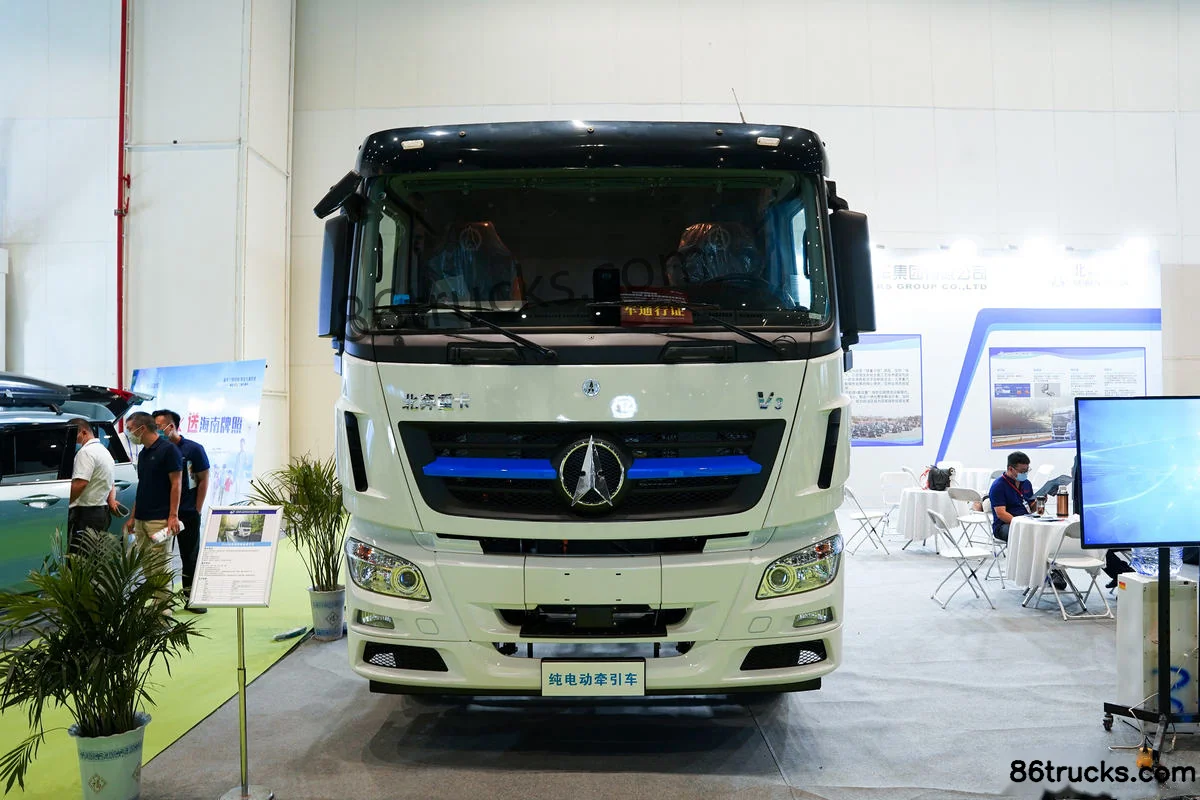

Beiben V3 Heavy Truck Standard Load Edition 25T 6X4(10 wheels) Electric Tractor Truck Exterior (1) | 86Trucks Beiben V3 Heavy Truck Standard Load Edition 25T 6X4(10 wheels) Electric Tractor Truck Exterior (2) | 86Trucks Beiben V3 Heavy Truck Standard Load Edition 25T 6X4(10 wheels) Electric Tractor Truck Exterior (3) | 86Trucks

Cab3

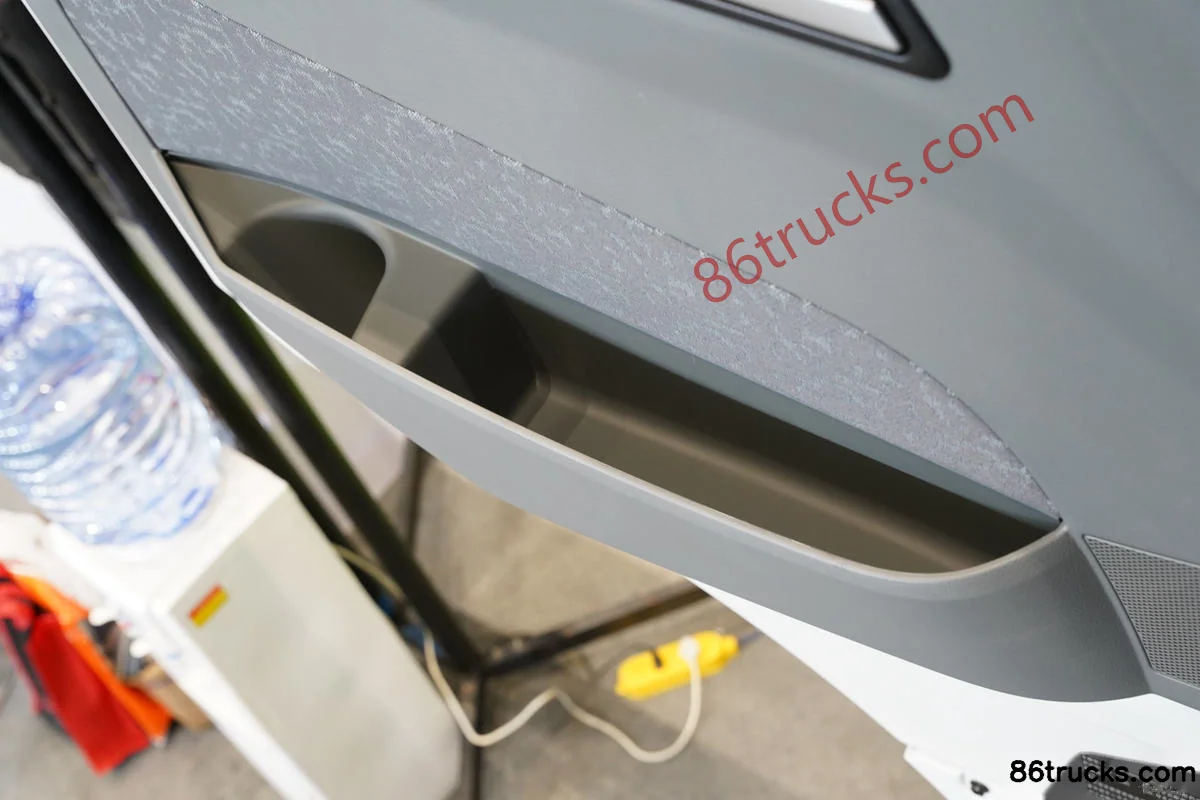

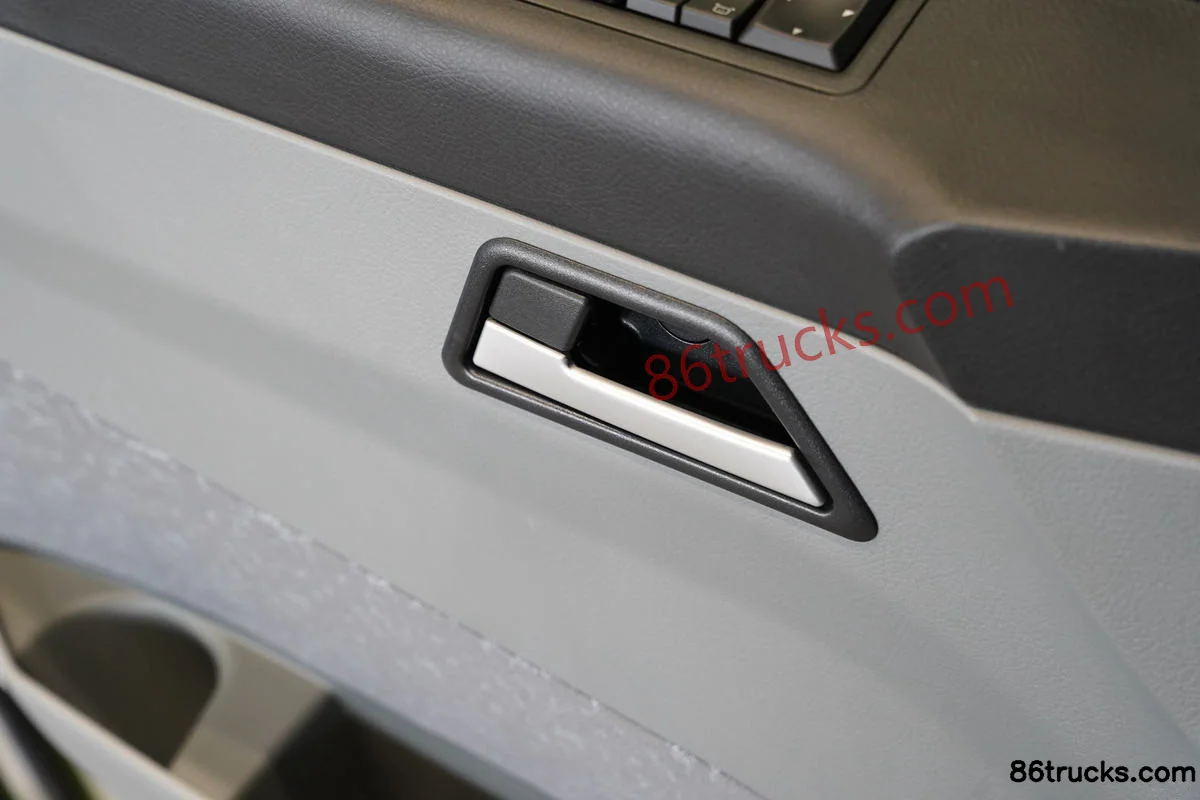

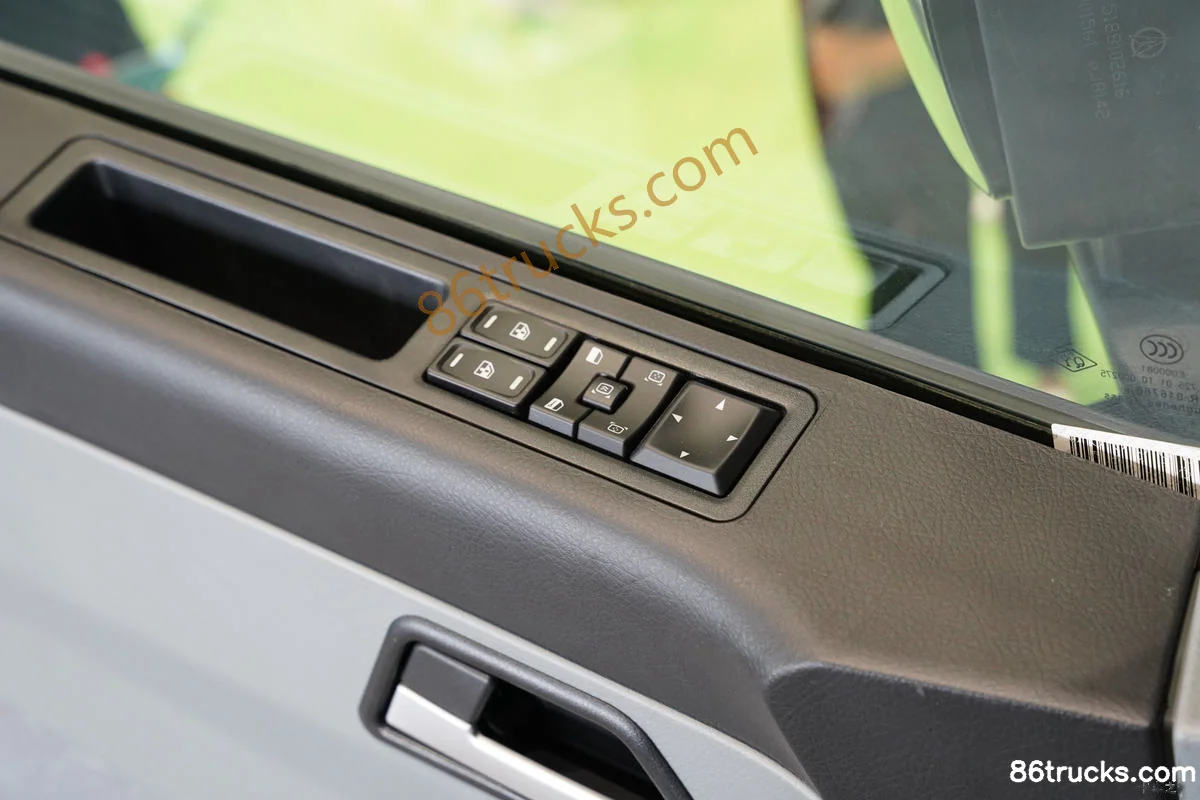

Beiben V3 Heavy Truck Standard Load Edition 25T 6X4(10 wheels) Electric Tractor Truck Cab (1) | 86Trucks Beiben V3 Heavy Truck Standard Load Edition 25T 6X4(10 wheels) Electric Tractor Truck Cab (2) | 86Trucks Beiben V3 Heavy Truck Standard Load Edition 25T 6X4(10 wheels) Electric Tractor Truck Cab (3) | 86Trucks

Chassis3

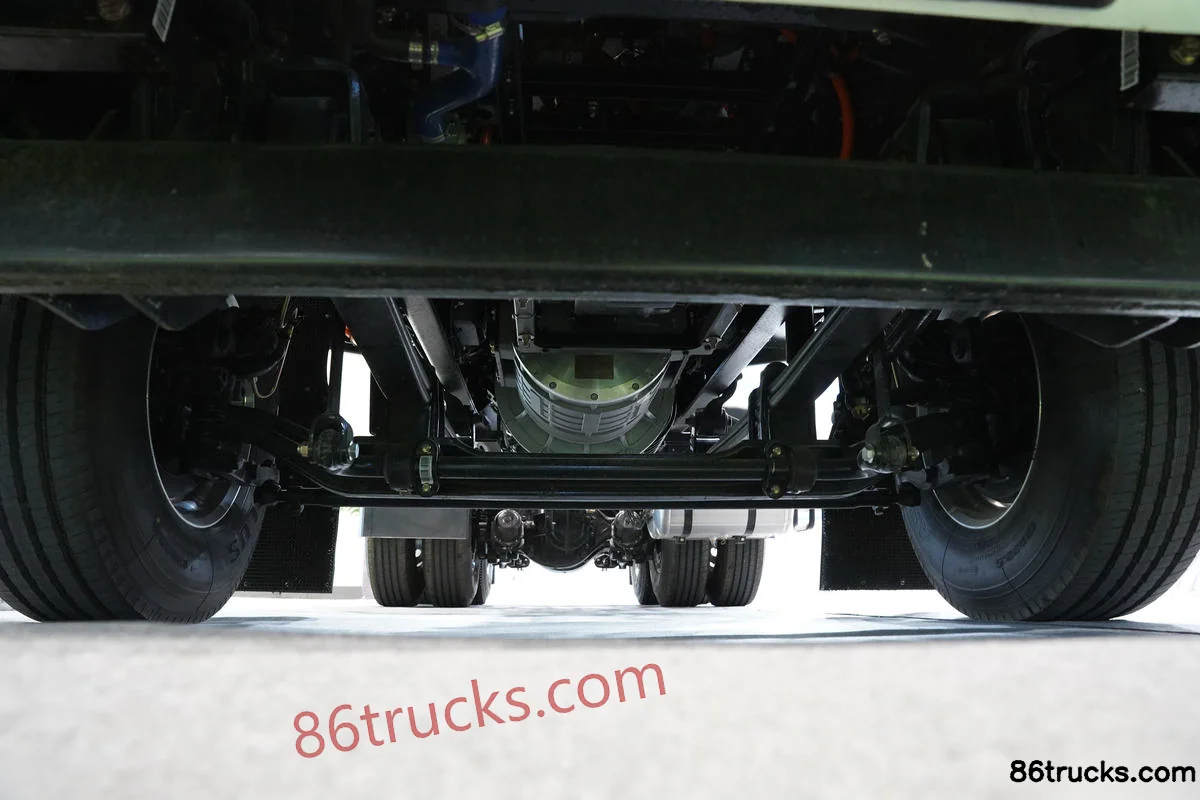

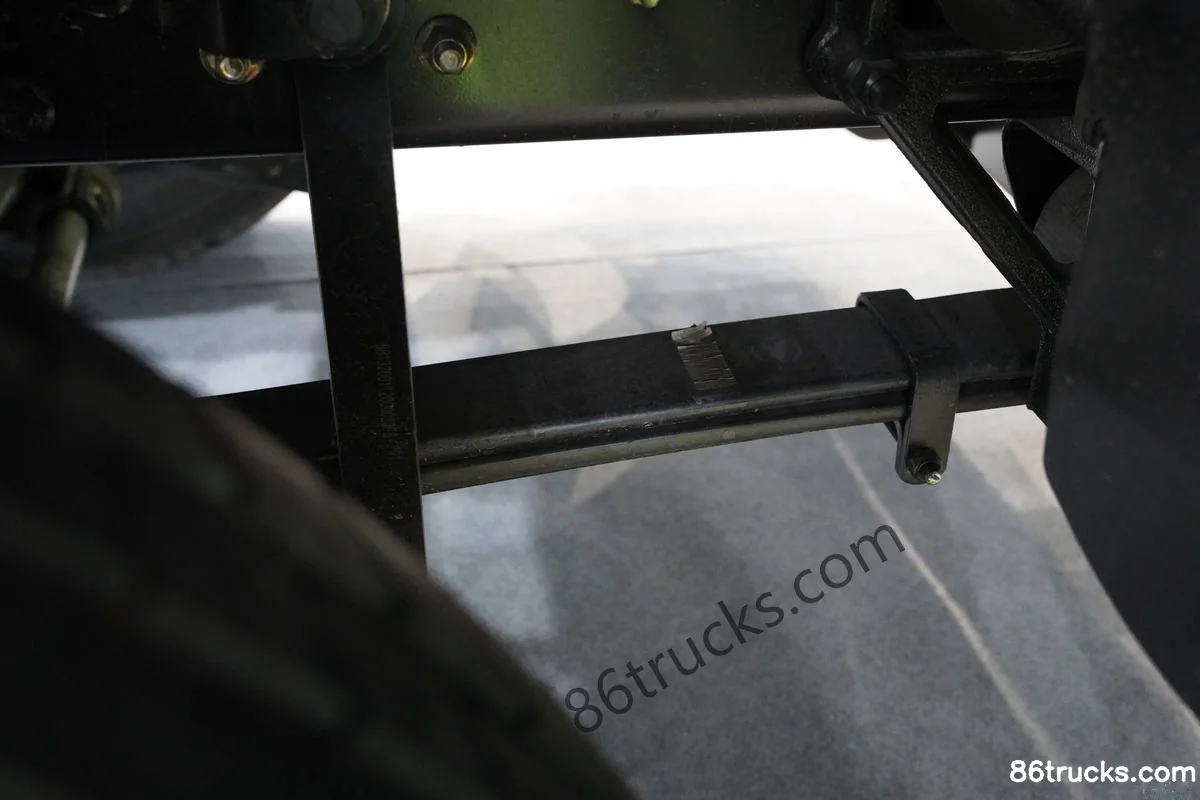

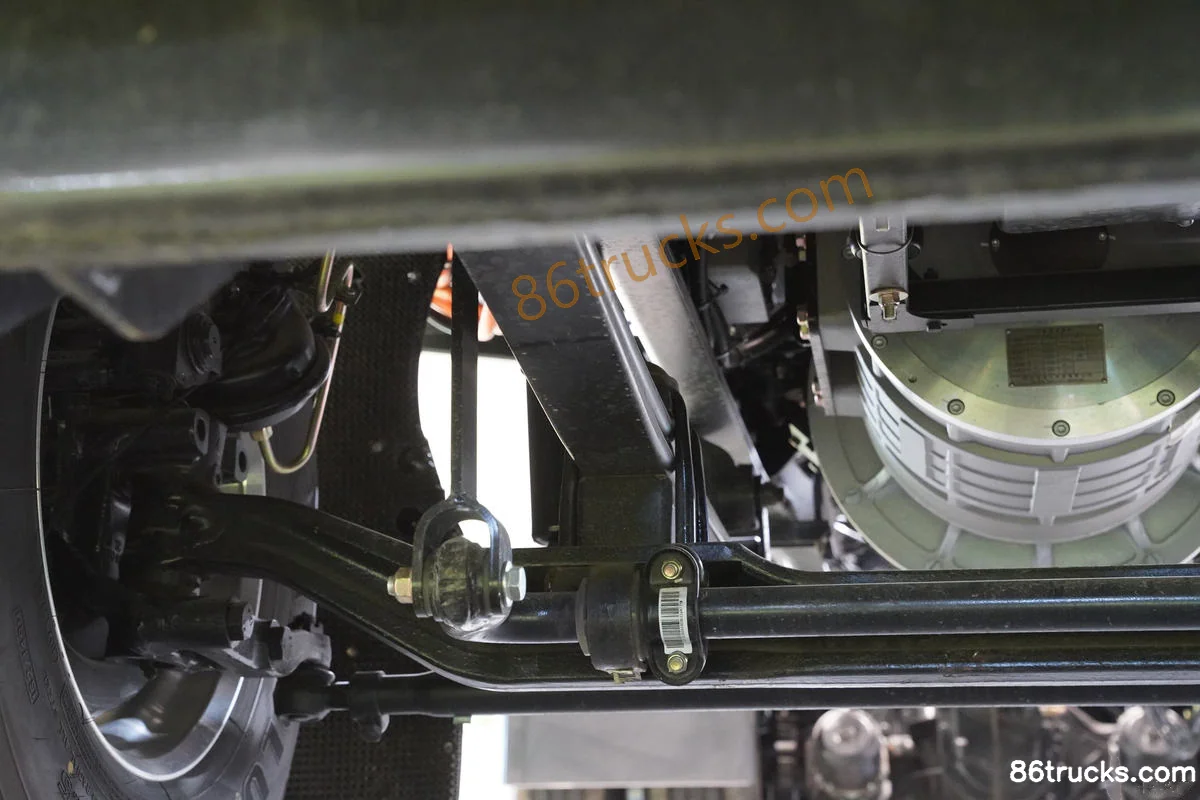

Beiben V3 Heavy Truck Standard Load Edition 25T 6X4(10 wheels) Electric Tractor Truck Chassis (1) | 86Trucks Beiben V3 Heavy Truck Standard Load Edition 25T 6X4(10 wheels) Electric Tractor Truck Chassis (2) | 86Trucks Beiben V3 Heavy Truck Standard Load Edition 25T 6X4(10 wheels) Electric Tractor Truck Chassis (3) | 86Trucks

9 photos

FAQ

What are the key specs of Beiben V3 Heavy Truck Standard Load Edition 25T 6X4(10 wheels) Electric Tractor Truck?

Key specs of Beiben V3 Heavy Truck Standard Load Edition 25T 6X4(10 wheels) Electric Tractor Truck: Drive: 6x4. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Beiben V3 Heavy Truck Standard Load Edition 25T 6X4(10 wheels) Electric Tractor Truck suited for?

Beiben V3 Heavy Truck Standard Load Edition 25T 6X4(10 wheels) Electric Tractor Truck is a Electric Tractor Truck model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Beiben V3 Heavy Truck Standard Load Edition 25T 6X4(10 wheels) Electric Tractor Truck differ from other variants in the same series?

Beiben V3 Heavy Truck Standard Load Edition 25T 6X4(10 wheels) Electric Tractor Truck belongs to Beiben V3 heavy truck (Electric Tractor Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Beiben V3 Heavy Truck Standard Load Edition 25T 6X4(10 wheels) Electric Tractor Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Beiben V3 Heavy Truck Standard Load Edition 25T 6X4(10 wheels) Electric Tractor Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
