King Long Jinwei Jieyun 117hp 2.2L Gasoline 2-Seat High-Roof Panel Van

Export reference
MSRP N/A
Curb Weight:: 1.599ton
Wheelbase:: 2890mm
Front tire specification:: 195/70 R15C
Rated payload:: 1.419ton
Displacement:: 2.2L
Model code (announced):: XMQ5030XXY76
King Long Jinwei Jieyun 117hp 2.2L Gasoline 2-Seat High-Roof Panel Van exterior
View more photos (9)
Drive rear-wheel drive
Horsepower 117
Emission China VI
Fuel gasoline

Overview

The King Long Jinwei Jieyun 117hp 2.2L Gasoline 2-Seat High-Roof Panel Van is a Van/Light Bus featuring rear-wheel drive drive, 117 hp, 3.418t GVW and China VI emissions. On the powertrain side, it comes with gasoline fuel.

China VI 117 gasoline rear-wheel drive

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): XMQ5030XXY76
Drive type: rear-wheel drive
Truck Type: Enclosed Van
Wheelbase: 2890mm
Vehicle origin: King Long
Cab length: 1.7m
Cab width: 5.27m
Cab height: 2.25m
Front track width: 1450mm
warranty policy: 3 years / 60,000 km
rear track: 1430mm
Curb Weight: 1.599ton
Rated payload: 1.419ton
GVWR: 3.418ton
Max. speed: 130km/h
grade: Small VAN (micro van)
Driver's license: A1,A2,B1,B2,C1
Front/rear suspension: 1.3/1.08m
Energy Type: gasoline
Engine parameters
Engine Model: V22H
Number of cylinders: 4cylinder
fuel type: gasoline
Displacement: 2.2L
Emission standard: China VI
Max output power: 86kW
Max hp: 117Horsepower
Max torque: 198N·m
Max torque speed: 2400-600rpm
Transmission Parameters
Number of gears: 5Gear
Transmission Model: 5-speed manual
Forward gears: 5Gear
Chassis Specs
steering assist type: hydraulic power steering
Front suspension type: Double wishbone independent suspension
Body structure: Load-bearing
rear suspension type: variable-section leaf spring
Chassis Structure: Load-bearing
power steering type: hydraulic power steering
Body Parameters
Cab structure: Load-bearing
Seat count: 2Seats
Fuel tank volume: 55L
Door Parameters
Number of Doors: 4
side door type: Manual Side Sliding
Body parameters
Max body depth: 3.24
Max body width: 1.555
Cargo Box Height: 1.635
Wheel brake
Front brake type: Disc
rear brake type: Drum Type
Front tire specification: 195/70 R15C
Rear Wheel Specification: 195/70 R15C
Safety features
Seat belt reminder:
Remote key:
Central door lock:
Control configuration
Brake force distribution (EBD/CBC etc.):
ABS:
interior configuration
Power-Adjustable Rearview Mirror:
Steering Wheel Material: ABS plastic
AC control type: Manual
Power Windows:
Reverse Radar:
Seat material: Fabric
Reverse Camera:
Multimedia features
External audio input (AUX/USB/iPod etc.):
lighting configuration
Front fog lamp:
Headlight height adjustment:

Photos

Exterior3

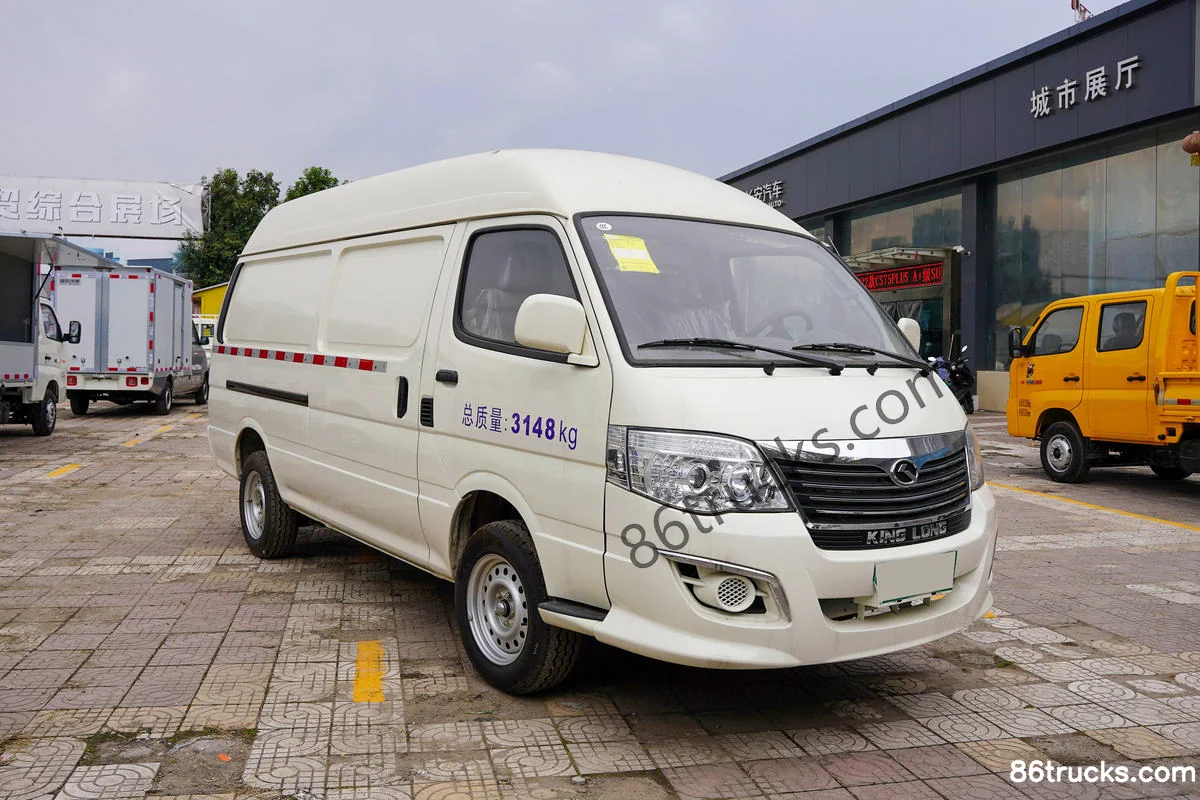

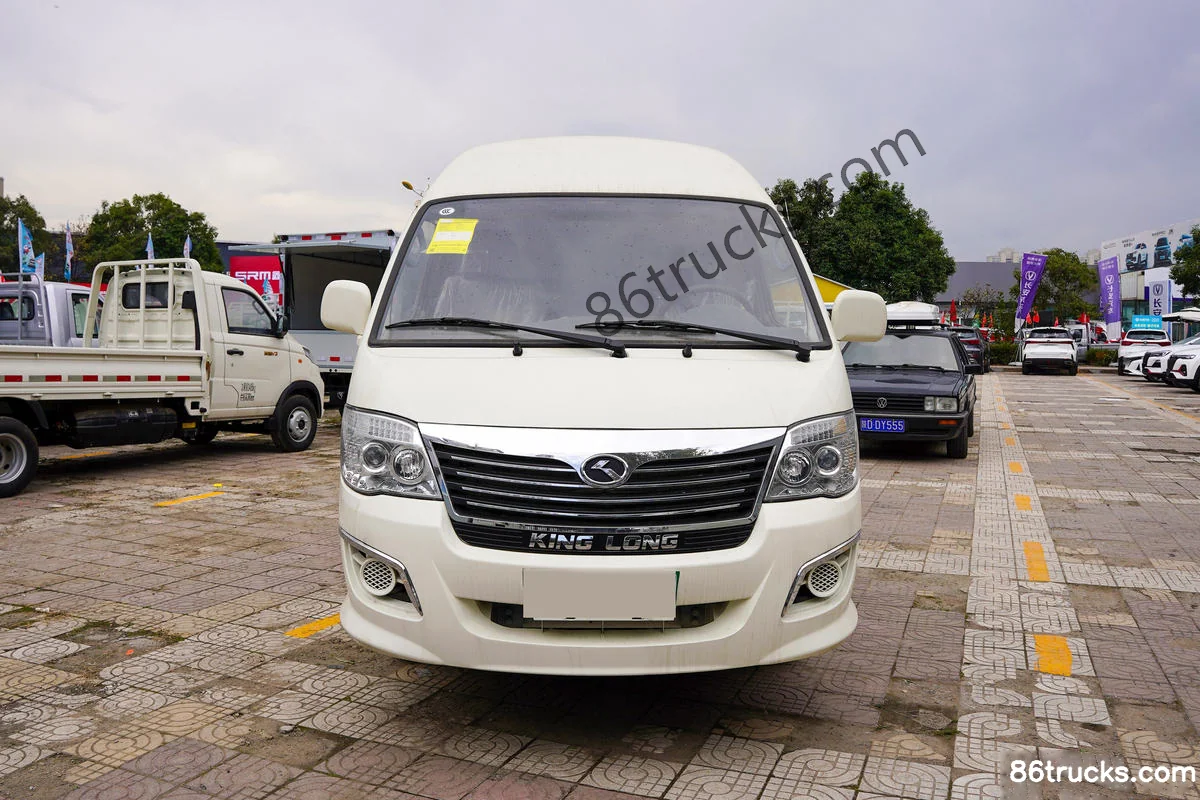

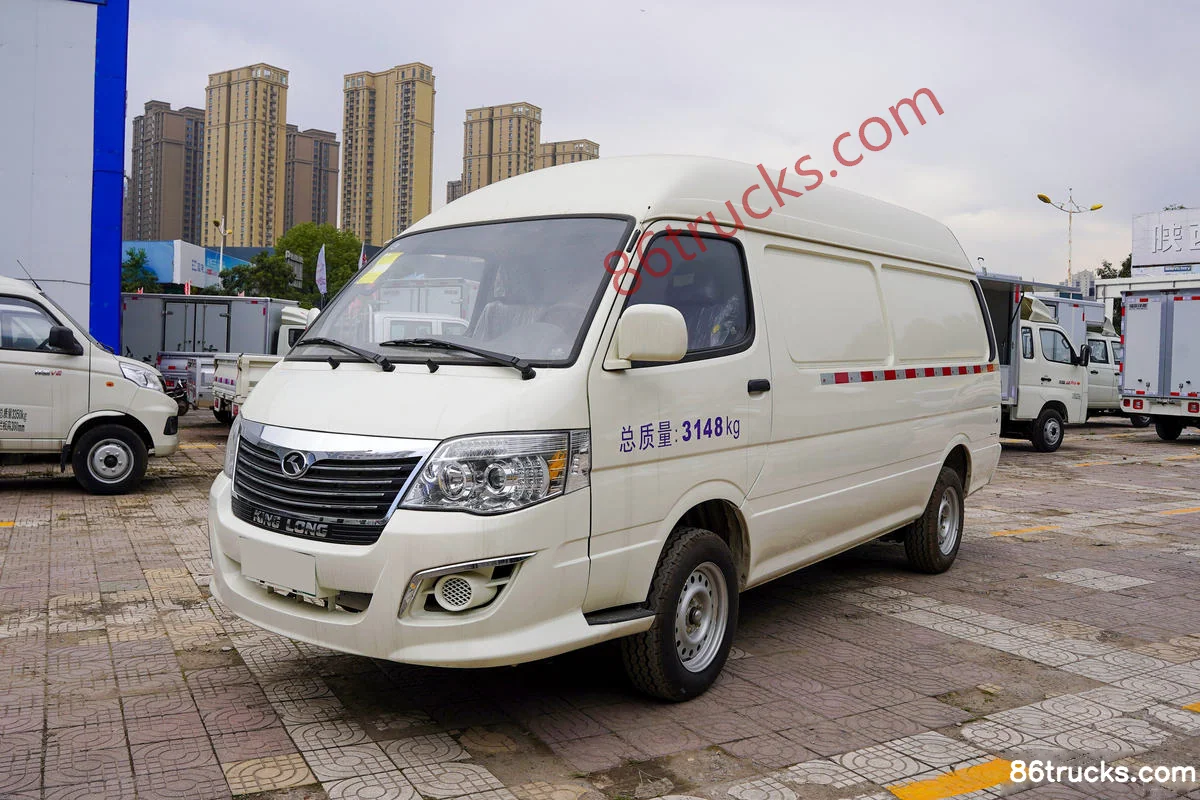

King Long Jinwei Jieyun 117hp 2.2L Gasoline 2-Seat High-Roof Panel Van Exterior (1) | 86Trucks King Long Jinwei Jieyun 117hp 2.2L Gasoline 2-Seat High-Roof Panel Van Exterior (2) | 86Trucks King Long Jinwei Jieyun 117hp 2.2L Gasoline 2-Seat High-Roof Panel Van Exterior (3) | 86Trucks

Cab3

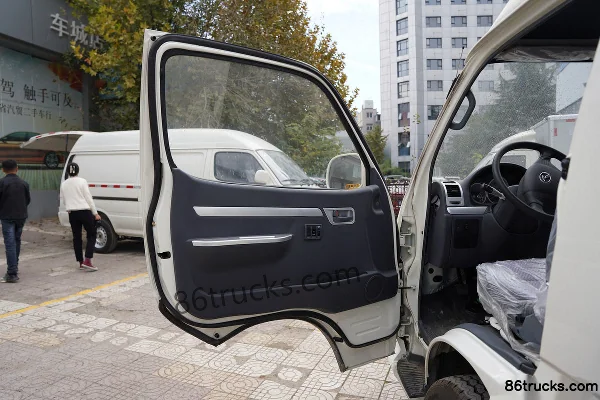

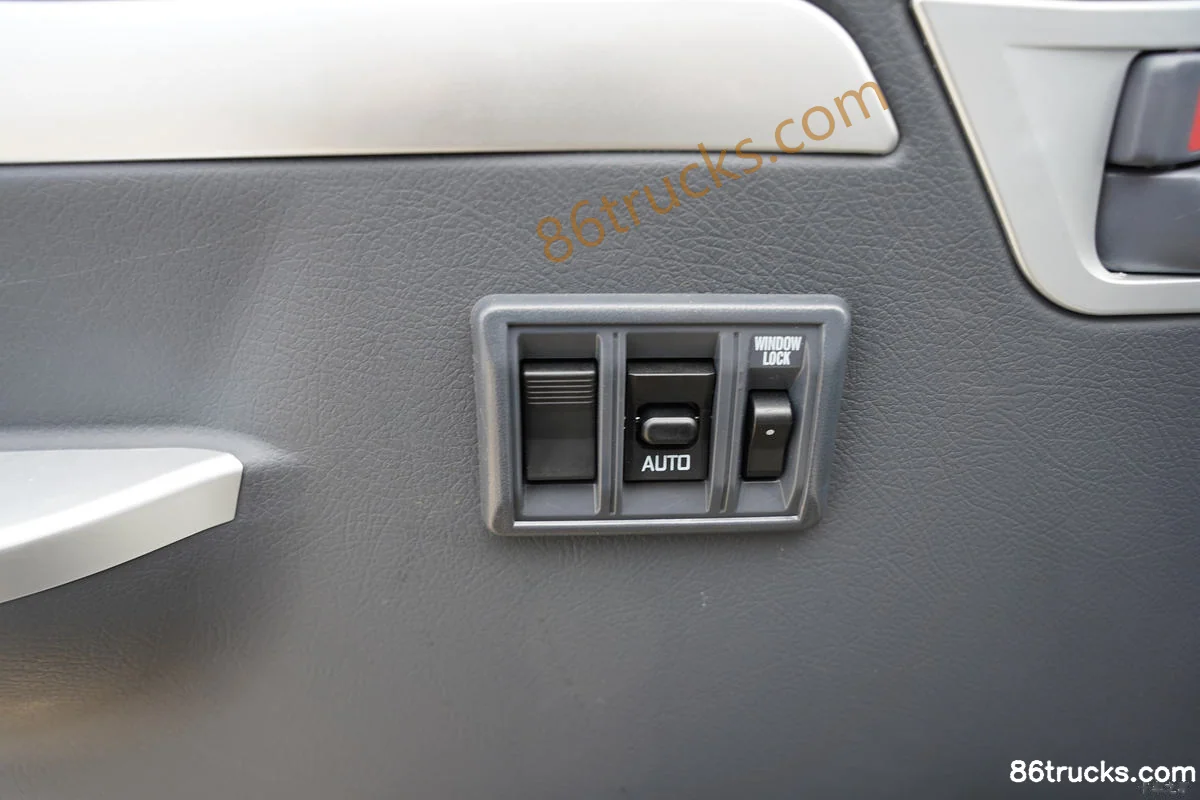

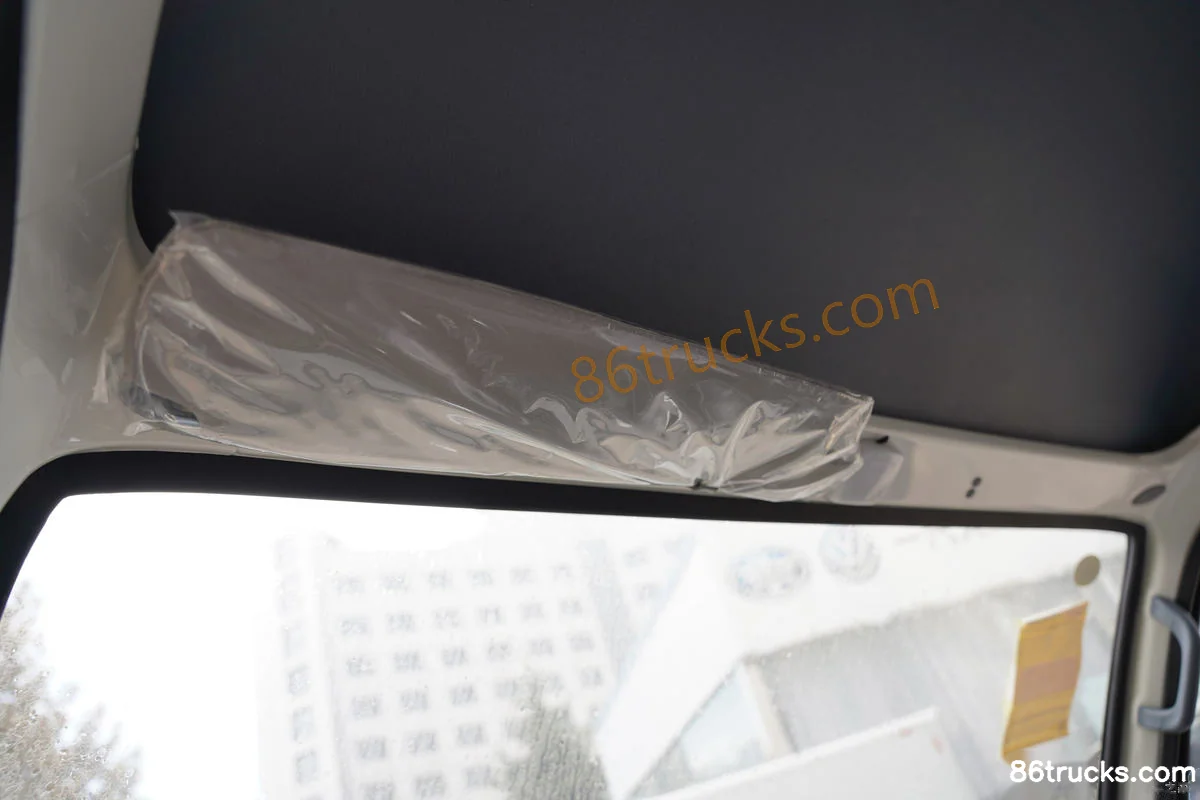

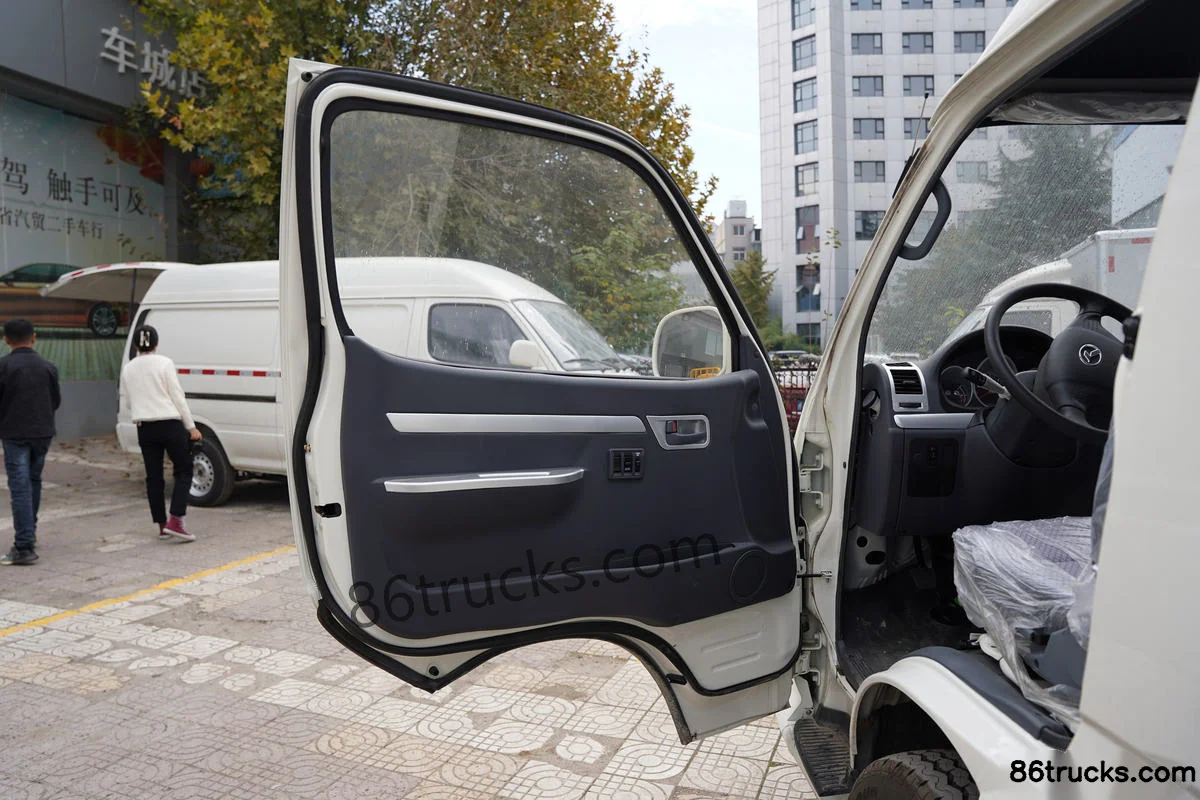

King Long Jinwei Jieyun 117hp 2.2L Gasoline 2-Seat High-Roof Panel Van Cab (1) | 86Trucks King Long Jinwei Jieyun 117hp 2.2L Gasoline 2-Seat High-Roof Panel Van Cab (2) | 86Trucks King Long Jinwei Jieyun 117hp 2.2L Gasoline 2-Seat High-Roof Panel Van Cab (3) | 86Trucks

Chassis3

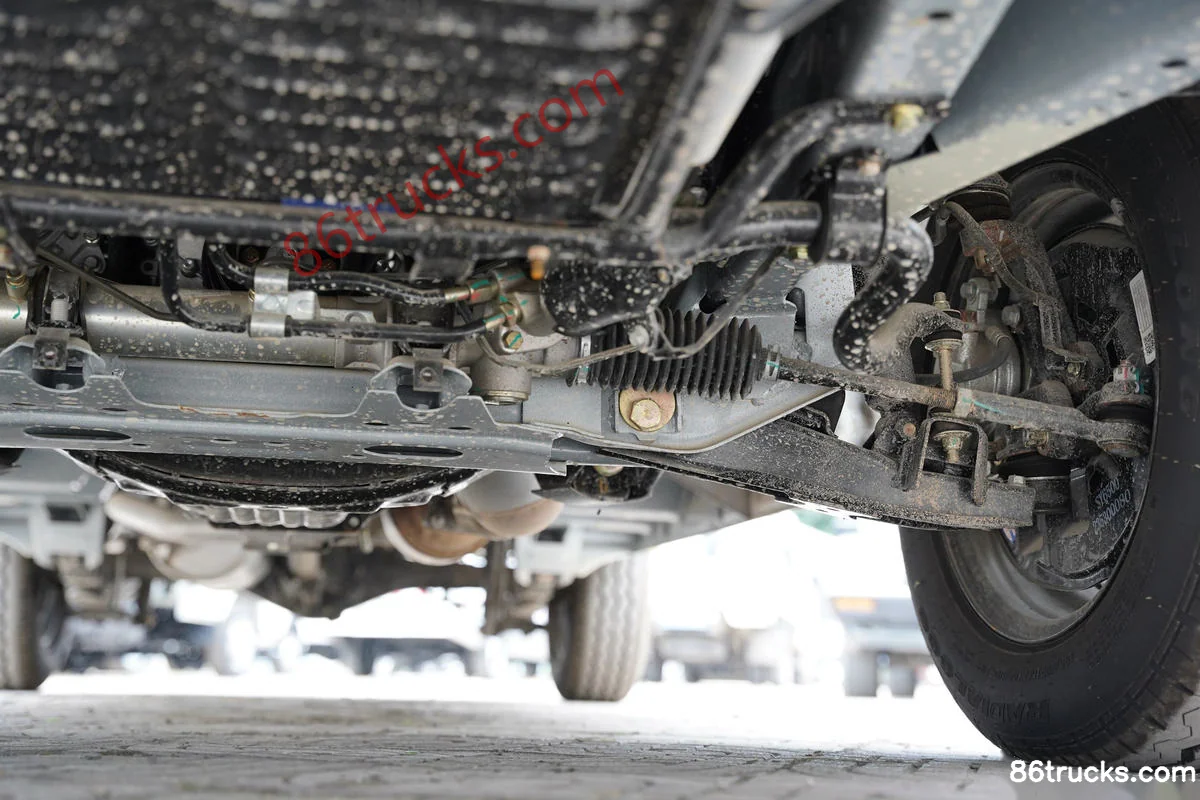

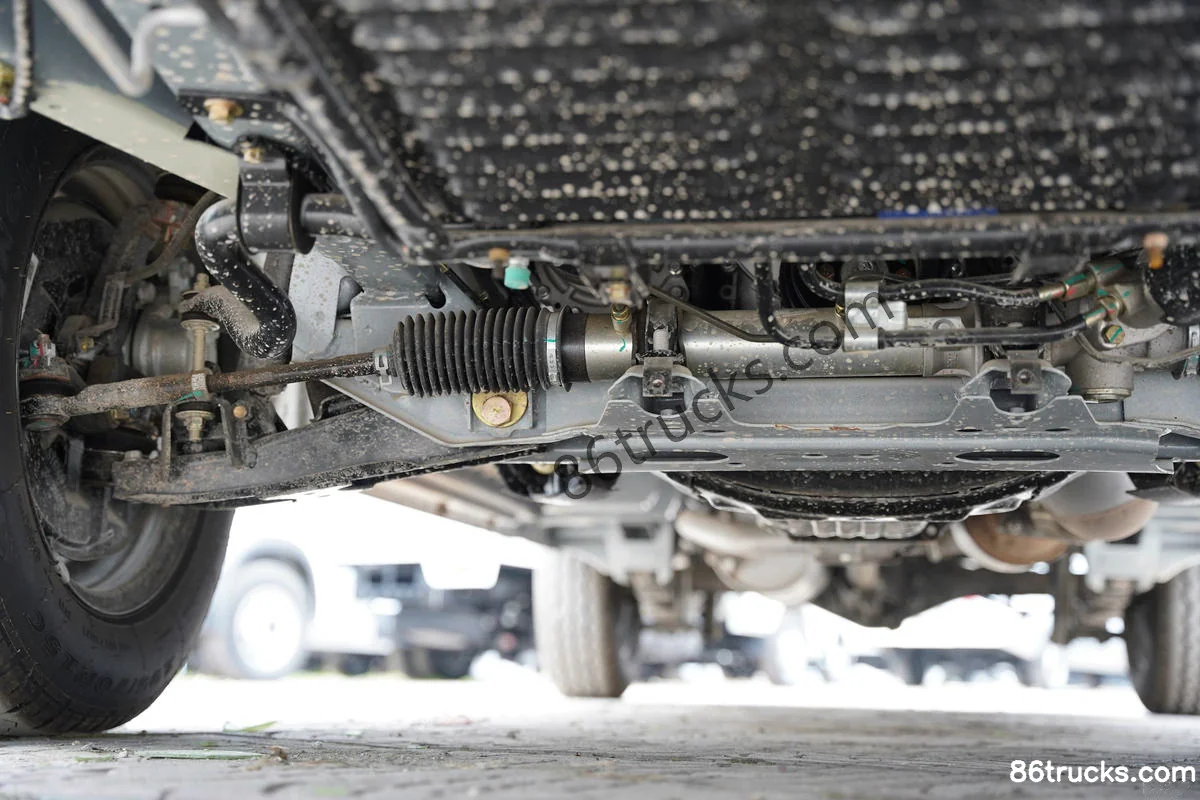

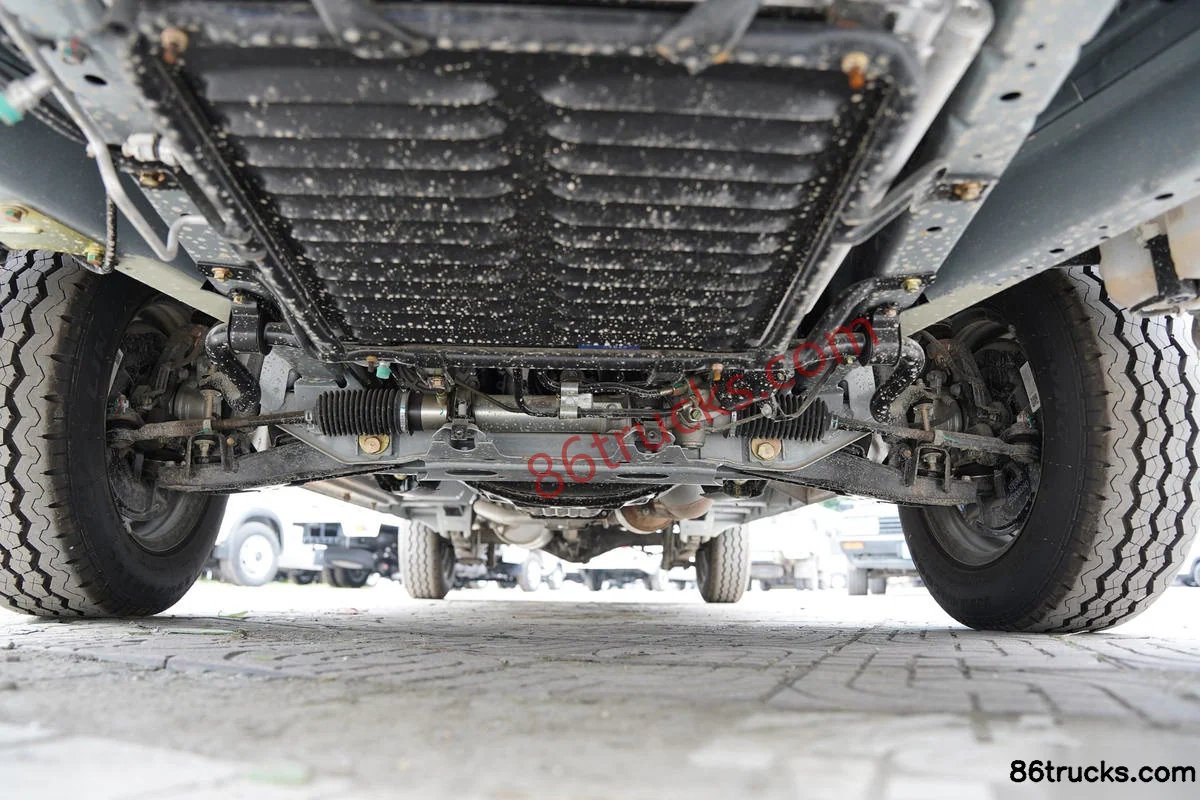

King Long Jinwei Jieyun 117hp 2.2L Gasoline 2-Seat High-Roof Panel Van Chassis (1) | 86Trucks King Long Jinwei Jieyun 117hp 2.2L Gasoline 2-Seat High-Roof Panel Van Chassis (2) | 86Trucks King Long Jinwei Jieyun 117hp 2.2L Gasoline 2-Seat High-Roof Panel Van Chassis (3) | 86Trucks

9 photos

FAQ

What emission standard does King Long Jinwei Jieyun 117hp 2.2L Gasoline 2-Seat High-Roof Panel Van use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of King Long Jinwei Jieyun 117hp 2.2L Gasoline 2-Seat High-Roof Panel Van?

Key specs of King Long Jinwei Jieyun 117hp 2.2L Gasoline 2-Seat High-Roof Panel Van: Drive: rear-wheel drive; Horsepower: 117 hp; Emission: China VI; Fuel: gasoline. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is King Long Jinwei Jieyun 117hp 2.2L Gasoline 2-Seat High-Roof Panel Van suited for?

Match King Long Jinwei Jieyun 117hp 2.2L Gasoline 2-Seat High-Roof Panel Van to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does King Long Jinwei Jieyun 117hp 2.2L Gasoline 2-Seat High-Roof Panel Van differ from other variants in the same series?

King Long Jinwei Jieyun 117hp 2.2L Gasoline 2-Seat High-Roof Panel Van belongs to King Long Jinwei (Van/Light Bus). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for King Long Jinwei Jieyun 117hp 2.2L Gasoline 2-Seat High-Roof Panel Van?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export King Long Jinwei Jieyun 117hp 2.2L Gasoline 2-Seat High-Roof Panel Van?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
