Tuyano Fengjing i9 pure electric refrigerated truck Aiyike 51.52kWh

Export reference
From $19,417
MSRP ¥13.98M CNY
Wheelbase:: 3400mm
Model code (announced):: WRB5030XLCBEV9
Truck Type:: Refrigerated Truck
Vehicle origin:: Shandong Dezhou
Cab width:: 1.81m
Front track width:: 1590mm
Battery capacity: 51.52kWh
Rated payload: 1.13ton
Drive Front-mounted front drive
Curb Weight: 1.99ton

Overview

The Woerbon Tuyano Fengjing i9 pure electric refrigerated truck Aiyike 51.52kWh is a Refrigerated Van featuring 51.52kWh tank capacity, 1.13t payload, 3.25t GVW and Front-mounted front drive drive.

Front-mounted front drive

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): WRB5030XLCBEV9
Drive type: Front-mounted front drive
Truck Type: Refrigerated Truck
Vehicle origin: Shandong Dezhou
Wheelbase: 3400mm
Cab width: 1.81m
Cab height: 2.43m
Front track width: 1590mm
rear track: 1594mm
Curb Weight: 1.99ton
Rated payload: 1.13ton
GVWR: 3.25ton
Approach angle: 27°
grade: Large van (light bus)
departure angle: 19°
Driver's license: A1,A2,B1,B2,C1
Front/rear suspension: 0.695/1.1m
electric motor
Motor 1 Brand: Foton
Motor 1 Model: FTTBP125A
Motor Type: Permanent magnet synchronous motor
total rated power: 55kW
Peak power: 125kW
Motor 1 Peak Power: 125kW
Number of drive motors: Single motor
Battery/Charging
Battery Brand: Aiyike
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 51.52kWh
Body Parameters
Body Brand: Woerbon
Cab structure: Load-bearing
Seat count: 2Seats
Chassis Specs
Front suspension type: MacPherson independent suspension
rear suspension type: Leaf spring non-independent suspension
Chassis Structure: Load-bearing
Body parameters
Max body depth: 2.7
Max body width: 1.57
Cargo Box Height: 1.5
Wheel brake
Front brake type: Ventilated disc brakes
rear brake type: Disc
Front tire specification: 195/75R16LT
Rear Wheel Specification: 195/75R16LT
Cab parameters
Seat rows: 1 row
Control configuration
ABS:

Photos

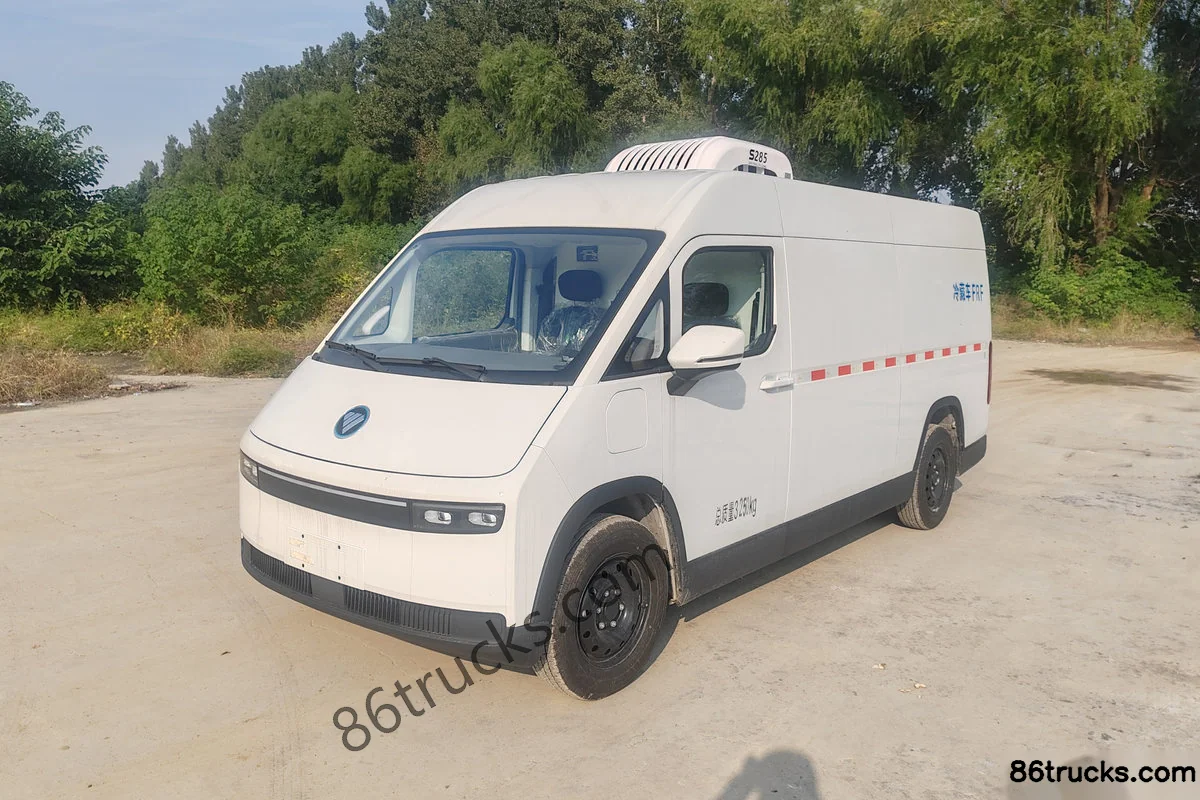

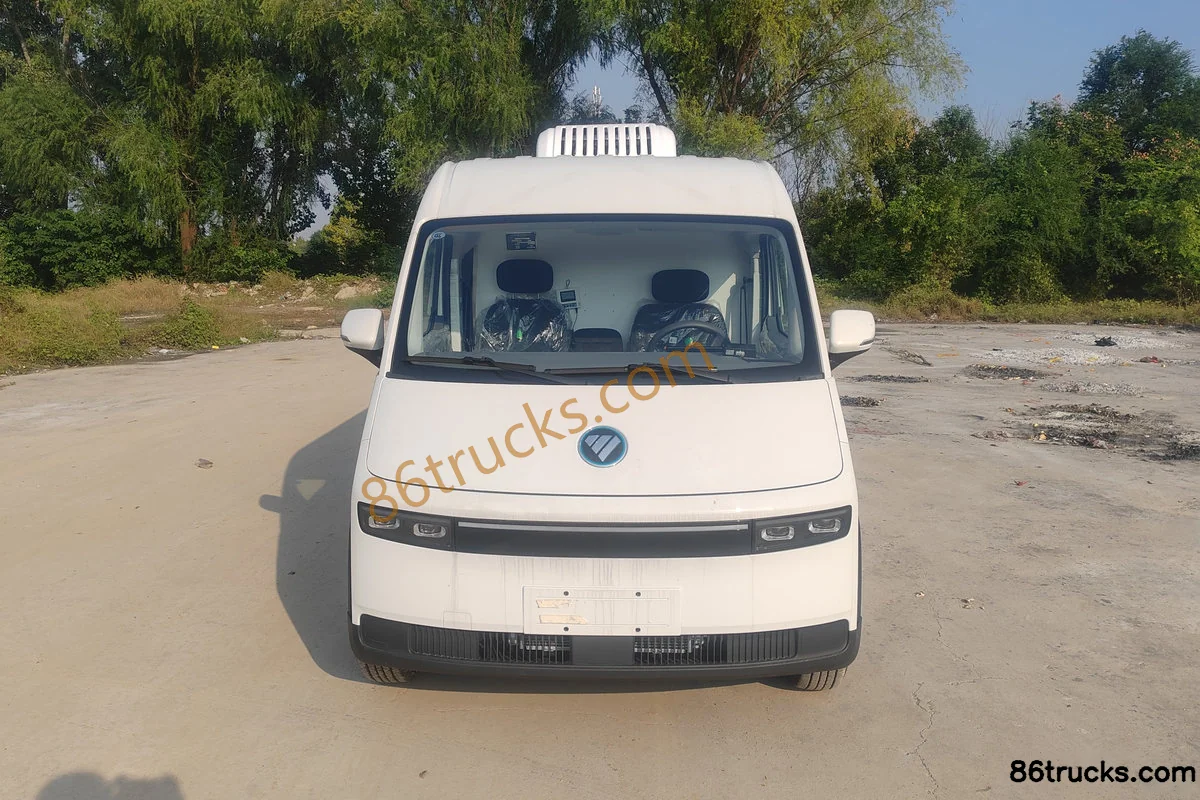

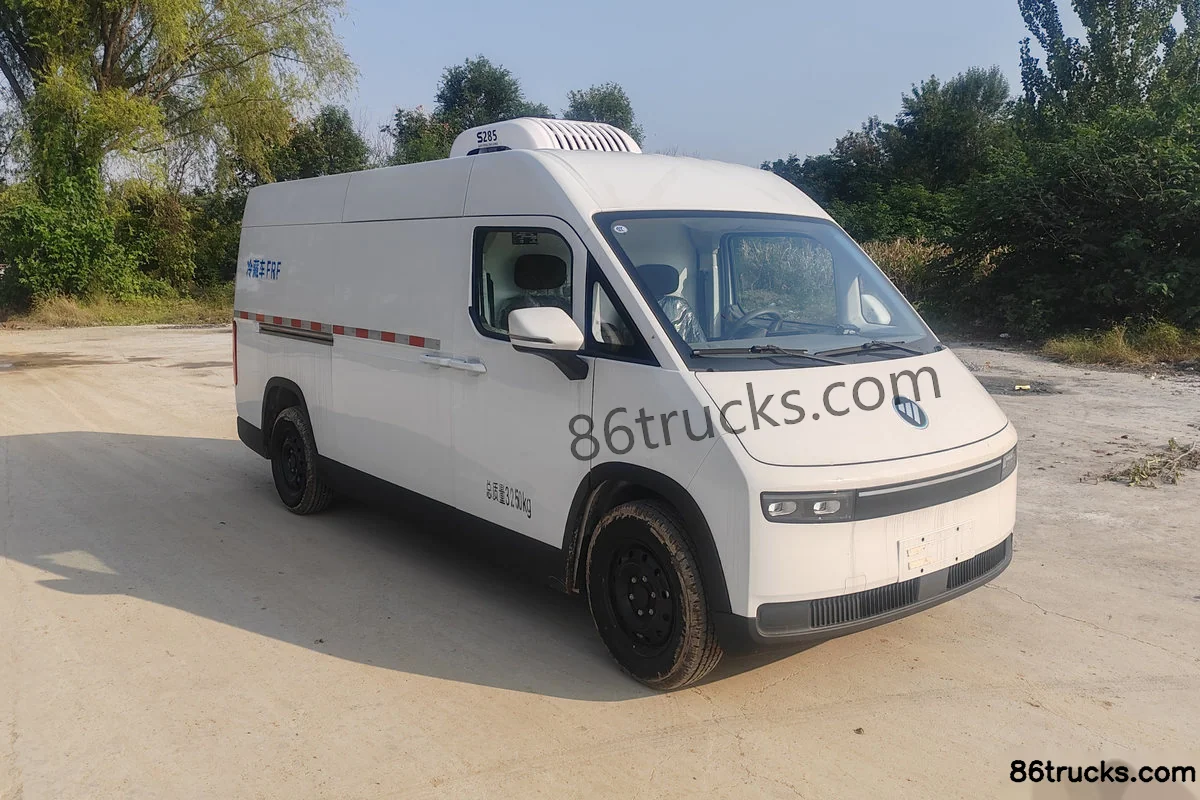

Exterior3

3 photos

FAQ

What is the export price of Tuyano Fengjing i9 pure electric refrigerated truck Aiyike 51.52kWh, and what does it include?

Tuyano Fengjing i9 pure electric refrigerated truck Aiyike 51.52kWh export reference is about From $19,417; MSRP is ¥13.98M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Tuyano Fengjing i9 pure electric refrigerated truck Aiyike 51.52kWh?

Key specs of Tuyano Fengjing i9 pure electric refrigerated truck Aiyike 51.52kWh: Drive: Front-mounted front drive. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Tuyano Fengjing i9 pure electric refrigerated truck Aiyike 51.52kWh suited for?

Tuyano Fengjing i9 pure electric refrigerated truck Aiyike 51.52kWh is a Refrigerated Van model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Tuyano Fengjing i9 pure electric refrigerated truck Aiyike 51.52kWh differ from other variants in the same series?

Tuyano Fengjing i9 pure electric refrigerated truck Aiyike 51.52kWh belongs to Woerbon Tuyano chassis (Refrigerated Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Tuyano Fengjing i9 pure electric refrigerated truck Aiyike 51.52kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Tuyano Fengjing i9 pure electric refrigerated truck Aiyike 51.52kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
