Tangjun Ouling Little BMW 115 hp 4X2(6 wheels) 3.63m Single Row Flatbed Mini Truck (China VI)

Export reference
From $10,667
MSRP ¥7.68M CNY
Horsepower: 115
Emission: China VI
Fuel: Diesel
Engine: Quanchai Q Series
Transmission: WLY
Curb Weight:: 1.85ton
seating capacity: 2Personnel
Rated payload: 1.92ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Tangjun Ouling Little BMW 115 hp 4X2(6 wheels) 3.63m Single Row Flatbed Mini Truck (China VI) is a mini truck featuring 3.63m cargo length, stake body cargo body, 2Personnel volume and 1.92t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Quanchai Q Series engine, 115 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 115 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZB1040BDD0L
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3050mm
Box length class: 3.6m
engine: QuanchaiQ23-115E60
transmission: WLY5G32
Rear Axle Ratio: 4.875
Cab length: 5.385m
Cab width: 1.84m
Cab height: 2.2m
Front track width: 1390mm
rear track: 1332mm
Curb Weight: 1.85ton
Rated payload: 1.92ton
GVWR: 3.9ton
Max. speed: 125km/h
Origin: Zichuan, Shandong
tonnage class: mini truck
Approach angle: 20°
departure angle: 23°
market segment: Building materials, agricultural products
Front/rear suspension: 1.01/1.325m
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: QuanchaiQ23-115E60
Engine info: Quanchai Q Series
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.3L
Emission standard: China VI
Max output power: 85kW
Max hp: 115Horsepower
Max torque: 320N·m
Max torque speed: 2000rpm
Rated speed: 3000rpm
Engine Type: Inline 4-cylinder, water-cooled, 4-stroke, turbocharged with intercooler, high-pressure common rail
Transmission Parameters
Transmission Model: WLY5G32
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.63m
Cargo box width: 1.75m
Cargo box height: 0.36m
*Cargo box interior width: 1.75
Cab parameters
Cab width: 1580mm
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1260kg
Frame Dimensions: 140×55X4-760mm
rear axle description: 130 stamped-welded axle
rear axle allowable load: 2640kg
Axle ratio: 4.875
Leaf spring count: 3/6+4
Tire
Tire Size: 185R15LT 6PR,185R15LT 8PR,6.00R15LT 10PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

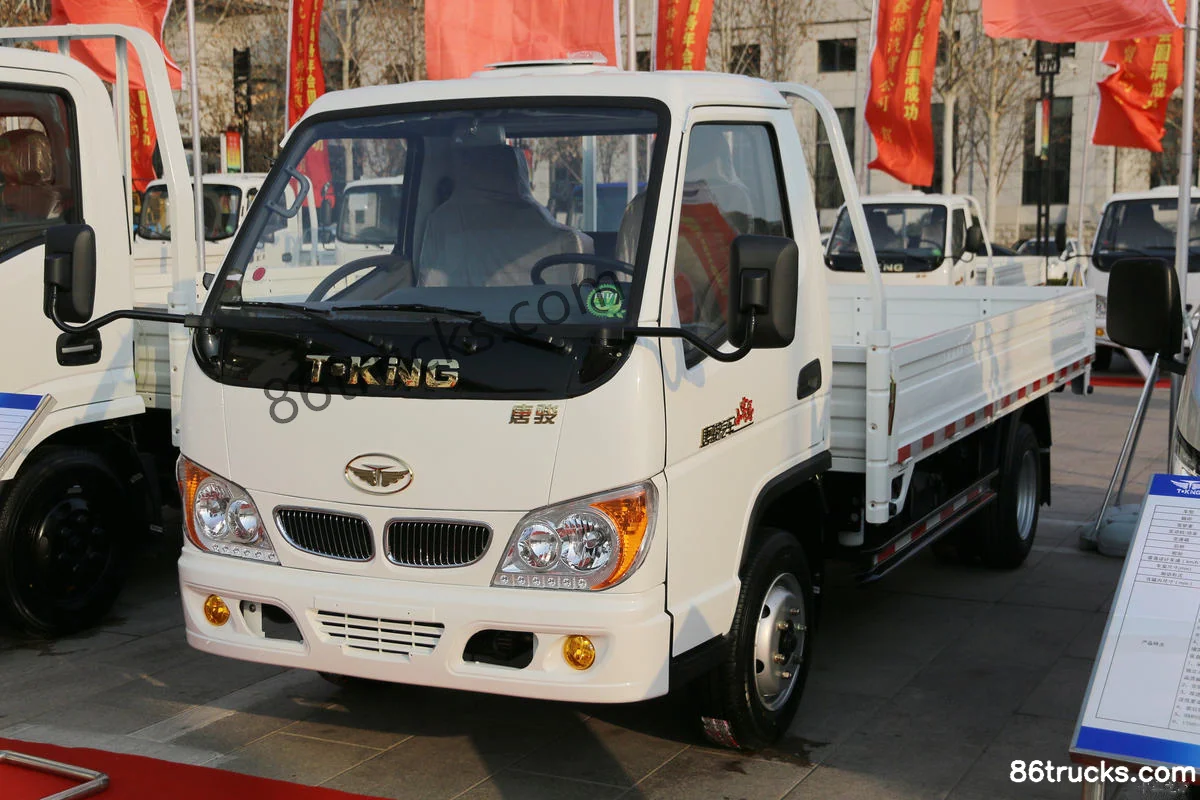

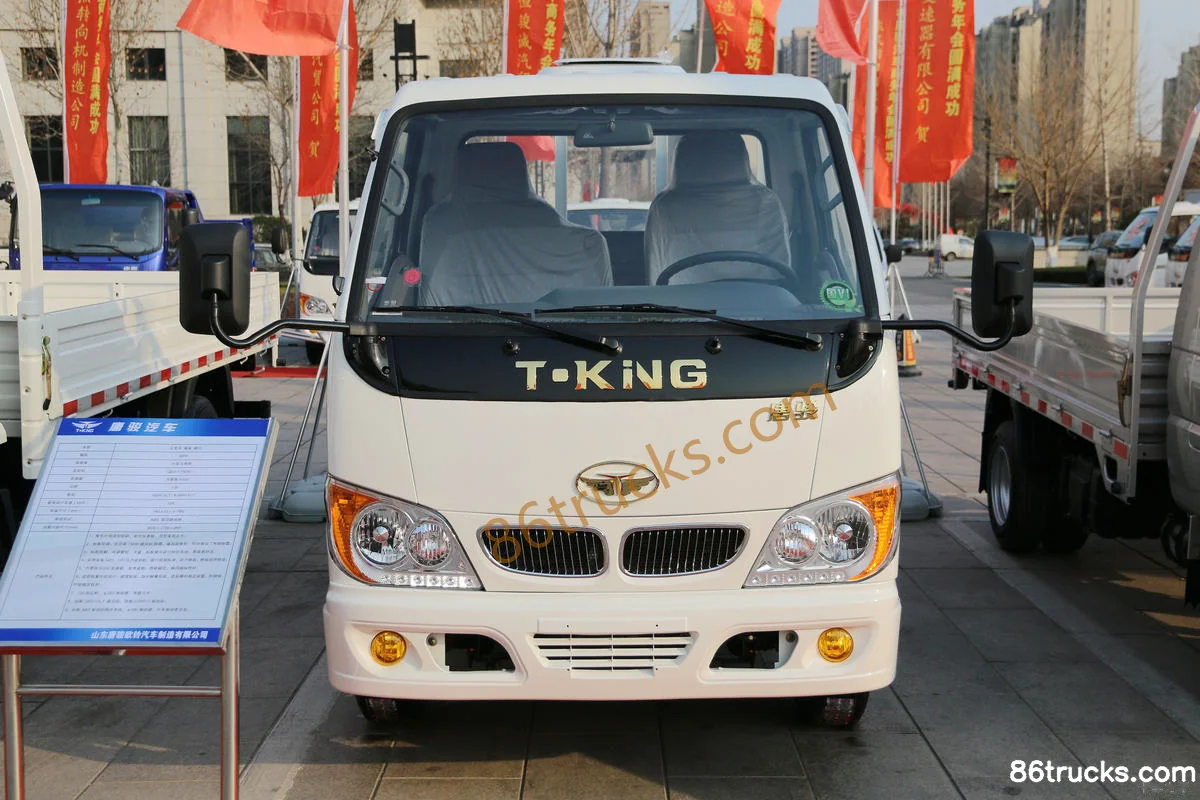

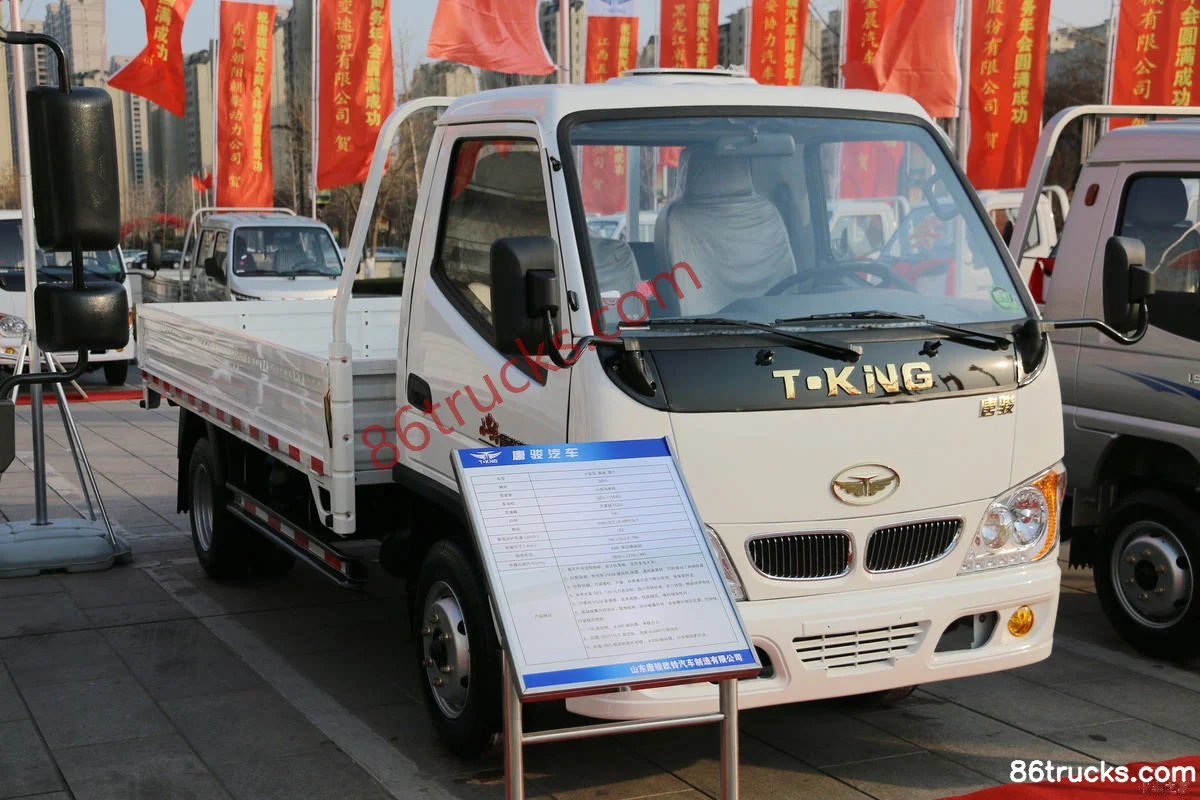

Exterior3

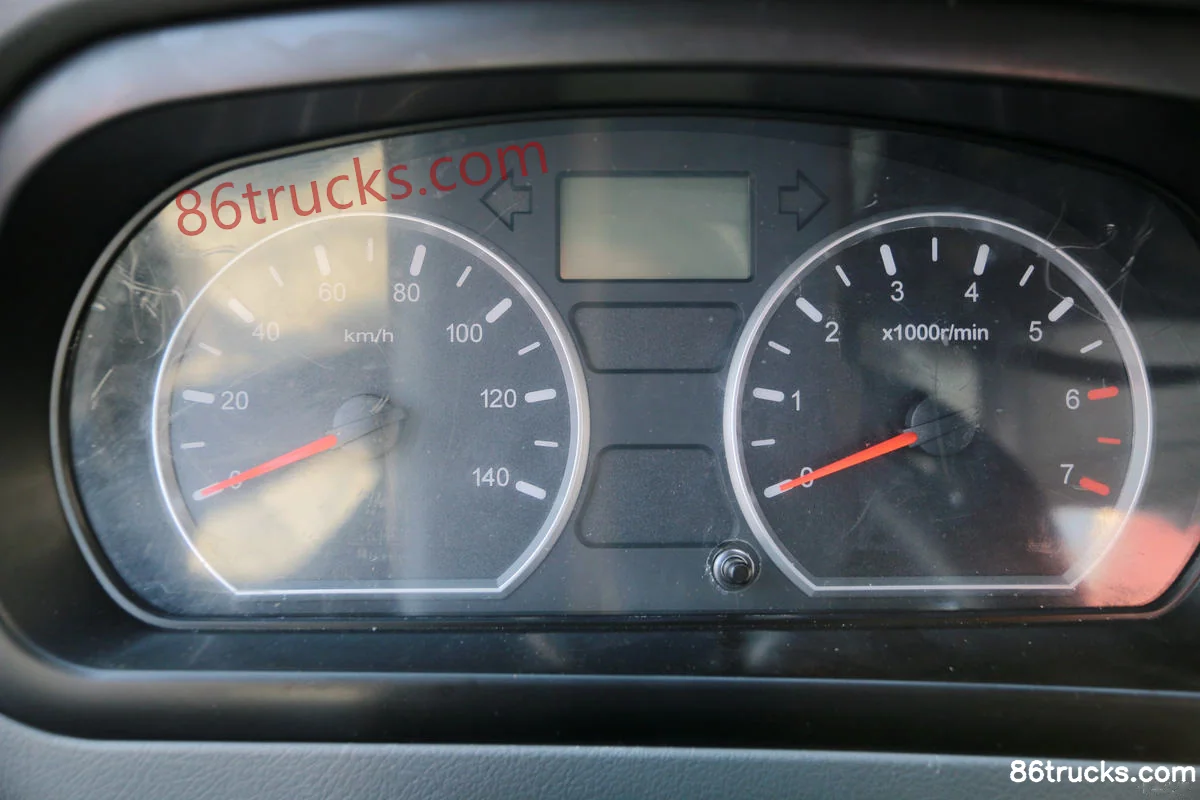

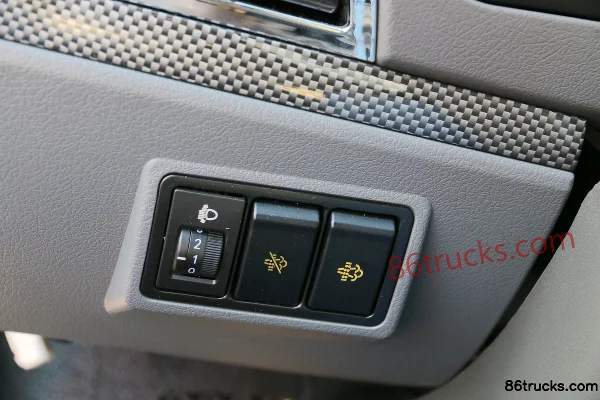

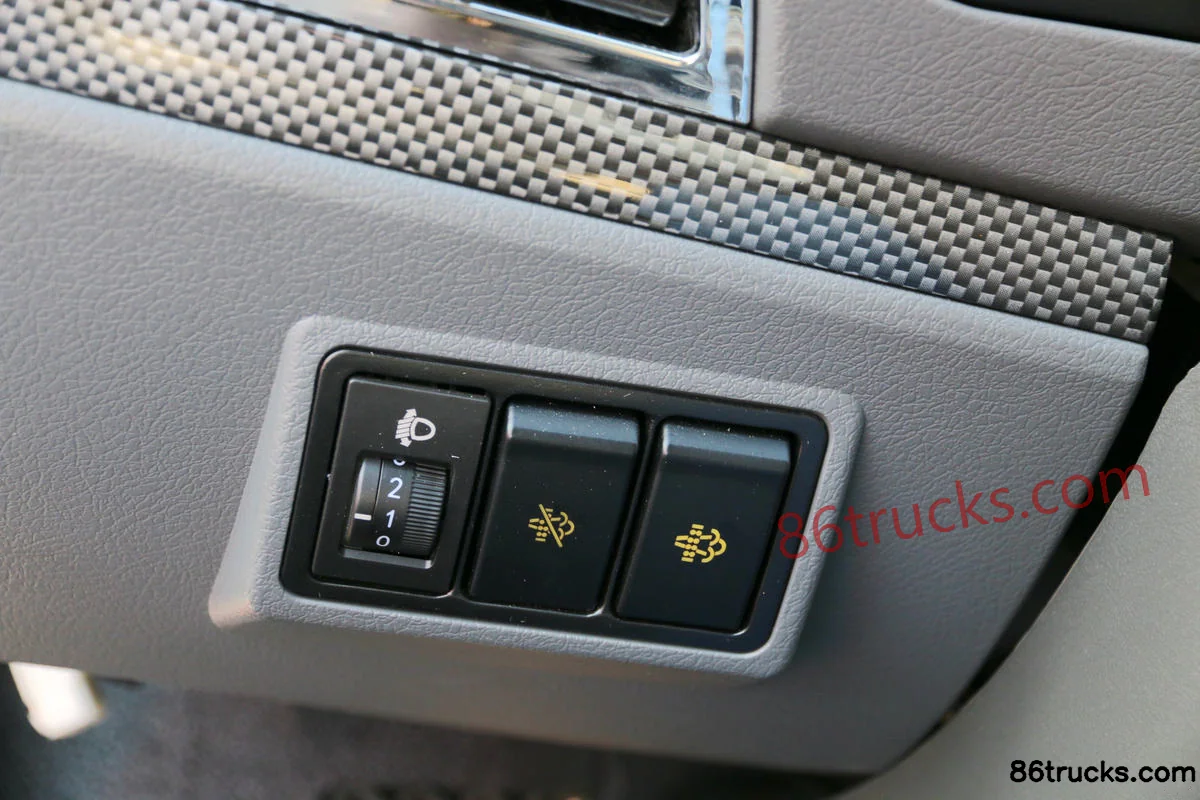

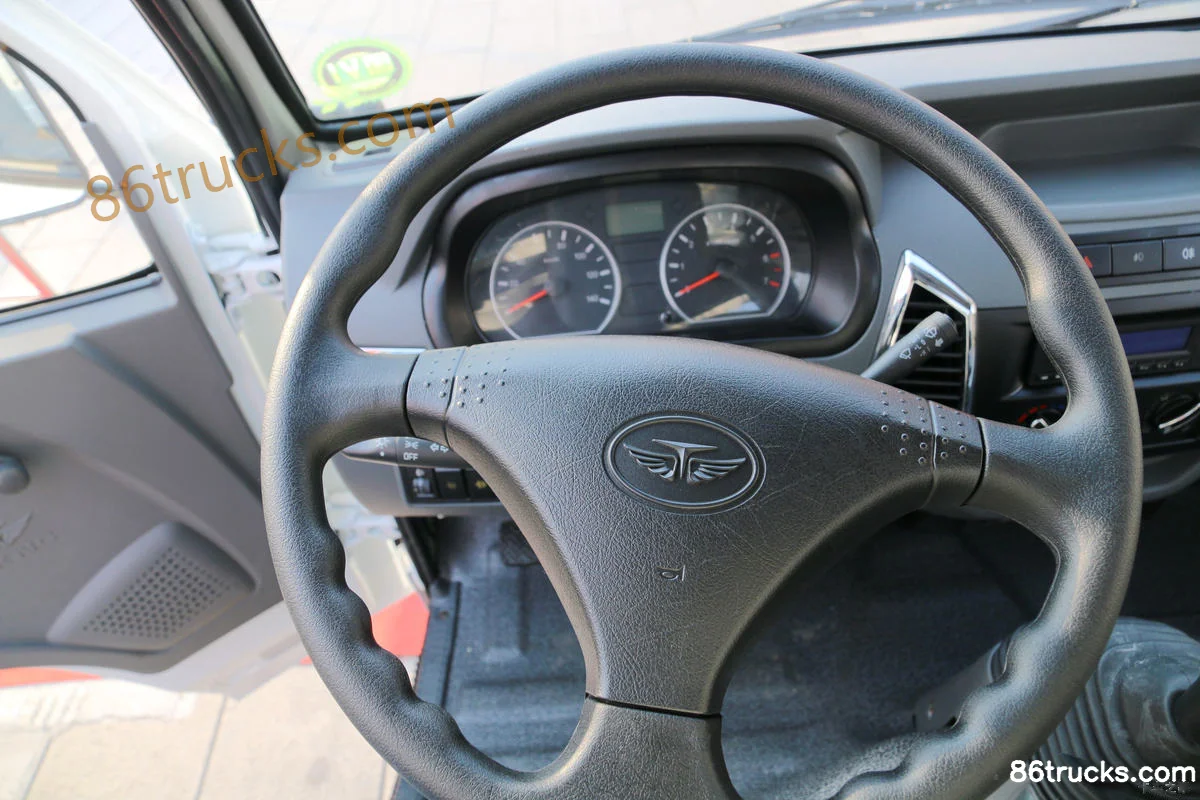

Cab3

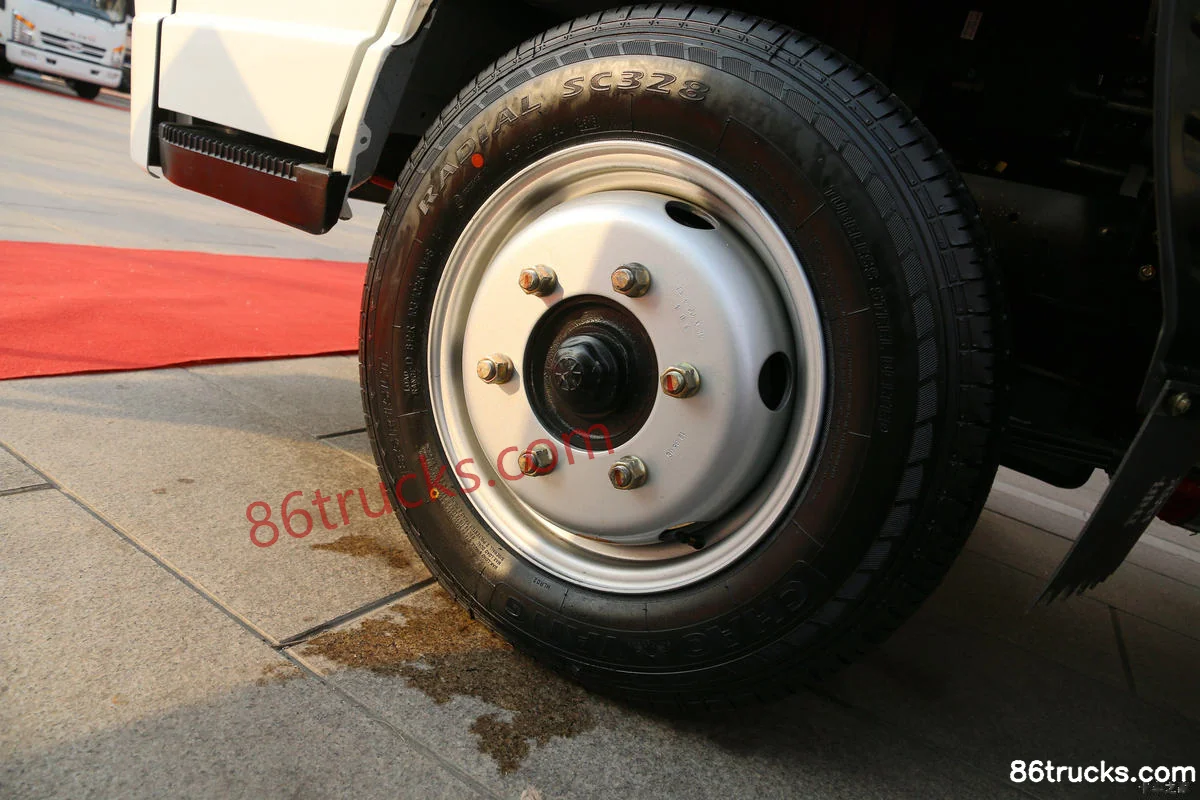

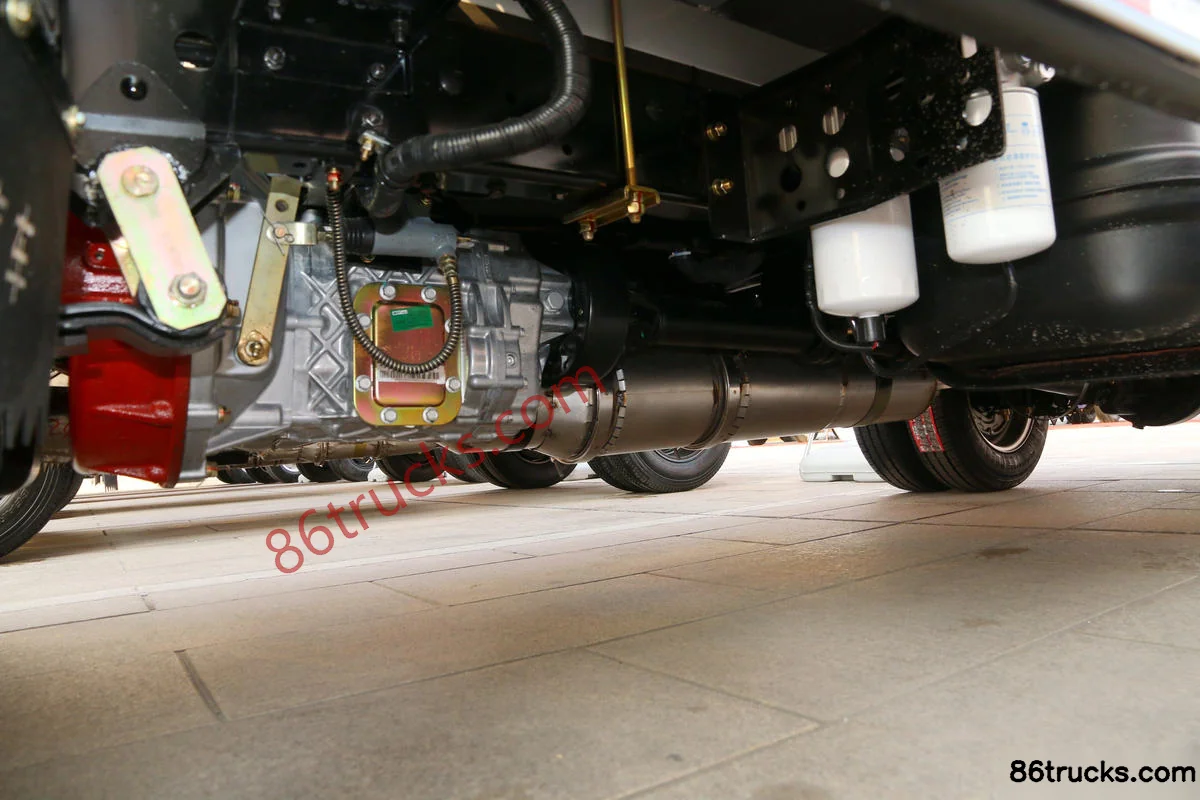

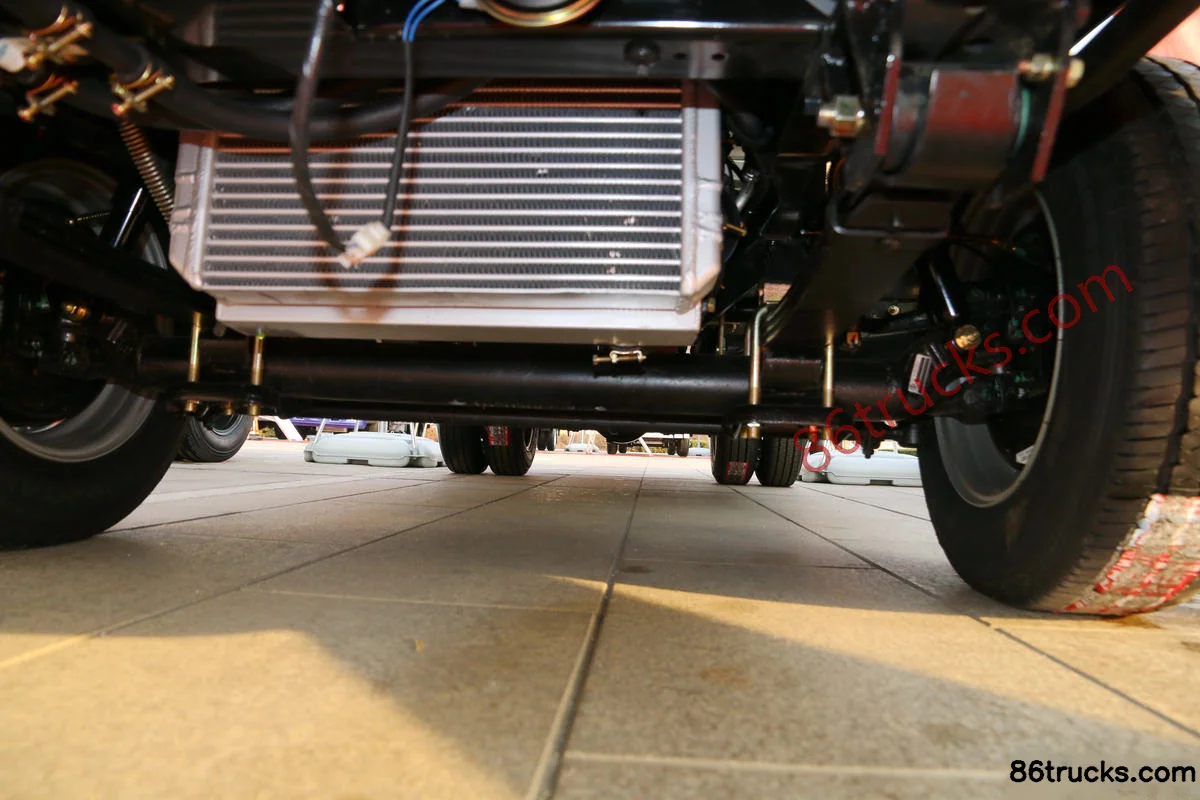

Chassis3

9 photos

FAQ

What is the export price of Tangjun Ouling Little BMW 115 hp 4X2(6 wheels) 3.63m Single Row Flatbed Mini Truck (China VI), and what does it include?

Tangjun Ouling Little BMW 115 hp 4X2(6 wheels) 3.63m Single Row Flatbed Mini Truck (China VI) export reference is about From $10,667; MSRP is ¥7.68M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Tangjun Ouling Little BMW 115 hp 4X2(6 wheels) 3.63m Single Row Flatbed Mini Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Tangjun Ouling Little BMW 115 hp 4X2(6 wheels) 3.63m Single Row Flatbed Mini Truck (China VI)?

Key specs of Tangjun Ouling Little BMW 115 hp 4X2(6 wheels) 3.63m Single Row Flatbed Mini Truck (China VI): Drive: 4x2; Horsepower: 115 hp; Emission: China VI; Fuel: Diesel; Engine: Quanchai Q Series; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Tangjun Ouling Little BMW 115 hp 4X2(6 wheels) 3.63m Single Row Flatbed Mini Truck (China VI) suited for?

Tangjun Ouling Little BMW 115 hp 4X2(6 wheels) 3.63m Single Row Flatbed Mini Truck (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Tangjun Ouling Little BMW 115 hp 4X2(6 wheels) 3.63m Single Row Flatbed Mini Truck (China VI) differ from other variants in the same series?

Tangjun Ouling Little BMW 115 hp 4X2(6 wheels) 3.63m Single Row Flatbed Mini Truck (China VI) belongs to Xiaobaoma Mini Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Tangjun Ouling Little BMW 115 hp 4X2(6 wheels) 3.63m Single Row Flatbed Mini Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Tangjun Ouling Little BMW 115 hp 4X2(6 wheels) 3.63m Single Row Flatbed Mini Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
