NanJun Ruiji J30D 140hp 4X2(6 wheels) 3.37m³ Concrete Mixer Truck

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 8.05ton
Wheelbase:: 3700mm
Tire Size:: 9.00R20
Cab dimensions:: 7.3×2.33×3.72m
Truck Type:: concrete mixer truck
Rated payload: 7.355ton
Drive 4X2 (6 wheels)
Horsepower 140
Emission China V

Overview

The NanJun Ruiji J30D 140hp 4X2(6 wheels) 3.37m³ Concrete Mixer Truck is a concrete mixer truck featuring 7.355t payload, 8.05ton GVW, 4X2 (6 wheels) drive and 7.3×2.33×3.72m cab. On the powertrain side, it comes with 140 hp, China V emissions and Diesel fuel.

China V 140 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 7.3×2.33×3.72m
Drive type: 4X2
Truck Type: concrete mixer truck
Wheelbase: 3700mm
Vehicle origin: Ziyang, Sichuan
Front/rear track width: Front track: 1750mm; Rear track: 1750mm
Curb Weight: 8.05ton
Rated payload: 7.355ton
Max. speed: 75km/h
Front/rear suspension: 1.34/2.2m
Body Parameters
Drum geometric volume: 6m³
Mixing drum capacity: 3.37m³
Vehicle certification code: NJP5160GJBPPB38V
Body Brand: NanJun
Engine parameters
Engine Model: YuchaiYC4D140-50
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.214L
Emission standard: China V
Max output power: 103kW
Max hp: 140Horsepower
Rated speed: 2800rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Chassis Specs
Chassis Series: Ruiji J30
Chassis Model: NJA1160PPB38V
Front axle description: 145N
Frame Dimensions: 250×70×(8+5)-800mm
rear axle description: 153N3
Axle ratio: 6.833
Leaf spring count: 9/10+8
Transmission Parameters
Number of gears: 6Gear
Transmission Model: 6-speed transmission
Tire
Tire Size: 9.00R20
Number of tires: 6pcs

Photos

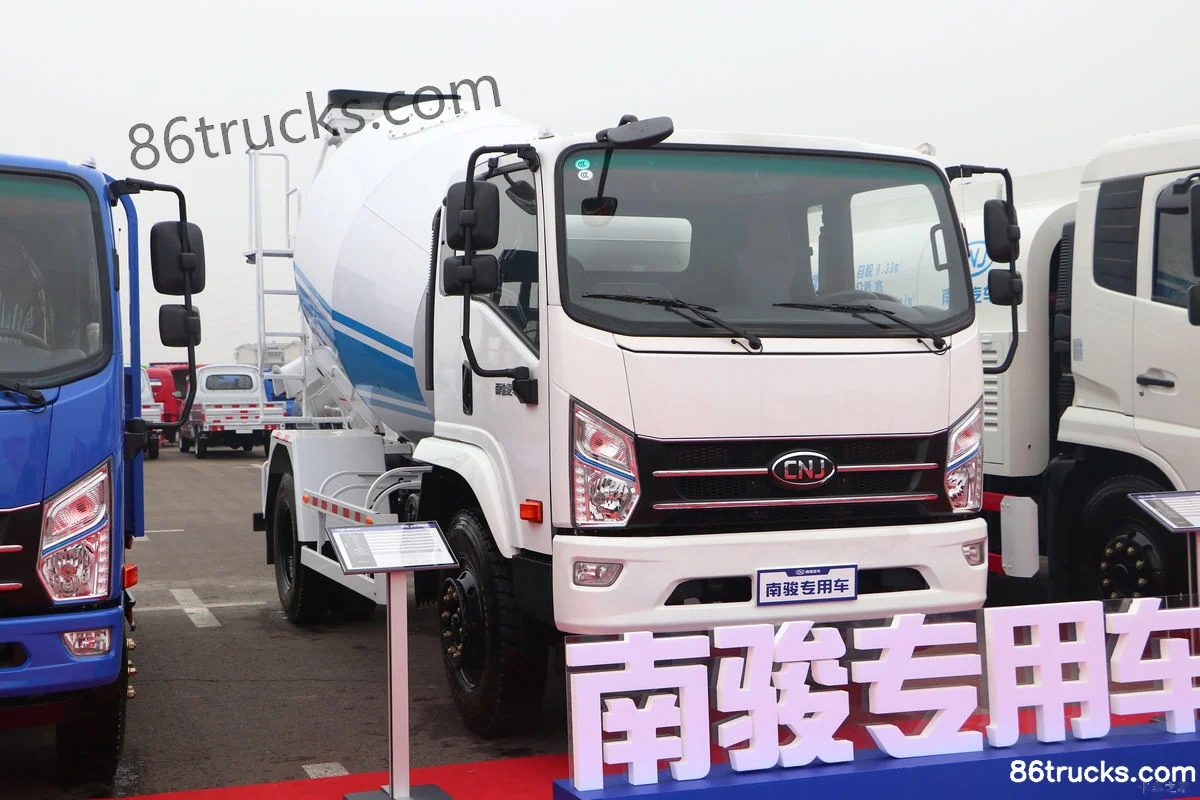

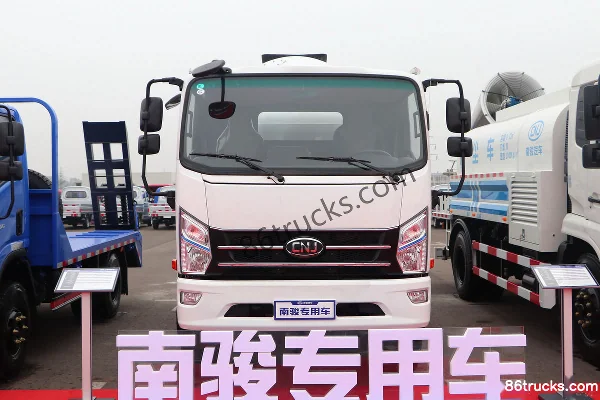

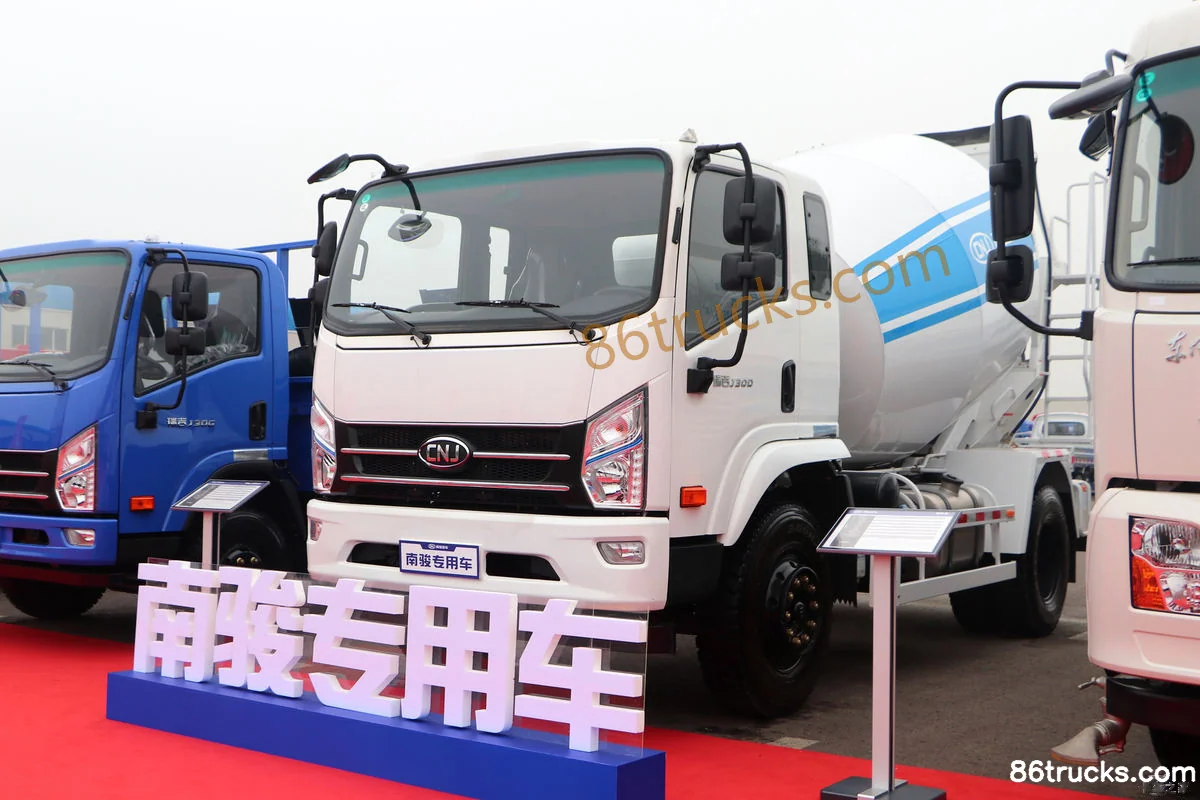

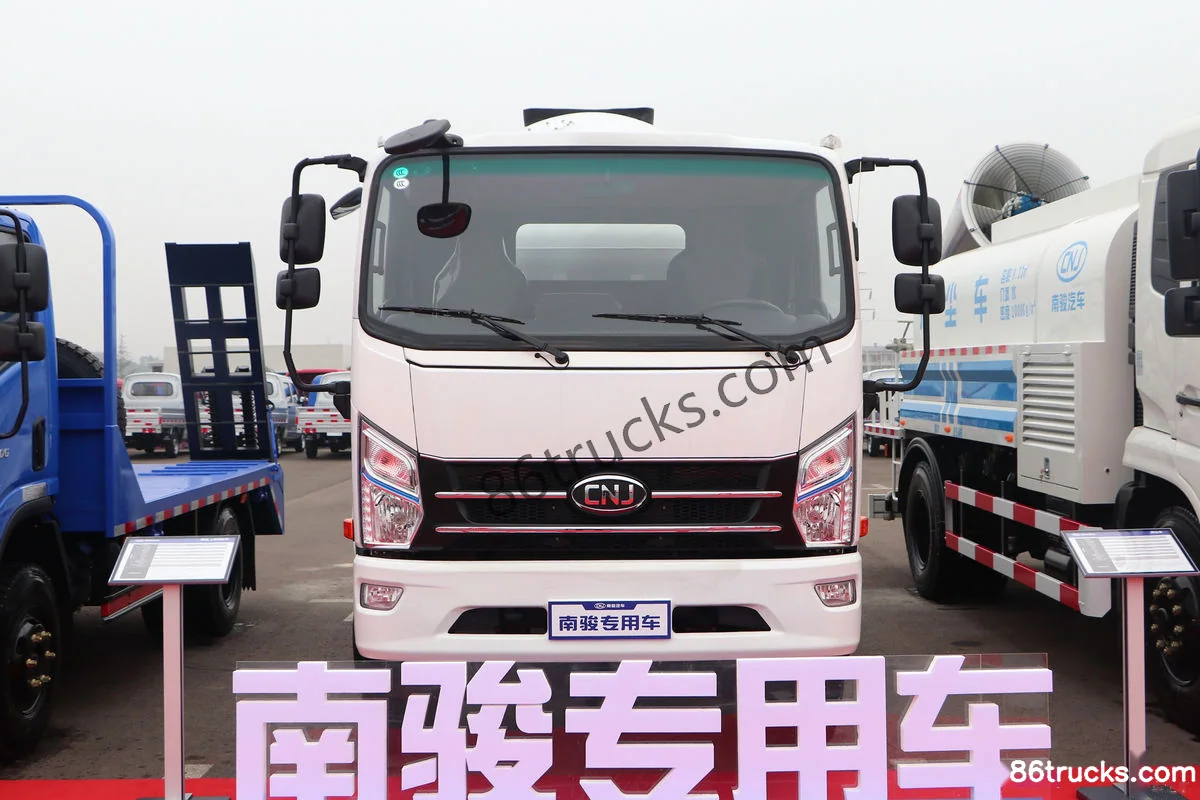

Exterior3

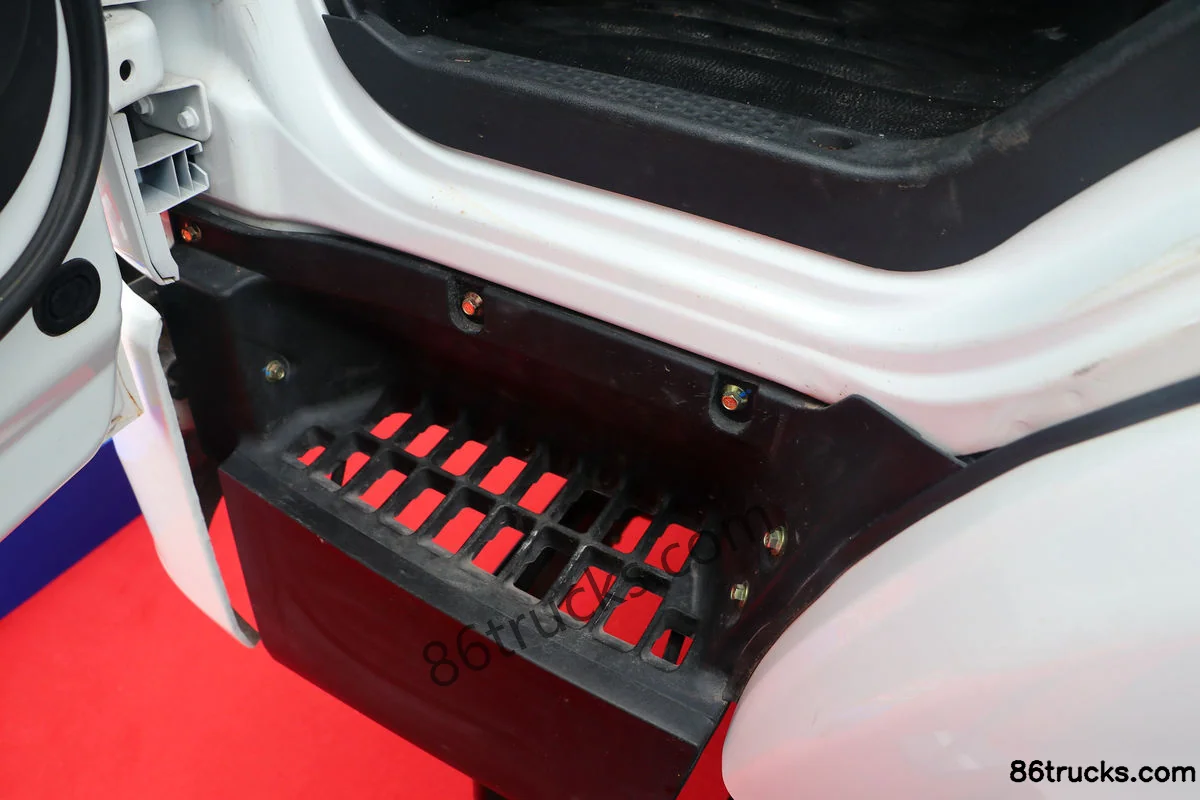

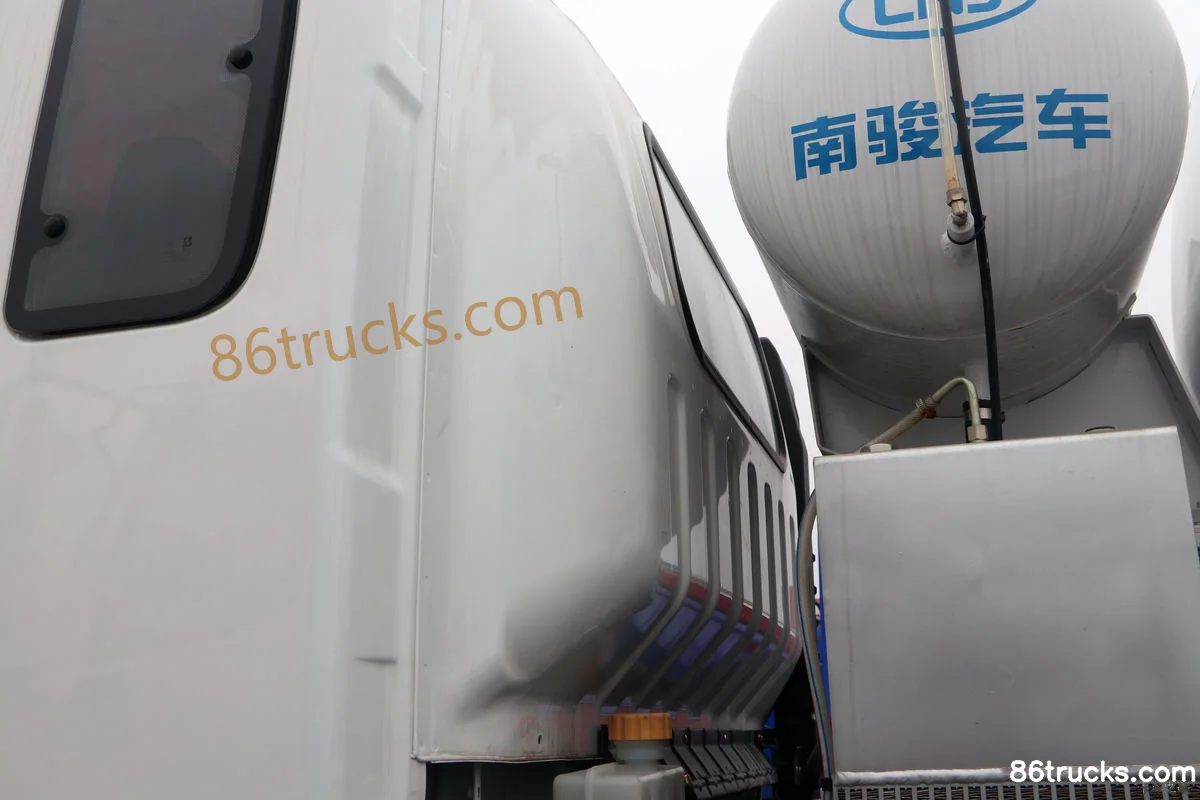

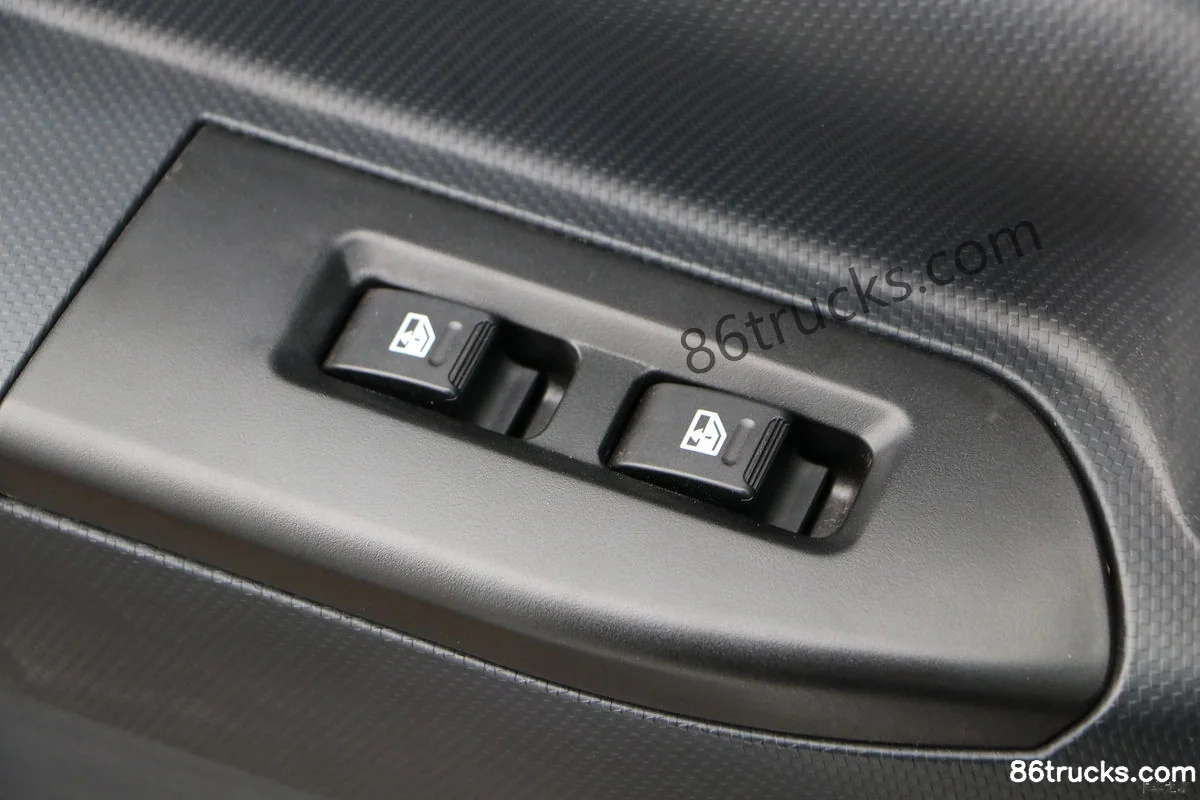

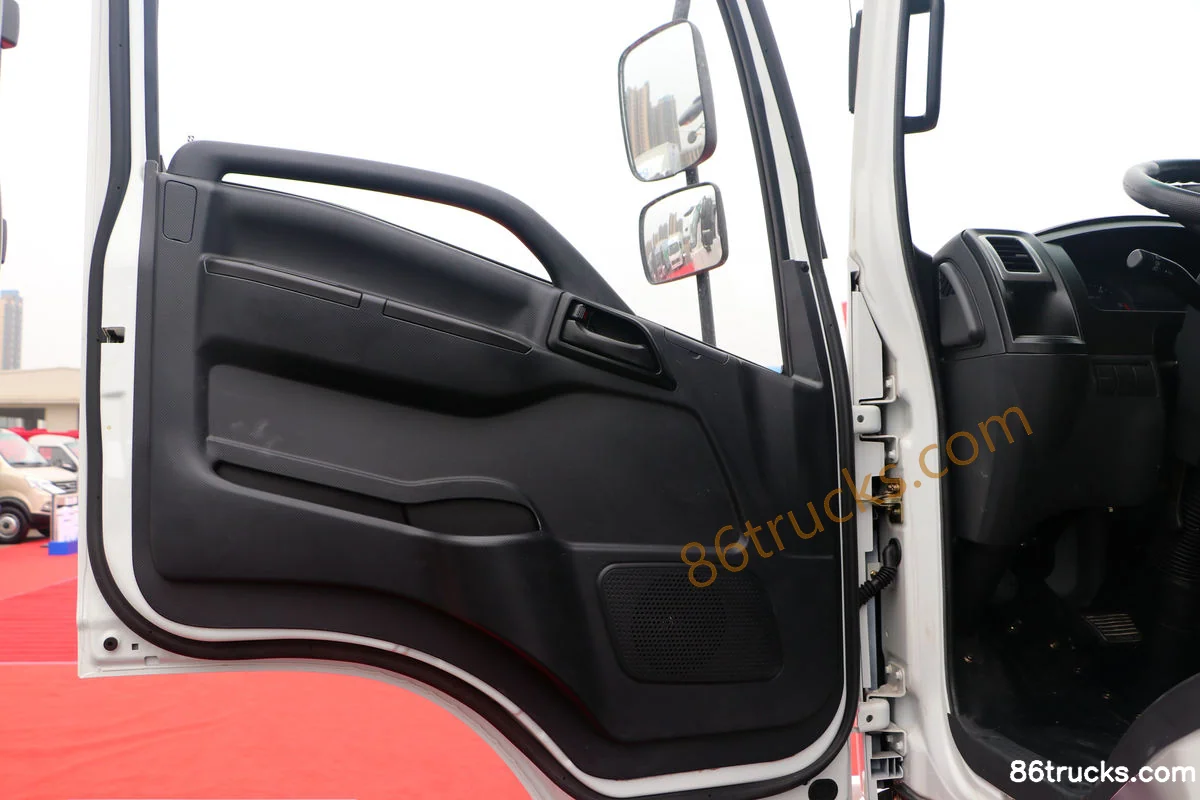

Cab3

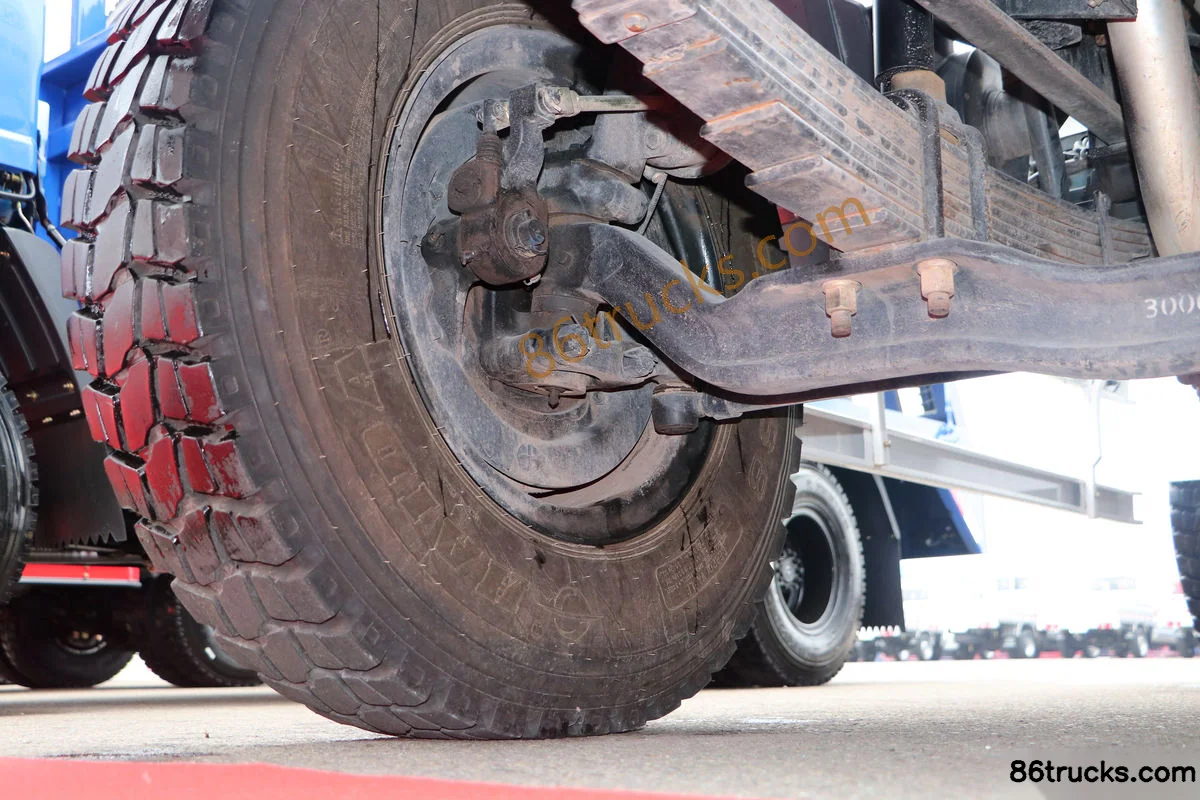

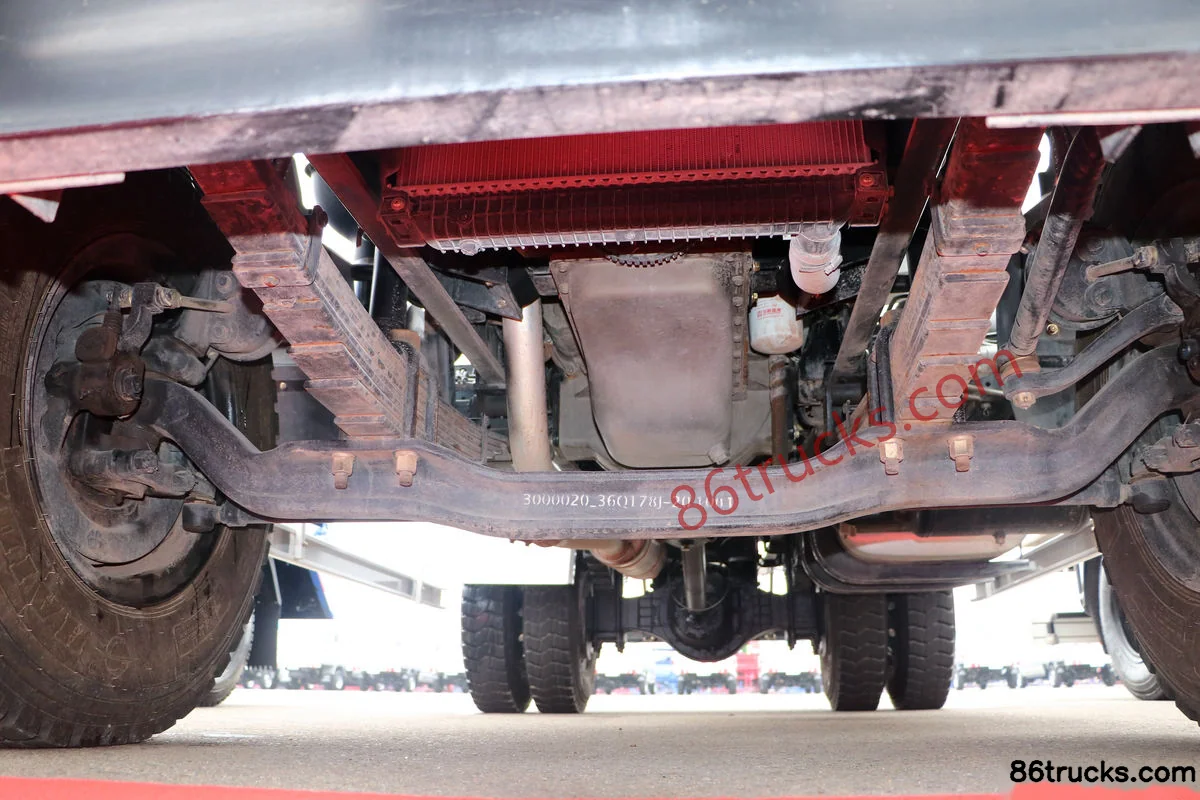

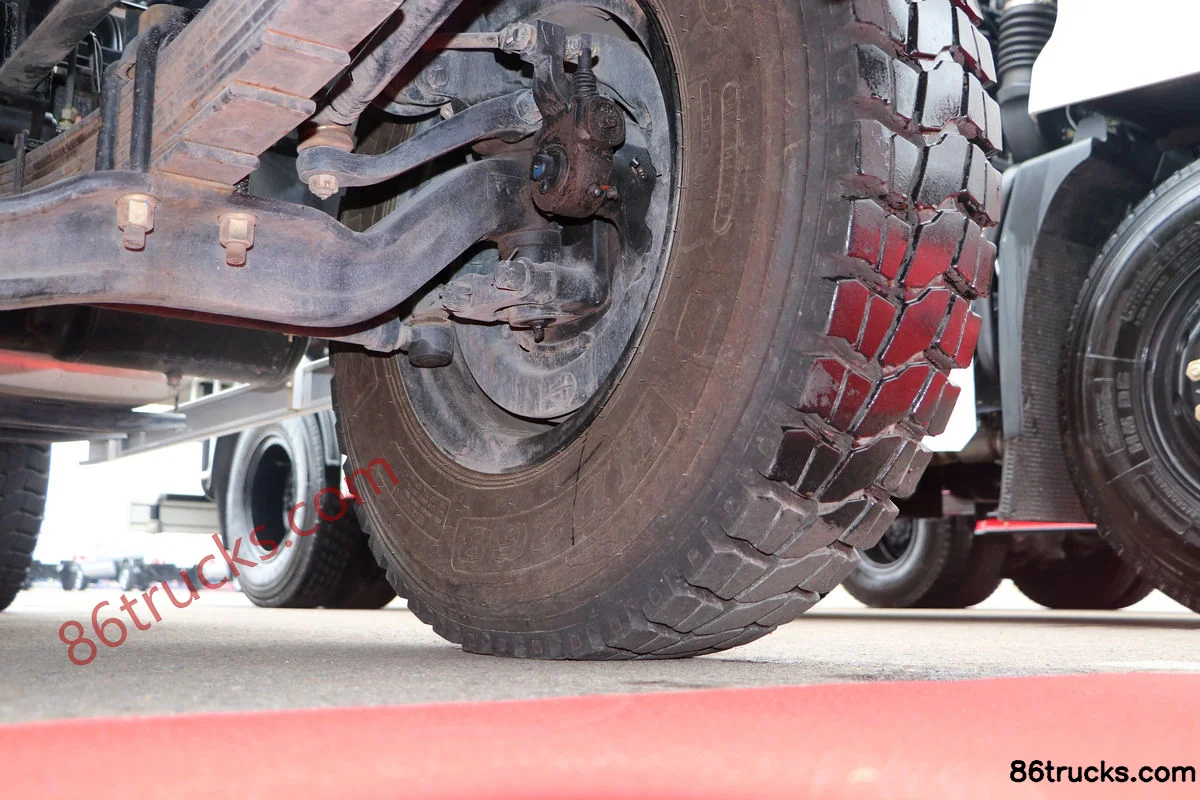

Chassis3

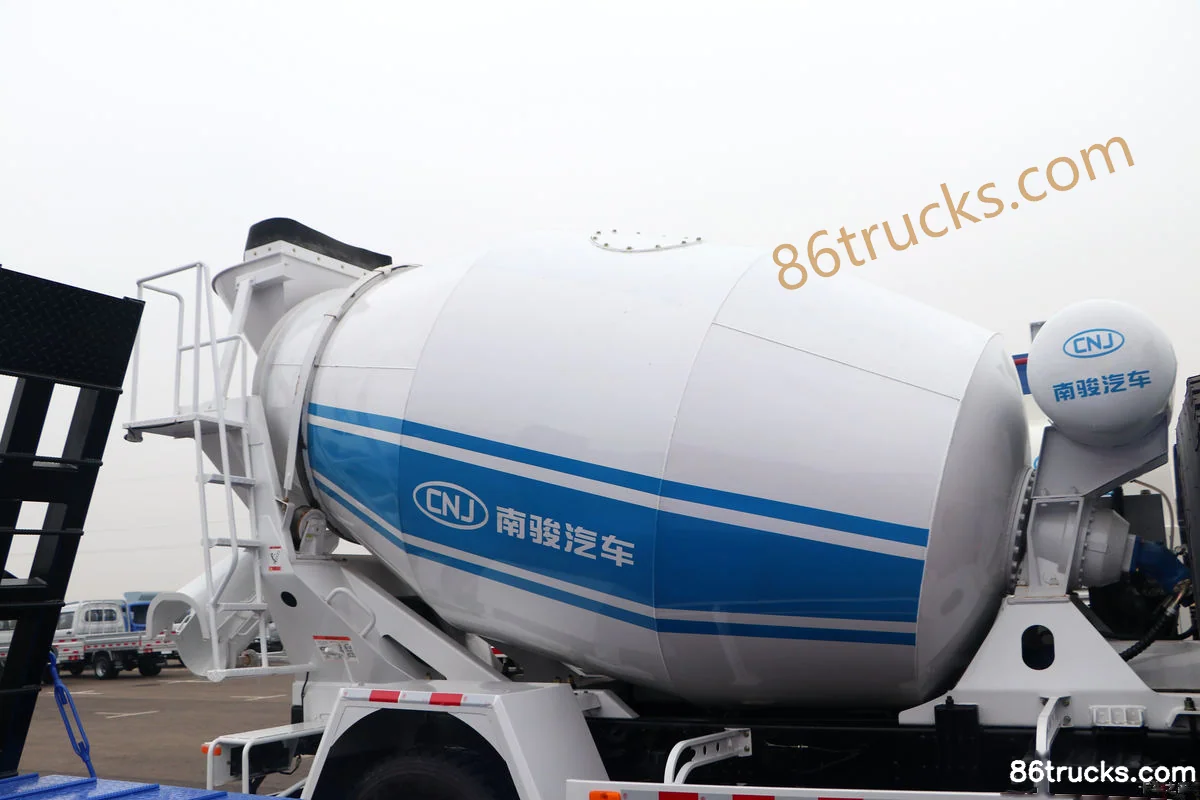

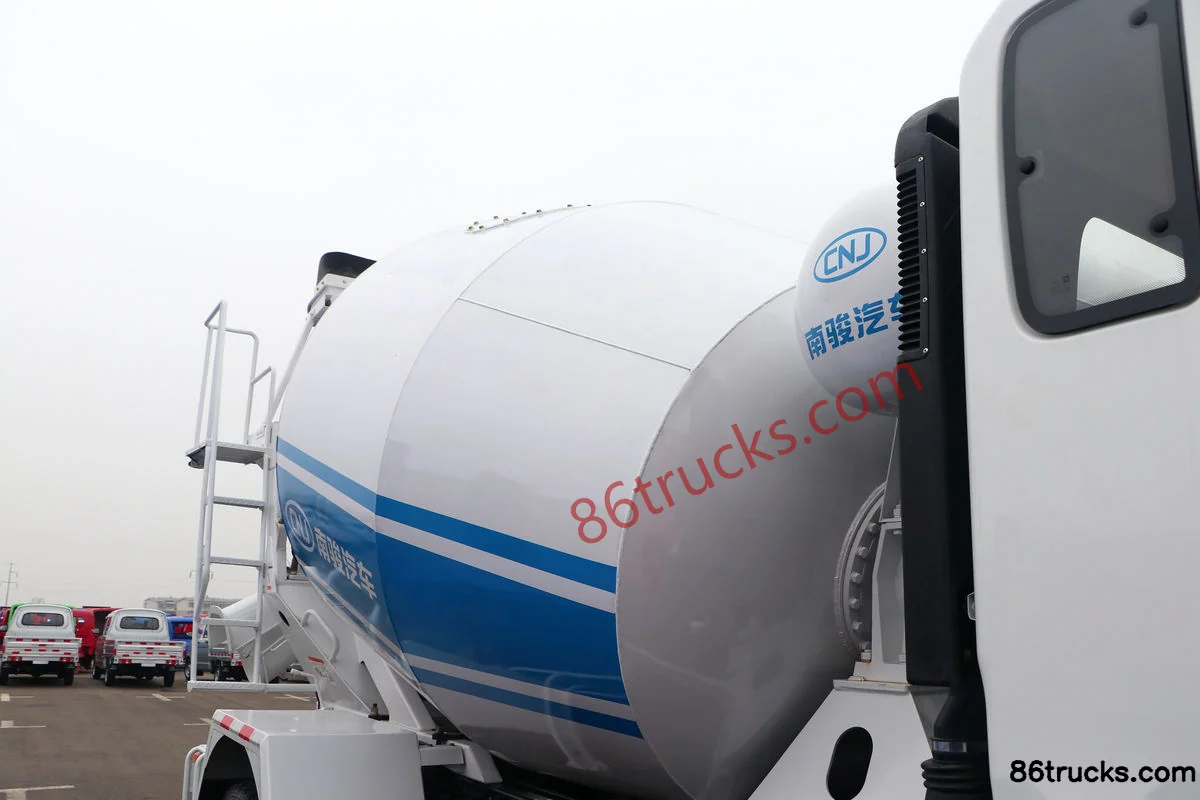

Body3

12 photos

FAQ

What emission standard does NanJun Ruiji J30D 140hp 4X2(6 wheels) 3.37m³ Concrete Mixer Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of NanJun Ruiji J30D 140hp 4X2(6 wheels) 3.37m³ Concrete Mixer Truck?

Key specs of NanJun Ruiji J30D 140hp 4X2(6 wheels) 3.37m³ Concrete Mixer Truck: Drive: 4x2; Horsepower: 140 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is NanJun Ruiji J30D 140hp 4X2(6 wheels) 3.37m³ Concrete Mixer Truck suited for?

NanJun Ruiji J30D 140hp 4X2(6 wheels) 3.37m³ Concrete Mixer Truck is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does NanJun Ruiji J30D 140hp 4X2(6 wheels) 3.37m³ Concrete Mixer Truck differ from other variants in the same series?

NanJun Ruiji J30D 140hp 4X2(6 wheels) 3.37m³ Concrete Mixer Truck belongs to NanJun Ruiji J30 (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for NanJun Ruiji J30D 140hp 4X2(6 wheels) 3.37m³ Concrete Mixer Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export NanJun Ruiji J30D 140hp 4X2(6 wheels) 3.37m³ Concrete Mixer Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
