Allison H5610 7-speed automatic transmission

Export reference
MSRP N/A
Max input torque:: 2373N·m
1st gear ratio:: 5.94
2nd gear ratio:: 4
Transmission Model: Allison H5610
Transmission Brand: Allison
Matching Range: Rear dump truck, articulated dump truck, coal transport truck

Overview

The Allison H5610 7-speed automatic transmission is a parts product with spec Allison H5610.

Model Specs

Legend: ● Standard ○ Optional - N/A

Transmission Parameters
Transmission Brand: Allison
Transmission series: Allison 5000 series
Matching Range: Rear dump truck, articulated dump truck, coal transport truck
Max input torque: 2373N·m
1st gear ratio: 5.94
2nd gear ratio: 4
3rd gear ratio: 2.68
4th gear ratio: 2.01
5th gear ratio: 1.35
6th gear ratio:
7th gear ratio: 0.67
Reverse Gear 1 Ratio: 5.15
Reverse Gear 2 Ratio: 3.46
Reverse Gear 3 Ratio:
Number of gears: 7Gear
shift type: AT automatic
Transmission Model: Allison H5610
shift method: AT automatic
Forward gears: 7Gear
Number of Reverse Gears: 3pcs

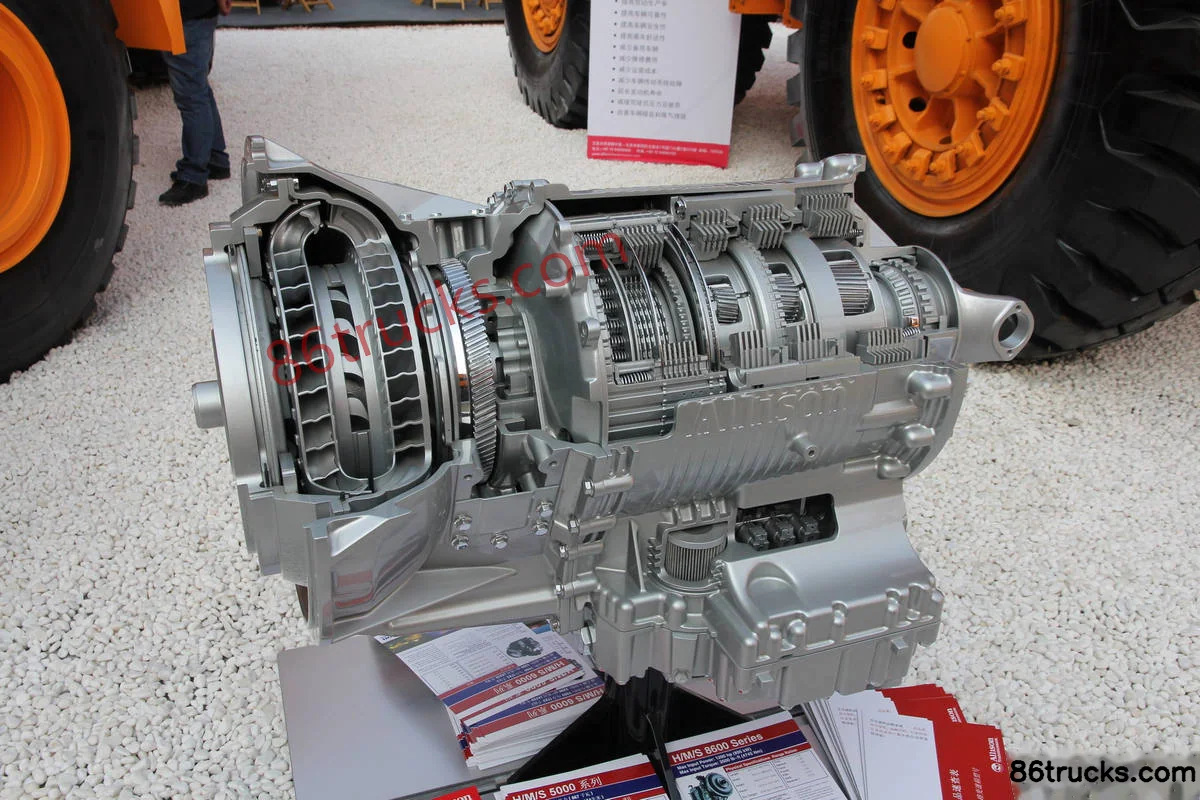

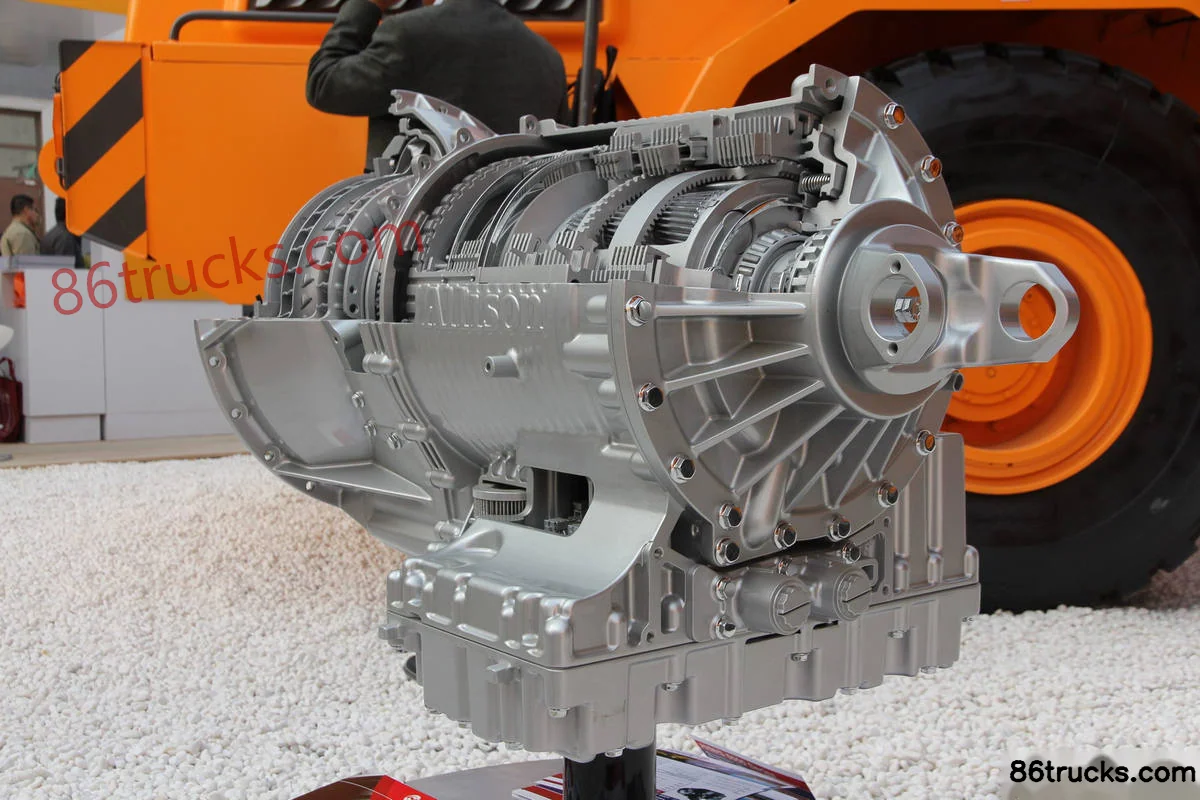

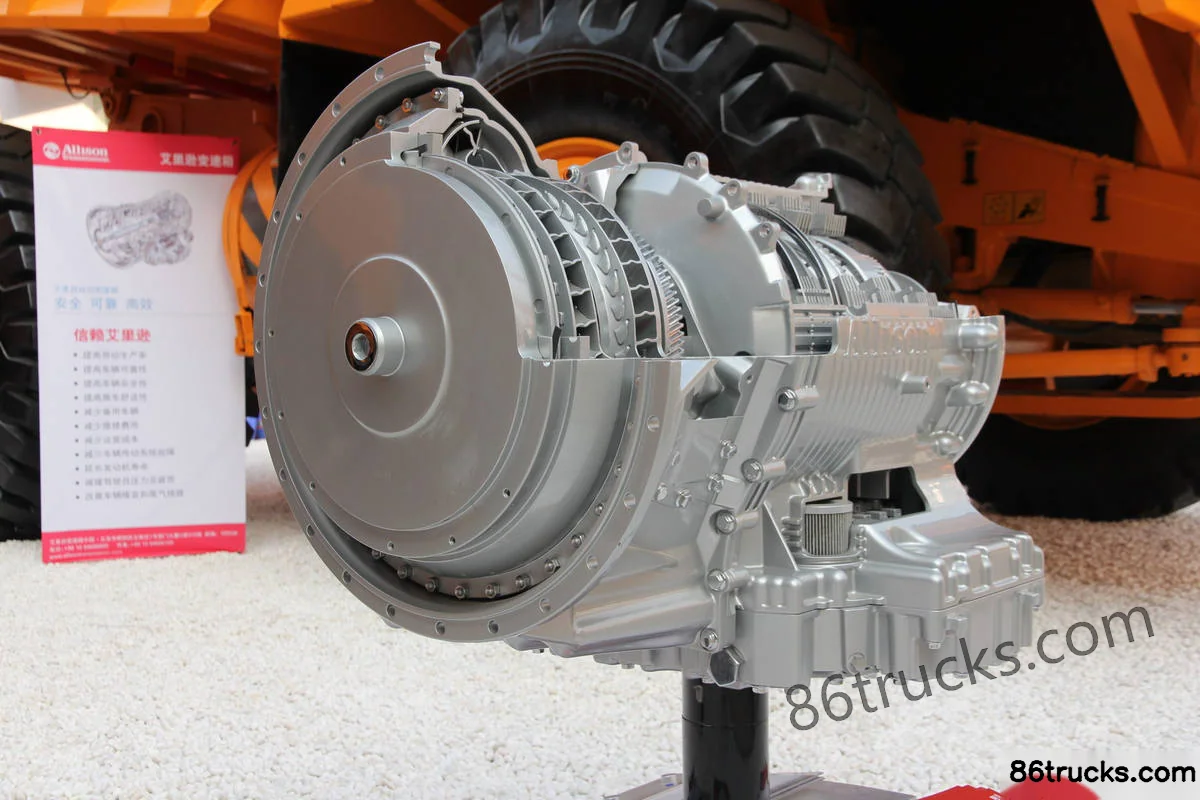

Photos

Exterior3

3 photos
