Kairui Green Card Intercity Edition 141hp 4X2(6 wheels) Single Row Light Truck Chassis

Export reference
MSRP N/A
Horsepower: 141
Emission: China V
Fuel: Diesel
Engine: Fukang 3.8
Transmission: WLY
Curb Weight:: 2.165ton
seating capacity: 3Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Chassis

Overview

The Chery Commercial Vehicle Kairui Green Card Intercity Edition 141hp 4X2(6 wheels) Single Row Light Truck Chassis is a Light Truck featuring Chassis cargo body, 3Personnel volume, 1.495t payload and 3360mm wheelbase. On the powertrain side, it comes with a Fukang 3.8 engine, 141 hp, 4X2 (6 wheels) drive and China V emissions.

China V 141 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SQR1040H03D-E
Type: Chassis
Drive type: 4X2
Wheelbase: 3360mm
engine: FotonISF3.8s5141
transmission: WLYWLY6TS55
Rear Axle Ratio: 4.11
Cab length: 5.97m
Cab width: 2.14m
Cab height: 2.4m
Front track width: 1680mm
rear track: 1635mm
Curb Weight: 2.165ton
Rated payload: 1.495ton
GVWR: 4.495ton
Max. speed: 110km/h
Origin: Kaifeng, Henan
tonnage class: Light Truck
Front/rear suspension: 1.125/1.485m
Version: Intercity Version
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonISF3.8s5141
Engine info: Fukang 3.8
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.76L
Emission standard: China V
Max output power: 105kW
Max hp: 141Horsepower
Max torque: 440N·m
Max torque speed: 1200-2200rpm
Rated speed: 2600rpm
Engine Type: Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection SCR
Transmission Parameters
Transmission Model: WLYWLY6TS55
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Chassis
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1974kg
rear axle allowable load: 2548kg
Axle ratio: 4.11
Leaf spring count: 9/10+8
Tire
Tire Size: 8.25R16LT 6PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual

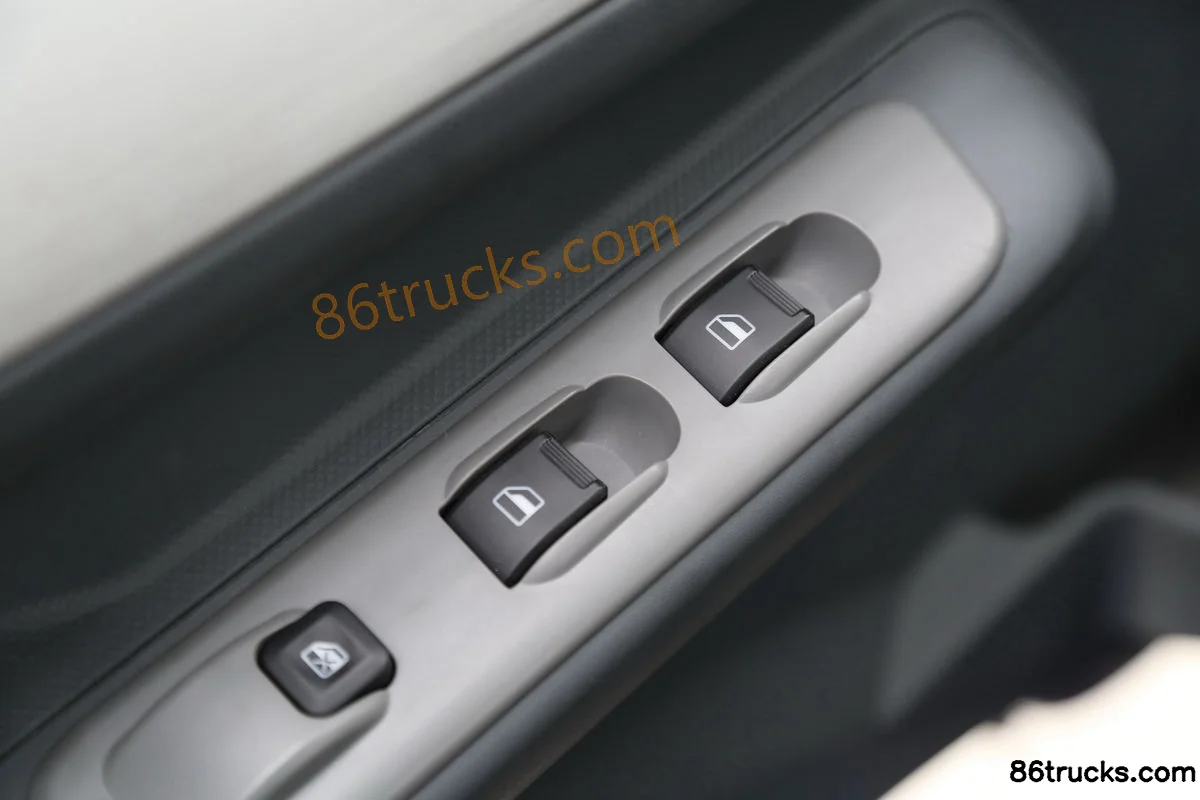

Power Windows:
Multimedia features
External audio input (AUX/USB/iPod etc.):

Photos

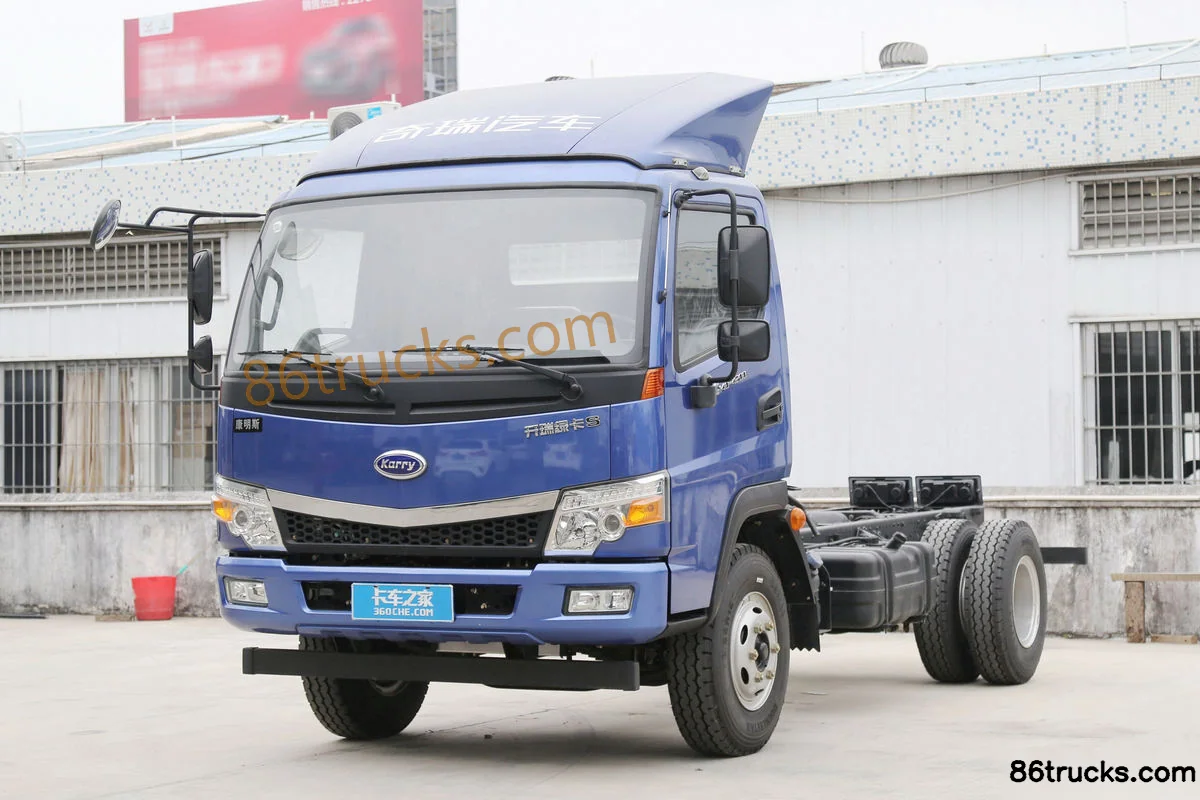

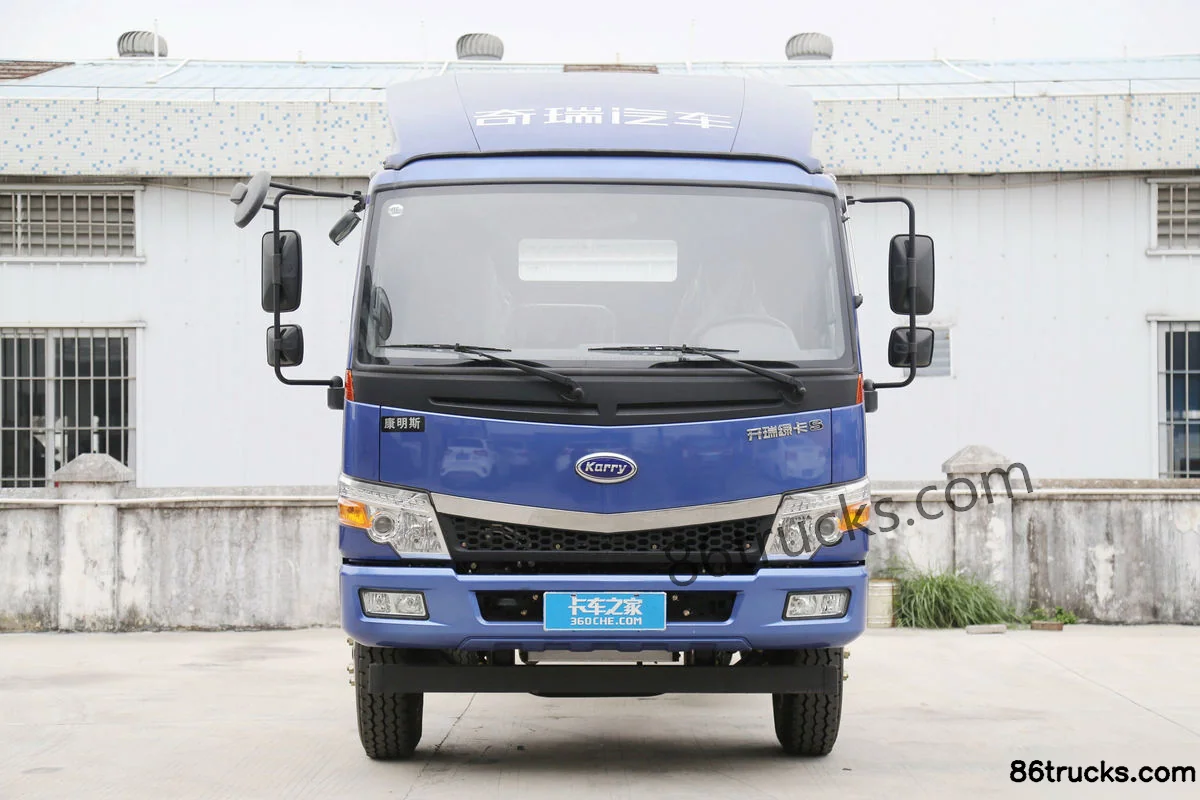

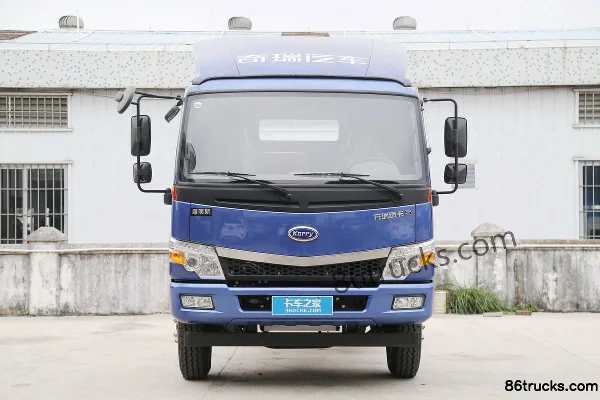

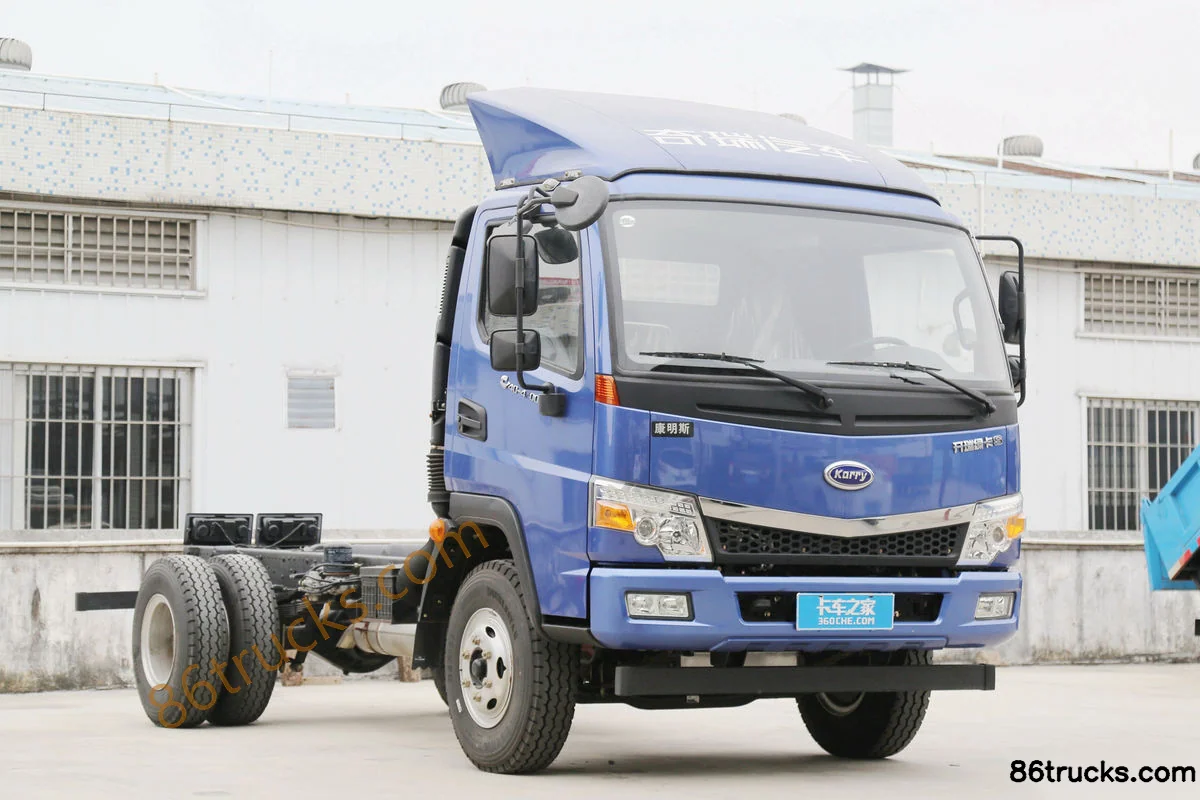

Exterior3

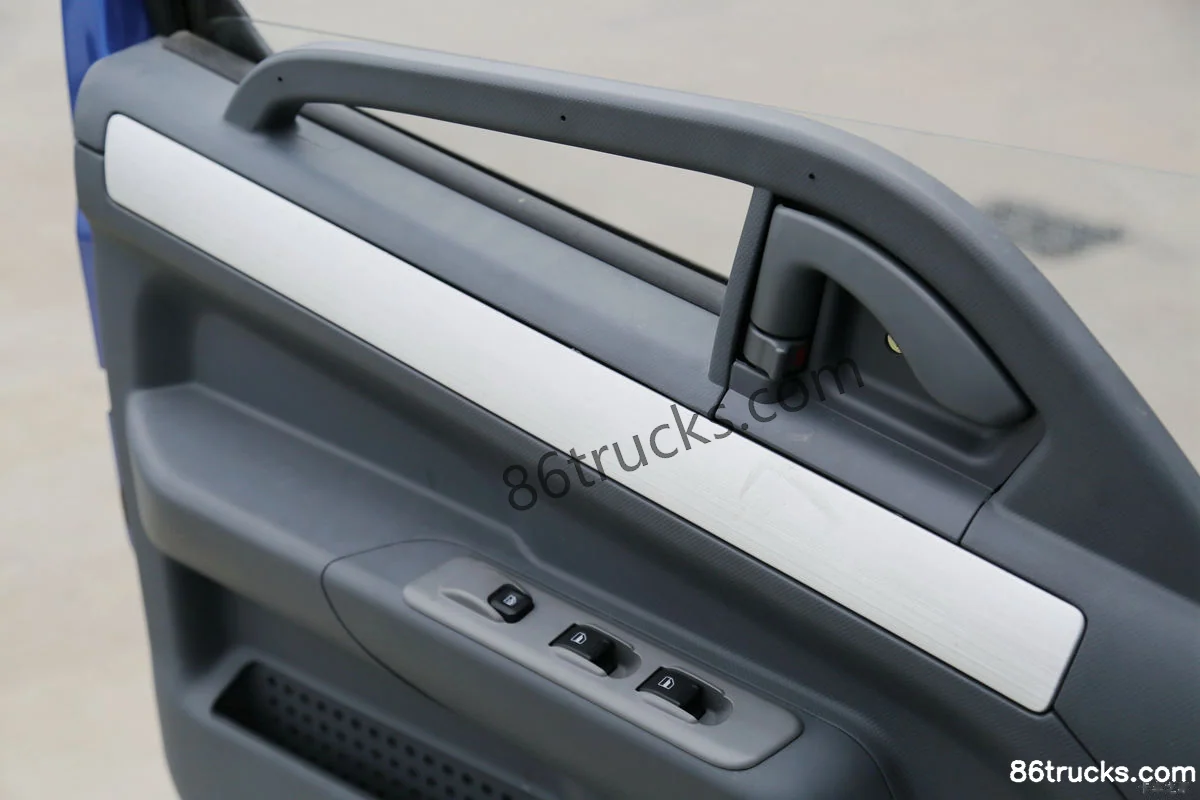

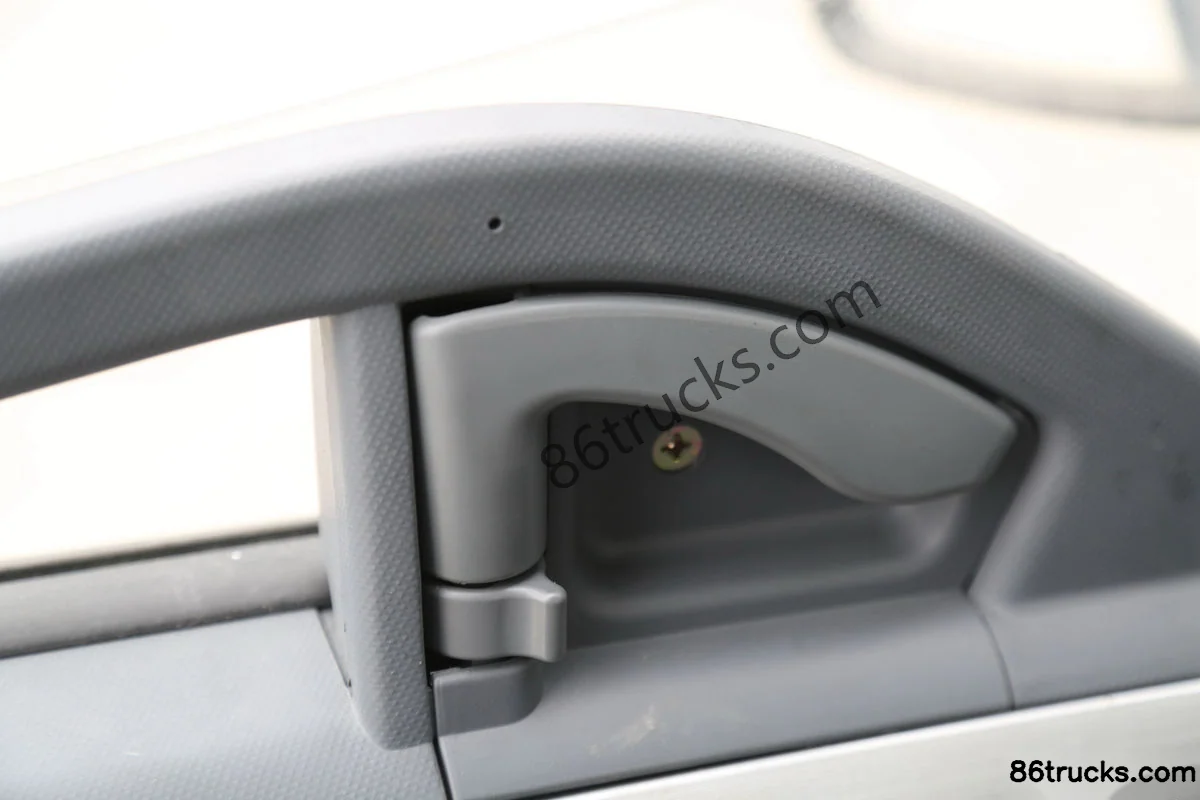

Cab3

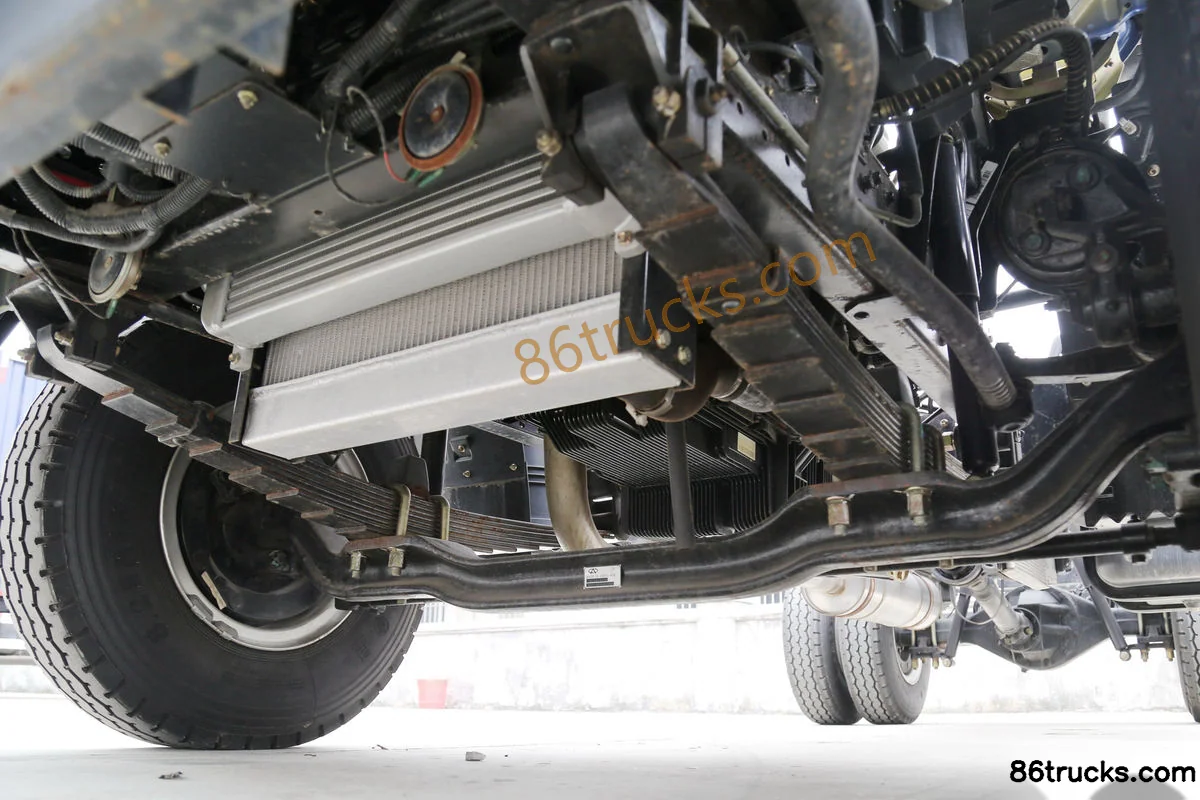

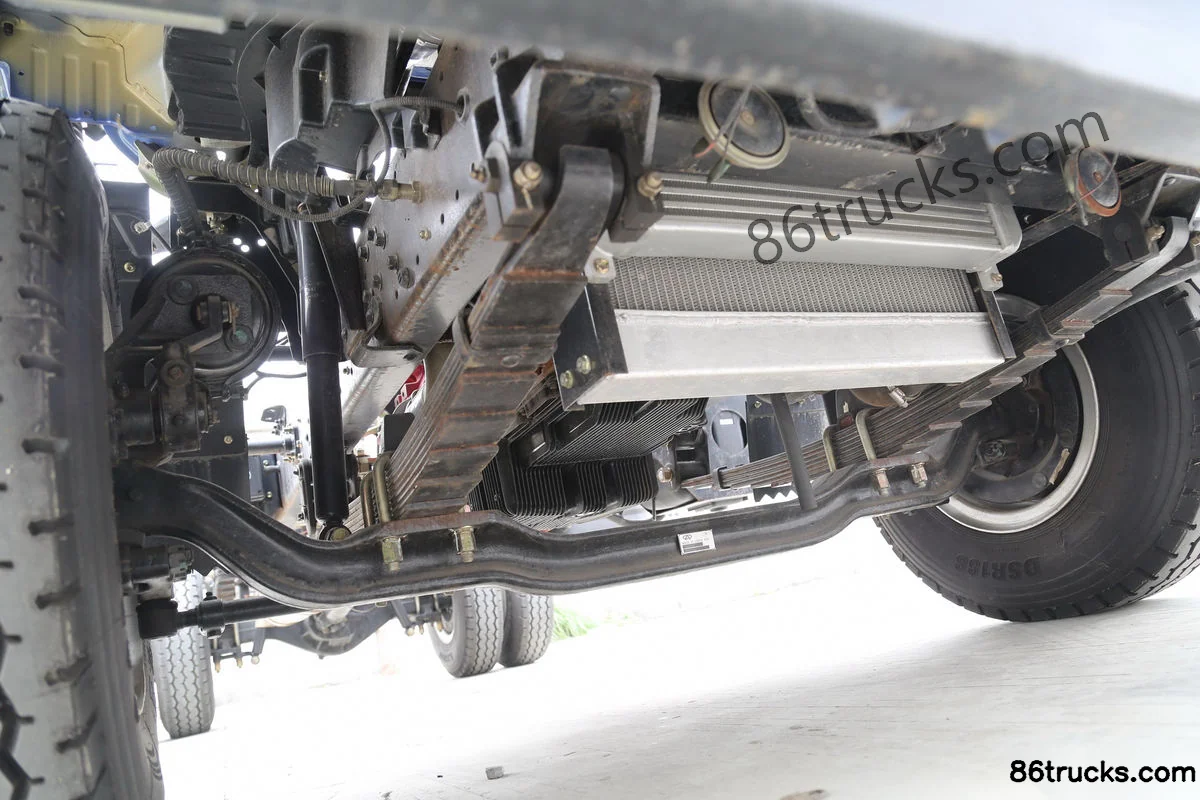

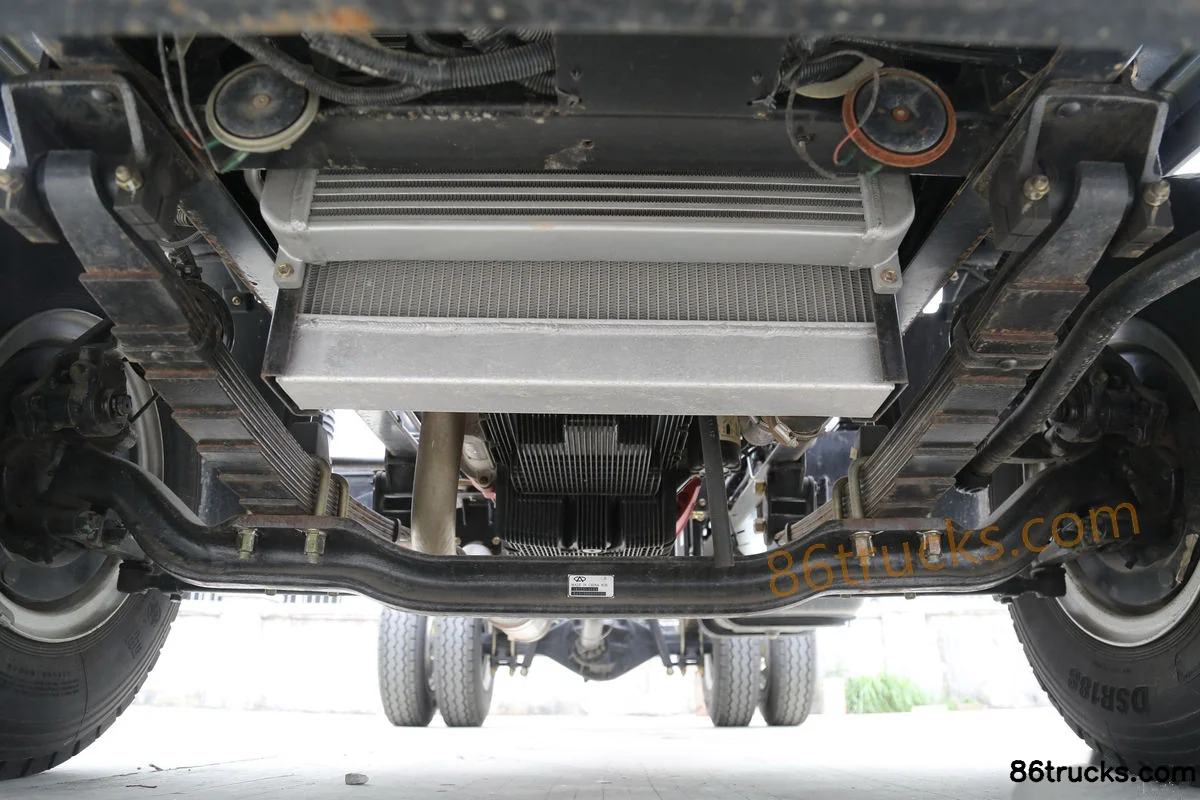

Chassis3

9 photos
