Dongfeng DF451S 4.5t grade steering axle

Export reference
MSRP N/A
Applicable Tire:: 9.00-20
Front/rear track width:: 1880-2054mm
Rim Used:: 7.0-20inch
Axle Model: 4.5-ton steering axle
Brake size: Φ400×130
Axle Type: Steering axle

Overview

The Dongfeng DF451S 4.5t grade steering axle is a parts product with spec 4.5-ton steering axle and Φ400×130 size.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Axle Model: 4.5-ton steering axle
Axle Type: Steering axle
Applicable Tire: 9.00-20
Rated axle load: 4500ton
Front/rear track width: 1880-2054mm
Brake size: Φ400×130
Rim Used: 7.0-20inch
Wheel Bolts: Φ275-8×M20×1.5mm
Remarks: I-beam; kingpin inclination 7°, camber 1°, inner wheel turning angle 42°, outer wheel turning angle 33°

Photos

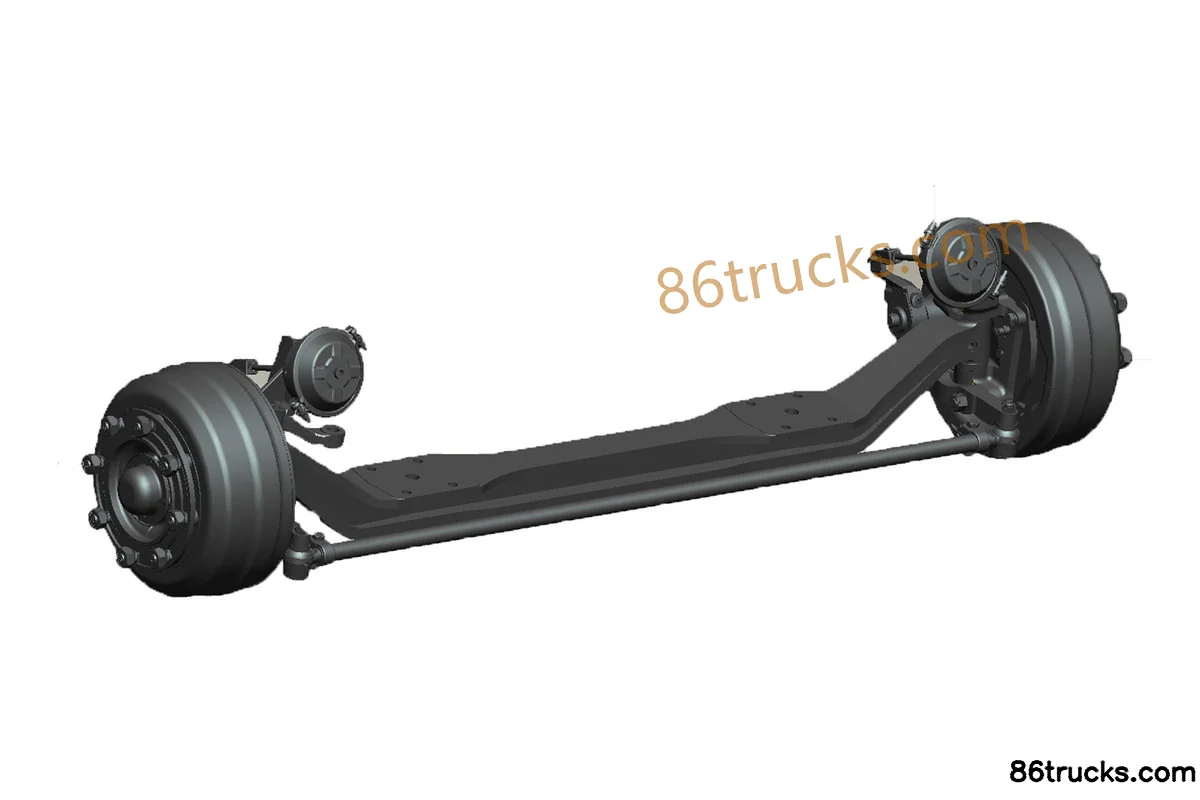

Exterior1

1 photos

FAQ

What transport jobs is Dongfeng DF451S 4.5t grade steering axle suited for?

Match Dongfeng DF451S 4.5t grade steering axle to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Dongfeng DF451S 4.5t grade steering axle differ from other variants in the same series?

Dongfeng DF451S 4.5t grade steering axle belongs to Dongfeng Steering Axle (axle). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng DF451S 4.5t grade steering axle?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng DF451S 4.5t grade steering axle?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
