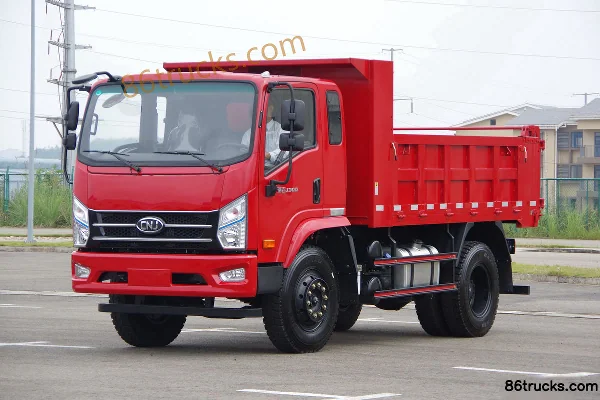

NanJun Ruiji J30 Luxury Edition 165hp 4X2(6 wheels) 3.9m Dump Truck

Export reference
From $21,042
MSRP ¥15.15M CNY
Emission: China VI
Fuel: Diesel
Curb Weight:: 6.37ton
Wheelbase:: 3400mm
Tire Size:: 10.00R20
Model code (announced):: NJA3181PPB38A
Rated payload: 11.435ton
Drive 4X2 (6 wheels)
Horsepower 165
Cargo box thickness: floor 2 side 2

Overview

The NanJun Ruiji J30 Luxury Edition 165hp 4X2(6 wheels) 3.9m Dump Truck is a Medium-duty truck featuring 11.435t payload, 18t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYCY30165-60 engine, 165 hp, China VI emissions and 8-speed gearbox transmission.

China VI 165 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): NJA3181PPB38A
Drive type: 4X2
Wheelbase: 3400mm
engine: YuchaiYCY30165-60
transmission: 8-speed gearbox
Rear Axle Ratio: 6.5
Cab length: 6.15m
Cab width: 2.3m
Cab height: 2.8m
Front track width: 1760mm
rear track: 1635mm
Curb Weight: 6.37ton
Rated payload: 11.435ton
GVWR: 18ton
Origin: Ziyang, Sichuan
tonnage class: Medium-duty truck
Approach angle: 18°
departure angle: 15°
Version: Luxury Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCY30165-60
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.97L
Emission standard: China VI
Max output power: 121kW
Max hp: 165Horsepower
Max torque: 500N·m
Max torque speed: 1400-2200rpm
Rated speed: 2800rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: 8-speed gearbox
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
hydraulic cylinder brand & model: 2TG-110×550A
Cargo box thickness: floor 2 side 2
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.9m
Cargo box width: 2.2m
Cargo box height: 0.8m
Body Parameters
Lifting type: dual cylinder
Cab parameters
Cab: Sleeper cab
Cab width: 1995mm
seating capacity: 3Personnel
Chassis Specs
Front axle description: 3.6T
Front axle allowable load: 6500kg
Frame Dimensions: 250mm
rear axle description: 9T
rear axle allowable load: 11500kg
Axle ratio: 6.5
Leaf spring count: 9/10+8
Tire
Tire Size: 10.00R20
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Electronic Central Lock:

Photos

0 photos

FAQ

What is the export price of NanJun Ruiji J30 Luxury Edition 165hp 4X2(6 wheels) 3.9m Dump Truck, and what does it include?

NanJun Ruiji J30 Luxury Edition 165hp 4X2(6 wheels) 3.9m Dump Truck export reference is about From $21,042; MSRP is ¥15.15M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does NanJun Ruiji J30 Luxury Edition 165hp 4X2(6 wheels) 3.9m Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of NanJun Ruiji J30 Luxury Edition 165hp 4X2(6 wheels) 3.9m Dump Truck?

Key specs of NanJun Ruiji J30 Luxury Edition 165hp 4X2(6 wheels) 3.9m Dump Truck: Drive: 4x2; Horsepower: 165 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is NanJun Ruiji J30 Luxury Edition 165hp 4X2(6 wheels) 3.9m Dump Truck suited for?

NanJun Ruiji J30 Luxury Edition 165hp 4X2(6 wheels) 3.9m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does NanJun Ruiji J30 Luxury Edition 165hp 4X2(6 wheels) 3.9m Dump Truck differ from other variants in the same series?

NanJun Ruiji J30 Luxury Edition 165hp 4X2(6 wheels) 3.9m Dump Truck belongs to NanJun Ruiji J30 (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for NanJun Ruiji J30 Luxury Edition 165hp 4X2(6 wheels) 3.9m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export NanJun Ruiji J30 Luxury Edition 165hp 4X2(6 wheels) 3.9m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
