JAC Gallop V7 Heavy Truck 510 hp 6X4(10 wheels) AMT Automatic Long-Head Tractor Truck

Export reference
From $73,333
MSRP ¥52.8M CNY
Fuel: Diesel
Gross Trailer Weight:: 40ton
Wheelbase:: 4150+1350mm
Tire Size:: 12R22.5 18PR
Front axle allowable load:: 7000kg
Displacement:: 11.8L
Drive 6X4 (10 wheels)
Horsepower 510
Emission China V
Transmission ZF

Overview

The JAC Gallop V7 Heavy Truck 510 hp 6X4(10 wheels) AMT Automatic Long-Head Tractor Truck is a Heavy truck featuring 6X4 (10 wheels) drive, 510 hp, 25t GVW and China V emissions. On the powertrain side, it comes with ZF transmission and Diesel fuel.

China V 510 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC4253P14K8E33S8V
Drive type: 6X4
Min. turning diameter: 20m
Wheelbase: 4150+1350mm
engine: FotonISGe5-510
transmission: ZF12TX2621TD
Rear Axle Ratio: 2.85
Cab length: 8.175m
Cab width: 2.55m
Cab height: 3.85m
Front track width: 2070mm
rear track: 1860/1860mm
Gross Trailer Weight: 40ton
Curb Weight: 8.8ton
GVWR: 25ton
Max. speed: 110km/h
Origin: Hefei, Anhui
tonnage class: Heavy truck
Remarks: Optional ratio 3.08; one-key start, MP5, air heater, in-vehicle WiFi, ESS driving assistance (telematics system)
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonISGe5-510
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 11.8L
Emission standard: China V
Max output power: 375kW
Max hp: 510Horsepower
Max torque: 2300N·m
Max torque speed: 1100-1400rpm
Rated speed: 1900rpm
Transmission Parameters
Transmission Model: ZF12TX2621TD
Transmission Brand: ZF
shift method: AMT manual/auto
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cab parameters
Cab: High roof
seating capacity: 2Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Lower Bunk Width: 900mm
Chassis Specs
Front axle description: 6.5T
Front axle allowable load: 7000kg
Fifth wheel: 50#
rear axle description: 13T, single reduction axle
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 2.85
Leaf spring count: 2/-
Suspension (front/rear): Front leaf spring + rear air bag
Tire
Tire Size: 12R22.5 18PR
Number of tires: 10pcs
Control configuration
ABS:
interior configuration
Steering Wheel Material: leather
Multifunction steering wheel:
AC control type: Automatic

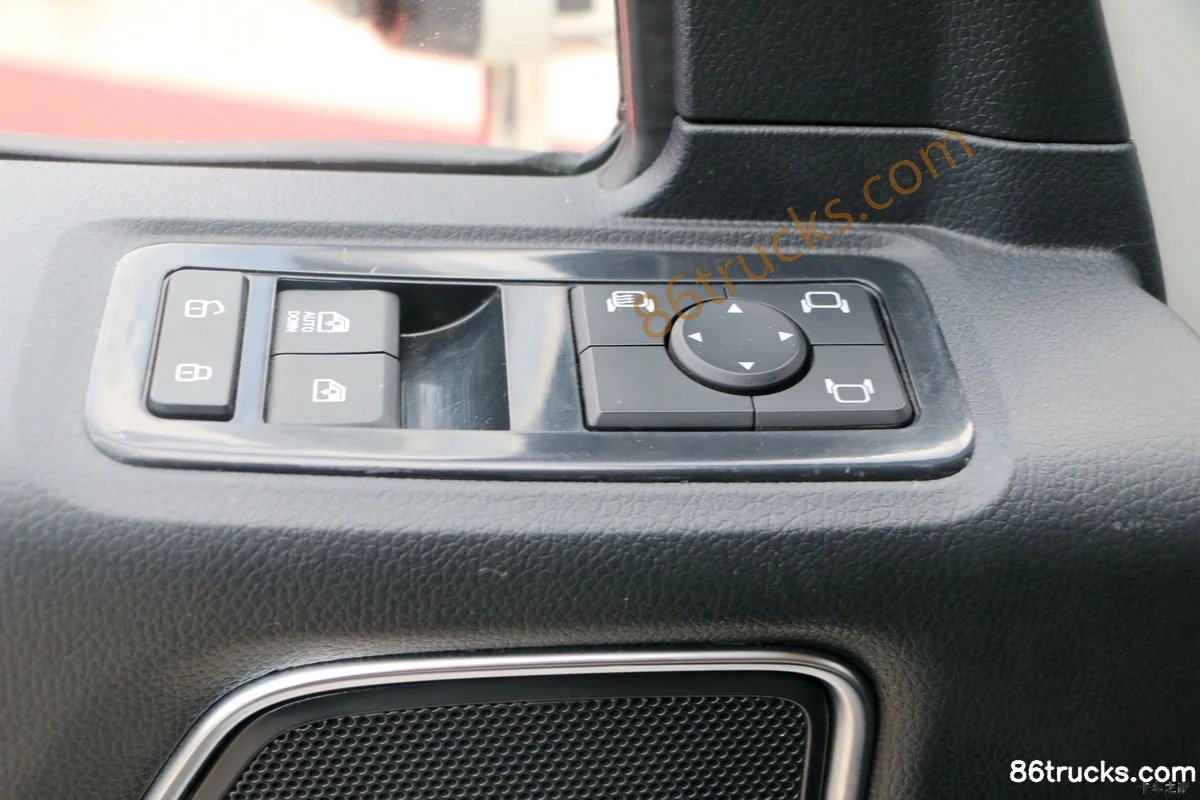

Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Electronic Central Lock:
Multimedia features
GPS/Beidou driving recorder:
Service brake
Front wheel brake: Disc
smart configuration
Tire Pressure Monitoring System (TPMS):

Photos

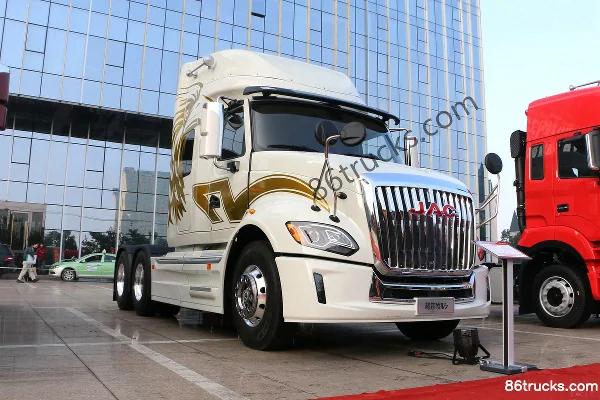

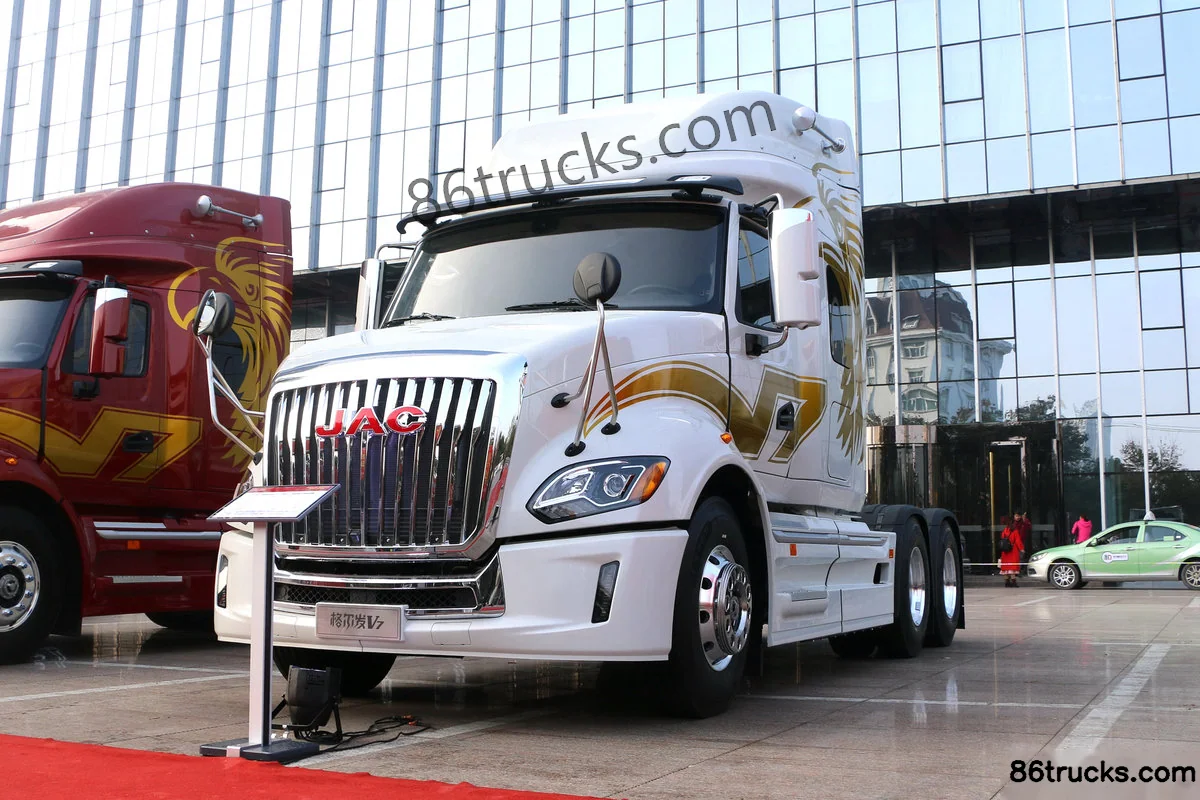

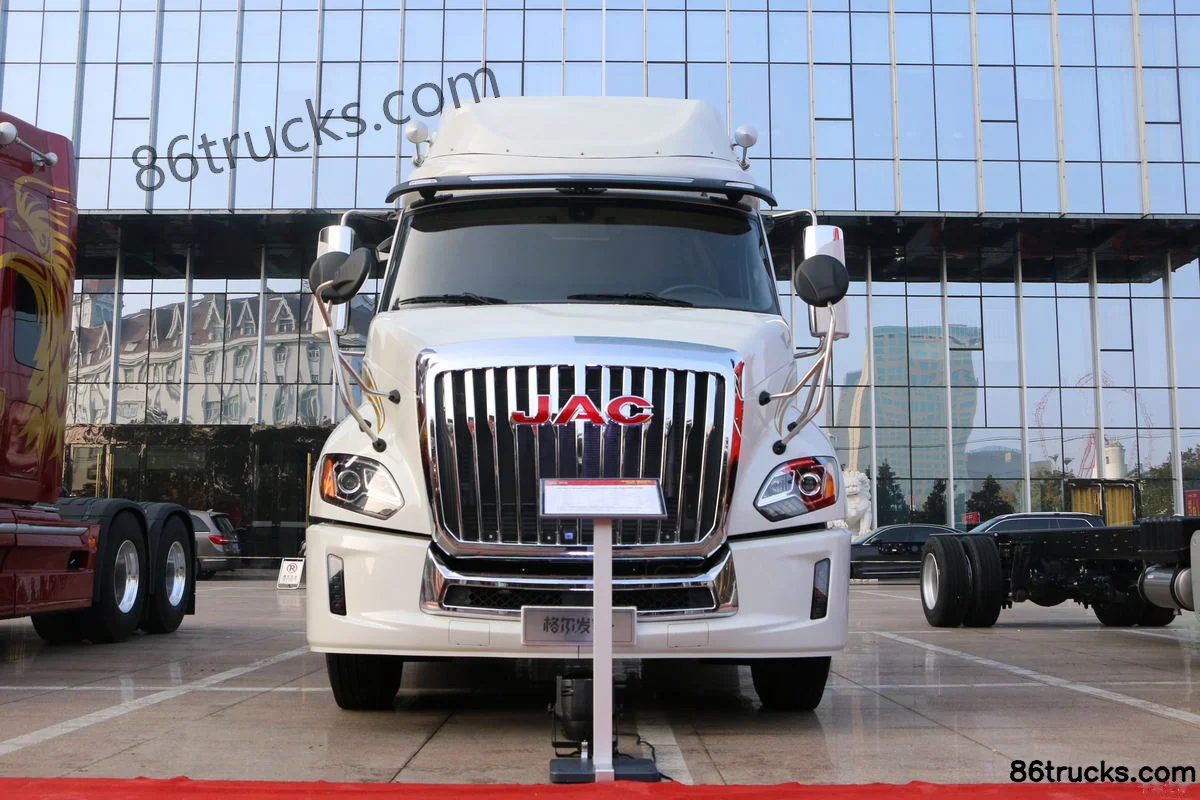

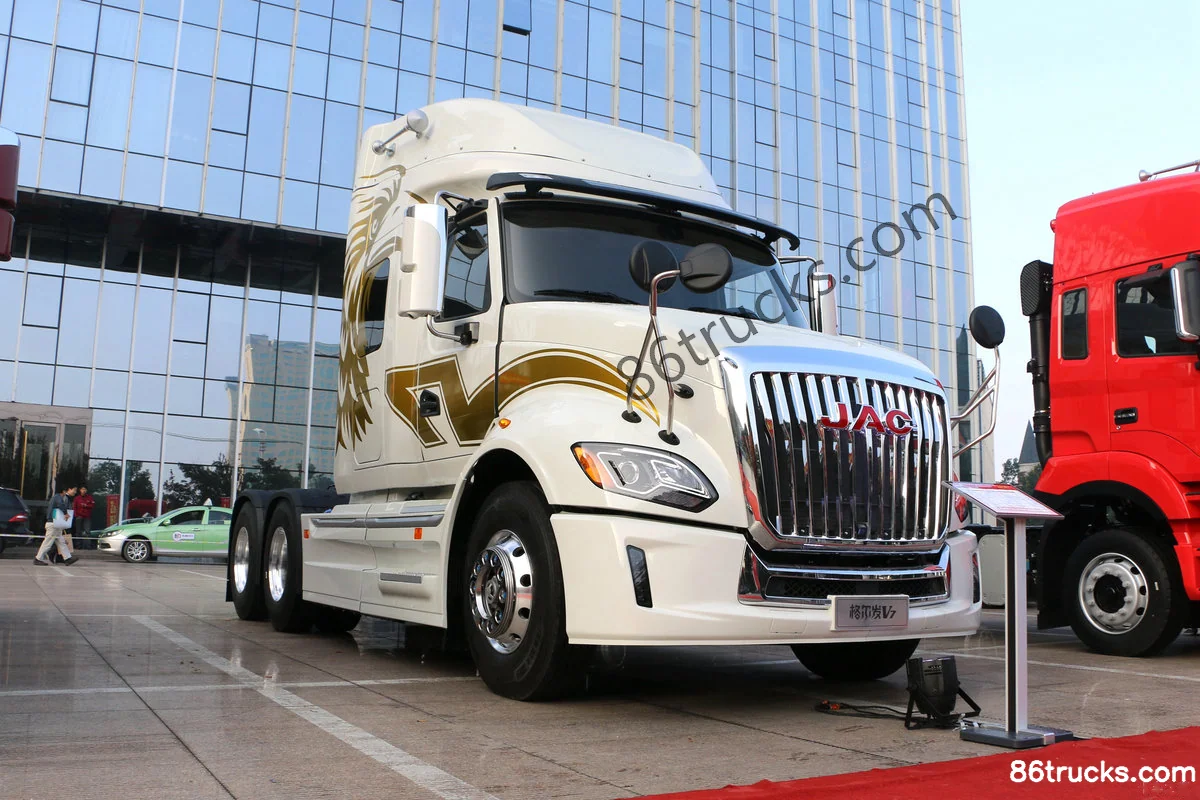

Exterior3

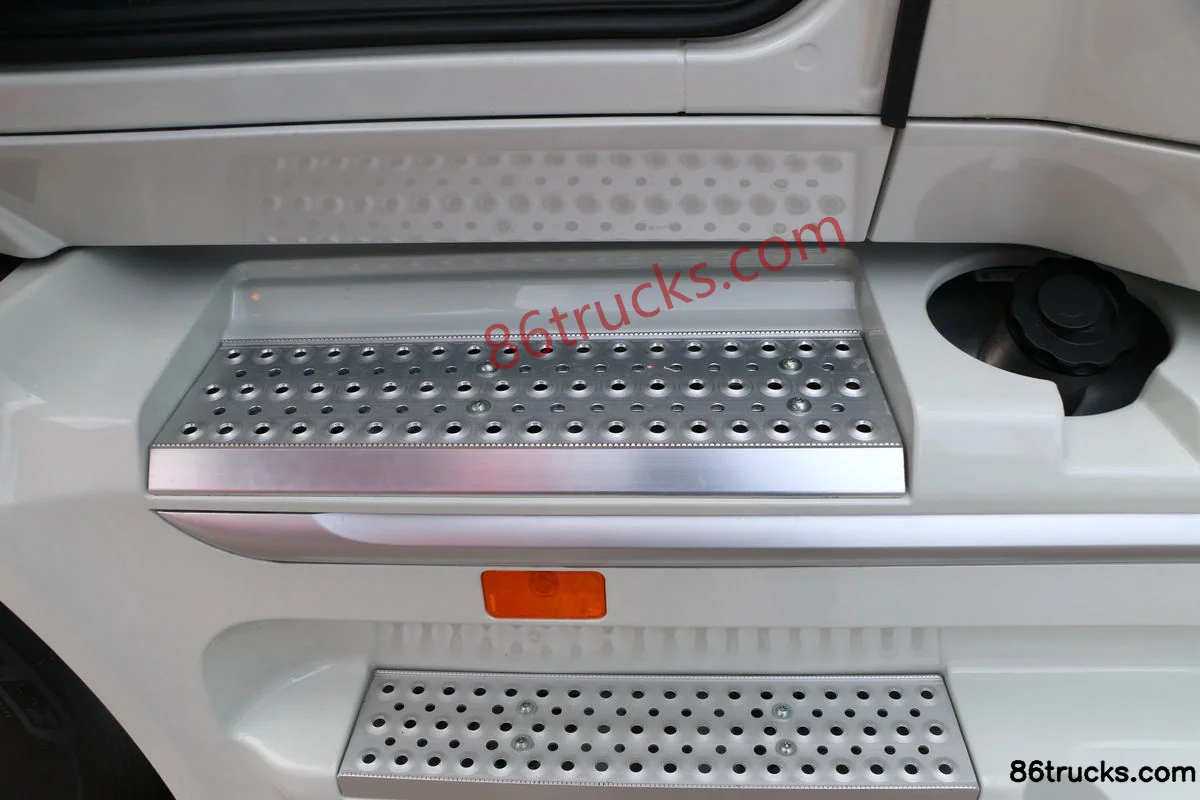

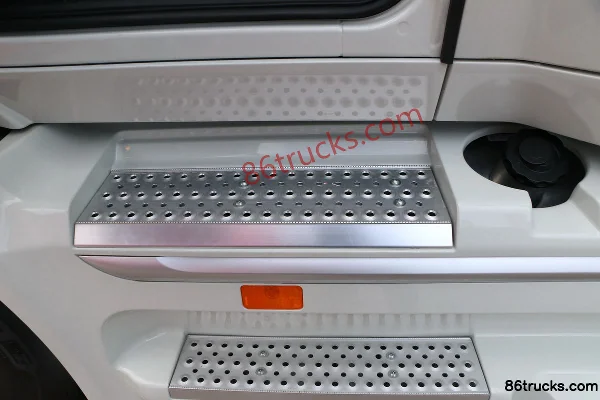

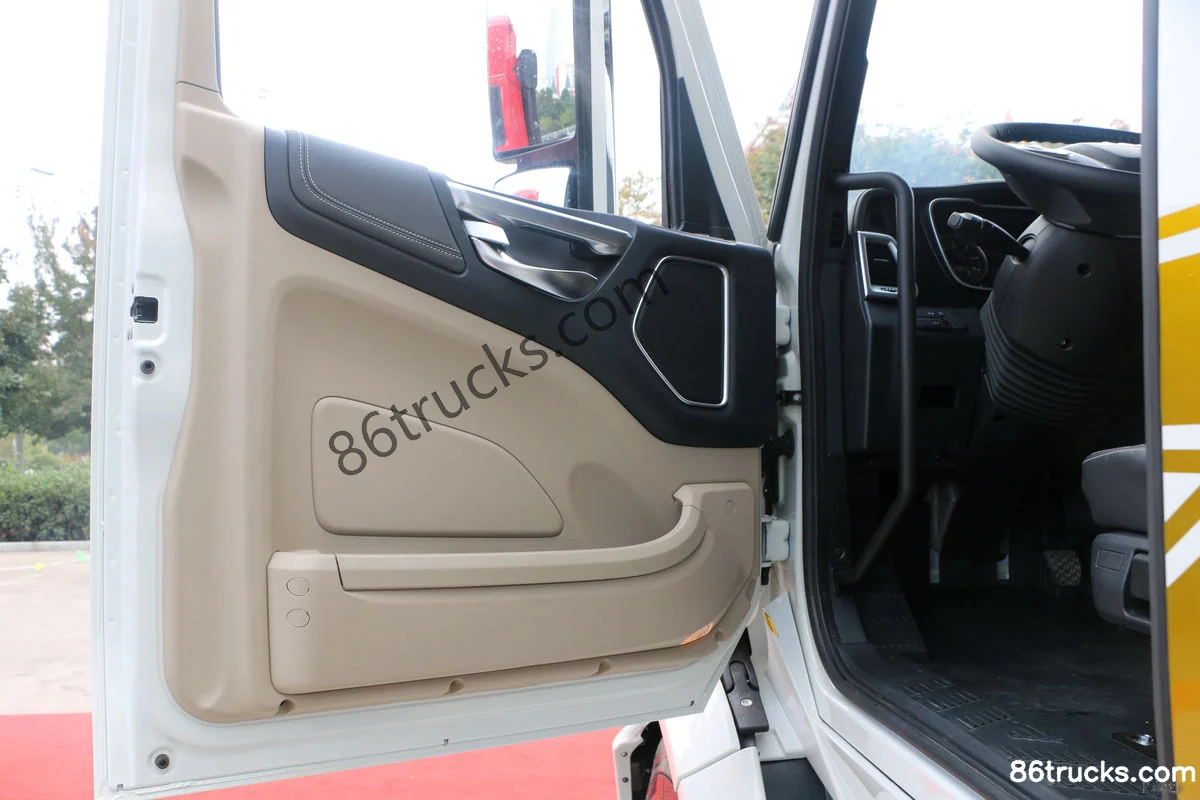

Cab3

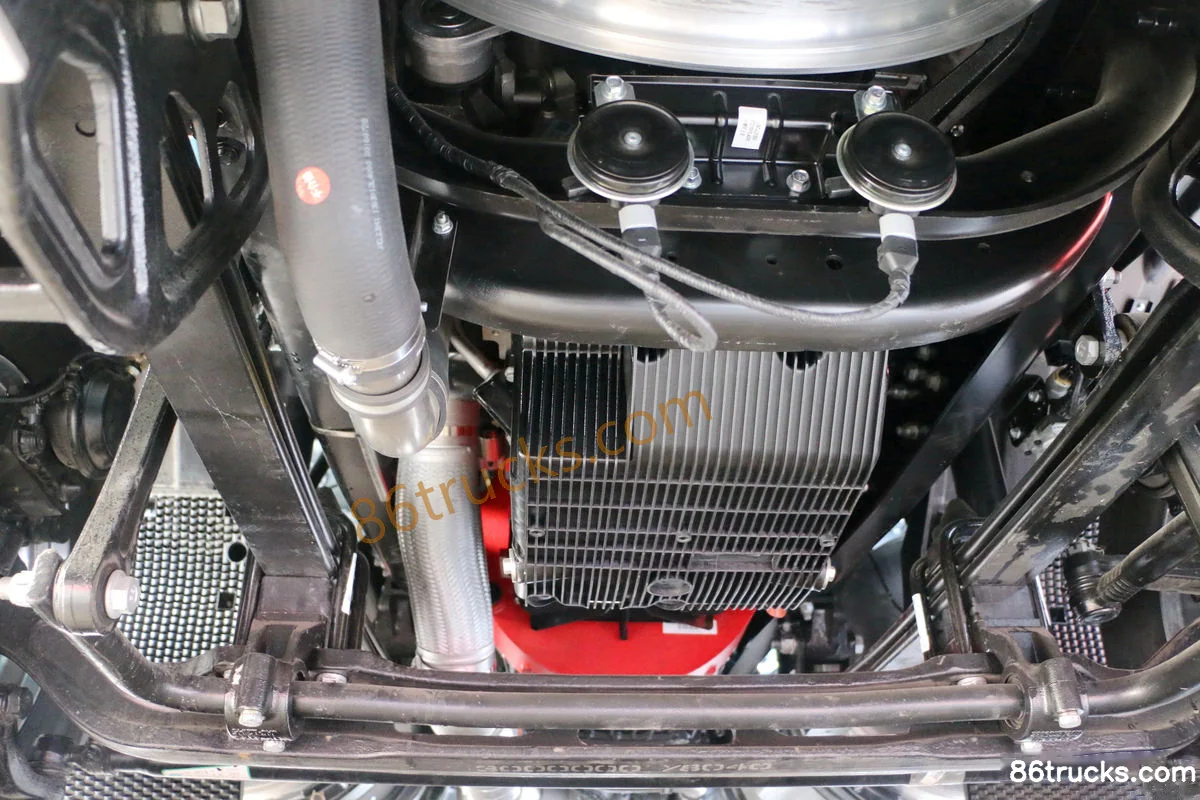

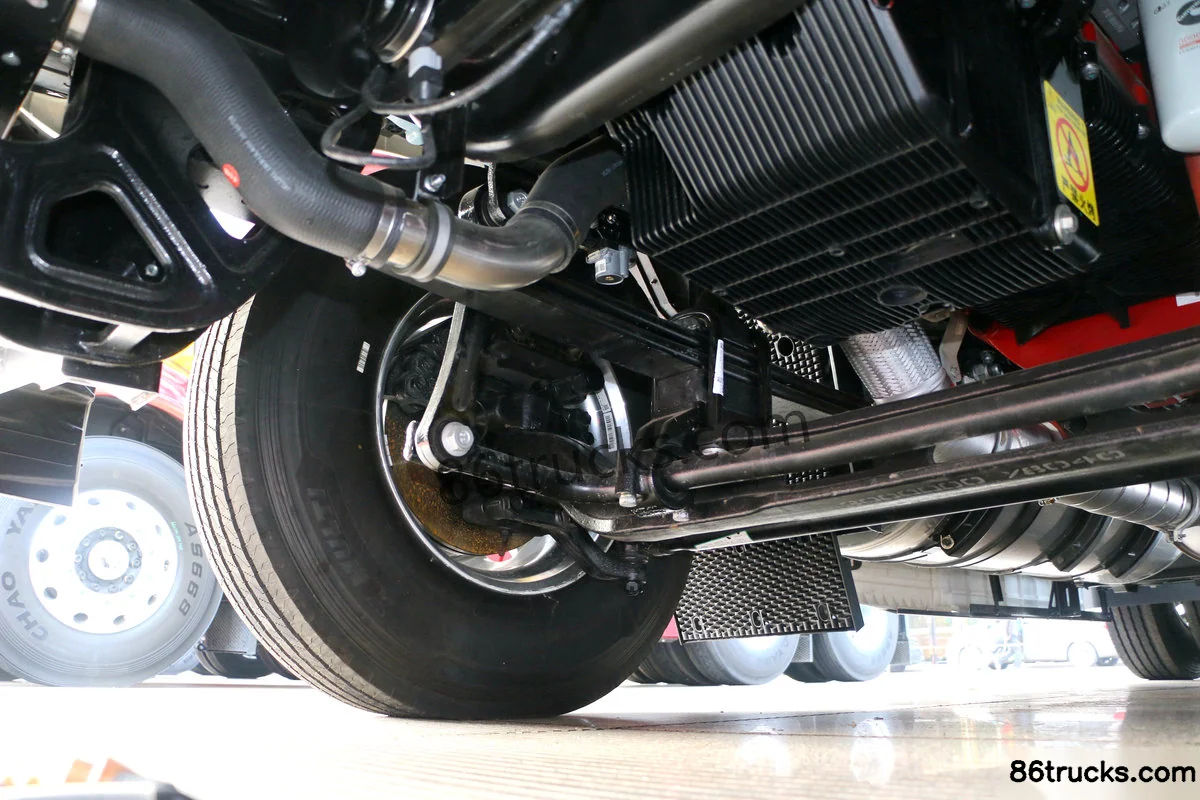

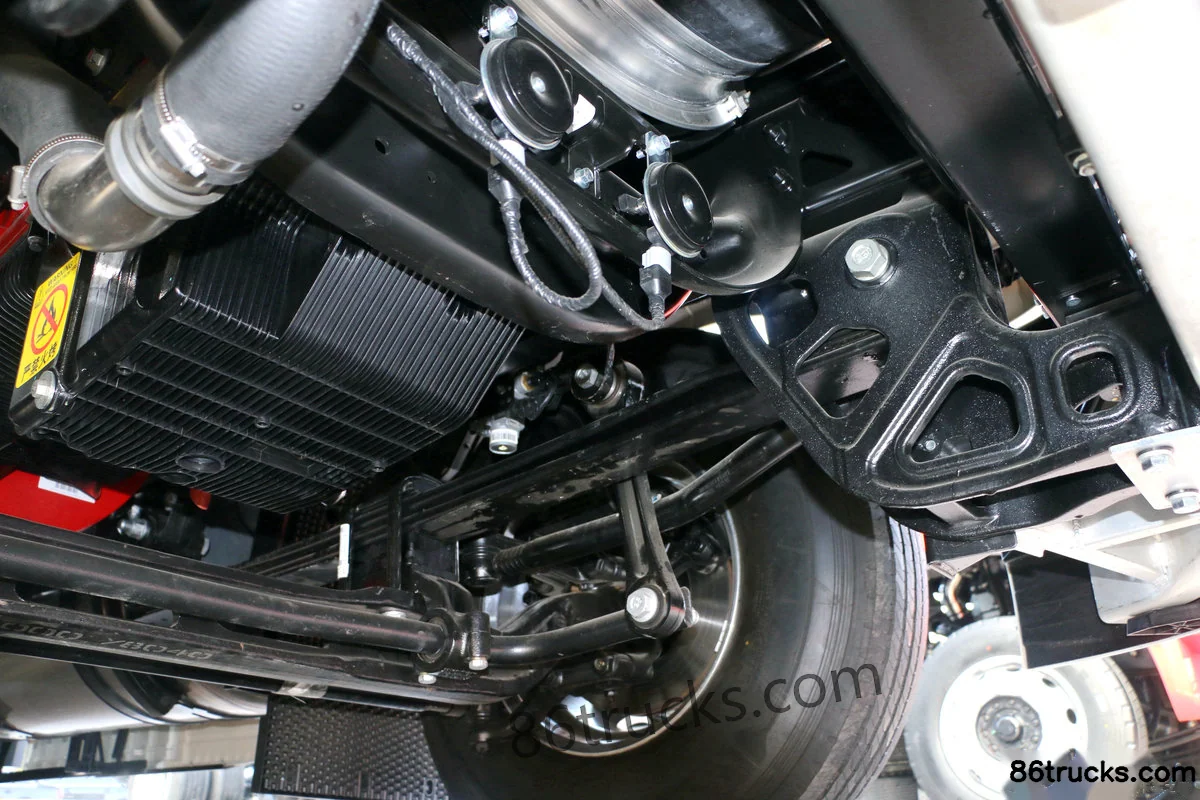

Chassis3

9 photos

FAQ

What is the export price of JAC Gallop V7 Heavy Truck 510 hp 6X4(10 wheels) AMT Automatic Long-Head Tractor Truck, and what does it include?

JAC Gallop V7 Heavy Truck 510 hp 6X4(10 wheels) AMT Automatic Long-Head Tractor Truck export reference is about From $73,333; MSRP is ¥52.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Gallop V7 Heavy Truck 510 hp 6X4(10 wheels) AMT Automatic Long-Head Tractor Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop V7 Heavy Truck 510 hp 6X4(10 wheels) AMT Automatic Long-Head Tractor Truck?

Key specs of JAC Gallop V7 Heavy Truck 510 hp 6X4(10 wheels) AMT Automatic Long-Head Tractor Truck: Drive: 6x4; Horsepower: 510 hp; Emission: China V; Fuel: Diesel; Transmission: ZF. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop V7 Heavy Truck 510 hp 6X4(10 wheels) AMT Automatic Long-Head Tractor Truck suited for?

JAC Gallop V7 Heavy Truck 510 hp 6X4(10 wheels) AMT Automatic Long-Head Tractor Truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does JAC Gallop V7 Heavy Truck 510 hp 6X4(10 wheels) AMT Automatic Long-Head Tractor Truck differ from other variants in the same series?

JAC Gallop V7 Heavy Truck 510 hp 6X4(10 wheels) AMT Automatic Long-Head Tractor Truck belongs to JAC Kuayue V7 heavy truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop V7 Heavy Truck 510 hp 6X4(10 wheels) AMT Automatic Long-Head Tractor Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop V7 Heavy Truck 510 hp 6X4(10 wheels) AMT Automatic Long-Head Tractor Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
