Zhiyu Weike Z5 Standard Load Edition 6X4(10 wheels) Electric Tractor Truck EVE 400.61kWh

Export reference

MSRP N/A

Front axle allowable load:: 7000kg

Wheelbase:: 3800+1350mm

Model code (announced):: QL4250BEVHNPH

Front/rear track width:: Front track: 2020mm; Rear track: 1860/1860mm

Cab length:: 7.435m

GVWR:: 25ton

Zhiyu Weike Z5 Standard Load Edition 6X4(10 wheels) Electric Tractor Truck EVE 400.61kWh exterior

View more photos (6)

Drive 6X4 (10 wheels)

CLTC range: 240km

Motor 1 Brand: Fast Gear

Gross Trailer Weight: 40ton

Overview

The Zhiyu Weike Z5 Standard Load Edition 6X4(10 wheels) Electric Tractor Truck EVE 400.61kWh is a Heavy truck featuring 240km battery/range, Fast Gear motor, 6X4 (10 wheels) drive and 7000kg payload. On the powertrain side, it comes with Fast Gear transmission.

6X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info

Model code (announced): QL4250BEVHNPH

Drive type: 6X4

Wheelbase: 3800+1350mm

Front/rear track width: Front track: 2020mm; Rear track: 1860/1860mm

Cab length: 7.435m

Cab width: 2.55m

Cab height: 3.29m

CLTC range: 240km

Gross Trailer Weight: 40ton

Curb Weight: 8.87ton

GVWR: 25ton

Max. speed: 89km/h

Origin: Chongqing

tonnage class: Heavy truck

Version: Standard Load Edition

Energy Type: Electric

electric motor

Motor 1 Brand: Fast Gear

Motor 1 Model: TZ368XSSF-SZF602

Motor Type: Permanent magnet synchronous motor

total rated power: 286kW

Peak power: 450kW

Motor 1 Peak Power: 450kW

Number of drive motors: Single motor

Battery/Charging

Battery Brand: EVE

Charging method: Fast Charge

Battery type: Lithium Iron Phosphate Battery

Battery capacity: 400.61kWh

fast charge time: 0.9h

Battery rated voltage: 309.12V

Energy Density: 167.4

Battery total voltage: 618.24V

Battery Model: Z3E-LF324

Transmission Parameters

Transmission Model: FS4E200-2

Transmission Brand: Fast Gear

shift method: AMT manual/auto

Forward gears: 4Gear

Number of Reverse Gears:

Cab parameters

Cab suspension: Four-point air suspension

seating capacity: 2Personnel

Driver seat type: air suspension seat

Chassis Specs

Front axle description: SH30NA

Fifth wheel: 50

Front axle allowable load: 7000kg

rear axle description: 440 axle

rear axle allowable load: 18000 (tandem axle group)kg

Axle ratio: 5.143

Tire

Tire Size: 12R22.5 18PR

Number of tires: 10pcs

Control configuration

ABS:

Stability control system:

EBS electronic braking system:

ASR traction control:

Inter-axle Differential Lock:

interior configuration

Multifunction steering wheel:

AC control type: Automatic

Power Windows:

Electric Heated Rearview Mirror:

Exterior features

side skirt:

Aluminum air tank:

lighting configuration

Headlight height adjustment:

LED taillight:

Service brake

Brake Type: Air brake

Front wheel brake: Drum Type

Rear Wheel Brake: Drum Type

smart configuration

Telematics System:

Cruise control (CCS):

Forward Collision Warning (FCW):

Emergency Brake Assist (EBA):

adaptive cruise control (ACC):

Tire Pressure Monitoring System (TPMS):

Lane change assist (ALC):

Photos

Exterior3

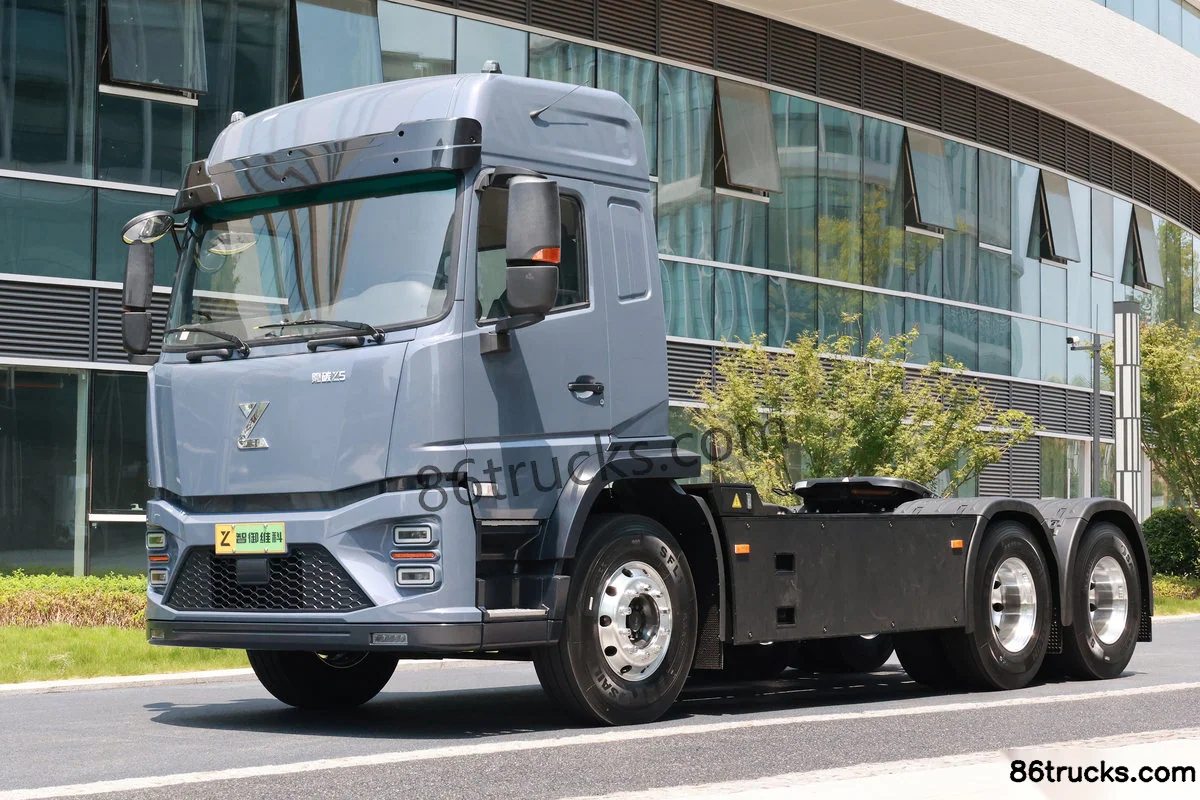

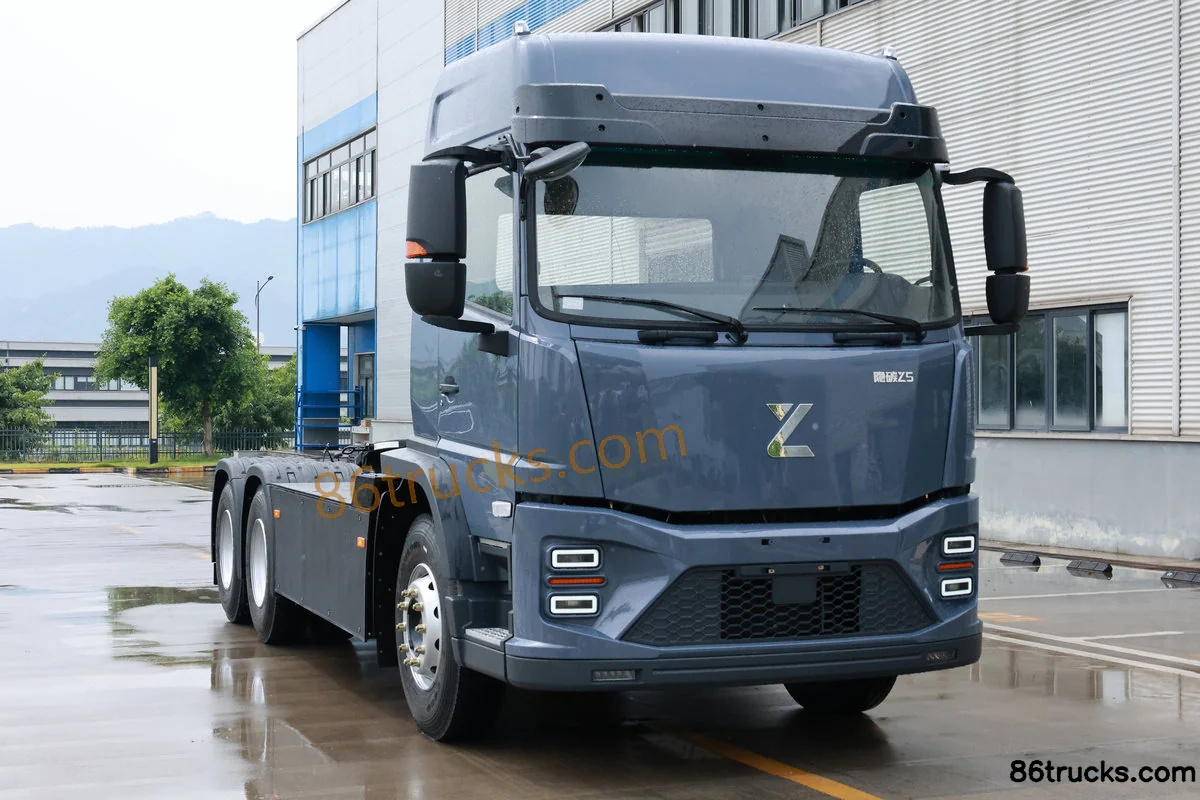

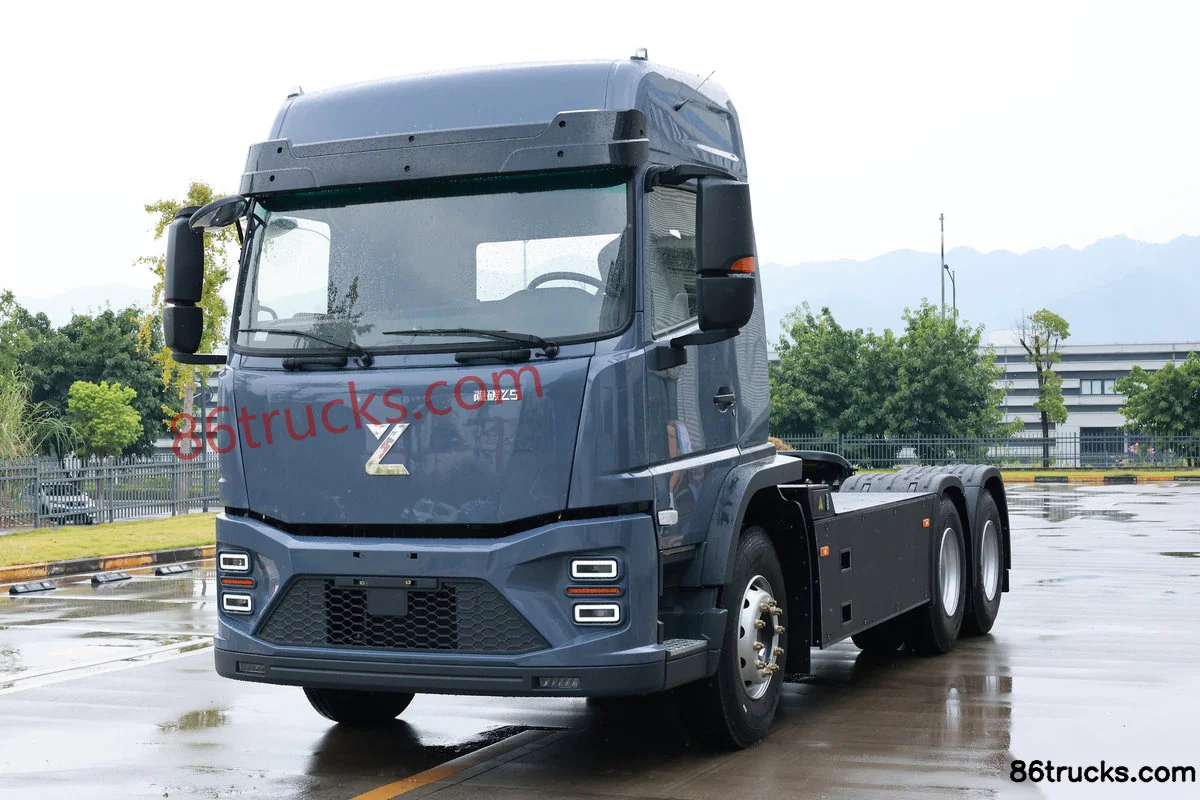

Zhiyu Weike Z5 Standard Load Edition 6X4(10 wheels) Electric Tractor Truck EVE 400.61kWh Exterior (1) | 86Trucks

Zhiyu Weike Z5 Standard Load Edition 6X4(10 wheels) Electric Tractor Truck EVE 400.61kWh Exterior (2) | 86Trucks

Zhiyu Weike Z5 Standard Load Edition 6X4(10 wheels) Electric Tractor Truck EVE 400.61kWh Exterior (3) | 86Trucks

Cab3

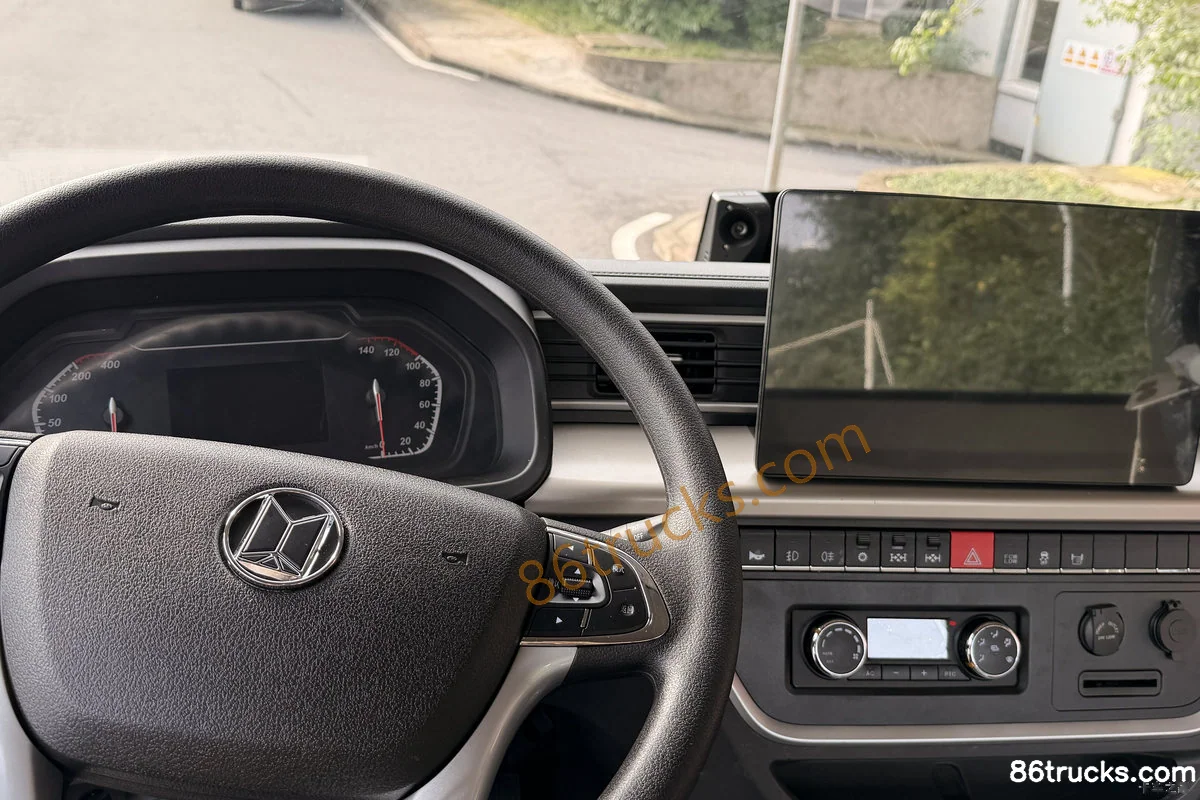

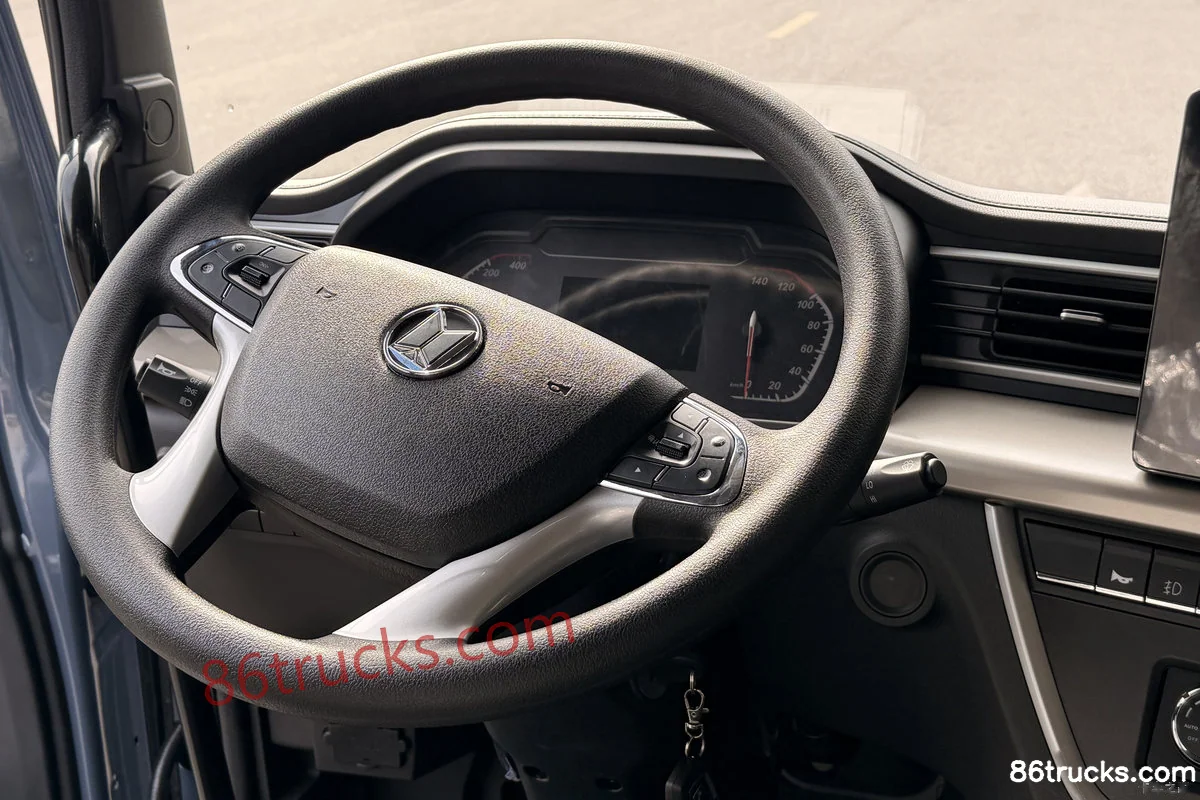

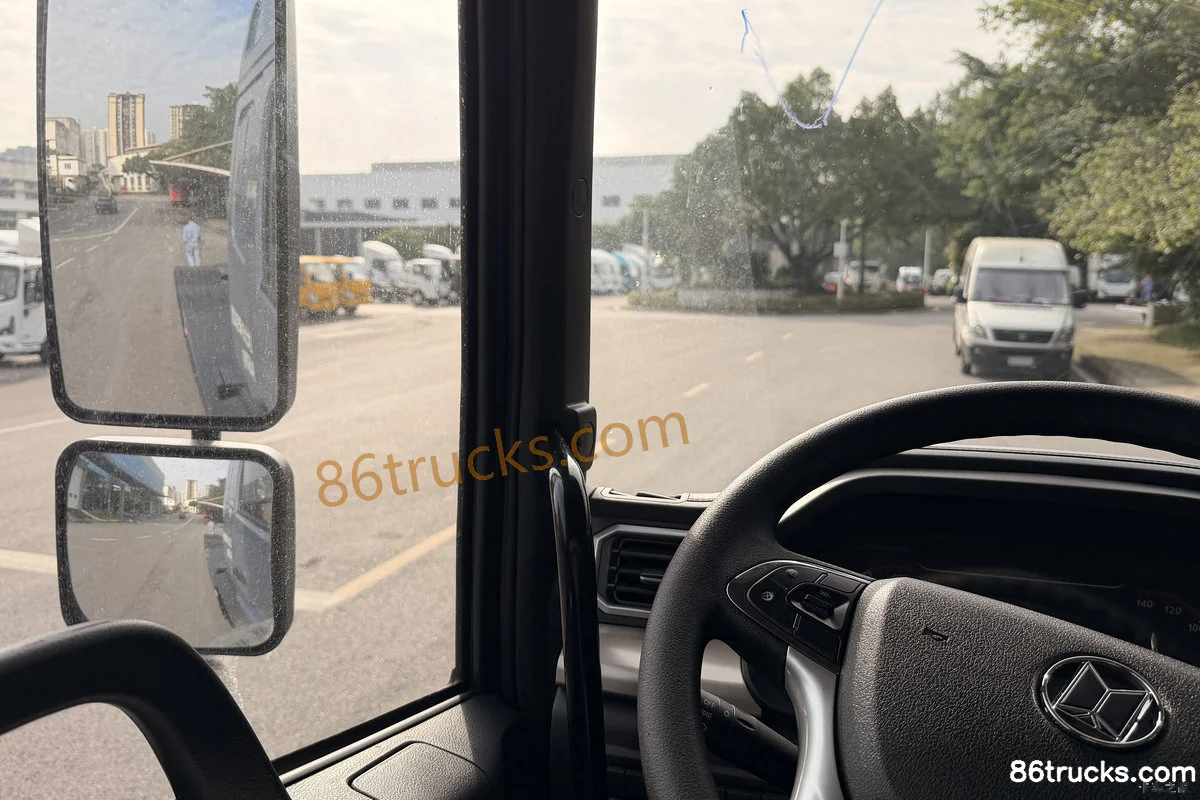

Zhiyu Weike Z5 Standard Load Edition 6X4(10 wheels) Electric Tractor Truck EVE 400.61kWh Cab (1) | 86Trucks

Zhiyu Weike Z5 Standard Load Edition 6X4(10 wheels) Electric Tractor Truck EVE 400.61kWh Cab (2) | 86Trucks

Zhiyu Weike Z5 Standard Load Edition 6X4(10 wheels) Electric Tractor Truck EVE 400.61kWh Cab (3) | 86Trucks

6 photos

FAQ

What are the key specs of Zhiyu Weike Z5 Standard Load Edition 6X4(10 wheels) Electric Tractor Truck EVE 400.61kWh?

Key specs of Zhiyu Weike Z5 Standard Load Edition 6X4(10 wheels) Electric Tractor Truck EVE 400.61kWh: Drive: 6x4; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Zhiyu Weike Z5 Standard Load Edition 6X4(10 wheels) Electric Tractor Truck EVE 400.61kWh suited for?

Zhiyu Weike Z5 Standard Load Edition 6X4(10 wheels) Electric Tractor Truck EVE 400.61kWh is a Electric Tractor Truck model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Zhiyu Weike Z5 Standard Load Edition 6X4(10 wheels) Electric Tractor Truck EVE 400.61kWh differ from other variants in the same series?

Zhiyu Weike Z5 Standard Load Edition 6X4(10 wheels) Electric Tractor Truck EVE 400.61kWh belongs to Zhiyu Weike Z5 Heavy Truck (Electric Tractor Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Zhiyu Weike Z5 Standard Load Edition 6X4(10 wheels) Electric Tractor Truck EVE 400.61kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Zhiyu Weike Z5 Standard Load Edition 6X4(10 wheels) Electric Tractor Truck EVE 400.61kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
