Chenggong Zebra 2024 Standard 1.5L 116 hp 4X2(6 wheels) gasoline 2.9m truck-mounted crane

Export reference
From $5,500
MSRP ¥3.96M CNY
Fuel: gasoline
Wheelbase:: 3050mm
Cab dimensions:: 4.84×1.635×2.04m
Type:: Truck with crane
Front track width:: 1390mm
rear track:: 1410mm
Drive 4X2 (6 wheels)
Horsepower 116
Rated mass: 0.87ton
Emission China VI

Overview

The CHENGGONG AUTO Chenggong Zebra 2024 Standard 1.5L 116 hp 4X2(6 wheels) gasoline 2.9m truck-mounted crane is a truck-mounted crane featuring 2.22t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with 116 hp, China VI emissions and gasoline fuel.

China VI 116 gasoline 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 4.84×1.635×2.04m
Type: Truck with crane
Drive type: 4X2
Wheelbase: 3050mm
Rated mass: 0.87ton
Front track width: 1390mm
rear track: 1410mm
GVWR: 2.22ton
Front/rear suspension: 0.65/1.14m
Energy Type: gasoline
Body Parameters
Crane model: CGD400-00
crane self-weight: 0.4ton
Vehicle certification code: SCH5025JSQDC
Body Brand: CHENGGONG AUTO
Engine parameters
Injection System: Common Rail
Engine Brand: Dongan
Engine Model: DonganDAM15KR
fuel type: gasoline
Displacement: 1.498L
Emission standard: China VI
Max output power: 85kW
Max hp: 116Horsepower
Rated speed: 6000rpm
Transmission Parameters
Number of gears: 5Gear
Transmission Model: 5-speed gearbox
Cargo box parameters
Cargo box length: 2.9m
Cargo box width: 1.54m
Cargo box height: 0.375m
Tire
Tire Size: 175R14LT 8PR
Number of tires: 4pcs
Control configuration
ABS:
Power steering:
clutch booster:
Multimedia features
External audio input (AUX/USB/iPod etc.):
lighting configuration
Headlight height adjustment:
Service brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type

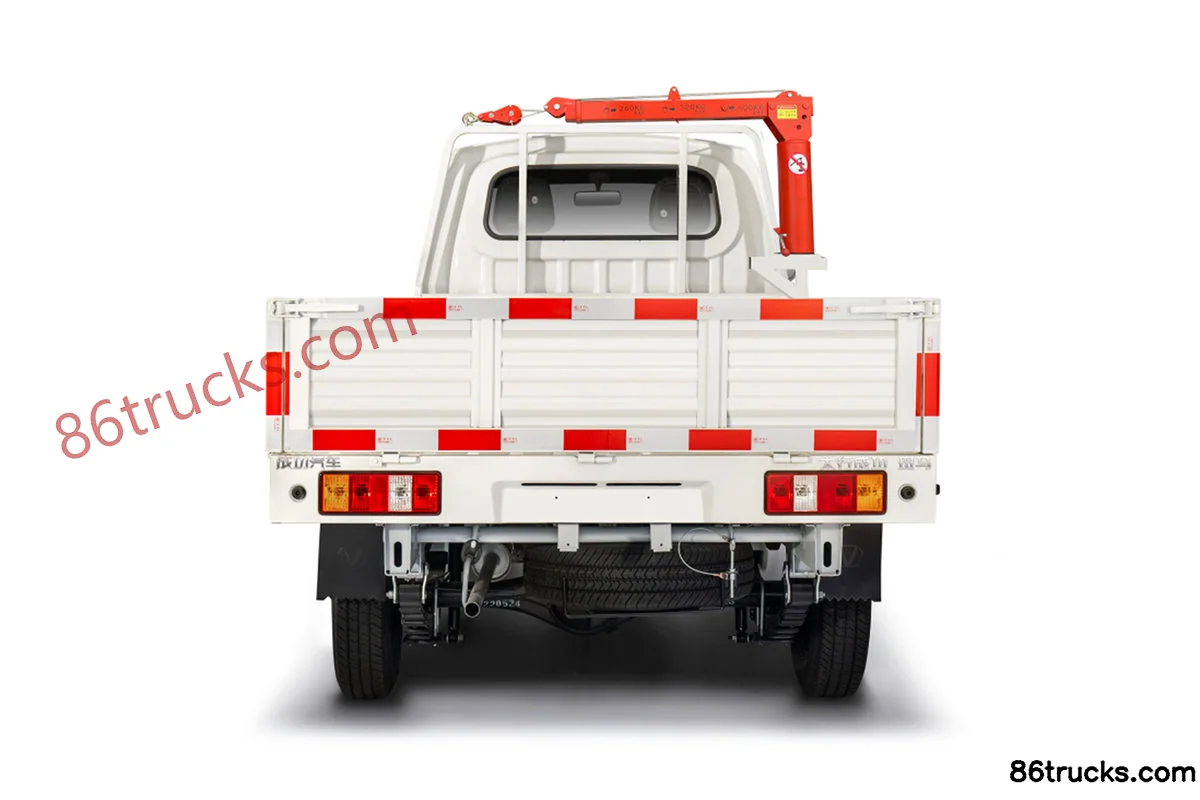

Photos

Exterior2

2 photos

FAQ

What is the export price of Chenggong Zebra 2024 Standard 1.5L 116 hp 4X2(6 wheels) gasoline 2.9m truck-mounted crane, and what does it include?

Chenggong Zebra 2024 Standard 1.5L 116 hp 4X2(6 wheels) gasoline 2.9m truck-mounted crane export reference is about From $5,500; MSRP is ¥3.96M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Chenggong Zebra 2024 Standard 1.5L 116 hp 4X2(6 wheels) gasoline 2.9m truck-mounted crane use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Chenggong Zebra 2024 Standard 1.5L 116 hp 4X2(6 wheels) gasoline 2.9m truck-mounted crane?

Key specs of Chenggong Zebra 2024 Standard 1.5L 116 hp 4X2(6 wheels) gasoline 2.9m truck-mounted crane: Drive: 4x2; Horsepower: 116 hp; Emission: China VI; Fuel: gasoline. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Chenggong Zebra 2024 Standard 1.5L 116 hp 4X2(6 wheels) gasoline 2.9m truck-mounted crane suited for?

Chenggong Zebra 2024 Standard 1.5L 116 hp 4X2(6 wheels) gasoline 2.9m truck-mounted crane is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Chenggong Zebra 2024 Standard 1.5L 116 hp 4X2(6 wheels) gasoline 2.9m truck-mounted crane differ from other variants in the same series?

Chenggong Zebra 2024 Standard 1.5L 116 hp 4X2(6 wheels) gasoline 2.9m truck-mounted crane belongs to CHENGGONG AUTO Zebra Mini Truck (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Chenggong Zebra 2024 Standard 1.5L 116 hp 4X2(6 wheels) gasoline 2.9m truck-mounted crane?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Chenggong Zebra 2024 Standard 1.5L 116 hp 4X2(6 wheels) gasoline 2.9m truck-mounted crane?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
