Sanhuan Shitong Chuangke 160 hp 4X2(6 wheels) 4.2m Dump Truck

Export reference
From $19,361
MSRP ¥13.94M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 7.98ton
Wheelbase:: 3650mm
Tire Size:: 9.00R20 16PR
Rated payload: 7.925ton
Drive 4X2 (6 wheels)
Horsepower 160
Cargo box type: Rear-dump body

Overview

The Sanhuan Shitong Chuangke 160 hp 4X2(6 wheels) 4.2m Dump Truck is a Medium-duty truck featuring 7.925t payload, 16.1t GVW, Rear-dump body cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYCS04160-68 engine, 160 hp, China VI emissions and Fast Gear transmission.

China VI 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): STQ3163L03Y3N6
Drive type: 4X2
Wheelbase: 3650mm
engine: YuchaiYCS04160-68
transmission: Fast Gear8JS85F
Rear Axle Ratio: 5.143
Cab length: 6.485m
Cab width: 2.39m
Cab height: 2.82m
Front track width: 1770mm
rear track: 1640mm
Curb Weight: 7.98ton
Rated payload: 7.925ton
GVWR: 16.1ton
Origin: Shiyan, Hubei
tonnage class: Medium-duty truck
Approach angle: 15°
departure angle: 18°
Remarks: Optional ratio 6.833
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCS04160-68
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.16L
Emission standard: China VI
Max output power: 118kW
Max hp: 160Horsepower
Max torque: 550N·m
Max torque speed: 1200-1900rpm
Rated speed: 2300rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: Fast Gear8JS85F
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 4.2m
Cargo box width: 2.2m
Cargo box height: 0.8m
Cab parameters
seating capacity: 3Personnel
fuel tank
Fuel tank capacity: 140L
Chassis Specs
Front axle description: 2.7T single front
Front axle allowable load: 5590kg
Frame Dimensions: 230(6.5+5)mm
rear axle description: 1098B
rear axle allowable load: 10400kg
Axle ratio: 5.143
Leaf spring count: 8/10+8
Tire
Tire Size: 9.00R20 16PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Remote key:
Electronic Central Lock:
Multimedia features
GPS/Beidou driving recorder:
Radio:
Service brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

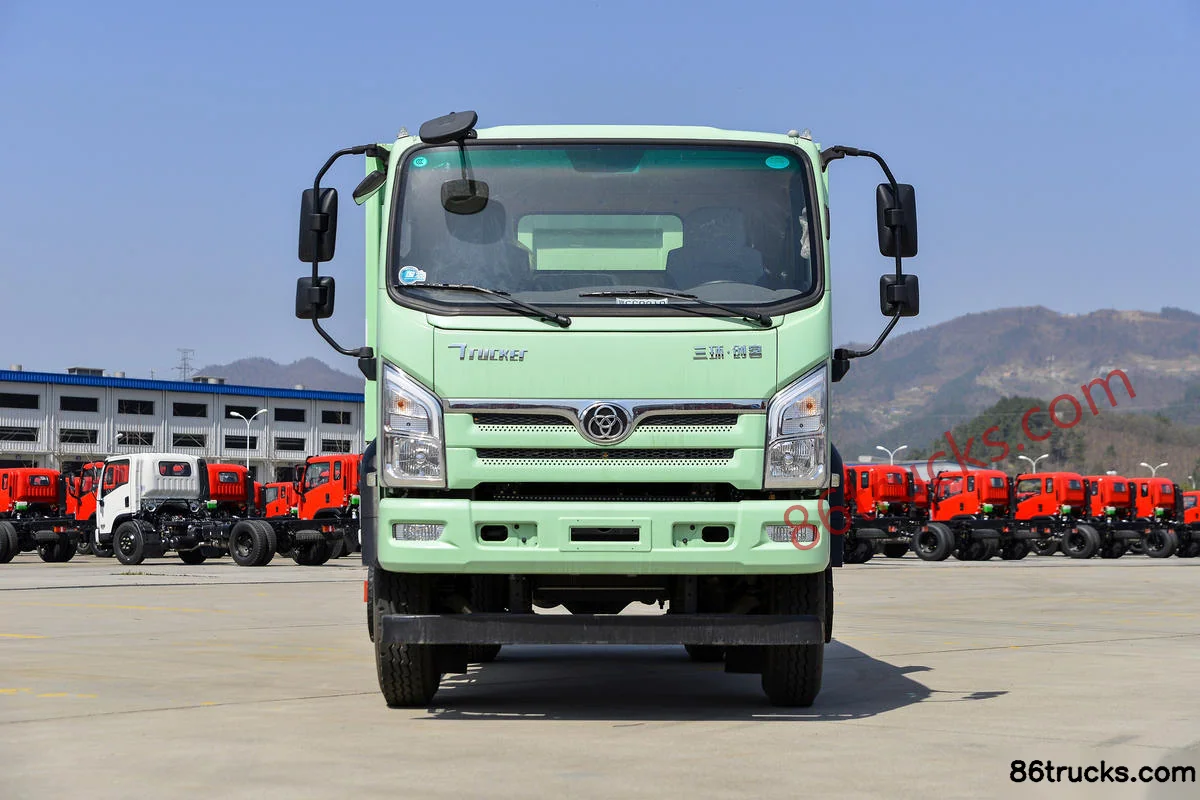

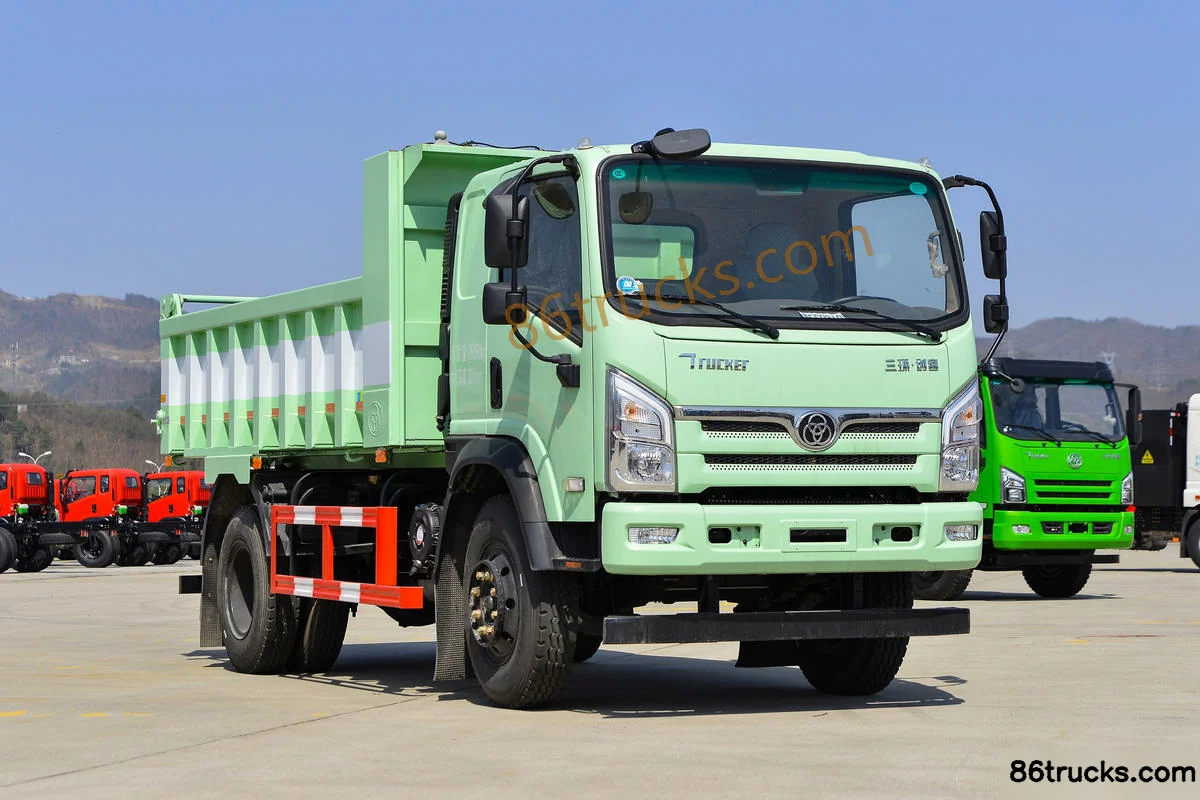

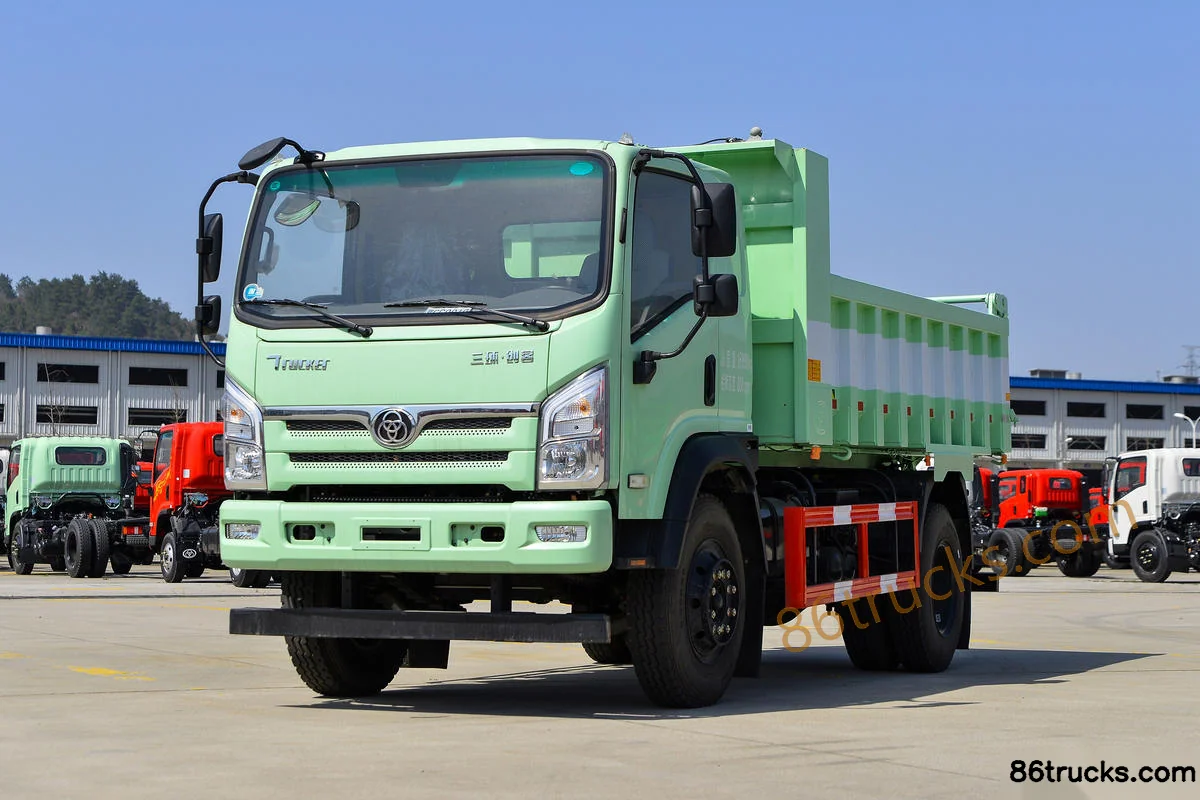

Exterior3

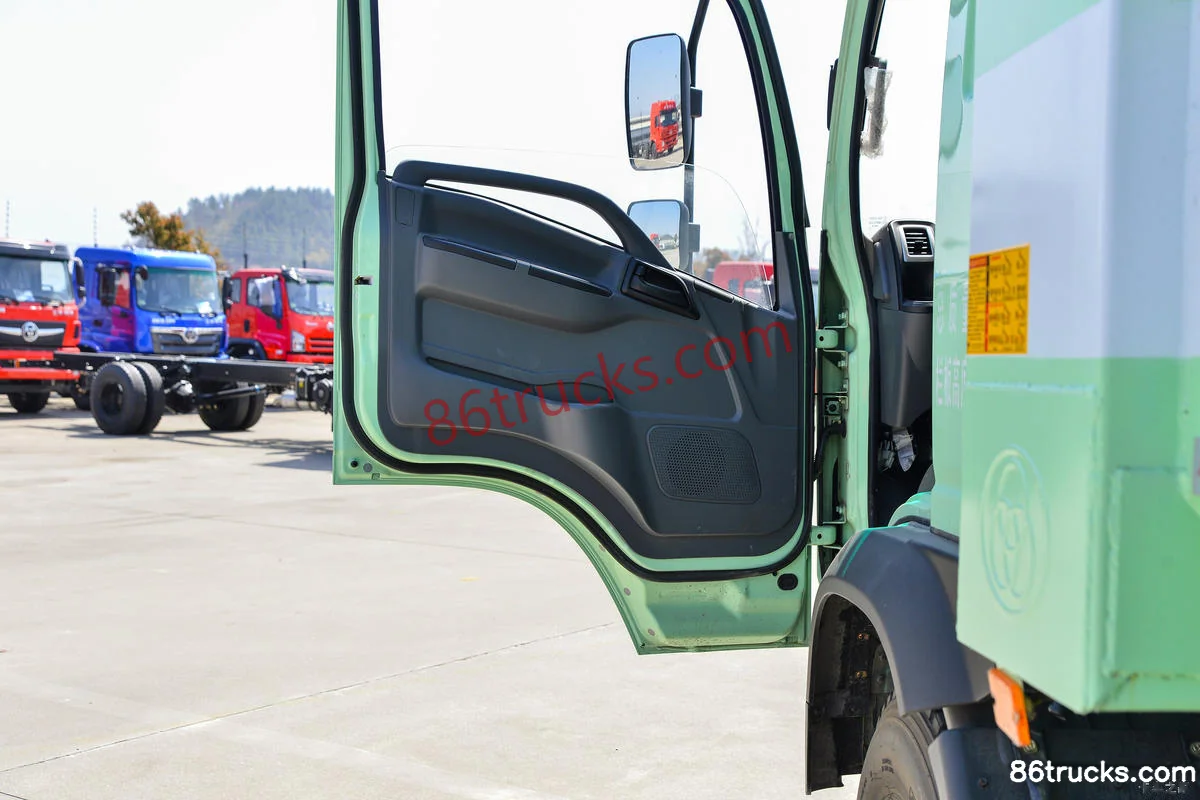

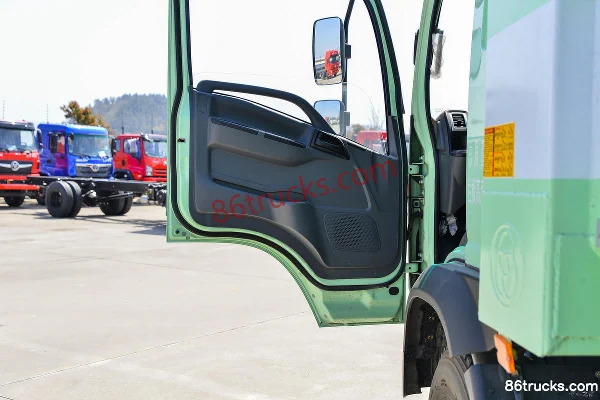

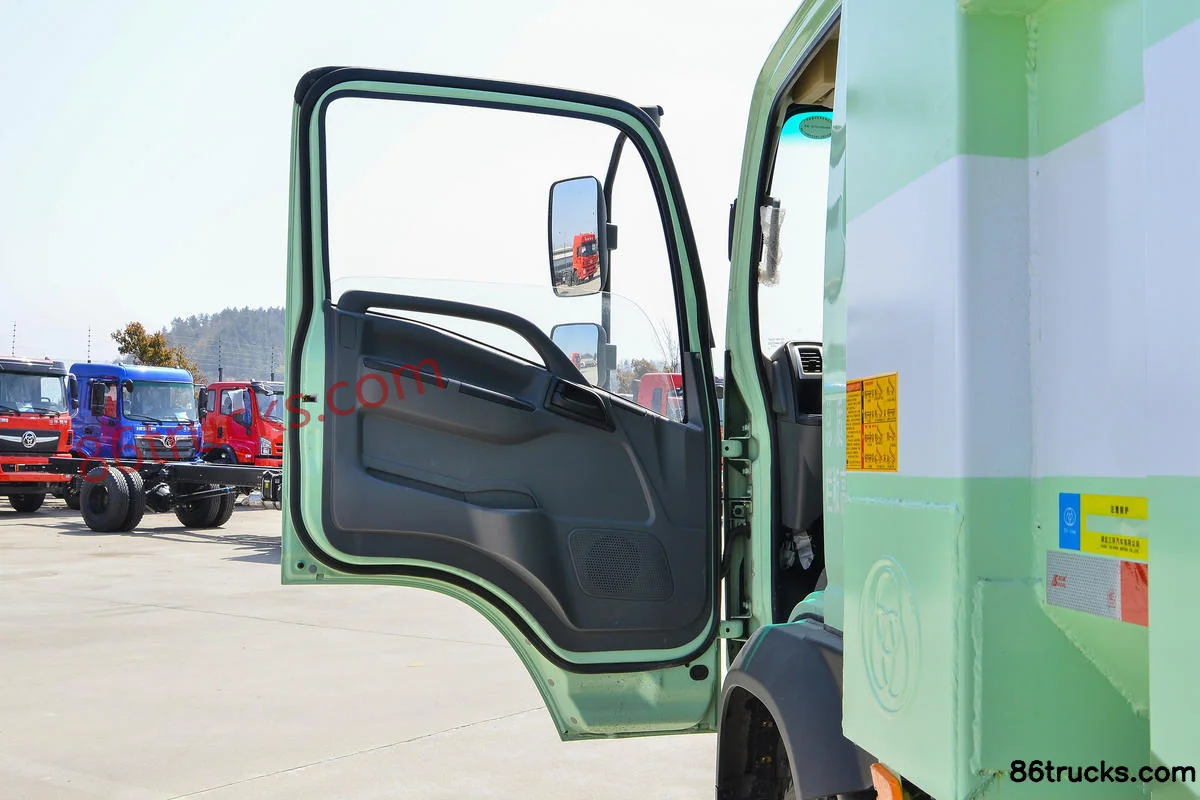

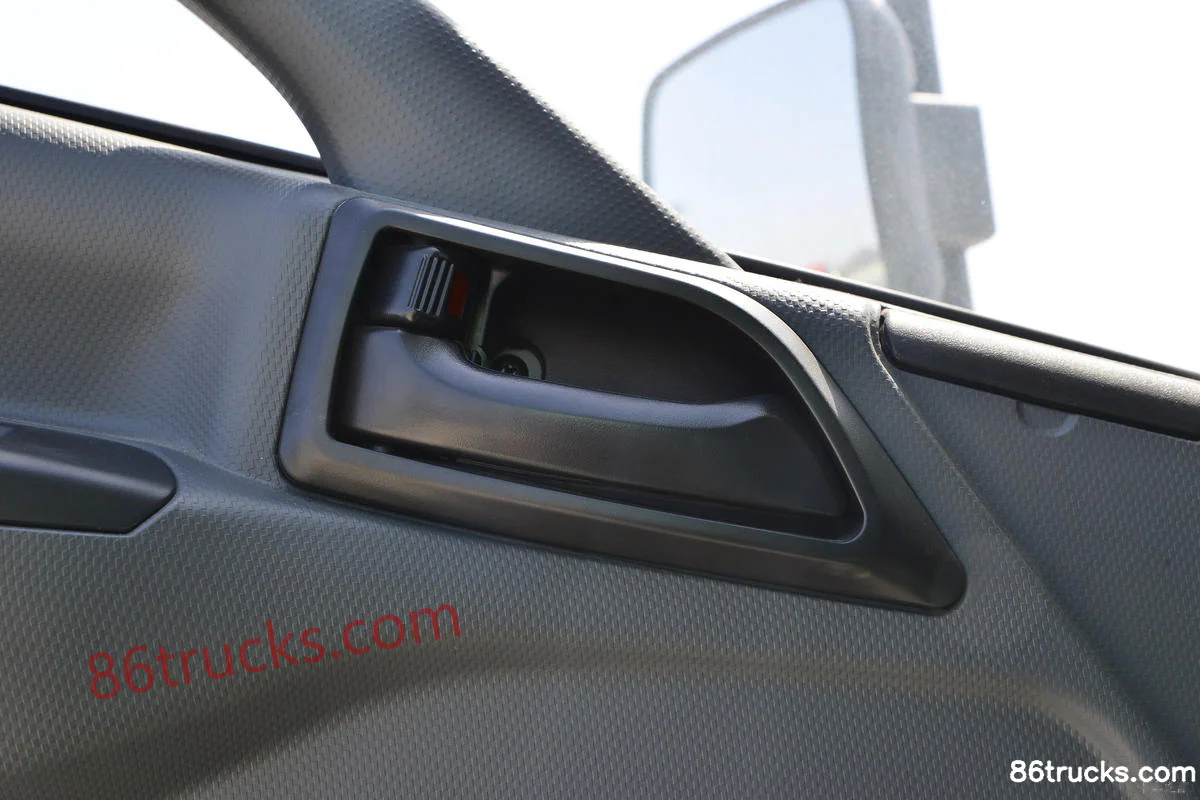

Cab3

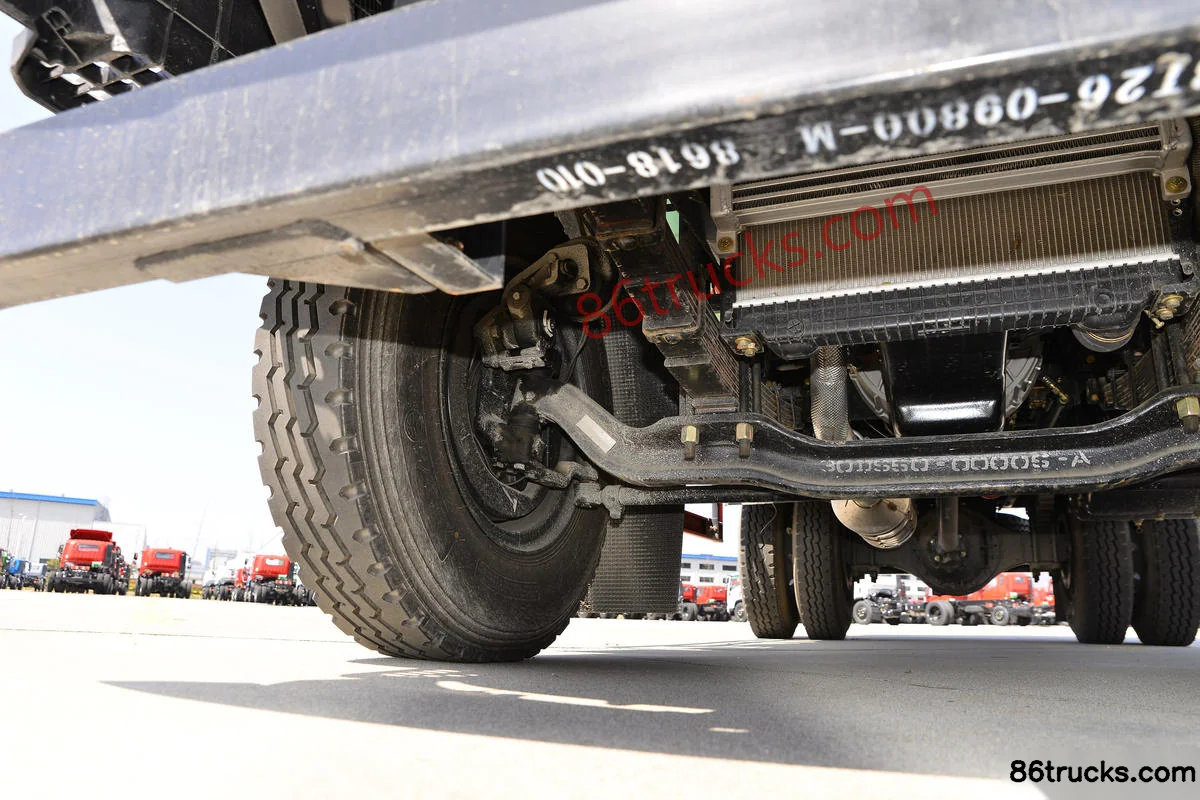

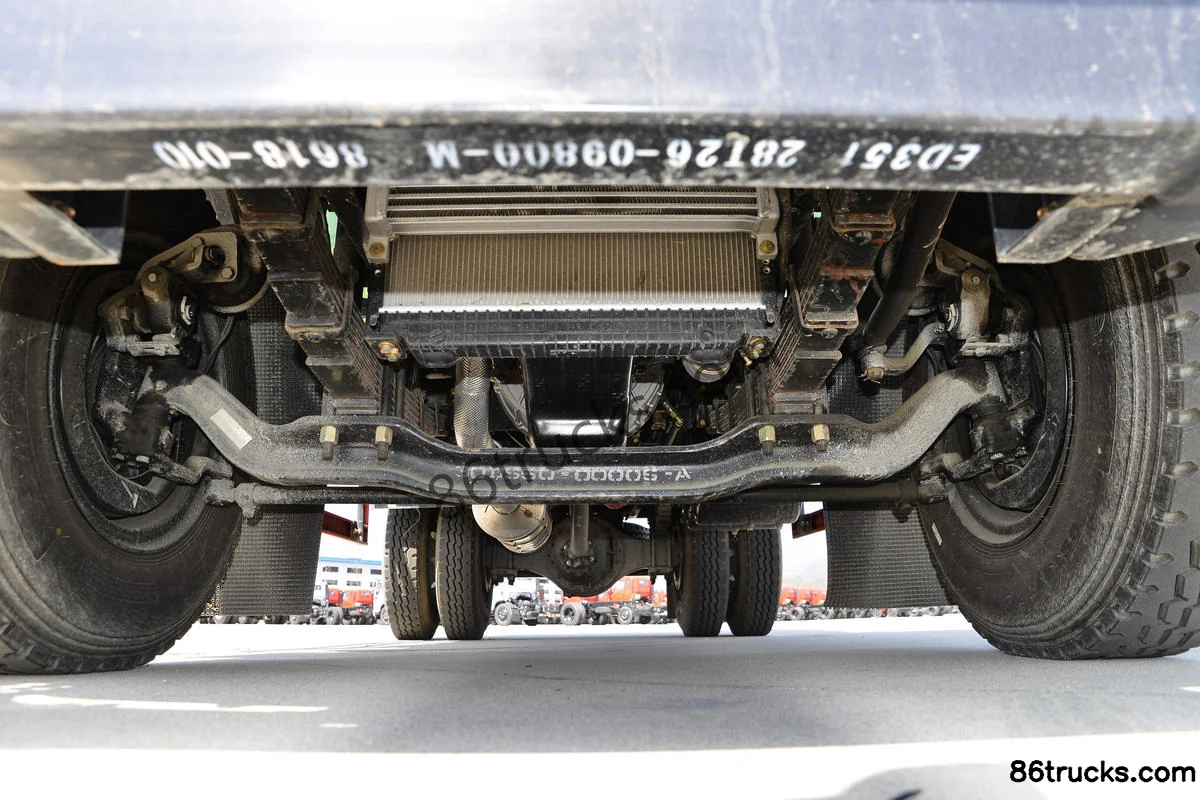

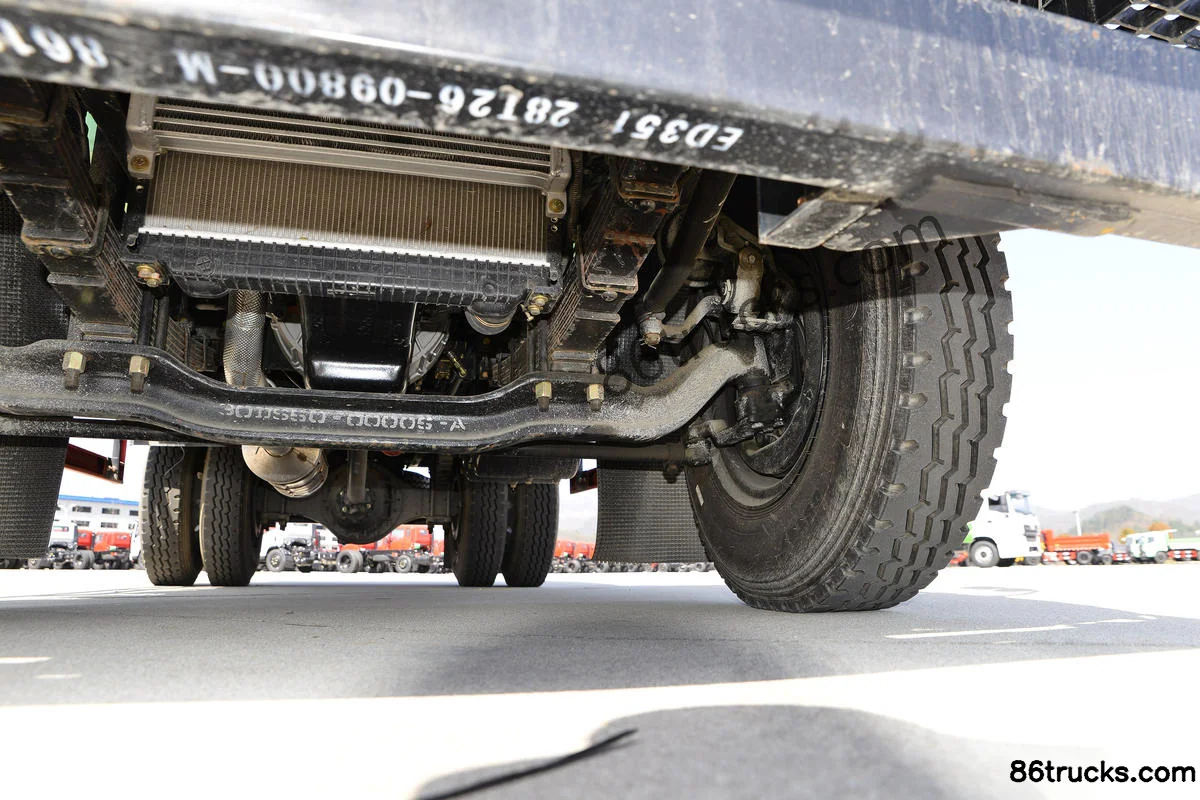

Chassis3

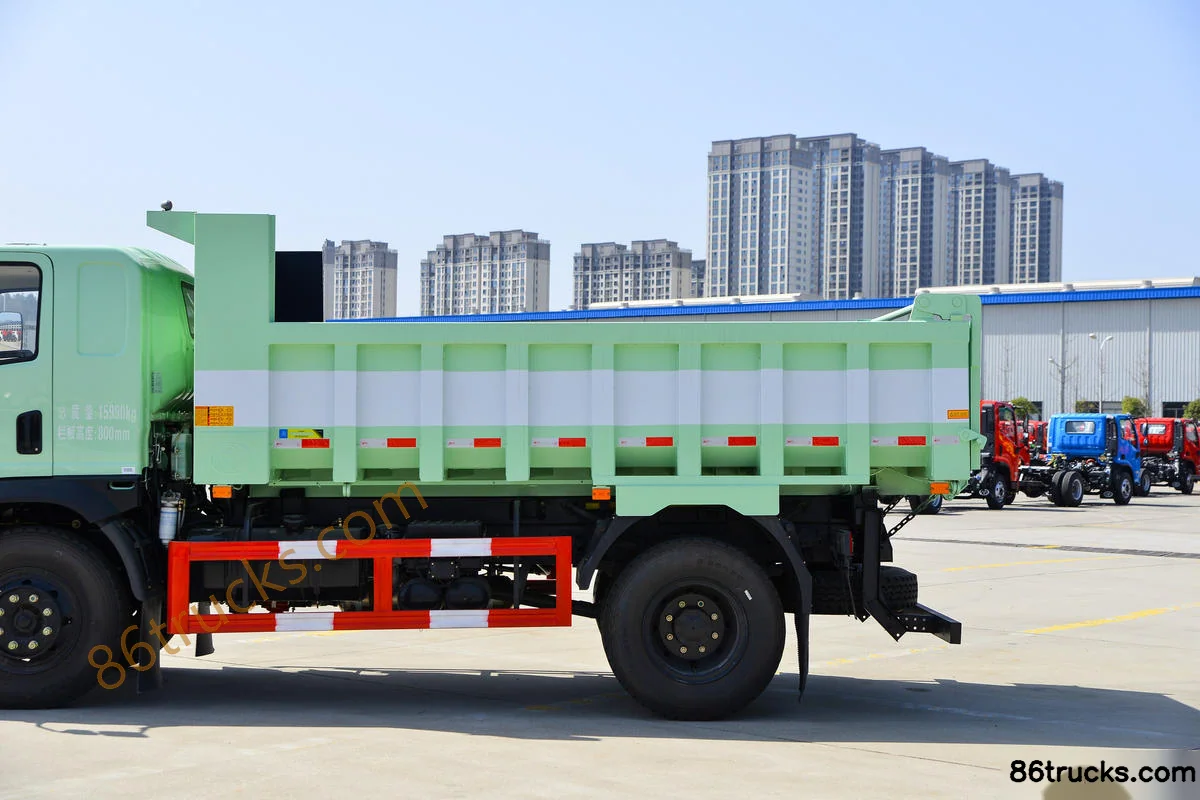

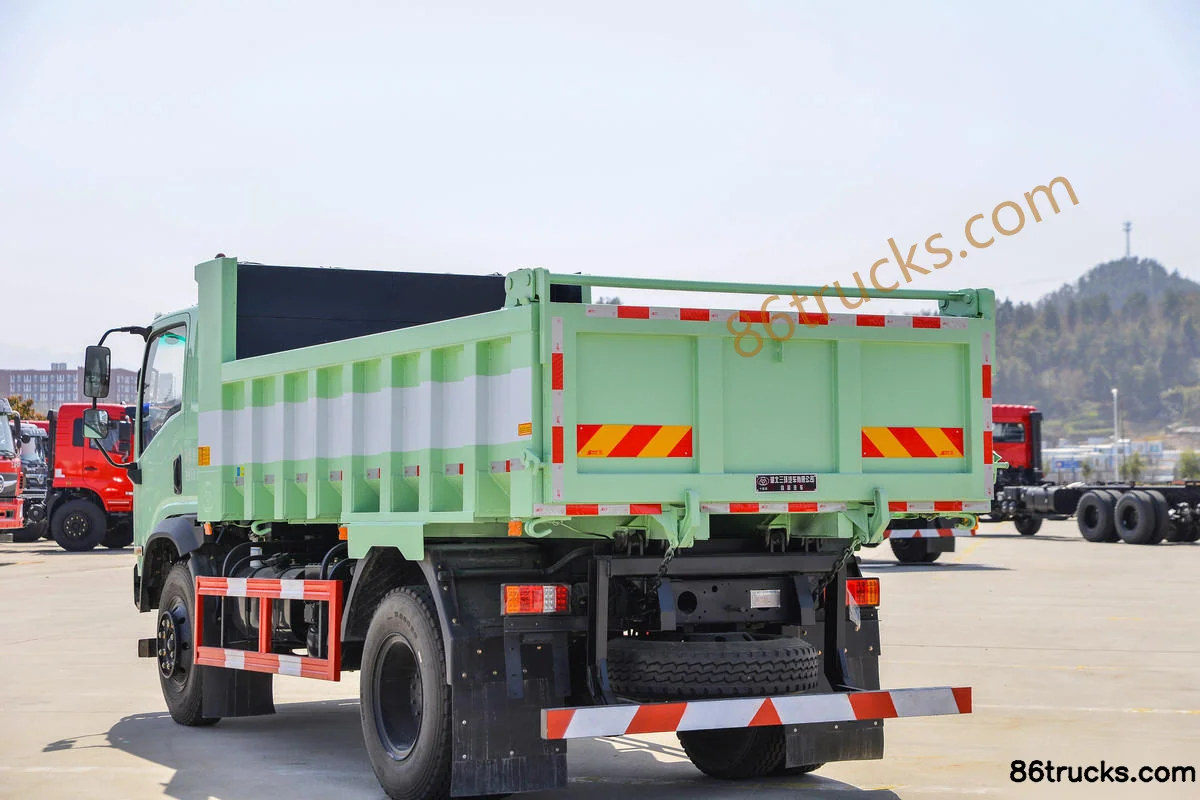

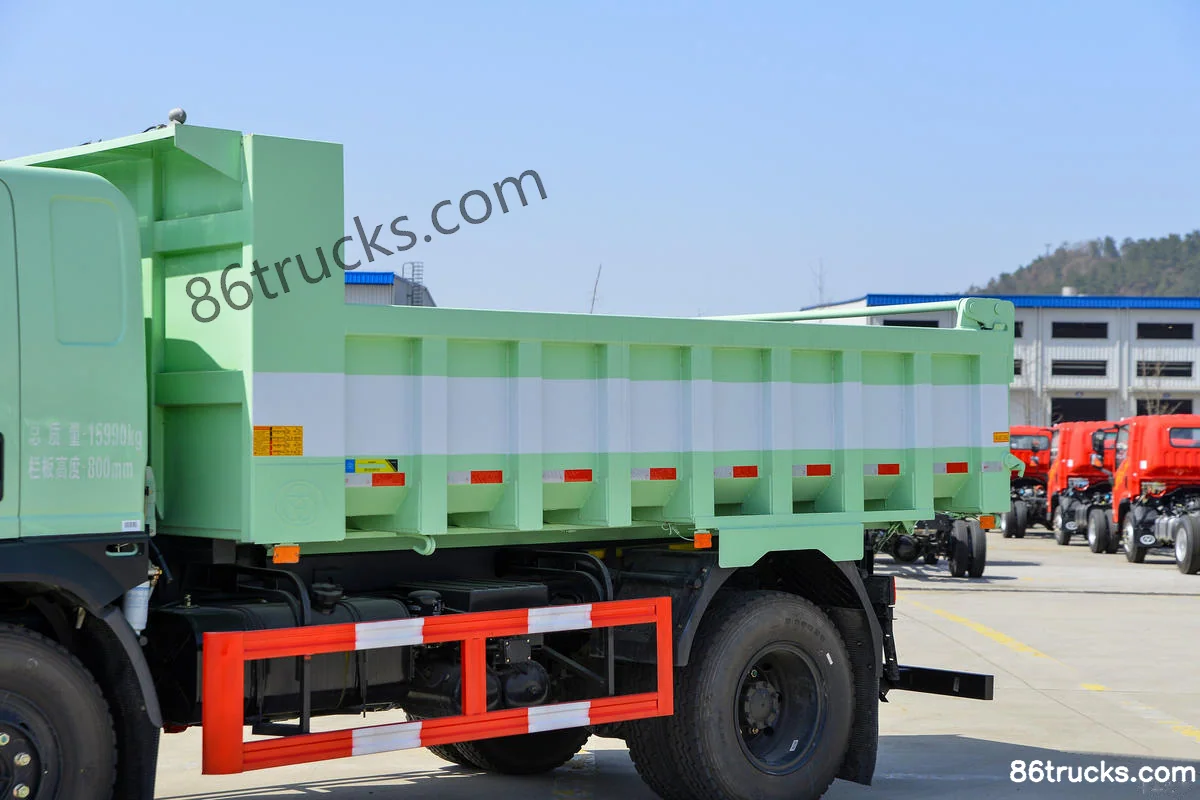

Body3

12 photos

FAQ

What is the export price of Sanhuan Shitong Chuangke 160 hp 4X2(6 wheels) 4.2m Dump Truck, and what does it include?

Sanhuan Shitong Chuangke 160 hp 4X2(6 wheels) 4.2m Dump Truck export reference is about From $19,361; MSRP is ¥13.94M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sanhuan Shitong Chuangke 160 hp 4X2(6 wheels) 4.2m Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sanhuan Shitong Chuangke 160 hp 4X2(6 wheels) 4.2m Dump Truck?

Key specs of Sanhuan Shitong Chuangke 160 hp 4X2(6 wheels) 4.2m Dump Truck: Drive: 4x2; Horsepower: 160 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sanhuan Shitong Chuangke 160 hp 4X2(6 wheels) 4.2m Dump Truck suited for?

Sanhuan Shitong Chuangke 160 hp 4X2(6 wheels) 4.2m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sanhuan Shitong Chuangke 160 hp 4X2(6 wheels) 4.2m Dump Truck differ from other variants in the same series?

Sanhuan Shitong Chuangke 160 hp 4X2(6 wheels) 4.2m Dump Truck belongs to Sanhuan Shitong Chuanke Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sanhuan Shitong Chuangke 160 hp 4X2(6 wheels) 4.2m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sanhuan Shitong Chuangke 160 hp 4X2(6 wheels) 4.2m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
