Chengshi 01 3.49m Single Row Pure Electric Closed Van 20.72kWh

Export reference
From $8,014
MSRP ¥5.77M CNY
Wheelbase:: 2350mm
Cargo box volume:: 2.6
Cab length:: 3.49m
GVWR:: 1.45ton
Max. speed:: 71km/h
Energy Type:: Electric
CLTC range: 220km
Motor 1 Brand: Minxian
Curb Weight: 0.91ton
Rated payload: 0.57ton

Overview

The Chengshi 01 3.49m Single Row Pure Electric Closed Van 20.72kWh is a Electric Panel Van featuring 220km battery/range, Minxian motor, 0.57t payload and 2.6 cargo length.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Wheelbase: 2350mm
Cab length: 3.49m
Cab width: 1.49/1.465m
Cab height: 1.685m
CLTC range: 220km
Curb Weight: 0.91ton
Rated payload: 0.57ton
GVWR: 1.45ton
Max. speed: 71km/h
Energy Type: Electric
electric motor
Motor 1 Brand: Minxian
Motor 1 Model: TZ145MEMX7.5
Max torque: 24N·m
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 7.5kW
Peak power: 15kW
total peak torque: 90N·m
Battery/Charging
Battery Brand: Ganfeng
Charging method: Constant Flow
Battery type: Lithium Iron Phosphate Battery
fast charge time: 7.5h
Battery capacity: 20.72kWh
Battery Model: GFL-MF39-3P24S
Body parameters
Cargo box volume: 2.6
Max body depth: 1.62
Max body width: 1.265
Cargo Box Height: 1.125
Chassis Specs
steering assist type: Electric power steering
Front suspension type: Independent suspension
rear suspension type: Leaf spring
Body Parameters
Cab structure: Load-bearing
Seat count: 2Seats
Door Parameters
Number of Doors: 3
side door type: Sliding side door
Wheel brake
Front brake type: Disc brake
rear brake type: drum brake
Front tire specification: 165/70R13
Rear Wheel Specification: 165/70R13
Cab parameters
Seat rows:
Safety features
Seat belt reminder:
Remote key:
Central door lock:
Control configuration
ABS:
interior configuration
Power Windows:
Reverse Camera:
Multimedia features
Bluetooth / hands-free calling:

Photos

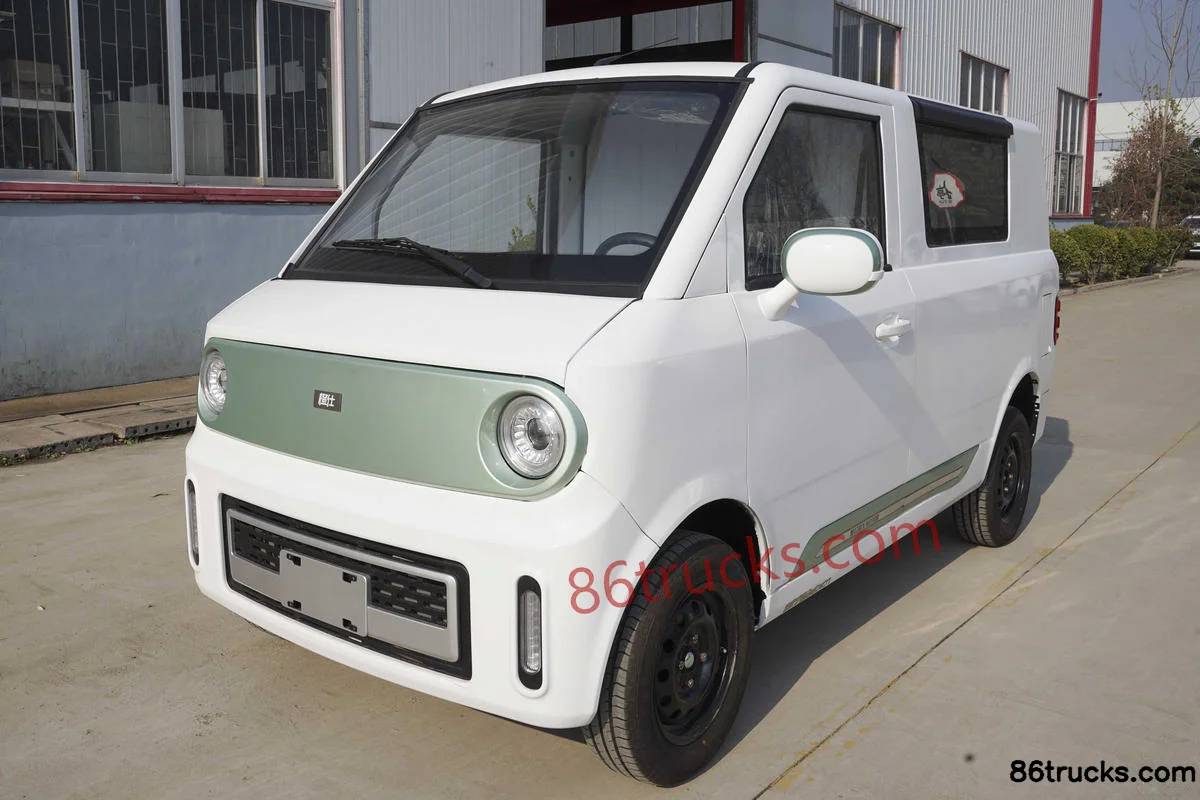

Exterior1

1 photos

FAQ

What is the export price of Chengshi 01 3.49m Single Row Pure Electric Closed Van 20.72kWh, and what does it include?

Chengshi 01 3.49m Single Row Pure Electric Closed Van 20.72kWh export reference is about From $8,014; MSRP is ¥5.77M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is Chengshi 01 3.49m Single Row Pure Electric Closed Van 20.72kWh suited for?

Chengshi 01 3.49m Single Row Pure Electric Closed Van 20.72kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Chengshi 01 3.49m Single Row Pure Electric Closed Van 20.72kWh differ from other variants in the same series?

Chengshi 01 3.49m Single Row Pure Electric Closed Van 20.72kWh belongs to Chengshi01 (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Chengshi 01 3.49m Single Row Pure Electric Closed Van 20.72kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Chengshi 01 3.49m Single Row Pure Electric Closed Van 20.72kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
