FAW Jiefang Qingdao LuV 180 hp 4x2(6 wheels) 7.6m Van Truck

Export reference
MSRP N/A
Horsepower: 180
Emission: China V
Fuel: Diesel
Engine: Xichai 4-cylinder
Transmission: FAW Jiefang
Curb Weight:: 6.35ton
seating capacity: 2Personnel
Rated payload: 9.455ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The FAW Jiefang Qingdao LuV 180 hp 4x2(6 wheels) 7.6m Van Truck is a Medium-duty truck featuring 7.6m cargo length, Van body cargo body, 2Personnel volume and 9.455t payload. Its segment focus covers Express delivery, agricultural by-product transport and cold chain transport, matching those duty cycles. On the powertrain side, it comes with a Xichai 4-cylinder engine, 180 hp, 4X2 (6 wheels) drive and China V emissions.

China V 180 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA5161XXYPK2L5E5A80-3
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 5700mm
Box length class: 7.6m
engine: XichaiCA4DLD-18E5
transmission: FAW JiefangCA6TBX075M
Rear Axle Ratio: 4.875
Cab length: 9.995m
Cab width: 2.55m
Cab height: 3.995m
Front track width: 1800mm
rear track: 1740mm
Curb Weight: 6.35ton
Rated payload: 9.455ton
GVWR: 16ton
Max. speed: 98km/h
Origin: Qingdao, Shandong
tonnage class: Medium-duty truck
Approach angle: 21°
departure angle: 13°
market segment: Express delivery, agricultural by-product transport, cold chain transport, LTL transport
Front/rear suspension: 1.332/2.963m
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA4DLD-18E5
Engine info: Xichai 4-cylinder
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.4L
Emission standard: China V
Max output power: 134kW
Max hp: 180Horsepower
Max torque: 680N·m
Max torque speed: 1300-1700rpm
Rated speed: 2500rpm
Transmission Parameters
Transmission Model: FAW JiefangCA6TBX075M
Transmission Brand: FAW Jiefang
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 7.6m
Cargo box width: 2.45m
Cargo box height: 2.62m
*Cargo box interior width: 2.4500000476837
Cab parameters
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle description: Upgraded X135
Front axle allowable load: 5600kg
rear axle description: 1092 Improved Cast Axle
rear axle allowable load: 10400kg
Axle ratio: 4.875
Leaf spring count: 7/10+3,4/4+3,3/4+3,7/7+3
Suspension (front/rear): leaf spring suspension
clutch: Φ380
Tire
Tire Size: 9.00R20,10R22.5
Number of tires: 6pcs
Control configuration
ABS:

Photos

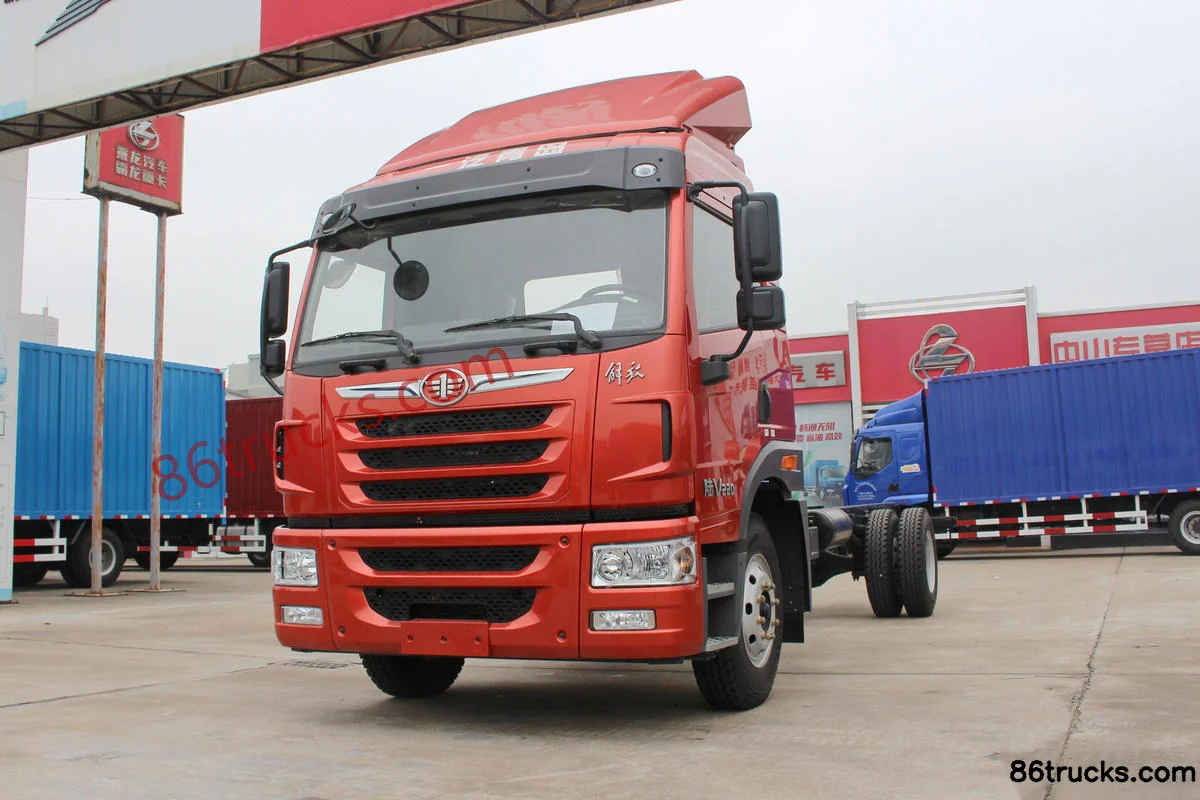

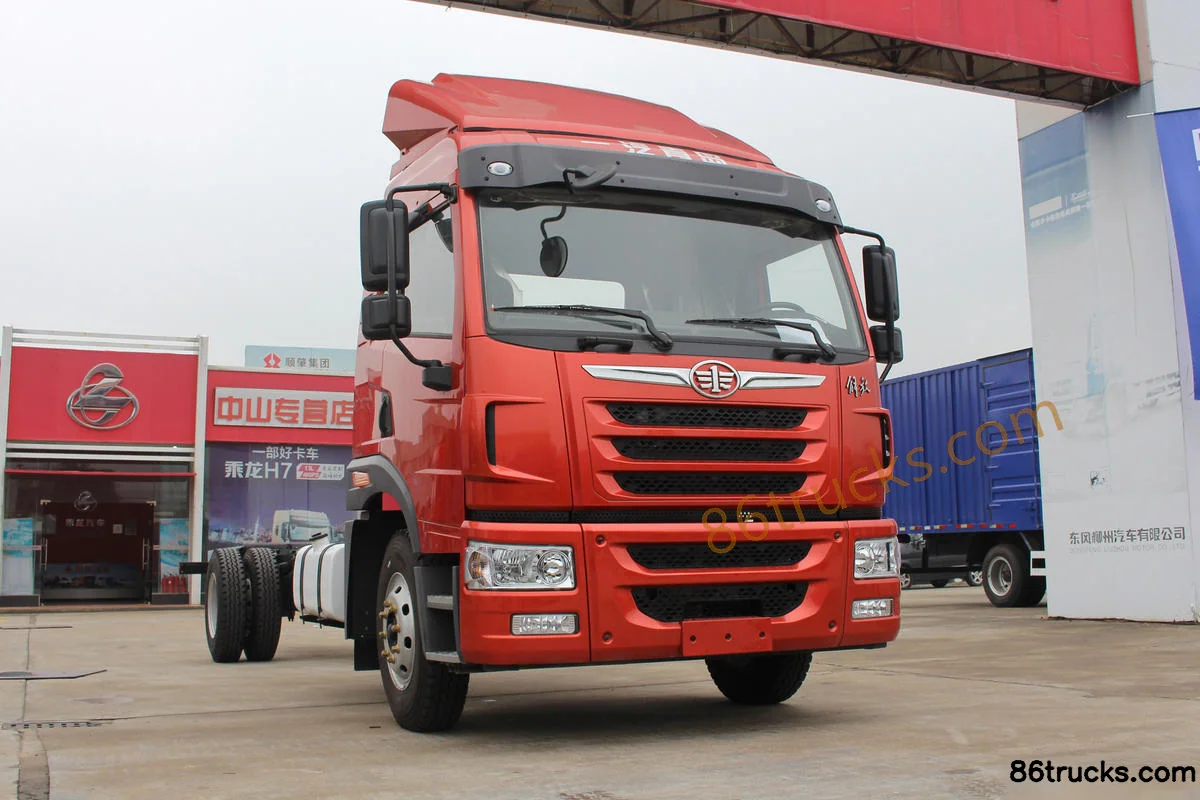

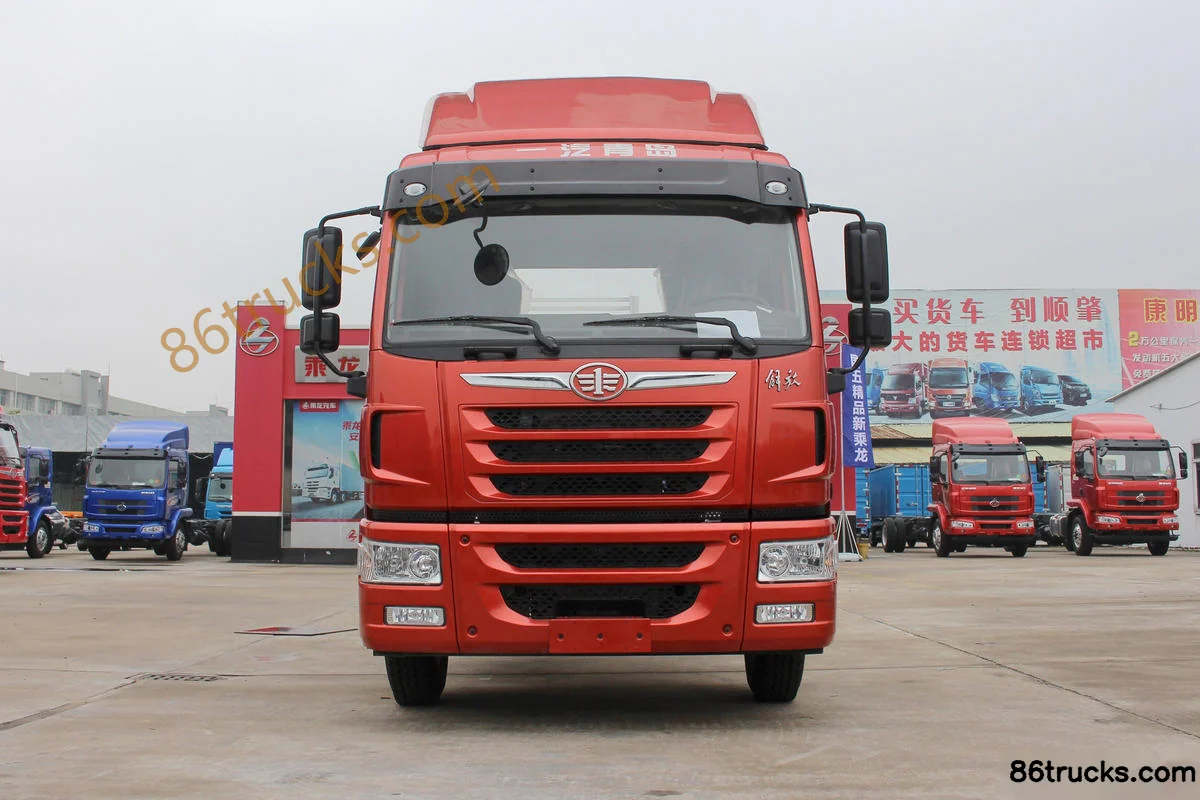

Exterior3

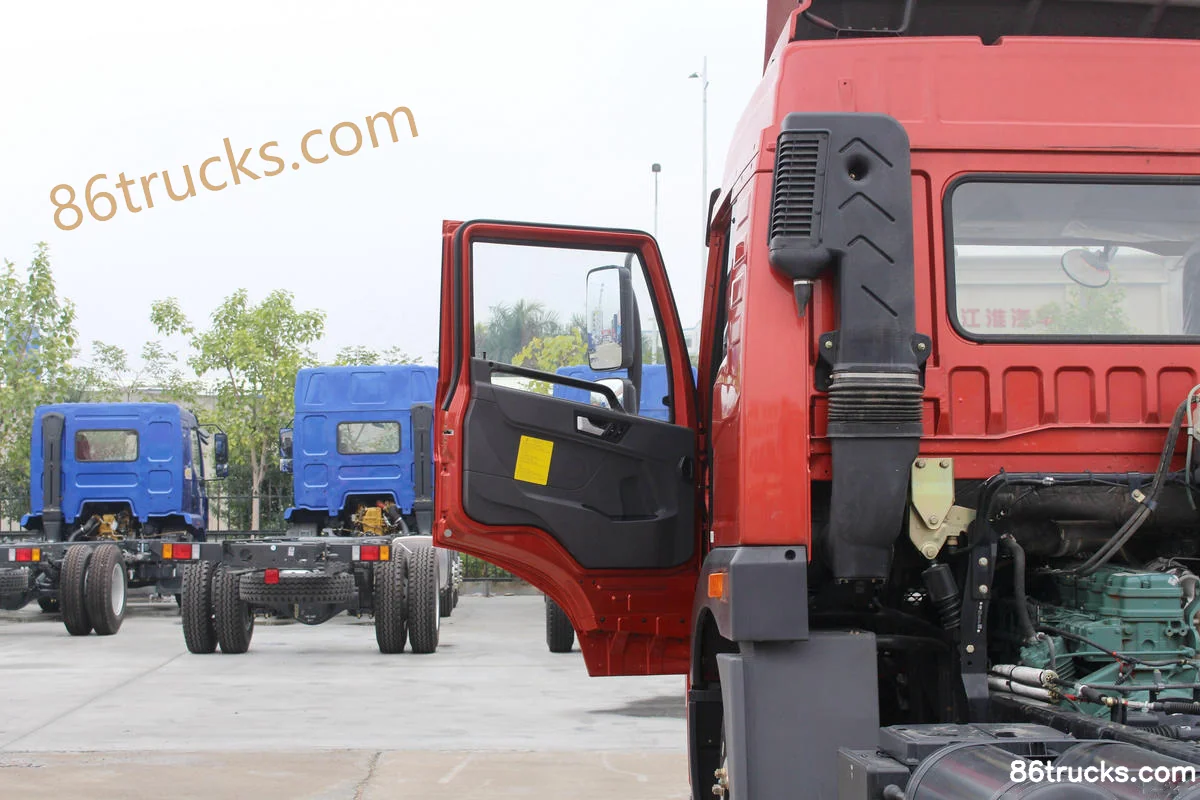

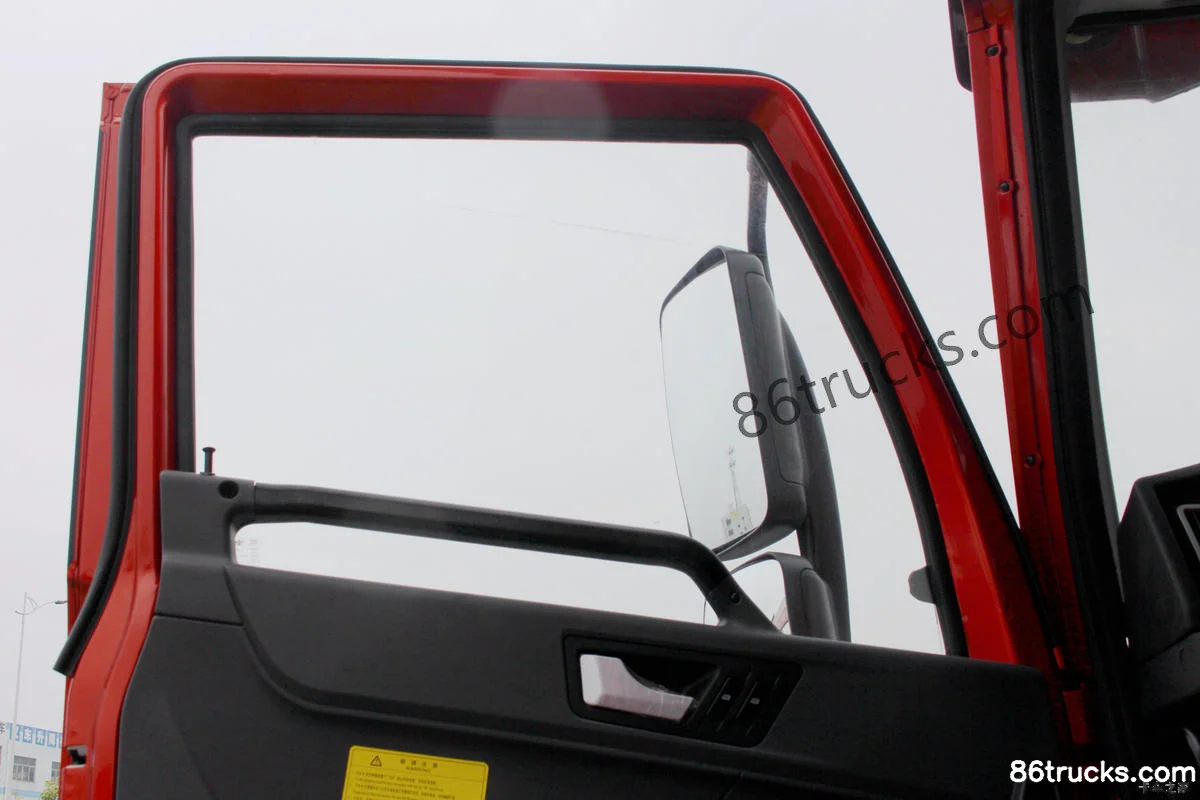

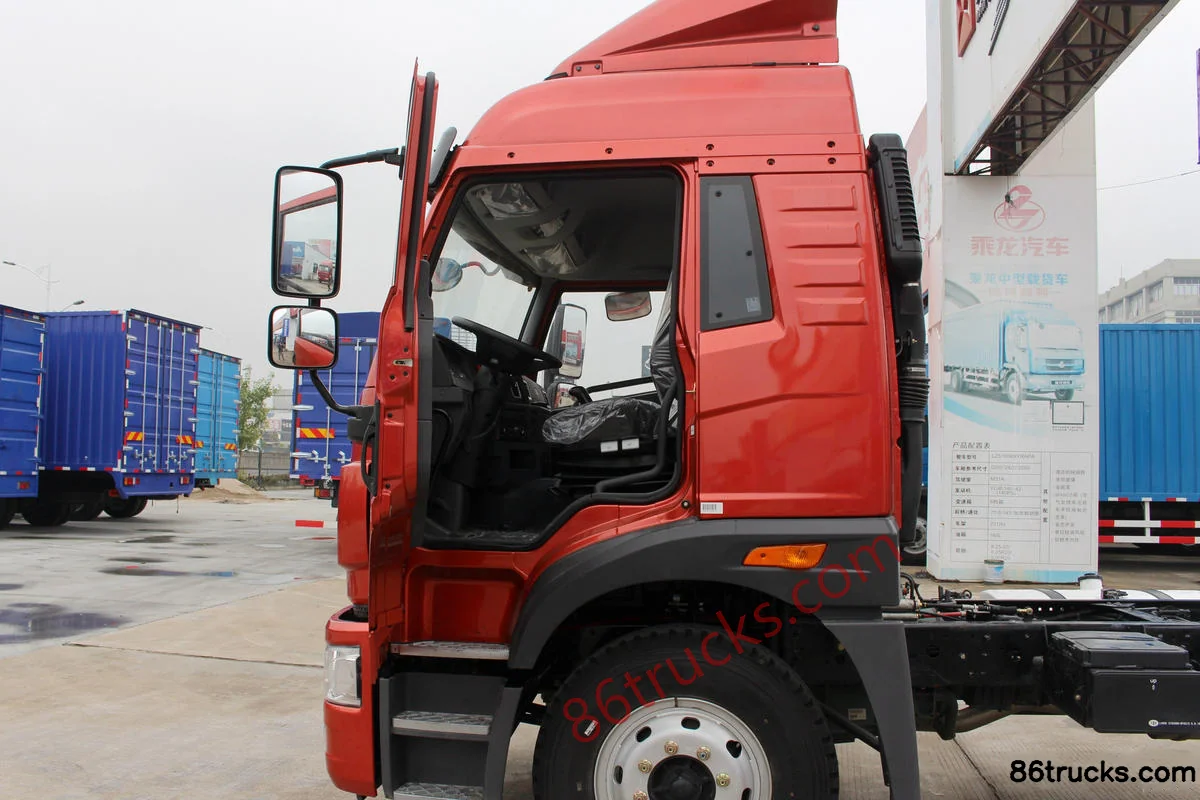

Cab3

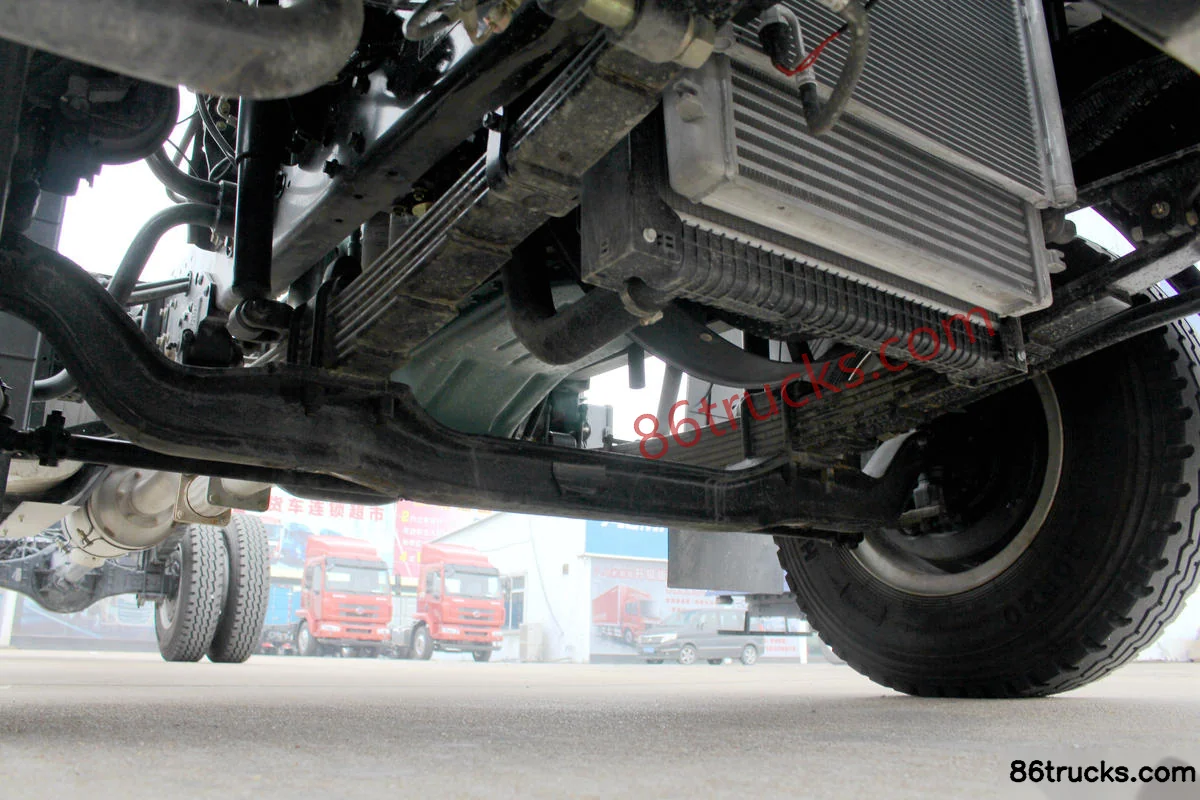

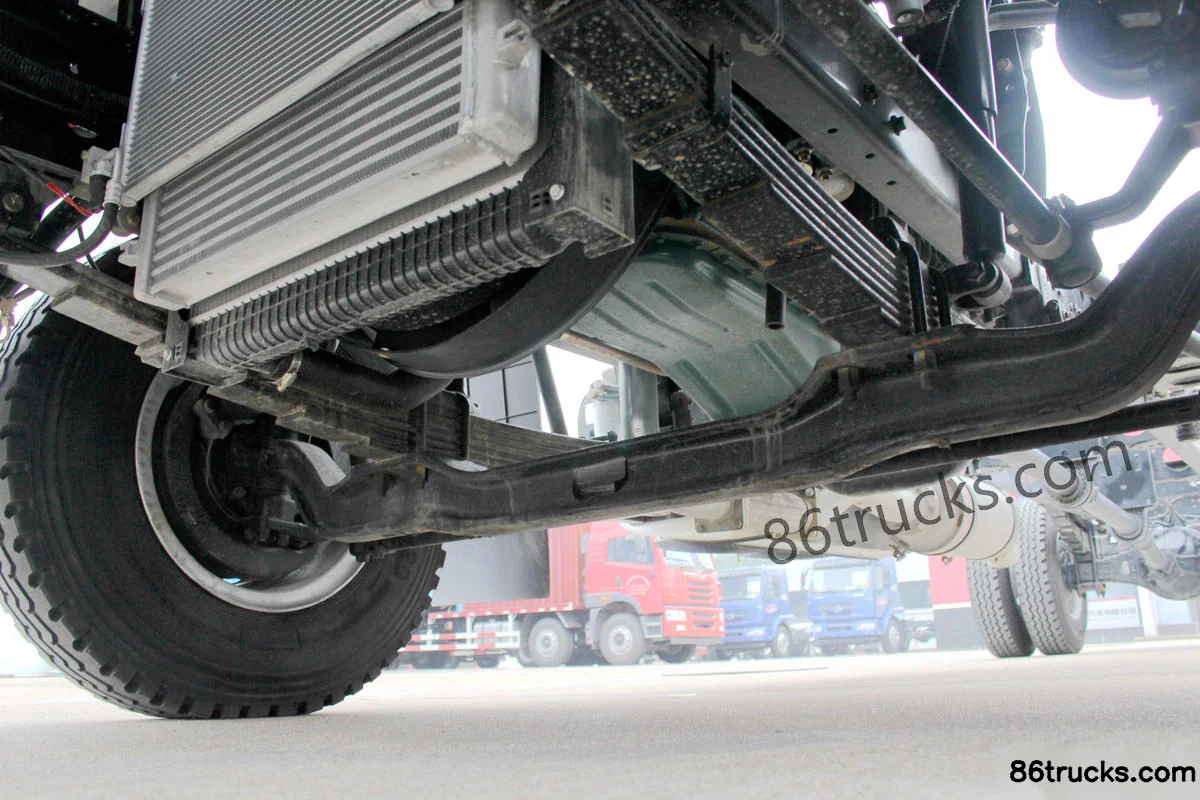

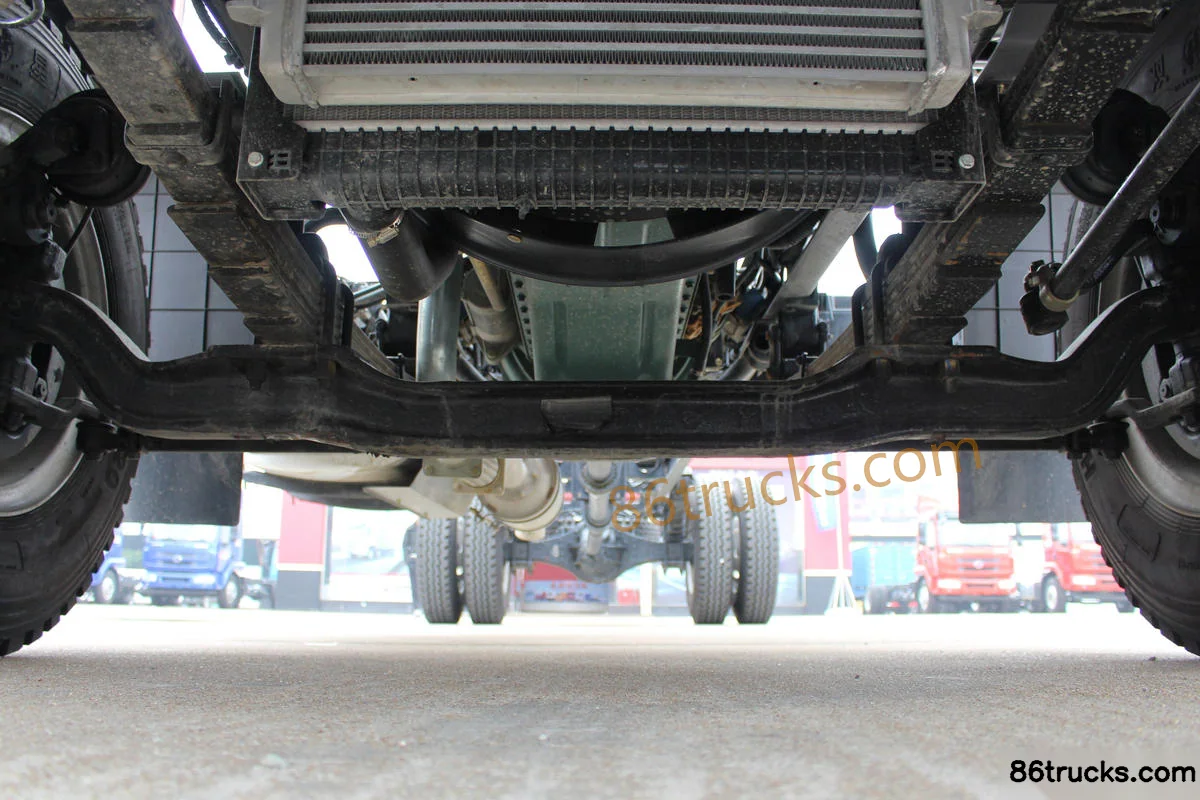

Chassis3

9 photos

FAQ

What emission standard does FAW Jiefang Qingdao LuV 180 hp 4x2(6 wheels) 7.6m Van Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao LuV 180 hp 4x2(6 wheels) 7.6m Van Truck?

Key specs of FAW Jiefang Qingdao LuV 180 hp 4x2(6 wheels) 7.6m Van Truck: Drive: 4x2; Horsepower: 180 hp; Emission: China V; Fuel: Diesel; Engine: Xichai 4-cylinder; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao LuV 180 hp 4x2(6 wheels) 7.6m Van Truck suited for?

FAW Jiefang Qingdao LuV 180 hp 4x2(6 wheels) 7.6m Van Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Qingdao LuV 180 hp 4x2(6 wheels) 7.6m Van Truck differ from other variants in the same series?

FAW Jiefang Qingdao LuV 180 hp 4x2(6 wheels) 7.6m Van Truck belongs to FAW Jiefang Qingdao Lu V Medium Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao LuV 180 hp 4x2(6 wheels) 7.6m Van Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao LuV 180 hp 4x2(6 wheels) 7.6m Van Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
