Chengshi 01Pro Standard Type 1.8T 3.49m pure electric enclosed delivery truck 17.3kWh

Export reference
From $6,917
MSRP ¥4.98M CNY
Wheelbase:: 2350mm
Cargo box volume:: 2.6
Model code (announced):: HDY5021XXYBEV01
Cab length:: 3.49m
GVWR:: 1.8ton
Max. speed:: 71km/h
CLTC range: 145km
Motor 1 Brand: Dadihe
Curb Weight: 0.915ton
Rated payload: 0.755ton

Overview

The Chengshi 01Pro Standard Type 1.8T 3.49m pure electric enclosed delivery truck 17.3kWh is a Electric Panel Van featuring 145km battery/range, Dadihe motor, 0.755t payload and 2.6 cargo length.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HDY5021XXYBEV01
Wheelbase: 2350mm
Cab length: 3.49m
Cab width: 1.465m
Cab height: 1.685m
CLTC range: 145km
Curb Weight: 0.915ton
Rated payload: 0.755ton
GVWR: 1.8ton
Max. speed: 71km/h
Remarks: Hill-start assist
Front/rear suspension: 0.48/0.66m
Version:
Energy Type: Electric
electric motor
Motor 1 Brand: Dadihe
Motor 1 Model: TZ190XK1F
Max torque: 140N·m
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 15kW
Peak power: 30kW
Battery/Charging
Charging method: Fast charge, slow charge
Battery type: Lithium Iron Phosphate Battery
fast charge time: 0.6h
Battery capacity: 17.3kWh
Body parameters
Cargo box volume: 2.6
Max body depth: 1.62
Max body width: 1.265
Cargo Box Height: 1.125
Chassis Specs
steering assist type: Electric power steering
Front suspension type: Independent suspension
rear suspension type: Leaf spring
Body Parameters
Cab structure: Load-bearing
Seat count: 2Seats
Door Parameters
Number of Doors: 3
side door type: Side door
Tailgate type: Side door
Wheel brake
Front brake type: Disc brake
rear brake type: drum brake
Front tire specification: 165/70 R13C
Rear Wheel Specification: 165/70 R13C
Cab parameters
Seat rows:
Safety features
Seat belt reminder:
Remote key:
Control configuration
ABS:
interior configuration
Seat material: Fabric
Reverse Camera:
Multimedia features
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:

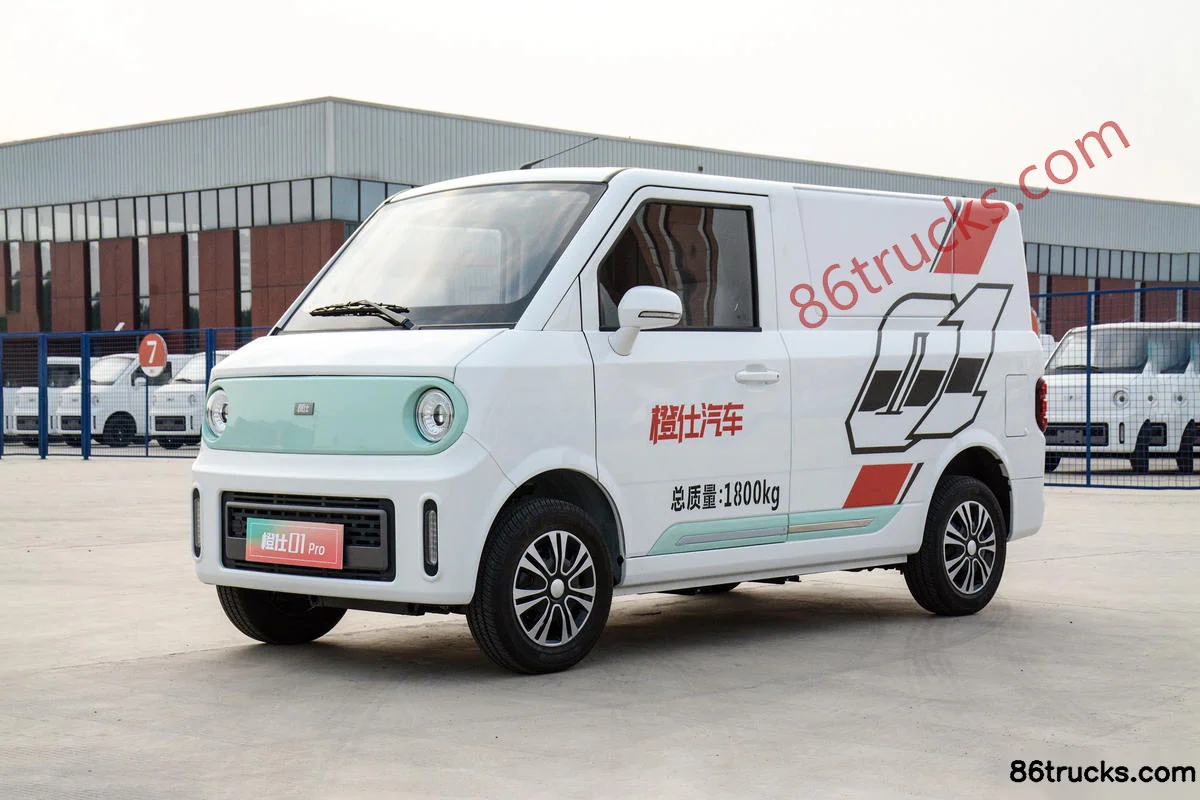

Photos

Exterior1

1 photos

FAQ

What is the export price of Chengshi 01Pro Standard Type 1.8T 3.49m pure electric enclosed delivery truck 17.3kWh, and what does it include?

Chengshi 01Pro Standard Type 1.8T 3.49m pure electric enclosed delivery truck 17.3kWh export reference is about From $6,917; MSRP is ¥4.98M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What transport jobs is Chengshi 01Pro Standard Type 1.8T 3.49m pure electric enclosed delivery truck 17.3kWh suited for?

Chengshi 01Pro Standard Type 1.8T 3.49m pure electric enclosed delivery truck 17.3kWh is a Electric Panel Van model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Chengshi 01Pro Standard Type 1.8T 3.49m pure electric enclosed delivery truck 17.3kWh differ from other variants in the same series?

Chengshi 01Pro Standard Type 1.8T 3.49m pure electric enclosed delivery truck 17.3kWh belongs to Chengshi01 Pro (Electric Panel Van). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Chengshi 01Pro Standard Type 1.8T 3.49m pure electric enclosed delivery truck 17.3kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Chengshi 01Pro Standard Type 1.8T 3.49m pure electric enclosed delivery truck 17.3kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
