Foton TS5 4.17m Single Row Plug-in Hybrid Flatbed Light Truck Honeycomb Energy 19.04kWh 4X2(6 wheels)

Export reference
From $23,028
MSRP ¥16.58M CNY
Curb Weight:: 3.785ton
Rated payload:: 0.505ton
Wheelbase:: 3360mm
Cargo box type:: stake body
Emission: China VI
Model code (announced):: BJ1044PHEVJA50
Drive 4X2 (6 wheels)
Battery Brand: Honeycomb Energy
Motor 1 Brand: Foton
Horsepower 160

Overview

The Foton TS5 4.17m Single Row Plug-in Hybrid Flatbed Light Truck Honeycomb Energy 19.04kWh 4X2(6 wheels) is a Light Truck featuring Honeycomb Energy battery/range, Foton motor, 4X2 (6 wheels) drive and 0.505t payload. On the powertrain side, it comes with 160 hp.

China VI 160 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ1044PHEVJA50
Type: stake truck
Drive type: 4X2
Wheelbase: 3360mm
Cab length: 5.995m
Cab width: 2.2m
Cab height: 2.45m
Curb Weight: 3.785ton
Rated payload: 0.505ton
GVWR: 4.485ton
Max. speed: 95km/h
Origin: Shandong Zhucheng
tonnage class: Light Truck
Energy Type: Hybrid
electric motor
Motor 1 Brand: Foton
Motor 1 Model: FTTBP070A
Motor Type: Permanent magnet synchronous motor
total rated power: 30kW
Peak power: 72kW
Battery/Charging
Battery Brand: Honeycomb Energy
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 19.04kWh
Engine parameters
Engine Model: YN25HD1
Number of cylinders: 4cylinder
Displacement: 2.499L
Emission standard: China VI
Max output power: 118kW
Max hp: 160Horsepower
Transmission Parameters
Transmission Model: PHD3300H
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.17m
Cargo box width: 2.1m
Cargo box height: 0.4m
Cab parameters
Cab width: 2060mm
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 2180kg
rear axle description: 8T
rear axle allowable load: 2305kg
Tire
Tire Size: 7.00R16/10PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
interior configuration
Multifunction steering wheel:
Power Windows:
Power Mirrors:
Reverse Radar:
Reverse Camera:
Remote key:
Multimedia features
Center Console Color Screen:
Bluetooth / hands-free calling:
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:
Service brake
Brake Type: Air brake
smart configuration
Cruise control (CCS):

Photos

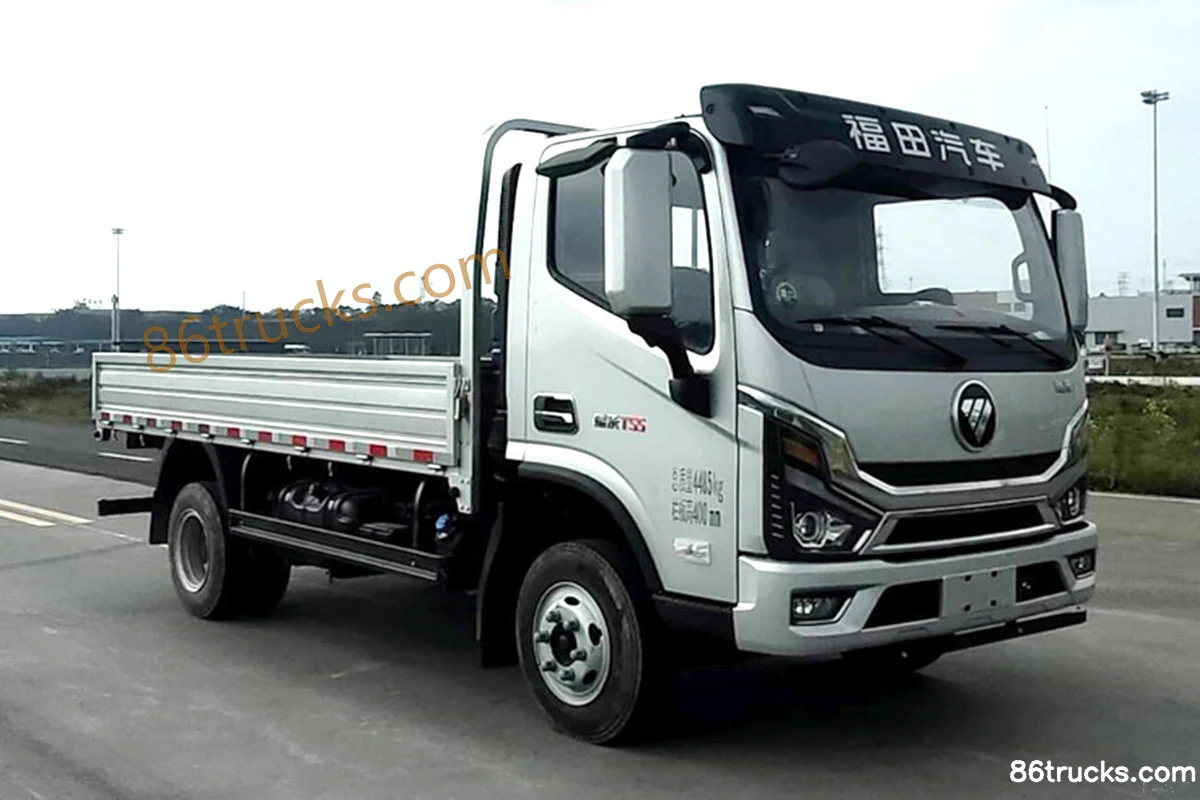

Exterior1

1 photos

FAQ

What is the export price of Foton TS5 4.17m Single Row Plug-in Hybrid Flatbed Light Truck Honeycomb Energy 19.04kWh 4X2(6 wheels), and what does it include?

Foton TS5 4.17m Single Row Plug-in Hybrid Flatbed Light Truck Honeycomb Energy 19.04kWh 4X2(6 wheels) export reference is about From $23,028; MSRP is ¥16.58M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton TS5 4.17m Single Row Plug-in Hybrid Flatbed Light Truck Honeycomb Energy 19.04kWh 4X2(6 wheels) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton TS5 4.17m Single Row Plug-in Hybrid Flatbed Light Truck Honeycomb Energy 19.04kWh 4X2(6 wheels)?

Key specs of Foton TS5 4.17m Single Row Plug-in Hybrid Flatbed Light Truck Honeycomb Energy 19.04kWh 4X2(6 wheels): Drive: 4x2; Horsepower: 160 hp; Emission: China VI. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton TS5 4.17m Single Row Plug-in Hybrid Flatbed Light Truck Honeycomb Energy 19.04kWh 4X2(6 wheels) suited for?

Foton TS5 4.17m Single Row Plug-in Hybrid Flatbed Light Truck Honeycomb Energy 19.04kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Foton TS5 4.17m Single Row Plug-in Hybrid Flatbed Light Truck Honeycomb Energy 19.04kWh 4X2(6 wheels) differ from other variants in the same series?

Foton TS5 4.17m Single Row Plug-in Hybrid Flatbed Light Truck Honeycomb Energy 19.04kWh 4X2(6 wheels) belongs to Foton TS5 light-duty truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton TS5 4.17m Single Row Plug-in Hybrid Flatbed Light Truck Honeycomb Energy 19.04kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton TS5 4.17m Single Row Plug-in Hybrid Flatbed Light Truck Honeycomb Energy 19.04kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
